- Stock: In Stock
- Model: ST220012908
- SKU: ST220012908
Features:
- Product type: DC Gear motor with Cable; Rated Voltage: 12V; No-Load Speed: 30RPM; No-Load Current: ≤150mA; Rated Torque: 6.4kg.cm. The gear motor is primarily designed to reduce speed in a series of gears, which in turn creates more moment of force.
- This DC motor features large moment of force, low speed, and low noise.
- This motor is adopted of pure copper wire coil, with low heat and low loss.
- The motor is made of metal gear, wear-resisting, avoid tooth breaking, so with long serving life.
- Applications: perfect for window opener, door opener, mini windlass etc.
Specification:
Produce name | DC Encoder Gear Motor with cable |
Model | GM25-310 |
Voltage | 12V |
Gear Ratto | No load | Load Torque | Stall | ||||
Speed | Current | Speed | Current | Torque | Current | Torque | |
1:300 | 30RPM | ≤150mA | 28RPM | ≤170mA | 850g.cm | ≤2.1A | 6.4kg.cm |
Produce Included:

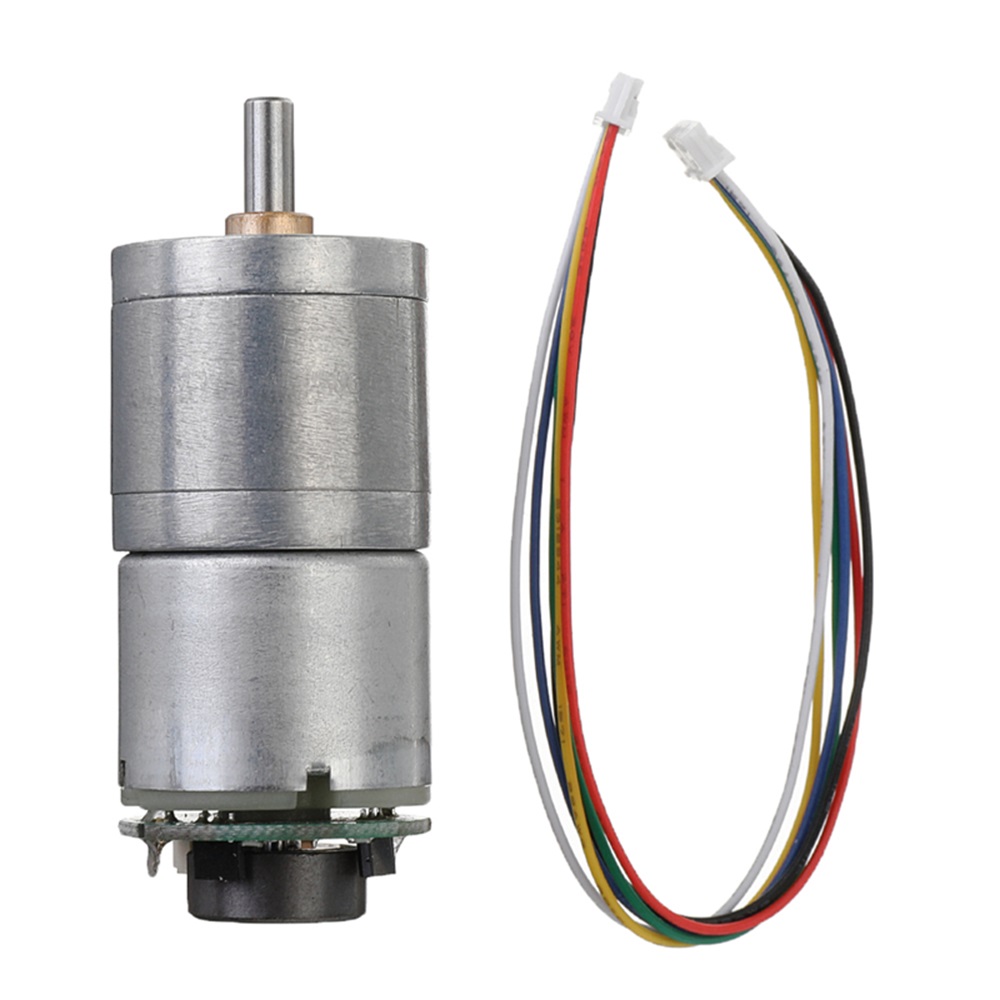

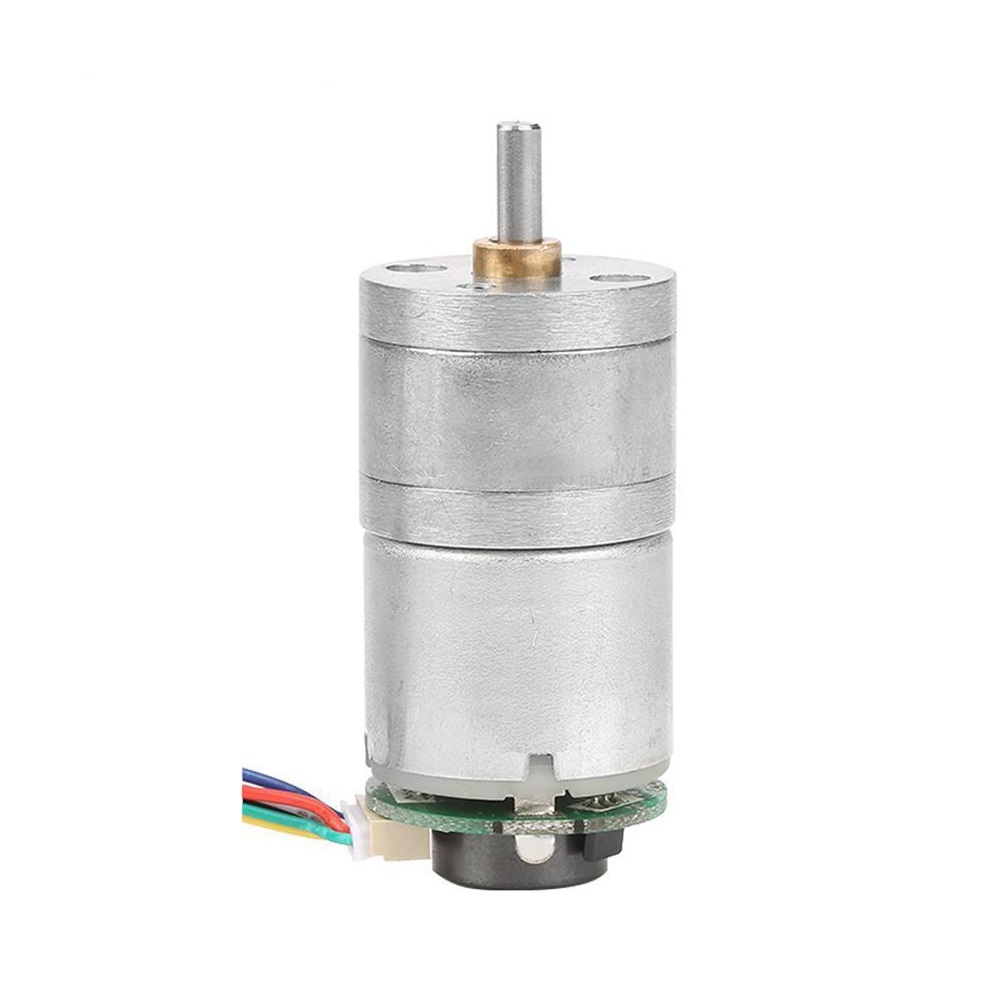

1 Pc x | DC Encoder Gear Motor with cable |
More Detail:
