- Stock: In Stock
- Model: ST230050446
- Dimensions: 227.00mm x 160.00mm x 23.00mm
- SKU: ST230050446
| More Memory Options |
| 16GB RAM + 1TB SSD | 32GB RAM + 1TB SSD | 32GB RAM + 2TB SSD |
| Specification | ||
| Display | Characteristic | Full Screen |
| Touch Panel | Support, 10-point Touch Control，Supported (Requires Separate Purchase), Active Pen With 4096-level Pressure Sensitivity, Original Handwriting, Compatible With Surface Pen | |
| Screen Type | Corning Gorilla Glass 5，IPS Technology | |
| Screen Size | 10.1 Inches | |
| Aspect Ratio | 16：10 | |
| Screen Resolution | Default: 1920×1200，Maximum: 2560×1600 | |
| Pixels Per Inch | 299 PPI | |
| CPU | Product model | AMD Ryzen 7 6800U |
| # of Performance-cores / # of Efficient-cores | 8C / 16T | |
| Performance-core Max Turbo Frequency | 4.70 GHz | |
| Efficient-core Max Turbo Frequency | ||
| Level 3 | 16 MB | |
| Core Architecture | Zen3+ | |
| Lithography | 6nm | |
| TDP | 15W-28W | |
| GPU | Graphics Card | Integrated Graphics |
| Processor Graphics | AMD Radeon 680M | |
| Graphics Max Dynamic Frequency | 2.2 GHz | |
| Execution Unit | 12CU | |
| Shader | 768 | |
| Video Memory | Shared Memory | |
| 4K Image resolution | Supports | |
| HDMI 2.1(TMDS) | 4096 x 2304 @60Hz | |
| DP 1.4a | 7680 x 4320 @60Hz | |
| eDP 1.4b | 4096 x 2304 @120Hz | |
| DirectX | DX12，DX12.1，DX 12 Ultimate | |
| OpenGL | 4.6 | |
| Storage | Memory | 32GB |
| Memory Types | LPDDR5-6400 MT/s | |
| Memory Dual Channel | Supports | |
| Hard Disk Type | M.2 SSD | |
| Hard Disk Interface | Socket 3 × 2 | |
| Hard Disk Specifications | 1 × M.2（PCIe 4.0）NVMe 2280 SSD | |
| 1 × M.2（PCIe 4.0）NVMe 2230 SSD | ||
| Standard Capacity | M.2（PCIe 3.0）2280 SSD 1TB | |
| Bus Specification | PCIe 4.0 × 4 | |
| Transfer Protocol | NVMe 1.4 | |
| Multimedia support | Audio System | Built-in Sound Chip + Intelligent Amplifier That Features High Energy Efficiency, High PSRR and Low Noise |
| Loudspeakers | Built-in 4 Super Linear Speakers | |
| Camera | Built-in Camera: 2 Million Pixels, Maximum Resolution: 1612×1212, Super Wide-angle, High Refresh Rate | |
| Microphone | Built-in microphone | |
| Network Communications | Wi-Fi 6 | IEEE 802.11 a/b/g/n/ac/ax, Support 2.4G/5G Dual Frequency Band, Dual Channel Maximum Transmission Rate 2402Mbps |
| MU-MIMO | Supports | |
| Bluetooth | 5.2 | |
| I/O Interface | Video / Data / Charging | 1 x USB4（40Gbps） |
| 1 x USB 3.2 Gen 2 Type-C | ||
| 3 x USB 3.2 Gen 1 Type-A | ||
| HDMI 2.1 | ||
| microSDXC Slot | Bus interface: UHS-I | |
| Video Speed Class: V30 | ||
| Application Performance Class: A2, Read: 160MB/s, Write: 120MB/s | ||
| Compatible: microSDHC / microSDXC / microSDUC | ||
| SD Slot | Bus interface: UHS-II | |
| Video Speed Class: V90 | ||
| Read 312MB/s, Write: 312MB/s | ||
| Compatible: SDHC/ SDXC/ SDUC | ||
| Audio Port | 1 x 3.5mm Headphone/Microphone Combo Interface, Compatible With Apple Headphones (US Specification) | |
| BIOS Reset Port | Supports | |
| I/O | Power | Power Button With A Fingerprint Sensor |
| Keyboard | QWERTY Keyboard Design, Backlight (2-level Brightness Control) | |
| Indicator Lamp | Charging Indicator, Running Indicator, CapsLook Indicator, Fan Switch Indicator | |
| TouchPad | Precision TouchPad （PTP） | |
| Mouse | The Joystick Simulates A Mouse, Requires Switching The Mode Handle/Mouse | |
| Joystick | Hall Sensor Sticks, Stepless, Super Linear, No Dead Zone, Sink-in Design, Native Support For Down Pressure Sensitive L3 / R3 | |
| Game Accessories Buttons | Analog Triggers | |
| Game Function Buttons | Double Silk-printed Legends (ABXY, △○×□, Select, Start, Xbox (Menu)) | |
| D-Pad | Siamese Arrow Keys | |
| Handle Vibration | Double Vibration Motor | |
| Sensor | 6-axis Gyroscope | |
| Other Keys | Handle/Mouse Switch Button，2 Custom Physical Buttons | |
| Battery | Battery Type | Li-polymer |
| Battery Capacity | 67Wh | |
| Battery Life | 3 Hours Of Heavy Use, 6-8 Hours Of Moderate Use, 14 Hours Of Light Use, Depending On The Specific Environment Of Use | |
| Appearance | Weight | 1005g |
| Size | 227 x 160 x 23 mm | |
| Shell Material | A and C Sides Are Made of 6061 Aluminummagnesium Alloy, LG-DOW 121H Aviation ABS | |
| Shell Color | Gun color | |
| Covers | Magnetic Suction Type, Can Be Stored Inside The Shell | |
| Thermal Design | Active Cooling, Big Fan + Dual Heat Pipe | |
| Accessories | Package Included | GPD WIN Max 2 × 1 |
| 100W PD Power Adapter（20V==5A，20V==3.25A）×1 | ||
| Supports 100W, c-c Power Cord With E-mark | ||
| Warranty Card ×1 | ||
| Product Manual ×1 | ||
| Warranty Information | Warranty Policy | Global Warranty |
| Warranty Time | Device 1 year, Charger 1 year | |
| Official Hotline | + 86 755 86572275 | |
| Chinese Website | www.Softwincn.com | |
| English Website | www.Gpd.hk | |
Features:
Comes with the latest AMD processor series:
AMD Ryzen 7 6800U APU featuring AMD Radeon 680M RDNA2 Graphics, 32GB LPDDR5-6400 MT/s RAM

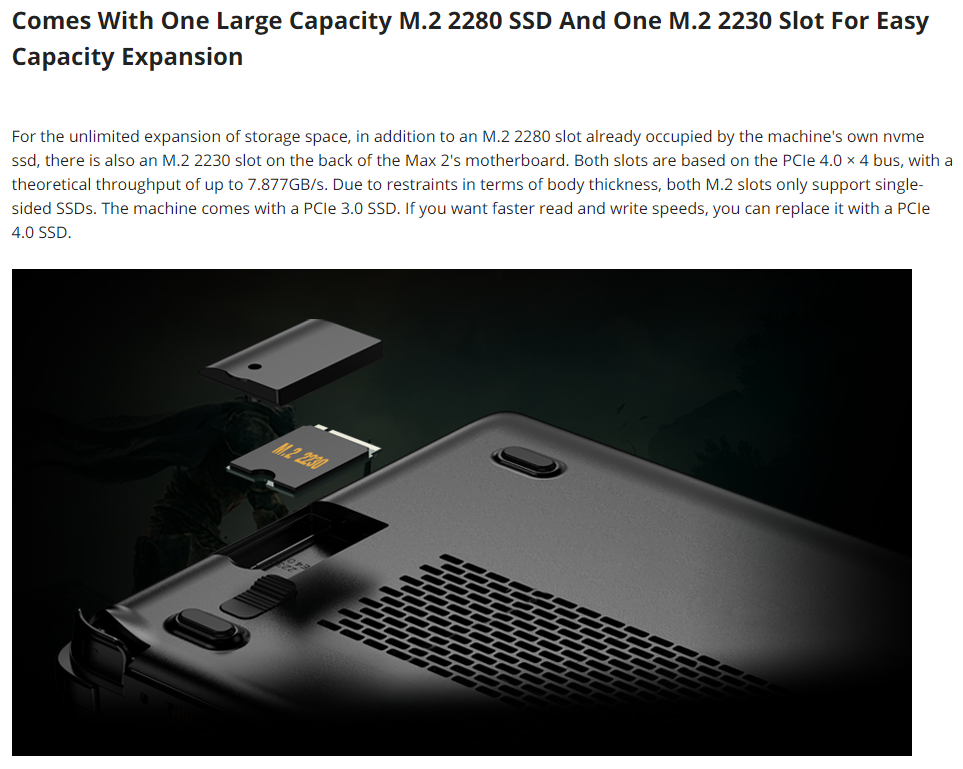

Dual M.2 (PCIe 4.0 2280 / 2230) slots, come with 1TB M.2 NVMe 2280 SSD and can be further expanded
10.1-inch ultra-narrow bezel display featuring passive eye protection (such as blue light reduction), native landscape, 10-point touch support, and enabled for the use of active stylus with 4096-level pressure-sensitivity (MPP2.0)
All-metal CNC body made of 6061 aluminummagnesium alloy. The back is made of aviation-grade ABS synthetic resin for a comfortable two-hand grip
Highly efficient cooling solution with large turbo fan and dual heat pipes
No more stick drift with the introduction of Hall Sensor sticks for the first time in our devices
New mappable back buttons and analog triggers, similar to the Win 3
Dual vibration motor with software control (off, weak, strong)

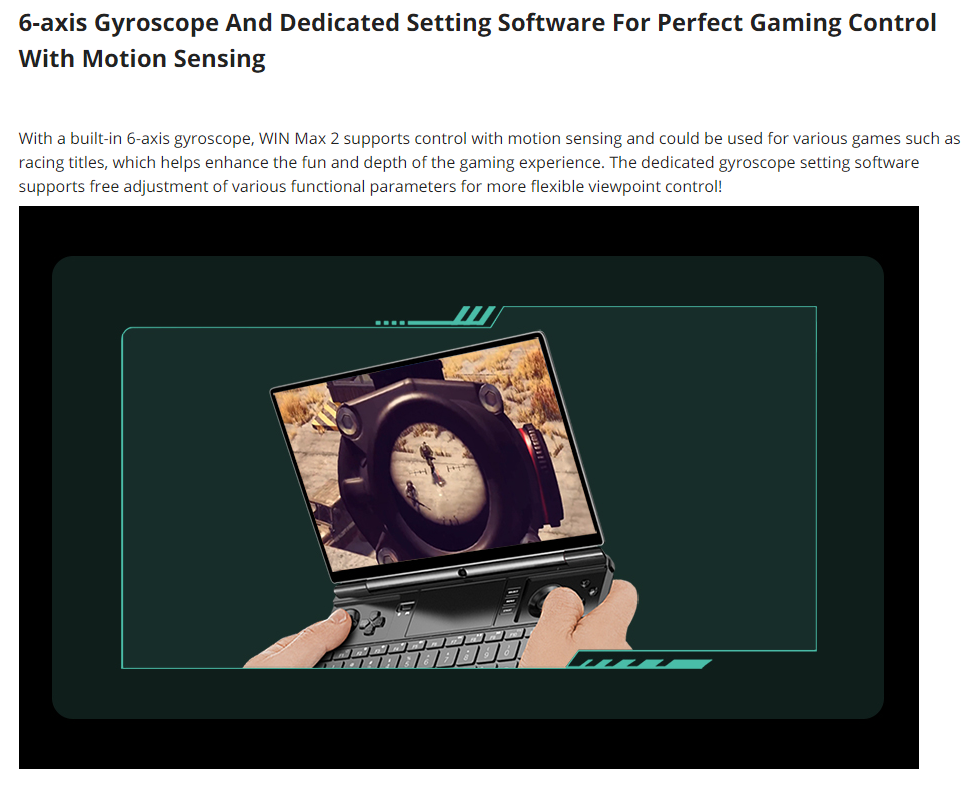

Six-axis gyroscope with dedicated configuration software

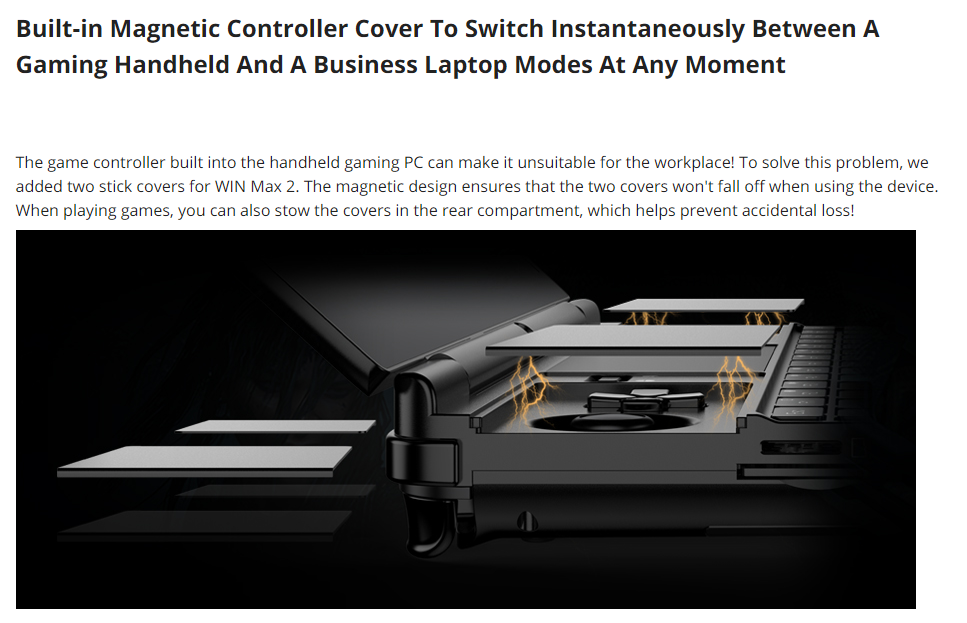

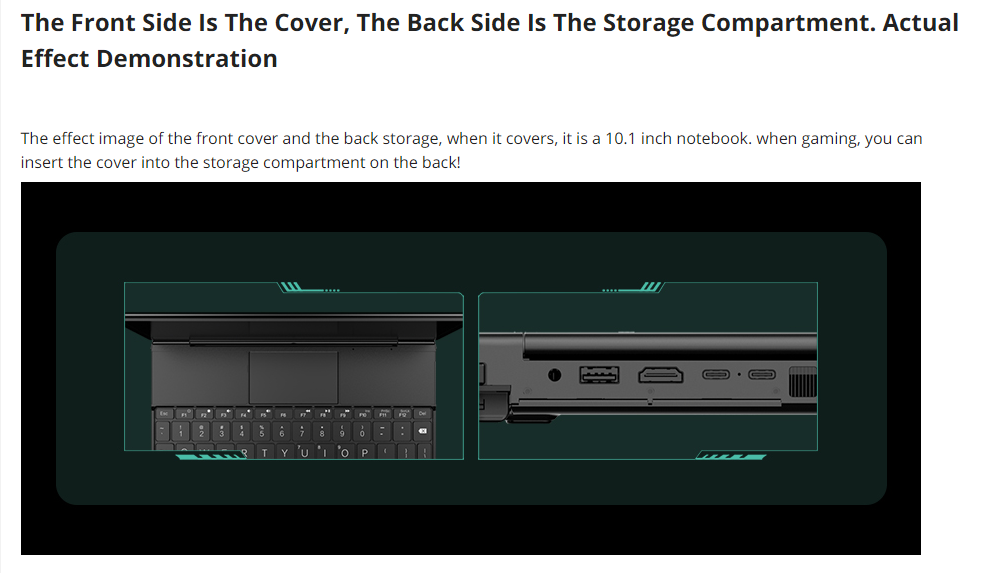

Built-in magnetic controller cover allowing instant switching between gaming handheld and business laptop modes any time

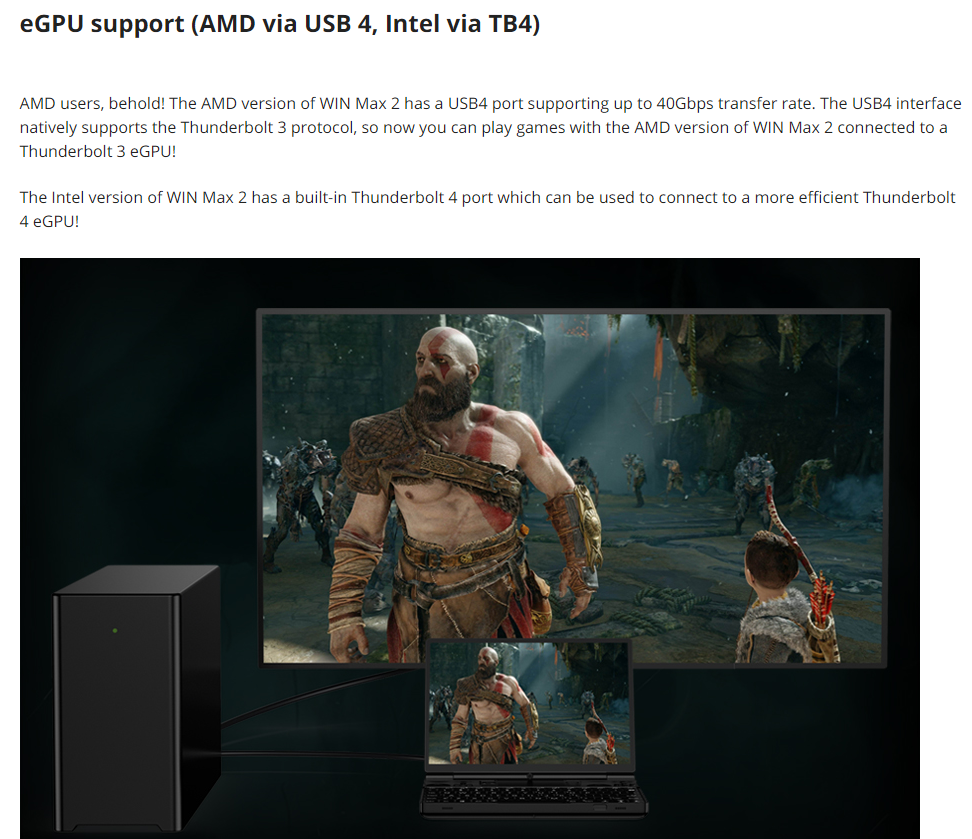

e-GPU support (AMD via USB 4, Intel via TB4)
Support Wi-Fi 6, the maximum transmission rate can reach to 2402Mbps, support Bluetooth 5.2, with longer transmission distance and faster transmission speed

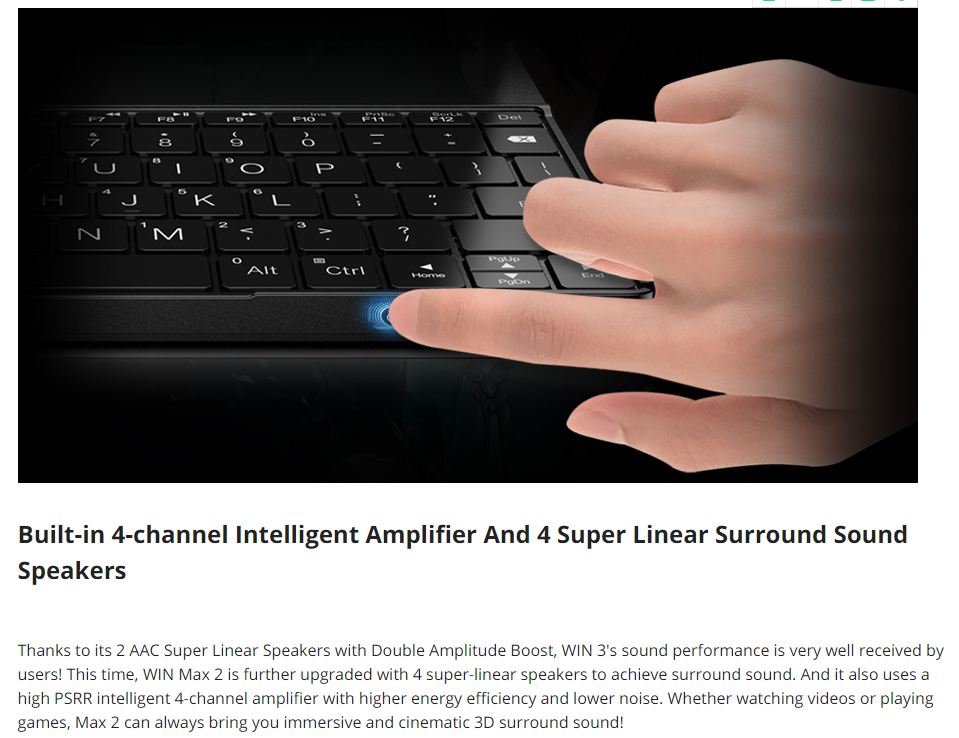

Built-in 4-channel smart amplifier, 4 super-linear speakers for surround sound experience

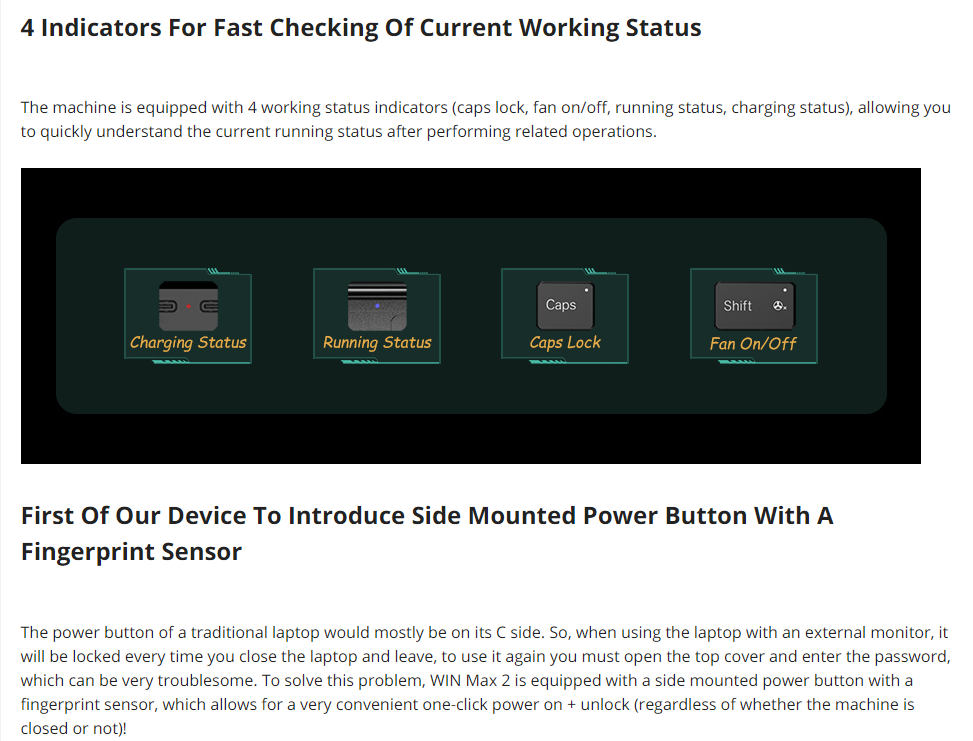

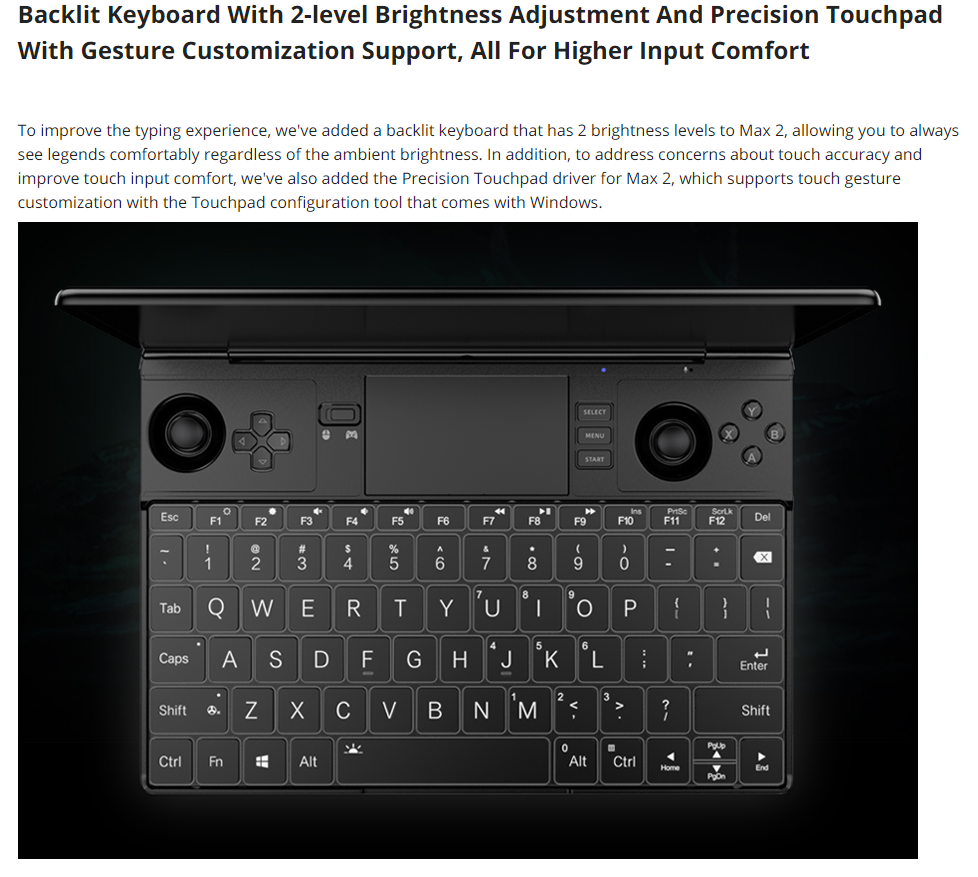

Backlit keyboard with 2 level of brightness, 5 notification LED and a precision touchpad

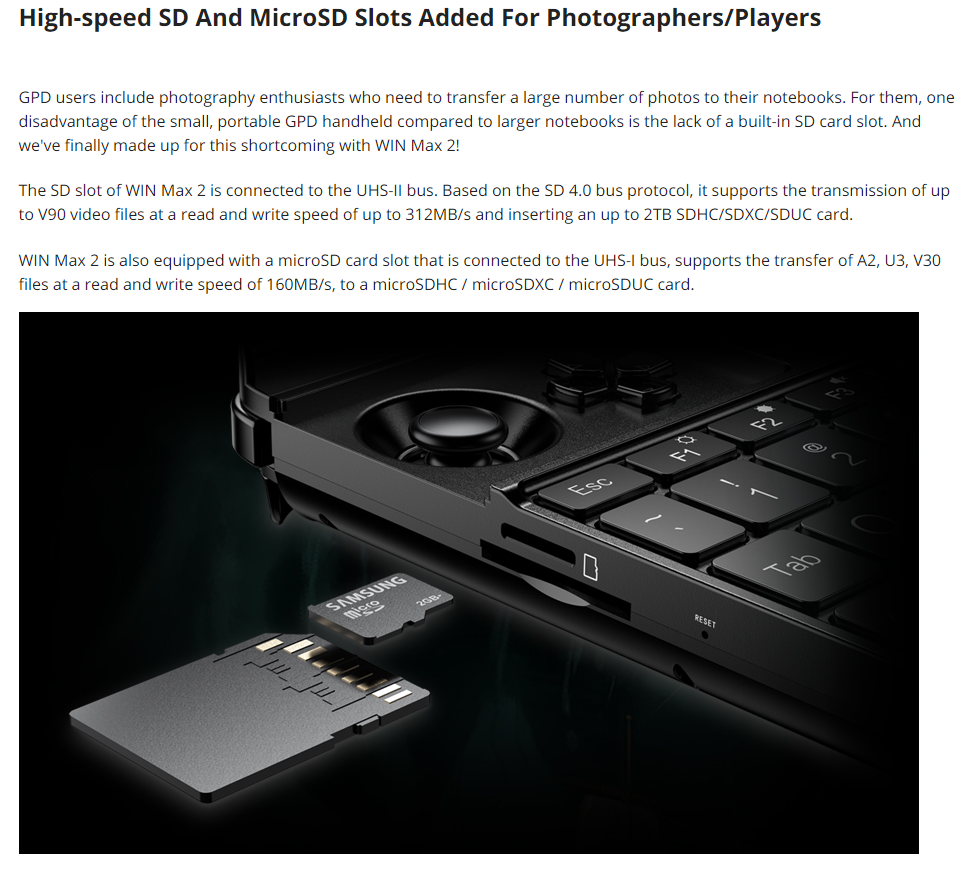

High-speed SD and microSD card slots, the best choice for photographers
First of our device to introduce side mounted power button with a fingerprint sensor

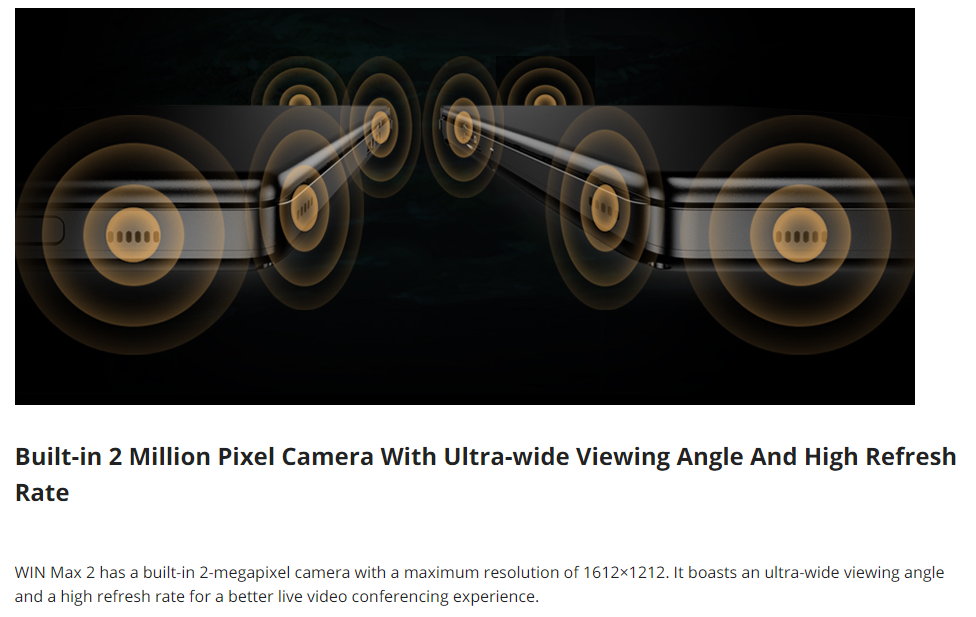

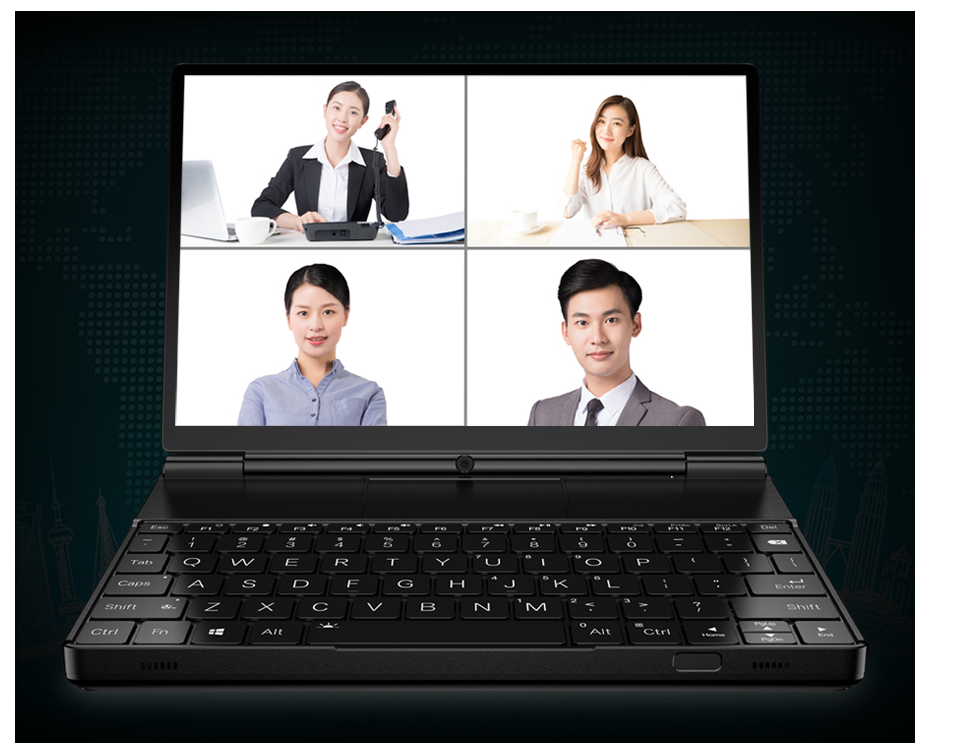

Built-in 2-megapixel ultra-wide-angle camera with 118-degree viewing angle and high refresh rate

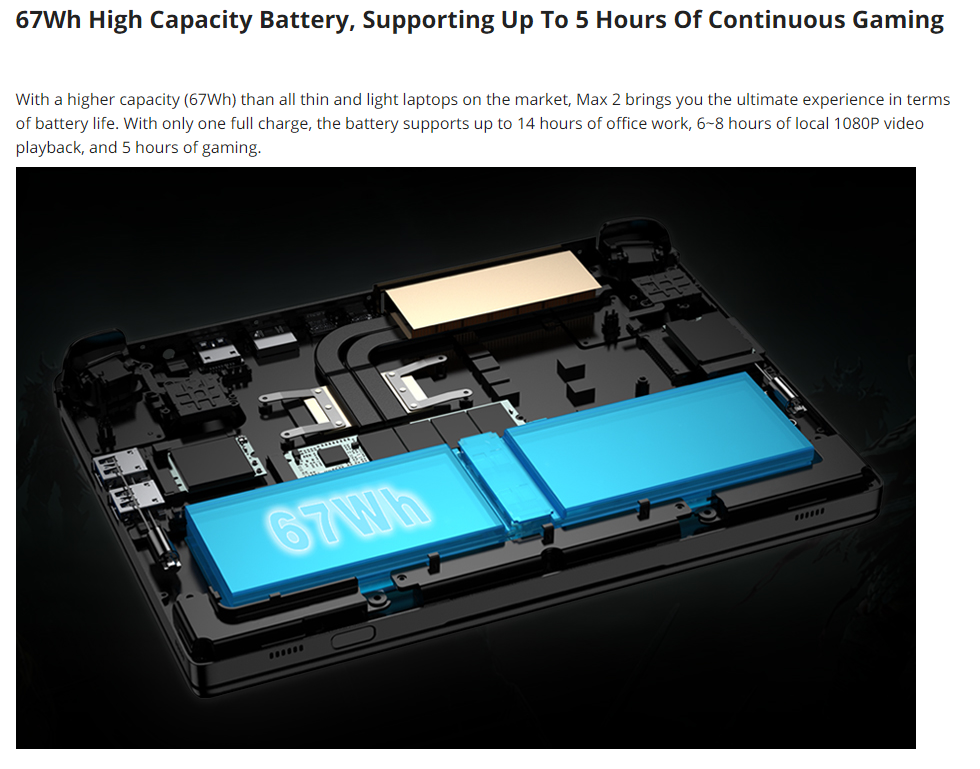

67Wh large-capacity battery that can last 3 hours of gaming

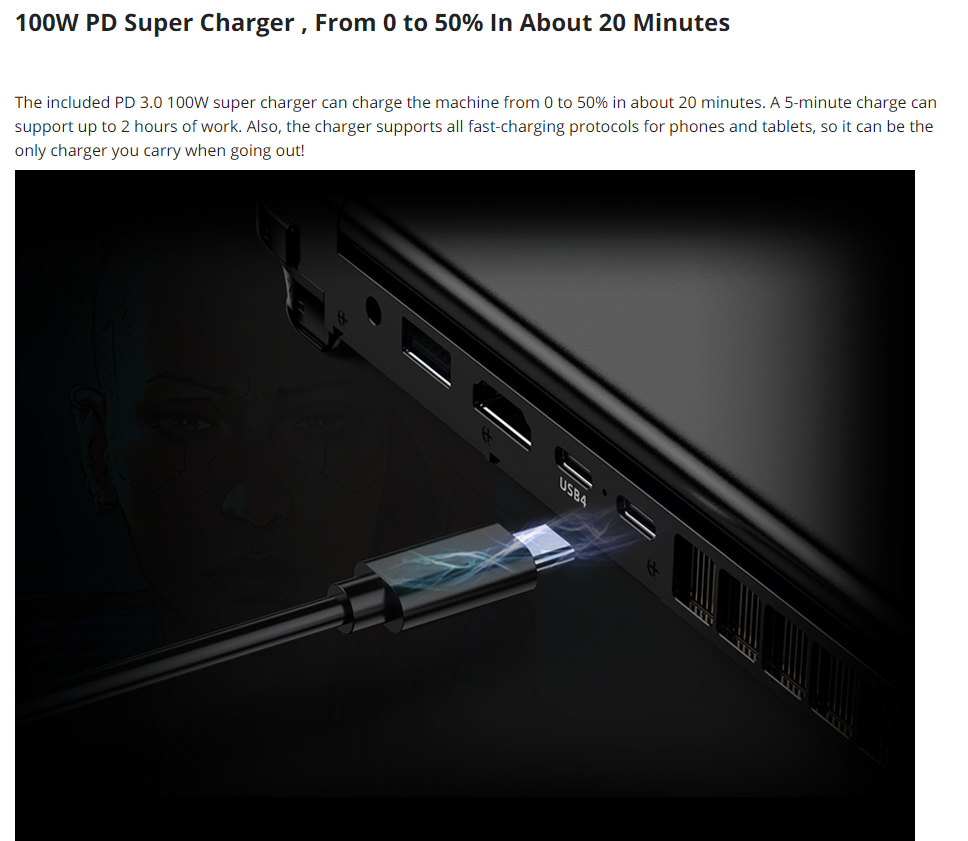

100W PD super-fast charger, from 0 to 50% in around 20 minutes
Note:
Don't support 4G LTE module.

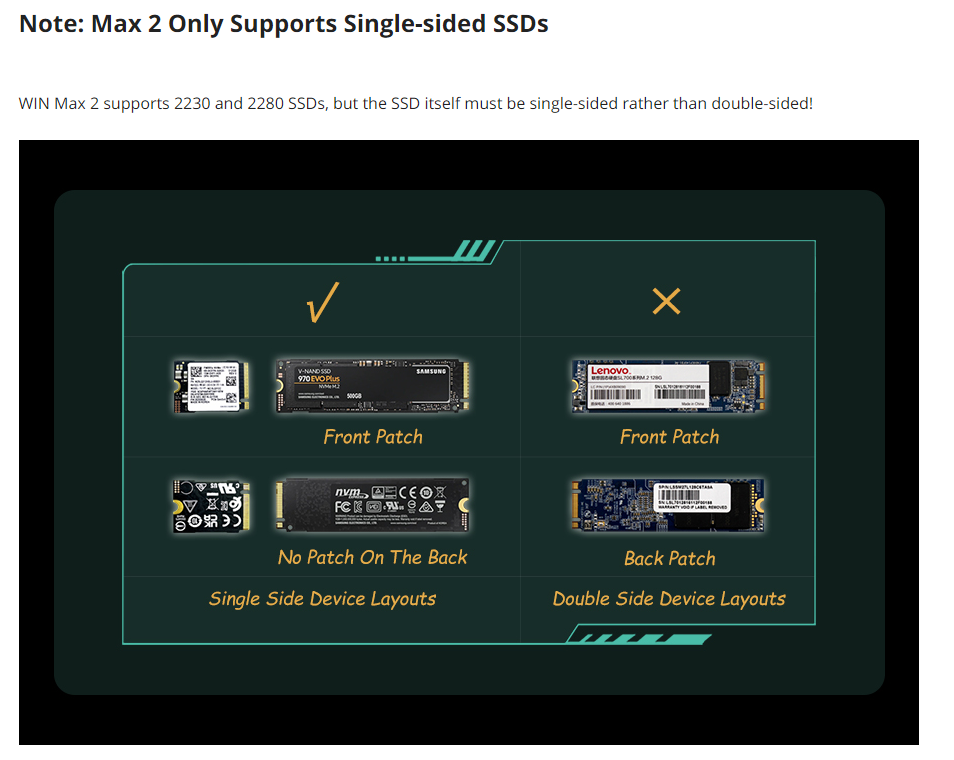

Max 2 Only Supports Single-sided SSDs. WIN Max 2 supports 2230 and 2280 SSDs, but the SSD itself must be single-sided rather than double-sided!
Package Included:
1 x GPD WIN Max 2 32GB+1TB
1 x 100W PD Power Adapter(20V==5A，20V==3.25A)
1 x Supports 100W, c-c Power Cord With E-mark
1 x User Manual
