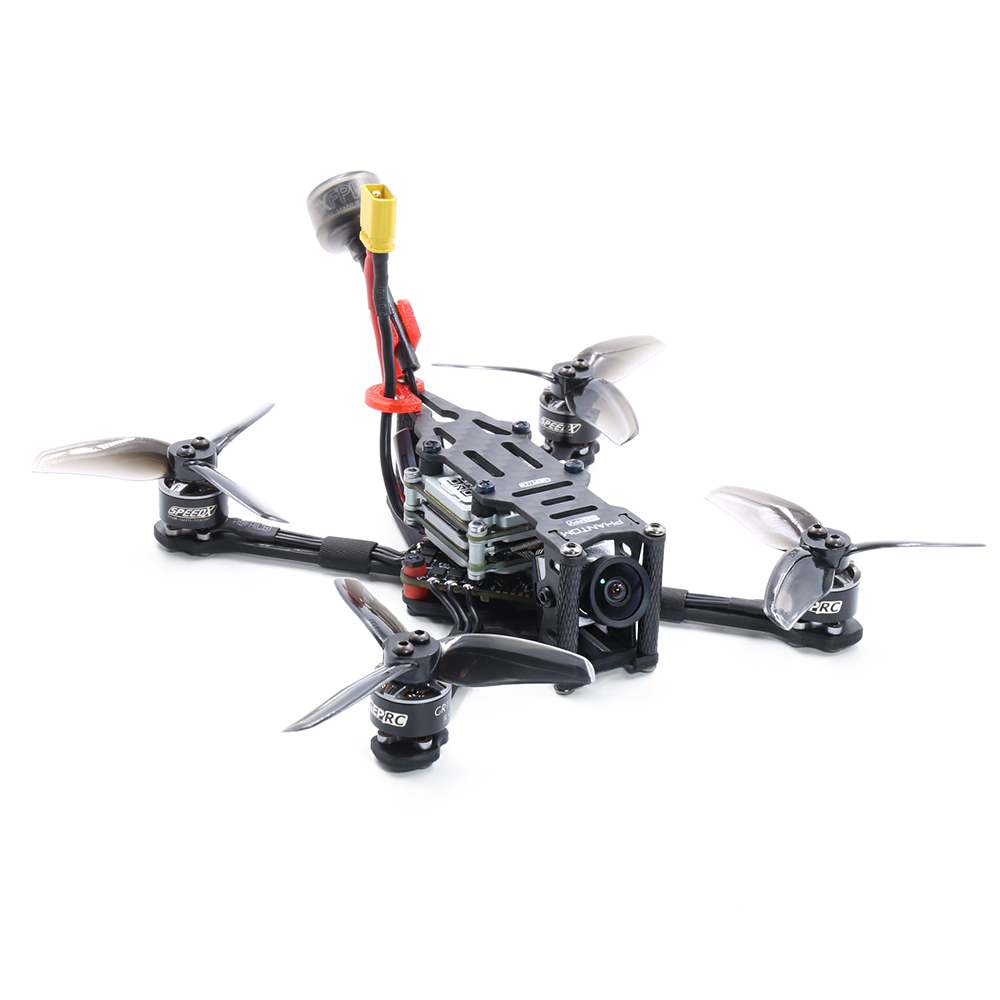

HD Toothpick 125mm 2.5 Inch 4S FPV Racing Drone PNP/BNF Caddx Polar Vista Cam 20A ESC F4 FC AIO GR1105 5000KV Motor

Summary:

Phantom toothpick FPV has been great loved of pilots since its release. It is pretty light, compact and flexible, and can be used for flexible cross flight in a narrow environment. Therefore, we have developed The Phantom HD.

Now, I’m very exciting to introduce phantom HD . Phantom HD keeps the extreme light weight, The total weight of about 92g. Phantom HD supports 4S battery, which is basically one of the lightest HD toothpick supporting 4S battery. Phantom HD has great and maneuverability. Because of its very small wheelbase,it can achieve a flying experience similar with 5-inch FPV. Combined with the HD glasses of DJI, it can get the fantastic flying experience of HD FPV, The feeling is wonderful. Using the latest GEP-20A-F4 AIO FC, it is stable incredibly.

The GR1105 5000kv motor and 4S 450mah battery, it has high efficiency, powerful and stable flight. Equipped with the latest GEPRC G2523 2.5-inch Props, G2523 is quite suitable for the perfect balance between Racing and Freestyle, It can maximize the comprehensive performance.

Phantom HD is carefully assembled and tested by GEPRC team, with excellent flight performance.

Specifications：

Item name: PHANTOM HD

Frame: GEPRC GEP-PTHD

Receiver Options：PNP(With DJI receiver)，Frsky XM+， Frsky RXSR，FlySky A8S，TBS Nano RX

Flight Controller System：GEP-20A-F4 AIO

MCU: STM32F411

IMU: MPU6000 Gyro / Accelerometer (SPI)

Camera HD：Caddx Polar Vista

Props: GEPRC G2523 2.5” props

Antenna：5.8G

Motors：GR1105 5000KV

Wheelbase: 125mm

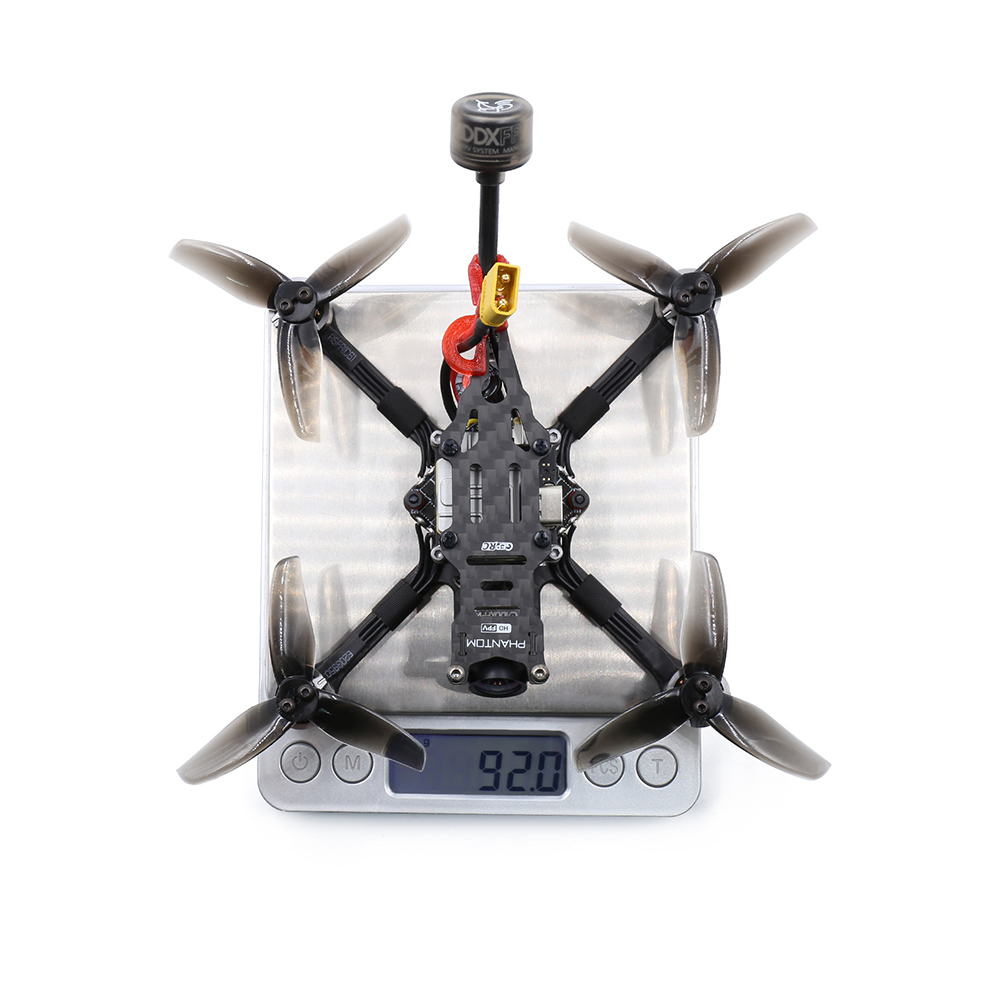

Weight: 92g

Features:

Full 3K Carbon, High-strength frame

Caddx Polar Vista HD FPV System

Build-in New GEP-20A-F4 AIO Flight Controller System

Support 4S battery(Best 4S 450mAh)

Equipped With the new GEPRC G2523 2.5” high efficiency propeller

Toothpick Frame kits, reasonable layout

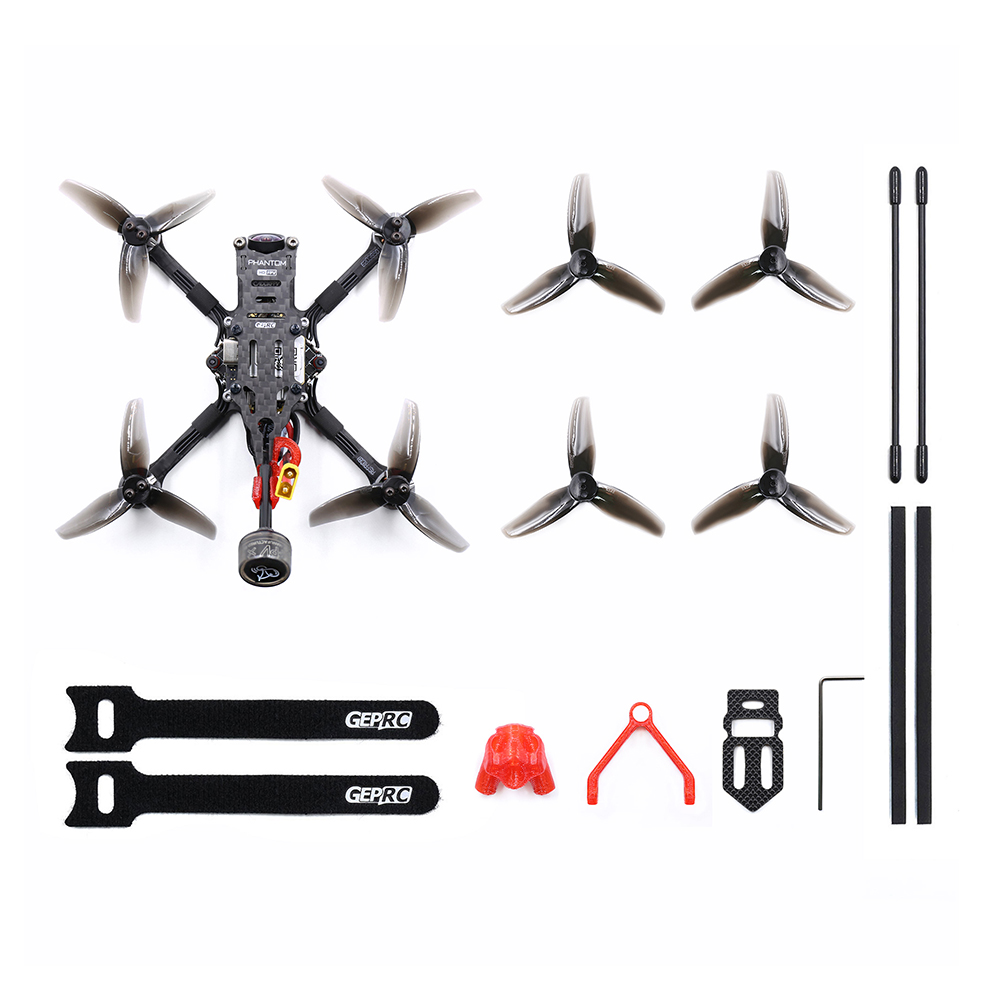

Package Included:

1 x PHANTOM HD FPV Racing Drone

1 x Receiver (Optional)

4 x G2523 propeller (pair)

2 x Battery Strap

2 x TPU Print

1 x Antenna Tube

2 x EVA Shock Absorber

1 x Battery Non-slip Glue

1 x Screwdriver
