HT311 Oscilloscope Accessories BNC to 4mm Adapter for Automotive Diagnostic Oscilloscope
- Stock: In Stock
- Model: ST220012405
- SKU: ST220012405
$9.99
Ex Tax: $9.99
Features:
It is a kind of BNC to 4 mm adapter connects two 4 mm "banana" plugs to a BNC socket.
1 x BNC plug to 2 x 4mm terminal adaptor.
Useful adaptor comprising a male BNC plug terminated to twin 4mm terminals in red and black with 4mm sockets.
Signal is connected to red terminal.
Mini size and easy to use.
Specifications:
Connector Type: Adapter
Convert From Positions: 1
Convert From Gender: Receptacle
Convert To Positions: 2
Convert To Gender: Socket
Insulator: Polyamide (Nylon)
Binding Posts Contacts: Brass, Nickel
Plated BNC (m): Brass, Center Contact, Gold Plated
BNC Impedance: 50Ω
Voltage: 500V
Current: 3A Max.
Resistance: <0.8mΩ
Temperature: -20 degrees ~ +80℃/ -4 ~ 176℉
Item Size: Approx. 6 x 3 x 1.5cm / 2.4 x 1.2 x 0.6in
Item Weight: Approx. 25.2g / 0.9oz
Package Size: Approx. 6 x 3 x 1.5cm / 2.4 x 1.2 x 0.6in
Package Weight: Approx. 28g / 1.0oz
Package included:
1 x BNC to 4 mm Adapter

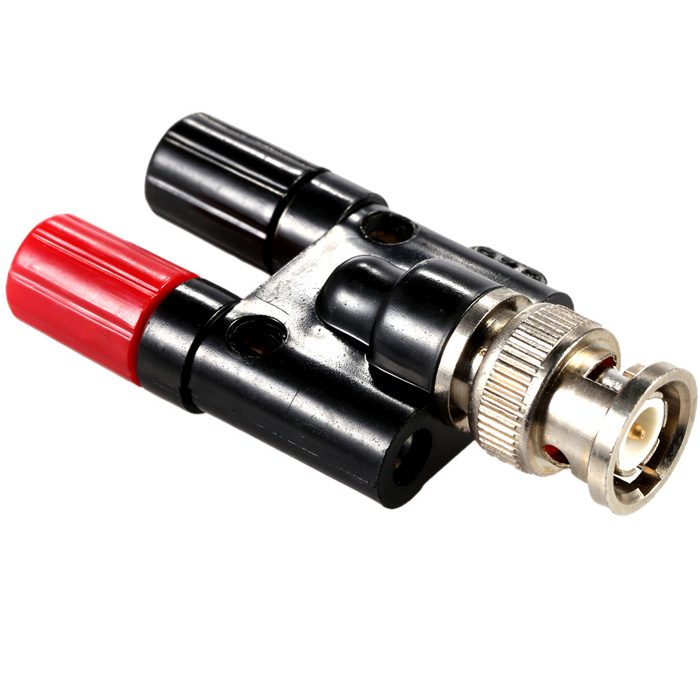

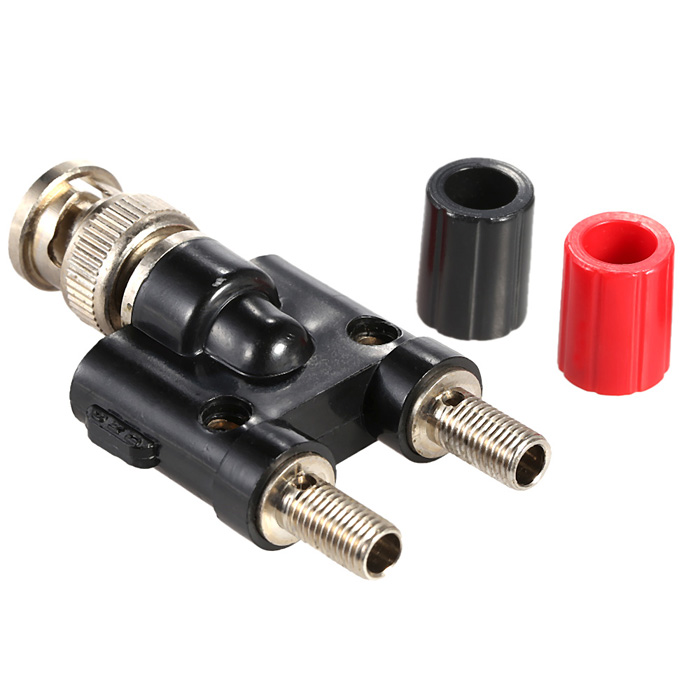

Detail Pictures:
Detail Pictures:
