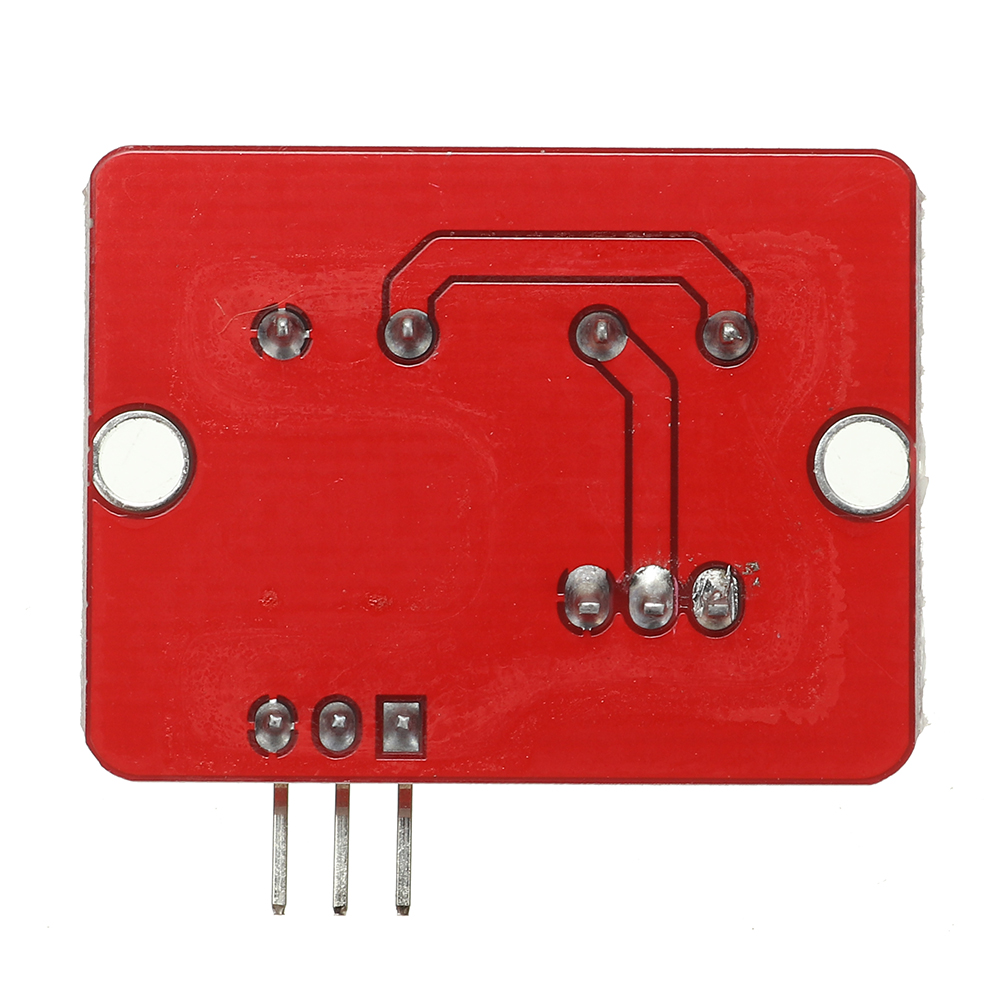

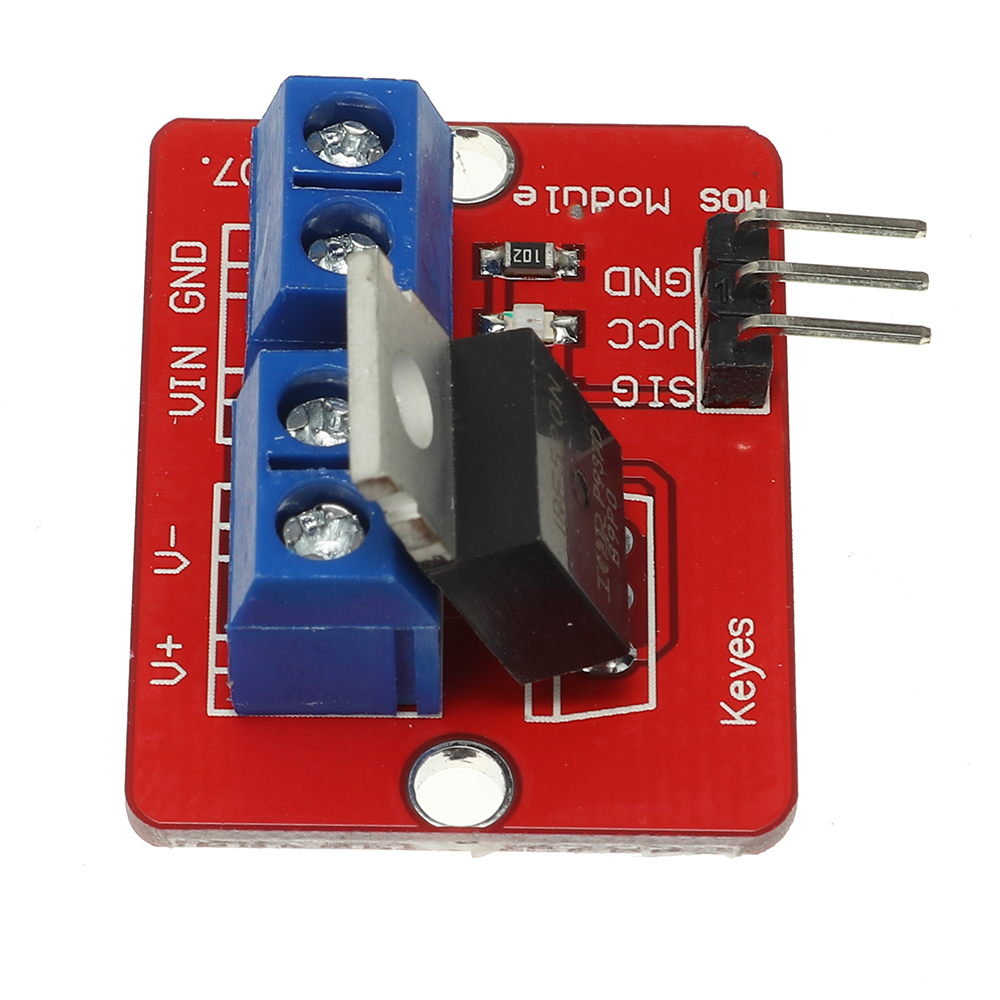

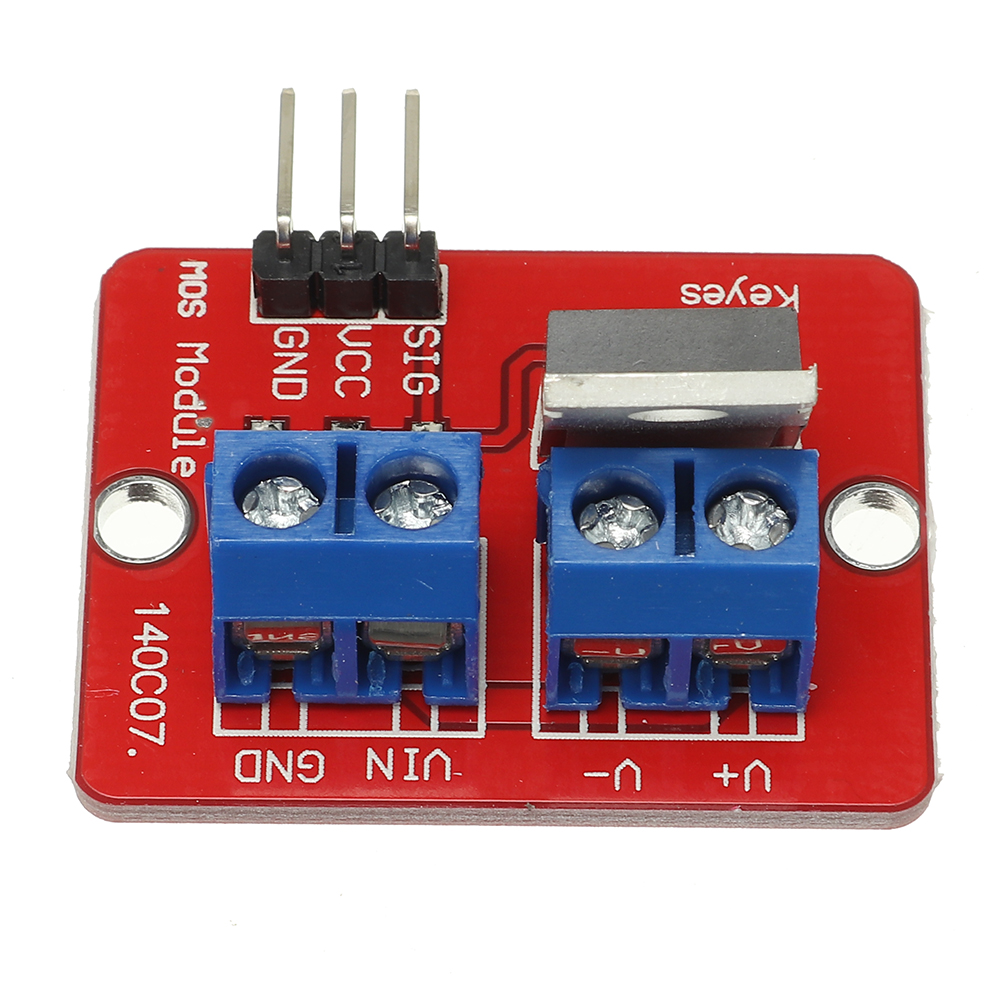

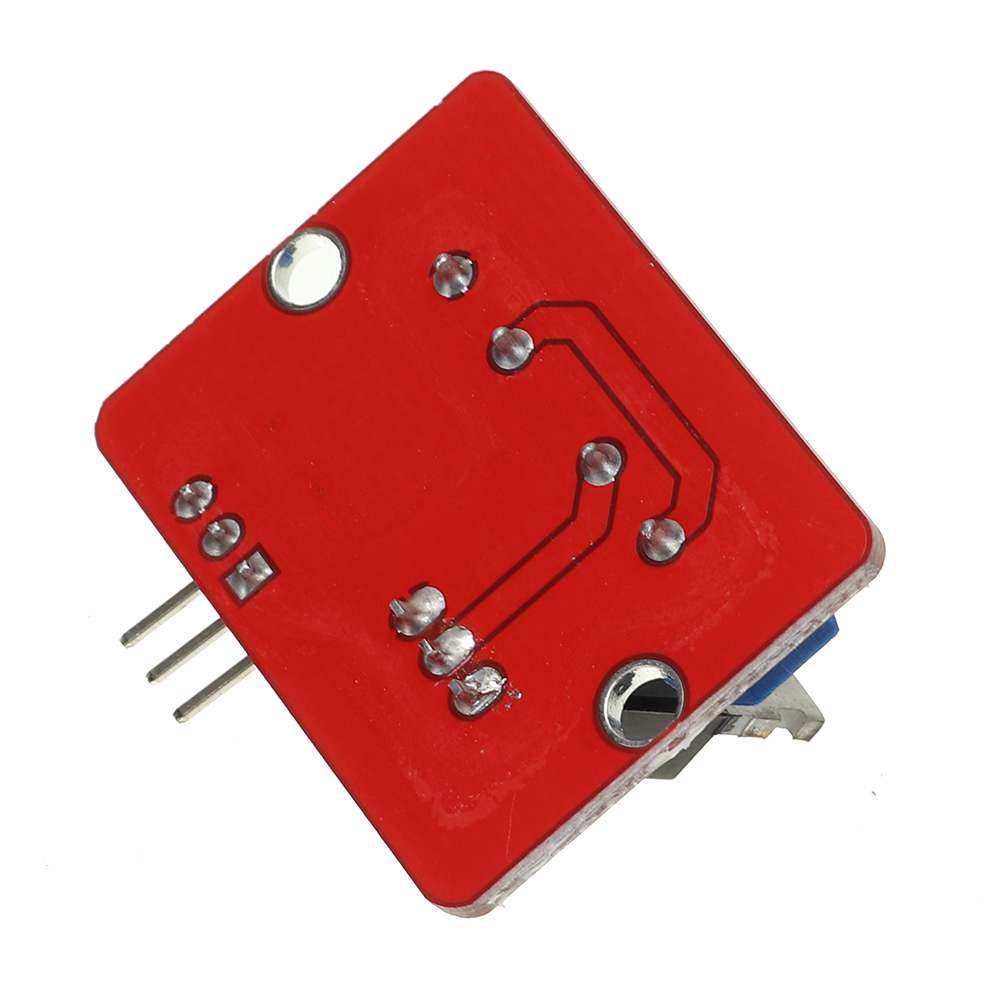

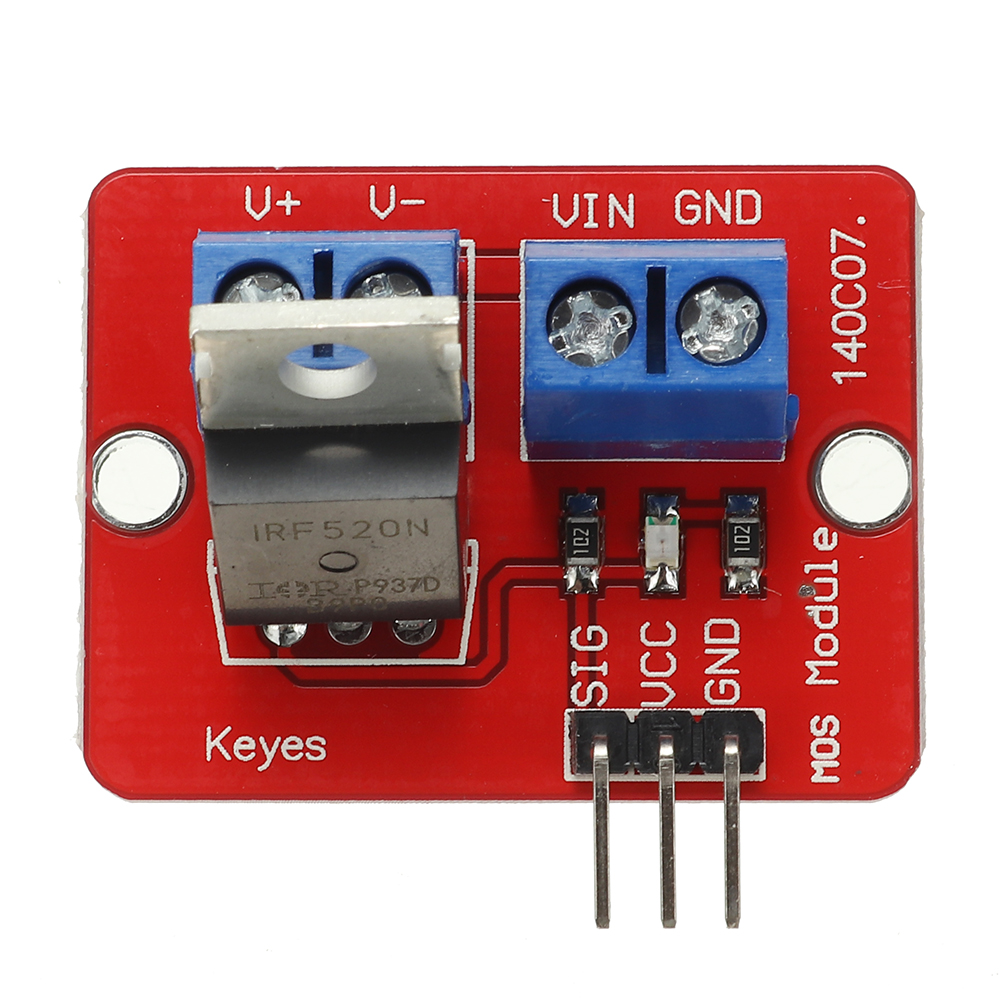

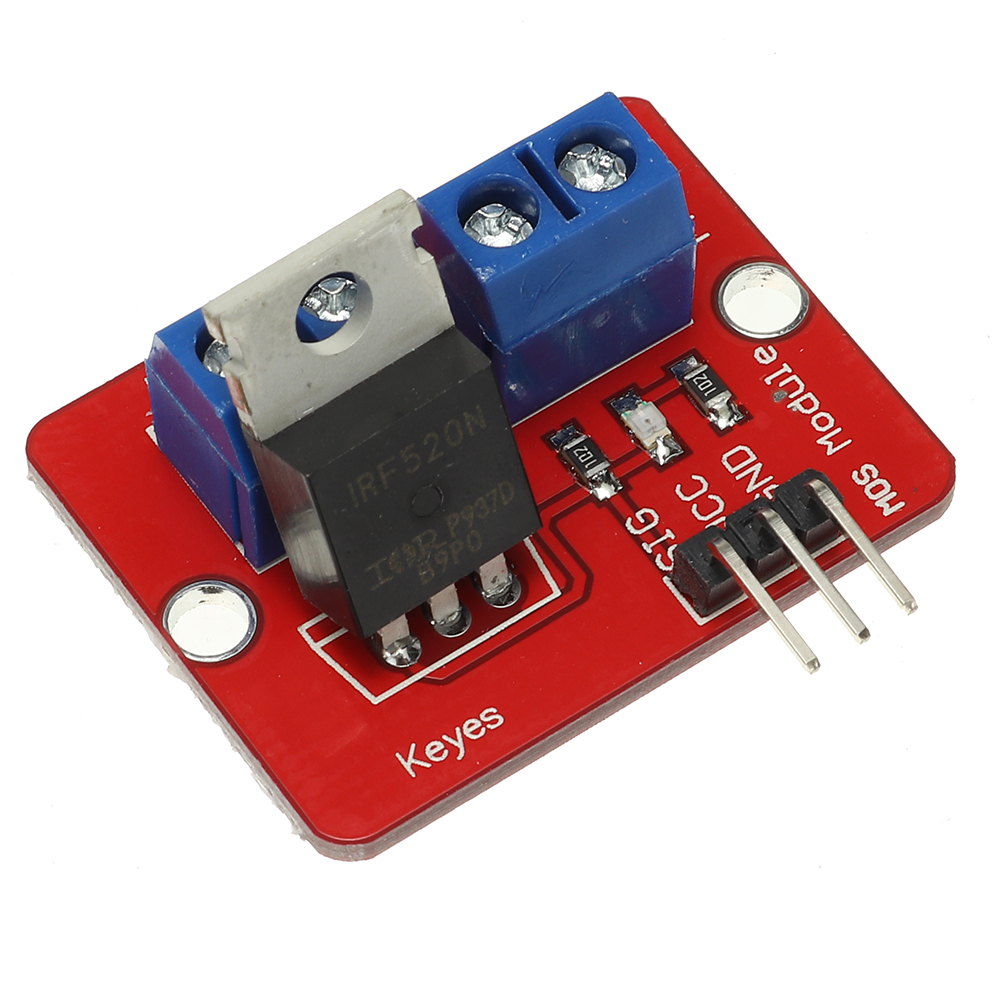

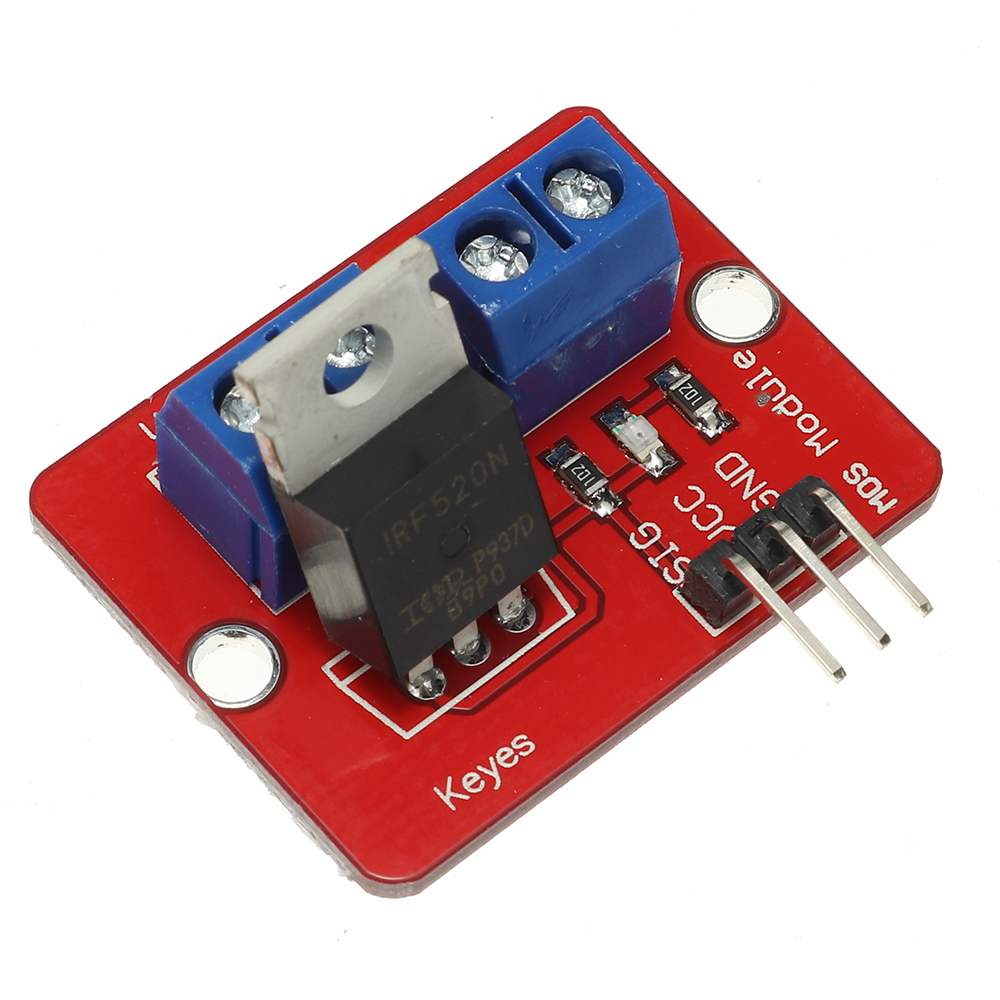

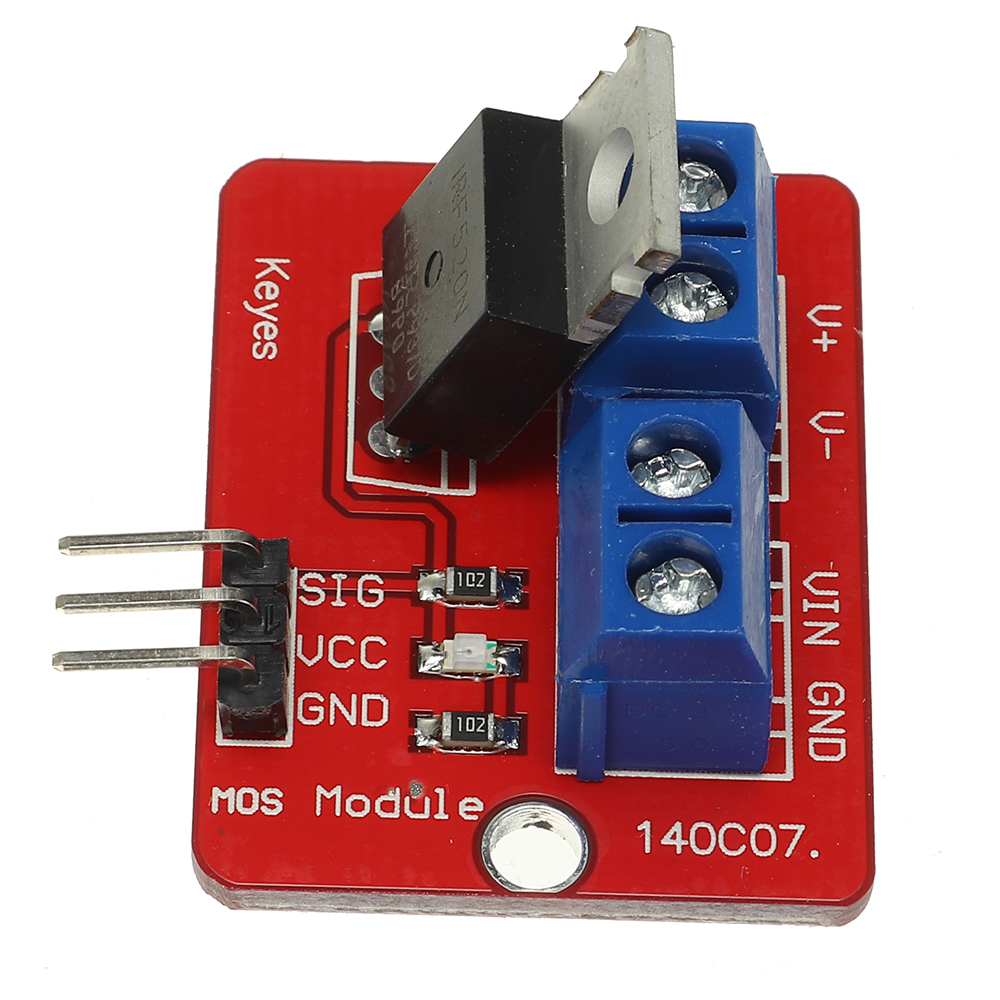

HW-042 0-24V IRF520 MOS Driver Module Board for MCU ARM Raspberry Pi
- Stock: In Stock
- Model: ST230049392
- SKU: ST230049392
$2.99
Ex Tax: $2.99
Features:
Using original IRF520 power MOS tube, can adjust PWM output
Can let the Arduin0 drive up to 24 v load, such as LED lights belt, dc motor, micro pump, solenoid valve
By PWM adjustable can realize stepless dimming LED, motor stepless speed regulation
The product instructions:
PWM signal for high level effectively
When the PWM for high level (3.3 V to 3.3 V):
As the power supply voltage, between V + and V - working indicator, work load
When the PWM is low level (0 V to 0.5 V):
V + and V - between 0, work lights out, don't work load
Parameters:
Size: 33.4 x 25.6MM
Weight: 10g
Voltage: 3.3V, 5V
Port: the digital quantity level
The output load voltage: 0~24V
The output load current: < 5A (more than 1A need to add heat sink)
Platform: for Arduino, MCU, ARM, raspberry pi
Package included:
1 x MOS Driver Module
