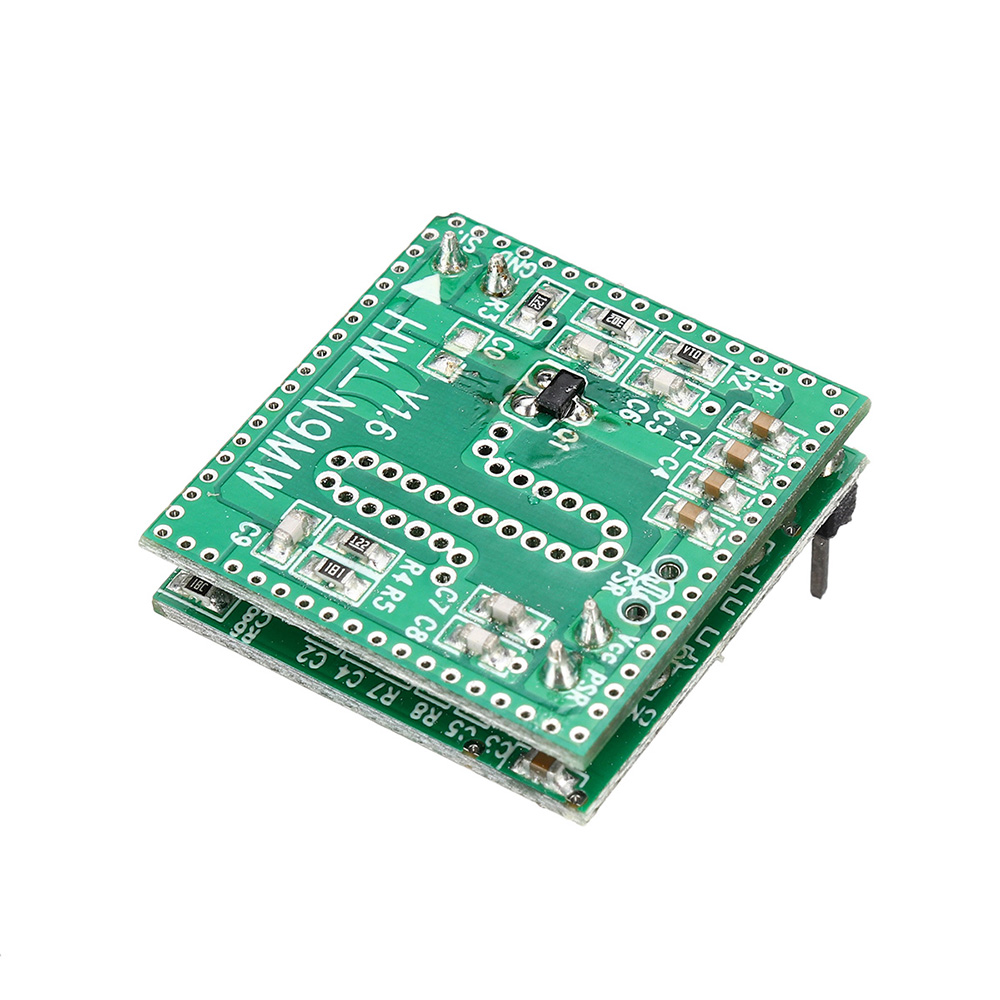

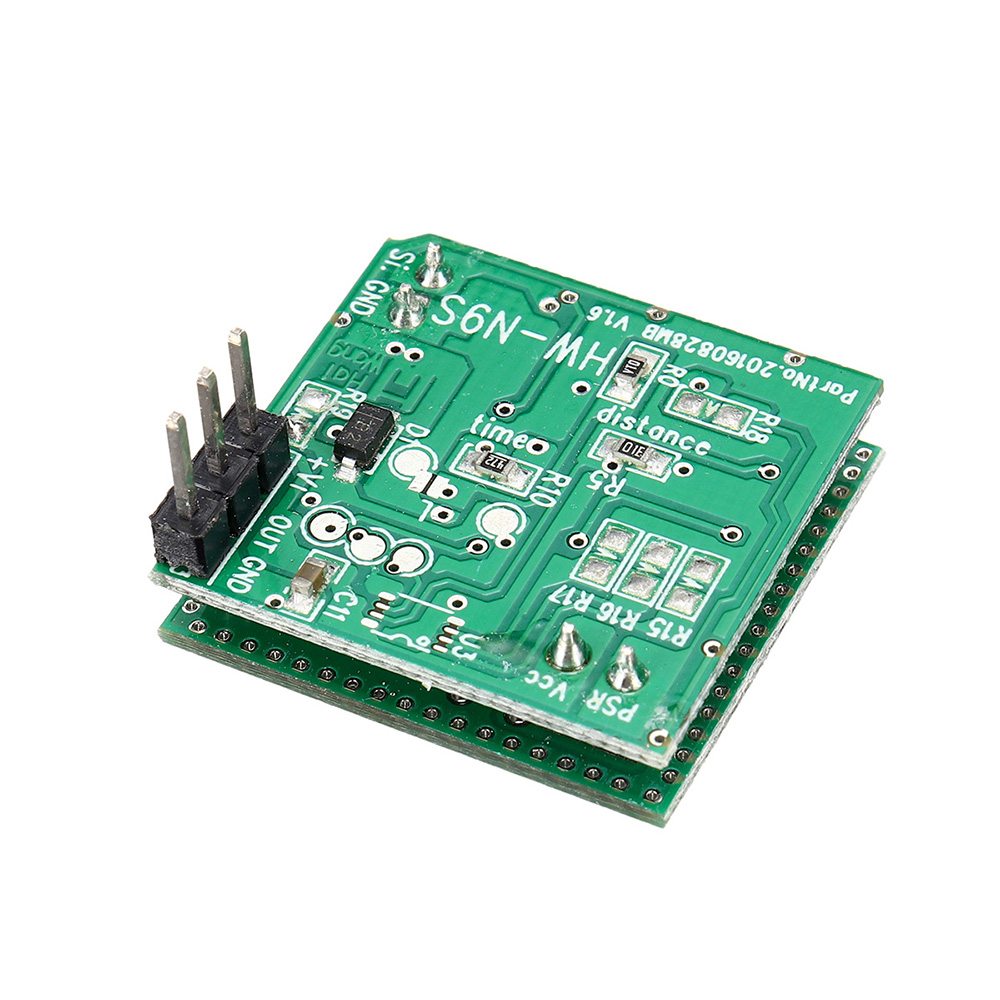

HW-N9S Smart Home Microwave Radar Sensor Switch Human Body Sensor Module
- Stock: In Stock
- Model: ST230041754
- SKU: ST230041754
$5.99
Ex Tax: $5.99
Specification:
Product model: HW-N9S
Working voltage: DC3.7V-24V
Static power consumption: <3mA
Level output: 3V with induction, 0V without induction
Delay time: 2S
Frequency: 3.2GHz
Sensing distance: 10m
Sensing angle: 360°
Working temperature: -20~75℃
Dimensions: 30 x 18 x 2mm
Trigger mode: Repeatable trigger
Repeat trigger:
After the first trigger, when the sensing area is triggered again, the module delay time will be superimposed again when the first trigger time has not stopped. (For example: the module delay time is 10S, the induction signal is received again within 10S, and then superimposed for 10S, the uninterrupted trigger within 10S, there will always be an output signal)
Delay time: refers to the duration of high-voltage signal output. It has nothing to do with the delay, the delay is milliseconds and can be ignored.
Package included:
1 x Sensor Module
Product model: HW-N9S
Working voltage: DC3.7V-24V
Static power consumption: <3mA
Level output: 3V with induction, 0V without induction
Delay time: 2S
Frequency: 3.2GHz
Sensing distance: 10m
Sensing angle: 360°
Working temperature: -20~75℃
Dimensions: 30 x 18 x 2mm
Trigger mode: Repeatable trigger
Repeat trigger:
After the first trigger, when the sensing area is triggered again, the module delay time will be superimposed again when the first trigger time has not stopped. (For example: the module delay time is 10S, the induction signal is received again within 10S, and then superimposed for 10S, the uninterrupted trigger within 10S, there will always be an output signal)
Delay time: refers to the duration of high-voltage signal output. It has nothing to do with the delay, the delay is milliseconds and can be ignored.
Package included:
1 x Sensor Module
