HX-1S-3038/HX-1S-30051S 3.7V Lithium Battery Protection Board 4.2V Charging Voltage Short-circuit Protection 2.5A Current-limit

HX-1S-3038/HX-1S-30051S 3.7V Lithium Battery Protection Board 4.2V Charging Voltage Short-circuit Protection 2.5A Current-limit
HX-1S-3038/HX-1S-30051S 3.7V Lithium Battery Protection Board 4.2V Charging Voltage Short-circuit Protection 2.5A Current-limit
HX-1S-3038/HX-1S-30051S 3.7V Lithium Battery Protection Board 4.2V Charging Voltage Short-circuit Protection 2.5A Current-limit
HX-1S-3038/HX-1S-30051S 3.7V Lithium Battery Protection Board 4.2V Charging Voltage Short-circuit Protection 2.5A Current-limit
HX-1S-3038/HX-1S-30051S 3.7V Lithium Battery Protection Board 4.2V Charging Voltage Short-circuit Protection 2.5A Current-limit
HX-1S-3038/HX-1S-30051S 3.7V Lithium Battery Protection Board 4.2V Charging Voltage Short-circuit Protection 2.5A Current-limit
HX-1S-3038/HX-1S-30051S 3.7V Lithium Battery Protection Board 4.2V Charging Voltage Short-circuit Protection 2.5A Current-limit
HX-1S-3038/HX-1S-30051S 3.7V Lithium Battery Protection Board 4.2V Charging Voltage Short-circuit Protection 2.5A Current-limit
HX-1S-3038/HX-1S-30051S 3.7V Lithium Battery Protection Board 4.2V Charging Voltage Short-circuit Protection 2.5A Current-limit
HX-1S-3038/HX-1S-30051S 3.7V Lithium Battery Protection Board 4.2V Charging Voltage Short-circuit Protection 2.5A Current-limit
HX-1S-3038/HX-1S-30051S 3.7V Lithium Battery Protection Board 4.2V Charging Voltage Short-circuit Protection 2.5A Current-limit
  • Stock: In Stock
  • Model: ST230045490
  • SKU: ST230045490
Based on 0 reviews. - Write a review
$4.99
Ex Tax: $4.99

Available Options

Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Specification:

Model: HX-1S-3038
Overcharge voltage range: 4.25±0.05v
Over-discharge voltage range: 2.5±0.05v
Maximum operating current: 2A
Upper limit instantaneous current: 2.5A
Quiescent current: <30uA
Charging voltage: 4.2V

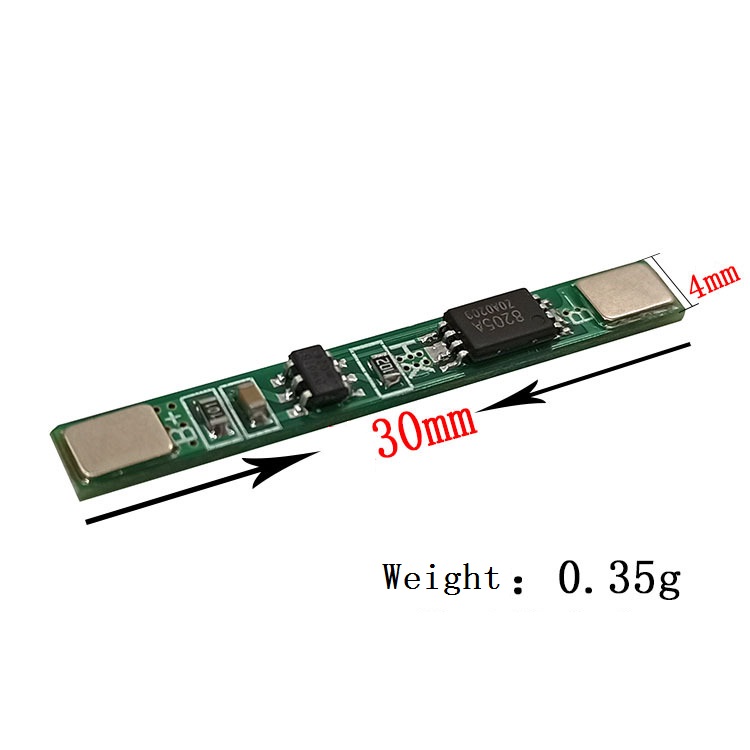

Size: 30*3.7*2.2mm
Short circuit protection: Protected delayed self-recovery

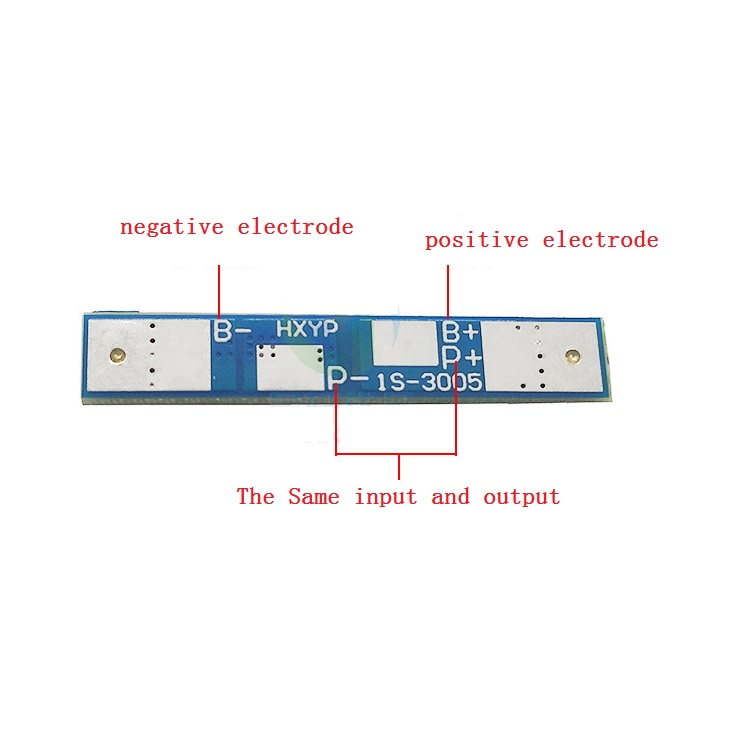

Model: HX-1S-3005
Overcharge voltage range: 4.3±50mv
Over-discharge voltage range: 2.9±75mv
Maximum operating current: 2A
Upper limit instantaneous current: 2.5A
Quiescent current: <30uA
Charging voltage: 4.2V
Size: 30*4*2mm
Short circuit protection: Protected delayed self-recovery

Package included:

1 x Battery Protection Board

HX-1S-3038HX-1S-30051S-37V-Lithium-Battery-Protection-Board-42V-Charging-Voltage-Short-circuit-Prote-1815291-1

HX-1S-3038HX-1S-30051S-37V-Lithium-Battery-Protection-Board-42V-Charging-Voltage-Short-circuit-Prote-1815291-2

HX-1S-3038HX-1S-30051S-37V-Lithium-Battery-Protection-Board-42V-Charging-Voltage-Short-circuit-Prote-1815291-3

HX-1S-3038HX-1S-30051S-37V-Lithium-Battery-Protection-Board-42V-Charging-Voltage-Short-circuit-Prote-1815291-4

HX-1S-3038HX-1S-30051S-37V-Lithium-Battery-Protection-Board-42V-Charging-Voltage-Short-circuit-Prote-1815291-5
