HX711 Module + 20kg Aluminum Alloy Scale Weighing Sensor Load Cell Kit
- Stock: In Stock
- Model: ST230044663
- SKU: ST230044663
$4.99
Ex Tax: $4.99
Parameter:
Comprehensive error: 0.05% F.S
Rated output temperature drift: ≤ 0.15% F.S / 10 ℃
Output Sensitivity: 1.0 ± 0.1 mV / V
Zero drift: 0.05% F.S (1 minute)
Zero point temperature drift: 0.2% F.S / 10 ° C
Zero output: ± 0.1 mV / V
Input impedance: 1000 ± 50Ω
Output impedance: 1000 ± 50Ω
Overload capacity: 150% F.S
Recommended excitation voltage: 5-10V
Operating temperature range: -10 ~ +50 ℃
Application: for high-precision small-scale weighing for micro-automatic testing equipment, micro-weighing equipment, pushing and pulling equipment, pull pressure test
Red: E +
Black: E-
White: A-
Green: A +
Package included:

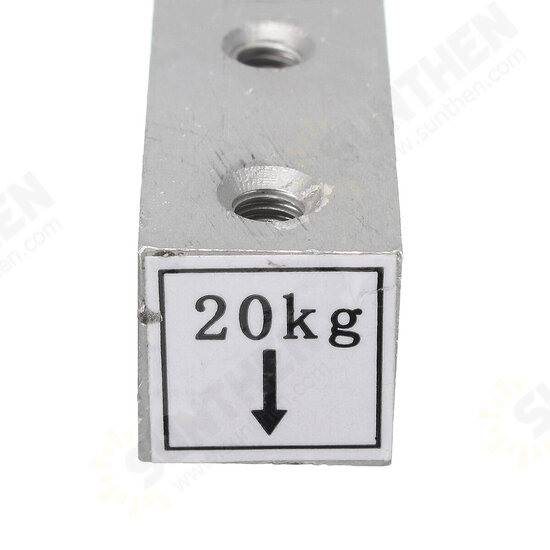

1 x Weighing Sensor Load Cell

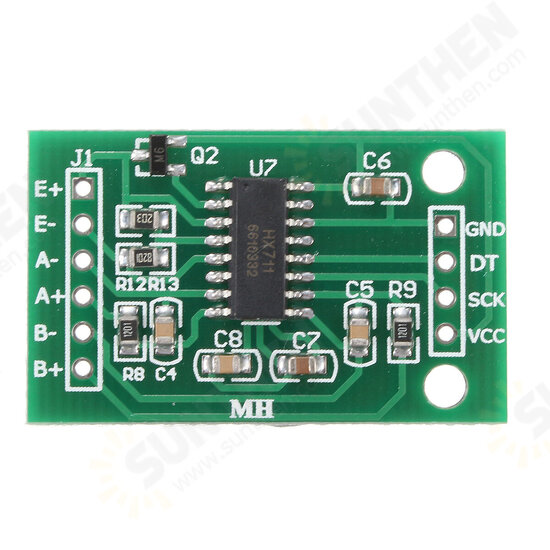

1 x HX711 Module
