- Stock: In Stock
- Model: ST22011339
- Dimensions: 130.00mm x 108.00mm x 31.00mm
- SKU: ST22011339
Available Options

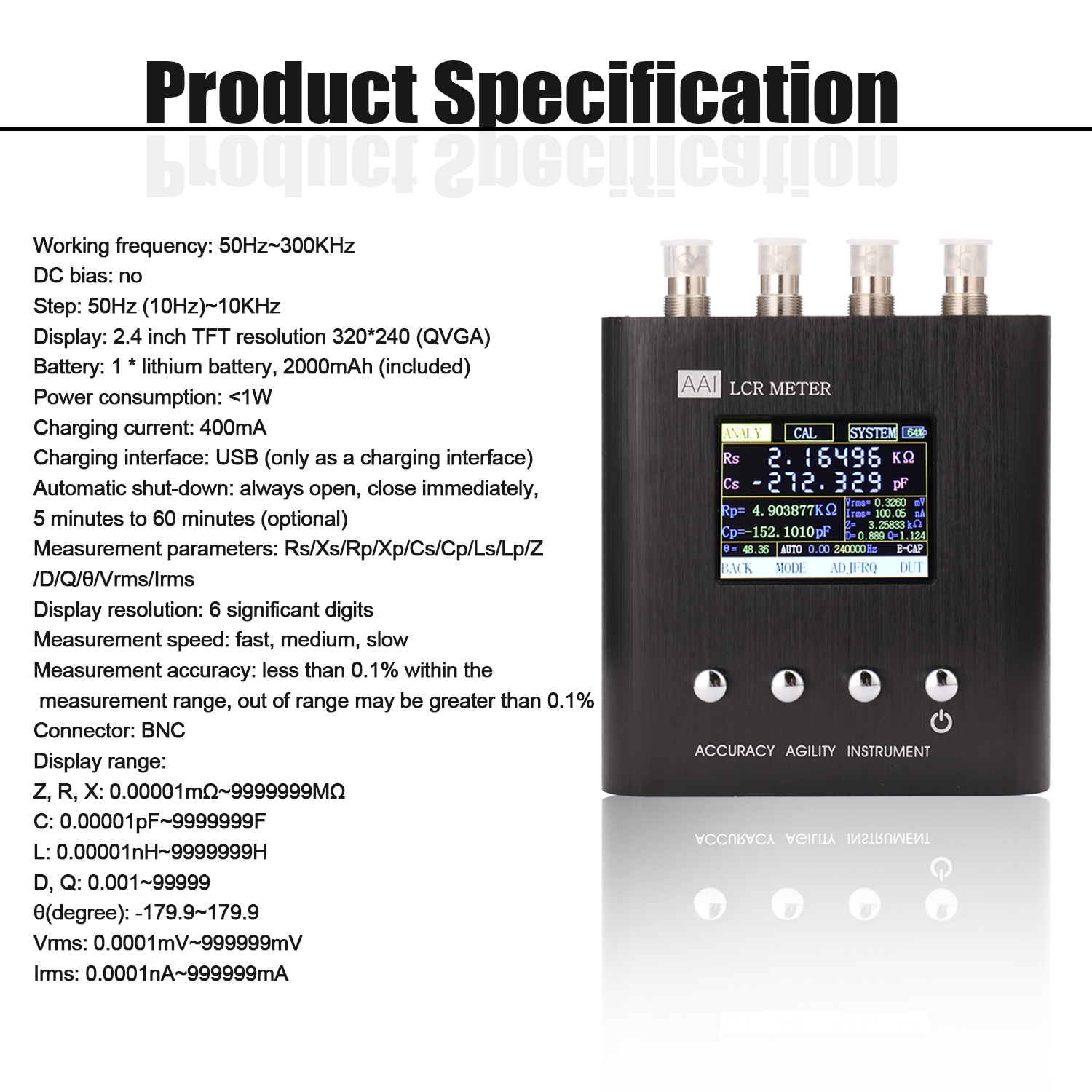

Working frequency | Type A: 50Hz~300kHz Type B: 50Hz~200kHz Type C: 50Hz~100kHz Type D: 50Hz~100kHz-24 frequency | |
Stepping | Type A:10Hz~10kHz Type B:10Hz~5kHz Type C:10Hz~1kHz | |
Display screen | 2.4 inch TFT resolution 320×240 (QVGA) | |
Battery capacity | 2000mAH(7.4Wh) | |
Power consumption | <1W | |
Charging current | 400mA | |

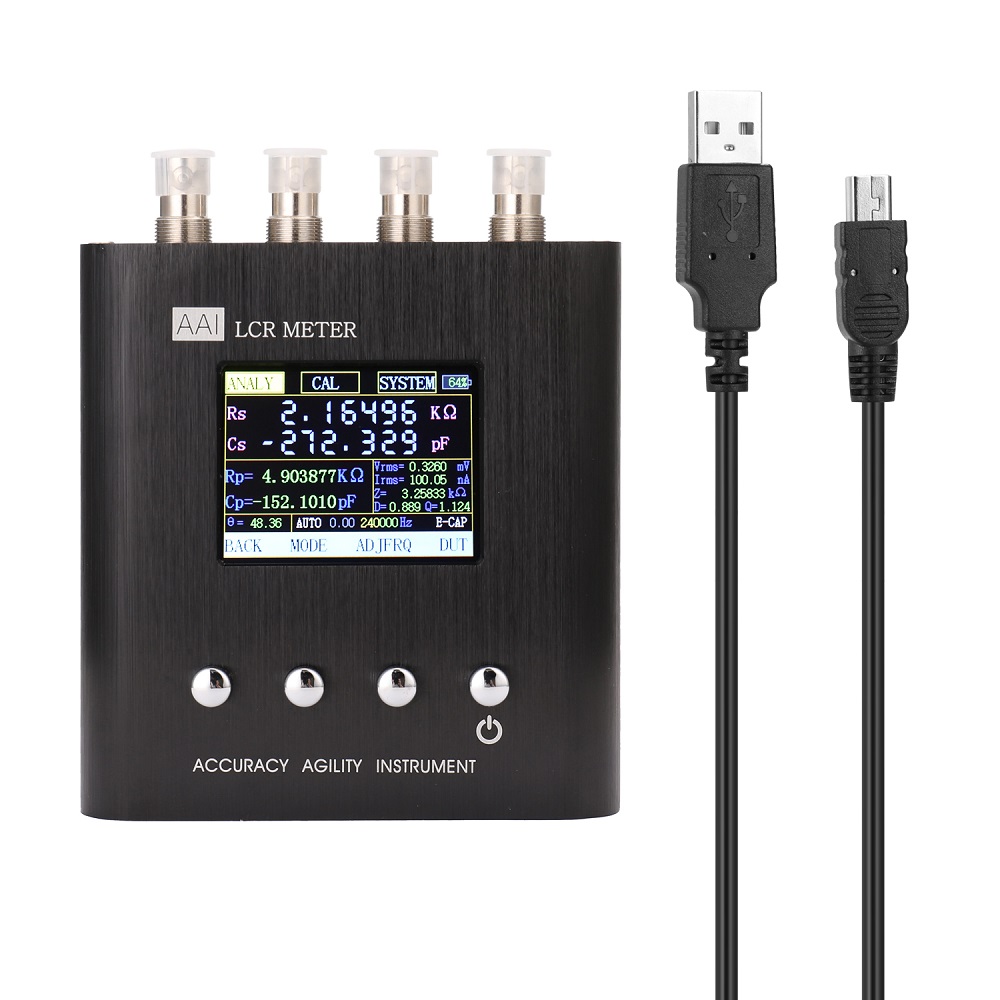

Charging port | USB (only as a charging port) | |
Automatic shutdown | always on, immediately off, 5 minutes to 60 minutes (optional) | |
Measurement parameters | Rs/Xs/Rp/Xp/Cs/Cp/Ls/Lp | |
Z /D/Q/θ/Vrms/Irms | ||
DC bias | None | |

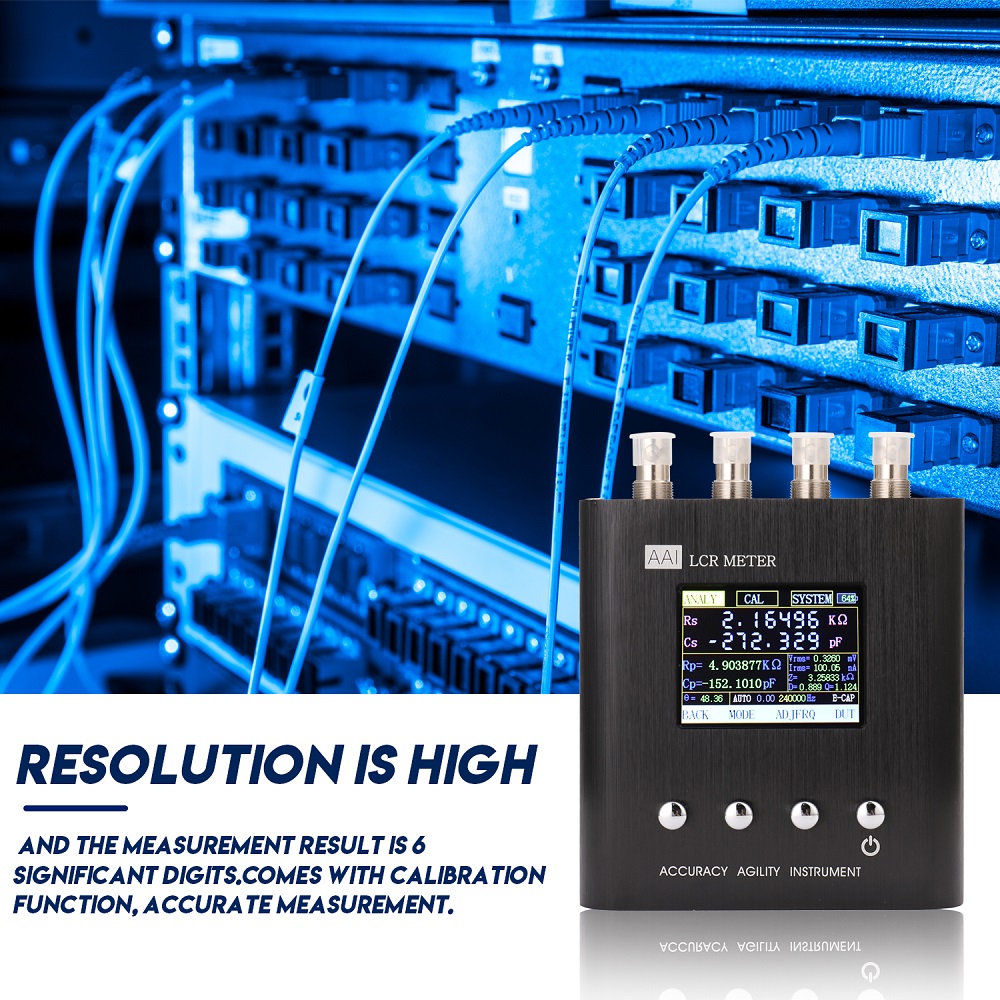

Display resolution | 6 digits effective value | |
Measuring speed | fast, medium and slow | |
Measurement accuracy | less than 0.1% within the measurement range | |
Out of range may be greater than 0.1% | ||

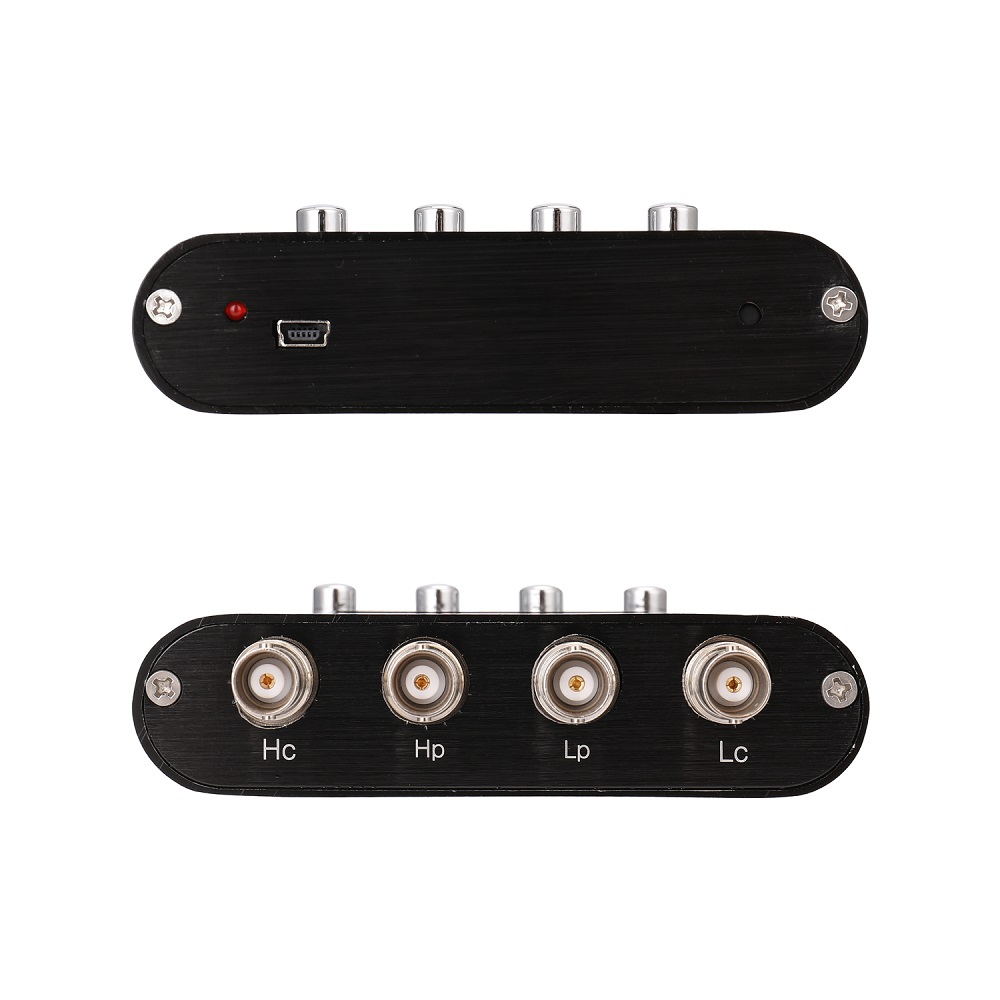

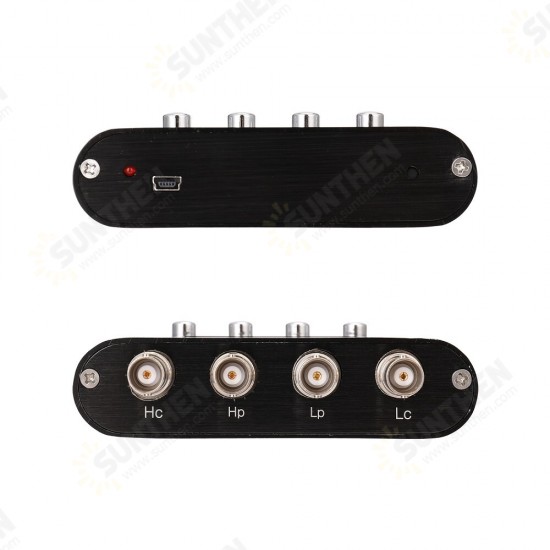

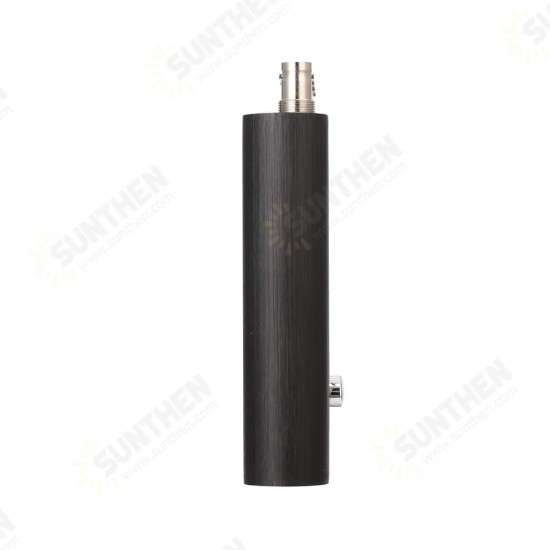

Connector | BNC | |
Display range | Z ,R,X | 0.00001 mΩ~9999999 MΩ |
C | 0.00001pF~9999999F | |
L | 0.00001nH~9999999H | |
D, Q | 0.001~99999 | |
θ(degree) | -179.9~179.9 | |
Vrms | 0.0001mV~999999mV | |
Irms | 0.0001nA~999999mA | |

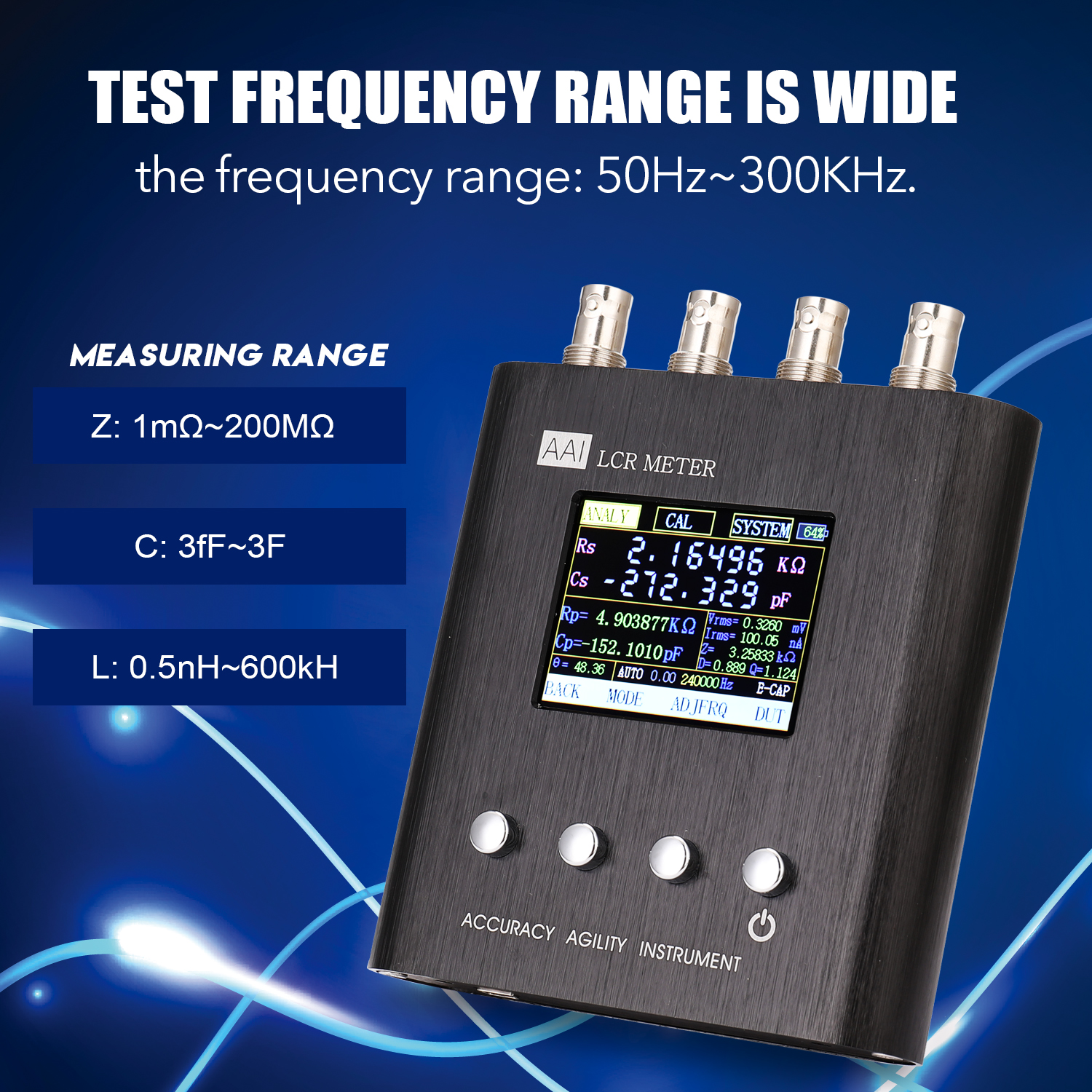

Measuring range | Z | 1mΩ~200MΩ |
C | 3fF~3F | |
L | 0.5nH~600kH | |
Level | (mVrms) | 1,002,003,004,005,000,000,000,000,000,000 |
Output impedance | 30Ω,100Ω | |
Model | Automatic, series, parallel (optional) | |
DUT | Automatic, resistance, inductance, capacitance, electrolysis (optional) | |
Calibration function | Open circuit, short circuit (with factory value), load calibration | |

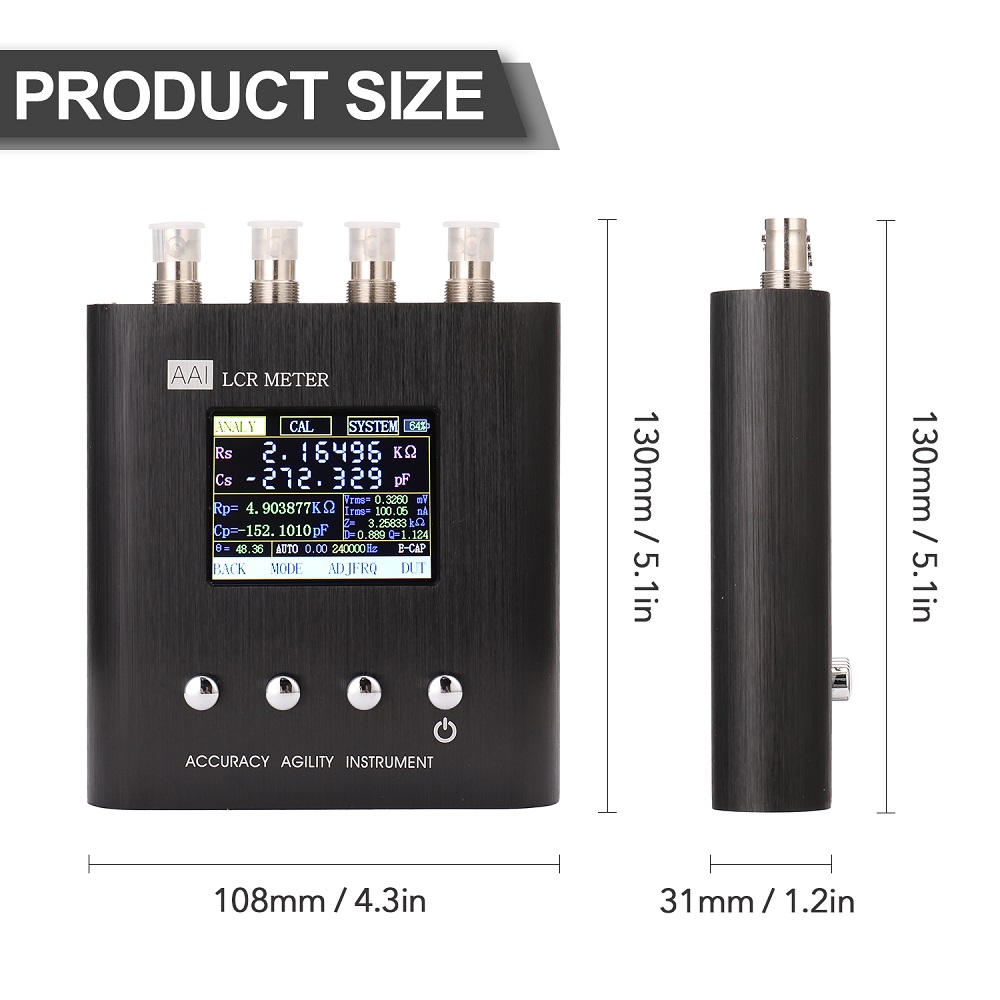

Appearance size | 130*108*31(mm) | |
Net weight | 315g | |
Working temperature | 5℃~40℃ | |
Atmospheric pressure | 860hPa~1060hPa |
