  • Stock: In Stock
  • Model: ST230042694

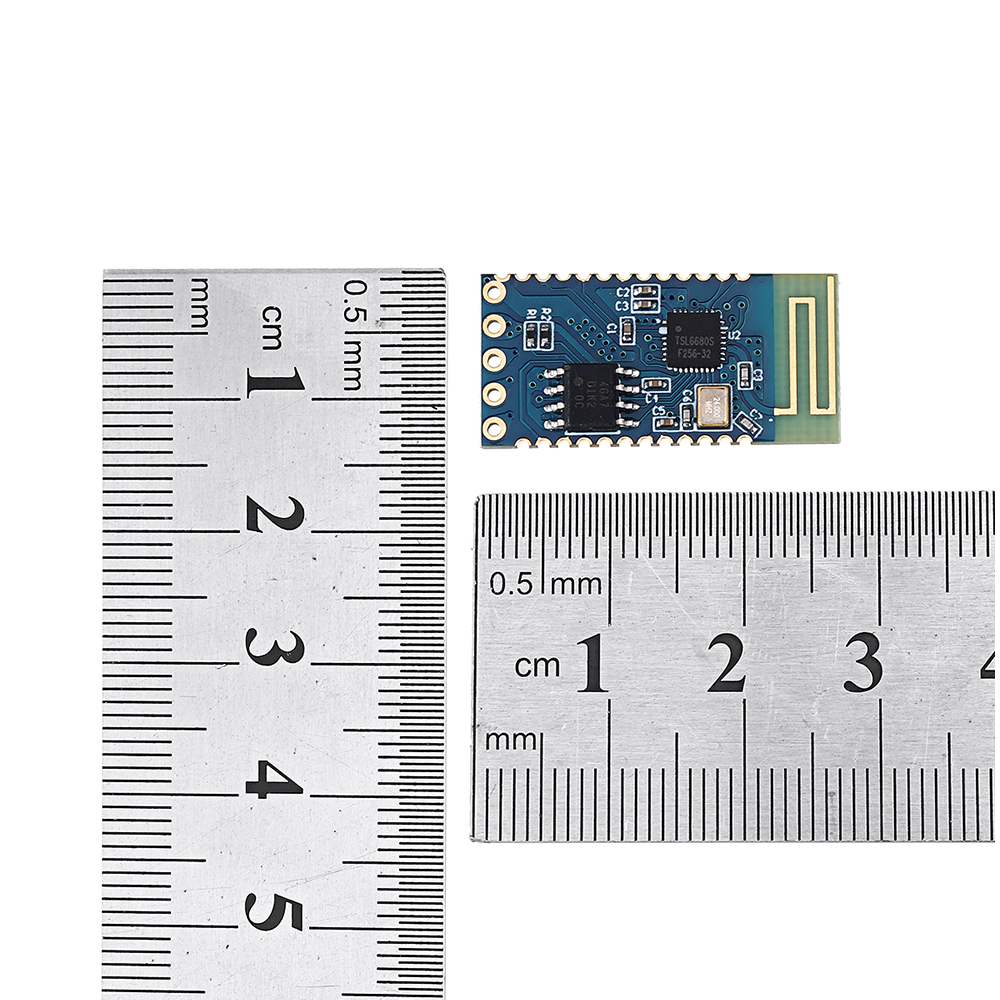

  • Dimensions: 19.60mm x 14.94mm x 1.80mm
  • SKU: ST230042694
$5.59
Ex Tax: $5.59
User Manual: Contact Us
More Details: Contact Us

Product introduction:

JDY-32 dual-mode Bluetooth is based on Bluetooth 3.0 SPP + Bluetooth 4.2 BLE design, which can support Windows, Linux, ios, android data transmission, working frequency 2.4GHZ, modulation mode GFSK, maximum transmission power 5db, maximum transmission distance 40 meters, Support users to modify the device name, baud rate and other commands through the AT command, which is convenient and quick to use.

Applications:

JDY-32 is a classic Bluetooth protocol that can communicate with Bluetooth-enabled computers (desktops, notebooks) and mobile phones (android). Can be applied
◆Windows computer Bluetooth serial port transparent transmission
◆Android Bluetooth serial port transparent transmission
◆Smart home control
◆Automotive ODB testing equipment
◆Bluetooth toy
◆Share mobile power, share weight
◆Medical equipment

Model JDY-32
Working frequency 2.4GHZ
Communication Interface UART
Operating Voltage 1.8-3.6V (3.3V recommended)
Operating temperature -40 ° C - 80 ° C
Antenna Built-in PCB antenna
Transmission distance 40 m
Master-slave support Slave
Module size 19.6 * 14.94 *1.8 mm (length, width, height)
Bluetooth version Bluetooth 4.2 BLE/Bluetooth 3.0 SPP
SMT soldering temperature <260°C
Broadcast current 4.4mA
BLE connected current 3.8mA
SPP connected current 12mA
Transmit power 5db (maximum)
Receiving sensitivity -97dbm

Package includes:

1 x Module
