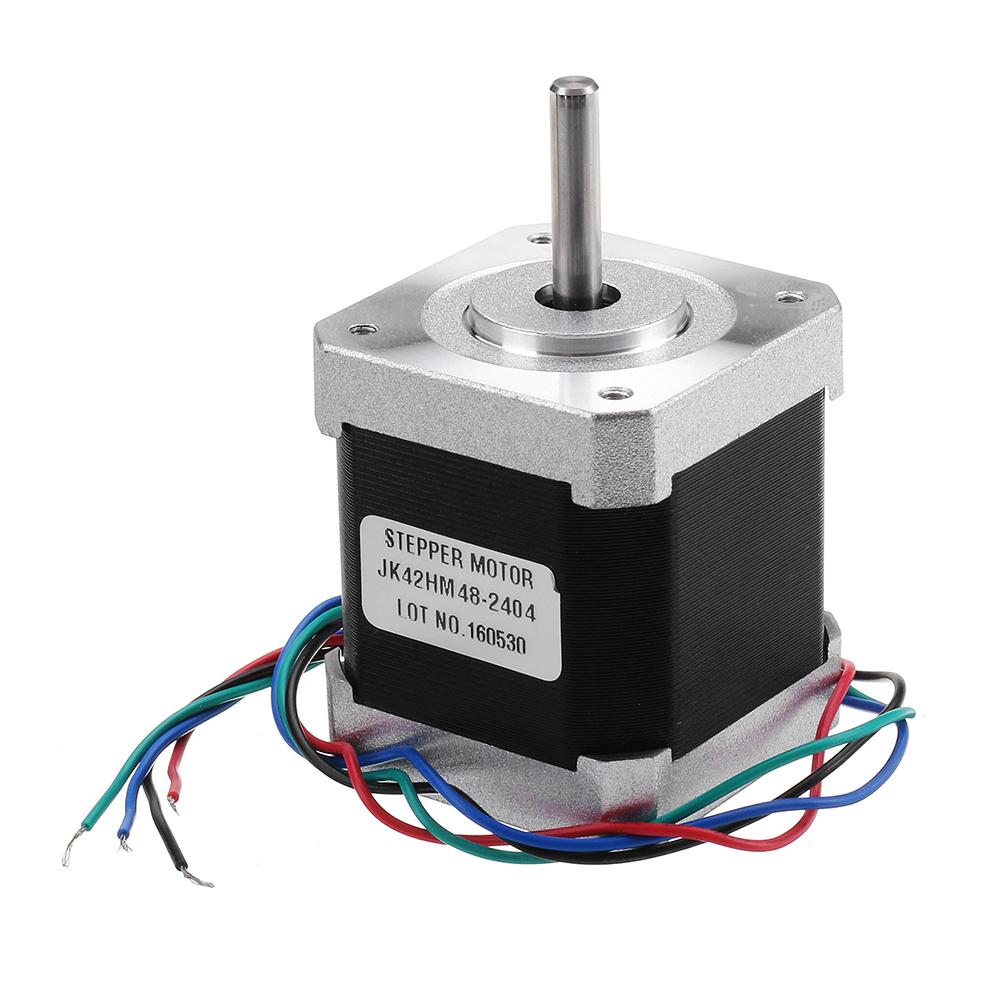

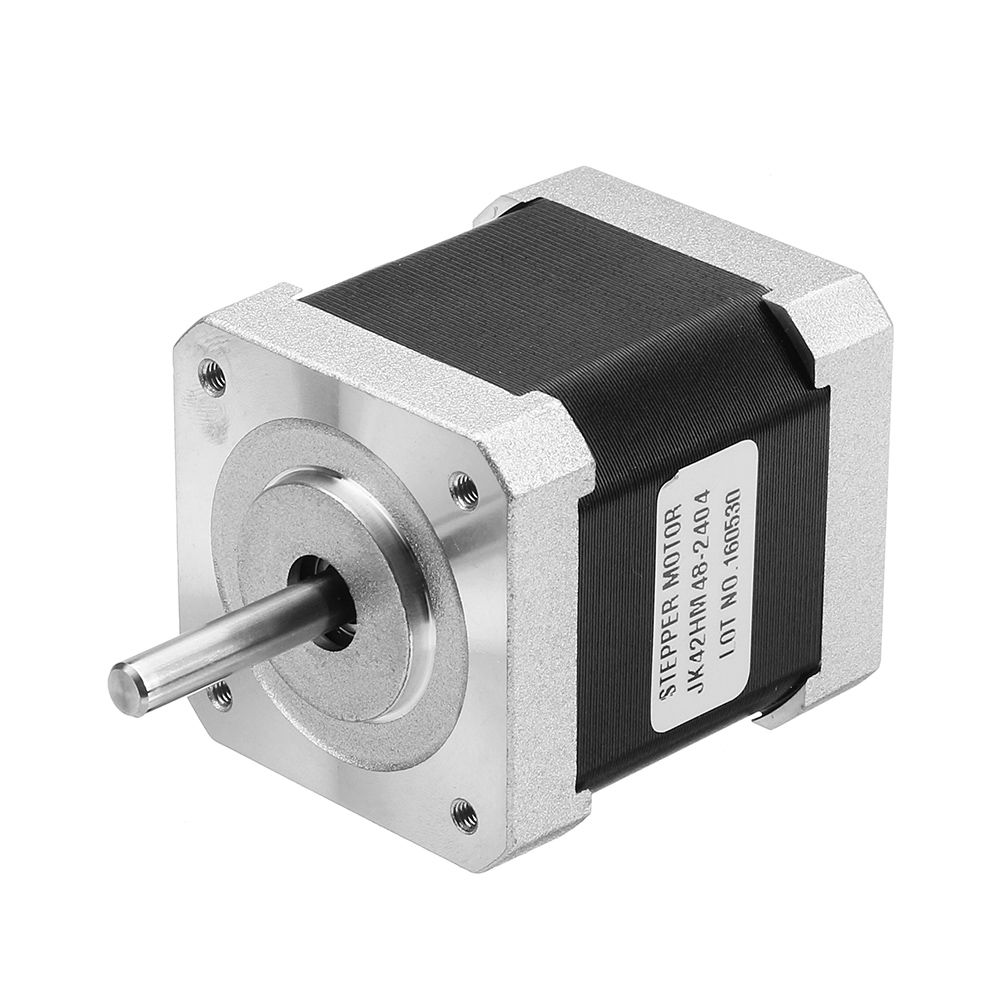

JK42HM48 0.9° 42 Hybrid Stepper Motor Two Phase 48mm 4.8kg.cm 2.4A Step Motor
- Stock: In Stock
- Model: ST220012847
- Dimensions: 42.00mm x 42.00mm x 48.00mm
- SKU: ST220012847
$26.99
Ex Tax: $26.99
Description:
JK42HM48 NEMA17 0.9° 42 Hybrid Stepper Motor Two Phase 48mm 4.8kg.cm 2.4A Step Motor
Specification:
Genaral Specification:
Electrical Specifications:
Package Included: 1 x Motor
More Details:
JK42HM48 NEMA17 0.9° 42 Hybrid Stepper Motor Two Phase 48mm 4.8kg.cm 2.4A Step Motor
Specification:

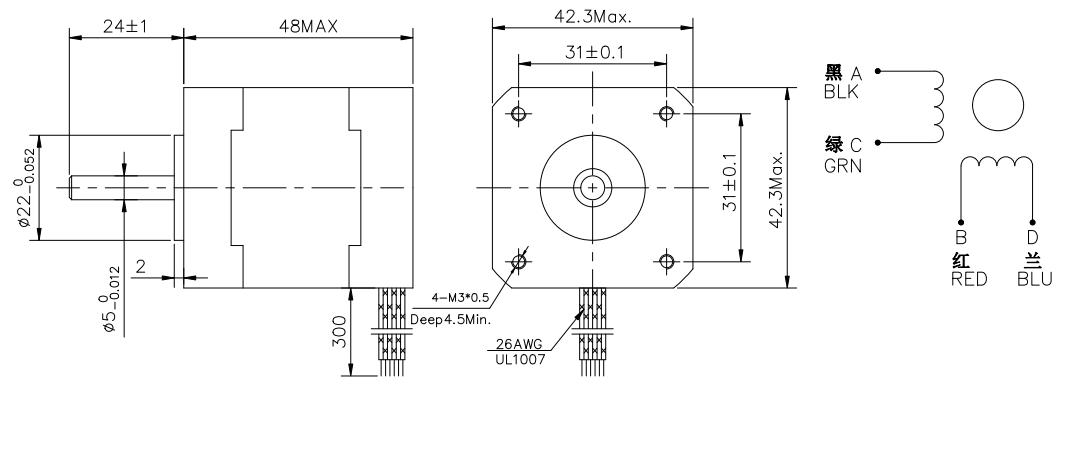

| Model | 42HM48-2404 |
| Motor length | 48mm |
| Diameter of axle | 5mm |
| The front shaft length | 24mm |
| Size | 42x42x48mm |
| Holding Torque | 4.8kg.cm |
| Outgoing line | 300mm |
| Certification | Certification: CE,ROHS |
| Scope | 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting,ect. |
Genaral Specification:
| Item | Specifications |
| Step Angle | 0.9° |
| Temperature Rise | 80℃max |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100 MΩMin. ,500VDC |
| Dielectric Strength | 500VAC for 1minute |
| Shaft Radial Play | 0.02Max. (450g-load) |
| Shaft Axial Play | 0.08Max. (450g-load) |
| Max. radial force | 28N (20mm from the flange) |
| Max. axial force | 10N |
Electrical Specifications:
| Model No. | Step Angle | Motor Length |
Rate Voltage |
Current /Phase |
Resistance /Phase |
Inductance /Phase | Holding Torque | # of Leads | Mass |
| ( °) | (L)mm | V | A | Ω | mH | kg.cm | No. | Kg | |
| 42HM48-2404 | 0.9 | 48 | 2.4 | 2.4 | 1.0 | 1.8 | 4.8 | 4 | 0.35 |
Package Included: 1 x Motor
