K12-125 125mm 4 Jaw Self Centering Lathe Chuck with Key
- Stock: In Stock
- Model: ST220012500
- SKU: ST220012500
$153.99
Ex Tax: $153.99
Description:

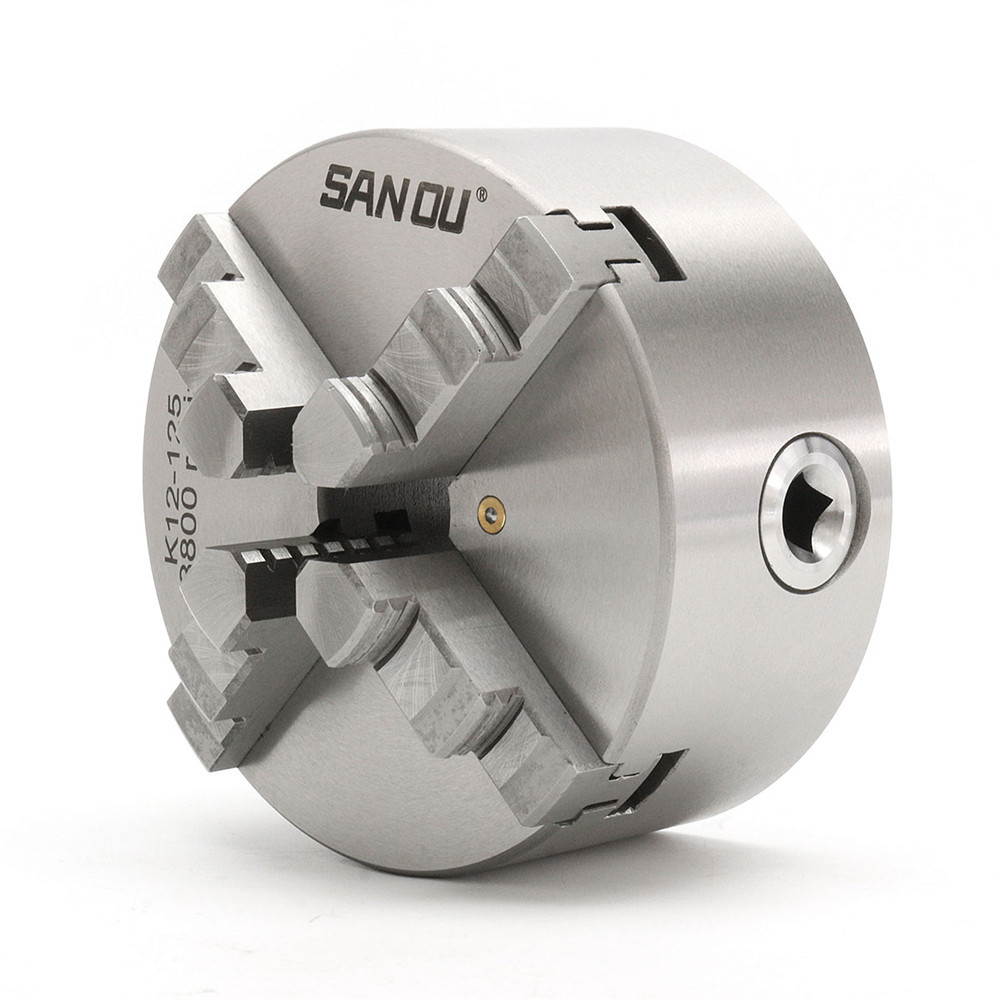

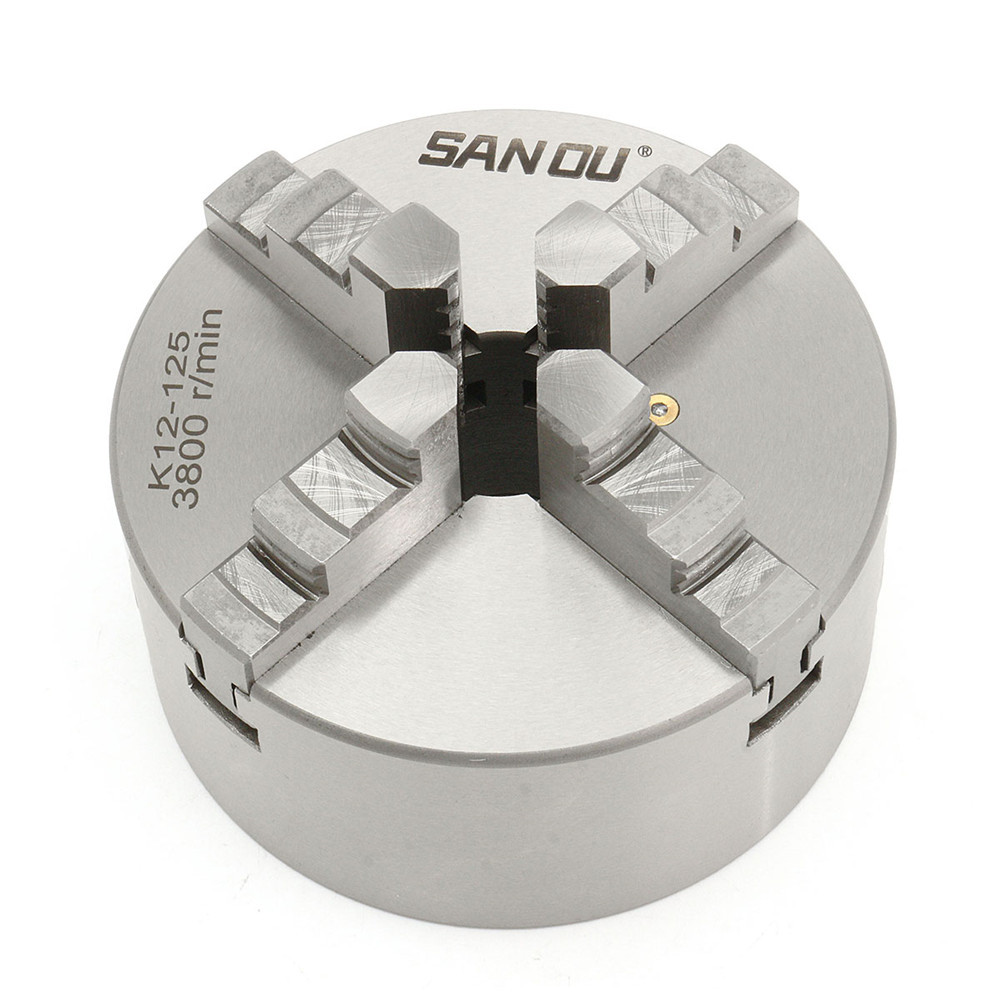

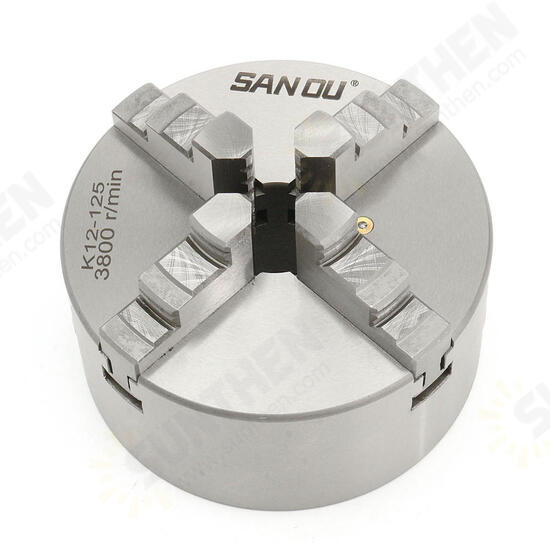

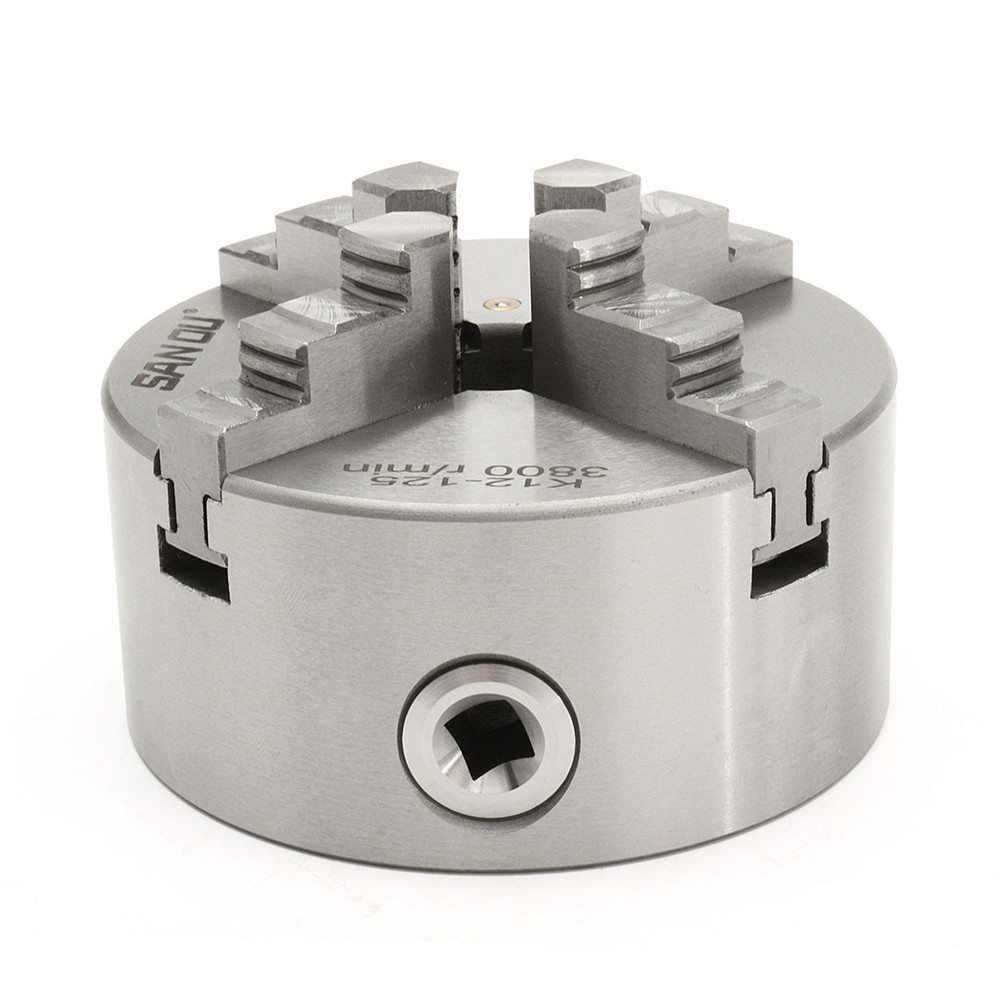

SANOU K12-125 125mm 4 Jaw Self Centering Lathe Chuck with Key
Specification:
Specification:
| Material | Hardened Steel |
| Model | K12-125 |
| Max RPM | 3800 r/min |
| Jaw | 4 Jaw |
| High precision | ≤0.05mm |
| Application | For CNC Drilling Milling Machine |
| Lathe Chuck | |

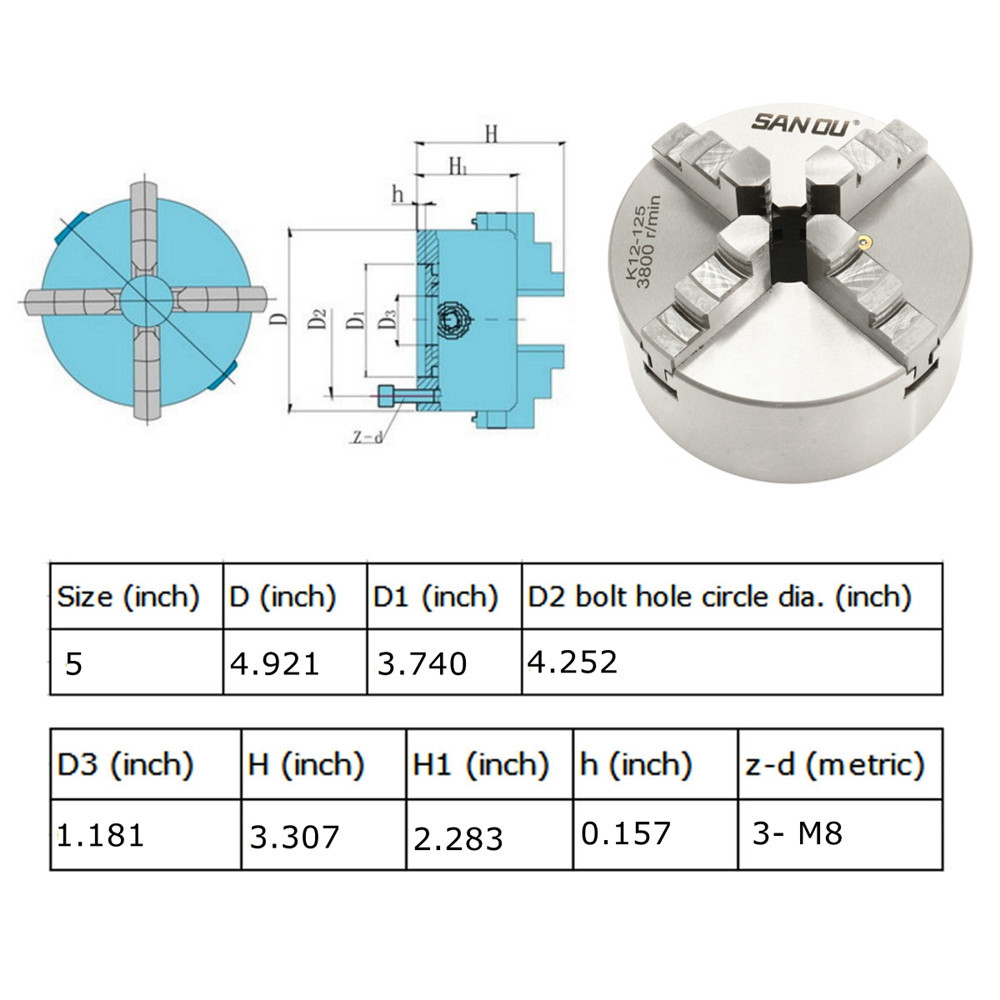

| Diameter | 125mm(4.921") |
| Thickness | 58mm(2.283") |
| Center Hole | 30mm(1.181") |
| Bolt Circle Diameter | 108mm(4.252") |
| Runout | 0.003" |

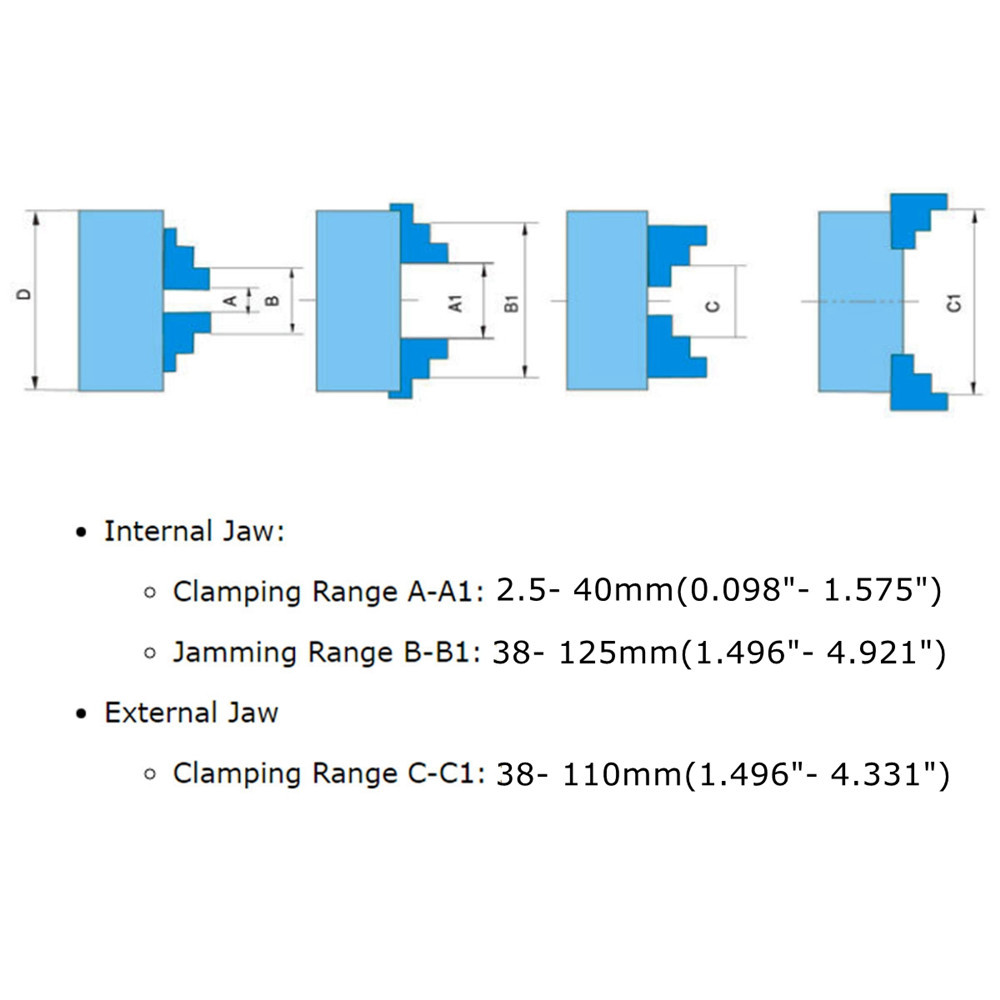

| Internal Jaw | |
| Clamping Range A-A1 | 2.5- 40mm(0.098"- 1.575") |
| Jamming Range B-B1 | 38- 125mm(1.496"- 4.921") |
| External Jaw | |
| Clamping Range C-C1 | 38- 110mm(1.496"- 4.331") |
Features:

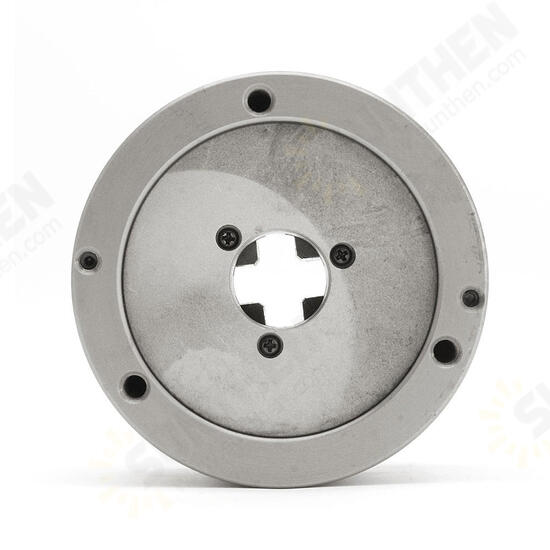

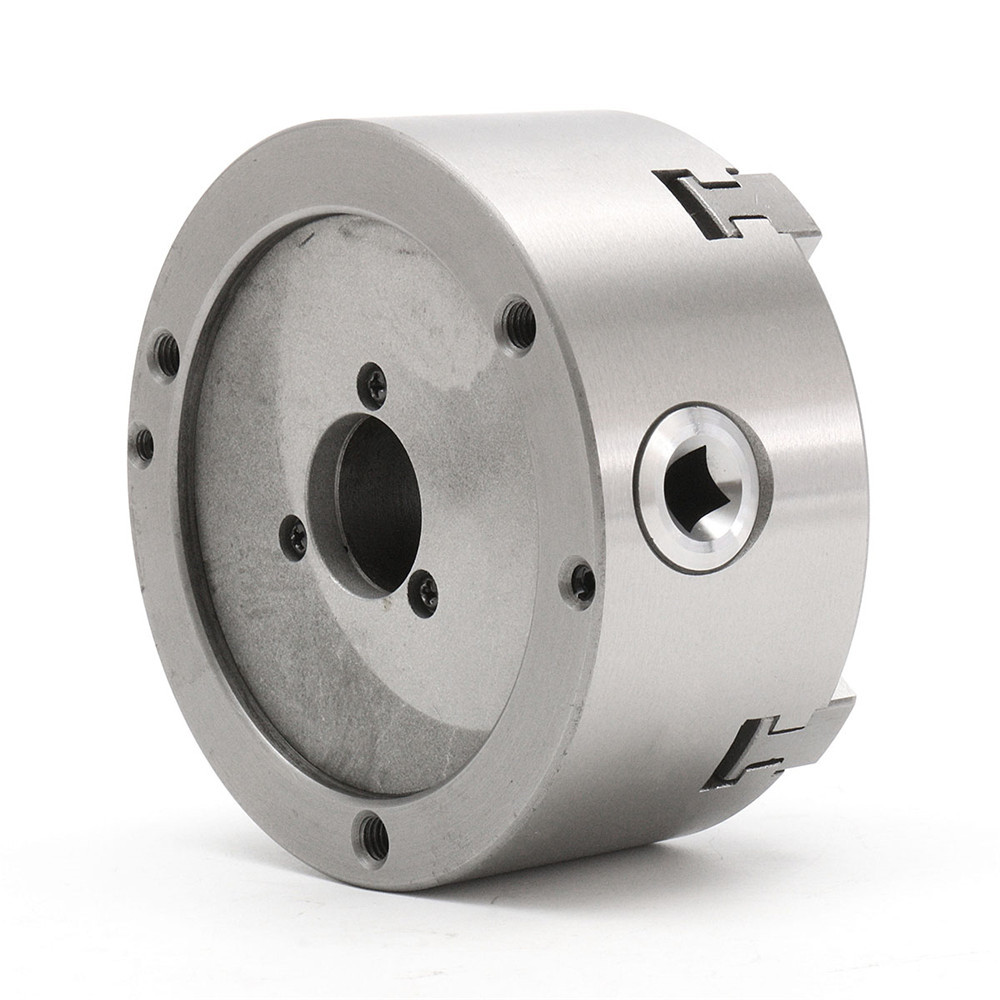

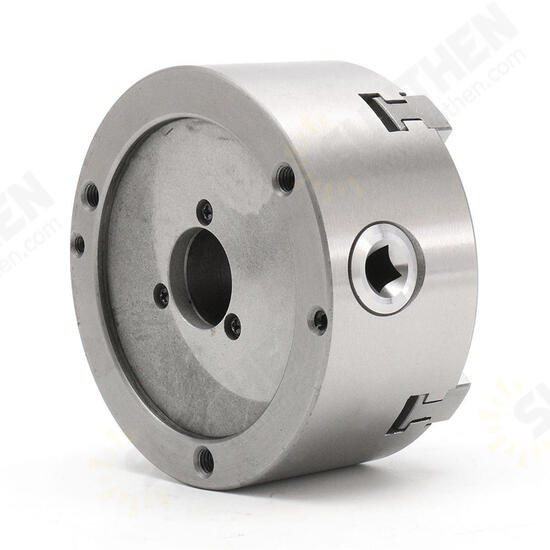

1. Short cylindrical center mounting.

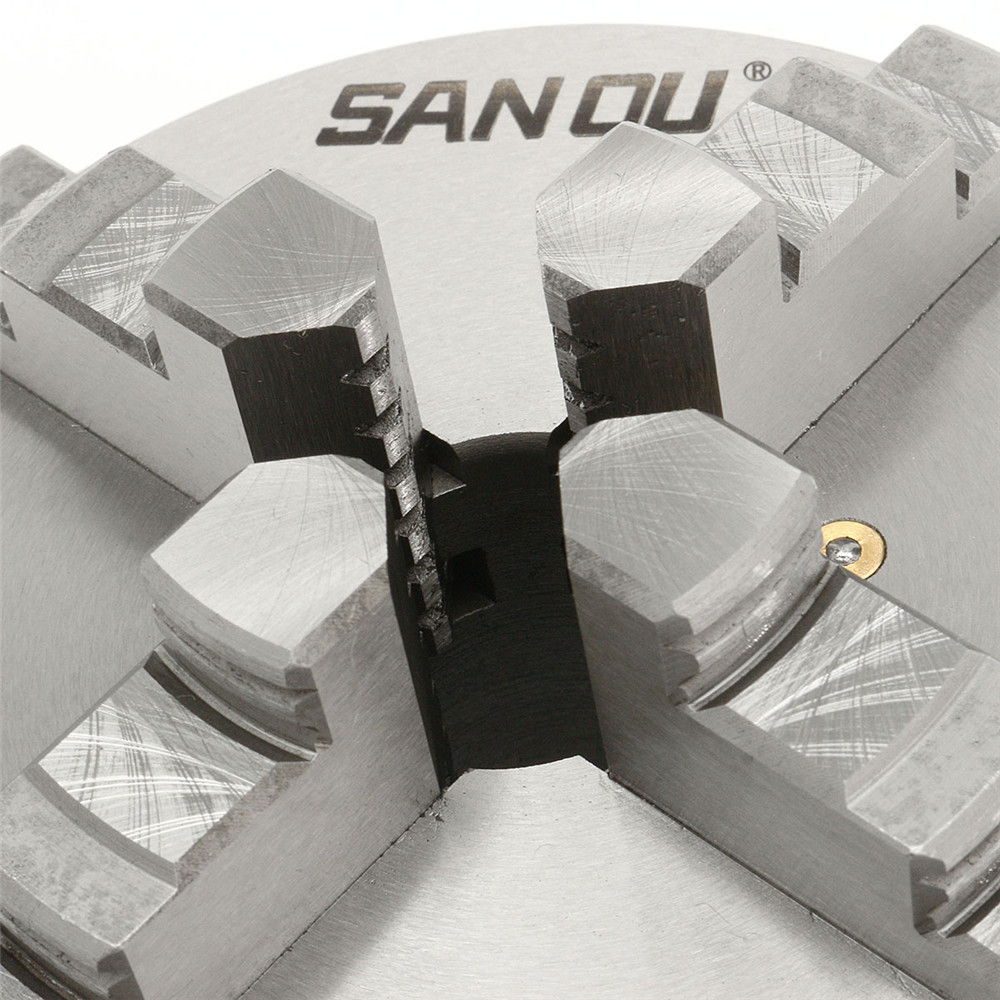

2. Model K12 chucks are provided with one-piece jaws(which include a set of internal jaws and a set of external ones ).
3. the jaws for K12A, K12C and K12D chucks are composed of two-piece jaws. They can perfrom as either internal jaws through adjustment.
4. The jaws for K12A and K12D chucks conform to is 03442 standard.
5 .Model K12 chucks are supplied with traditional two-piece jaws.
Package Included:
Function:
Four-jaw synchronous movement for clamping four square, square parts, also applies to shaft type, disk parts.
Applicable machine tools and accessories:
General lathe, economical CNC lathes, grinding machines, milling machines, drilling and machine accessories etc..

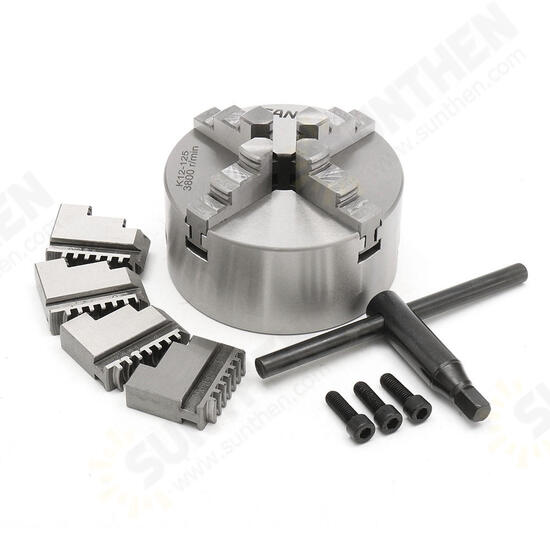

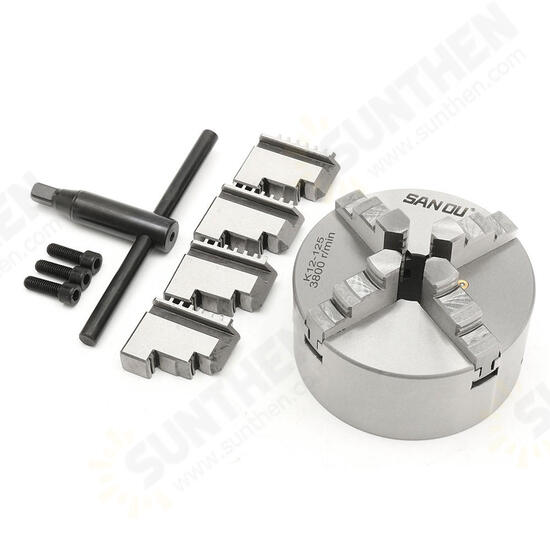

1 x SANOU Self-Centering Jaw

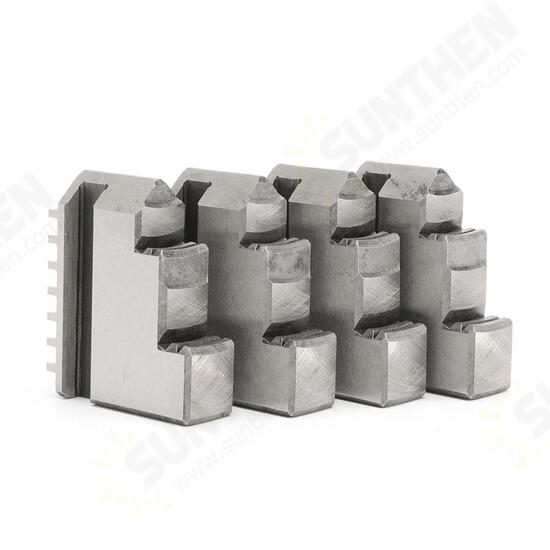

3 x Inside jaws

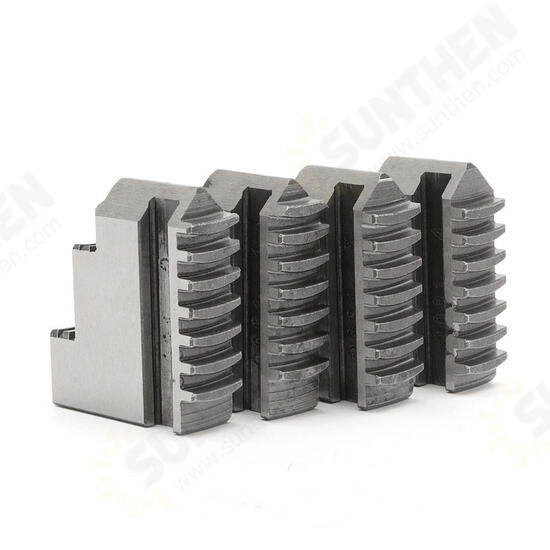

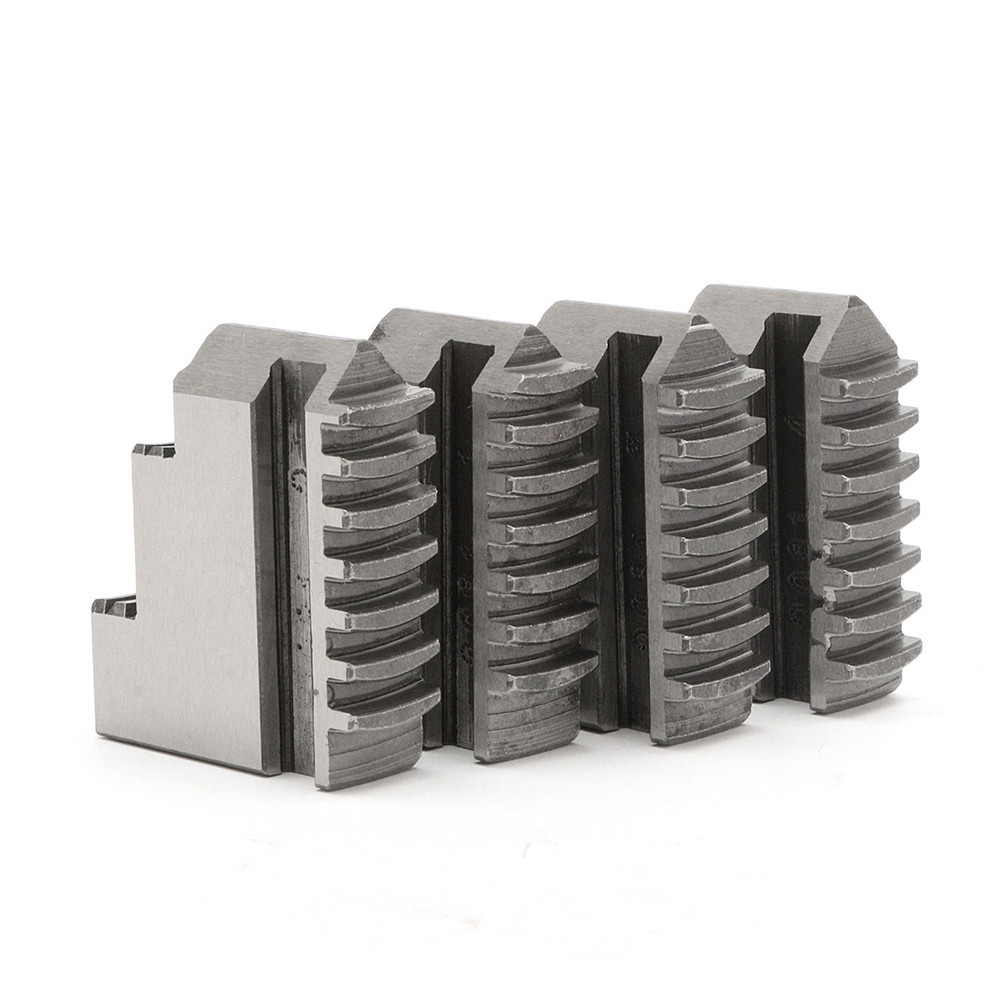

3 x outside jawslarge

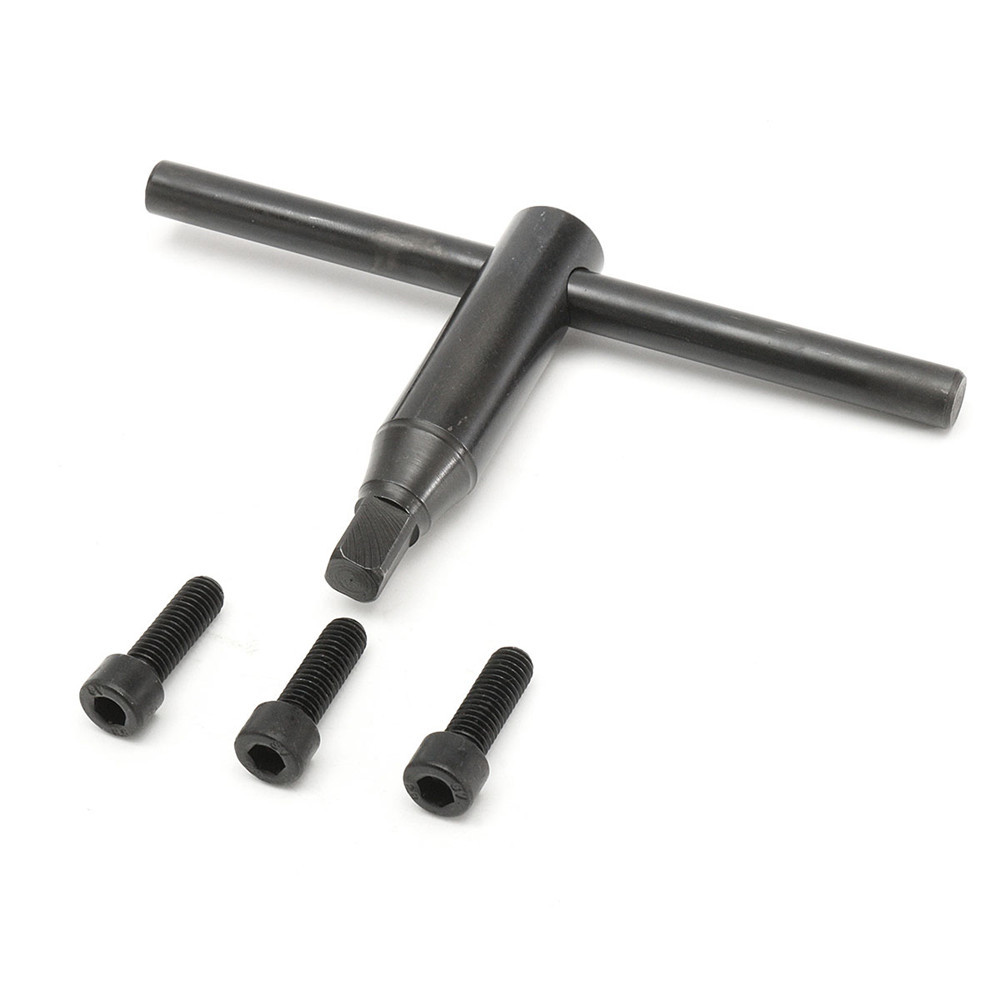

1 x safety chuck key
3 x mounting bolts
More Details:
