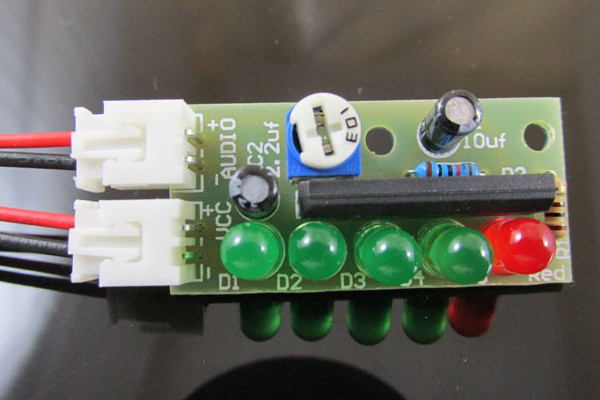

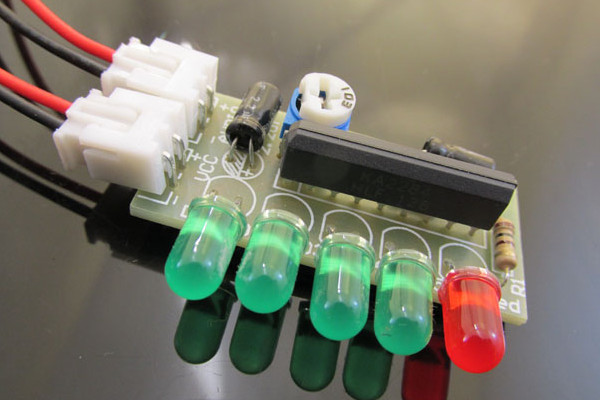

KA2284 LED Level Indicator Module Audio Level Indicator Kit Electronic Production Kit
- Stock: In Stock
- Model: ST230038508
- SKU: ST230038508
$2.29
Ex Tax: $2.29

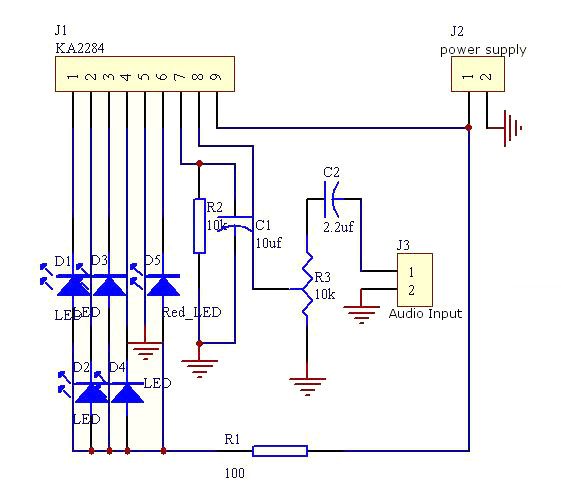

Note: This is a DIY kit, you need to assembly it, supply schematic diagram only.
Feature:
Feature:
Constant current output
Wide operating voltage: 3.5V - 12V
ALC circuits do not need to connect diodes or transistors
The brightness level can be adjusted
The circuit board adopts military grade 1.6MM FR4 sheet
PCB dimensions: 40mm x 19mm

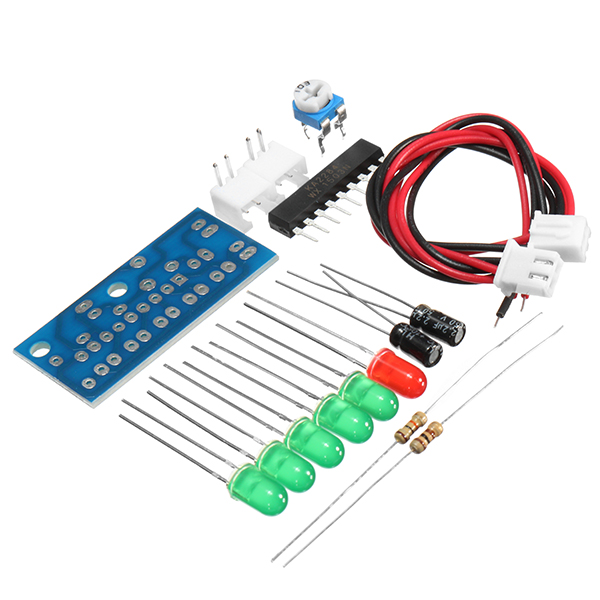

Package includes:

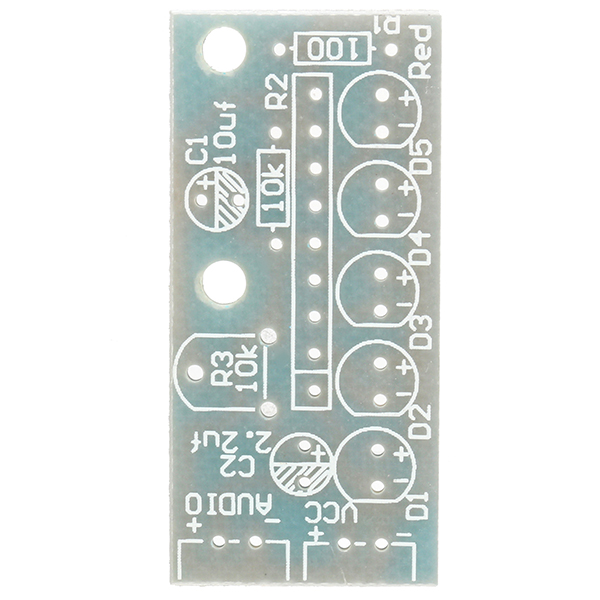

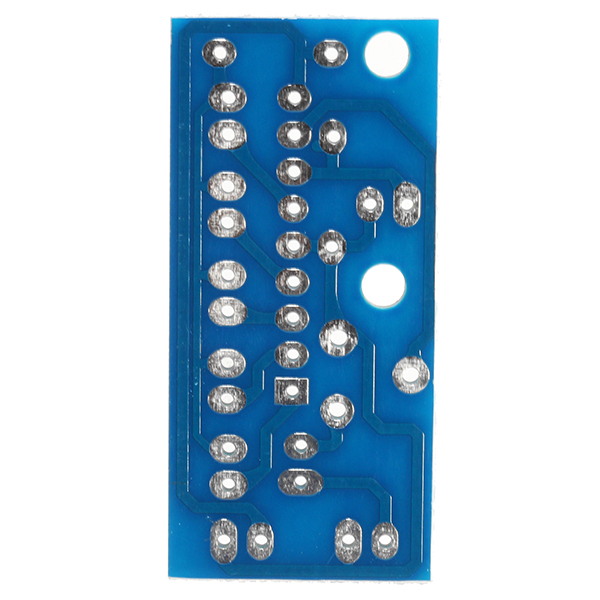

1 x PCB board
2 x XH2.54-2P curved seat
2 x XH2.54-2P line
1 x 100 ohm resistance
1 x 10K resistance
1 x 2.2UF electrolytic capacitor
1 x 10UF electrolytic capacitor
1 x 103 blue and white potentiometer
1 x KA2284 chip

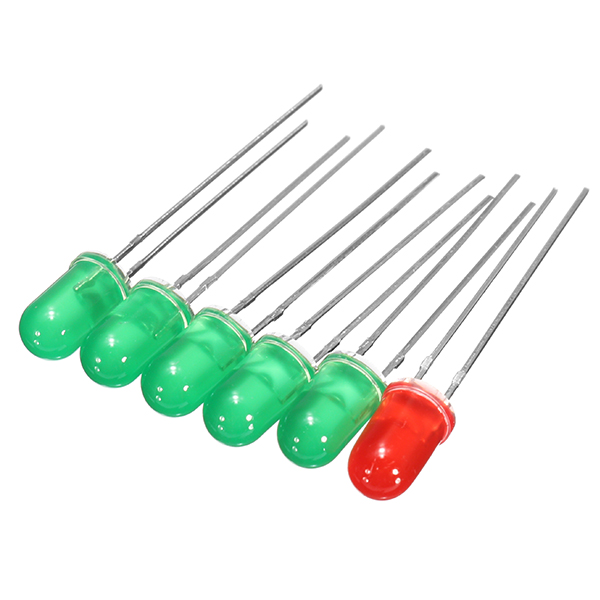

5 x 5MM green to green LED
1 x 5MM red to red LED
,
,
,
,
,
,
