  • Stock: In Stock
  • Model: ST220016515
  • Dimensions: 81.00mm x 165.00mm x 220.00mm
  • SKU: ST220016515
$128.79
Ex Tax: $128.79

Available Options

Description :

KPS series 4 Digits Display LED 0-30V Mini DC Power Supply
- KPS series is a single set of output, high precision double display switch dc power supply.
- Machines have complete operating protection function, with high performance,low ripple, high stability , light weight and small volume etc.
- Current limiting protection,can make KPS power supply and load against accidental damage.
- KPS series power supply with low temperature control circuit, a cooling fan noise is low.( turn on the switch , the fan can not work .the fan needs to work until the temperature )
Features :

1, have complete operating protection function
2, highly efficient, low ripple, small volume, light weight
3, double display voltage, current, and high precision
4, voltage stabilization, current limiting, simple operation
5, dual voltage input and convenient choice
6, temperature control fan heat dissipation, low noise
7, Double potentiometer more precise adjustment
Specification :

Model KPS3010DF
Input voltage AC 220V/110V±10% 50Hz/60Hz(Switchable)
Output voltage 0 - 30V
Output current 0 - 10A
Output Type Single
Voltage resolution 0.01V
Current resolution 0.001A
Power effect CV≤1%+10mV
Effect of load CV≤1%+10mV
Ripple and noise Vp-p≤1%
Voltage display precision ±1%+1digits
Current display precision ±1%+2digits
Net/gross Weight (KG) 2.0
Volume (mm) 81WX165HX220L
Operating environment (-10-45) Rh<90%
Package Includes :

1 x DC Power Supply
1 x User Manual
1 x Test line
2 x Test line clamp
2 x Probe
1 x Power line(EU/US)

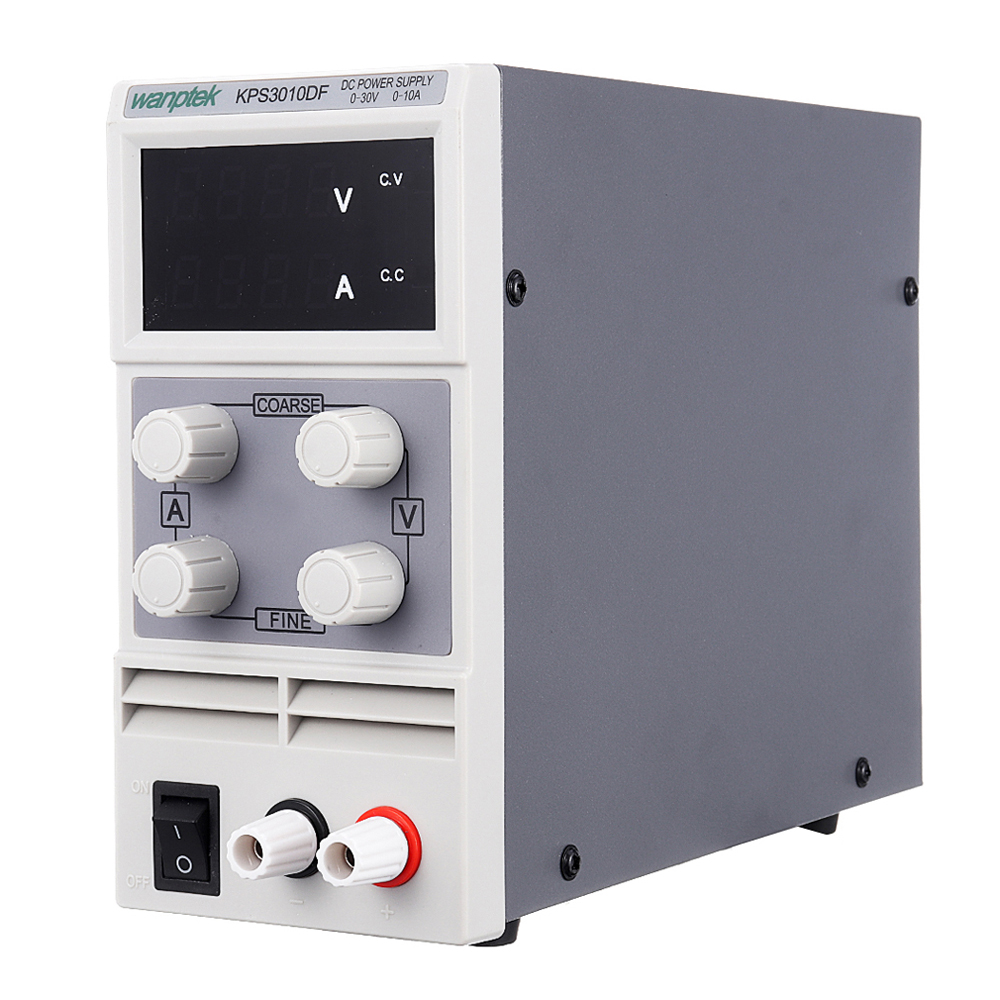

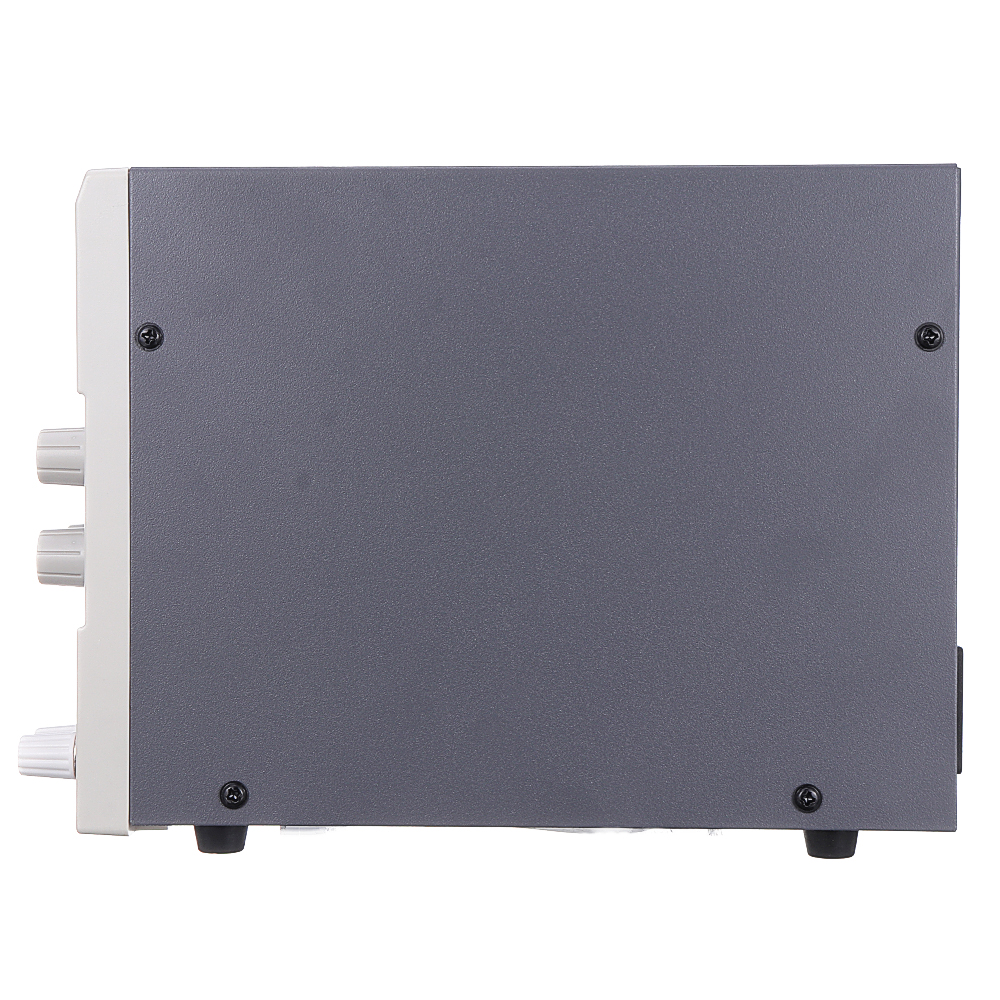

Details Pictures :


Wanptek-KPS3010DF-4-Digits-0-30V-0-10A-110V220V-Adjustable-DC-Power-Supply-LED-Display-300W-Regulate-1397066-1
Wanptek-KPS3010DF-4-Digits-0-30V-0-10A-110V220V-Adjustable-DC-Power-Supply-LED-Display-300W-Regulate-1397066-2
Wanptek-KPS3010DF-4-Digits-0-30V-0-10A-110V220V-Adjustable-DC-Power-Supply-LED-Display-300W-Regulate-1397066-3
Wanptek-KPS3010DF-4-Digits-0-30V-0-10A-110V220V-Adjustable-DC-Power-Supply-LED-Display-300W-Regulate-1397066-4
Wanptek-KPS3010DF-4-Digits-0-30V-0-10A-110V220V-Adjustable-DC-Power-Supply-LED-Display-300W-Regulate-1397066-5
Wanptek-KPS3010DF-4-Digits-0-30V-0-10A-110V220V-Adjustable-DC-Power-Supply-LED-Display-300W-Regulate-1397066-6
Wanptek-KPS3010DF-4-Digits-0-30V-0-10A-110V220V-Adjustable-DC-Power-Supply-LED-Display-300W-Regulate-1397066-7
Wanptek-KPS3010DF-4-Digits-0-30V-0-10A-110V220V-Adjustable-DC-Power-Supply-LED-Display-300W-Regulate-1397066-8
Wanptek-KPS3010DF-4-Digits-0-30V-0-10A-110V220V-Adjustable-DC-Power-Supply-LED-Display-300W-Regulate-1397066-9
Wanptek-KPS3010DF-4-Digits-0-30V-0-10A-110V220V-Adjustable-DC-Power-Supply-LED-Display-300W-Regulate-1397066-10
