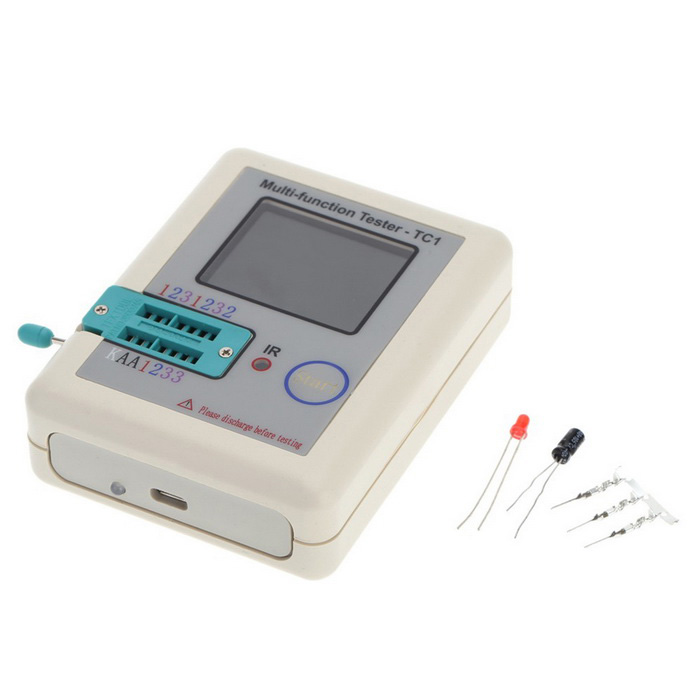

LCR-TC1 1.8inch Colorful Display Multifunctional TFT Backlight Transistor Tester for Diode Triode Capacitor Resistor Transistor LCR ESR NPN PNP MOSFET
- Stock: In Stock
- Model: ST22010985
- SKU: ST22010985
$24.99
Ex Tax: $24.99
Description:
1.8inch Colorful Display Multi-functional TFT Backlight Transistor Tester for Diode Triode Capacitor Resistor Transistor LCR ESR NPN PNP MOSFET
Features:
It can be widely used to detect NPN and PNP transistor, capacitor, resistor, diode, triode, N-channel and P-channel MOSFET, IGBT, JFET, triac and battery etc.
It can also be used to detect infrared wave forms.
It can also be used to detect infrared wave forms.
It also can detect zener diode and has the function of self-calibration.
After detection, align the infrared remote control with the "IR" light, then press the button in the remote control, if the detector successfully decode it, it will display the data code and infrared wave form.

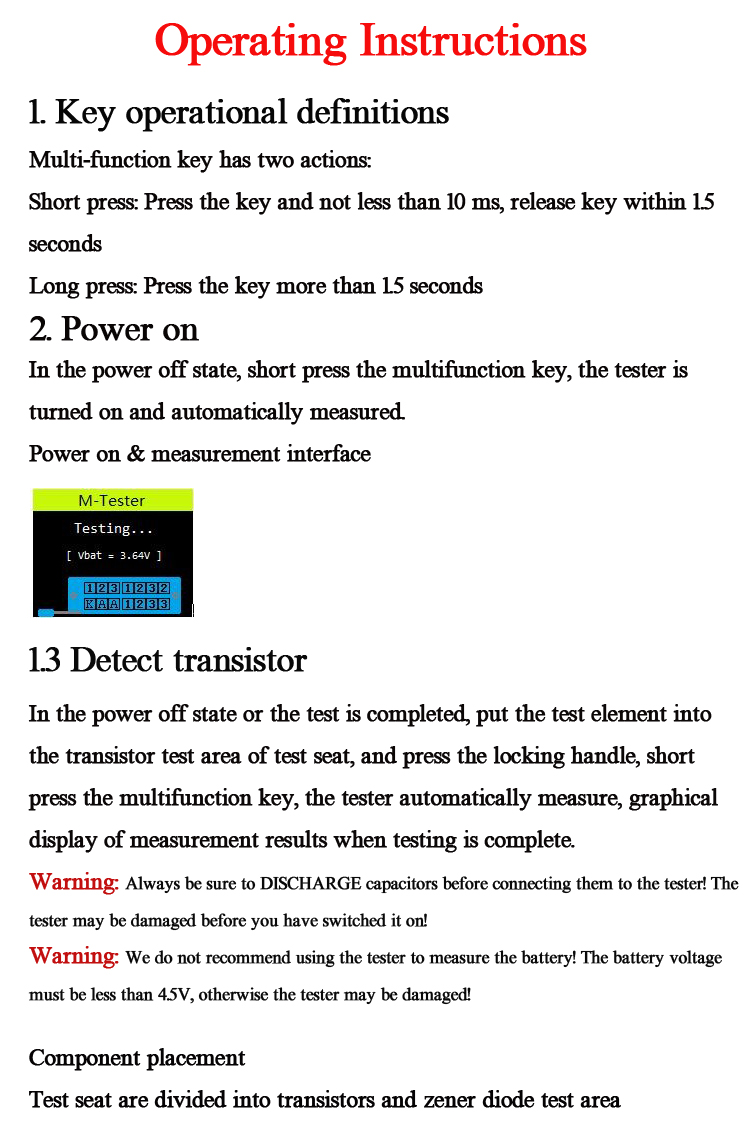

One button operation, automatically detect and shutdown, and you can press the multi-functional button to close the detector too.

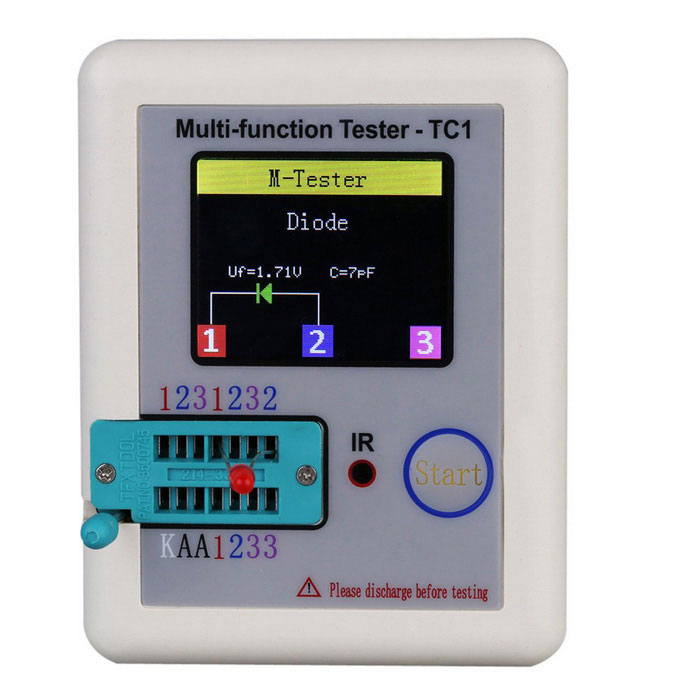

Put the pins of component in corresponding area, then dial the little handle and the detector will test it automatically, finally the results will display on the back light TFT screen clearly.
Not like the usual black and white display, this detector will show results in color.

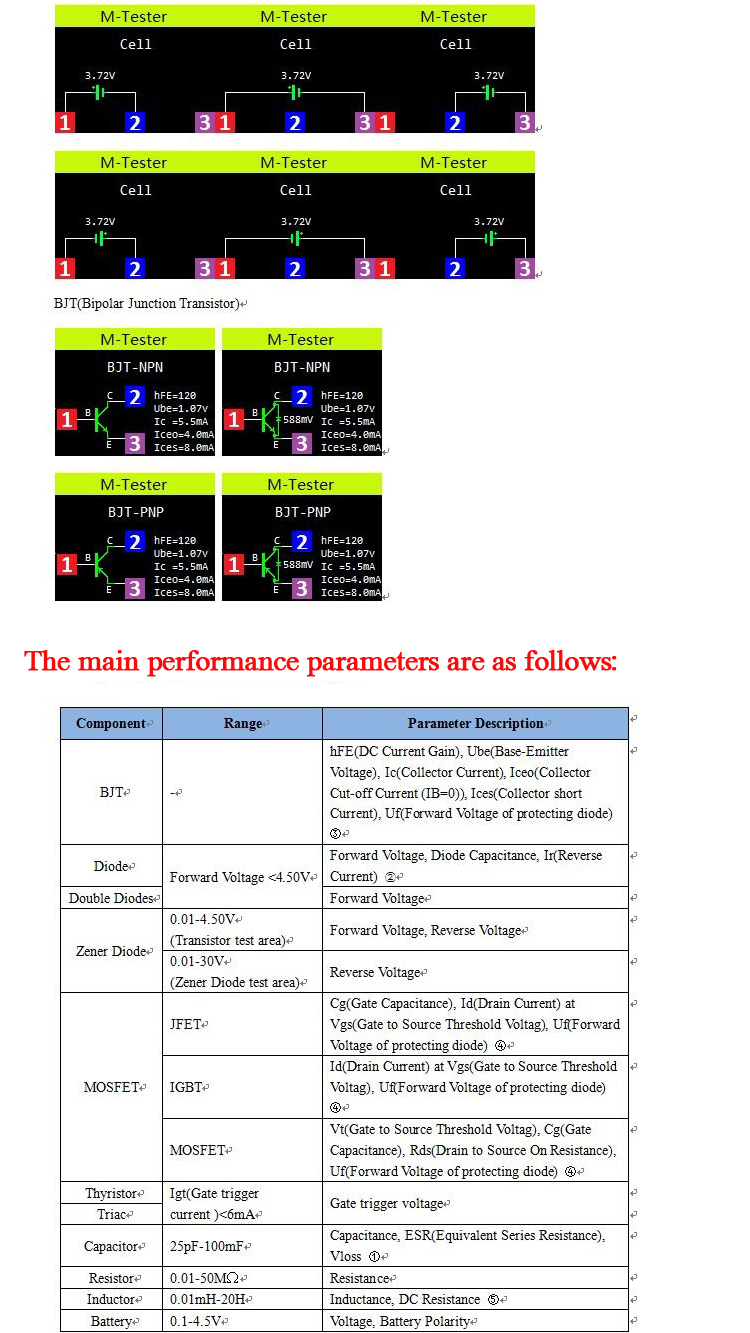

Specifications:
Display: 1.8inch TFT Screen
Diode Range: < 4.5V
Zener Diode:Transistor Detect Area: 0.01-4.5V
Zener Diode Detect Area: 0.01-30V
Zener Diode Detect Area: 0.01-30V
Triac Range: IGT < 6mA
Capacitance: 25pF-100mF
Resistor: 0.01-50MΩ
Inductance: 0.01mH-20H
Battery: 0.1-4.5V
Power Mode: Rechargeable Lithium Battery (INCLUDED)
Power Mode: Rechargeable Lithium Battery (INCLUDED)

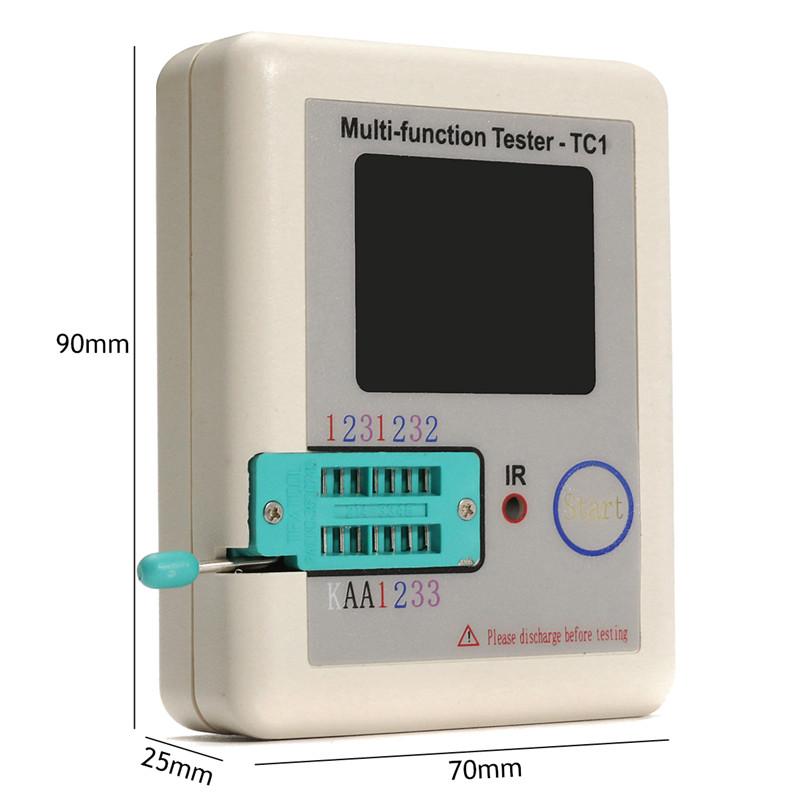

Item Size: 8.8 x 8 x 2.8cm / 3.47 x 3.15 x 1.10in
Item Weight: 111.5g / 3.94oz
Package Size: 14.5 x 12 x 2.7cm / 5.71 x 4.73 x 1.06in
Package Weight: 114g / 4.02oz

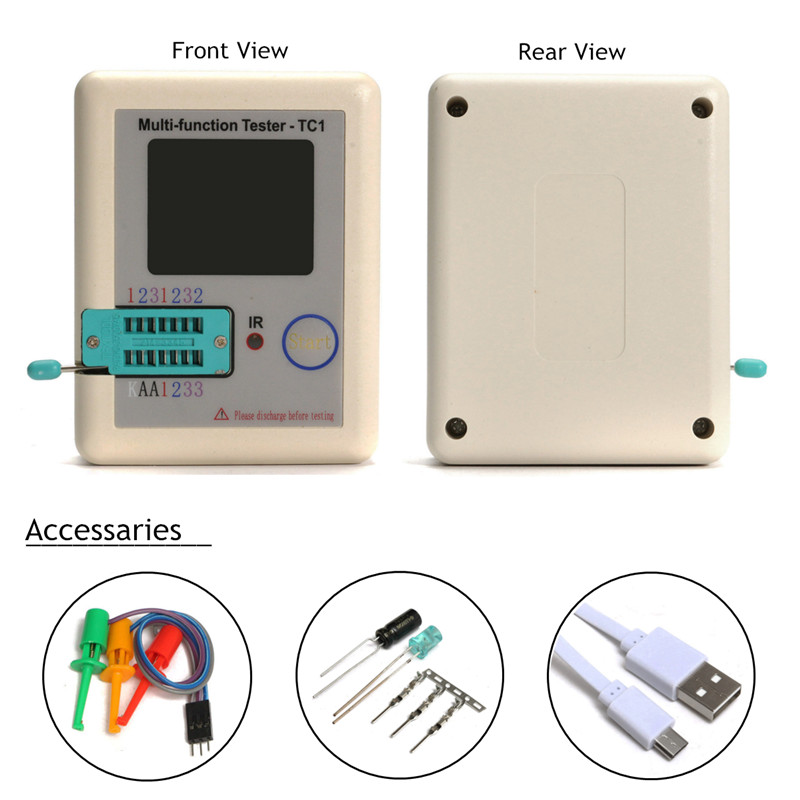

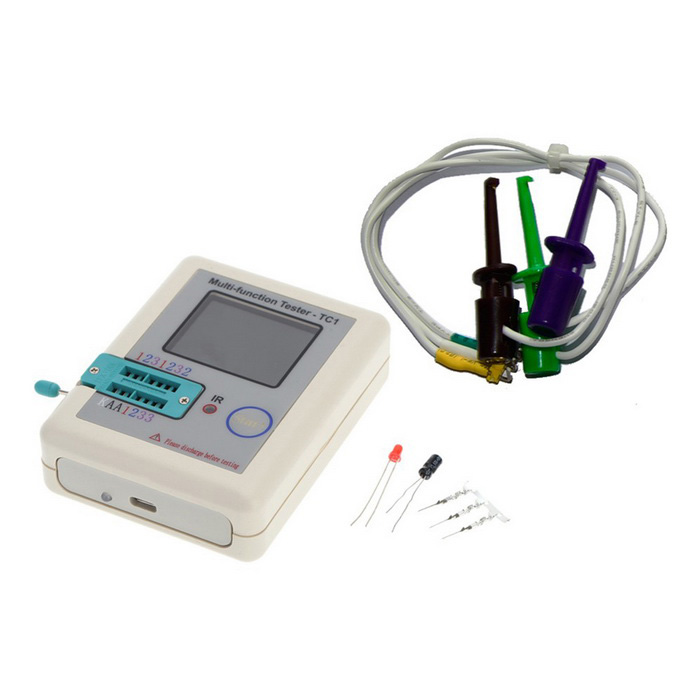

Packing included:
1 x Multi-functional TFT Transistor tester
1 x Electronic component set(Send Randomly)
3 x Test hooks
>Contact Us to veiw more info in FRENCH.pdf<
Details pictures:
>Contact Us to veiw more info in FRENCH.pdf<
Details pictures:
,
,
,
,
,
,
,
,
,
