- Stock: In Stock
- Model: ST230039126
- Dimensions: 183.00mm x 98.50mm x 78.90mm
- SKU: ST230039126
Specifications:
Product name | Flashlight |
Material | Aluminum alloy |
Low voltage warning | Automatic power off |
Reverse polarity protection | None,The positive side of the battery should be facing the head |
Lens Type | Ar-coated glass lens |
Reflector | Smooth |

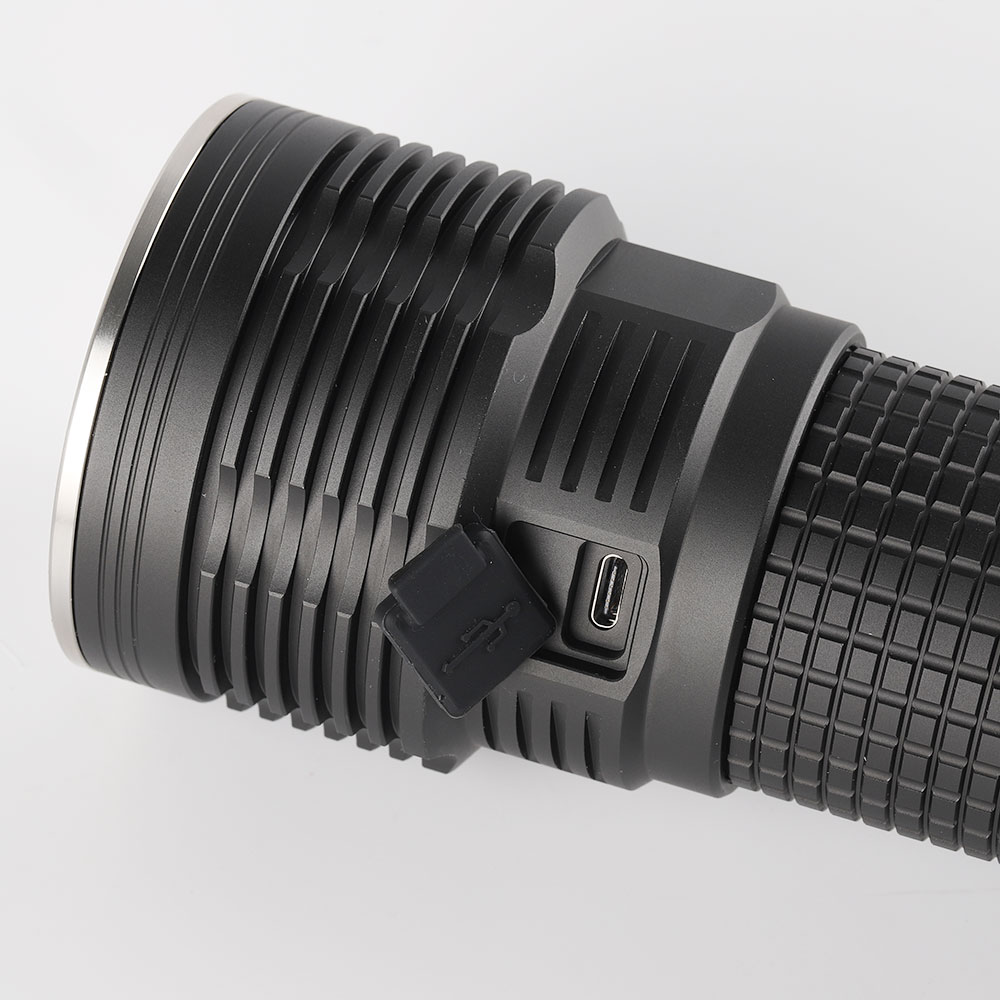

Charging | TYPE-C charging interface (charging current 3A) |
Switch position | Side button in the head |
Mode memory | Yes |
Tail stand | Yes |
Battery included or not | Not included |
Battery type required | 3*21700 batteries (unprotected) |
Luminous flux | Maximum 6800LM(SST40)/5400LM(SFT40) |
Illumination | Maximum 265KCD(SFT40)/142.5KCD(SST40) |
Range | Maximum 1029m(SFT40)/755m(SST40) |
Tc | 6500K/5000K |
Output current | 17.8A (SFT40)/16A(SST40) |
Head diameter | 69mm |
Battery tube diameter | 51.8mm |
Flashlight length | 158.4mm |
Product weight | 569g |
Weight with box | 706g |
Packing size | 183 * 98.5 * 78.9mm |
Mode operation instructions:
1.click the button ——> flashlight is turned on with last brightness ——> press the button,brightness ramping up ——> release and press the button again,brightness ramping down
2.flashlight off, press the button ——> moonlight mode 0.2% [This brightness will not be remembered]
3.Flashlight on or off, 2-click the button ——> turbo 100%
4.Flashlight off,3-click the button ——> strobe
5.Flashlight off,4-click the button ——> tactical mode, only 100% ,4-click the button again to quit tactical mode.
6.Flashlight off,5-click the button ——> voltage detection (* means "flash" , *** stop ******* means 3.7V, )
7.Flashlight off,6-click the button ——> ramping mode switch to 4modes 1%-10%-40%-100% 8.flashlight off,10-click the button ——> Lock mode,The flashlight will flash once under any operation, which means the flashlight is locked.10-click the button again to quit lock mode,Please note that this is the only way to unlock.
The flashlight has low voltage protection and temperature control protection.
Features:
-Low voltage warning, automatic power off.
-Small and portable, easy to carry.
Package Included:

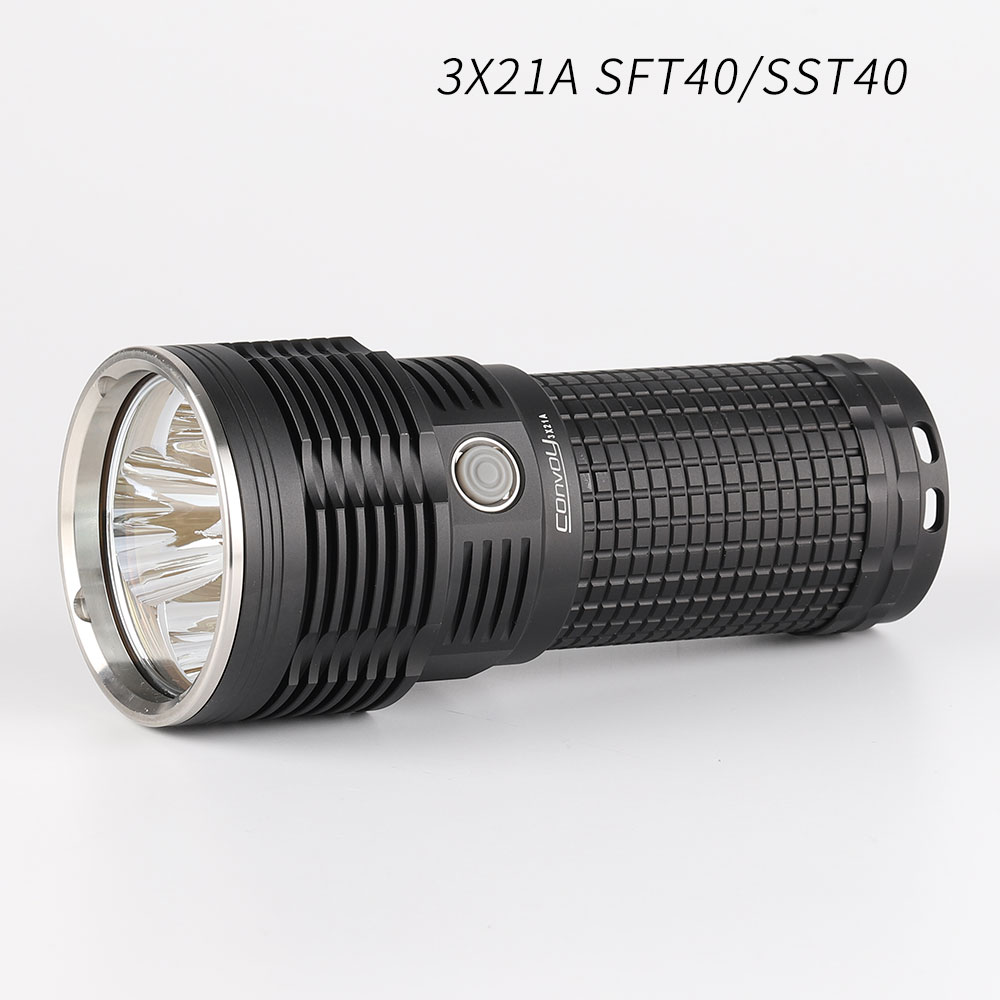

1 x Convoy 3X21A 3* SFT40 SST40 6800LM Flashlight
