- Stock: In Stock
- Model: ST22001508
- SKU: ST22001508
Note: Gopro Camera is not included.
New upgrade :
1. Integrated injection molding material, beautiful, solid and reliable, reasonable structure, lighter.
2. Adopt aio12a fc integrated 2-4s flight control system with its own black box.
4. Using runcam latest nano4 FPV competition camera, you can see more clearly and have stronger dark vision ability.
5. The upgrade adopts 400MW VTX image transmission, which is more distance and more stable.
6. It is suitable for more professional indoor aerial photography.
7. The efficiency of 2020 four blade ducted propeller is higher, and the low torque hovering stability of 1204kv5000 motor is better.
8. The revised aerodynamic layout makes the takeoff downforce greater. It's easier to hover in the air.
9. The original invention of the propeller protector can effectively protect the propeller and try not to harm the environment.
Description:
Mode Name: LIGO78X PRO
Item Name: 4S 78mm Ducted CineWHOOP drone BNF
Wheelbase: 78mm
Size: 119x132x23mm（Camera mount not included）

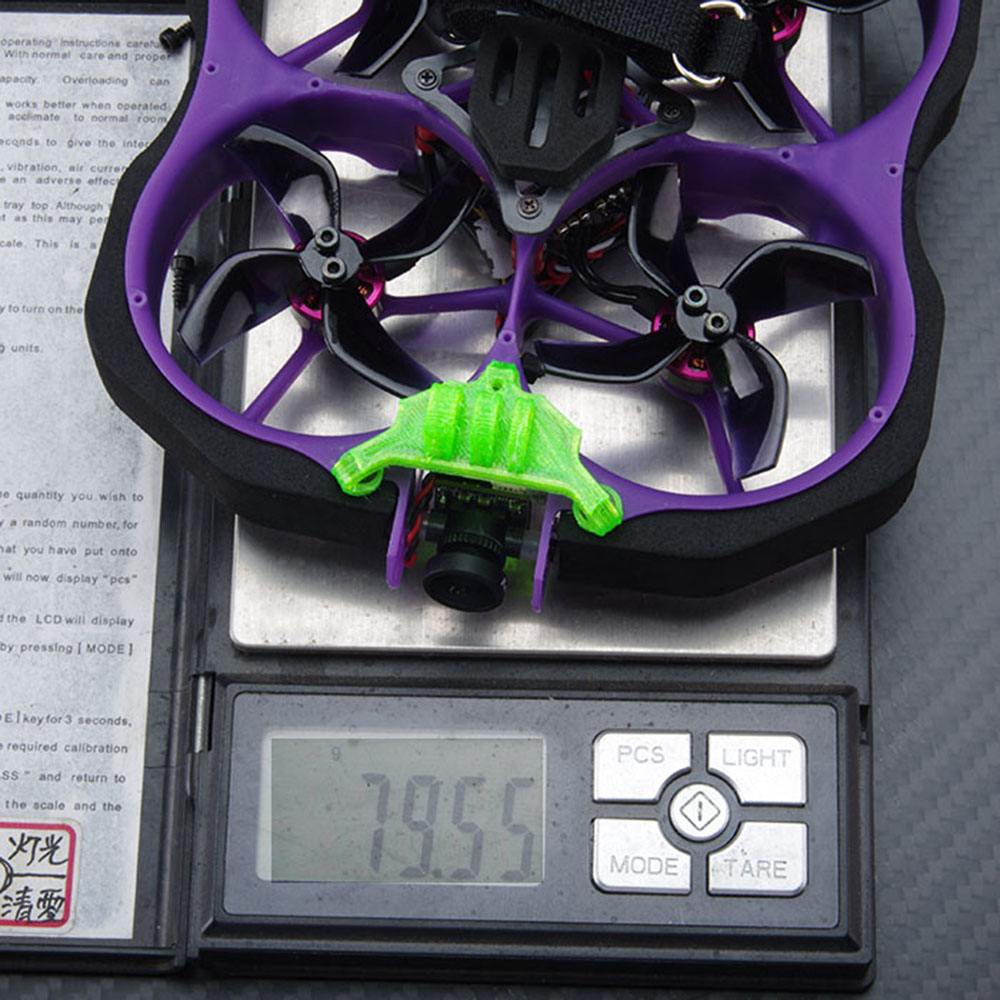

Weight: 79g(Camera mount not included)
Recommended battery: the best matching 4S 450, 550, 650, 750, 75c-90c lithium battery (limit use 850man 90C) lithium battery
FPV Camera: RUNCAM NANO4
Color attribute: Dream purple
Recommend:
Motor | Motor Mode：GL1204 KV5000 Stator specifications：D12 * H4 0.2mm Kawasaki Configu-ration:9N12P Stator Diamter:12mm Stator Length:4mm Shaft Diameter:Φ1.5mm Motor Dimension(Dia.*Len):Φ16.0mm*15.8mm Magent specifications: N52H Shift specifications: 2mm High strength steel Bearing Specifications: d2*D5*H2.5 MR52zz Japan ISC Custom made WindingSpecifications:180℃ Class Multiple oxygen-free copper Weight(g):5.8g No.of Cells(Lipo)：3S-4S |
Flight controller | Name: Ghf412 FC F411 MCU: STM32F411C (100MHZ) Sensor: MPU-6000 (SPI connection) Shop: 8MB black box onboard Board size: 28.5 * 28.5MM Power supply: 2-4S battery input (DC 7-17V) Built-in 12A (each) Blheli_S 4 in 1 ESC Dshot600 ready Built-in Betaflight OSD (SPI control) Built-in 12V 2A BEC Built-in voltage detection Onboard 4in1 ESC Onboard 4in1 ESC MCU upgraded to EFM8BB21 Factory firmware: G_H_30_REV16_7.HEX Default protocol: DSHOT600 Power input: XT30 |
Frsky NON-EU/EU-LBT XM+ receiver Version | SBUS receiver Frsky D8/D16 switchable Compatible Non EU transmitter both D8 and D16 mode Channels: 8ch or 16ch Failsafe support No ground interference ( Transmitter and receiver 1 m from the ground): >300m Operating Voltage Range: 3.7~10V Operating Current: 30mA @5V Operating Range: Full range With RSSI output on board: Analog 0~3.3V Firmware upgrade-able, can be upgrade to EU-LBT with RSSI |
Compatible Flysky receiver Version | IBUS receiver Protocol: AFHDS-2A Channels: 14ch(AFHDS-2A) No ground interference ( Transmitter and receiver 1 m from the ground): 300m Failsafe support |
Compatible TBS NANO receiver version | CRSF Protocol , Official TBS transmitter compatible Protocol: CRSF Channels: 8ch Failsafe support Support receiver hardware rssi function No ground interference ( Transmitter and receiver 1 m from the ground): >500m |
PNP receiver version | Support any bus and other protocols, users can install by themselves |
5.8G VTX | Power switching: third gear(25MW 、 100MW 、200MW、400MW) Frequency: 40CH Input voltage: 3.3V 5.5V Current consumption: 300mA(type) Frequency: 5.8GHz 5bands 40 channels Weight: 2.0g |
Camera | RUNCAM NANO4 1/3 COMS sensor Horizontal: 800TVL 800x600 TV system: ntsc/pal 4:3 Power Input: DC 3.3-5.5v Colorful：0.1Lux(F1.2) Signal to noise ratio：> 50dB Weight:2.9g |
Propeller | Gemfan D51 (2020-4) Cinewhoop props Material: PC Weight: 0.91g Pitch: 2 inches Prop diameter: 50.3 mm Center thickness: 4.5mm Center hole diameter: 1.5mm 3 holes |
Recommended Battery (Not Included) | Species : lipo、lipoHV Capacity:450-750mah Voltage:7.8-16.8v Continuous Discharge Rate: 60C Instantaneous discharge rate: 90C Connector: xt30 |
Package Included:
1x LIGO78X Frame
1x 3D printed GOPRO 67SMO 4K Naked camera caset
4x GL1204 KV5000 Motor
1x 2020 propeller(4cw+4ccw)
1x 5.8G GVTX400 VTX
1x RUNCAM Nano4
1x Screwdriver Removal Tool
2x Battery Strap
2x Propeller Protector
1x 4s 450mah lihv Battery
1x Bag
