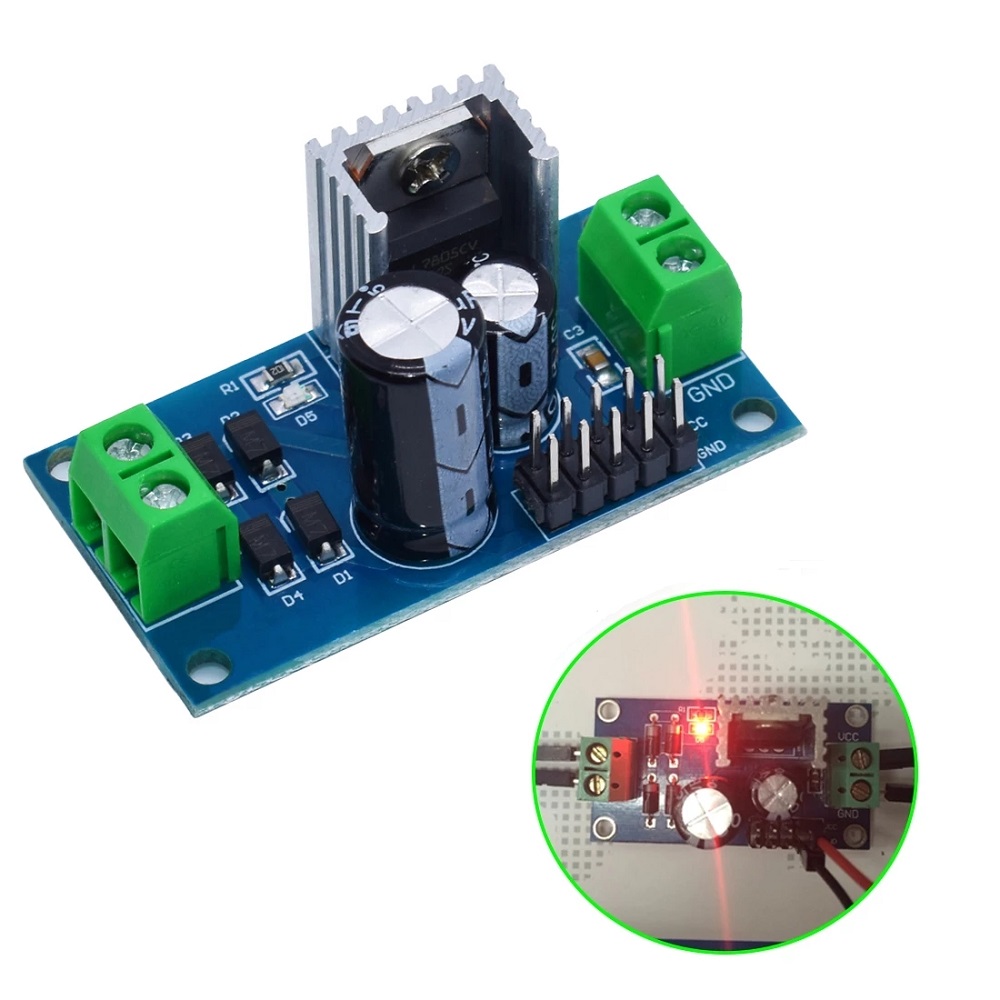

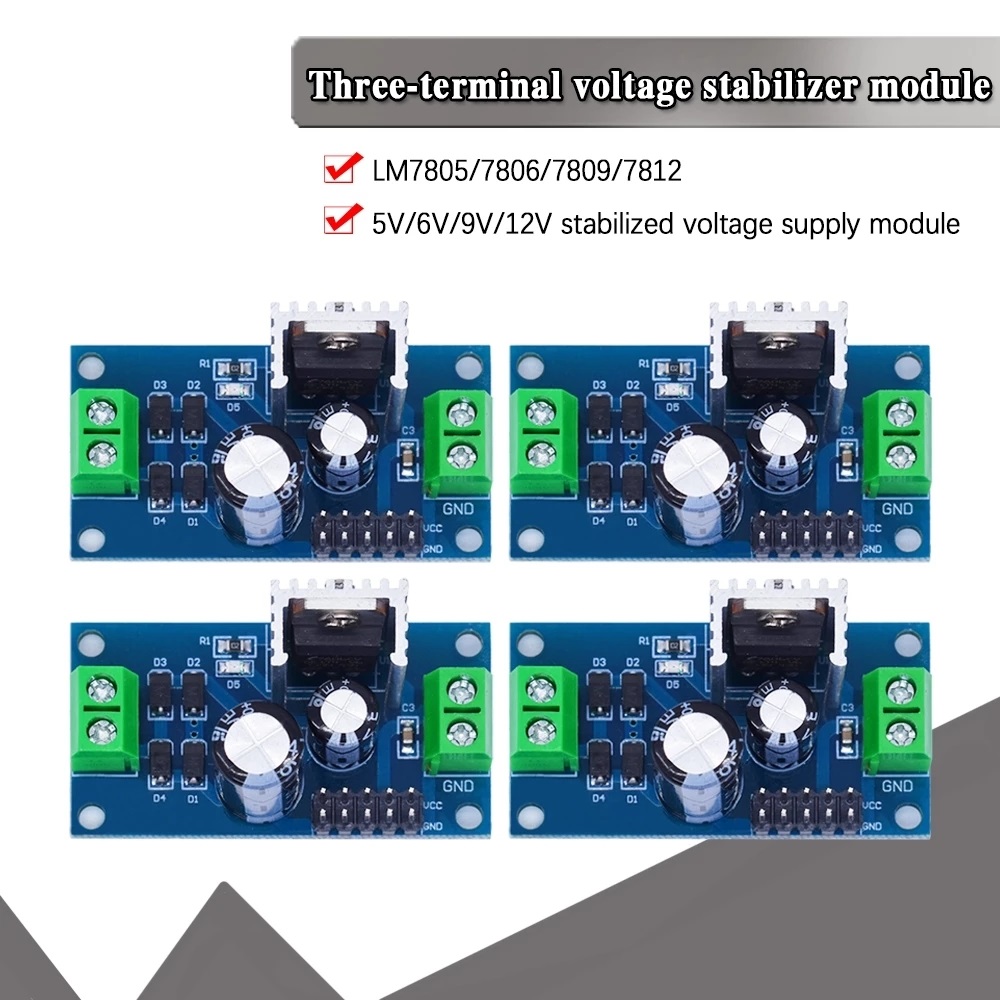

LM7805 LM7806 LM7809 LM7812 5V 6V 9V 12V 1.2A DC/AC Three Terminal Voltage Regulator Power Supply Module
- Stock: In Stock
- Model: ST230049508
- SKU: ST230049508
$3.99
Ex Tax: $3.99
Description:

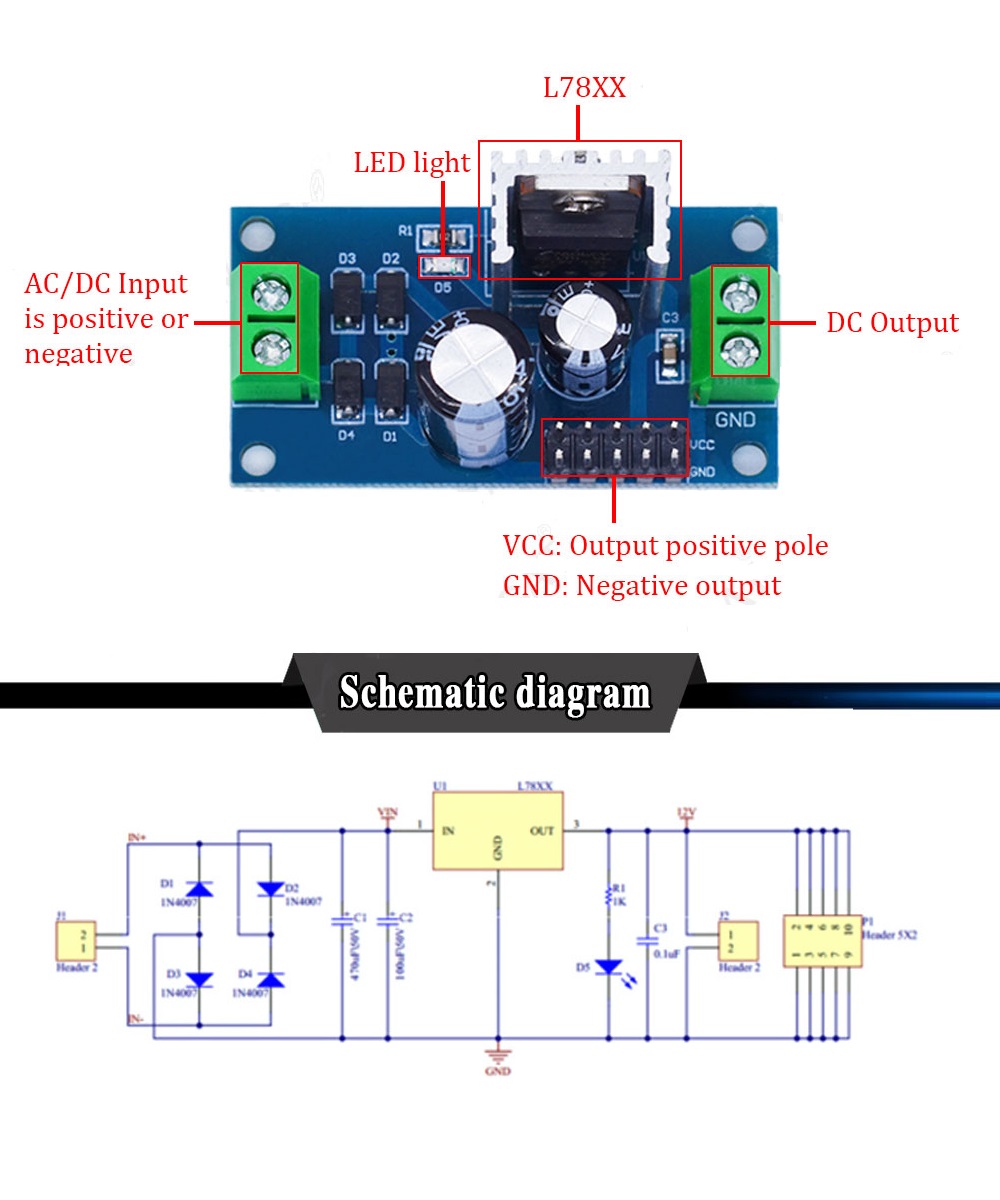

L78XX series power supply module integrates rectification, filter components and voltage regulator chip. It inputs AC or DC voltage within a certain range, can regulate the output DC voltage, and has overheat and overcurrent protection.
Features:
Input voltage: AC/DC voltage, no need to distinguish anode and cathode;
Output voltage: DC 5V/6V/9V/12V;
Maximum output current: 1.2A;
Equipped with 5V/6V/9V/12V power output terminals and 5 x 2 Pin
Product Parameters:
Model | L7805 | L7809 | L78012 |
Input voltage | AC/DC 8-24V | AC/DC 12-24V | AC/DC 15-24V |
output voltage | DC 5V | DC 9V | DC 12V |
output current | MAX 1.2A | MAX 1.2A | MAX 1.2A |

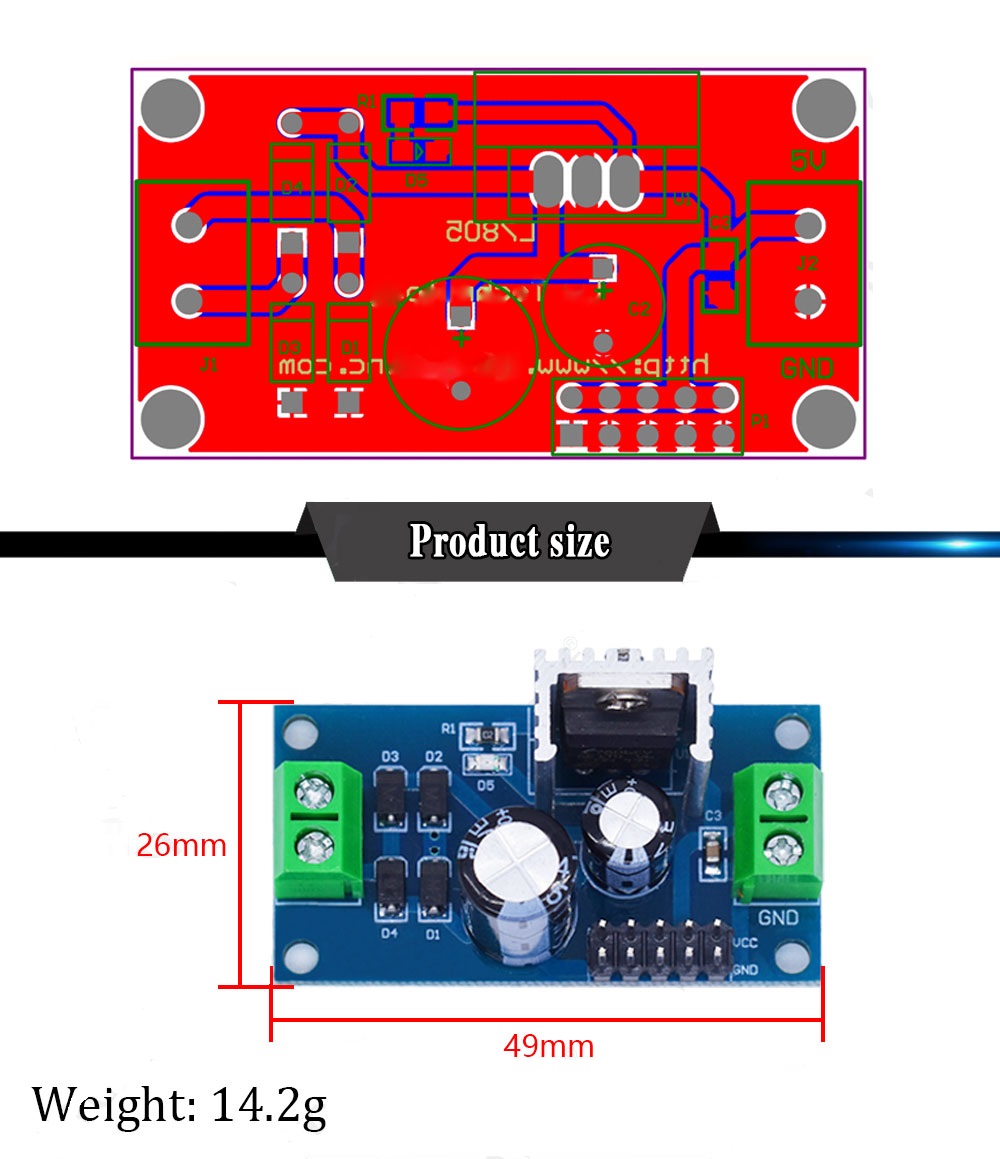

Board size | 45*26mm | 45*26mm | 45*26mm |
Package included:
1 x Power supply module
