Lichee Nano Motherboard F1c100s Development Board Linux Programming Learning
- Stock: In Stock
- Model: ST230047145
- SKU: ST230047145
$5.99
Ex Tax: $5.99
Electrical characteristics:
- Input 5V through the micro USB port, input 3.3 to 5V through the pin
- Output - 3.3V, optional input RTC voltage
- Power consumption - 54mA (idle) when using Linux, 250mA with display
- Storage temperature: -40~125°C; Operation: -20 to 70°C
- Sipeed Lichee Nano with Flash Linux Development Dev. Board 16M Flash Version IOT Internet of Things

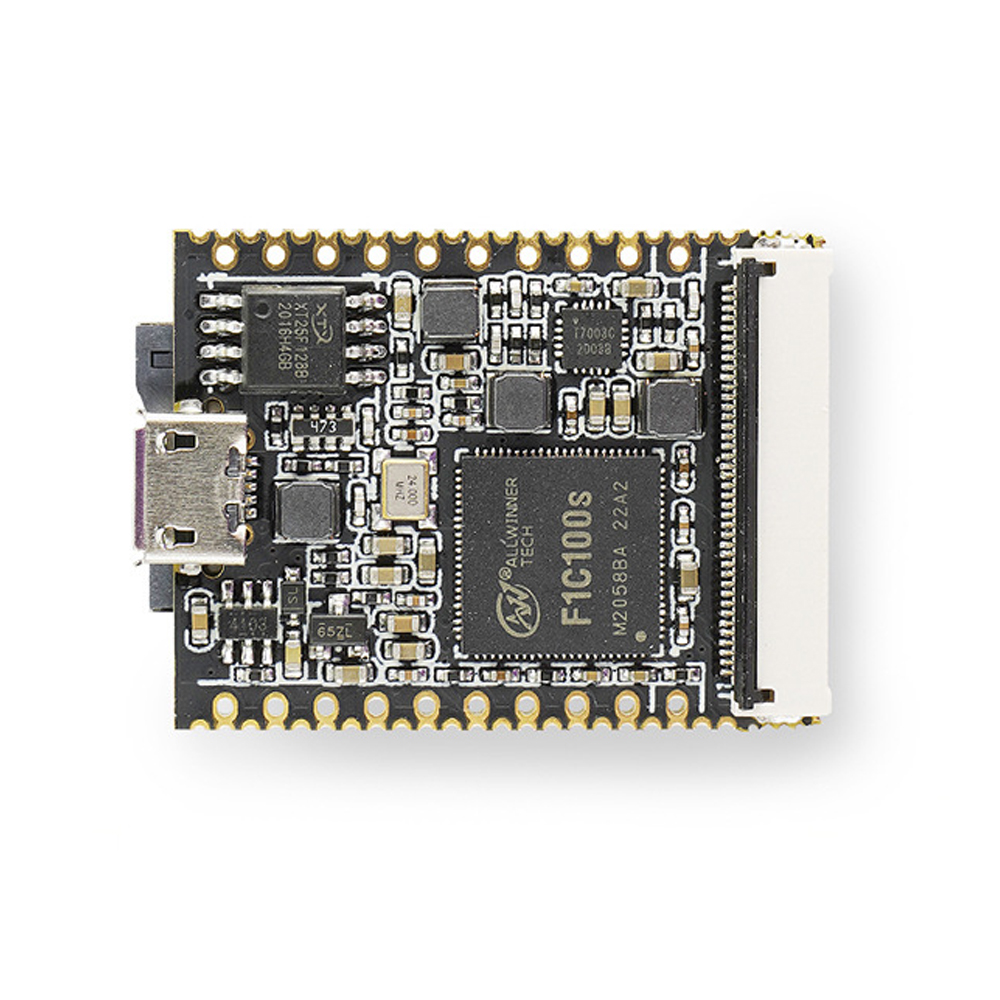

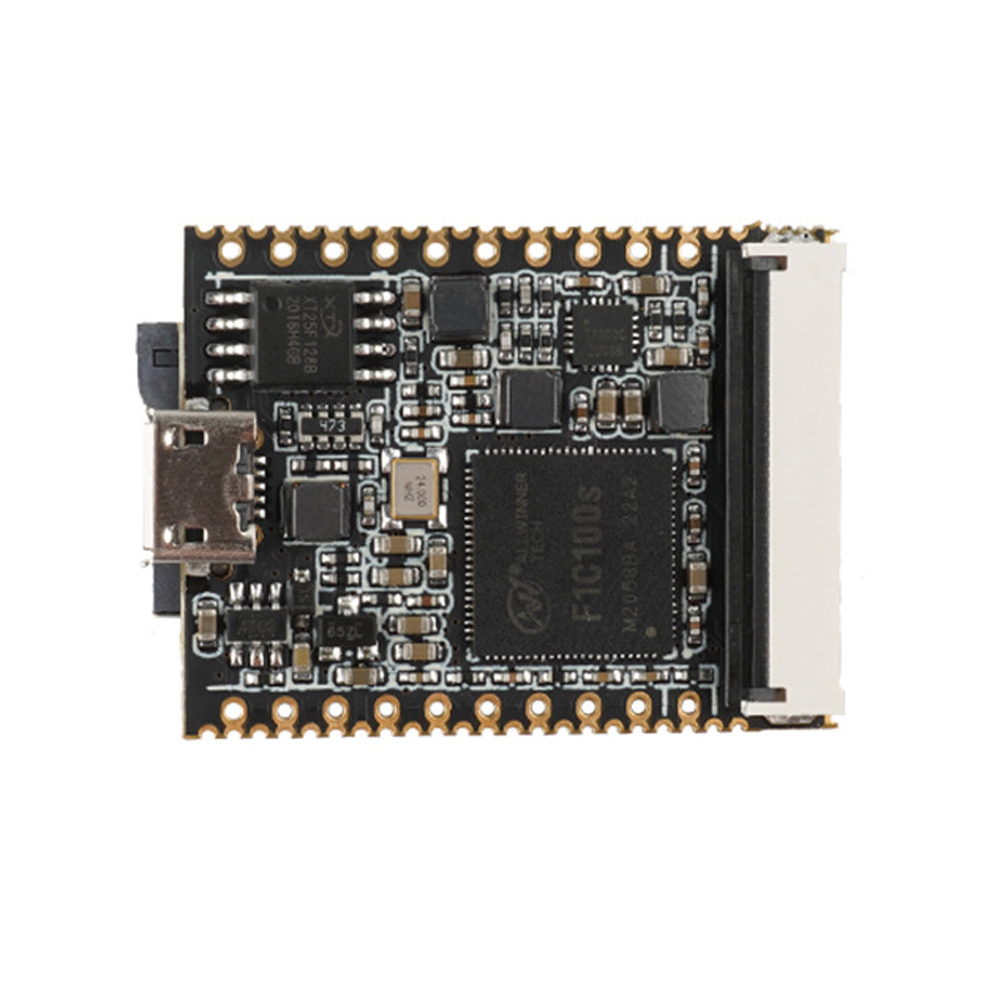

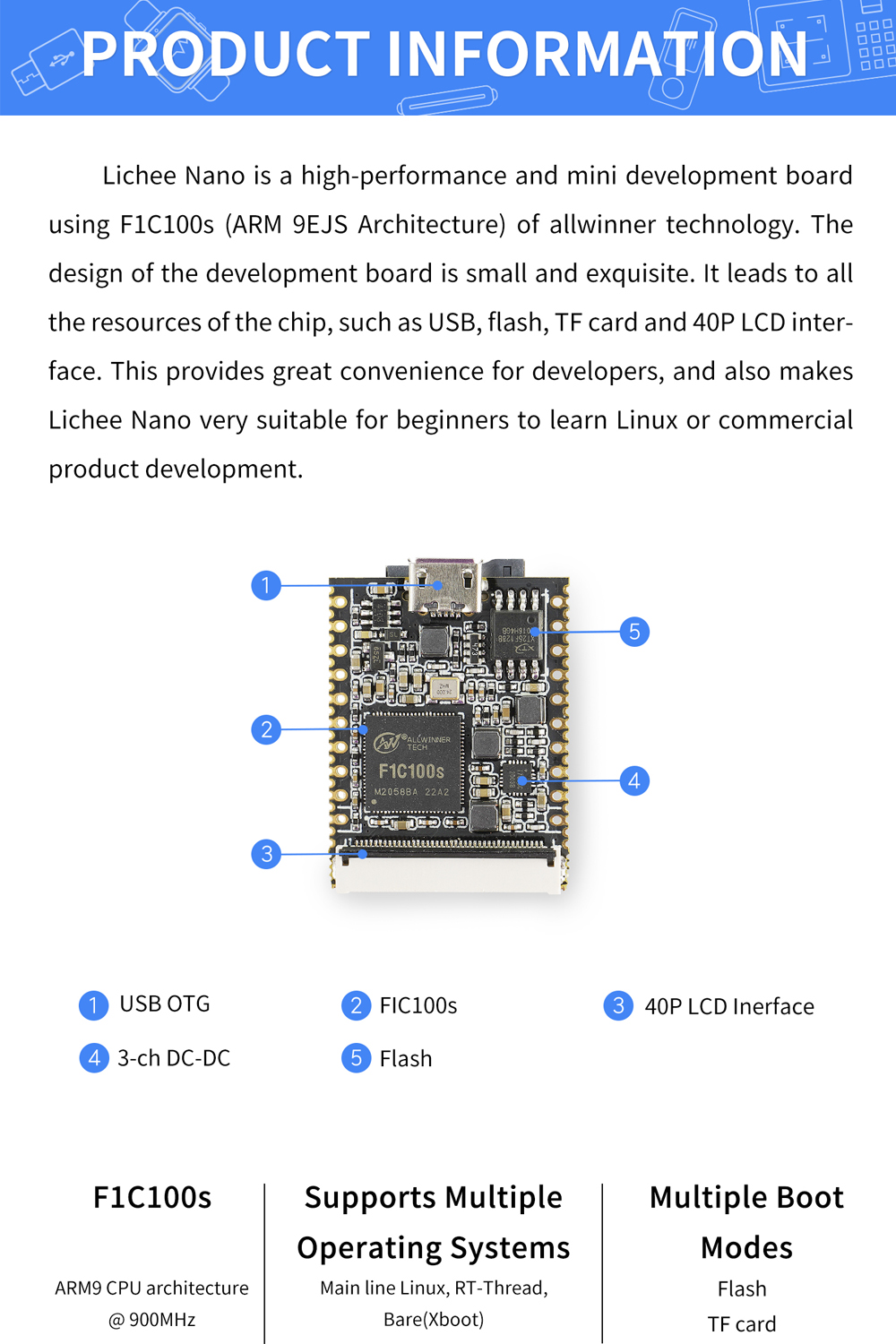

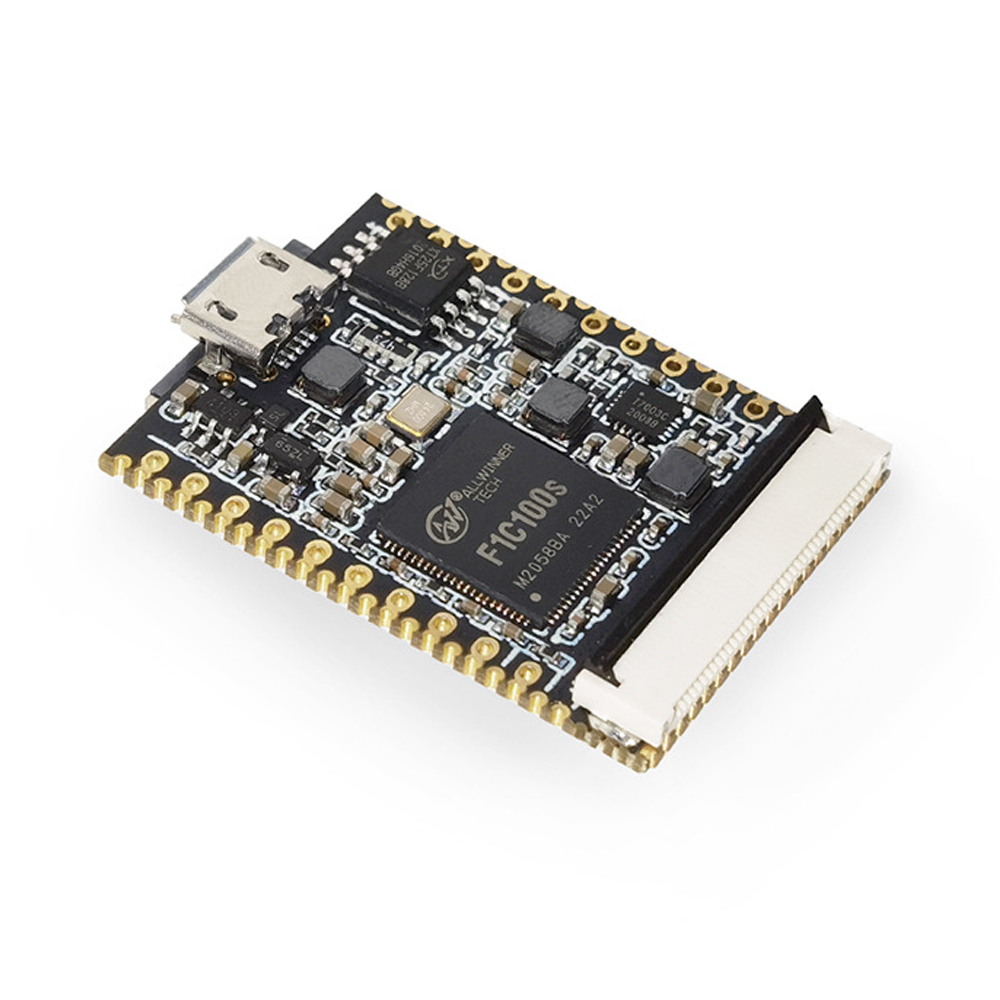

- Lichee Nano is a SD card sized Linux development board powered by the Allwinner F1C100s ARM9 processor.
- Lichee Nano 22

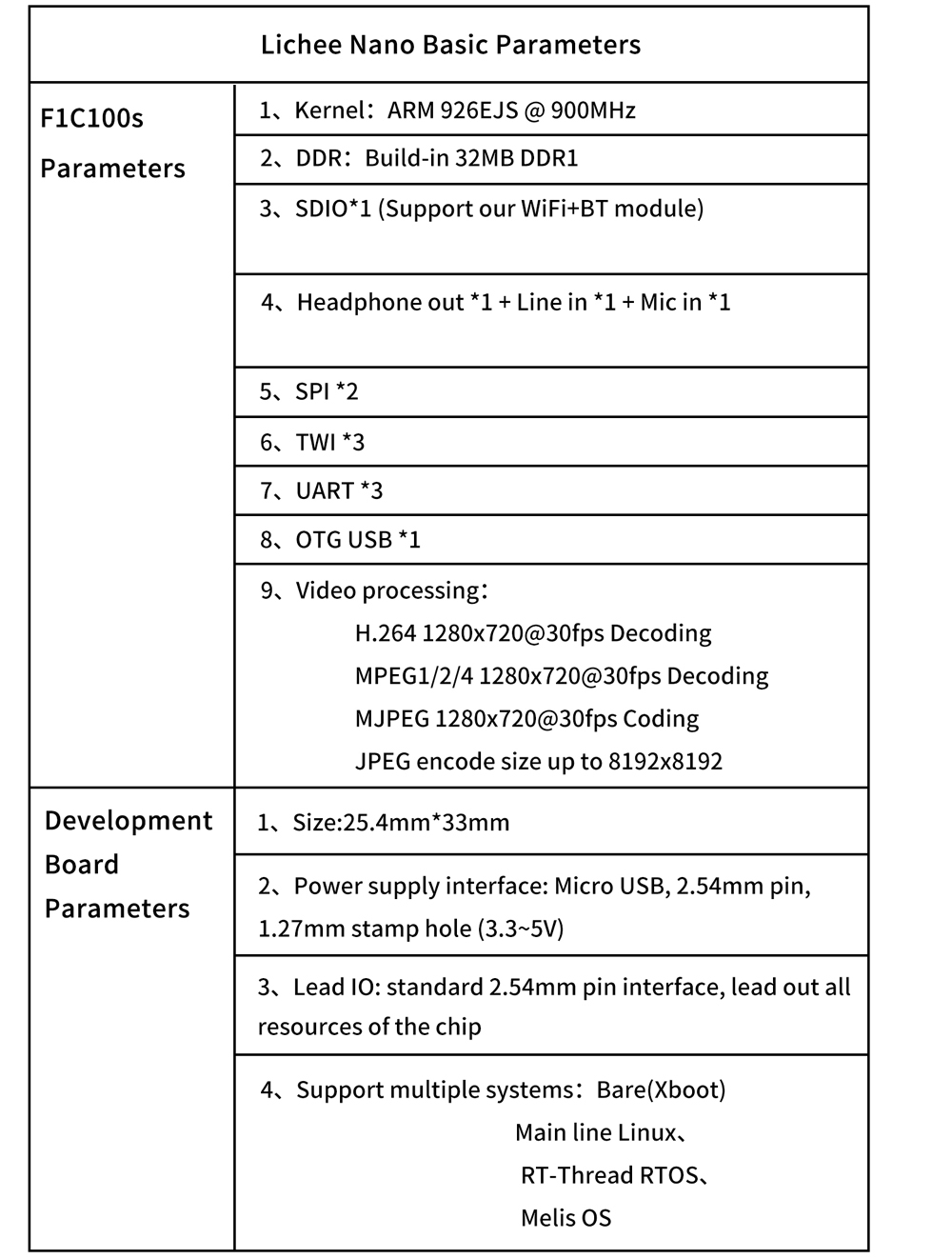

CPU
-Allwinner F1C100s, ARM 926EJS processor, up to 900MHz
Memory and storage
- 32MB DDR integrated into SoC, 16MB SPI Flash

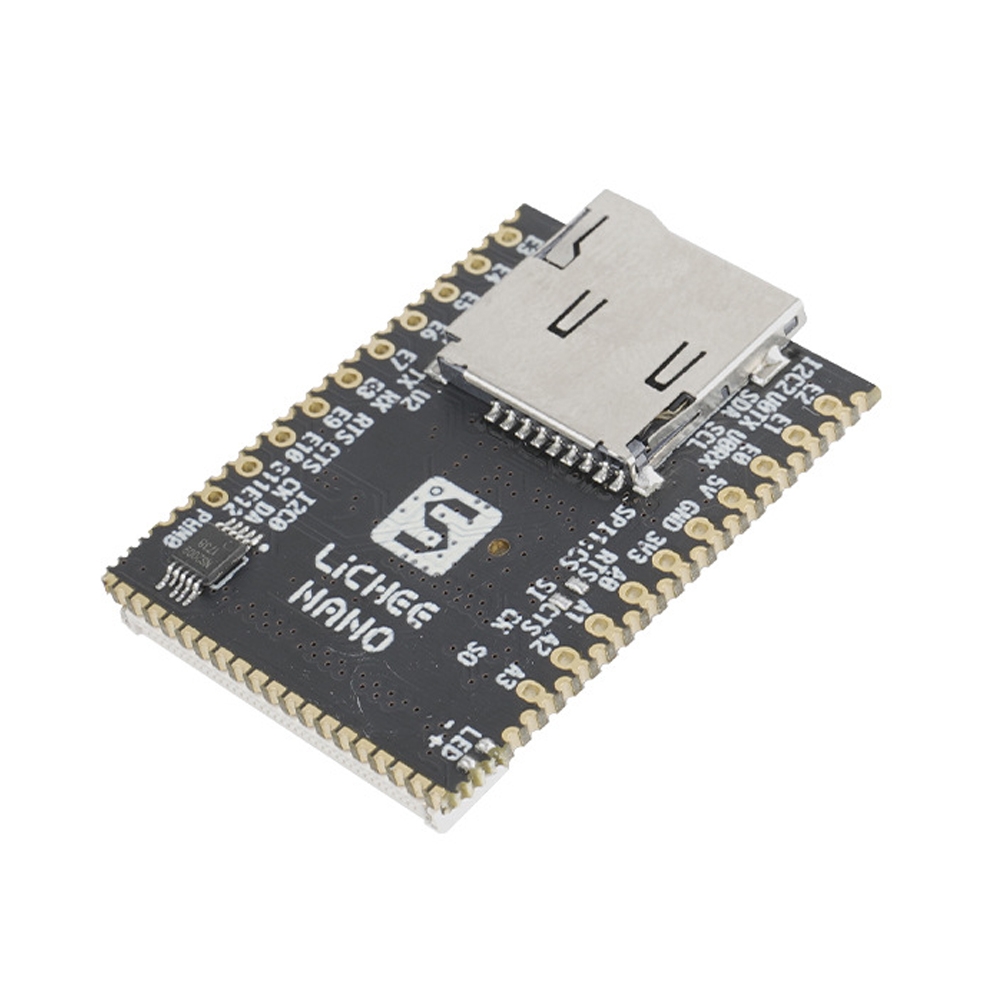

- Onboard TF slot, can be booted from TF card,
Display
- 40pin RGB LCD FPC connector, supports 272×480, 480×800, 1024×600 and other resolution resistive displays (and capacitive displays through the adapter board).
- Support 720P video output, support video stream decoding such as H.264 / MPEG
Communication Interface
- SDIO for WiFi module
- SPI x2, TWI x3, UART x3
- OTG USB x1, TV output
Other interface
- PWM x2, LRADC x1
- Headphone output x2, Mic x1
Software and development environment:
Support for 3.10 BSP linux
Support 4.19 main line linux
Support xboot bare metal development environment
Support RT-Thread
Target application scenario:
IoT applications use more complex communication interfaces and protocols
The application of human-computer interaction interface requires more beautiful and complex logic
Application scenarios that require more operations (as opposed to regular MCUs)
Need to use open source software under Linux for rapid development
High-end geek players balance in size, performance and ease of use.
Entry level player, software engineer, hardware diy using familiar language
Size and weight:

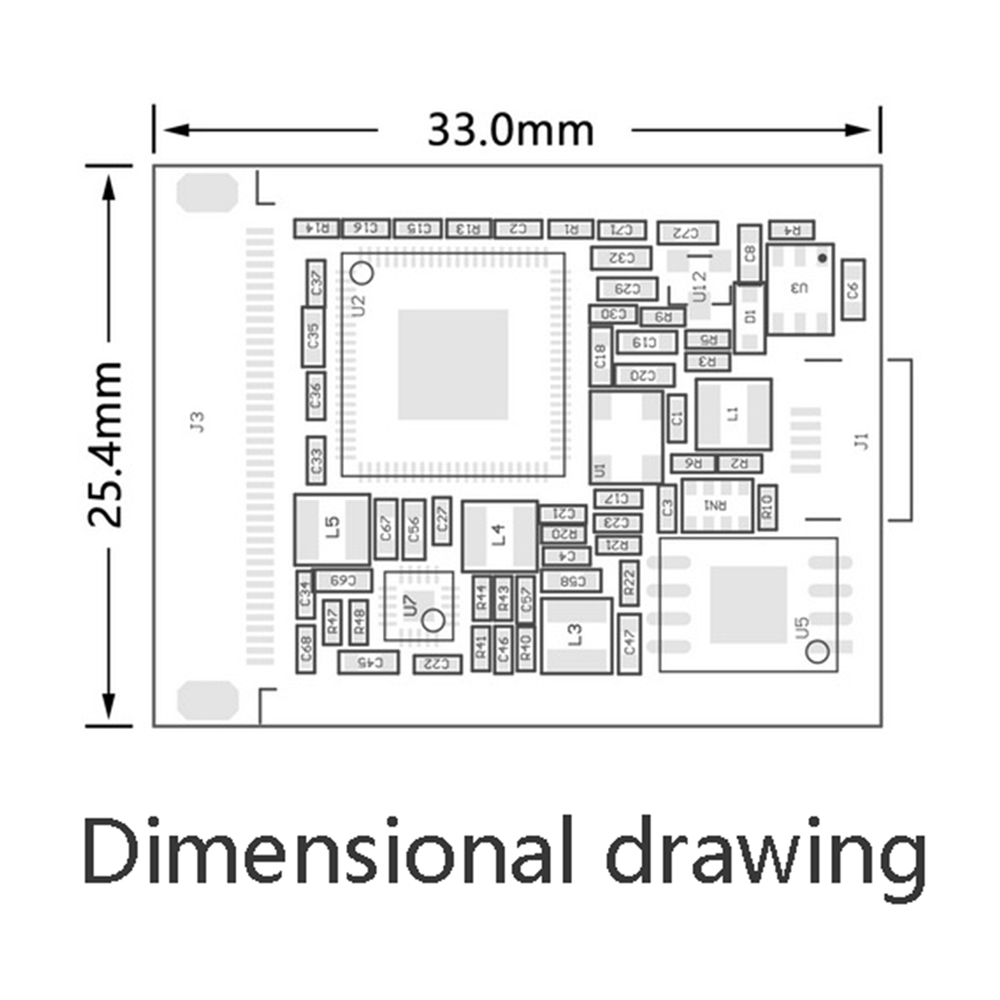

Core board size is 25.4x33.0mm
Core board weight 4.2±0.2g
Precautions:
Starting the Nano requires a card boot (or solder SPI flash), just plugging in the USB without any symptoms
System debugging serial port UART0, specific location reference pin diagram
USB interface OTG usb, power and communication
Working temperature -20~70°C
Package includes:
(Note: Each option is a separate purchase, not a kit)
Option 1: 1 x Lichee Nano Motherboard with pins
Option 2: 1 x Wifi module
Option 3: 1 x 5 inch resistive screen
