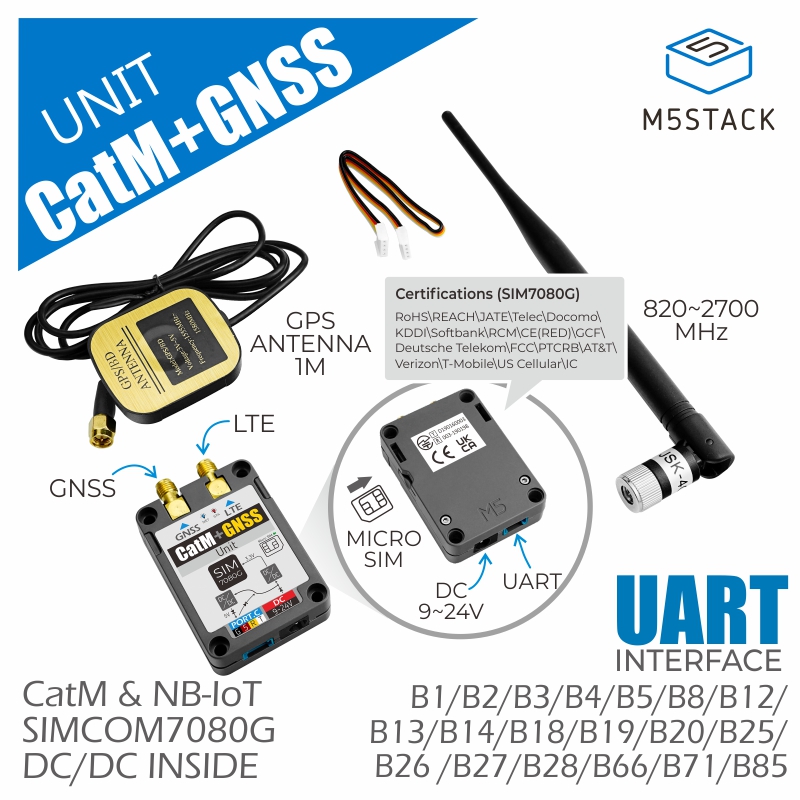

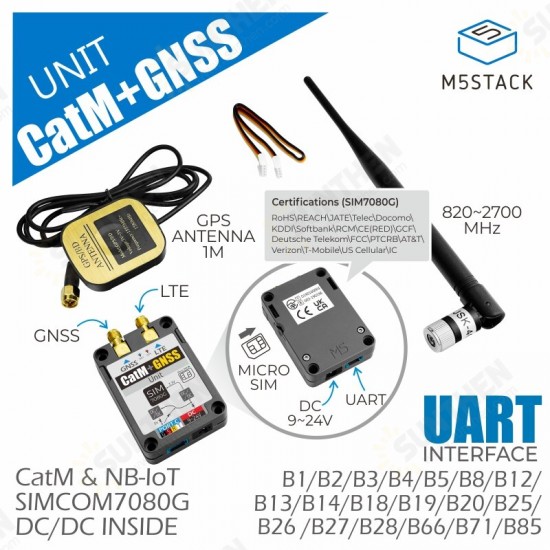

SIM7080G CAT-M/NB-IoT+GNSS Unit with Telec Antenna Kit

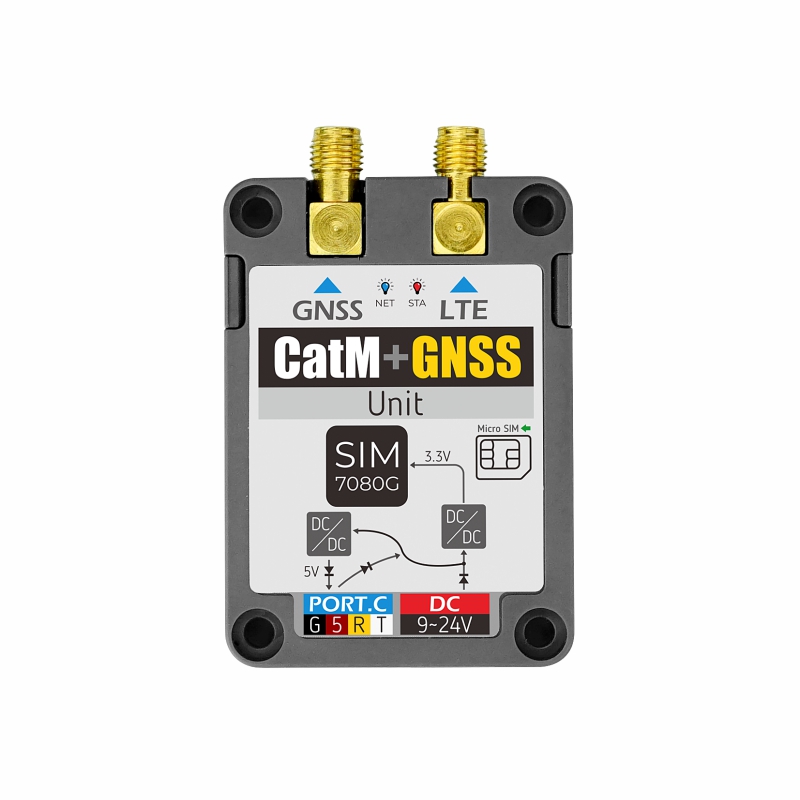

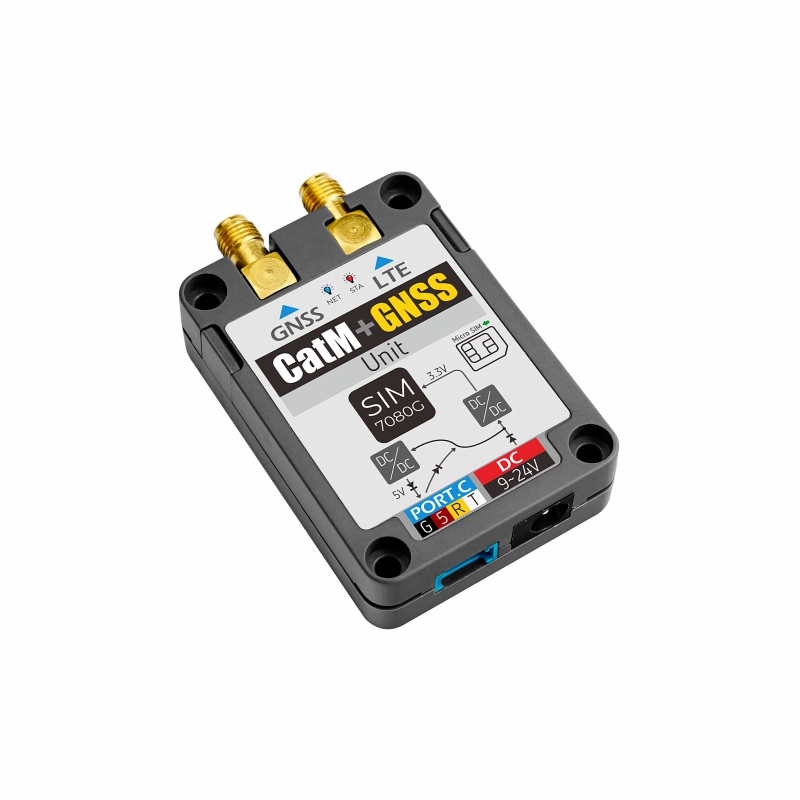

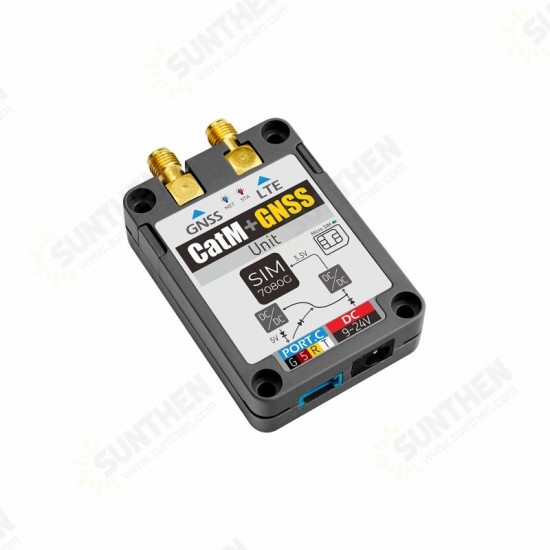

UNIT CatM+GNSS is the global version of CAT-M & NB-IoT dual-mode wireless communication module. The internal 'SIM7080G' module supports both 'CAT-M' and 'NB-IoT' bands worldwide and GNSS. This module adopts serial communication, AT command control and supports multiple communication protocols. Integrated dual SMA external antenna interfaces (LTE+GNSS) to improve the communication quality and signal stability. Well suited for remote control, remote monitoring, and other IoT applications.

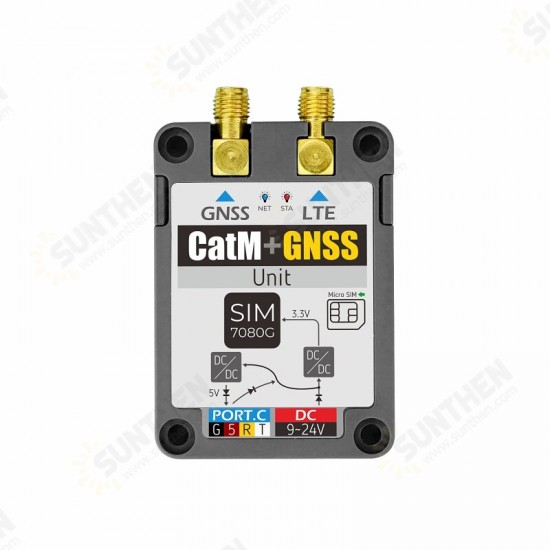

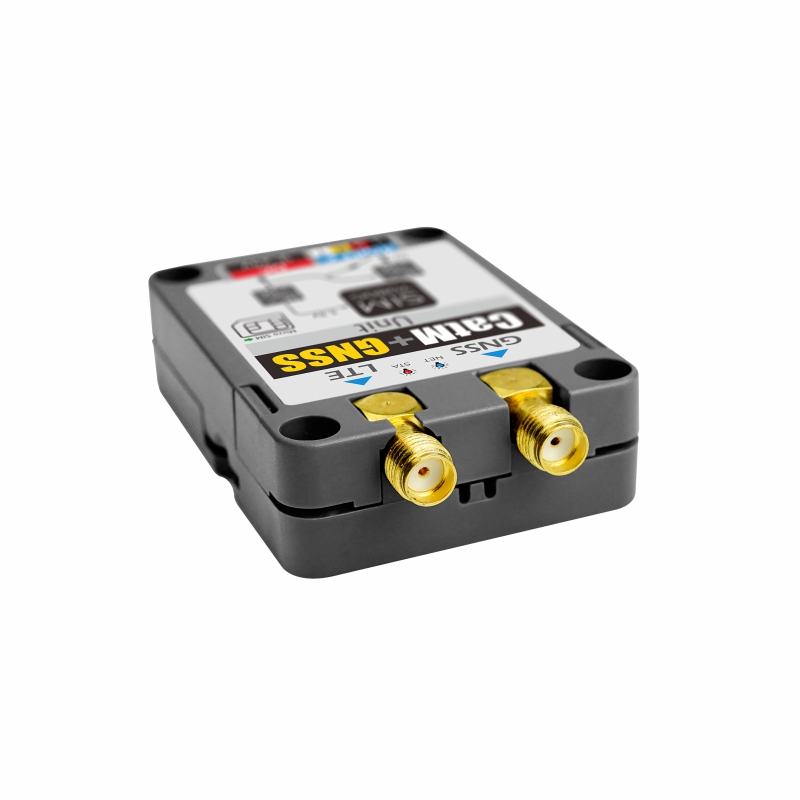

Integrated Communication+Positioning, Dual SMA antenna interfaces

Cat-M & NB-IoT modes with Global Coverage

Uplink: & Downlink:

Cat-M: Uplink: 1119Kbps Downlink: 589Kbps

NB-IoT: Uplink: 150Kbps Downlink: 136Kbps

Supported protocols:

TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT and others

Certifications:

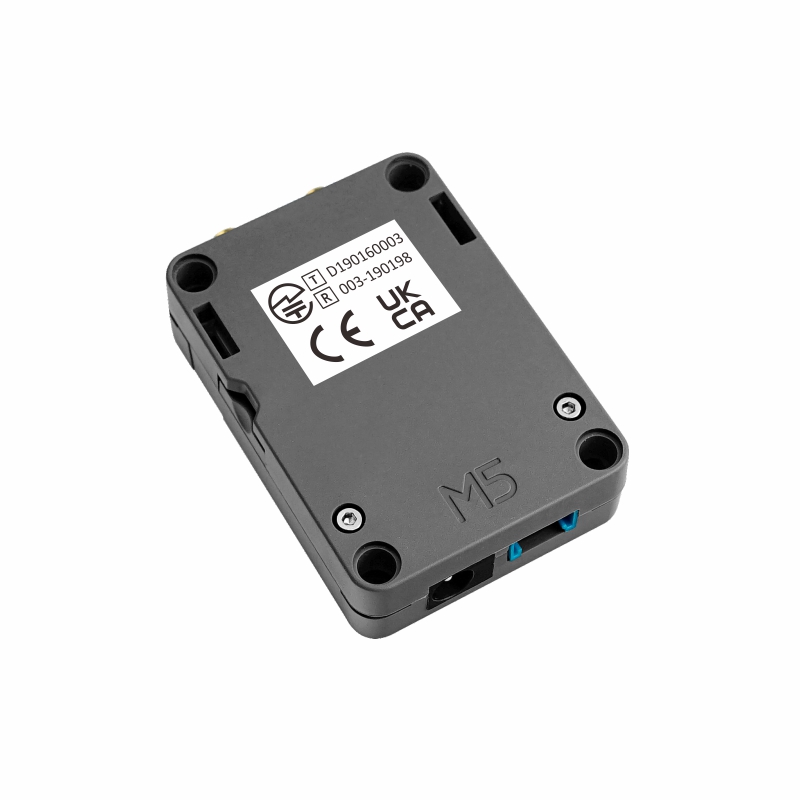

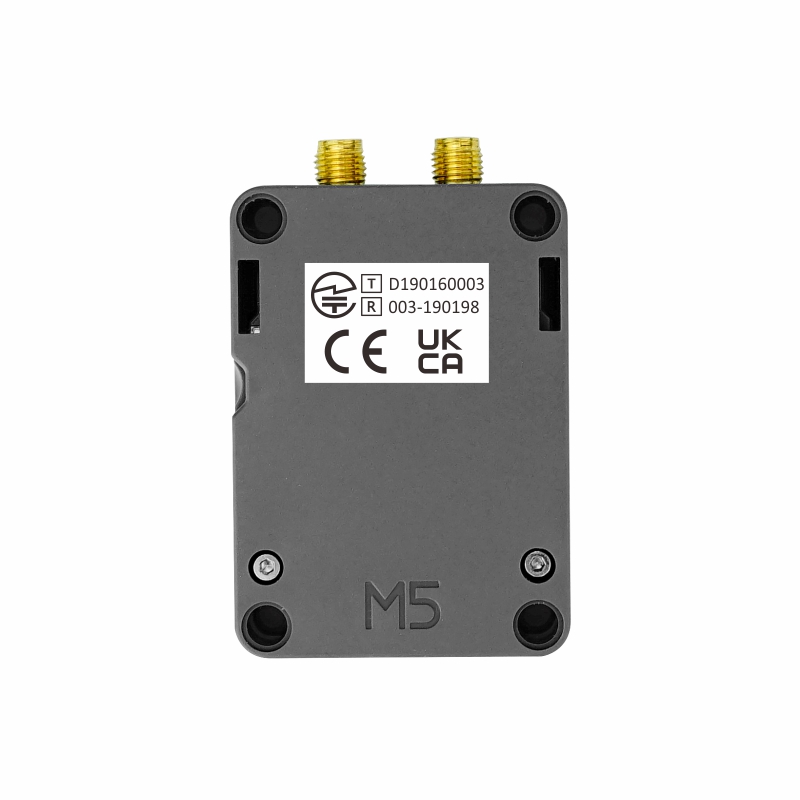

Softbank/Telec/RoHS/REACH/JATE/Docomo/KDDI/RCM/CE(RED)/GCF Deutsche Telekom/FCC/PTCRB/AT&T/Verizon/T-Mobile/US Cellular/IC

GNSS: GPS/GLONASS/BeiDou/Galileo

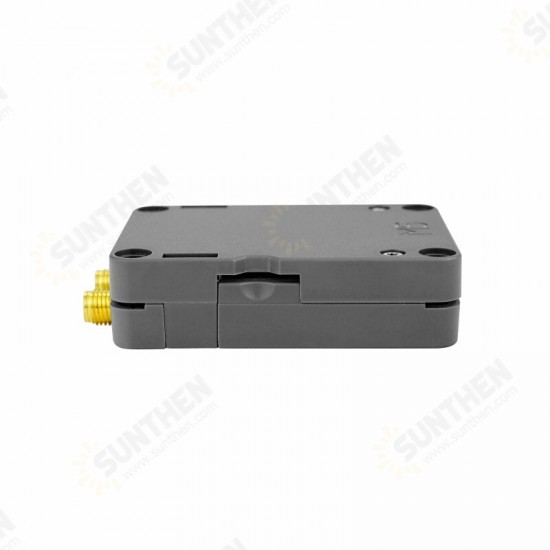

MicroSIM card slot

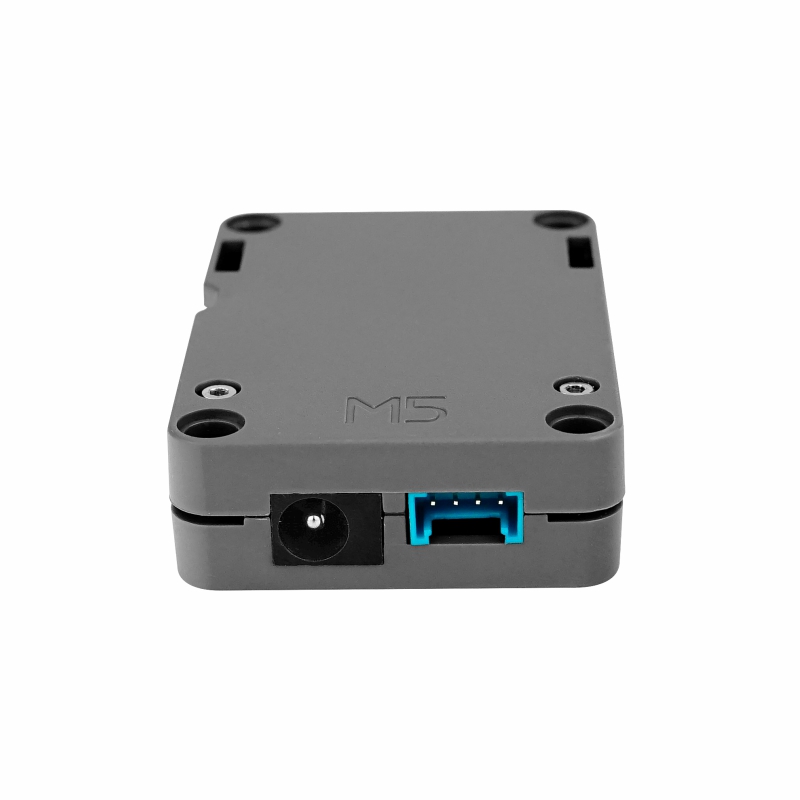

Two power supply:

External DC 9-24V (5.5/2.1mm DC socket) input, built-in DC/DC circuit, to converter 9-24V to 5V

External DC 5V power through HY2.0-4P cable

Communication interface: UART(3.3V TTL), AT Command control

Supported platform: ArduinoIDE, UIFlow

Reserved 4 installation holes, suitable for multiple installations

Remote Control

Remote Monitor

AGV

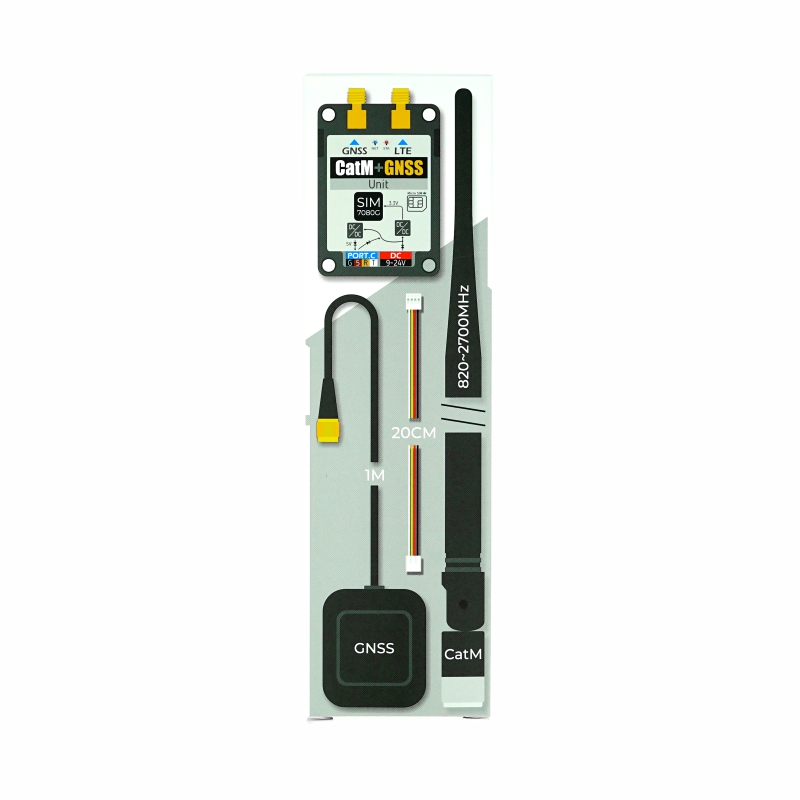

1 x Unit CatM+GNSS

1 x 4G Antenna (Telec)

1 x GPS Antenna

1 x HY2.0-4P cable (20cm)
