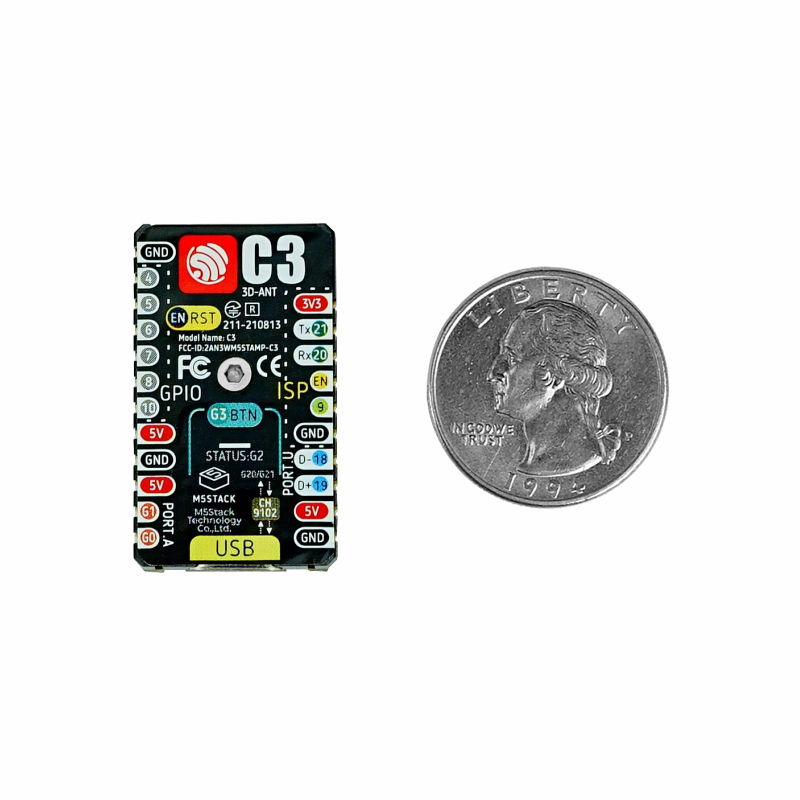

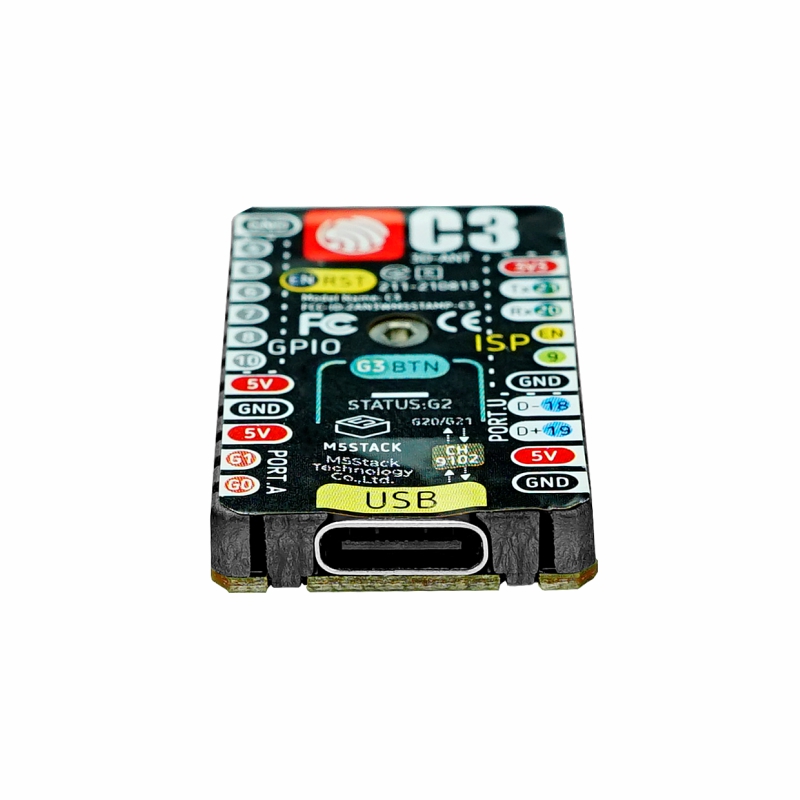

M5Stamp C3 ESP32 Development Board WiFi+Bluetooth Ultra-Low Power ESP32-C3 RISC-V MCU
- Stock: In Stock
- Model: ST230047810
- SKU: ST230047810
$11.99
Ex Tax: $11.99
Description:
M5Stack just added a new family to its popular series of modules with the Stamp-C3. the new Stamp-C3 featuring ESPRESSIF ESP32-C3 RISC-V MCU with Wi-Fi and Bluetooth 5 (LE) connectivity for IoT edge devices such as home appliances and Industrial Automation. By combining RSA-3072-based secure boot and the AES-128-XTS-based flash encryption, M5Stack offers a more secure way to answer the Bluetooth security concerns, while also make it optimal for industrial IoT equipment collecting sensor data within a factory or a building.
The Stamp-C3 is based on 32-bit RISC-V microcontroller and operates at a maximum clock frequency of 160 MHz. With 400 KB of internal RAM and 4 MB Flash, it can facilitate many different use-cases involving connected devices.The Stamp-C3 provides full Bluetooth® 5.0 long-range (LR) support including long-range and mesh networking functions and achieves building devices with great coverage and improved usability. Furthermore, the exceptional heat resistance plastic enclosure is sustained at a higher operating temperature.
Features:

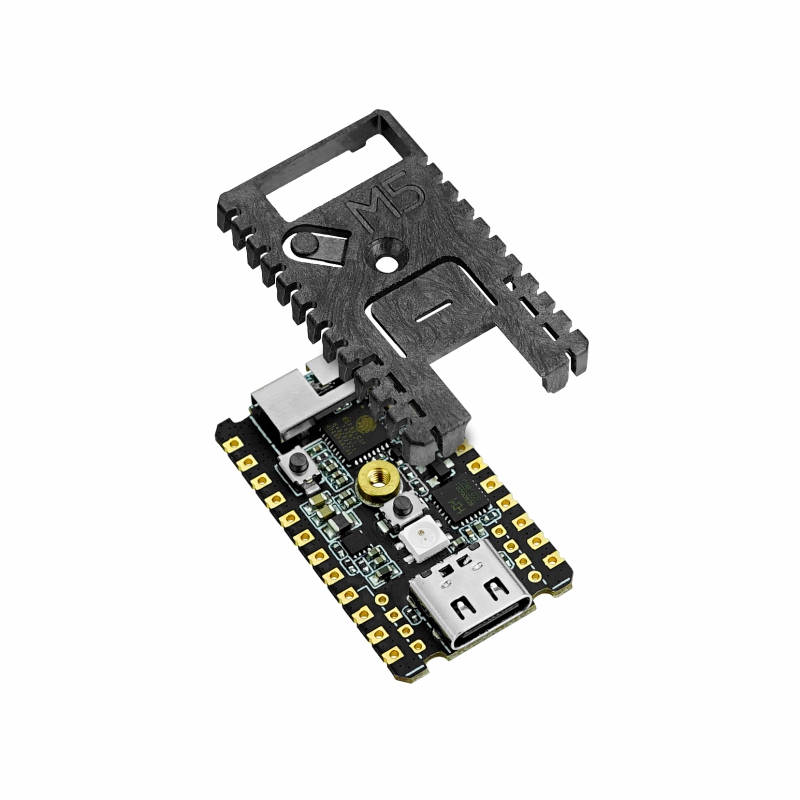

- MULTIPLE STYLE: Three types soldering options are available(SMT, DIP, flyw1re), with a high-temperature resistant plastic enclosure, Peak temperature = 230℃
HIGH INTEGRATION: Stamp-C3 contains 5V->3.3V DC/DC design, GPIOx13, programmable RGB LED x1, Reset button x1, button x1, 3D antenna,providing stable and reliable wireless communication.
LOW-CODE DEVELOPMENT:Stamp-C3 fully compatible with Arduin0, ESP32-IDF, and other mainstream development platforms to quickly build various applications. (UIFlow support coming soon)

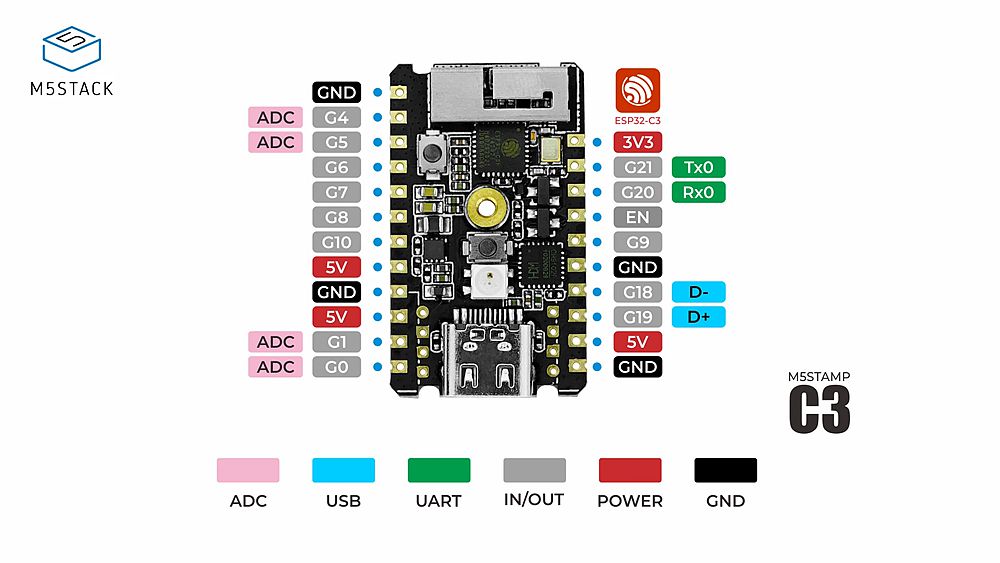

PinMap:

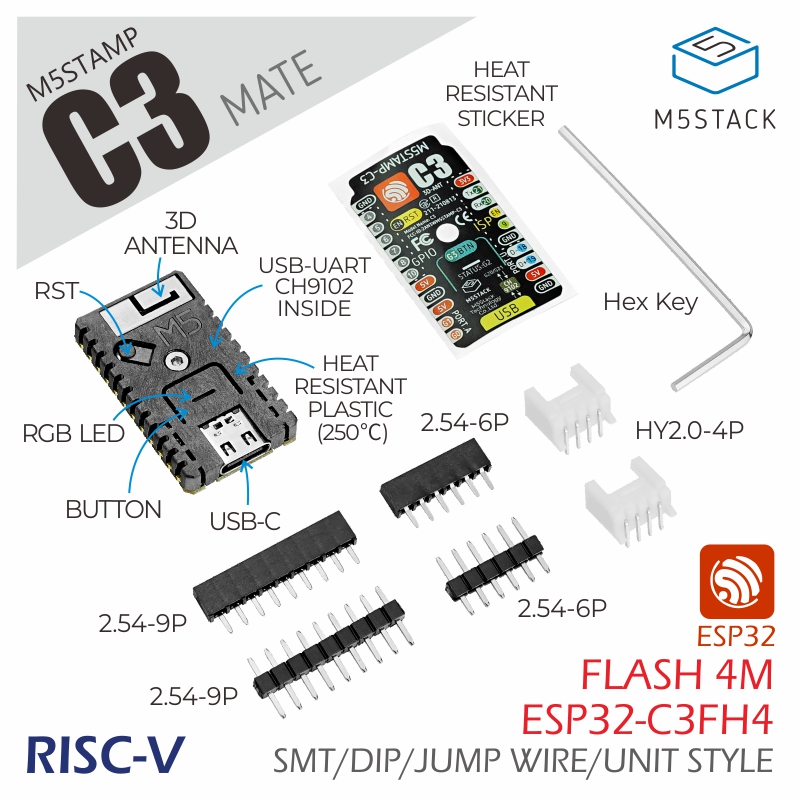

Package Included:
1 x M5Stamp C3
1 x Heat Resistant Sticker
2 x 2.54-9P Pin
2 x 2.54-6P Pin
2 x 90° Grove Connector
1 x M2 Hex Key
Application:
- DIY Prototyping
- Home Appliances
- Industrial Automation
Specifications:
| Specifications | Parameters |
| ESP32-C3 | 32bit RISC-V single-core processor, clocked at 160 MHz |
| Storage | 384KB ROM, 400KB SRAM, 8KB RTC SRAM, 4MB FLASH |
| Wi-Fi | 2.4 GHz band supports 20 MHz and 40 MHz bandwidth, IEEE 802.11 b/g/n protocol, data rate up to 150 Mbps |
| Bluetooth | Bluetooth 5, Bluetooth mesh, rate support 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps |
| Input voltage | 5V @ 500mA |
| HMI | Programmable physical button x 1, reset debugging button x 1, programmable RGB LED (SK6812) x 1 |
| USB interface | TypeC x1 |
| Antenna Type | 2.4G 3D Antenna |
| Module peripheral interface resources | ADC, GPIO, SPI, UART, I2C, I2S, PWM, RMT, DMA, USB serial port, TWAI |
| IO interface x13 | G21, G20, G9, G18, G19, G1, G0, Gl0, G8, G7, G6, G5, G4 |
| IO interface spacing | 2.54mm |
| Net weight | 3.8g |
| Product size | 34 * 20 * 4.5mm |
| Packing size | 85*55mm sealing bag (translucent) |
Schematic: Contact Us

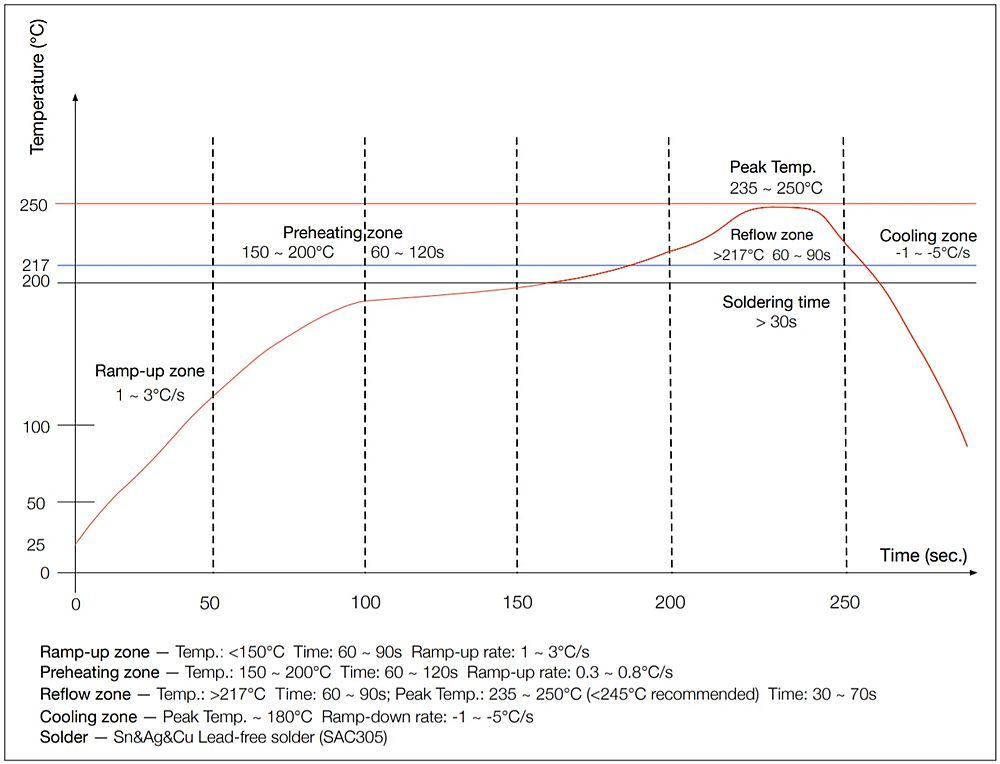

The shell supports Reflow Profile:
Related Links:
ESP32-C3 Datasheet
