MAX2870 Signal Generator 23.5MHz-6000MHz PLL Frequency Touching Screen LCD Display Radio Frequency Signal Source PC Software Controls
- Stock: In Stock
- Model: ST22011191
- SKU: ST22011191
$75.99
Ex Tax: $75.99
Note: The shipping color of the product is as shown in the figure below.
Description:
The MAX2870 is a wide band phase-locked loop (PLL) with integrated voltage controlled oscillators (VCOs) capable of operating in both integer-N and fractional-N modes.
When coupled with an externals reference oscillator and loop filter, the MAX2870 constitutes a high working performance frequency synthesizer capable of synthesizing frequencies from 23.5MHz to 6000MHz while maintaining superior phase noise and spurious performance.
Built-in multiple integrated VCOs covering(ranges from 3000MHz to 6000MHz) and output dividers(ranging from 1 to 128) which is used to implement clock output overing a wide frequency ranges.
Compatible with 1.8V control logics.
The onboard with default high precise 25MHz 0.5ppm TCXO, the internal VCO base frequency output frequency is ranging from 3-6GHz, below 3GHz is the base frequency division.

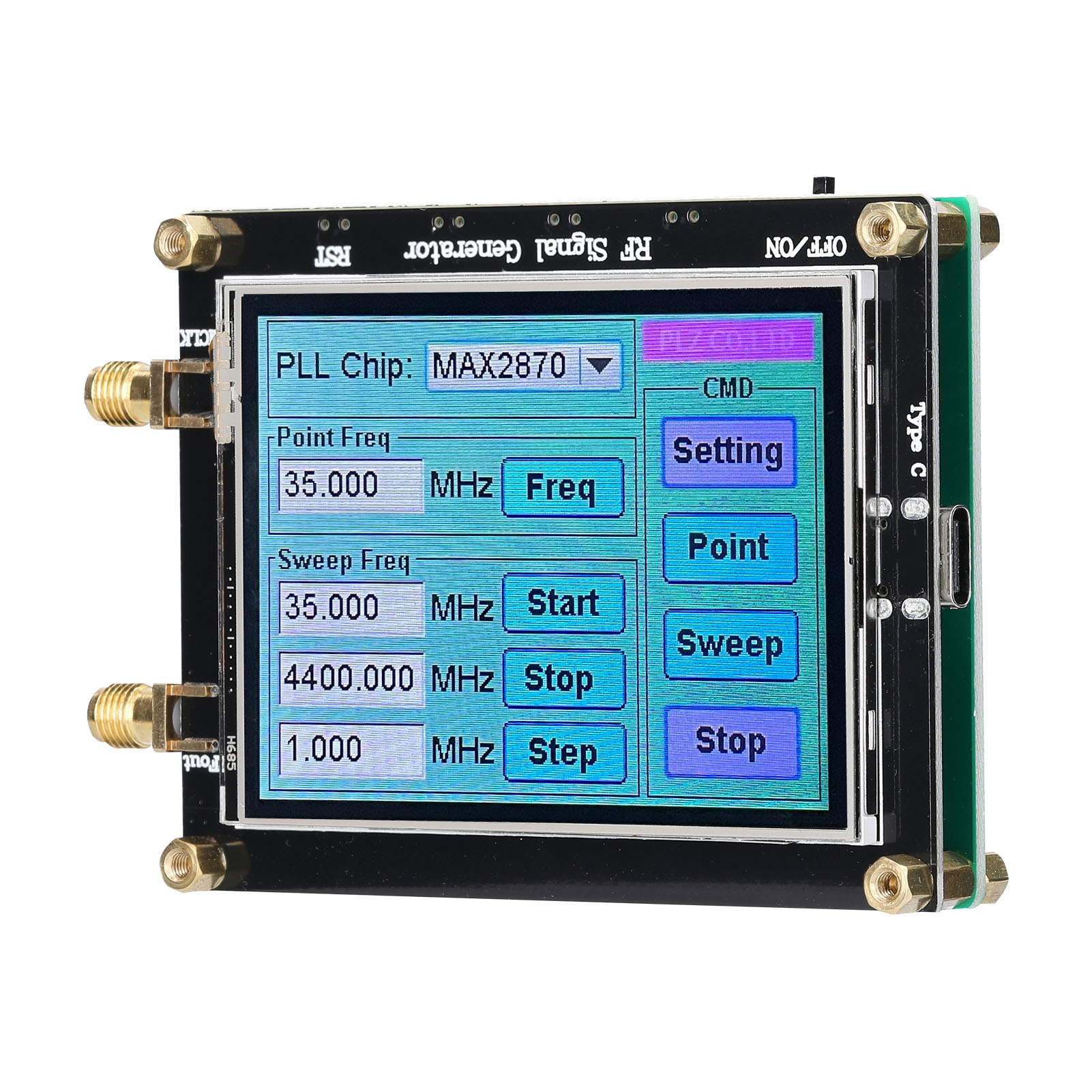

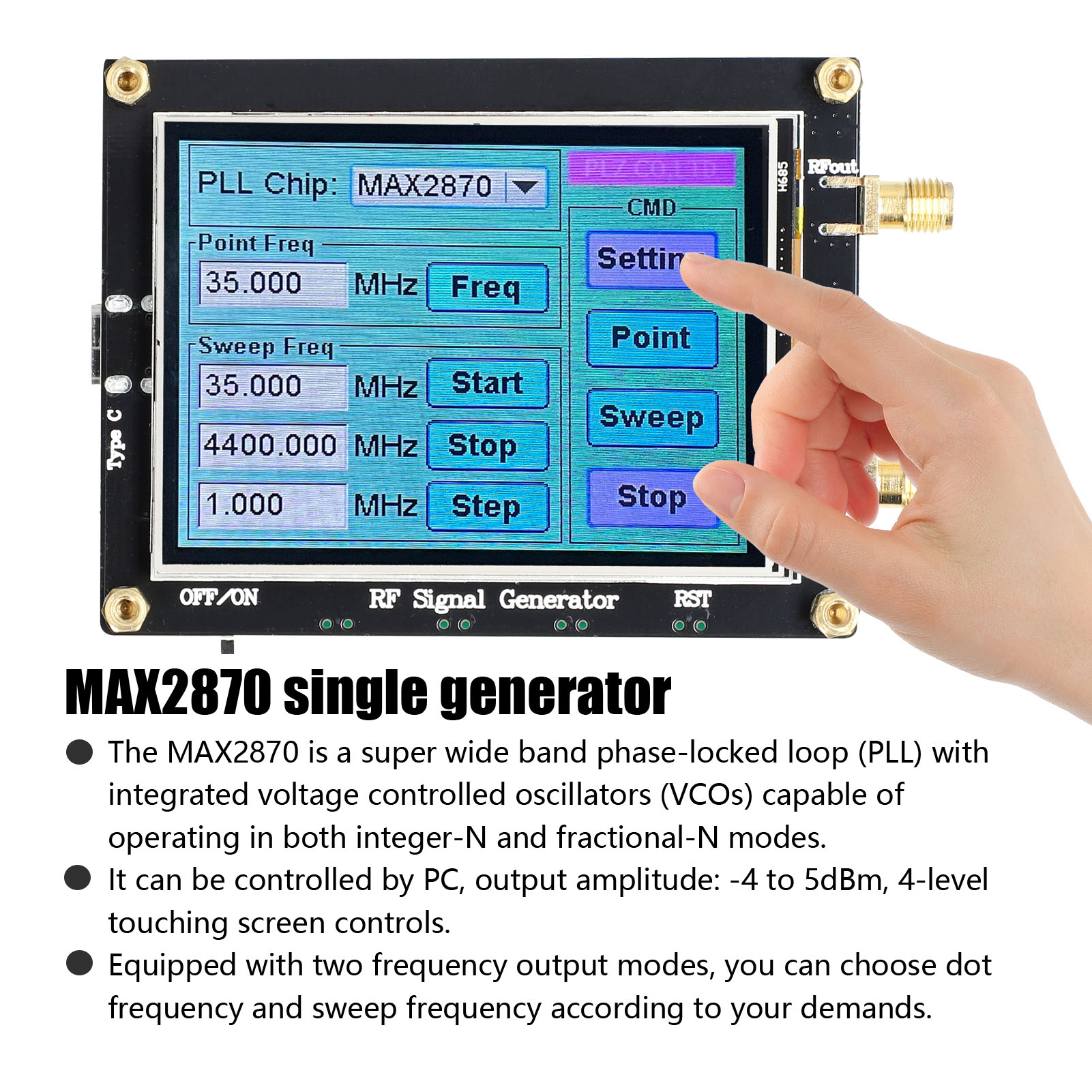

It can be controlled by PC, output amplitude: -4 to 5dBm, 4-level screen controls.
Equipped with two frequency output modes, you can choose dot frequency and sweeping frequency according to your demands.
Features:
Integer and fractional-N frequency division modes.
Support manual or automatic VCO selection.
3000MHz to 6000MHz fundamental VCO.
Output binary buffers/dividers for extended frequency ranges:
1/2/4/8/16/32/64/128;
23.5MHz to 6000MHz.
Fine performance PFD:
105MHz in integer-N mode;
50MHz in fractional-N mode.
Reference frequency up to 200MHz.
Operates from +3.0V to +3.60V supplys.
Dual programmable outputs: -4dBm to +5dBm.
Hardware and software shutdown controls.
Compatible with 1.8V controls logics.

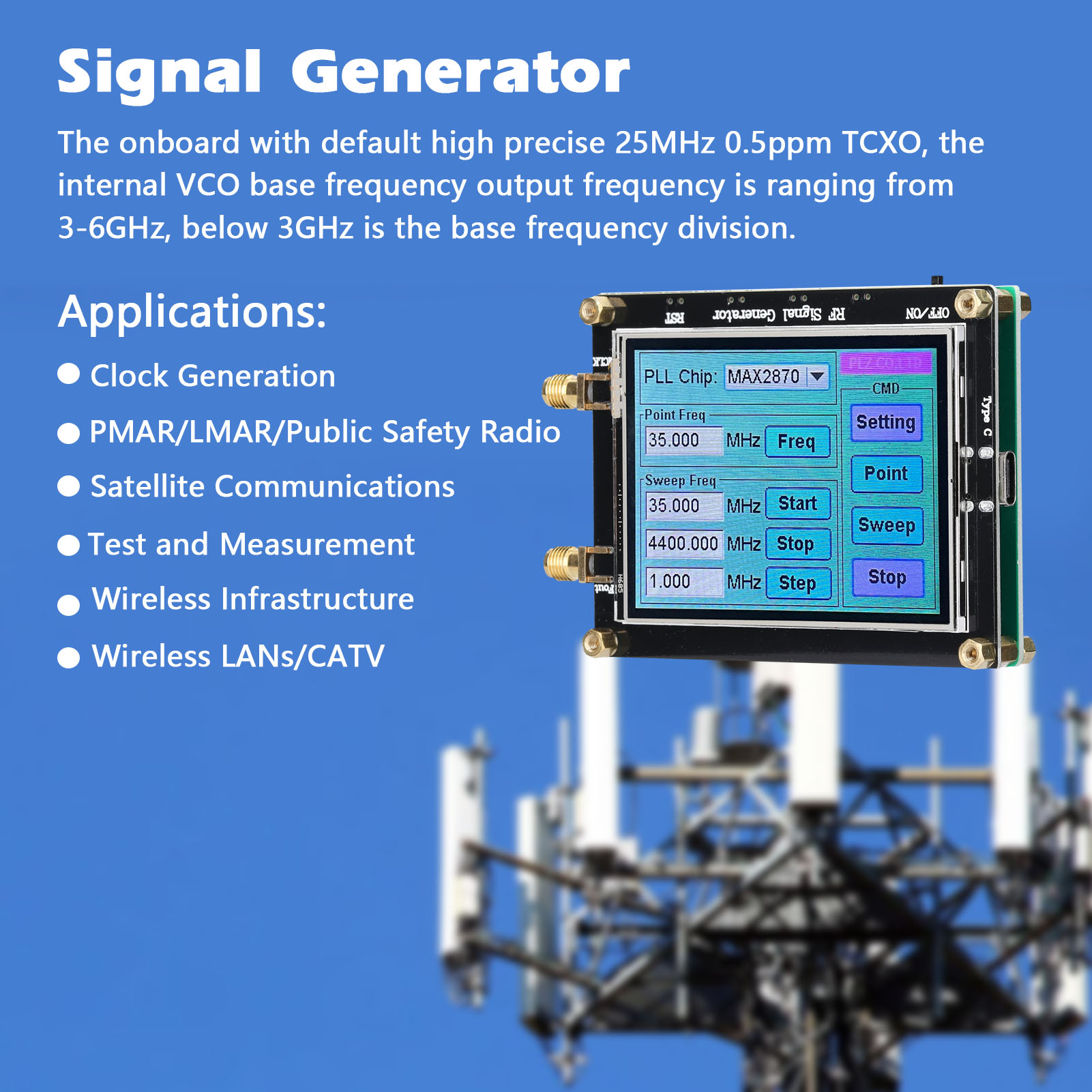

Applications:
Clock Generation
PMAR/LMAR/Public Safety Radio
Test and Measurement

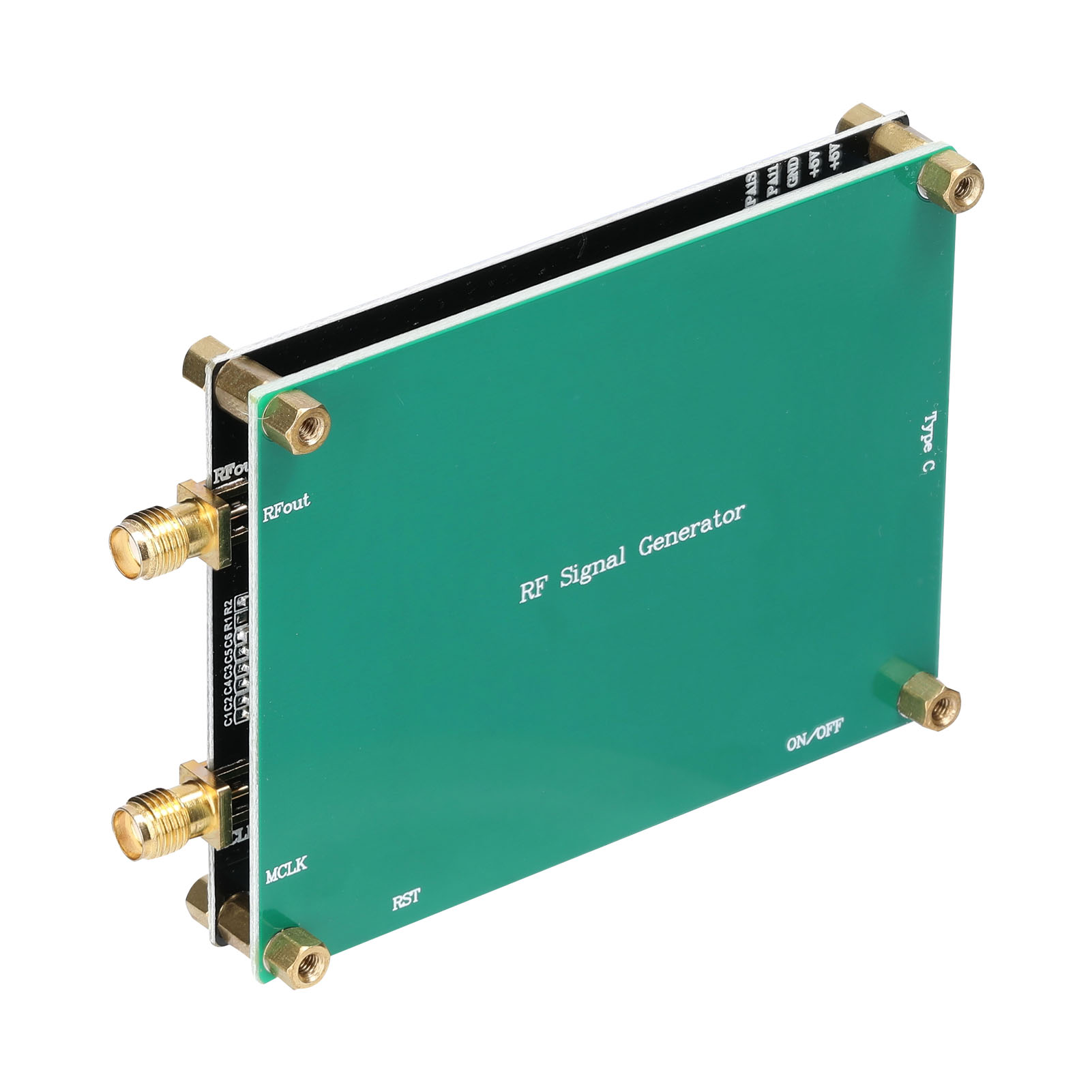

Module Features:
Module power supply TYPE-C: [email protected].
Output and external clock interface: SMA-K (inner screw inner hole).
The onboard default high-precision 25MHz 0.5ppm TCXO (can also be replaced or connected to an external clock).
Output frequency range: the fundamental frequency of the internal VCO is 3-6GHz, and the frequency below 3GHz is obtained from the fundamental frequency division.
Output amplitude: -4 to 5dBm, 4 levels of screen control.
Output frequency mode: point frequency, sweeping frequency optional screen control.
Provide PC upper computer control program.
Specifications:
Name: Signal Generator
Model: MAX2870
Color: green
Material: printed circuit board
Module power supplys: ±5V
Current: 0.2A
Output amplitude: -4 to 5dBm
Output frequency ranges: 23.5MHz-6000MHz
Working temperature ranges: -40℃ to 85℃
Item size: 98 * 65 * 17mm / 3.86 * 2.56 * 0.67in
Item weight: 87g / 3.07ounce
Package size: 125 * 102 * 40mm / 4.92 * 4.02 * 1.57in
Package weight: 117g / 4.13ounce
Package Includes:

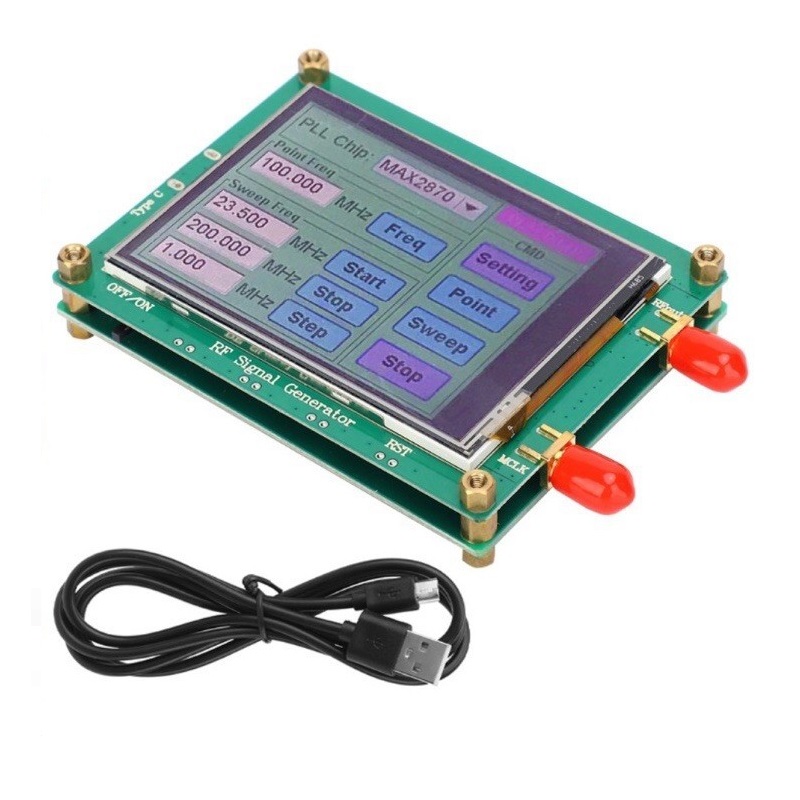

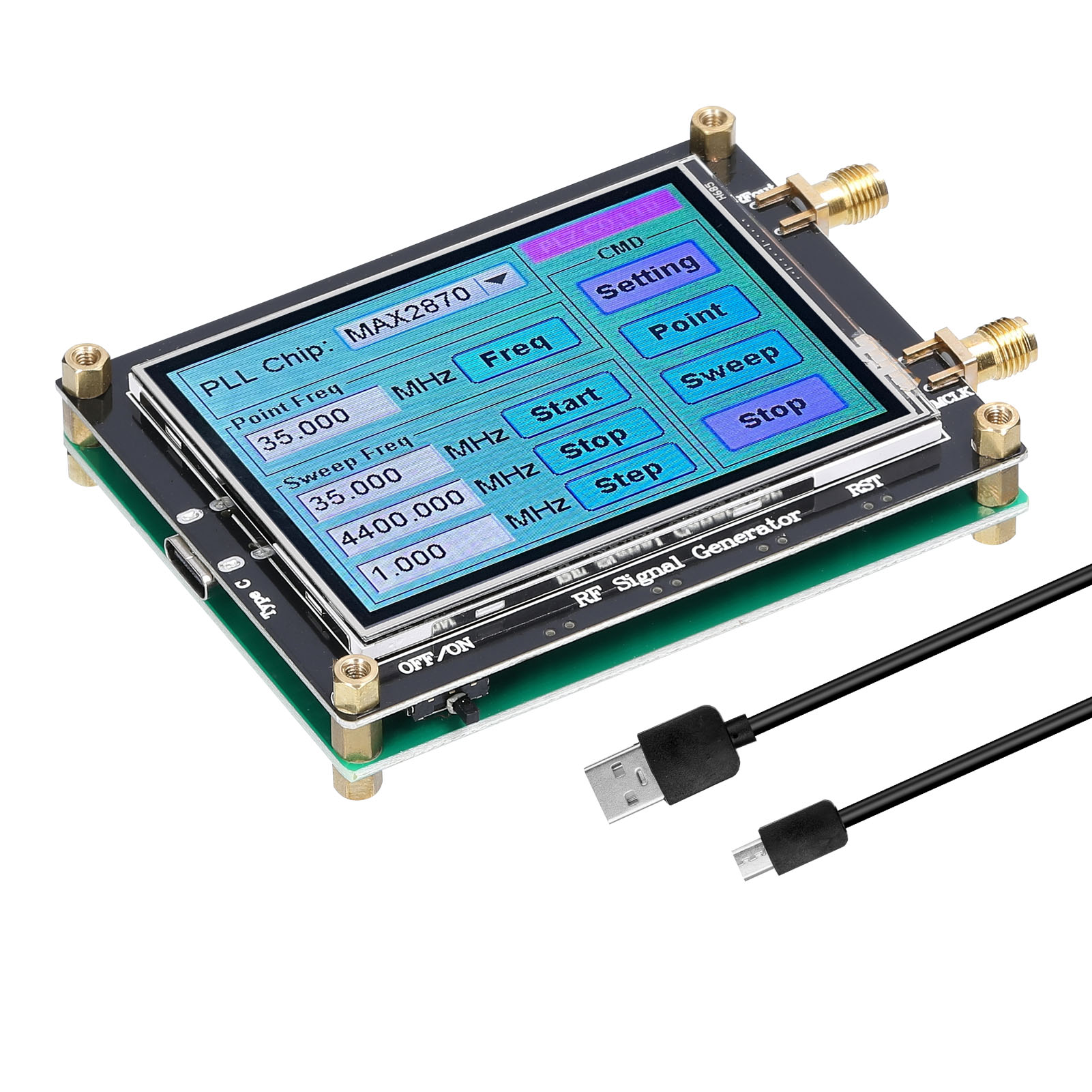

1 x RF Signal Source
1 x USB Cable
