MC4T-A1 Solar PV MC4 Branch Connectors Solar Panel T/Y Branch Cable Splitter Coupler MFF FMM
- Stock: In Stock
- Model: ST220015369
- SKU: ST220015369
$17.99
Ex Tax: $17.99
Description:
MC4T-A1 Solar PV MC4 Branch Connectors Solar Energy Adapter Solar Panel MC4 T/Y Branch Cable Splitter Coupler Combiner MFF FMM
1. Widely used in the connection of mc4 solar connectors for solar system;
2. With the capacity of anti-aging and resistance to ultraviolet radiation on the outer cover;
3. To meet the using requirement under bad outdoor condition;
4. Adopt tight-hoop connection of cable;
5. Fastness of male and female points with stable auto-lock equipment which is easy to lock and open;
6. Easy and reliable connection of the solar cables to the pv system (solar panels, inverters).
Features:
·Simple on-site processing.
·Mating safety provided by keyed housings.
·Mutiple plugging and unplugging cycles.
·Accomodates PV cable with deferent insulation diamaters.
·High current carrying capacity.
·TUV approved.
Specification:
Product No.: MC4T-A1
Rated Voltage: TUV 1000V DC / UL 600V DC
Rating Current: 20A~30A
Suitable cable cross sections: 2.5mm2~ 6.0mm2 / 14AWG~ 10AWG
Pin dimension: 4.0mm
Proof voltage: DC 8KV(1Min)
Pollution degree: 2
Protection class: Class II
Contact Material: Copper, tin-plated
Contact Resistance: 5mW
Connector Material: PPO
Degree of Protection IP: IP67(IEC 60529)
Withdrawal Force: 3 50N
Insertion Force: 50N
Temperature Range: -40oc +85oc
Flame Class: UL94V - 0
Package included:
1 x MC4T-A1 Solar PV MC4 Branch Connectors

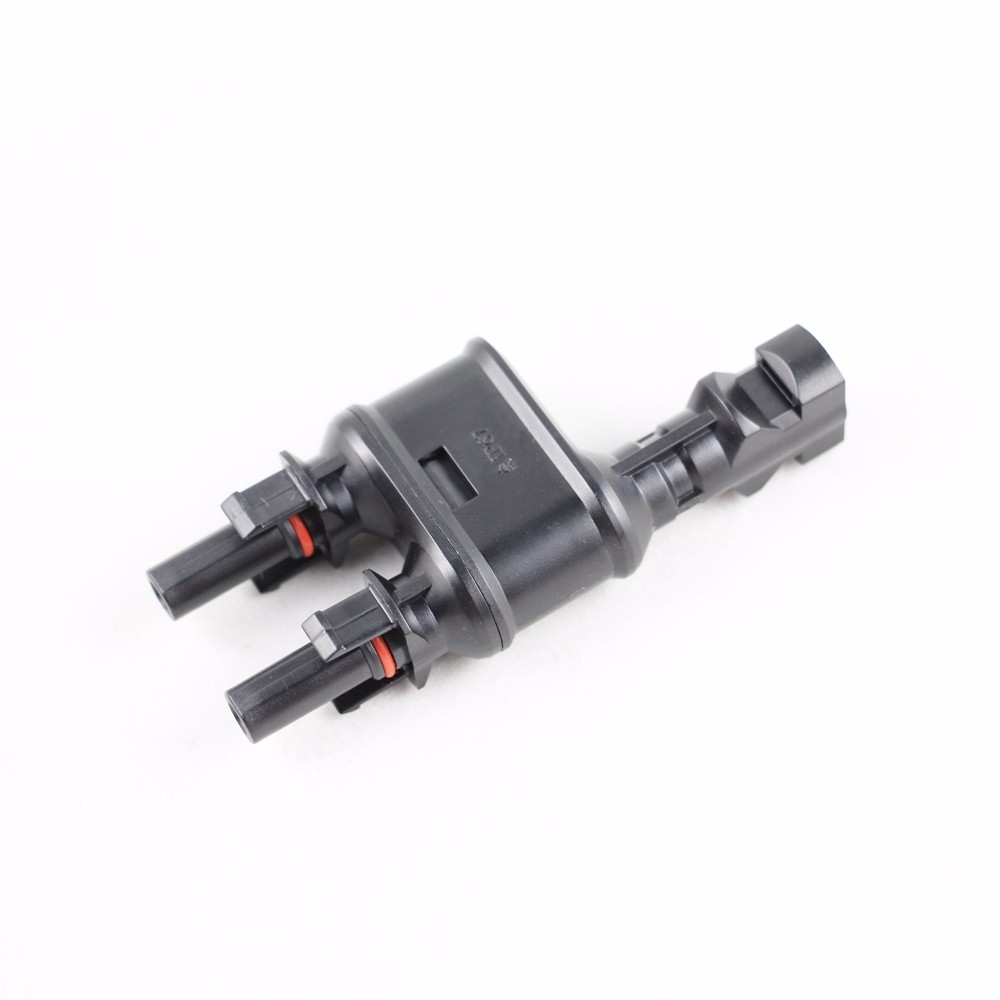

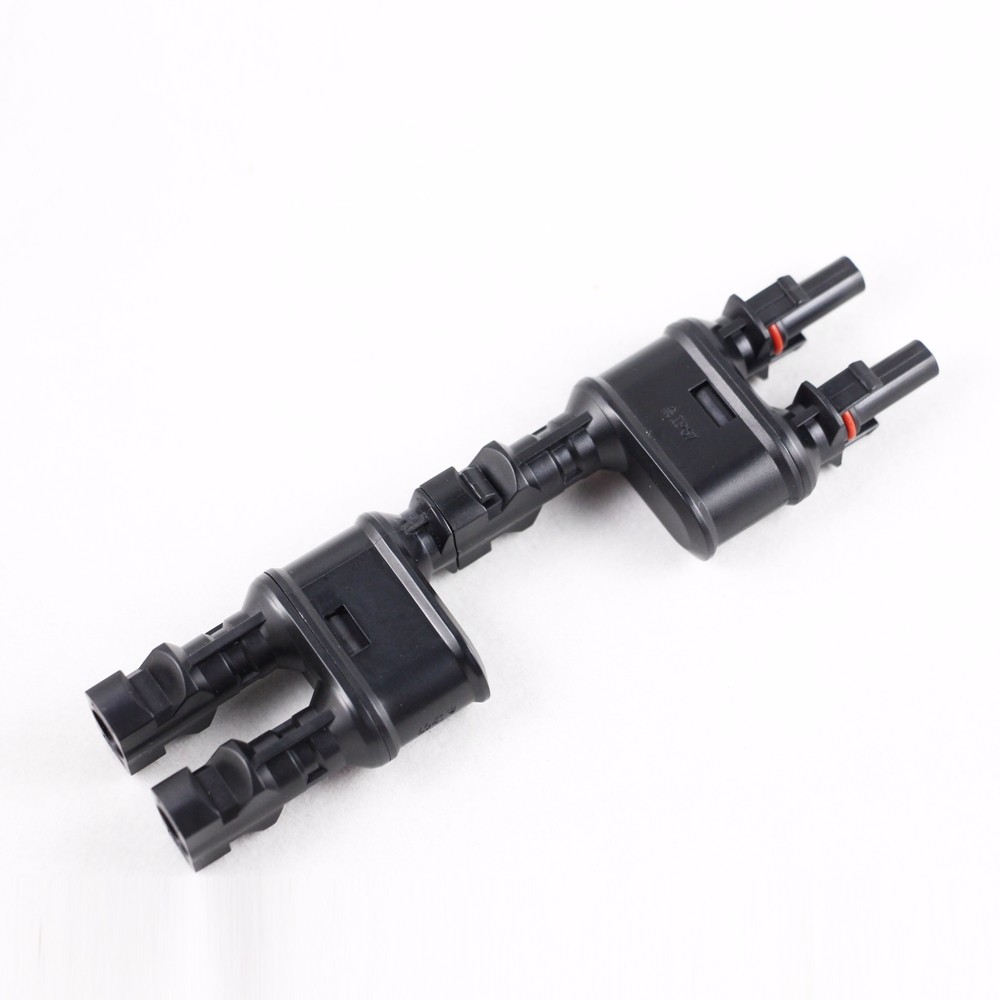

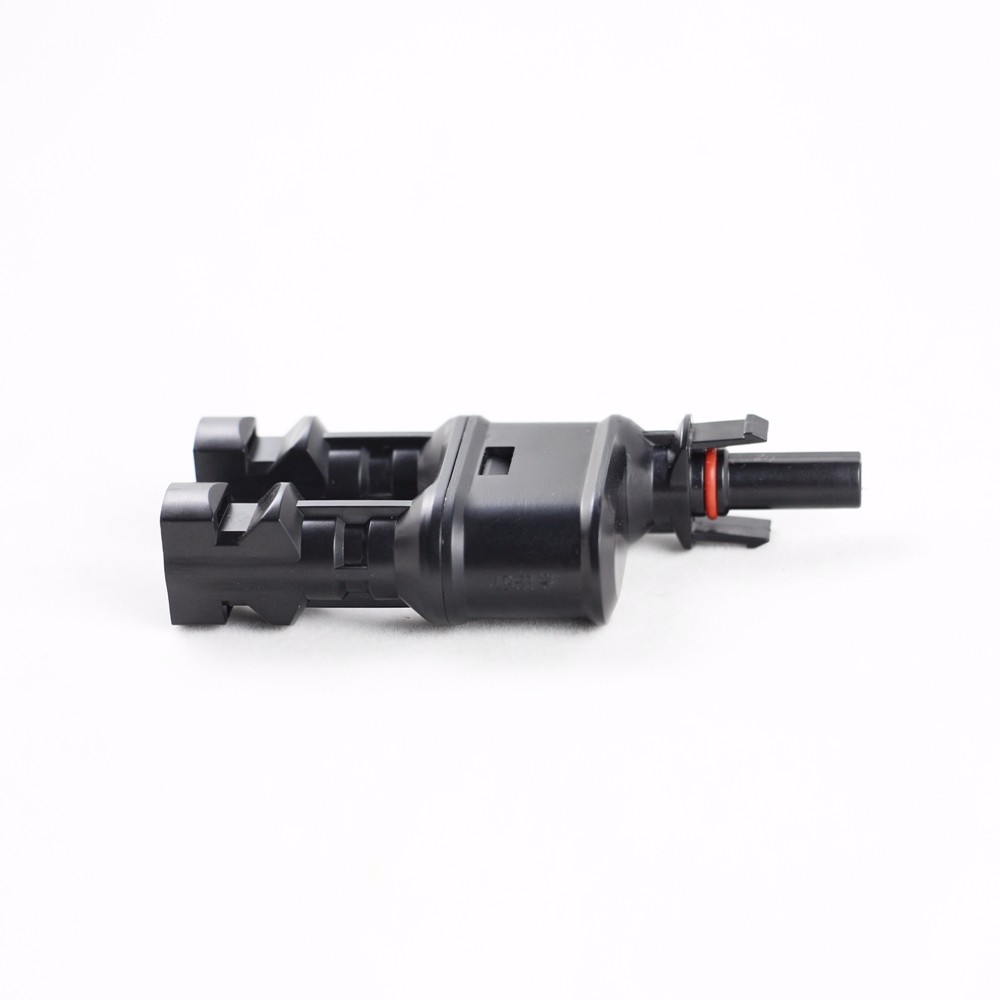

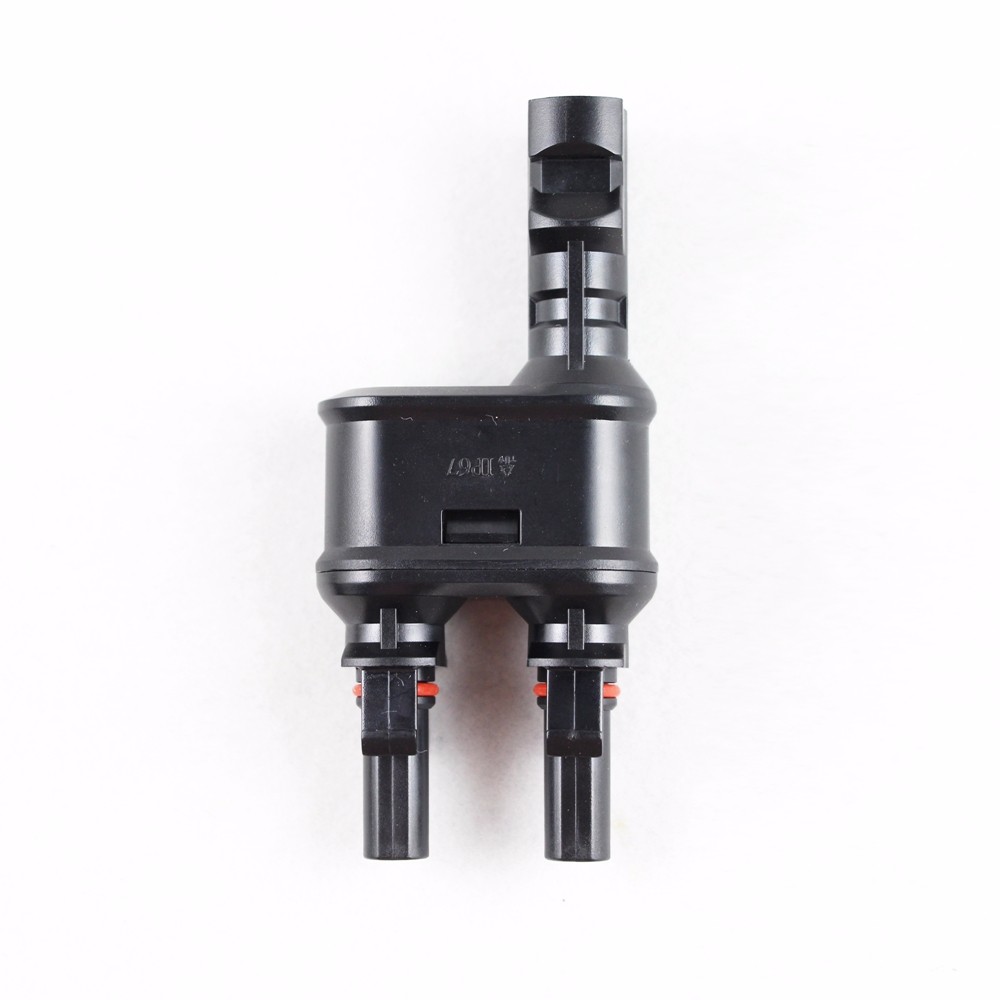

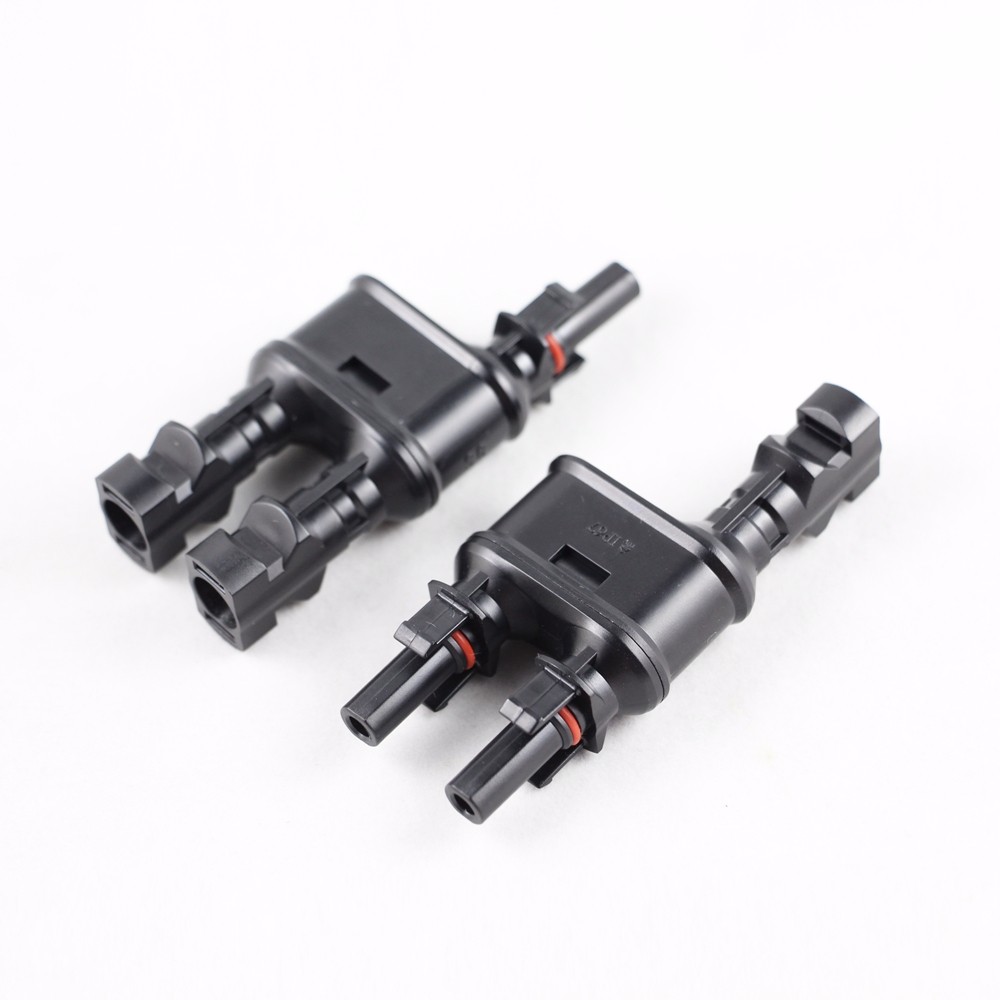

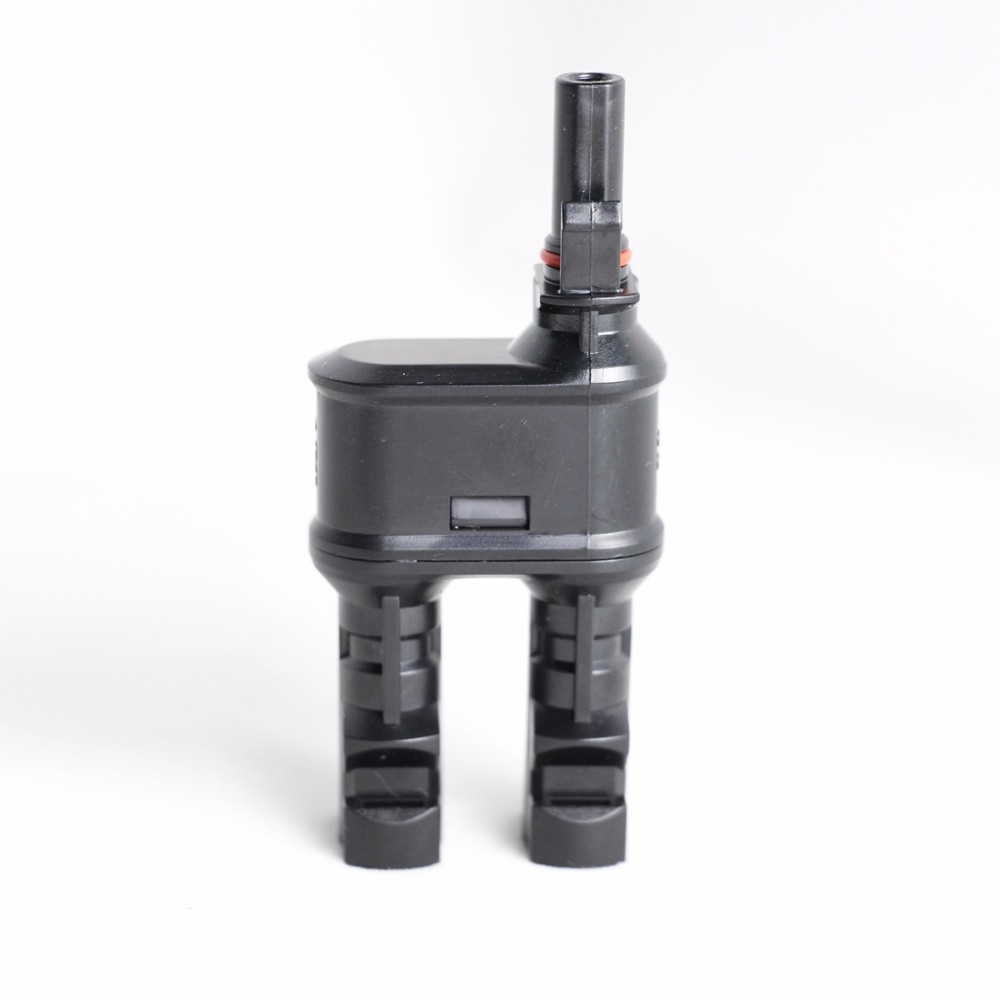

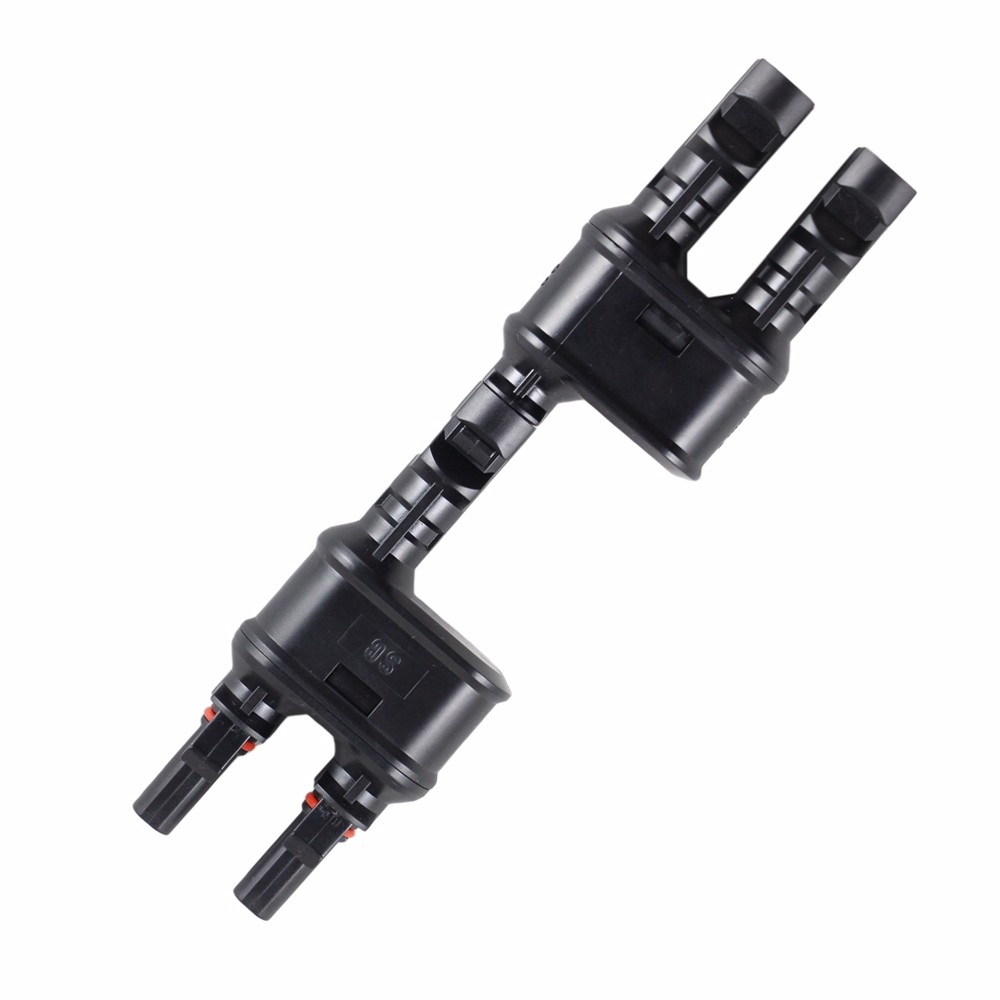

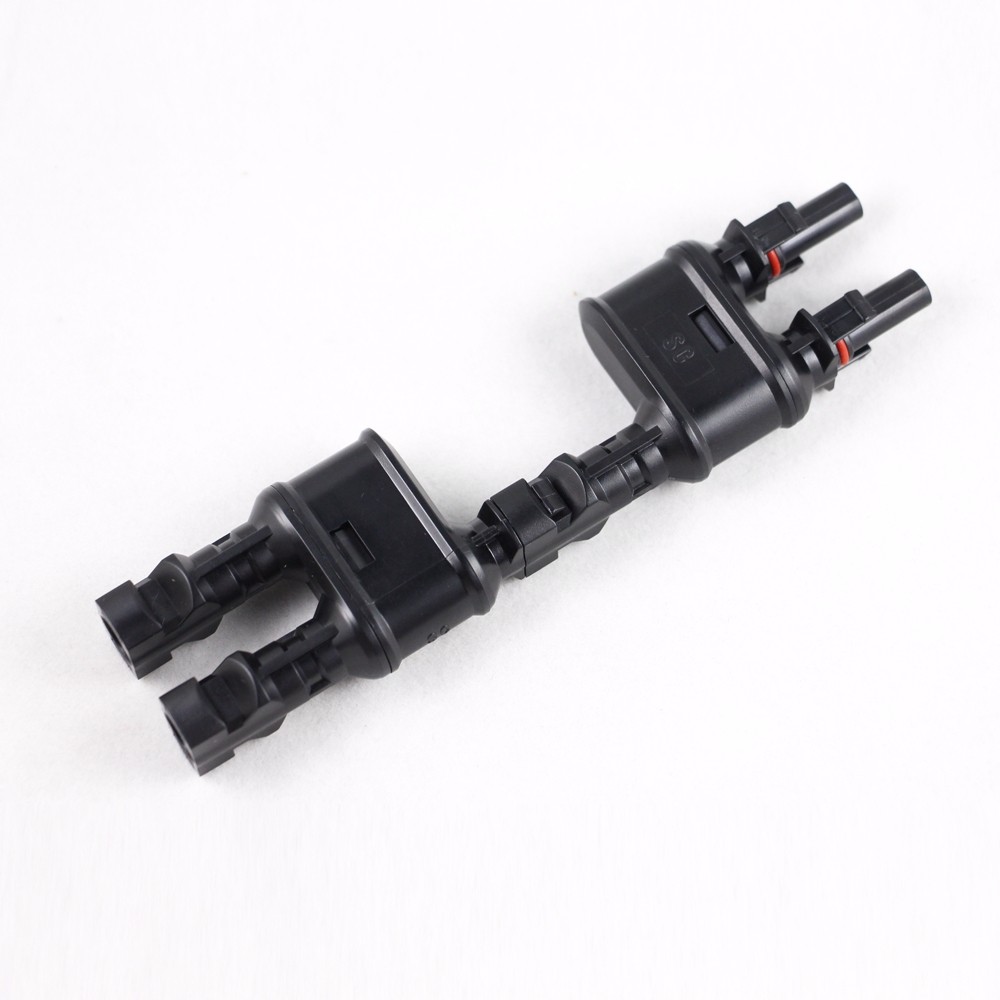

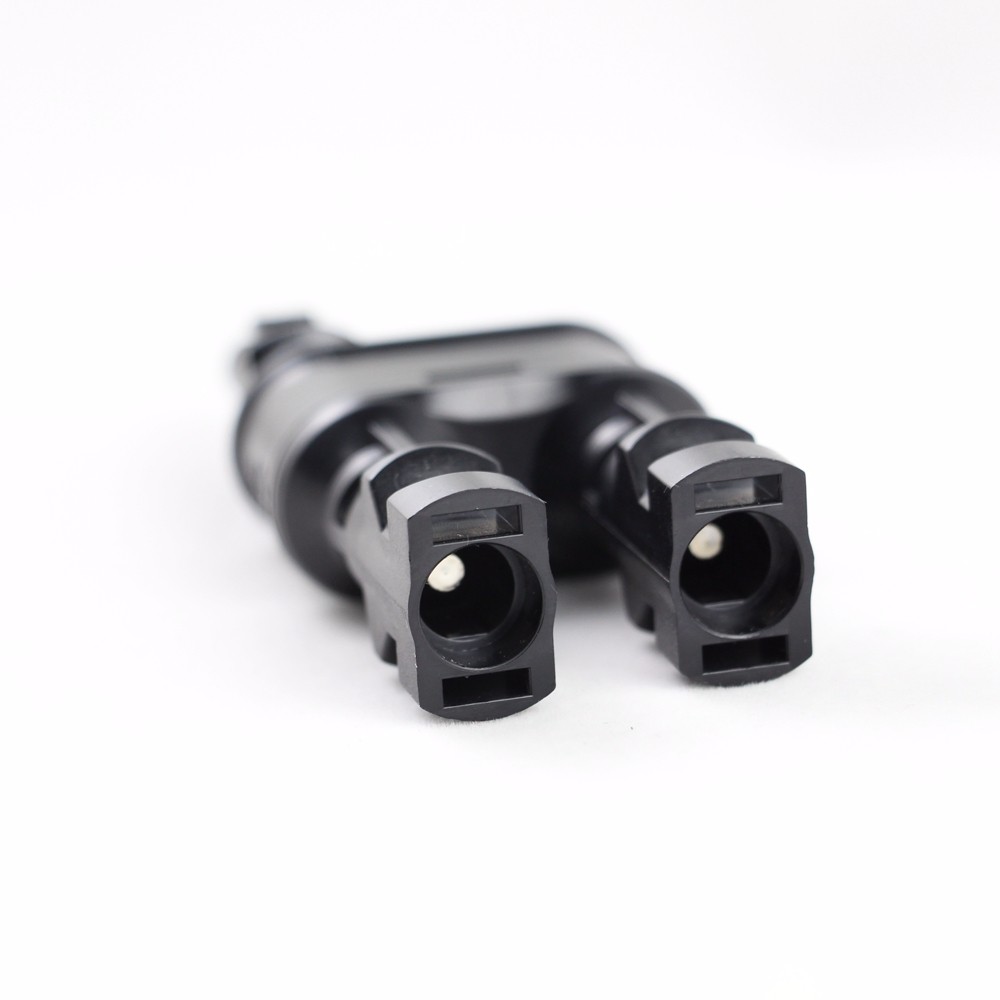

Details pictures:
