- Stock: In Stock
- Model: ST22001118
- SKU: ST22001118
Specification:
Model: Mark4

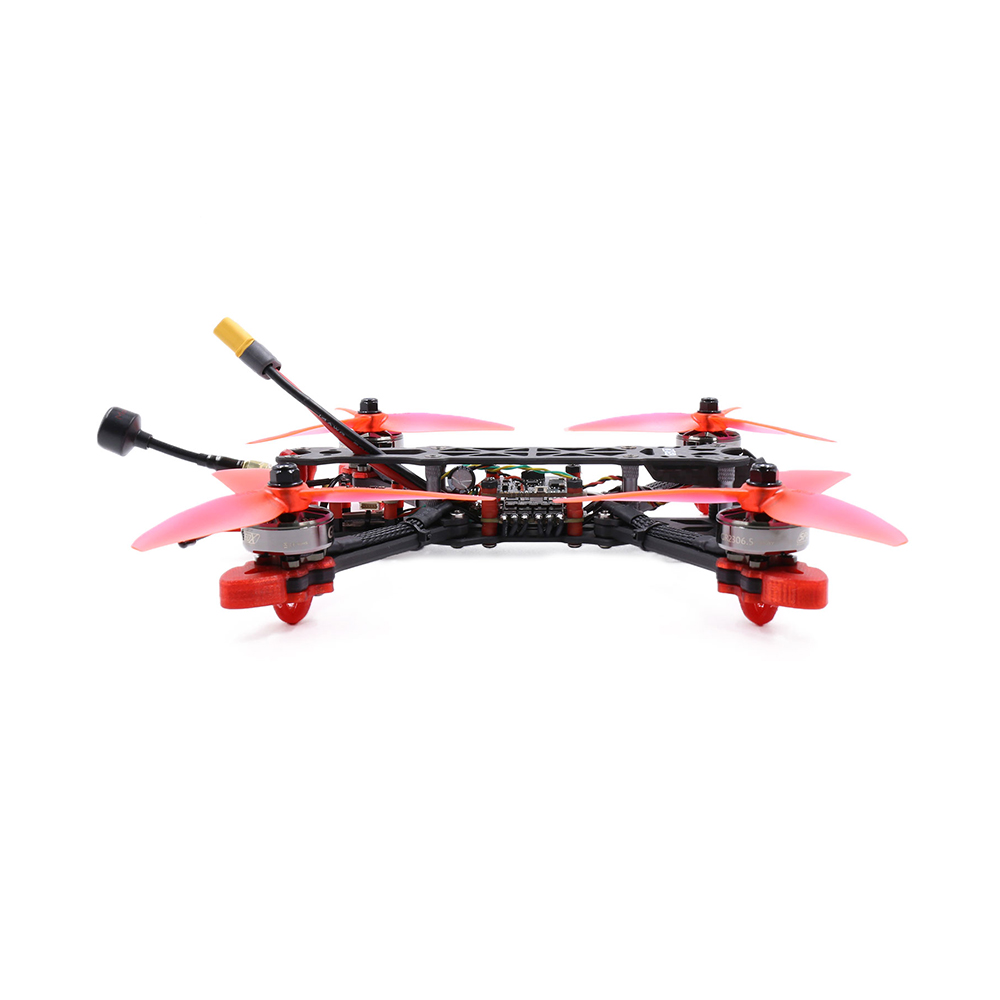

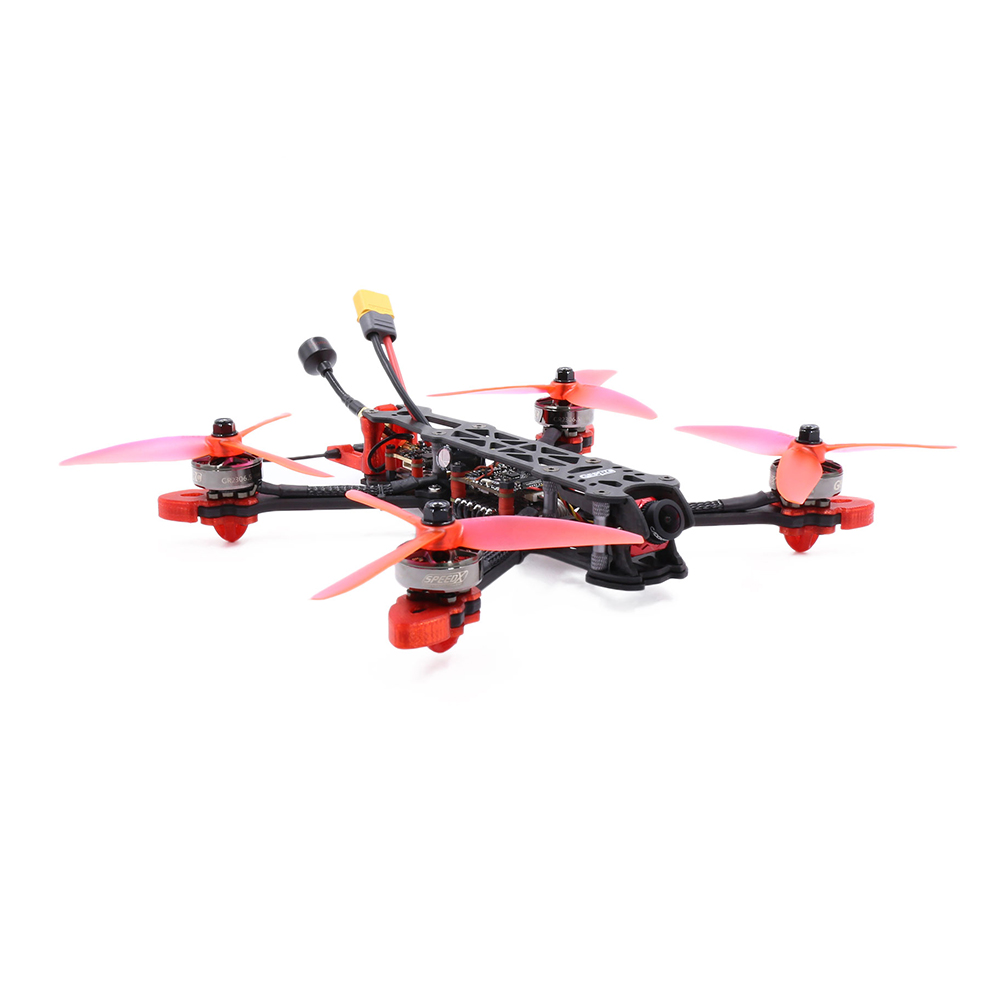

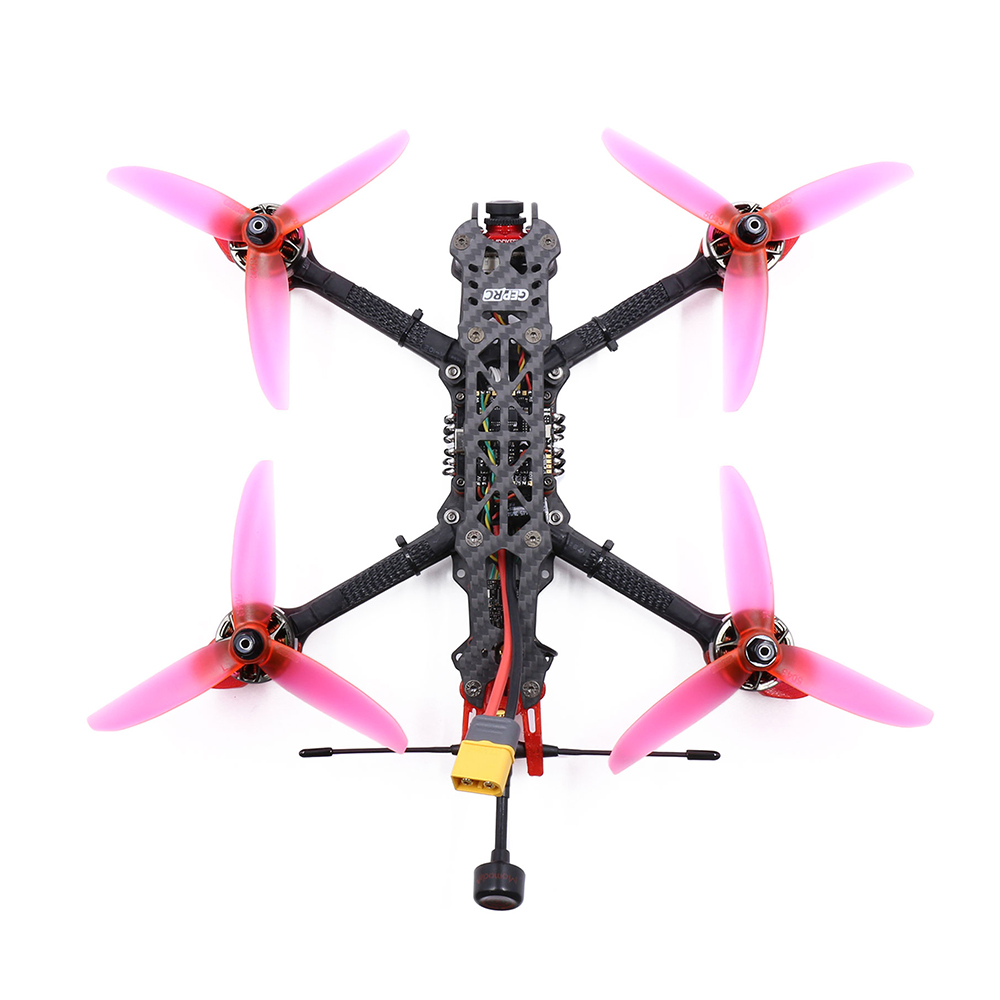

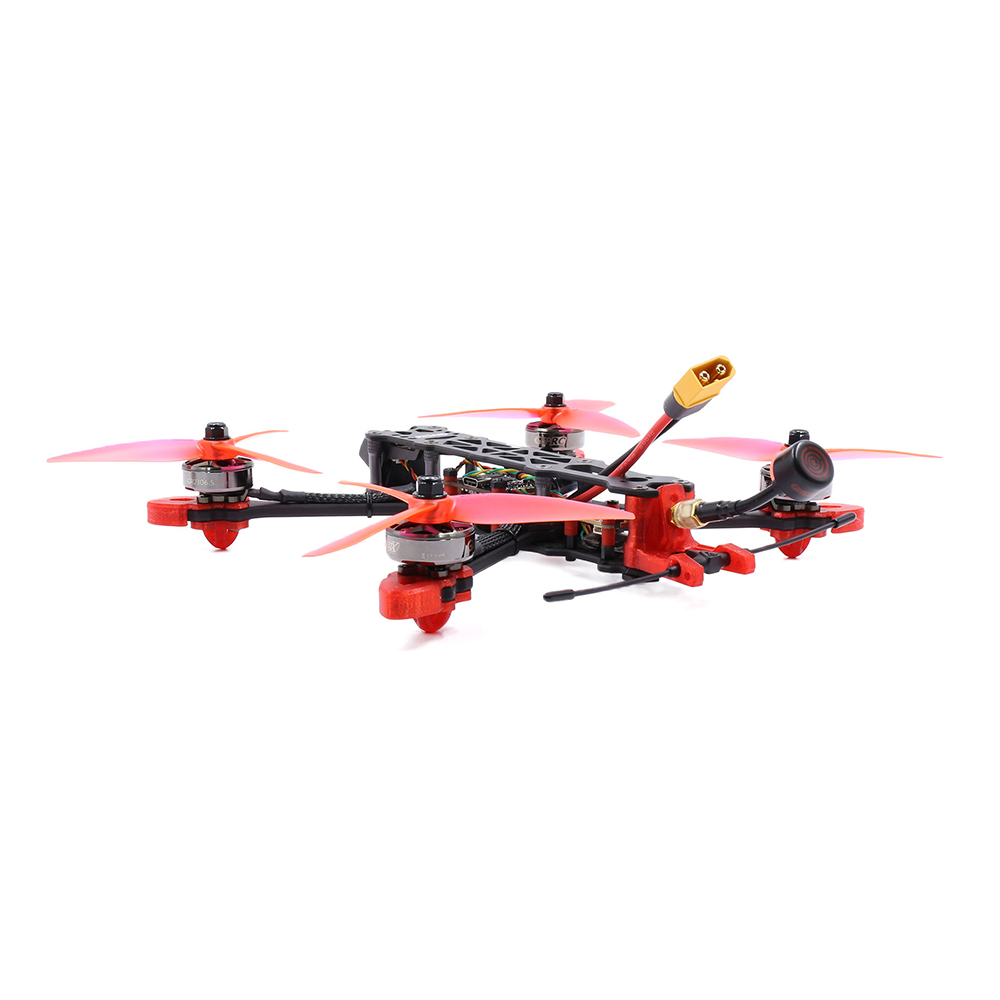

Item Name: Mark4 4S Freestyle FPV Racing Drone
Motor to motor:225mm
Carbon: Full 3K carbon fiber
Motor to Motor: 225mm
Bottom Plate: 2.5mm
Top Plate: 2.5mm
Side Plate: 2.5mm
Reinforce Plate: 2mm
Flight Controller: SPAN F722 HD
MCU: STM32F722RET6
Gyro: MPU6000(SPI)
OSD: BetaFlight OSD
Firmware target: OMNIBUSF4SD
ESC: 45A * 4 BLHeli_S (Dshot 600/1200/PWM/Multishot/OneShot) Support 3~6S LiPo
VTX: 5.8GHz (48 Channel IRC Tramp,PIT/25/100/200/600mW)
Camera: Caddx Ratel
Antenna: Momoda 5.8g RHCP
Motors: GR2306.5 2450KV Brushless Motor
Propeller: G5*4.3*3 (6 pairs)
Weight: 346g (without battery)
Receiver: Without Receiver / Frsky R-XSR / Frsky XM+ / FS-A8S v2 / TBS Nano RX
Power System: 4S Battery : 4S 1300~1550mAh
Contact us for English Manual.
Features:
1. GEP-Mark4 frame, an ultra-low CG design, Super Slim CNC full 3K carbon fiber board cutting, marvelous design and super durable.

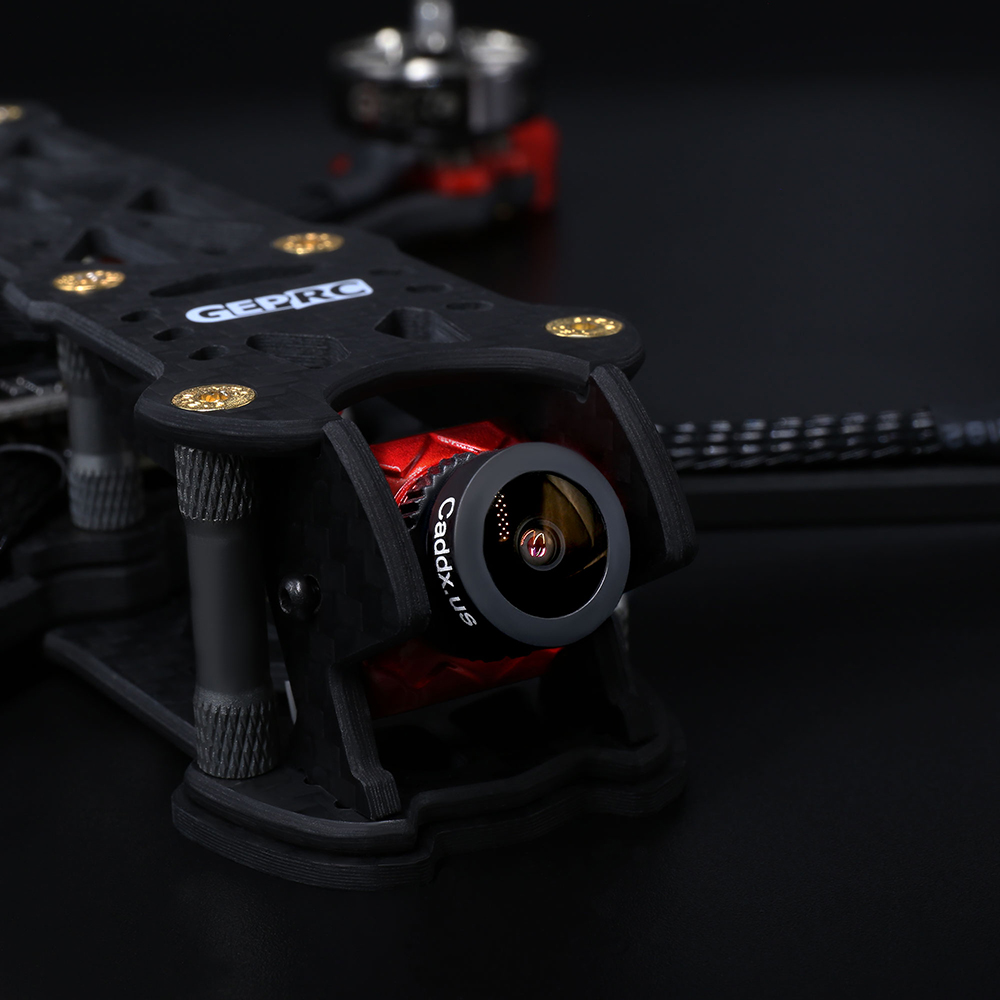

2. Equipped with Caddx Ratel 2.1mm version flat-head lens, excellent imaging, 1/18 “starlight HDR sensor chip, super night vision, ultra-low latency.
3. Flight control adopts SPAN F722 HD version. MPU6000 gyroscope works stably. With BLheli_S 45A ESC ( DSHOT 600) , the overall performance is super stable and very smooth control.

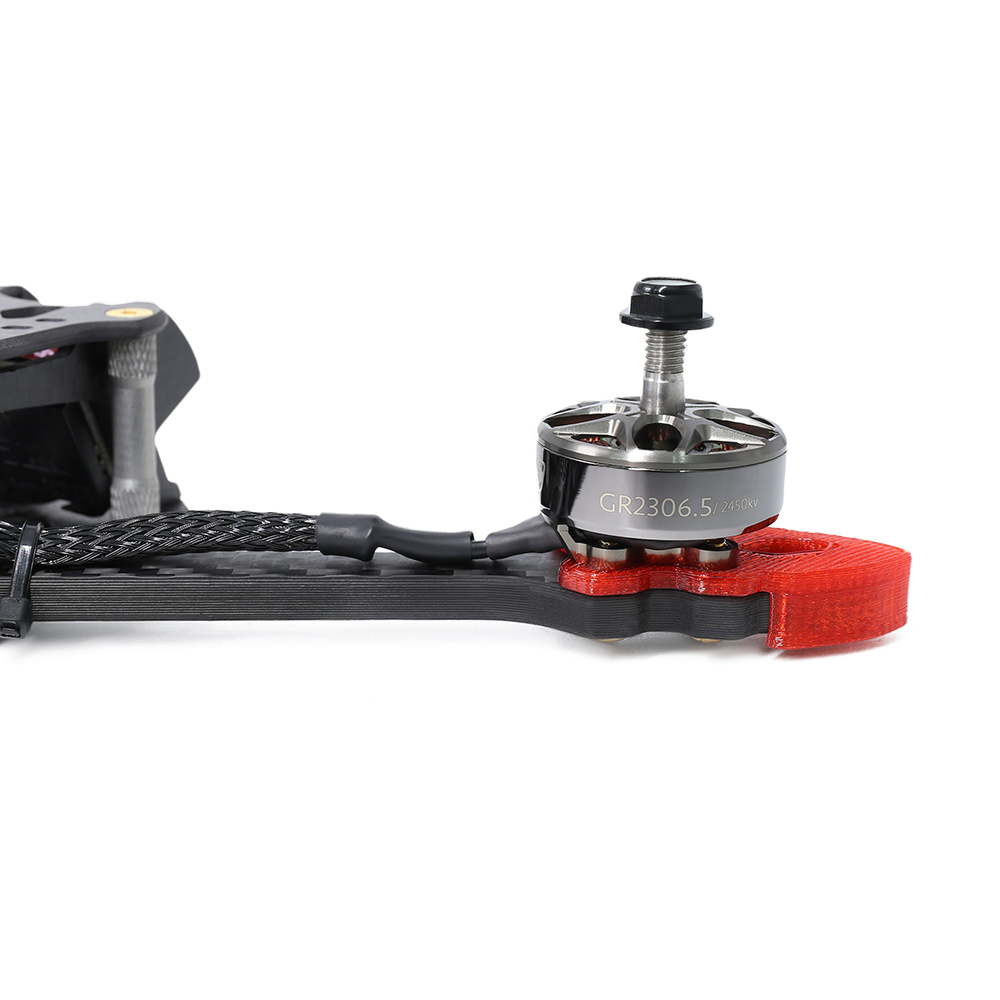

4. Equipped with newly designed GR2306.5 high-performance motor to ensure powerful output.

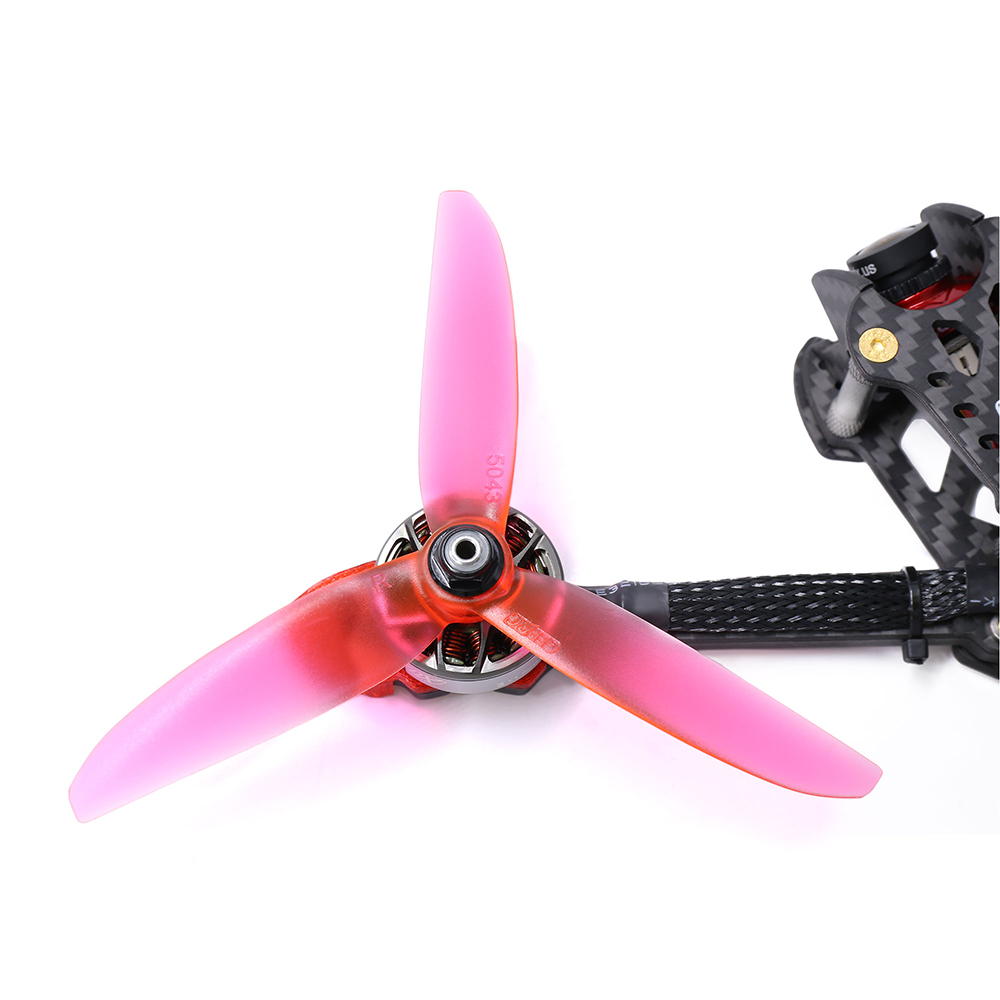

5. With GEPRC G5 * 4.3 * 3 Tri-blade Propellers, it has high efficiency and excellent acceleration performance.
6. Using the new GEPRC Momoda 5.8g RHCP antanna performs to the highest standard and refined radiation pattern.
Package Included:
1 x GEPRC Mark4 4S Freestyle FPV Racing Drone

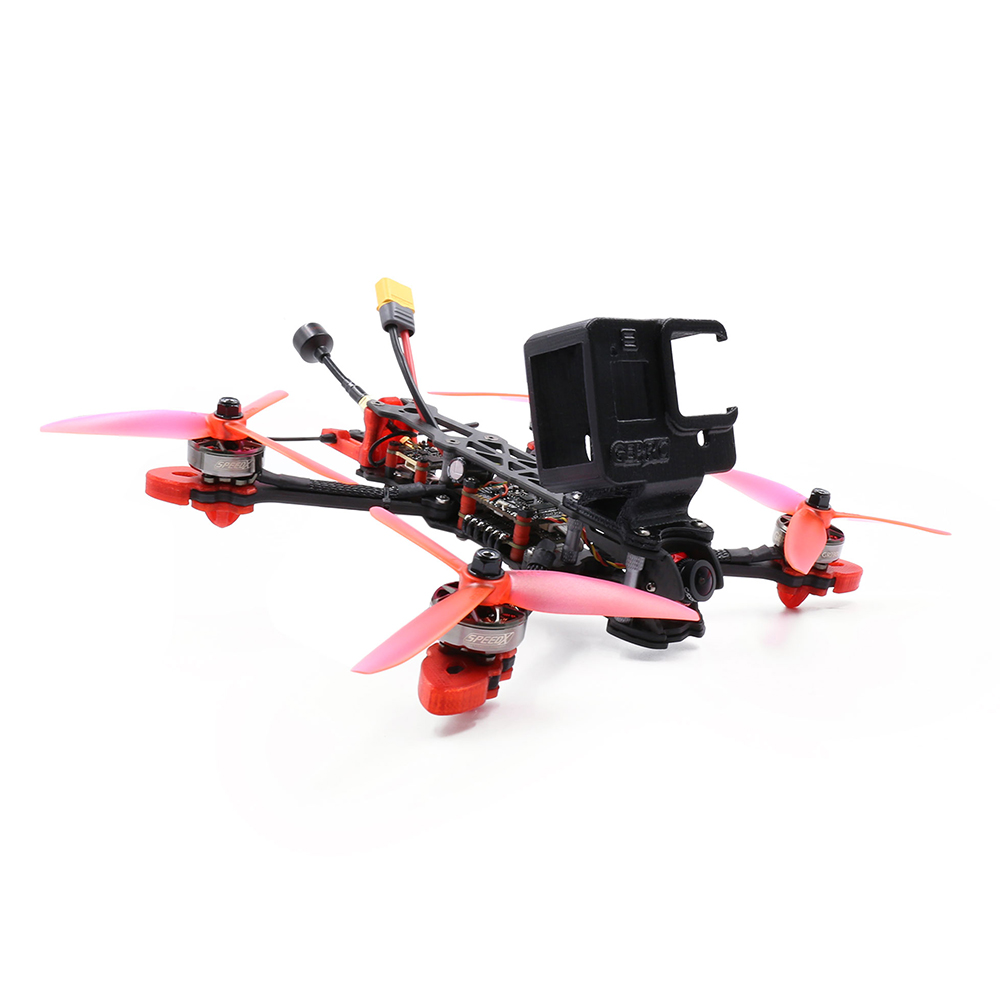

NOTE: Gopro 7/8 camera and TPU print camera mount are not included.
