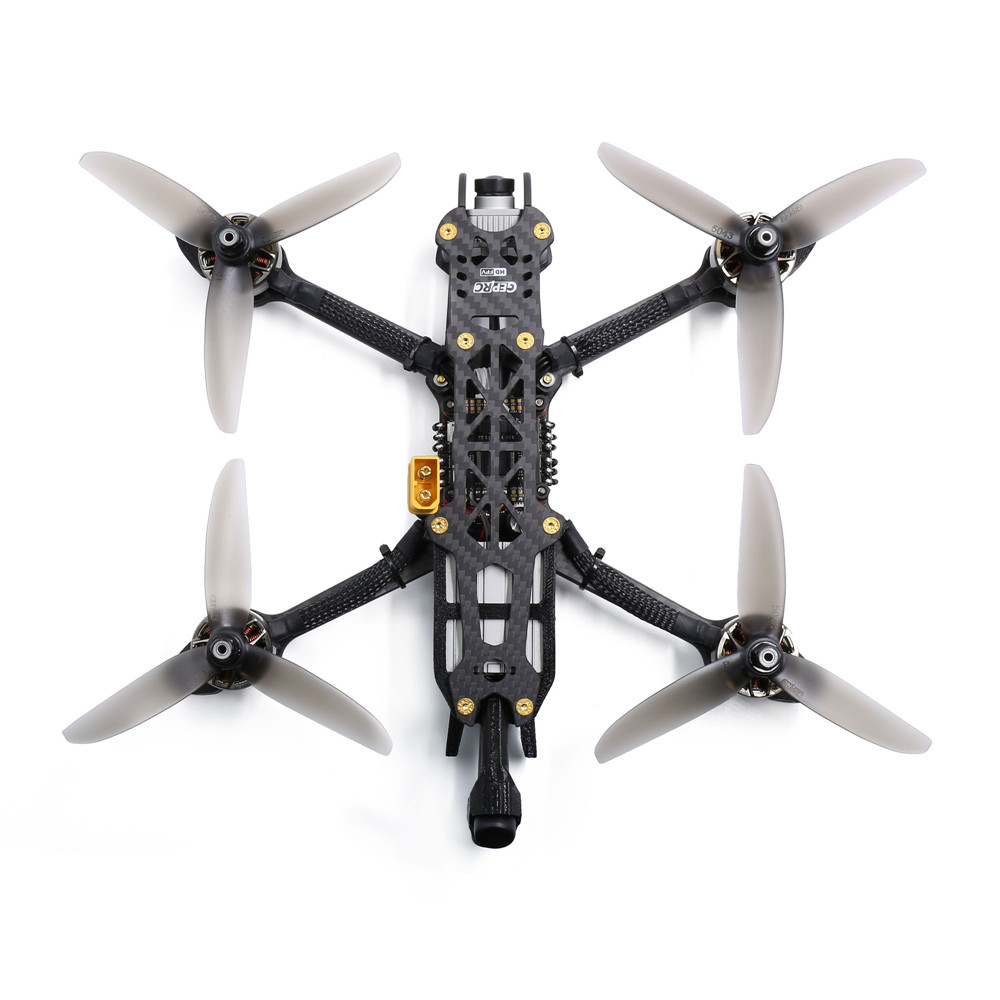

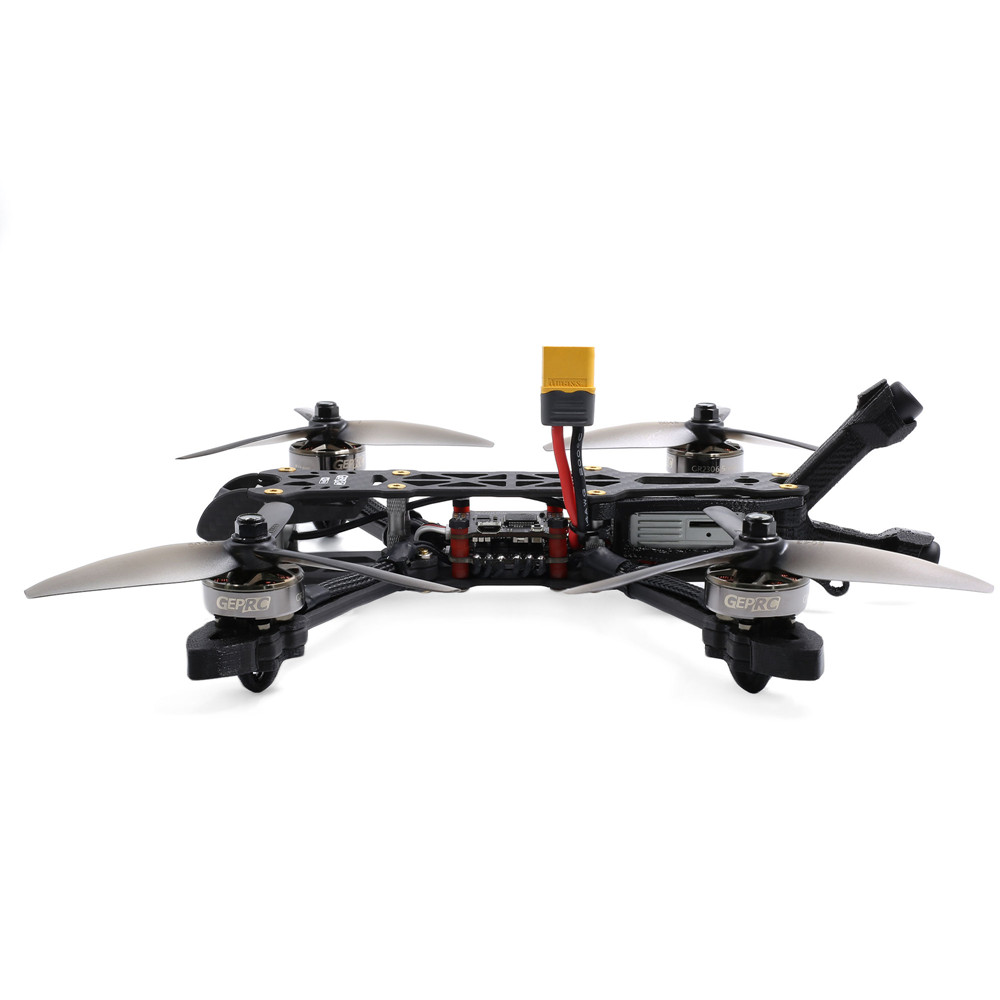

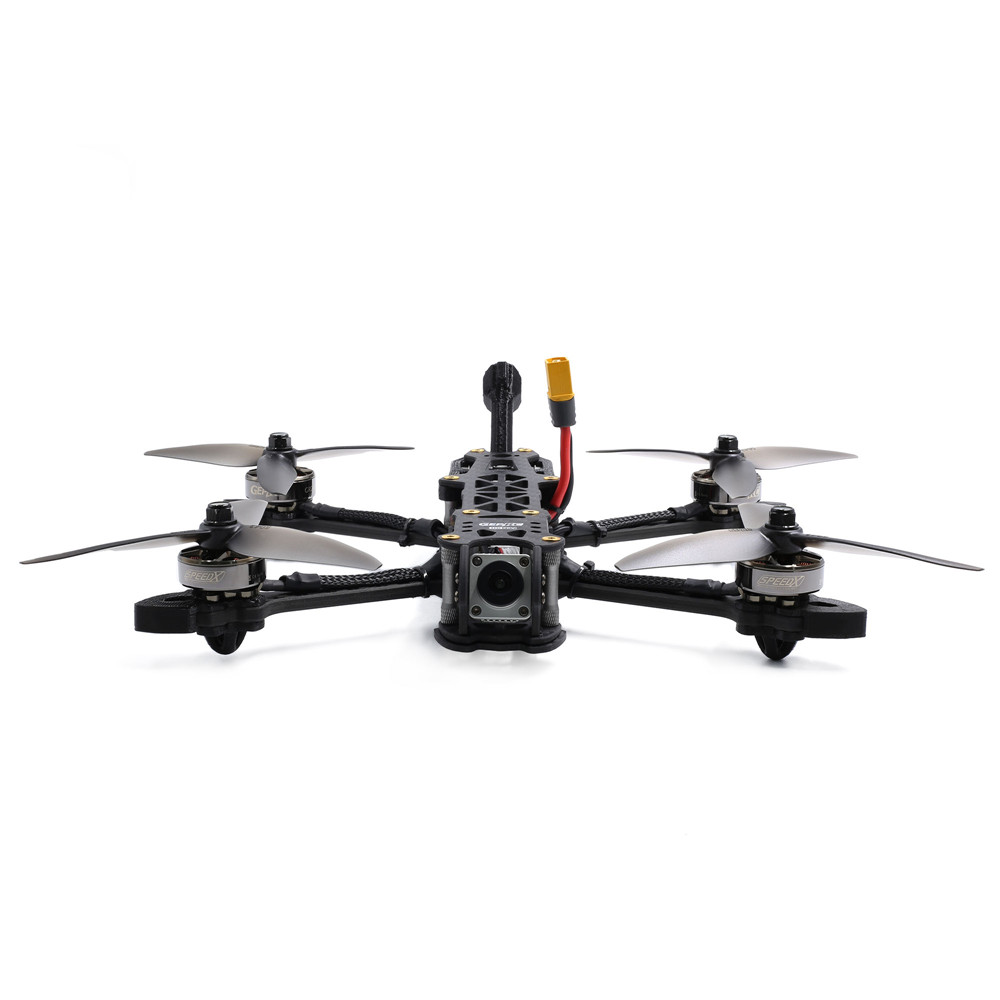

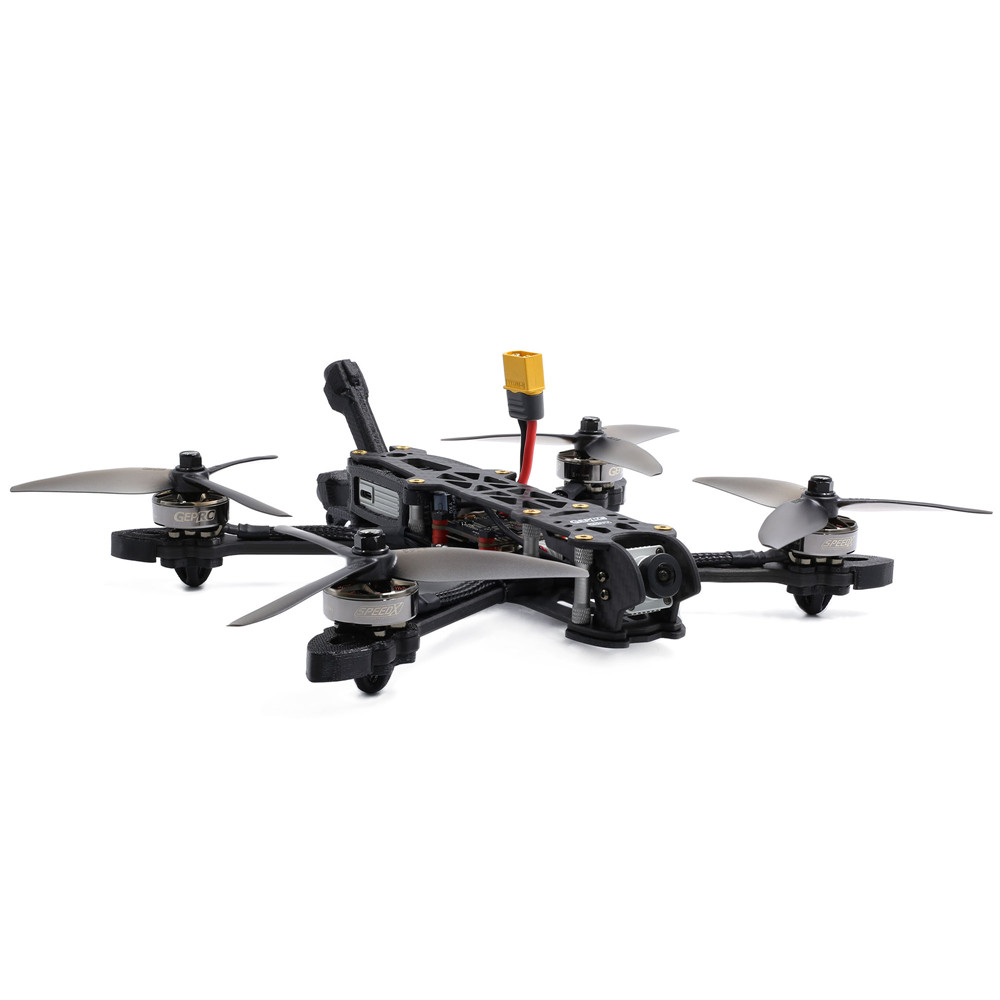

Mark4 HD5 224mm SPAN F7 BT 5 Inch 4S / 6S FPV Racing Drone PNP BNF w/ Caddx Nebula Nano Digital System
- Stock: In Stock
- Model: ST22001150
- SKU: ST22001150
$472.99
Ex Tax: $472.99
Notice: Because DJI Air Unit has been stopped produce, replace it into Caddx Nebula Nano.
July 23th, 2021.
Specification:
Model: Mark4 HD5
Item Name: 224mm F7 OSD 5 Inch FPV Racing Drone
Drone Version: PNP ( Without Receiver, Battery)
Optional Version: 4S 2450KV / 6S 1850KV
Weight: 401g ( Without Battery)
| MARK4 HD5 Frame |
Wheelbase: 224mm Material: 3K Carbon Fiber
Arms plate : 5mm
Side plate : 2.5mm
Top plate : 2.5mm
Bottom plate : 2.5mm
Protect plate : 2mm Weight: 121g |
| GEP-SPAN-F7 BT Flight Controller |
MCU: STM32F722
MPU: 2xICM20689(SPI)
Build-In: BlueTooth wireless adapter (SpeedyBee APP)
BlackBox: 32Mb onboard Flash
OSD: BetaFlight OSD w/ AT7456E chip
Baro: BMP280
BEC Output: 5V@2A / 9V@2A
Integrated LC Filter
Firmware target: EXF722DUAL
Size: 36x36mm board, φ4mm with Grommets φ3mm
Power input: 3-6S LiPo
5x UART
8x Motor outputs |
| 50A BLheli_32 4in1 ESC |
MCU: STM32FO51K86(32bit 48mHz)
Continuous Current: 50A
Peak Current: 55A (5S)
Current sensor: YES
Telemetry: Supported
Support DSHOT1200/DSHOT600, PWM, Multishot, OneShot42/125
Firmware Version:GEPRC-BL32-4IN1
Input Voltage: 3-6S Lipo |
| GR2306.5 2450KV / 1850KV Motor |
Model: GR2306.5 KV: 2450KV (4S Version) / 1850KV ( 6S Version) |

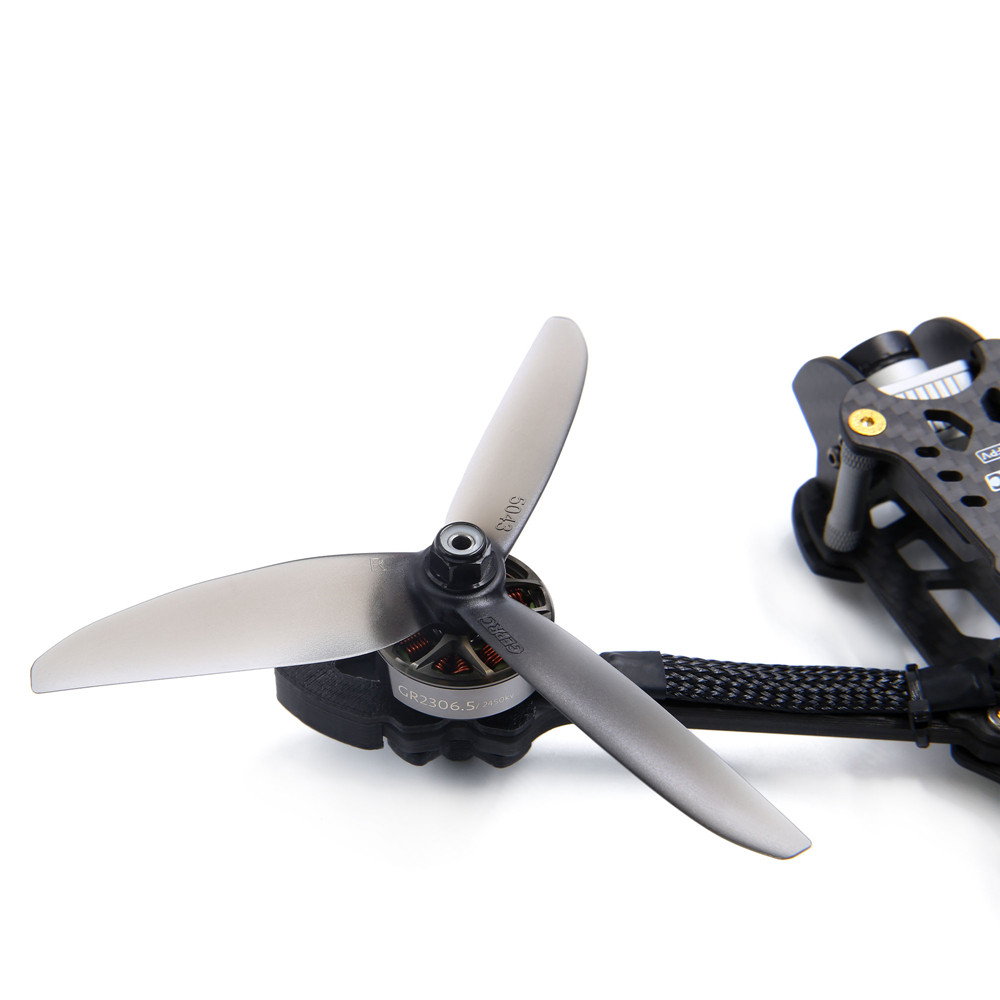

| Geprc P5x4.3x3 Propeller |
Item Name: 5043 3-Blade Propeller Color: Transparent Grey Quantity: 2 CW & 2 CCW |
| Recommend Battery ( Not Included) |
Recommend 4S 1300 -1550mAh Lipo ( 4S Version) Recommend 6S 1050 -1300mAh Lipo ( 6S Version) |
Package Included:
1x Geprc Mark4 HD5 FPV Racing Drone
