Introduction:

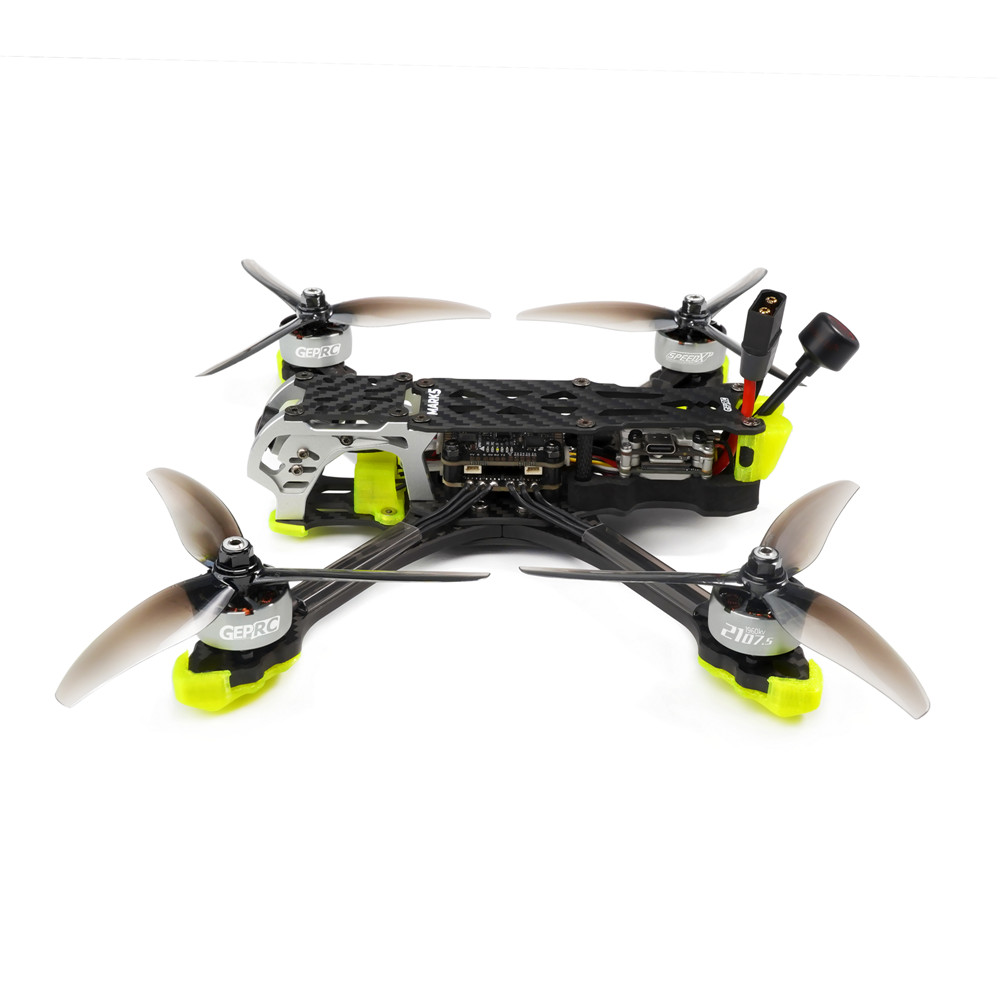

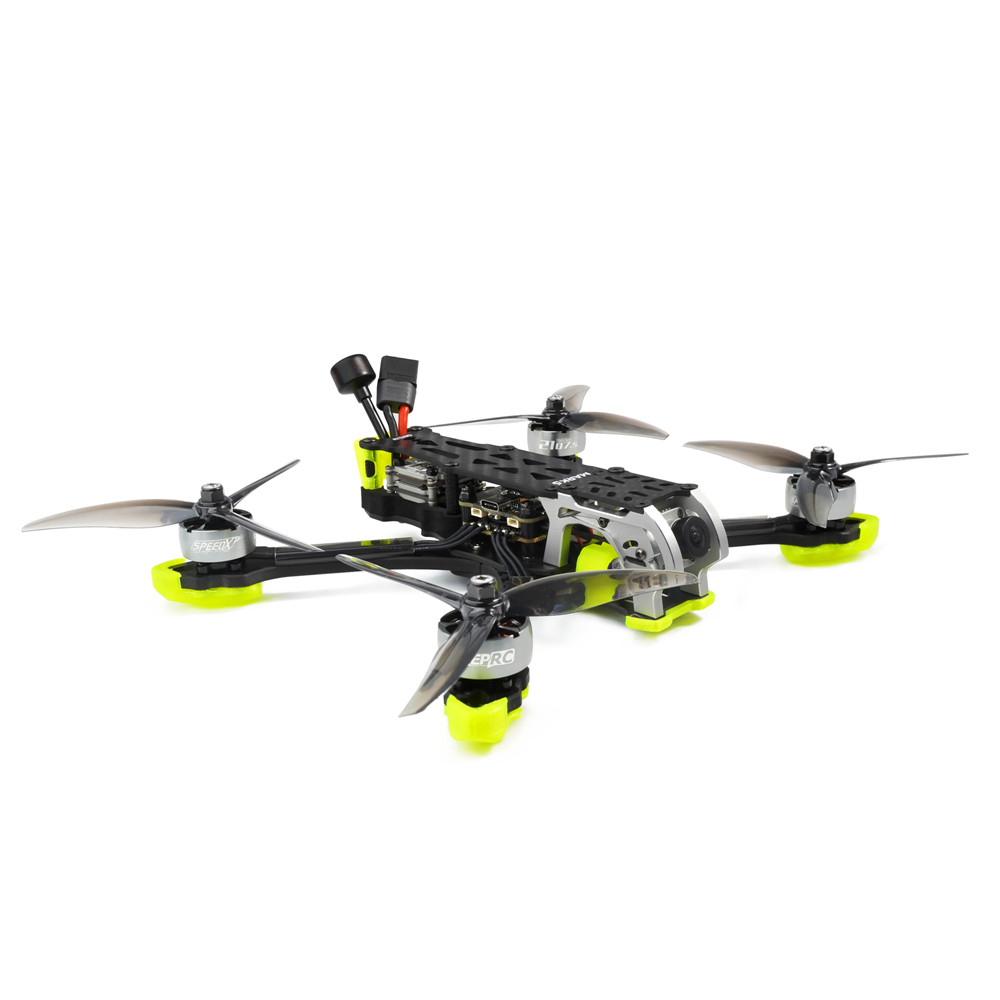

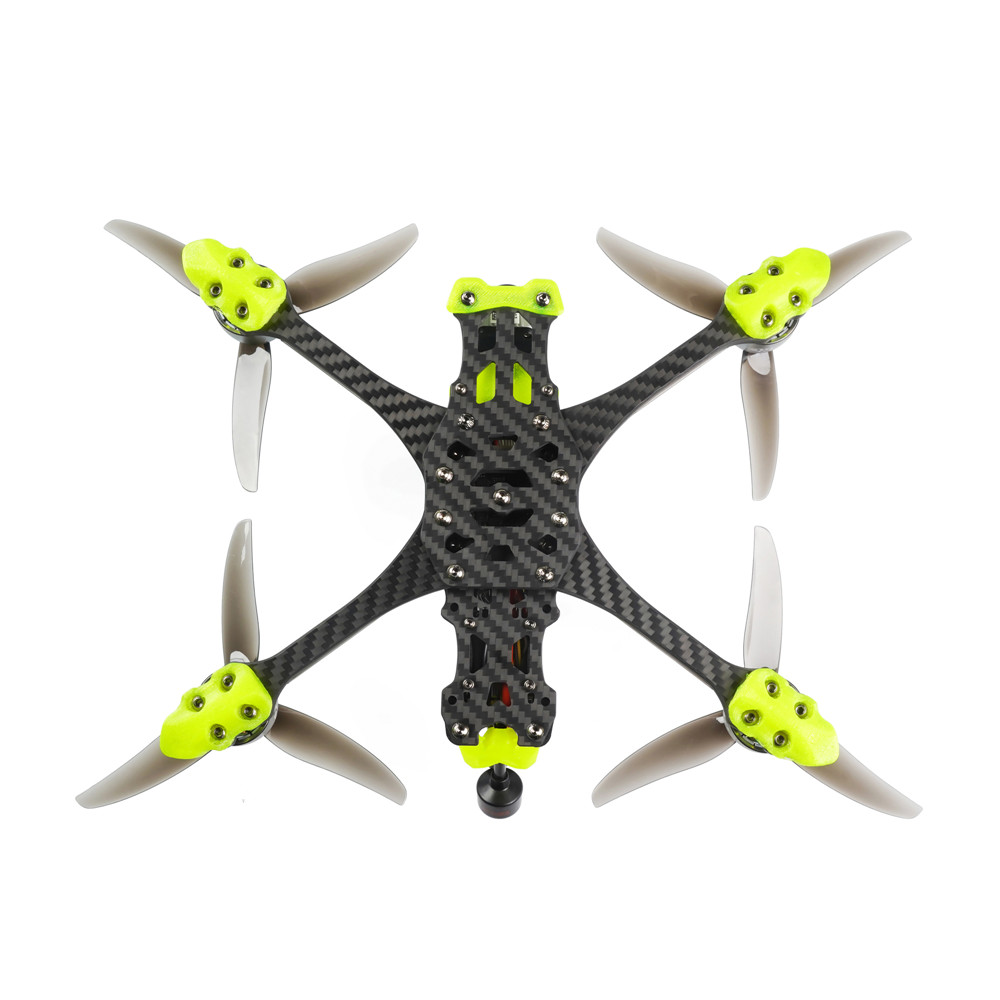

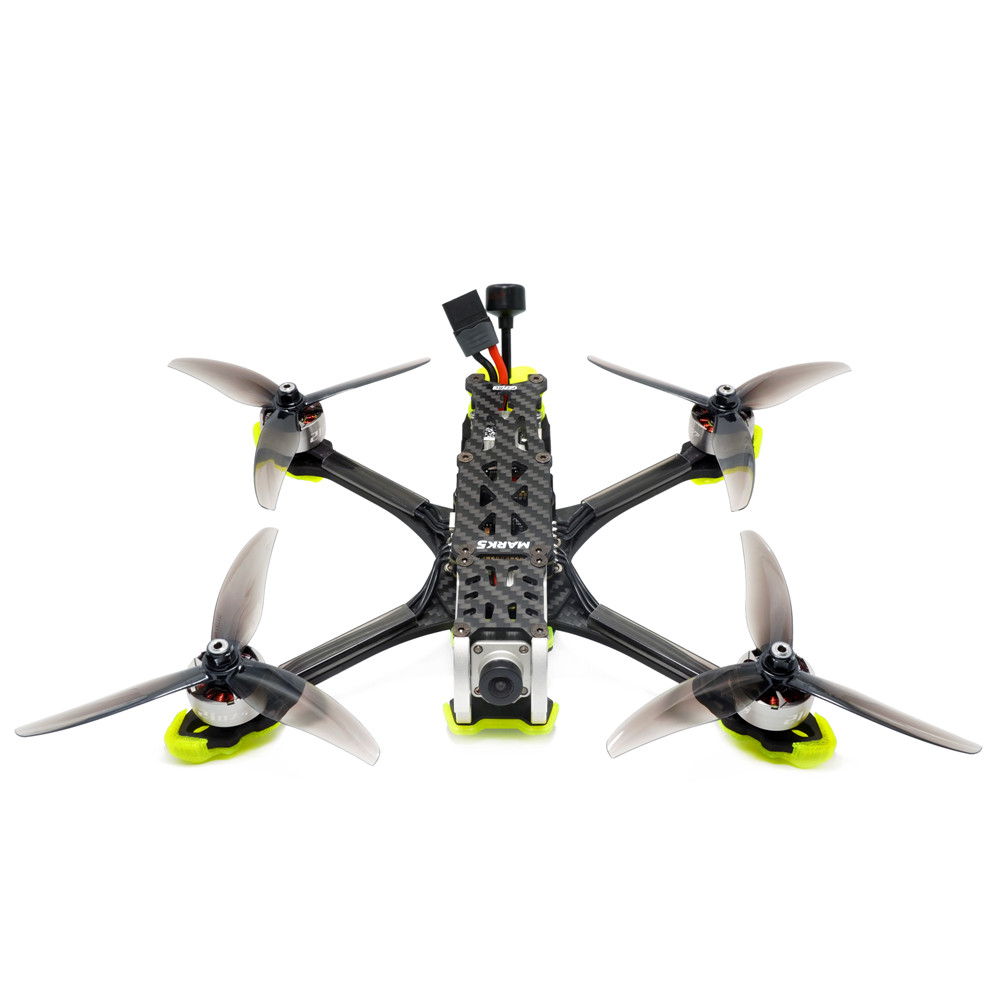

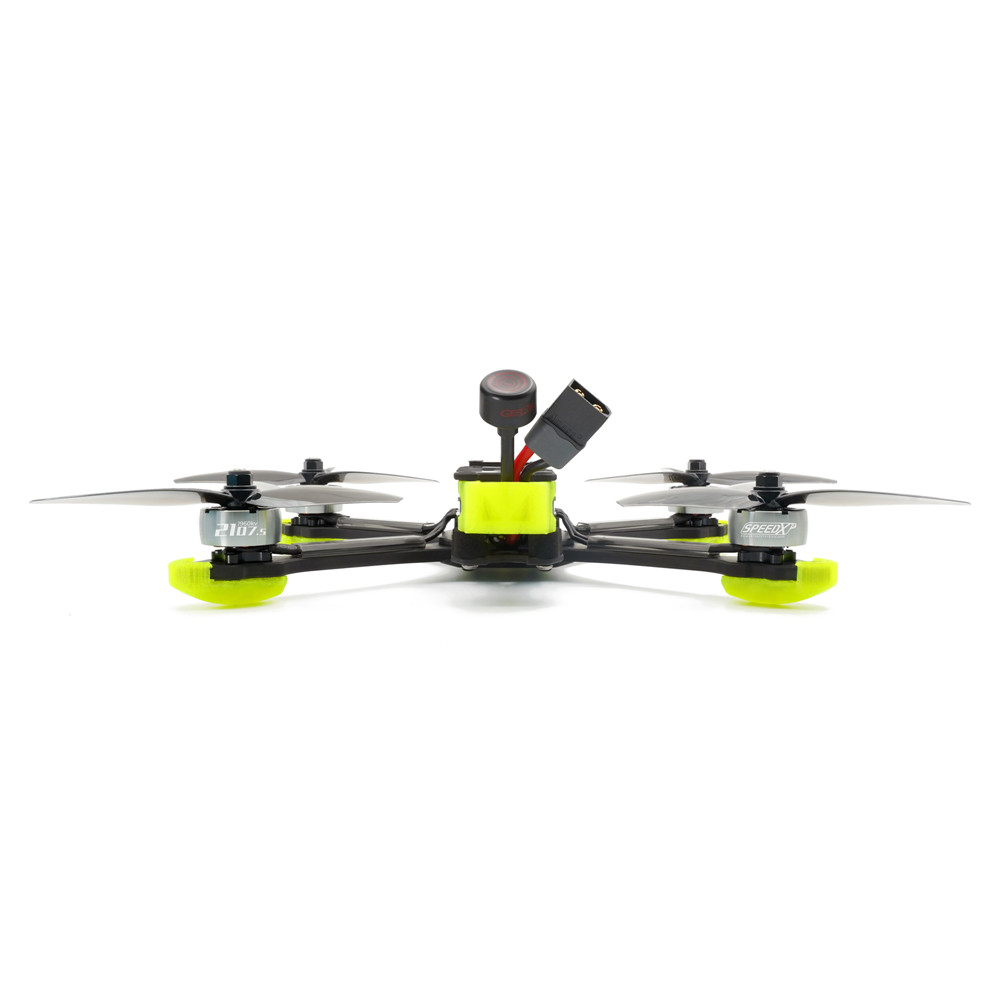

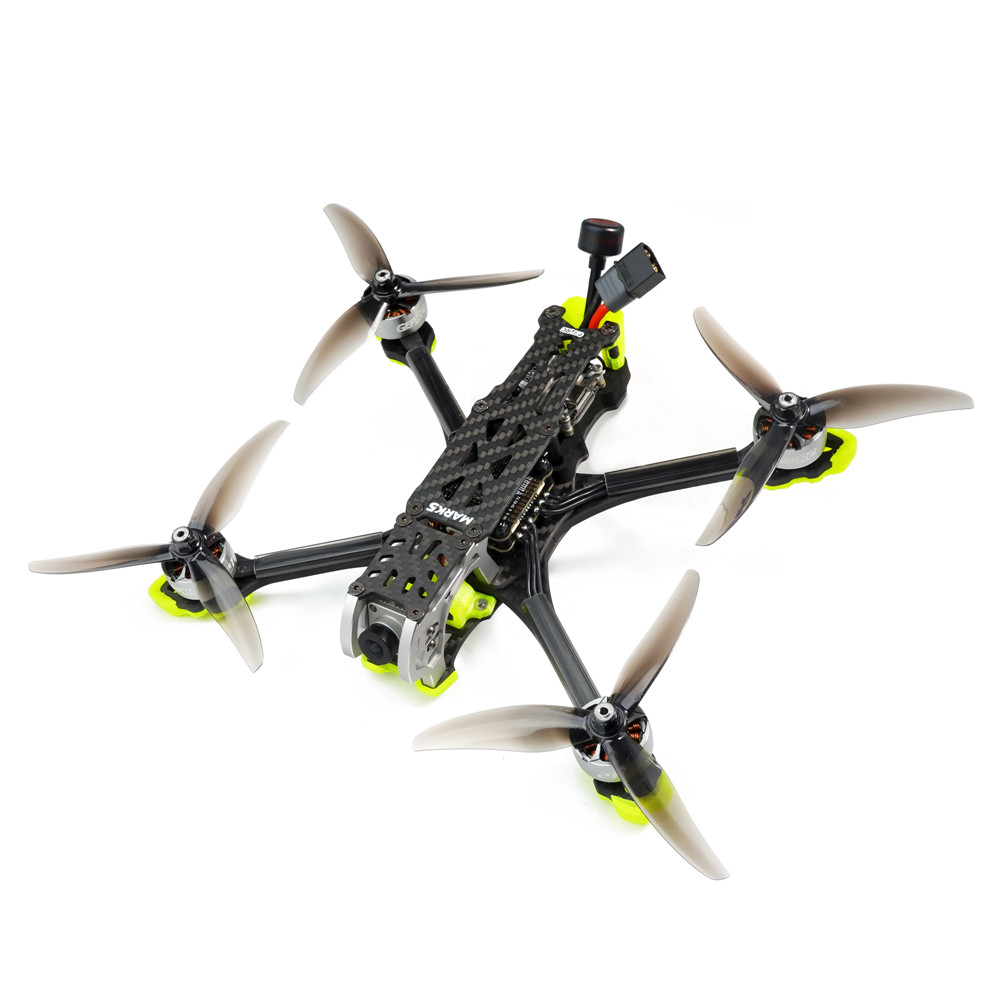

GEPRC new generation freestyle drone MARK5.We are proud to say the MARK5 HD quad is the best freestyle quadcopter in the market. It is now launched in three versions: HD AIR UNIT, HD VISTA and Analog.
MARK5 is developed specifically for freestyle with wide X-arm design. Unique shock absorbing structure design, less vibrations and resonance provide a stable operating environment for the electronic system. Aluminum alloy side plates not only look stunning but reduce weight and add more endurance. MARK5 is equipped with GEPRC’s latest SPAN F722-HD-BT FC with high performance and lots of ports, supporting Bluetooth wireless connection for easy field tuning. Freshly upgraded SPAN G50A BLHeli_32 4IN1 50A ESC with GEPRC’s latest 2107.5 motor, has great explosive power and quick response speed. The new GEMFAN Freestyle 4S propellers provide delicate and silky smooth flight experience. The MARK5 is shipped with two different 3D printed action camer mounts for GoPro8/9/10, Naked Gobro Insta 360 GO2 and Caddx Peanut cameras. After continuous testing and tuning by GEPRC R&D team, we are proud to say, this is yet another GEPRC drone that comes perfectly tuned right out of the box. Just take it out, plug the battery and have fun!
We've been pursuing for lighter weight, better flying experience, and more functionality for all our products!
Features:
- Aluminum alloy side plates not only look stunning but reduce weight and add more endurance.
- Supports Bluetooth wireless connection for easy field tuning.
- Developed specifically for freestyle with wide X-arm design.
- Analog version is equipped with our latest incredible RADVTX 1.6W paired with Caddx Ratel 2 camera.
- A variety of receiver choices including our brand new ExpressLRS Rx.
- SPAN G50A BLHeli_32 4IN1 50A ESC with GEPRC's latest 2107.5 motor, has great explosive power and quick response speed.
- Unique shock absorbing structure design, less vibrations and resonance.
- Specially designed independent capacitor and buzzer compartment for better performance and shaking reduction.
- The new GEMFAN Freestyle 4S propellers provide delicate and silky smooth flight experience.

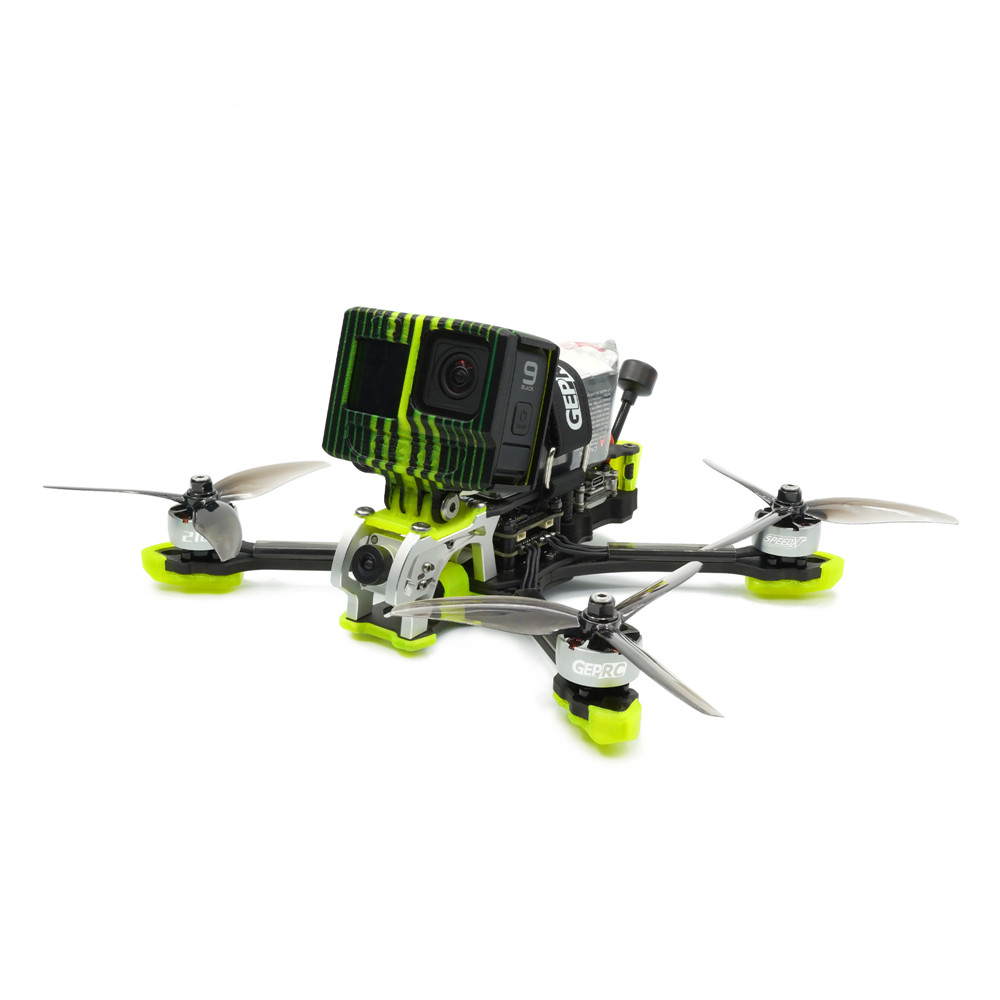

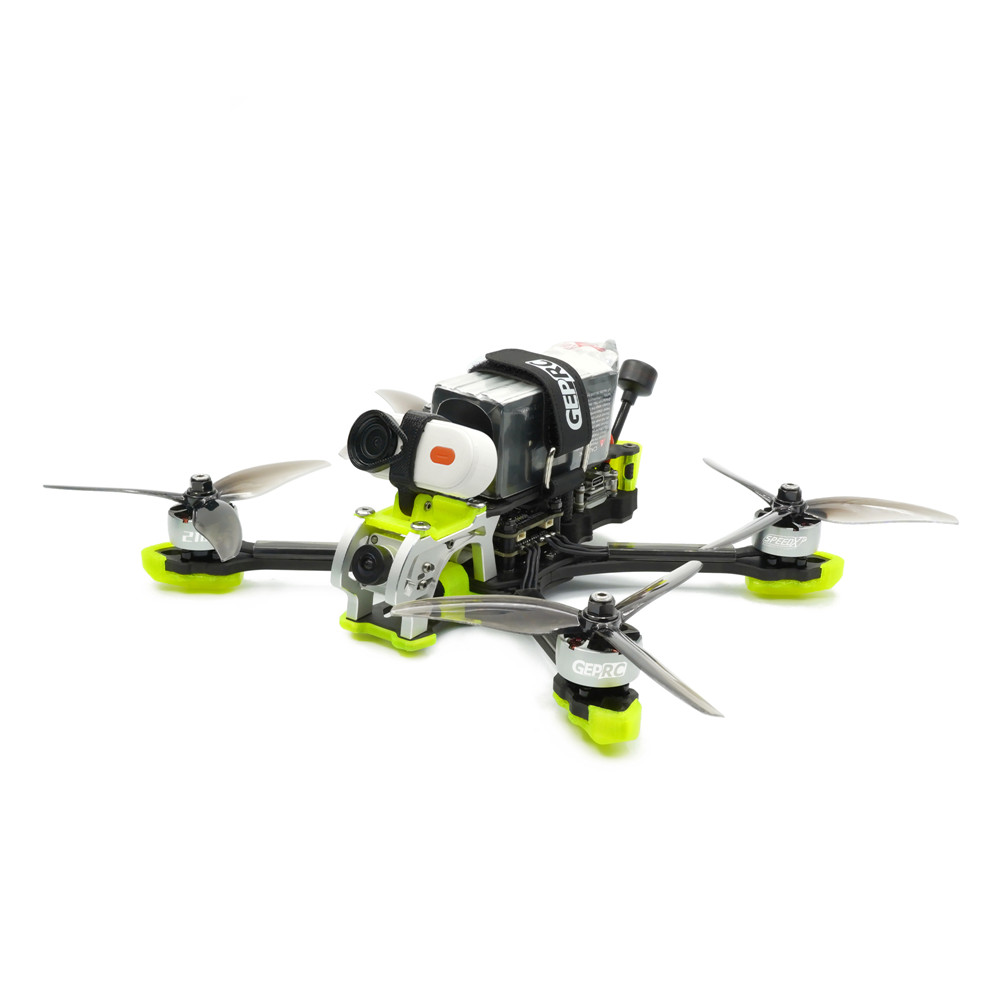

- with two different 3D printed action cam mounts for GoPro8/9/10, Naked Gobro8, Insta 360 GO2 and Caddx Peanut cameras.( These Camera NOT Included).
- MARK5 is the most ideal for freestyle flying and bando-bashing resistant.
Specification:
Model: Mark5 HD Vista
Item Name: 225mm F7 5 Inch Freestyle FPV Racing Drone
Frame: GEP-MK5
Wheelbase: 225mm
Top plate: 2.5mm
Bottom plate: 2.5mm
Arm plate: 5mm
FC system: SPAN F722-HD-BT FC
MCU: STM32F722
IMU: MPU6000(SPI)
OSD: BetaFlight OSD w/AT7456E chip
ESC: SPAN G50A BLHeli_32 4IN1 50A 4-6S ESC
VTX: VISTA
Camera: AIR UNIT Camera
Propeller: Freestyle 4S
Antenna: GEPRC Momoda 5.8G UFL LHCP 85mm
Motor: SPEEDX2 2107.5-1950KV (6S Version) / SPEEDX2 2107.5-2450KV（4S Version）

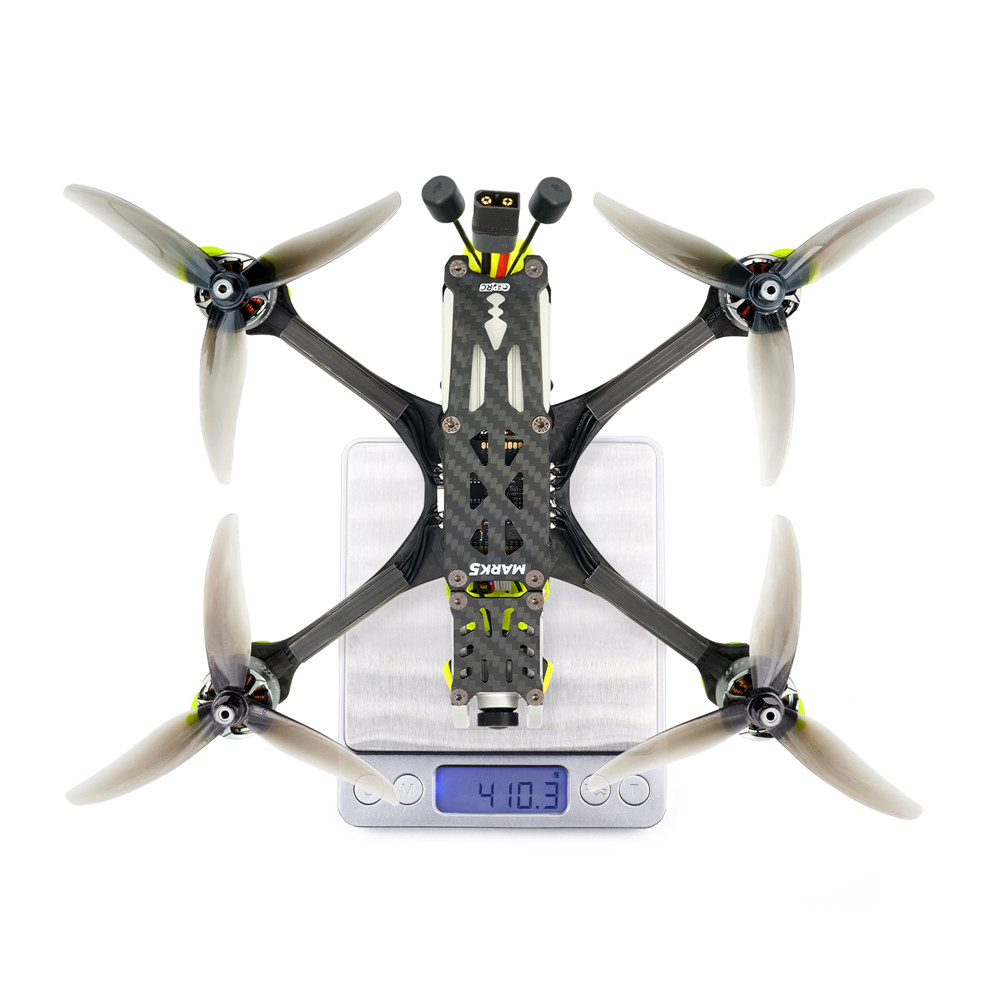

Weight: 391.5g (MARK5 HD VISTA 6S PNP including 3D print)
Recommended Lipo Battery: ( NOT Included)
4S 1300mAh-1800mAh (4S Version) / 6S 1050mAh-1550mAh(6S Version)
Pacakge Included:
1 x MARK5 HD VISTA Quadcopter
4 x Freestyle 4S propellers (pair)
1 x Battery strap M15x250mm
2 x Battery strap M20x220mm
1 x Battery strap M20x250mm
2 x Battery Silicone Pads
1 x Camera cage carbon top plate
1 x 3D print mountings combination
2 x Action cam mount holder
1 x Set of screws
1 x Set of screwdrivers
1 x Antenna fixed tube
