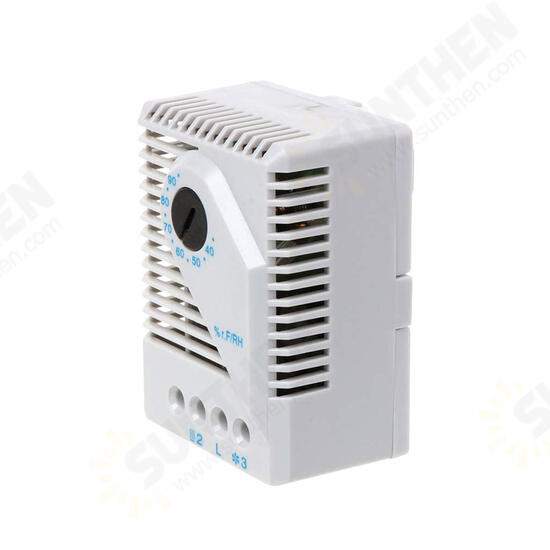

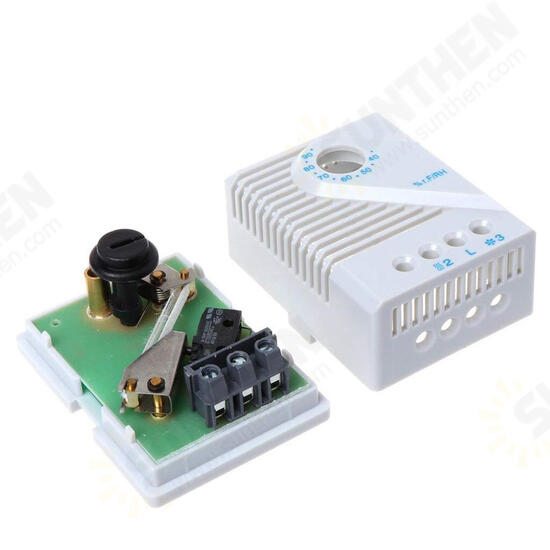

Mechanical Hygrostat Humidity Controller Power Distribution Cabinet Temperature Humidifier Controller Switch Temperature Controller for Cabinet MFR012
- Stock: In Stock
- Model: ST220016191
- Dimensions: 67.00mm x 50.00mm x 38.00mm
- SKU: ST220016191
$17.99
Ex Tax: $17.99
Description:

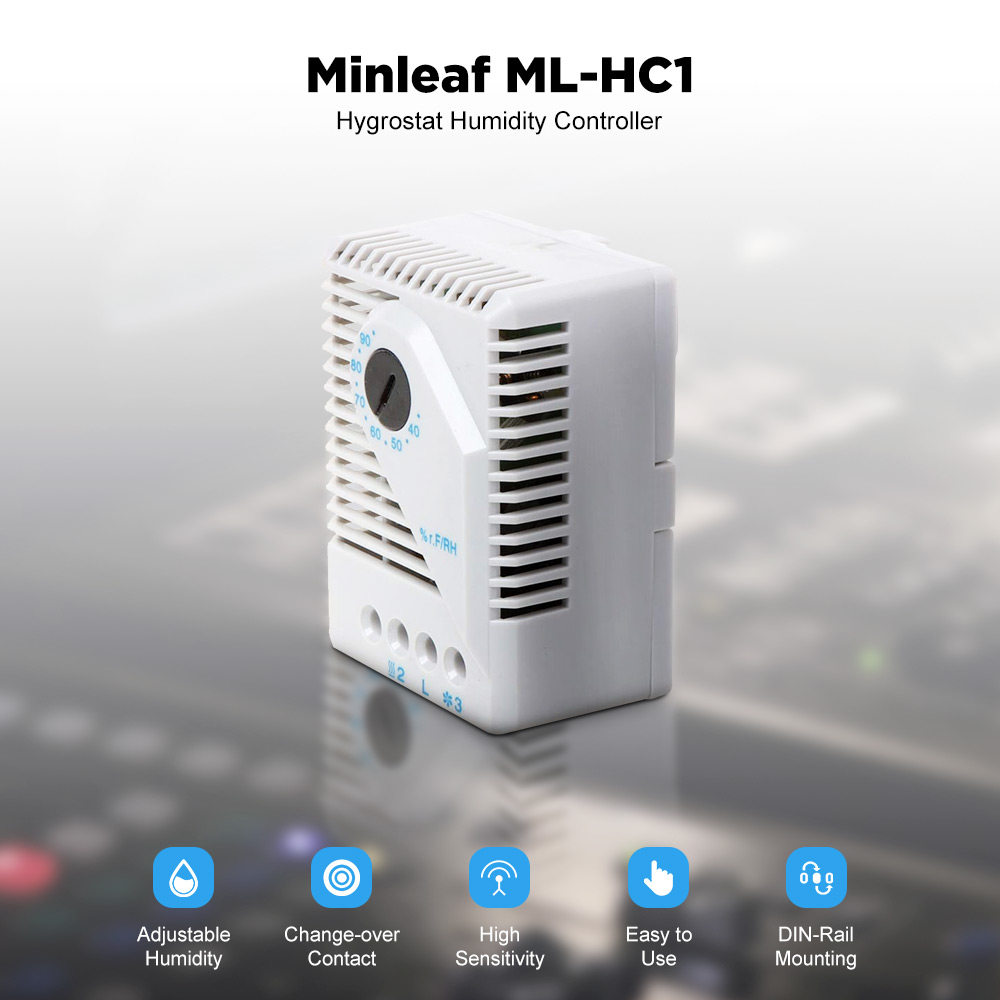

Relative humidity adjustment,With change-over contact,High sensitivity,Easy to operate,Rail mounting
Applications: Cabinet heaters, digital thermometer thermostats, mechanical thermostats, hygrostat thermostats, cabinet fans, breeding temperatures, Din heaters, Msr 3, fans with thermostats, grill temperature control, flat panel heaters, Ringder thermostat
Feature:
Speciofication:
Package included: 1XTemperature Controller Switch
Applications: Cabinet heaters, digital thermometer thermostats, mechanical thermostats, hygrostat thermostats, cabinet fans, breeding temperatures, Din heaters, Msr 3, fans with thermostats, grill temperature control, flat panel heaters, Ringder thermostat
Feature:

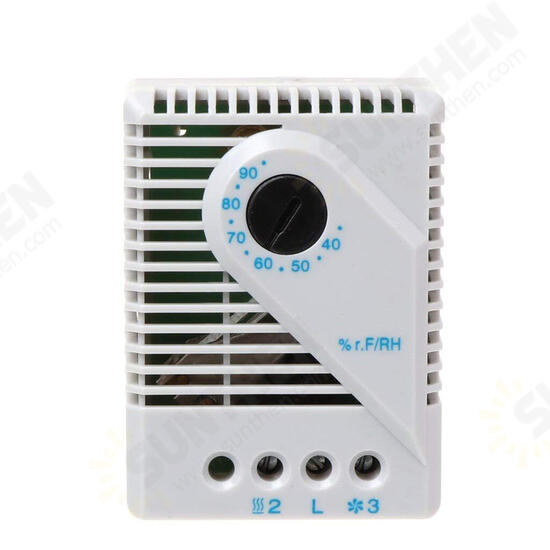

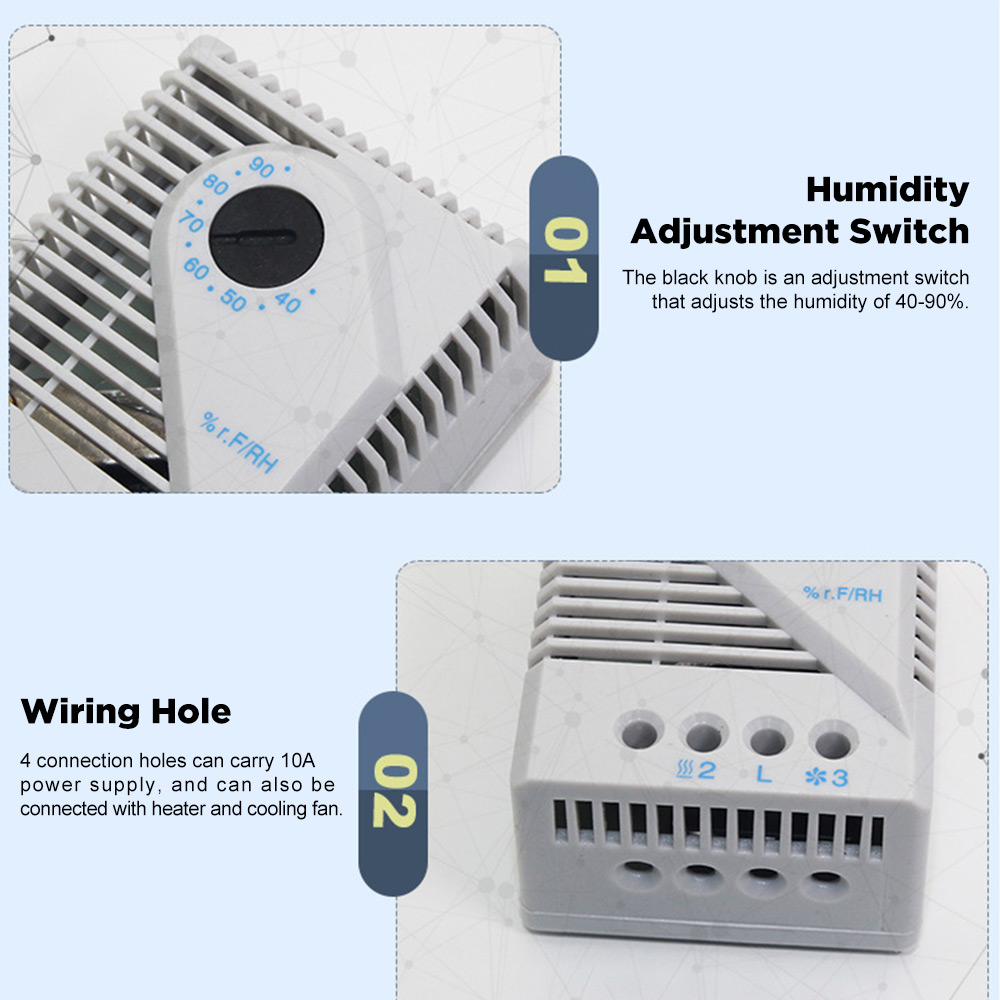

1. Adjustable relative humidity: the black knob is an adjustment switch that can adjust the humidity of 40%-90%;

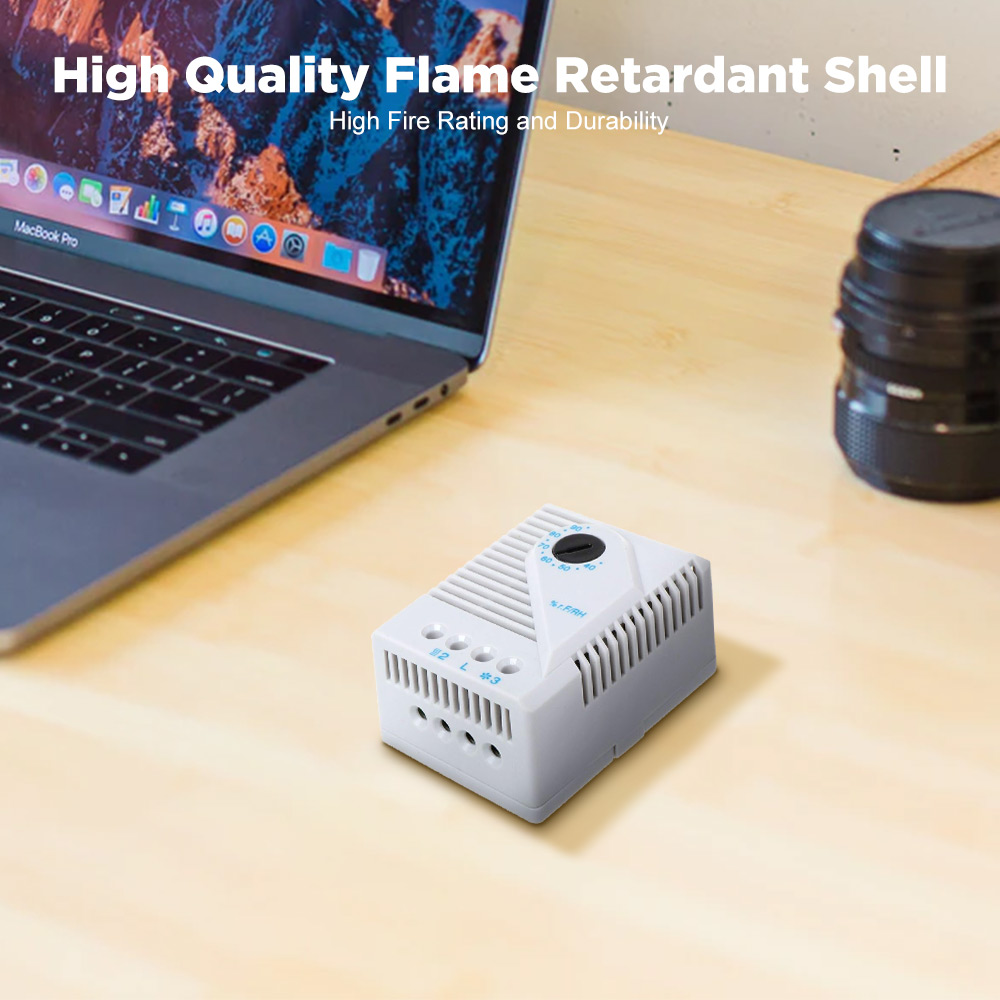

2. High-quality flame-retardant casing: plastic UL94 standard V-0 fire rating, durable;
3. Easy installation: the rail is installed and can be fixed in the cabinet by using the conventional rail card;

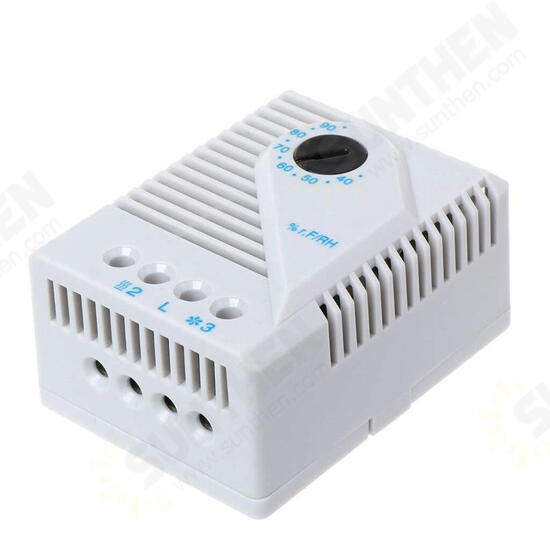

4. Easy to operate: 4 wiring holes can carry 10A current, and can also carry heater and cooling fan.
Speciofication:
| Switch difference | 4% RH(±3% tolerance) |
| Humidity range | 40%-90% |
| Air velocity | 15m/sec |
| Contact type | Conversion contact change-over contact |
| Contact resistance | <10mΩ |
| Service life | >100000 cycles |
| Switch minimum capacity | 20V AC/DC 100mA |
| Switch maximum capacity | 250V AC 5A DC 20W |
| EMC | Acc.to EN 55014-1-2,EN 61000-3-2,EN 61000-3-3 |
| Wiring | 3-pole terminal block 2.5mm2 wire |
| Installation method | 35mm DIN Rail |
| Housing material | Plastic UL94 standard V-0 fireproof rating |

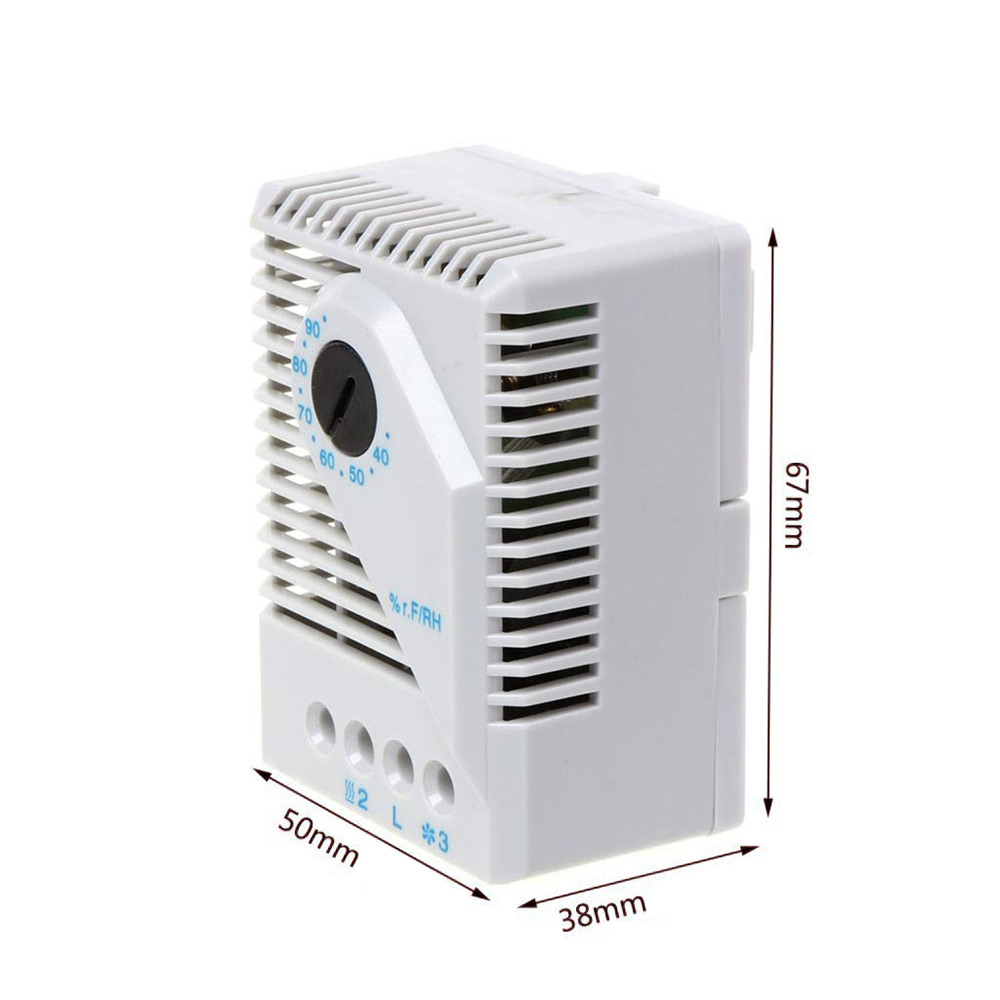

| Installation size | 67*50*38mm |
| Weight | Approx.60g |
| Operating/storage temperature | 0 to +60℃/-20 to +80℃ |
| Protection level | IP20 |
Package included: 1XTemperature Controller Switch
