Mini 6 in 1 Lathe Machine for DIY Assembly of Sawing Machine, Grinder, Driller, Wood Lathe, Metal Lathe, Miller.

Description:

Need to make molds or samples, create products and DIY process soft metals? Being curious about making crafts? Try this professional 6 in 1 motorized jigsaw, grinder, driller, miller, metal lathe, wood lathe. It's perfect for processing plastic, models, soft metal and wood.

Features:

Mini 6 in 1 lathe machine for DIY assembly of sawing machine, grinder, driller, wood lathe, metal lathe, miller.

Great handcraft tool kit for DIY, hobby, model making, crafts, students, small parts processing, etc.

Made of advanced aluminum alloy, durable and non-deformable for usage.

Interesting to install and use, perfect gift for lathe DIY enthusiasts.

This mini multipurpose machine can be assembled into 6 kinds of different lathes, but you can use only one kind of these lathes at the same time.

Specifications:

Material: Aluminum Alloy + ABS

Color: Black + Red

Power: 48W

Motor Speed: 20000rpm

Plug Type: EU Plug

Voltage: 100-240V 50/60Hz

Output: 12V 4A

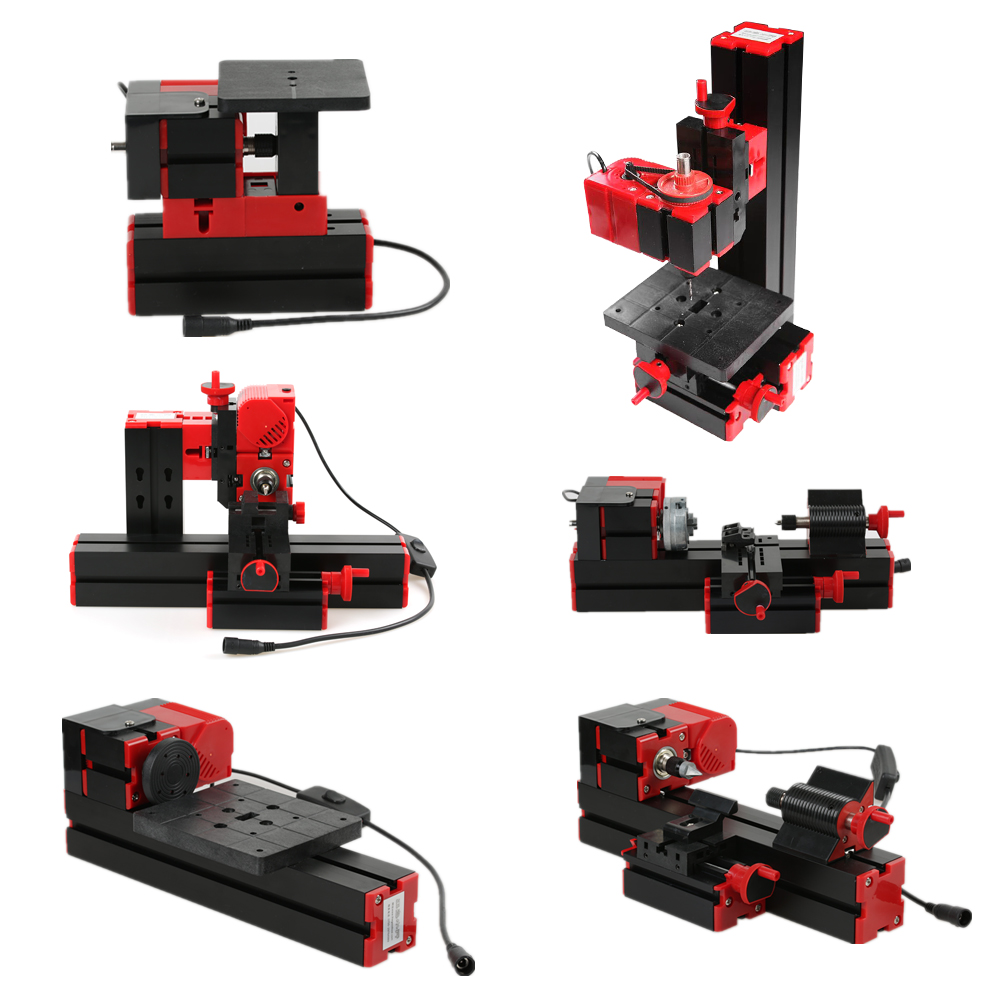

Can Assemble Machine: Jigsaw, Grinder, Driller, Wood Lathe, Metal Lathe, Miller

6-in-1 Functions: Drilling, Sanding, Turning Lathe, Milling, Sawing, Wood Turning Lathe

Can Process Objects: Wood, Plastics, Soft Metal(Gold, Silver, Copper, Aluminium, etc.) Acrylic, PCB, etc.

Package Size: 47.5 * 36 * 10cm / 18.70 * 14.17 * 3.94in

Package Weight: 3.5kg

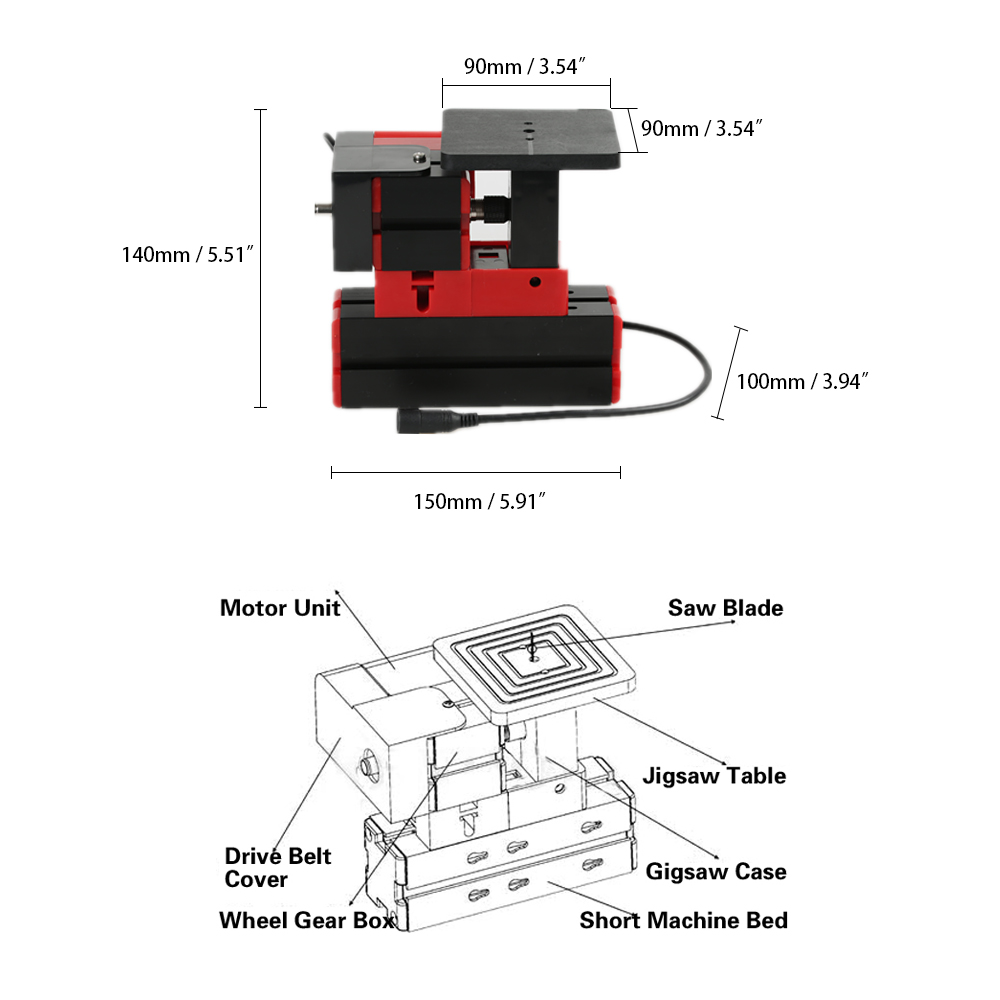

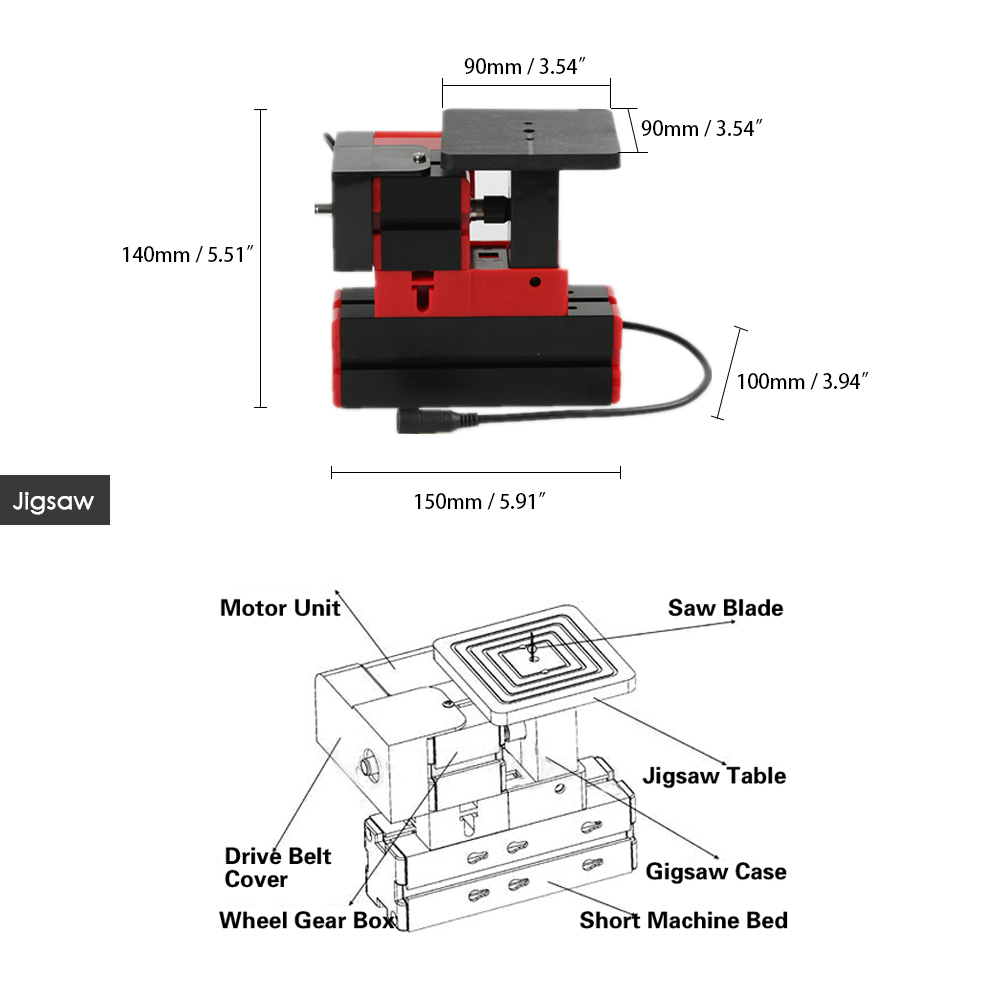

Technique Data of Jigsaw:

Operating Space: 90 * 90mm / 3.54 * 3.54in

Maximum Cutting Saw Depth: 4mm Hardwood, 7mm Triply Wood, 18mm Softwood, 0.5mm Aluminium Flakes, 2mm Organic Glass

Jigsaw Weight: 0.72kg / 1.59lb

Jigsaw Size: 15 * 10 * 14cm / 5.91 * 3.94 * 5.51in

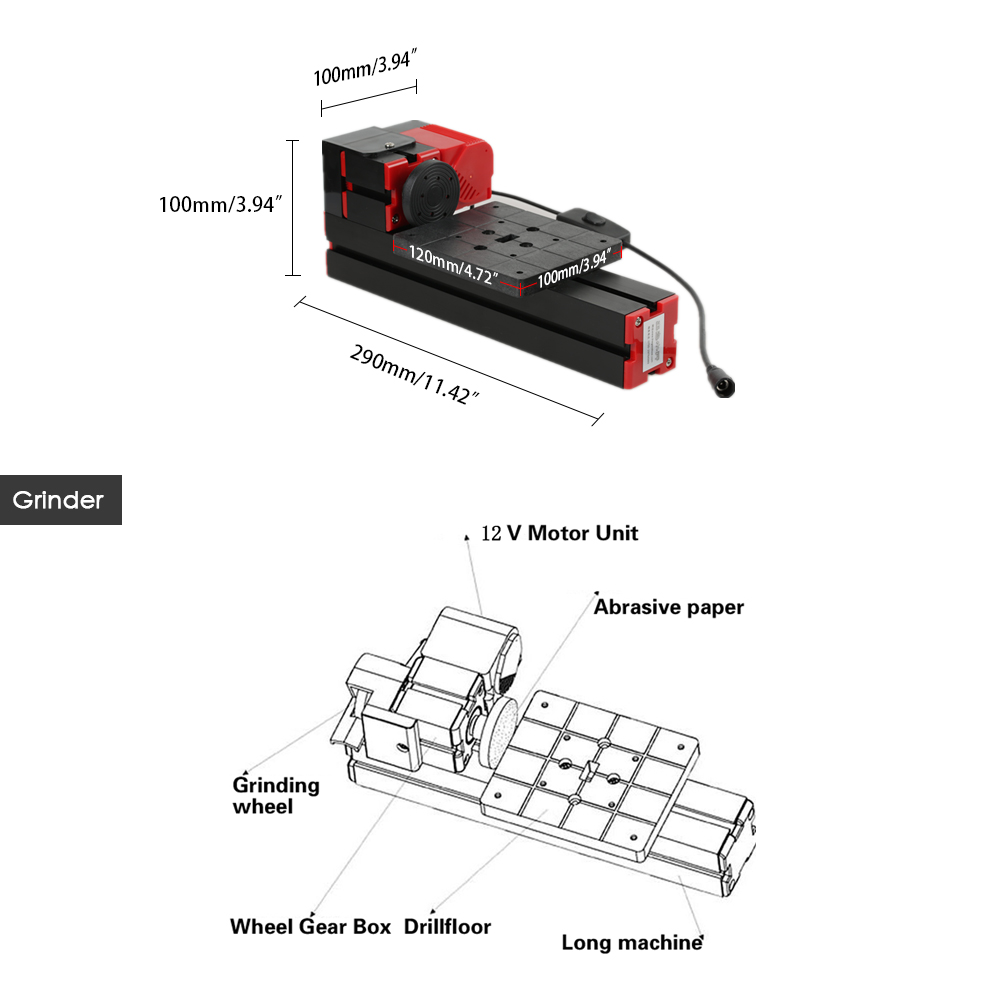

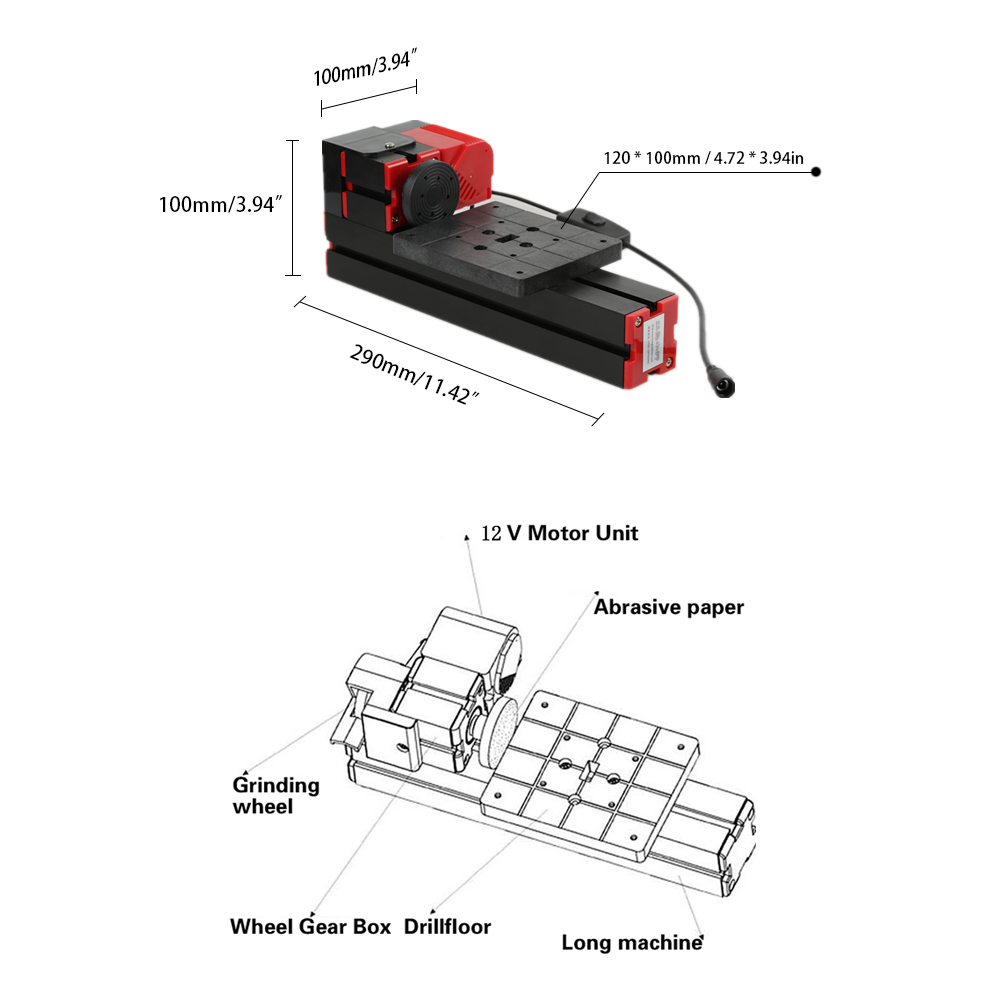

Technique Data of Grinder:

Operating Space: 120 * 100mm / 4.72 * 3.94in

Grinding Materials: Wood, Plastics, Soft Metal(Gold, Silver, Copper, Aluminium, etc.)

Grinder Weight: 0.75kg / 1.65lb

Grinder Size: 29 * 10 * 10cm / 11.42 * 3.94 * 3.94in

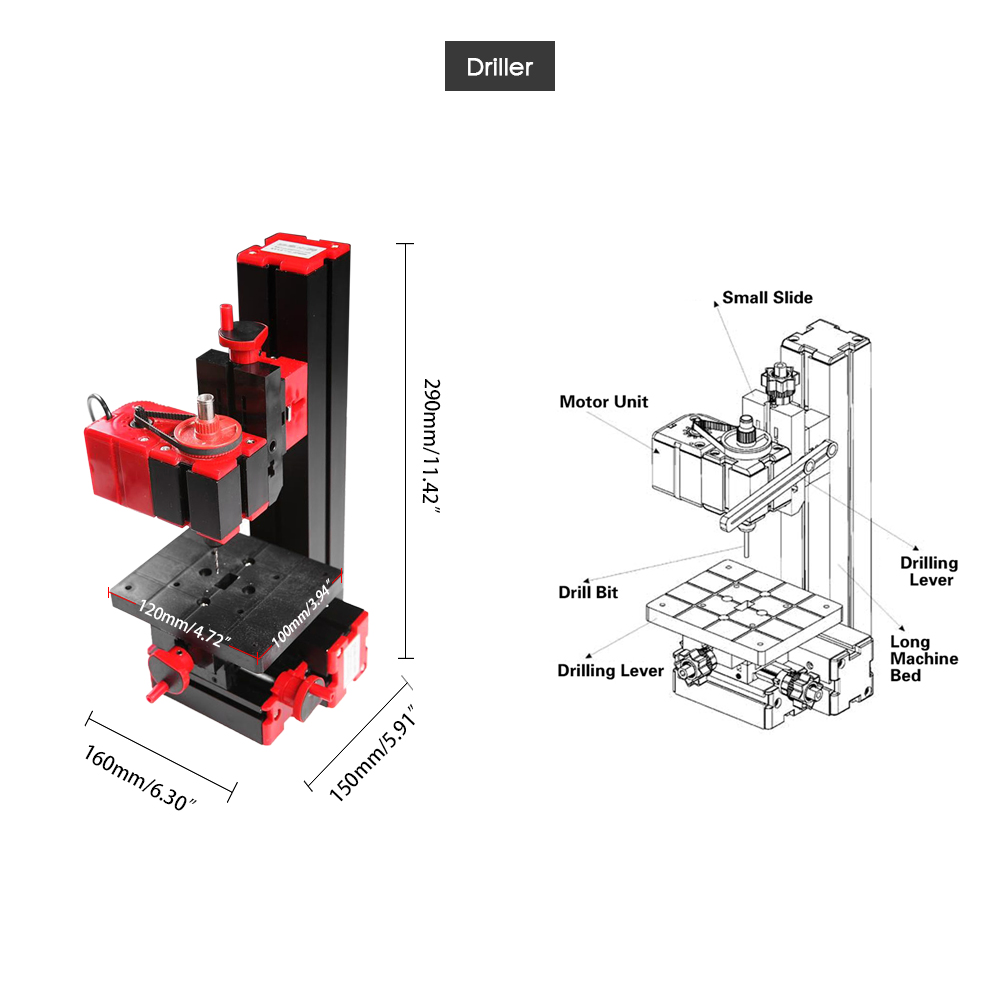

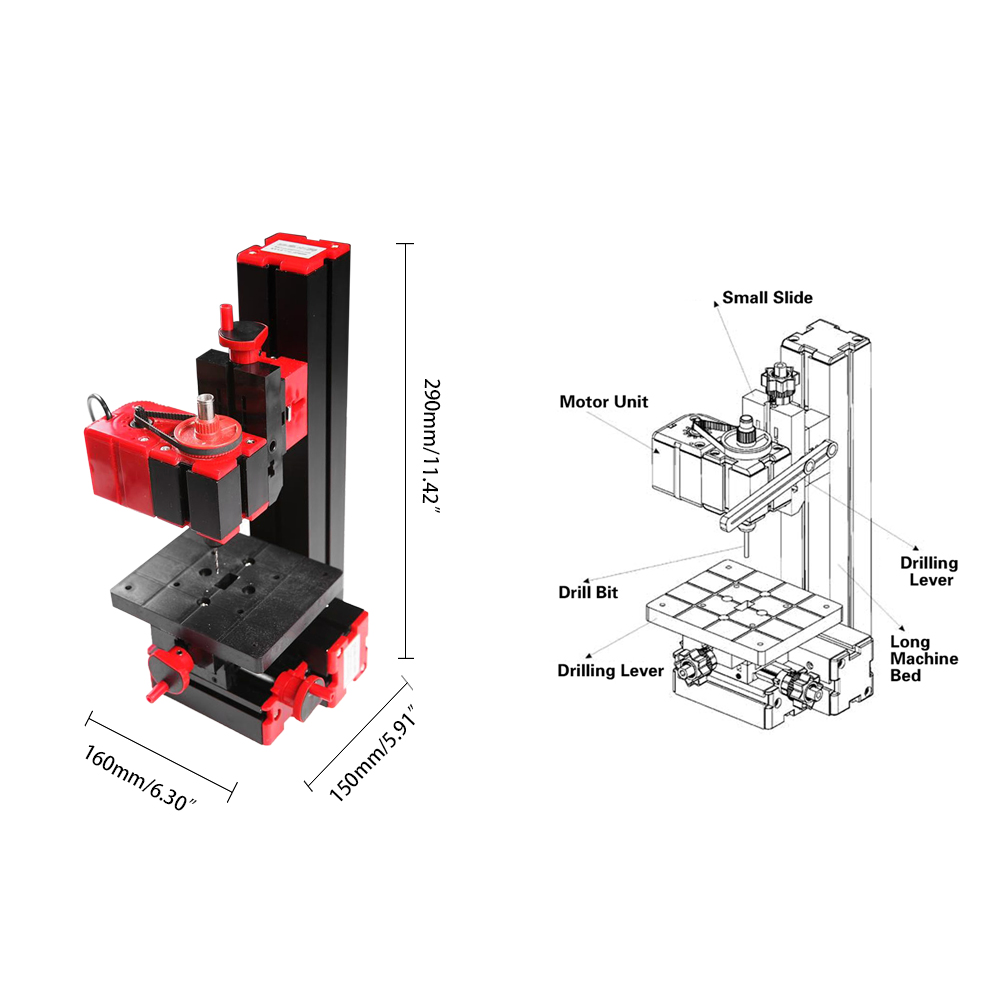

Technique Data of Driller:

Operating Space: 120 * 100mm / 4.72 * 3.94in

Slide Stroke: 30-50mm

Collets Size: 1-6mm

Clamping Size of Vice Clamp: 0-35mm

Driller Weight: 1.46kg / 3.22lb

Driller Size: 16 * 29 * 15cm / 6.30 * 11.42 * 5.91in

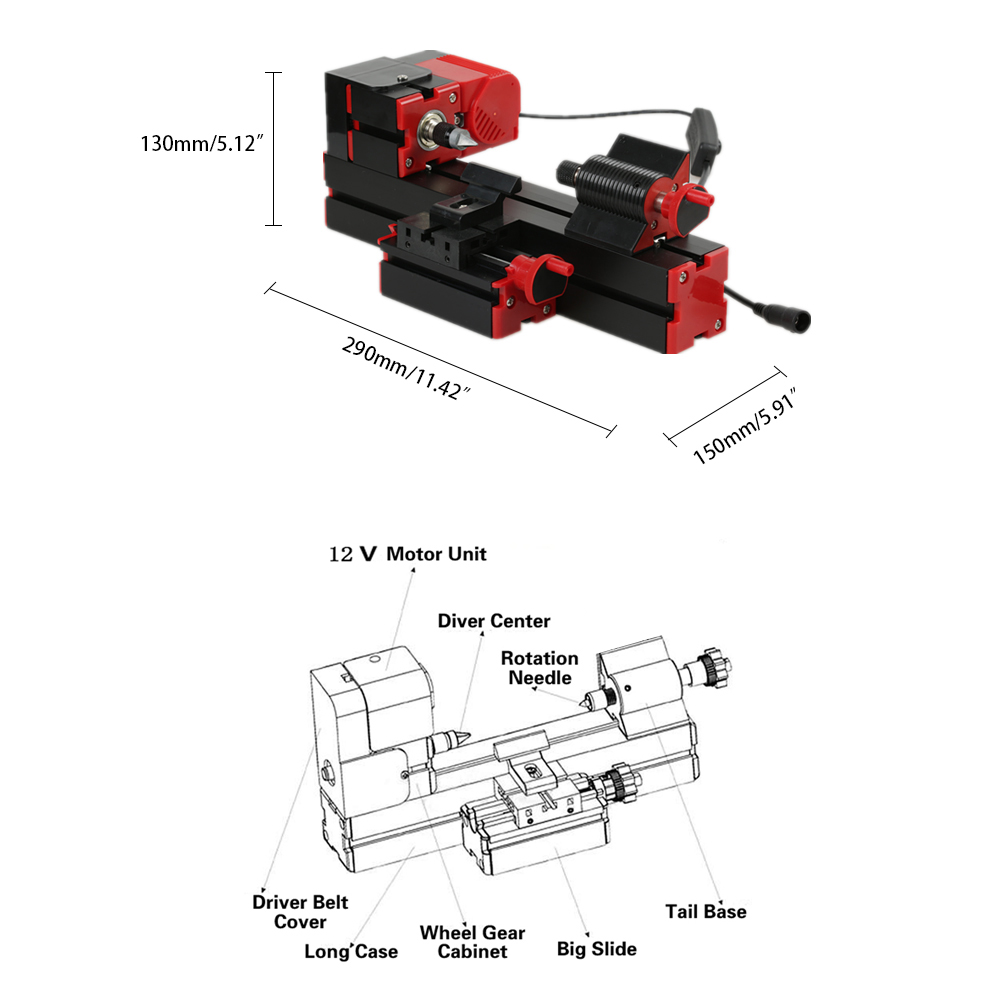

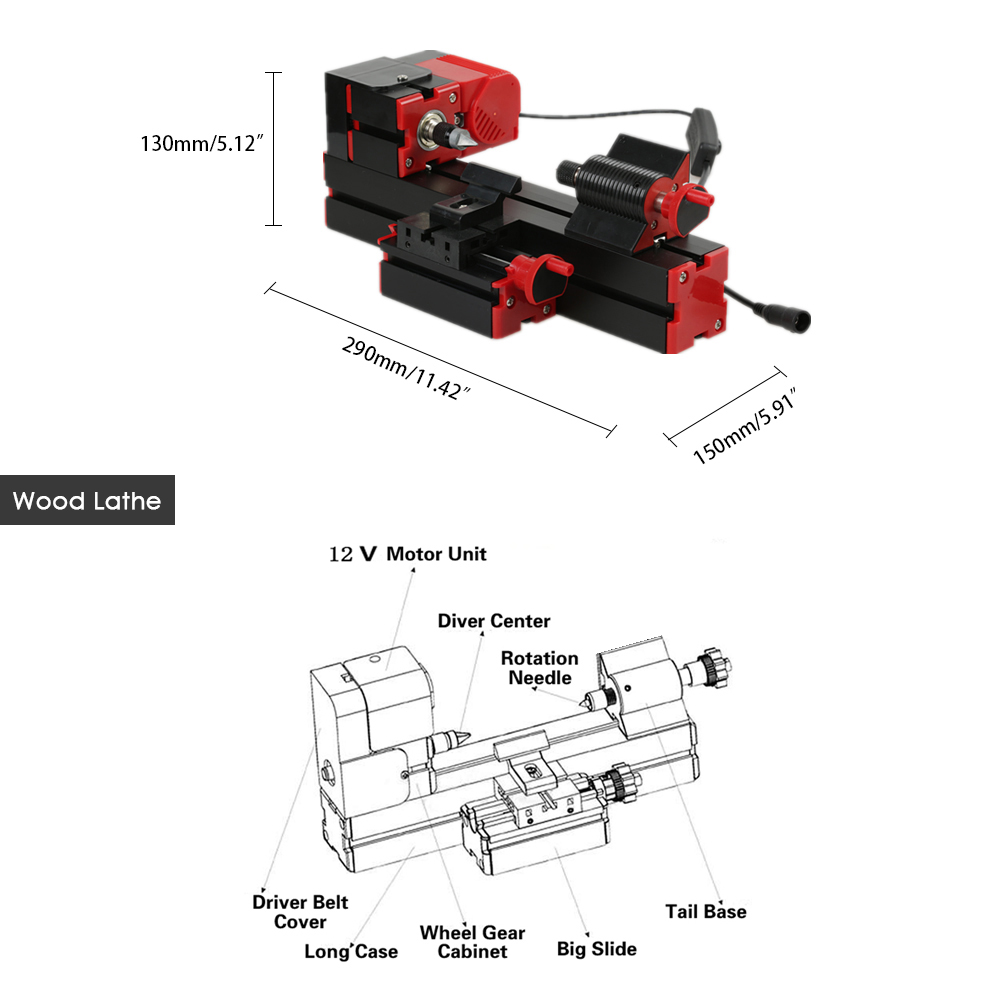

Technique Data of Wood Lathe:

Maximum Processing Diameter: 45mm

Processing Length: 135mm

Grinding Materials: Wood, Plastics

Wood Lathe Weight: 1.28kg / 2.82lb

Wood Lathe Size: 29 * 15 * 13cm / 11.42 * 5.91 * 5.12in

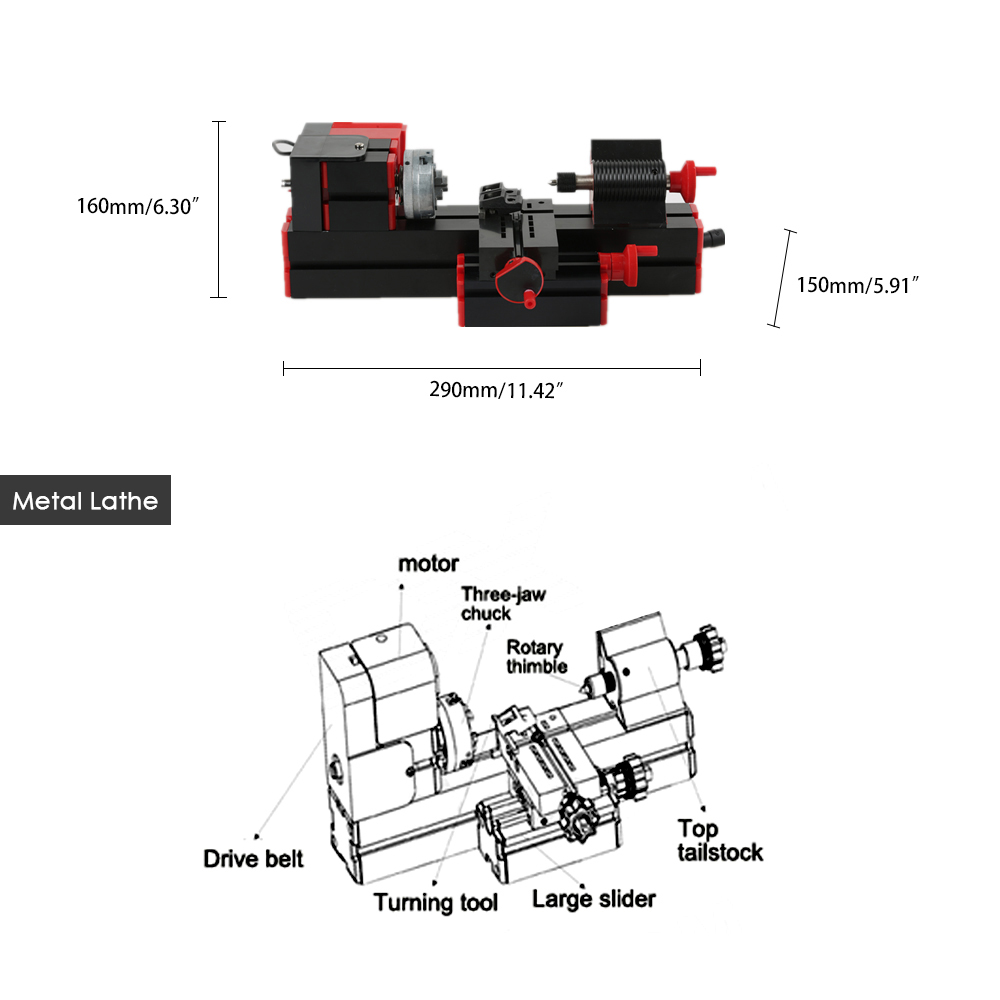

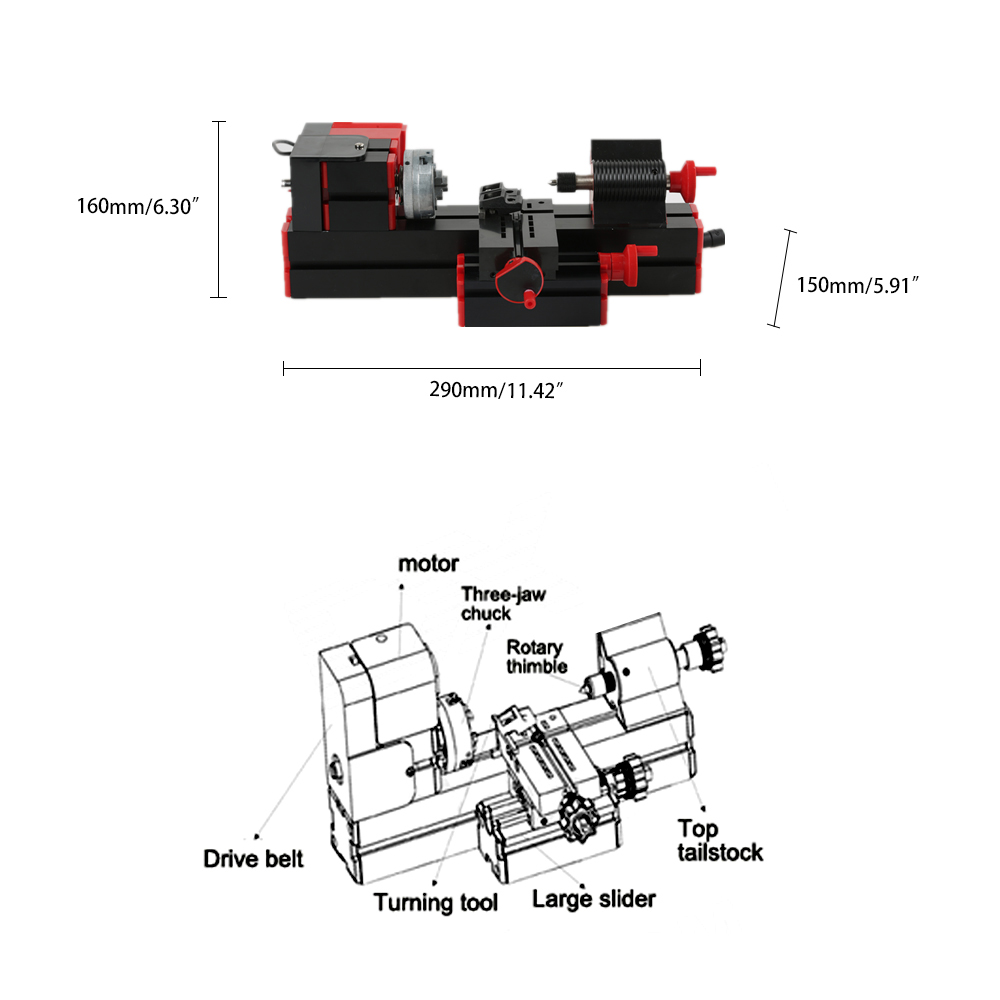

Technique Data of Metal Lathe:

Maximum Processing Diameter: 45mm

Processing Length: 135mm

Grinding Materials: Soft Metal(Gold, Silver, Copper, Aluminium, etc.)

Metal Lathe Weight: 1.35kg / 2.98lb

Metal Lathe Size: 29 * 15 * 16cm / 11.42 * 5.91 * 6.30in

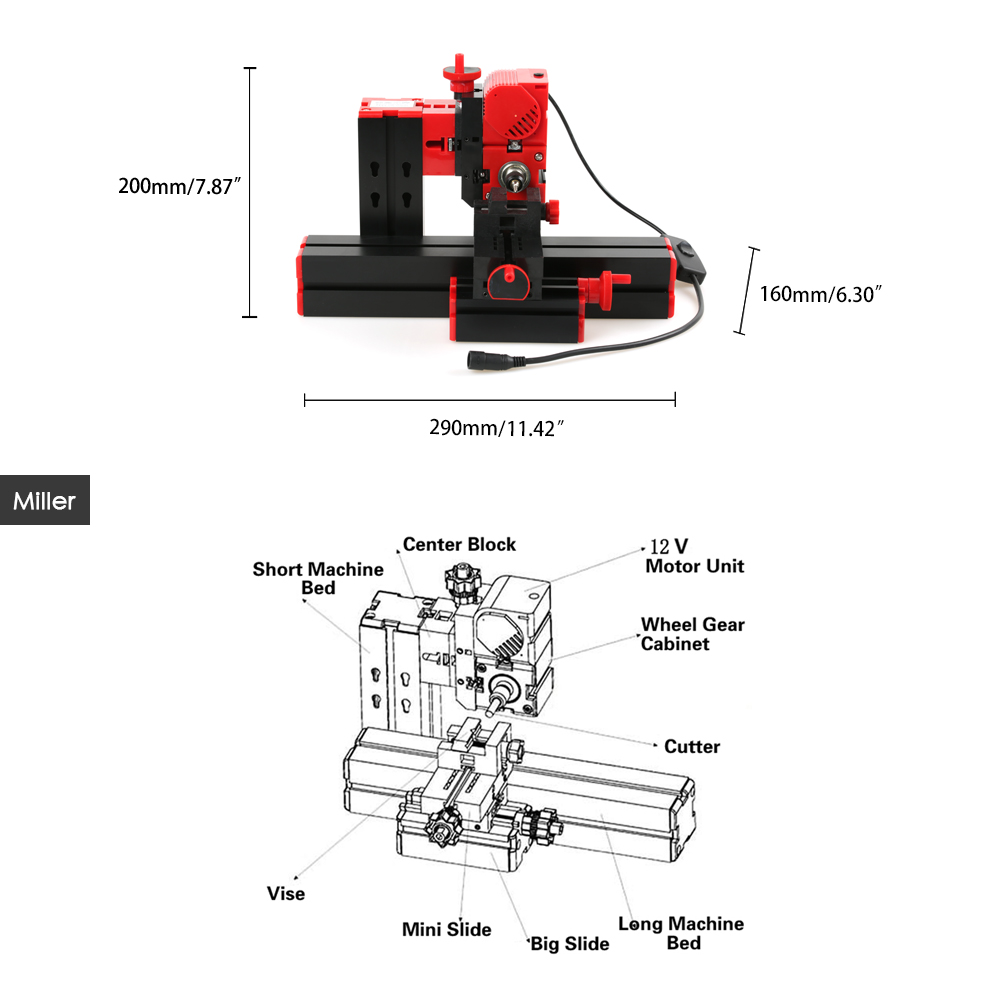

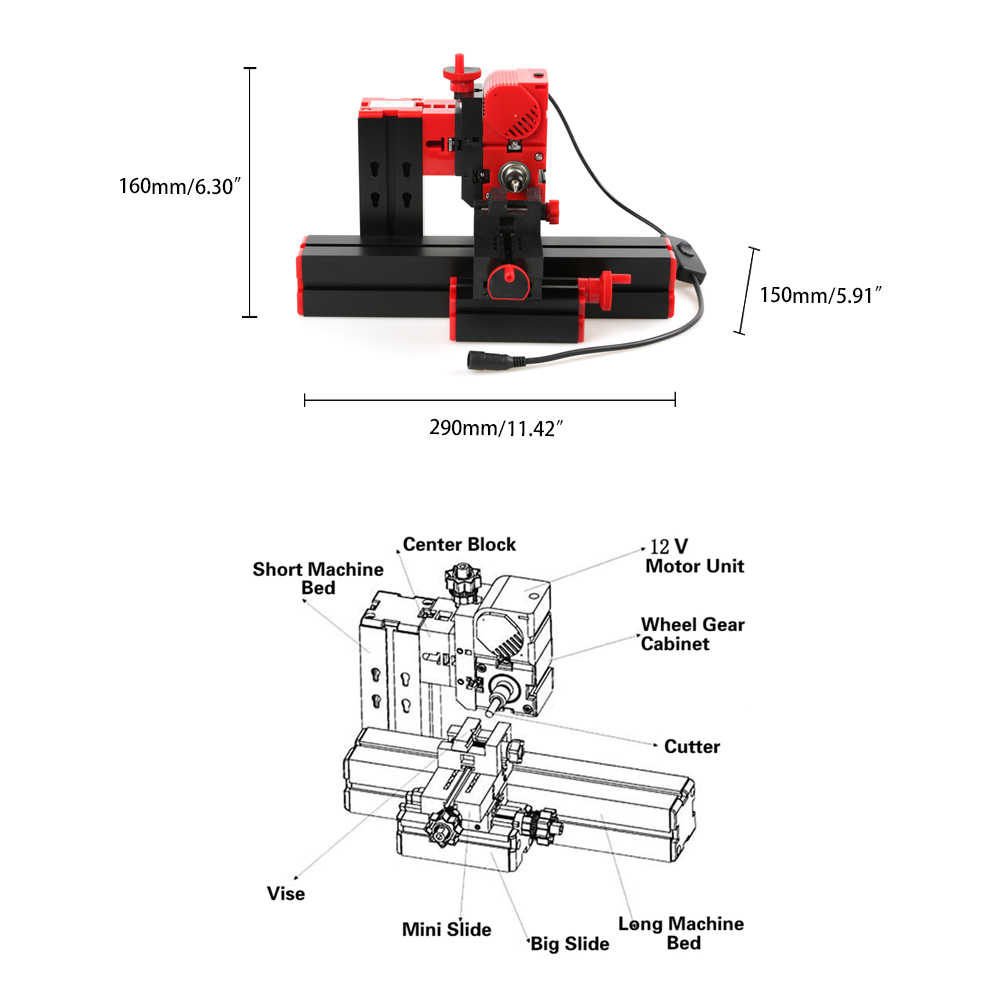

Technique Data of Miller:

Slide Stroke: 30-50mm

Collets Size: 1-6mm

Clamping Size of Vice Clamp: 0-35mm

Grinding Materials: Wood, Plastics, Soft Metal(Gold, Silver, Copper, Aluminium, etc.)

Metal Lathe Weight: 1.45kg / 3.20lb

Metal Lathe Size: 29 * 16 * 20cm / 11.42 * 6.30 * 7.87in

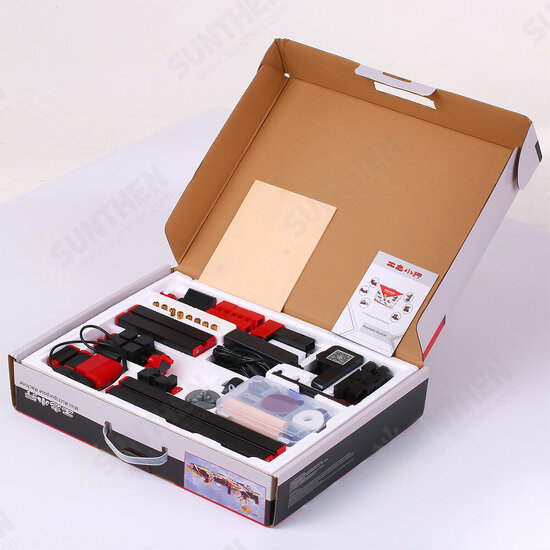

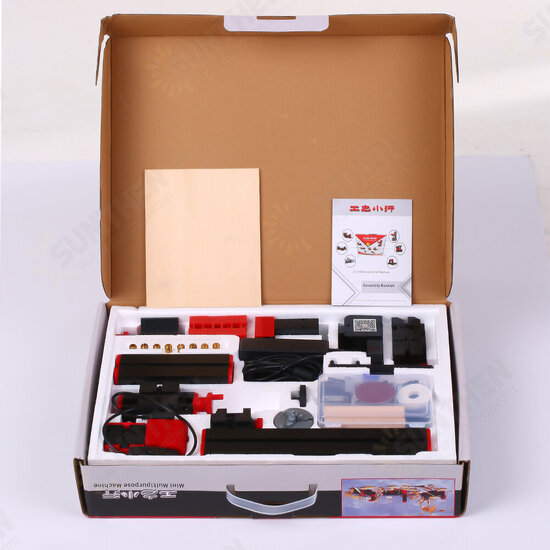

Package List:

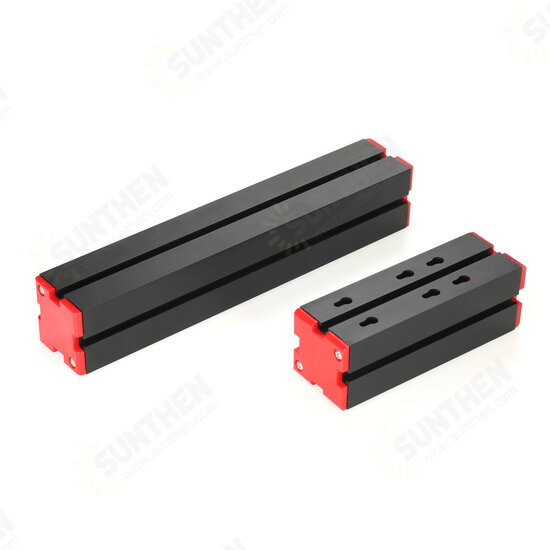

1 * Long Machine Bed

1 * 3-Jaw Chuck

1 * Abrasive Disc

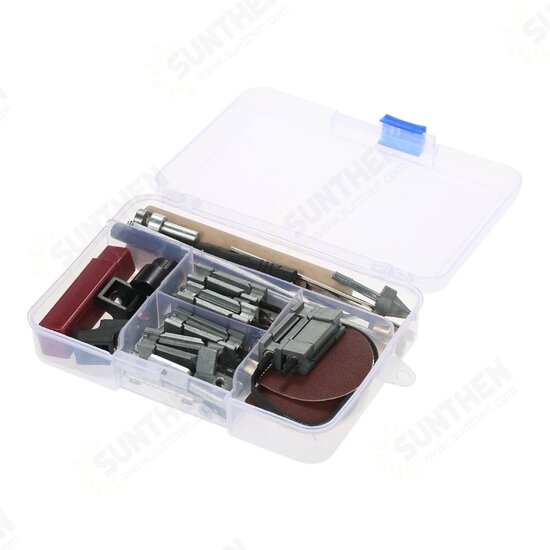

1 * Working Accessories

1 * Driller Rocker Arm

2 * Small Slider

1 * Big Belt Cover Block

1 * Grinder Protection Cover

2 * Right-angle Fixed Plate

1 * Power Transformer

1 * Plain Vice

1 * Big Slider

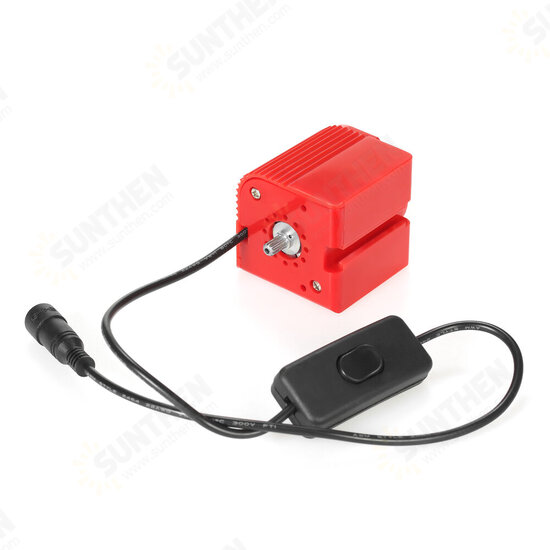

1 * Motor

1 * Counter Shaft

1 * Tail Stock

1 * Short Machine Bed

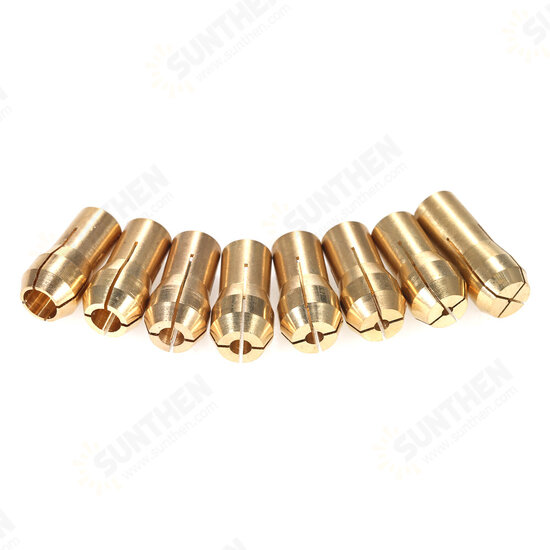

8 * Copper 1-6mm Collets

3 * Bracket

1 * Sawing Machine Base + Bracket

Detail Pictures:
