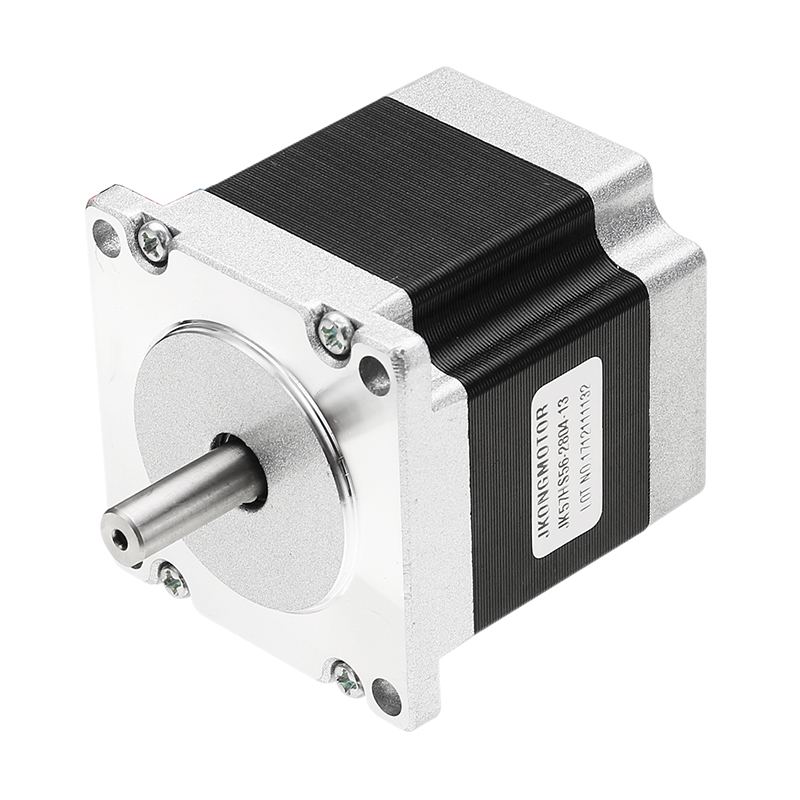

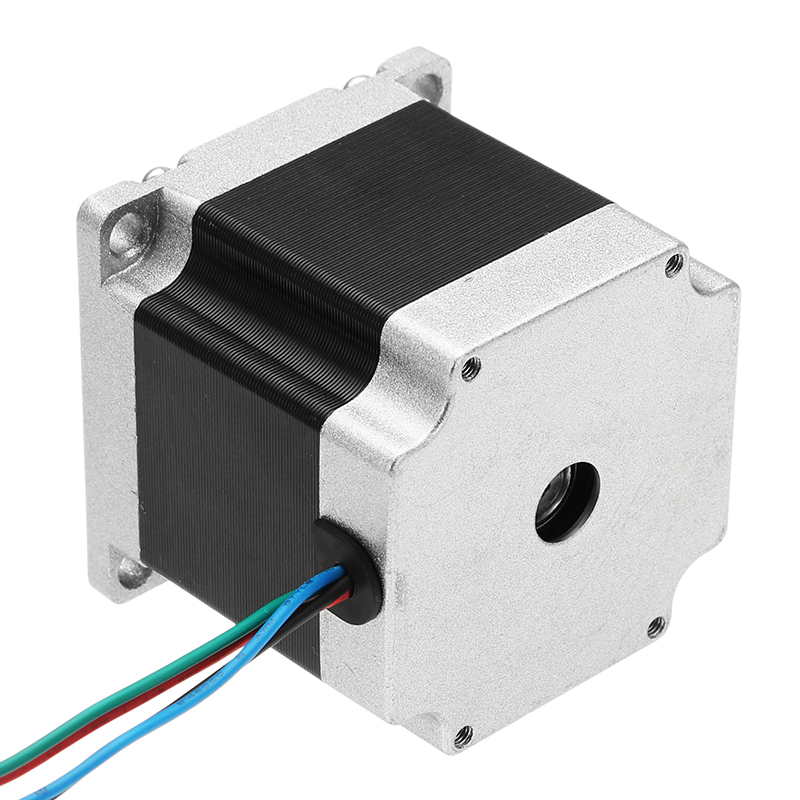

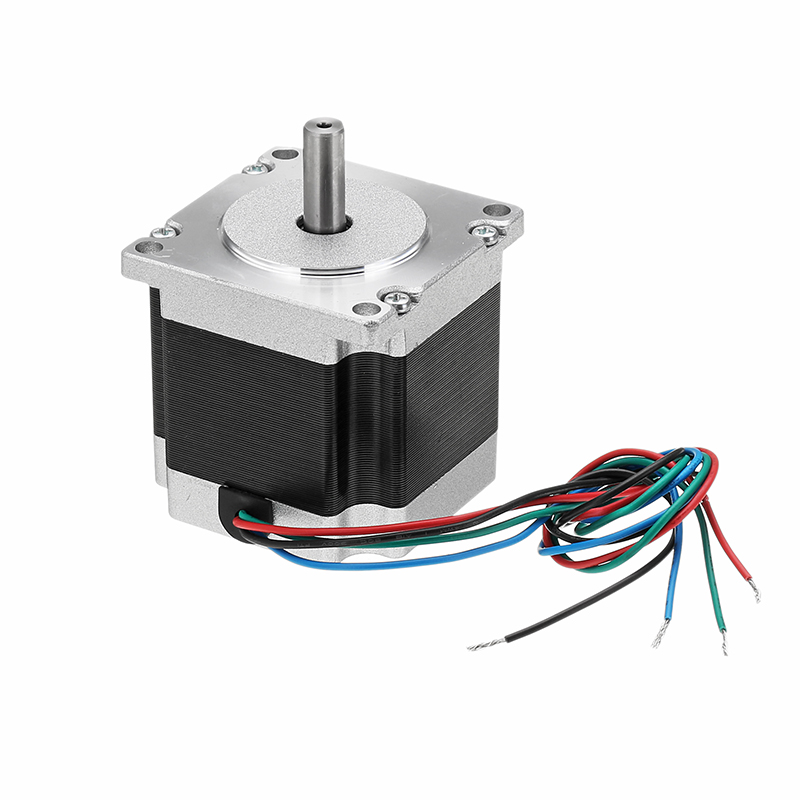

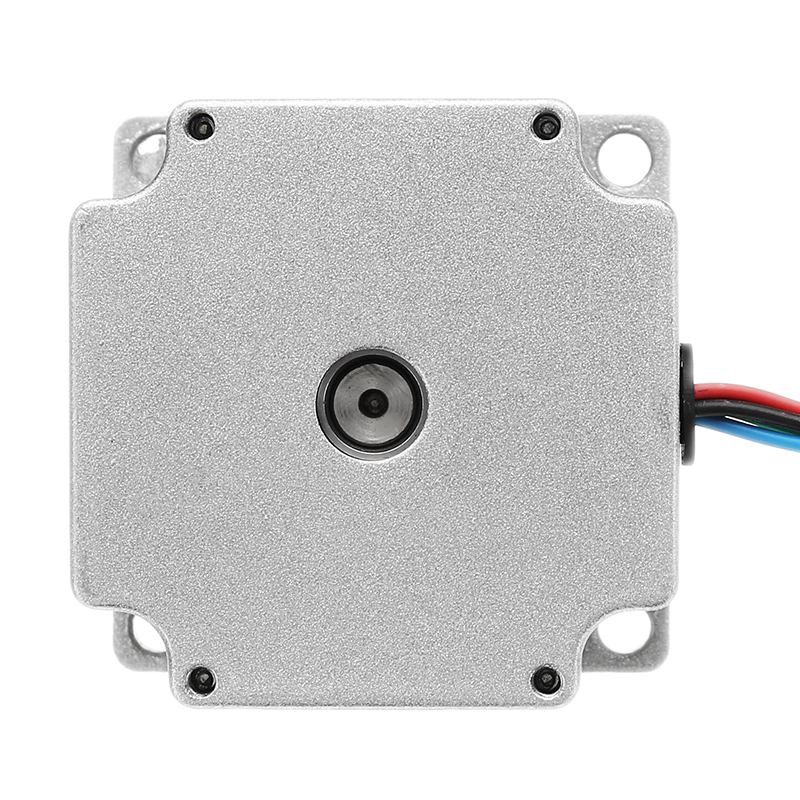

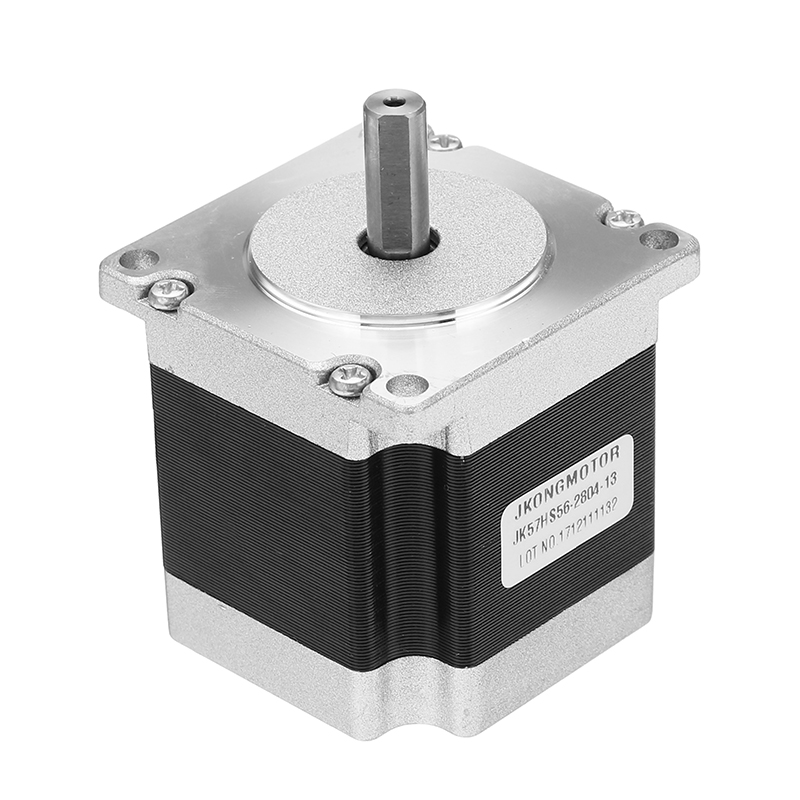

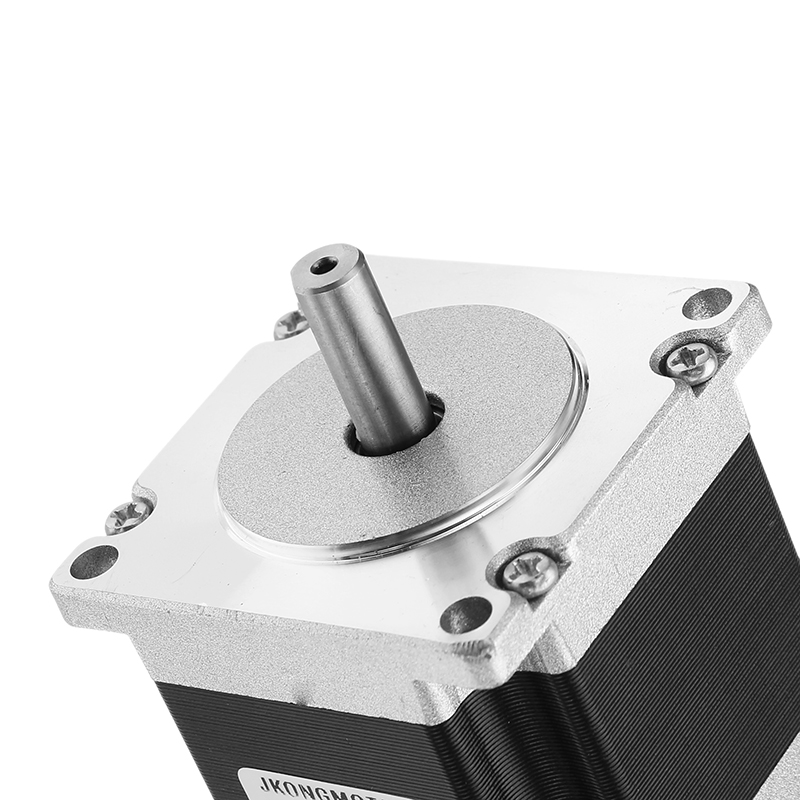

NEMA23 1.8°57 Hybrid Stepper Motor Two Phase 56mm 12kg.cm 2.8A Step Motor
- Stock: In Stock
- Model: ST220012747
- Dimensions: 57.00mm x 57.00mm x 56.00mm
- SKU: ST220012747
$34.99
Ex Tax: $34.99
Description:
NEMA23 1.8°57 Hybrid Stepper Motor Two Phase 56mm 12kg.cm 2.8A Step Motor
Specification:
Genaral Specification:
Electrical Specifications:
Package Included: 1 x Motor
More Details:
NEMA23 1.8°57 Hybrid Stepper Motor Two Phase 56mm 12kg.cm 2.8A Step Motor
Specification:

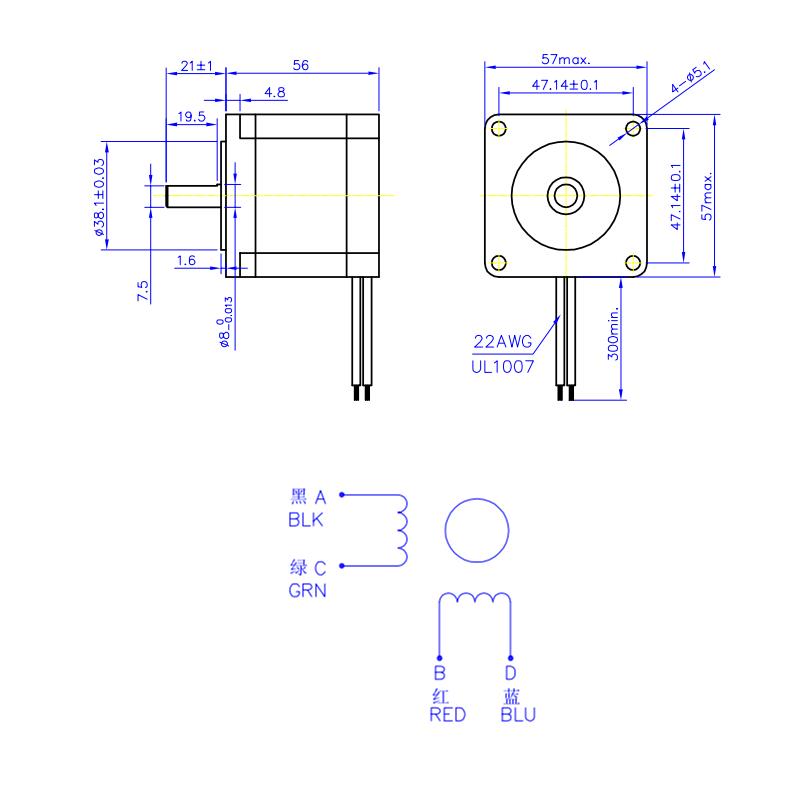

| Model | 57HS56-2804-13 |
| Motor length | 56mm |
| Diameter of axle | 8mm |
| The front shaft length | 21mm |
| Size | 57x57x56mm |
| Holding Torque | 12kg.cm |
| Outgoing line | 300mm |
| Certification | Certification: CE,ROHS |
| Scope | 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting,ect. |
Genaral Specification:
| Item | Specifications |
| Step Angle | 1.8° |
| Temperature Rise | 80℃max |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100 MΩMin. ,500VDC |
| Dielectric Strength | 500VAC for 1minute |
| Shaft Radial Play | 0.02Max. (450g-load) |
| Shaft Axial Play | 0.08Max. (450g-load) |
| Max. radial force | 75N (20mm from the flange) |
| Max. axial force | 15N |
Electrical Specifications:
| Model No. | Step Angle | Motor Length |
Rate Voltage /Phase |
Current /Phase |
Resistance /Phase |
Inductance /Phase | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
| ( °) | (L)mm | V | A | Ω | mH | kg.cm | No. | g.cm | g.cm | Kg | |
| 57HS51-2804 | 1.8 | 56 | 3 | 2.8 | 0.9 | 2.5 | 12 | 4 | 350 | 280 |
0.68 |
Package Included: 1 x Motor
