NF-8200 LCD LAN Tester Network Telephone Cable Tester RJ45 Cable Tester Ethernet Cable Tracker
- Stock: In Stock
- Model: ST22010916
- SKU: ST22010916
$85.99
Ex Tax: $85.99
Description:
Applications Include:
Trace and locate RJ45 (STP / 4-core) , RJ11 cables
Anti-jamming, capable of working on the exchanger and PC startup
Measure cable length for RJ45,RJ11 Cable
Check open, short, cross, crosstalk for RJ11,RJ45 cable.
Locate short and breakage point accurately.
Earphone permits use in noisy environments
Specification:
| NF-8200 Transmitter specifications | |
| LCD screen | 53x25mm |
| Tone frequency | 225Hz |
| The Max. distance of tracing cable | electrified wire:3000m |
| Non-electrified wire: 2000m | |
| The Max. distance of cablemapping | 2500m |
| The Max. distance of cable length testing | 1000m |
| Trace cable coonected to switch | anti-jamming |
| Tone mode | 2 Tones, adjustable |
| Compatible with connectors | RJ11,RJ45 |
| LED lights display | Wiremap, tone, tracing |
| Cable map indication | LCD (#1- #8) |
| Shielded indication | LCD (#9) |
| Voltage protection | AC 60V/DC 42V |
| Low battery display | LCD (6.5V) |
| Battery type | DC9.0V（NEDA 1604/6F22 DC9V) x 1pc |
| Dimensions (LxWxD) | 185 x 80 x 32mm |
| NF-8200 Receiver specifications | |
| Frequency | 225kHz |
| The Max. working current | Less than 70mA |
| Earphone jack | 1 |
| LED illumination | 2 LEDs |
| Battery type | DC9.0V（NEDA 1604/6F22 DC9V) x 1pc |
| Dimensions (LxWxD) | 218 x 46 x 29mm |
| NF-8200 Remote unit specifications | |
| Compatible with connectors | RJ11,RJ45 |
| Dimensions (LxWxD) | 107 x 30 x 24mm |
Package included:
1 x Transmitter(Battery not included)
1 x Receiver(Battery not included)
1 x Remote Recognizer (Battery not included)
1 x Earphone
1 x Telephone line adapter
1 x Network cable adapter
1 x Pouch bag
1 x Cable clips
1 x English Manual
Attention:
1. Don't connected high voltage lines to avoid buring out the machine .
2. Put into the right place to avoid hurting others,because of the sharp part .
3. Connected the cable to the right port .
4. Read the user manual before use it .

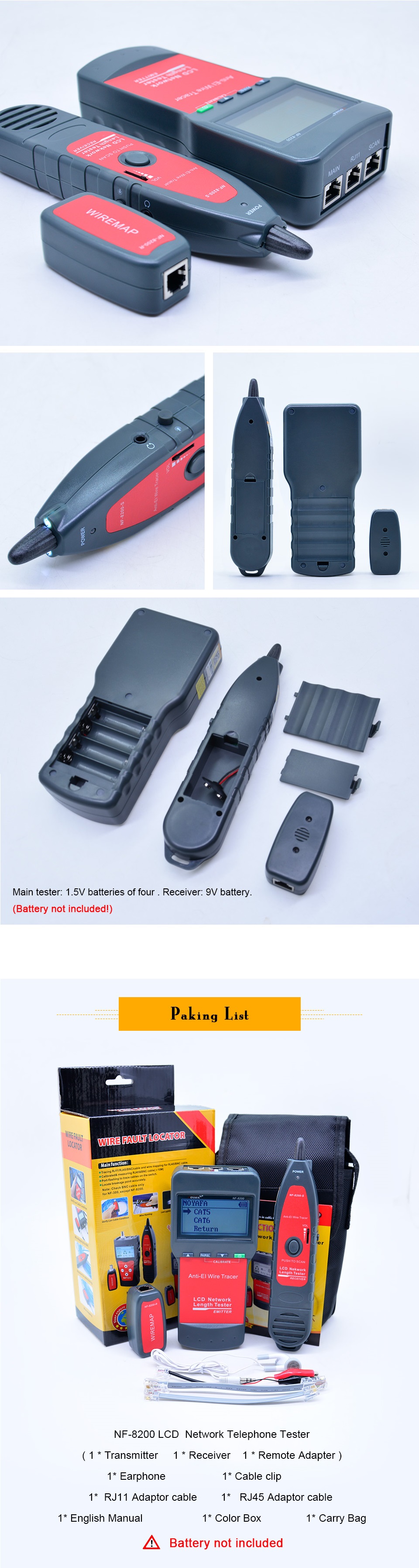

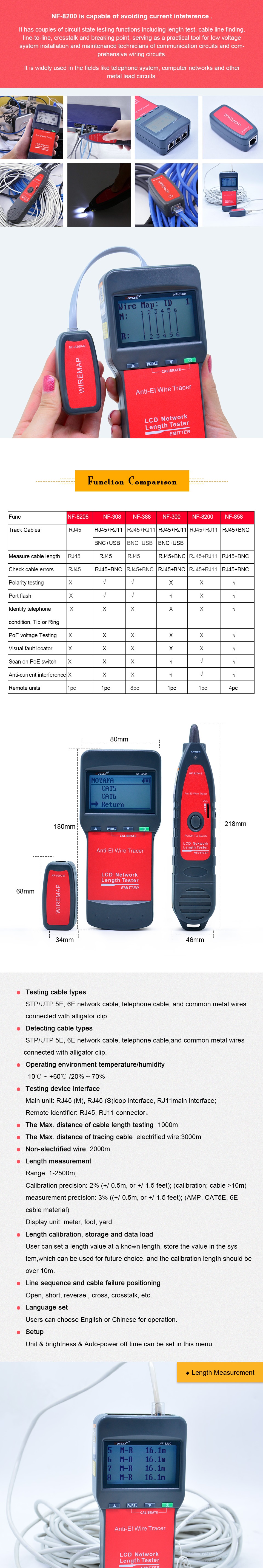

Details picture:
