Introduction:

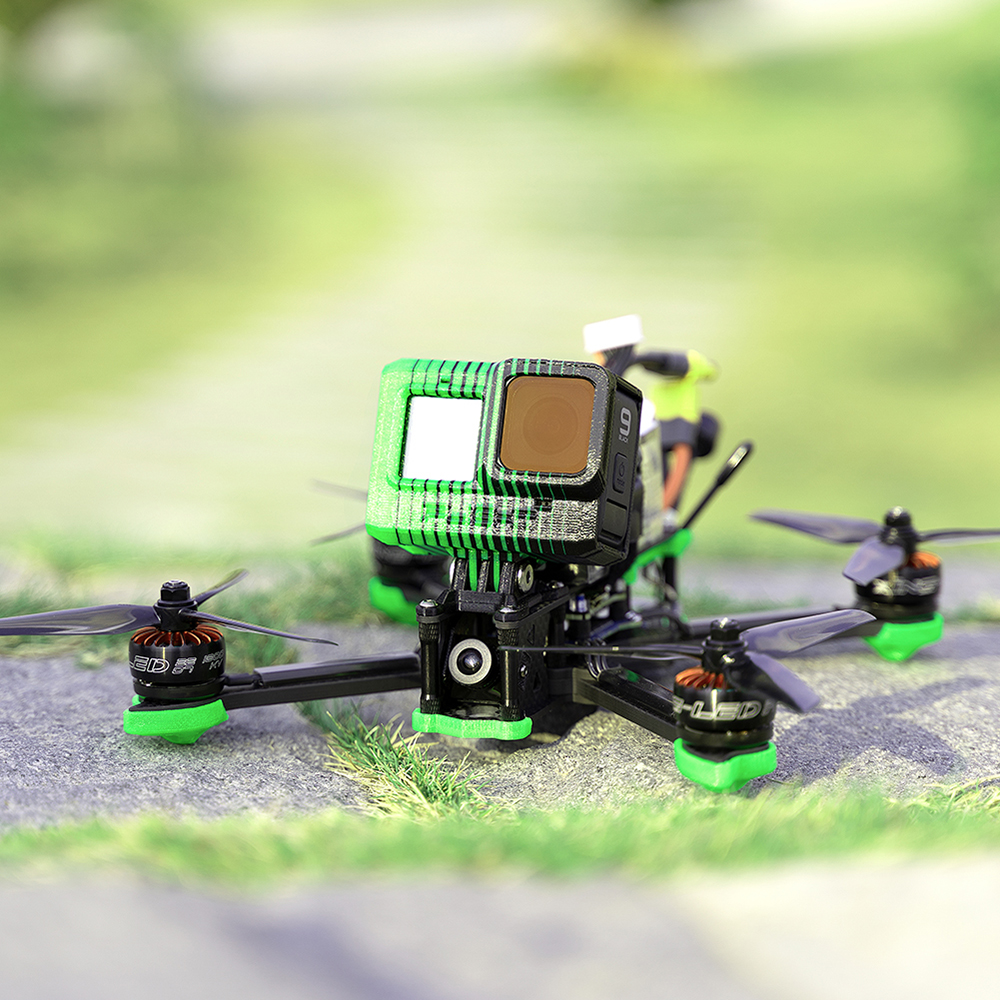

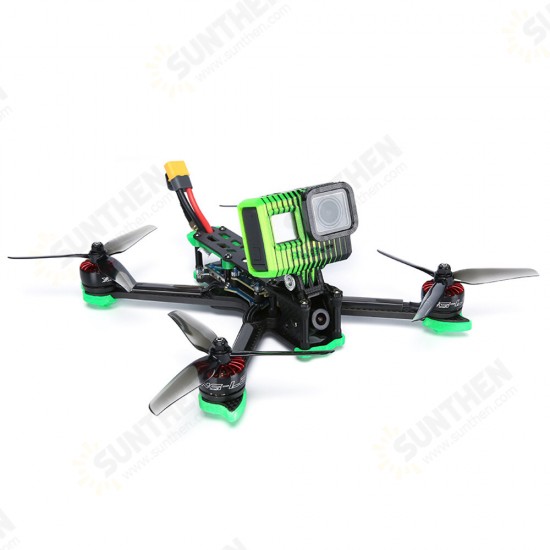

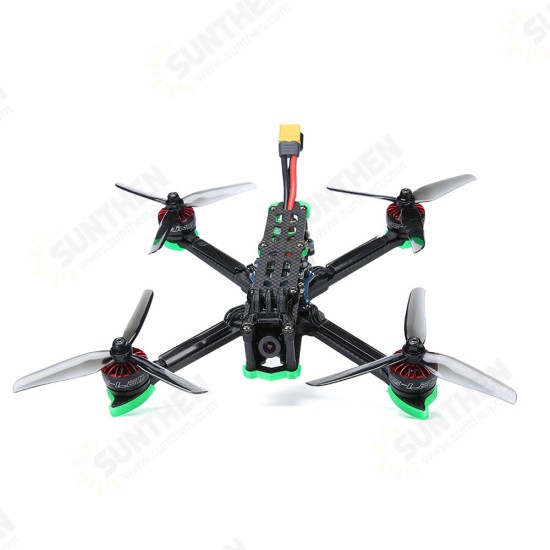

Nazgul5 V2 is a 5" size BNF (Bind-and-Fly) quadcopter. it is updated XL5 V5 FPV frames . Pre-tuned and setup , e verything you need is just bind-and-fly! Loads of power and smooth flights guaranteed using our popular XING-E motors with long-lasting NSK bearings. Got a hard hit and snapped an arm? Don't worry, get some spares with your order and easy-swap out in field. Wanna strap your GoPro on that beast as well? Checkout our collection of high quality TPU prints for your cam!
Note:
R81-SPI Frsky (Compatible with Frsky ACCST D8）
Tips:
VTX is set to 25mW by default! Power levels above 25mW require a HAM license or have to be approved by local authorities! Please ensure you're flying legal frequencies and use our prepared Betaflight VTX tables according to your region.
Description:
Item Name: Nazgul5 V2 Analog LED Version FPV Racing Drone
- SucceX-E F7 45A flight stack
-
XING 2207 with LED Light FPV Motor ( 4S 2750KV)

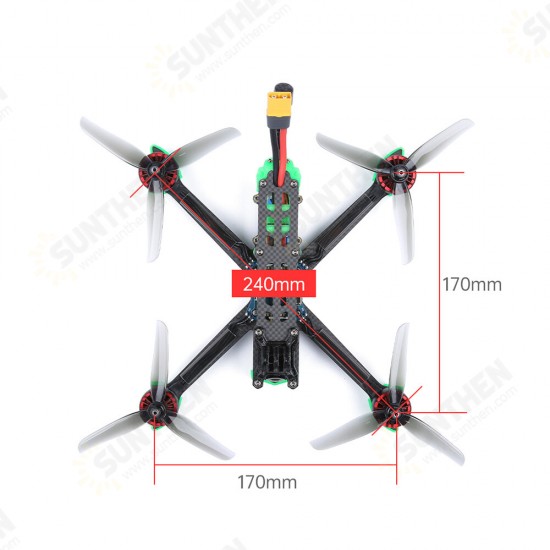

- Wheelbase: 240mm*240mm
- Body size: 170*170mm
- Propeller size: 5 inch /5.1 inch
- FC pattern: 30.5*30.5/20*20 mm
- FPV cam spacing: 19mm

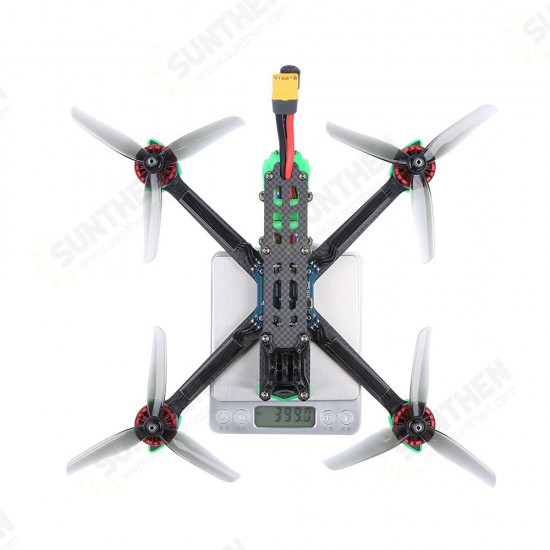

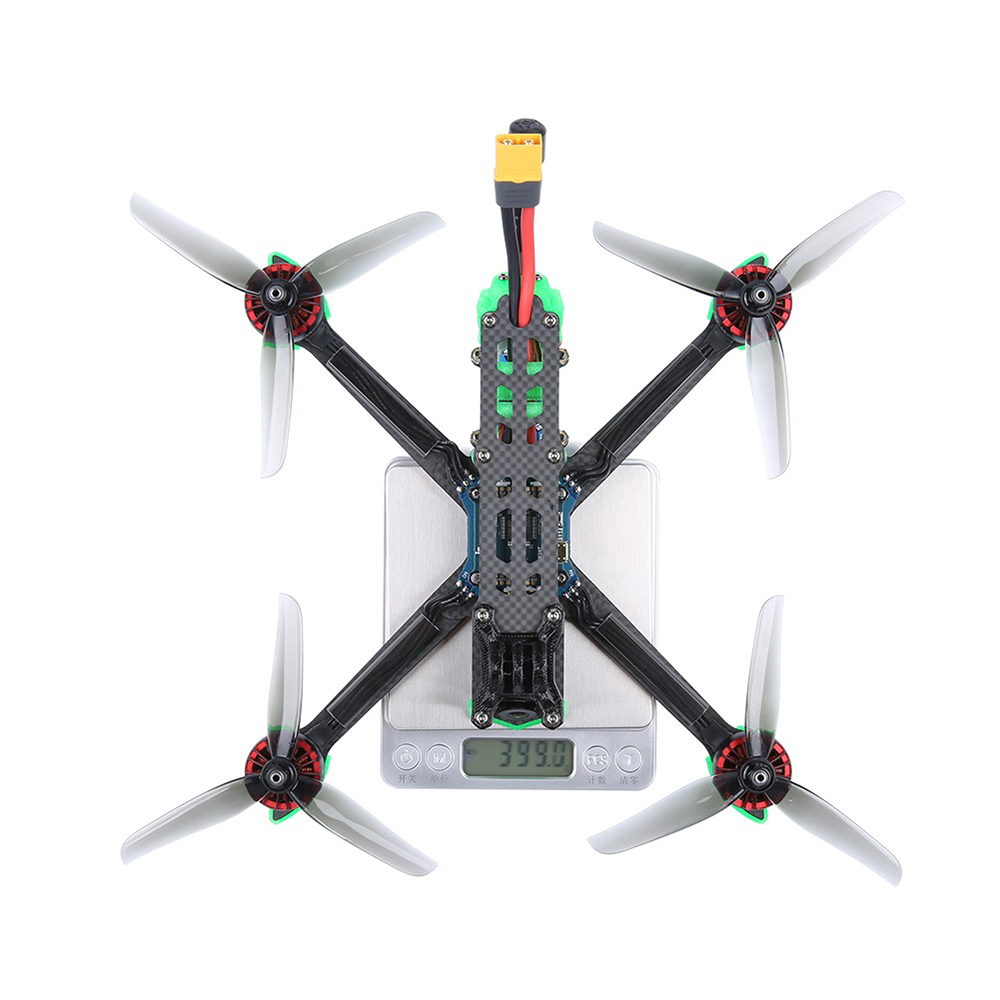

- Weight: 399g (without battery)
Features:
- 5mm arm design for more durability
- Easy-Swap arms

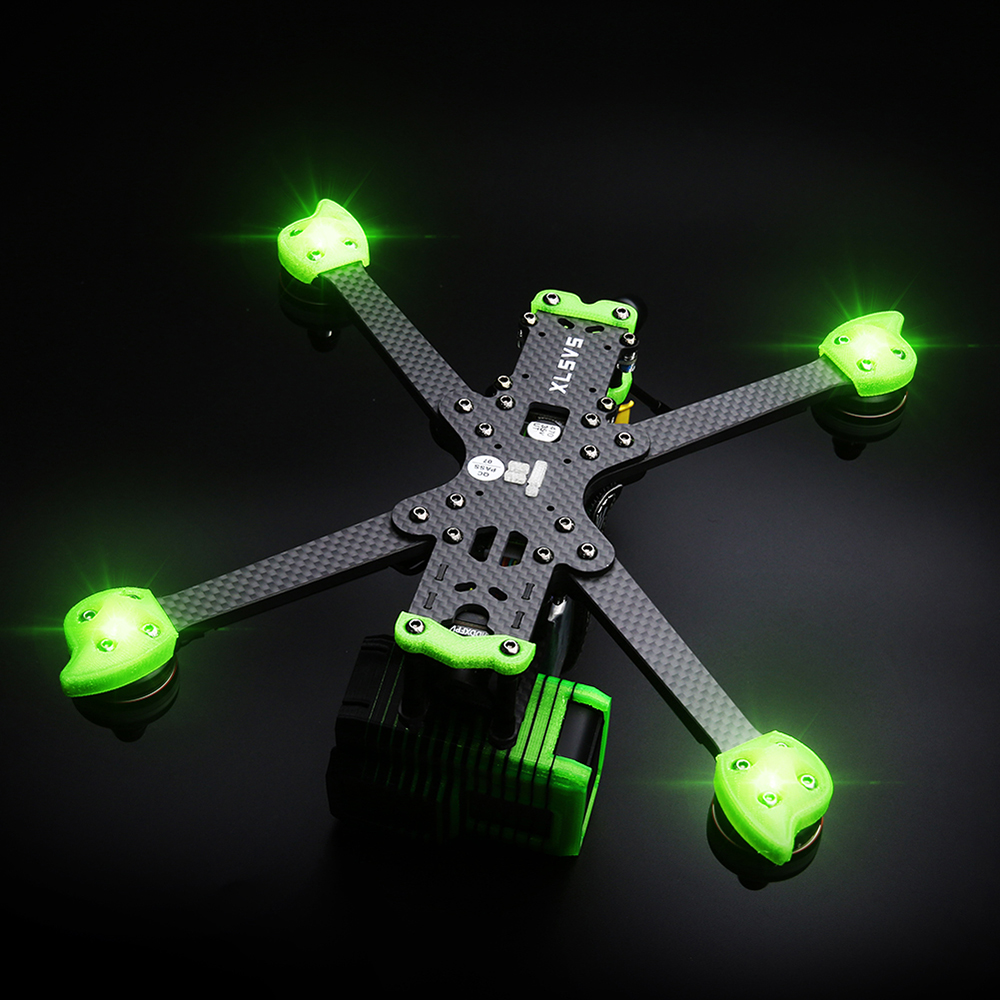

- LED illuminated Logo
- XING 2207 motors
with LED Light
- 5" version also fits 5.1" style propellers
- Popular True-X configuration
- TPU crash-guards
- Fits both 30.5x and 20x stacks
|

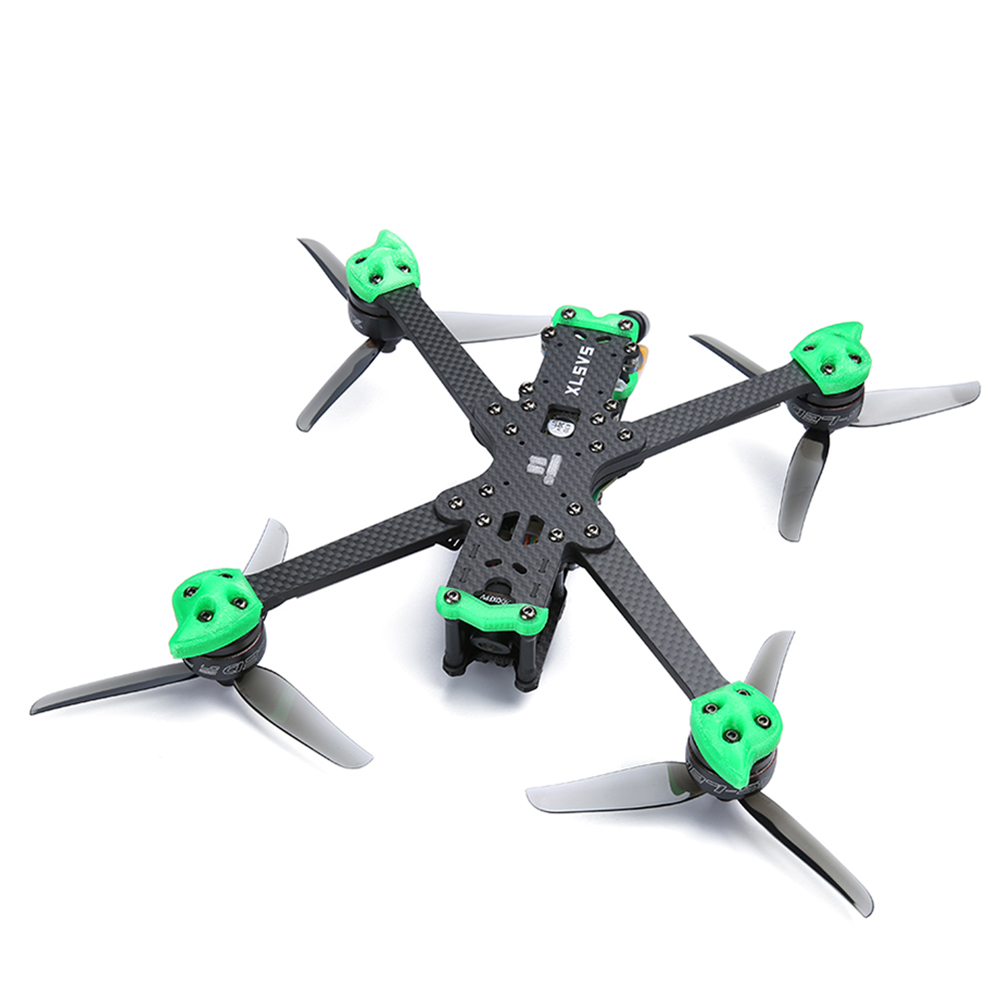

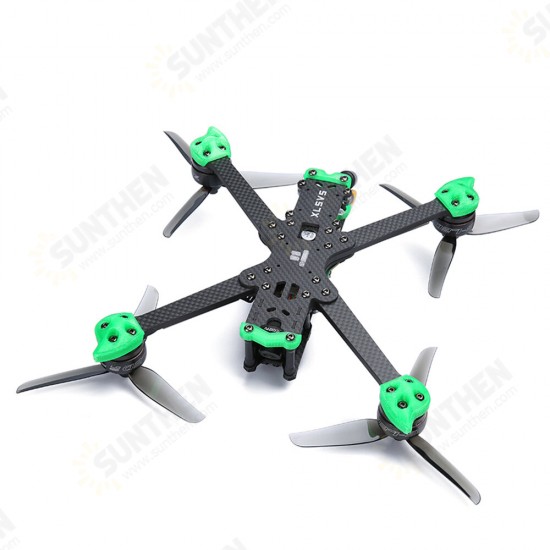

XL5 V5 Frame
|
|
|
SucceX-E F7 Flight controller
| - MCU: STM32F22RET6 216MHz - Gyro: MPU6000 - Baro: DSP310 - OSD: IFLIGHT OSD （ AT7456E ） - BEC: 5V 2.5A - BlackBox: 16MB - Uart: 4*UART(UART1 、 UART2 、 UART4 、 UART5) - UART1 for VTX HD（for 4-6S Vista，for 4S DJI Air Unit）/AnalogTelemetry - UART2 for Receiver - UART4 for Free
- UART5 for ESC Telemetry
- 4×Dshot/PWM outputs - Smartaudio & IRC Tramp VTX protocol supported - WS2812 led Strip: Yes
- Bepper:
Yes
- Firmware: IFLIGHT_SUCCEX_E_F7
- Outer Size:
36*36
mm /
30.5*30.5/φ4
mounting
- Weight: 6.9g
- Mounting hole:
30.5*30.5mm
，
φ4mm
- Size: 36*36mm |
|
SucceX-E 45A 2-6S BLHeli_S 4-in-1 ESC
| - Dimension: 36*43mm - Mounting Holes: 30.5*30.5mm/Φ3mm - Weight: 15g (without wire) - Supports 2-6S Lipo input - EFM8BB21 MCU, 2 4Mhz Runs BLHeli_S 16.X Firmware - Current sensor: YES - BEC: NO - Constant: 45A / Burst: 50A - Supports: DShot150/300/600/MultiShot/OneShot etc.
- Target: G-H-30 BLS 16.7 |
|
SucceX Force 5.8g 800mW VTX Adjustable
| - Item: SucceX-Force 800mW adjustable VTX - Input voltage:5V - Output voltage/ Max current: 5V 1A - 12V input current: 40mA@PIT MODE, 95mA@25mW, 185mA@200mW，250mA@400mW, 380mA@800mW - Output 48 frequency points, - PIT/ 25mW/200mW/400mW/800mW - The output power is stable; - Frequency lock fast, the boot does not interfere with companions; - Built-in output power self-check function; - Full format video format: NTSC /PAL; - Wide input voltage range. low power consumption: 7V～36V，+12V/380mA@800mW; - Small size:36*36*3mm - Mounting holes 4-M3
- Lightweight: 7.2g(excluding antenna) |
Additional Suggested Parts
(Not Included):
Battery: 4S 1550mAh
Camera Mount for Gopro
Package Included:
1 x XL5 V5 Frame
1 x Caddx Ratel, 2.1mm lens camera
1 x Albatross RHCP SMA 5.8g antenna
2sets x Nazgul 5 inch 3-blades (Set of 4 - Color may vary)
1 x 20*200mm Microfiber PU Leather Battery Strap (Color May Vary)
1 x 20*250mm Microfiber PU Leather Battery Strap (Color May Vary)
Note: Camera Mount for Gopro is not included.
PRE-TUNED & PRE-SETUP:
- Don't worry about tuning, we did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!
To restore lost tunes or updates, please check our linked article on "Firmware/Factory Dumps"
- Angle-Mode (self balancing level mode) is enabled by default to make sure your first flight doesn't end in a mess!
Please check our linked article on "How to disable Angle-Mode, activate Acro-Mode"
