- Stock: In Stock
- Model: ST22000941
- SKU: ST22000941
Note：
Before SucceX-E F4 Stack changed to SucceX-E F7 Stack.
Before Caddx Ratel camera changed to RaceCam R1 Mini Cam.
( RaceCam R1 is the same as the Caddx Ratel camera, but changed the brand LOGO )
PRODUCT DESCRIPTION

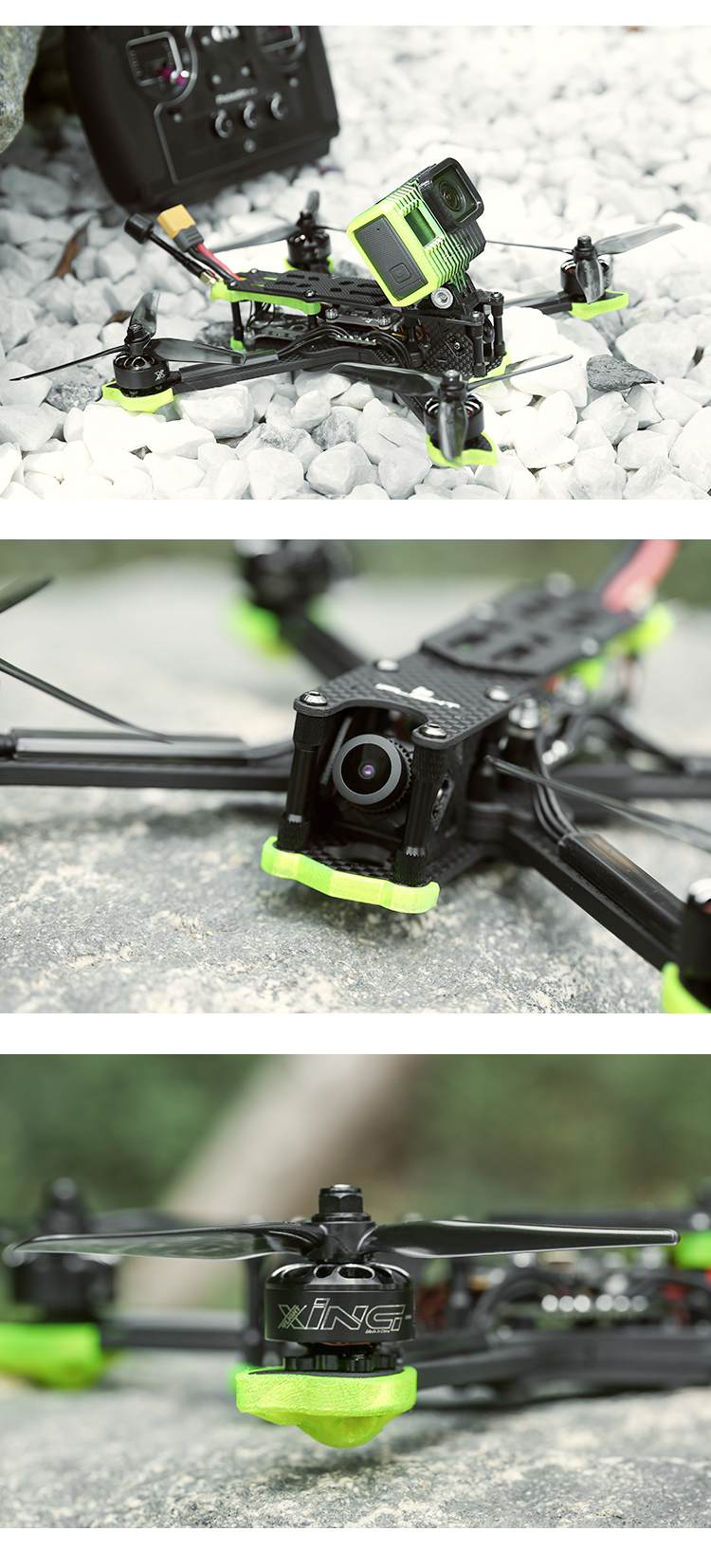

Nazgul5 V2 is a 5" size BNF (Bind-and-Fly) quadcopter. it is updated XL5 V5 FPV frames. Pre-tuned and setup, everything you need is just bind-and-fly! Loads of power and smooth flights guaranteed using our popular XING-E motors with long-lasting NSK bearings. Got a hard hit and snapped an arm? Don't worry, get some spares with your order and easy-swap out in field. Wanna strap your for GoPro on that beast as well? Checkout our collection of high quality TPU prints for your cam!
Tips:
VTX is set to 25mW by default! Power levels above 25mW require a HAM license or have to be approved by local authorities! Please ensure you're flying legal frequencies and use our prepared Betaflight VTX tables according to your region.
Specification:
- SucceX-E F4 45A flight stack
- XING-E 2207 FPV Motor （4S 2750KV )
- Wheelbase: 240mm*240mm
- Body size: 170*170mm
- Propeller size: 5 inch /5.1 inch
- FC pattern: 30.5*30.5/20*20 mm
- FPV cam spacing: 19mm
- Weight: 393.4g (without battery)
SucceX-E F7 Flight controller | - MCU: STM32F22RET6 216MHz - Gyro: MPU6000 - Baro: DSP310 (Barometer can only be used with Betaflight 4.3.0 and above) - OSD: IFLIGHT OSD （AT7456E） - BEC: 5V 2.5A - BlackBox: 16MB - Uart: 4*UART(UART1、UART2、UART4、UART5) - UART1 for VTX HD（for 4-6S Vista，for 4S DJI Air Unit）/AnalogTelemetry - UART2 for Receiver - UART4 for Free - UART5 for ESC Telemetry - 4×Dshot/PWM outputs - Smartaudio & IRC Tramp VTX protocol supported - WS2812 led Strip: Yes - Bepper: Yes - Firmware: IFLIGHT_SUCCEX_E_F7 - Outer Size: 36*36mm / 30.5*30.5/φ4 mounting - Weight: 6.9g | |
SucceX-E 45A 2-6S BLHeli_S 4-in-1 ESC | - Dimension: 40*43mm - Mounting Holes: 30.5*30.5mm/Φ3mm - Weight: 14.4g - Supports 2-6S Lipo input - STM32F051 MCU, 48Mhz Runs BLHELI 16.X Firmware - Current sensor: YES - BEC: NO - Supports: DShot150/300/600/1200/MultiShot/OneShot etc. - Target: G-H-30 BLS 16.7 | |
SucceX Force 5.8g 800mW VTX Adjustable | - Item: SucceX-Force 800mW adjustable VTX - Input voltage: - Output voltage/ Max current: 5V 1A - 12V input current: 40mA@PIT MODE, 95mA@25mW, 185mA@200mW，250mA@500mW, 380mA@800mW - Output 48 frequency points, - size:36*36*3mm - PIT/25mW/200mW/400mW/800mW | |
Feature:
- 5mm arm design for more durability
- Easy-Swap arms
- LED illuminated Logo
- XING-E 2207 motors and NAZGUL 5140 props
- 5" version also fits 5.1" style propellers
- Popular True-X configuration
- TPU crash-guards
- Fits both 30.5x and 20x stacks
Package Included:
- 1x Nazgul5 V2 240mm 5 Inch 4S FPV Racing Drone
- 1x RaceCam R1, 2.1mm lens 19x19mm camera
- 1x Albatross RHCP SMA 5.8g antenna
- 2sets x Nazgul 5 inch 3-blades (Set of 4 - Color may vary)
- 1x 20*200mm Microfiber PU Leather Battery Strap (Color May Vary)
- 1x 20*250mm Microfiber PU Leather Battery Strap (Color May Vary)
Additional Suggested Parts (Not Included)
- Battery 4S 1550mAh
- Camera mount for GoPro
No need to worry! All Factory Dumps and Wiring Diagrams can be found on our Google Drive: LINK
