NX4827T043 4.3 Inch HMI Intelligent Smart USART UART Serial Touch TFT LCD Screen Module Display Panel For Raspberry Pi 2 A+ B+ Kits
- Stock: In Stock
- Model: ST230043346
- SKU: ST230043346
$69.89
Ex Tax: $69.89
Description:
Nextion is a Seamless Human Machine Interface (HMI) solution that provides a control and visualisation interface between a human and a process, machine, application or appliance. It is the best solution to replace the traditional LCD and LED Nixie tube.

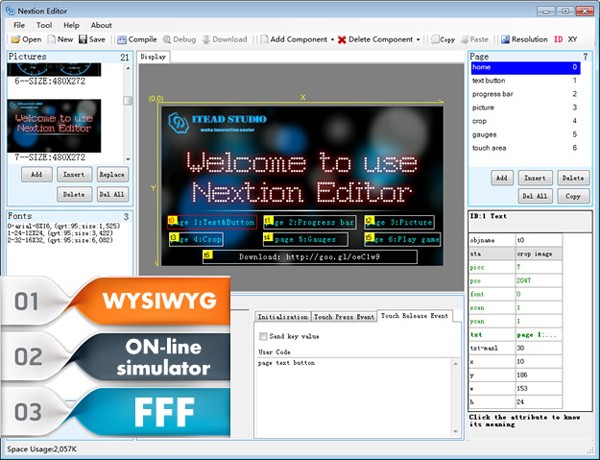

Nextion includes hardware part (a series of TFT boards) and software part (the Nextion editor). The Nextion TFT board uses only one serial port to communicate. It lets you avoid the hassle of wiring. We notice that most engineers spend much time in application development but get unsatisfactory results. In this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich your interface design. And the drag-and-drop function ensures that you spend less time in programming, which will reduce 99% of your development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake.
It's easy to adapt Nextion family HMI to existing projects, you just need to provide it a UART.

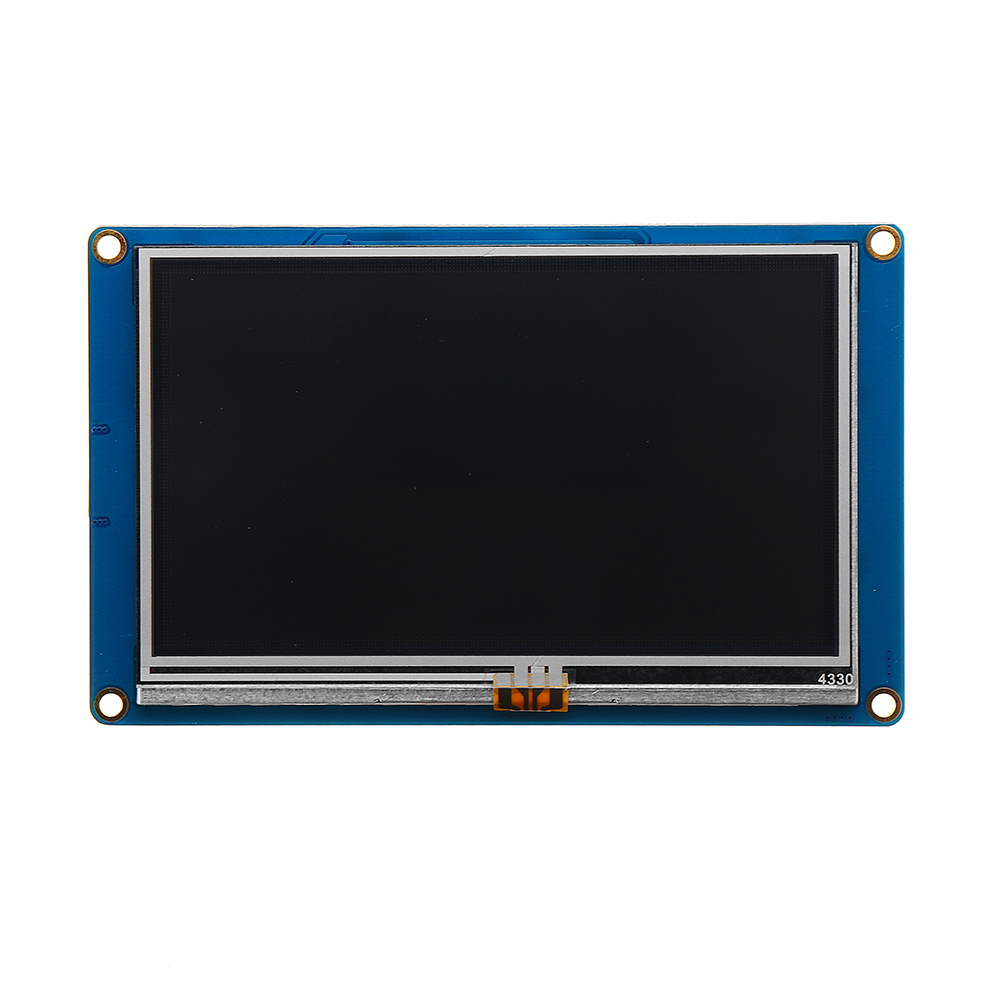

NX4827T043 is a powerful 4.3'' HMI, which is member of Nextion family. Features include: a 4.3" TFT 480x272 resistive touch screen display, 16M Flash, 2KByte RAM, 65k colors.
Features:
Compatible for Raspberry Pi A+, B+ and for Raspberry Pi 2.
480 x 272 Resolution
RGB 65K true to life colours

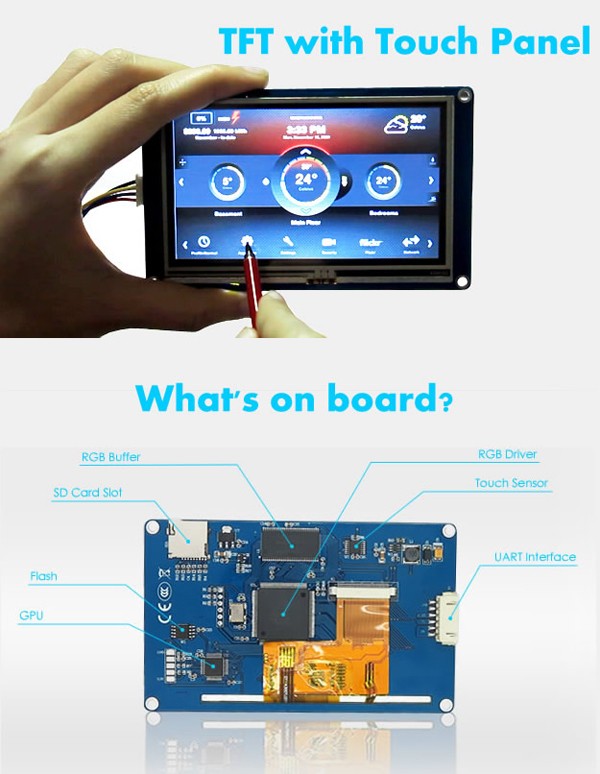

TFT Screen with integrated 4-wire Resistive Touch Panel
Easy 4 pin interface to any TTL Serial Host
16M Flash memory for User Application Code and Data

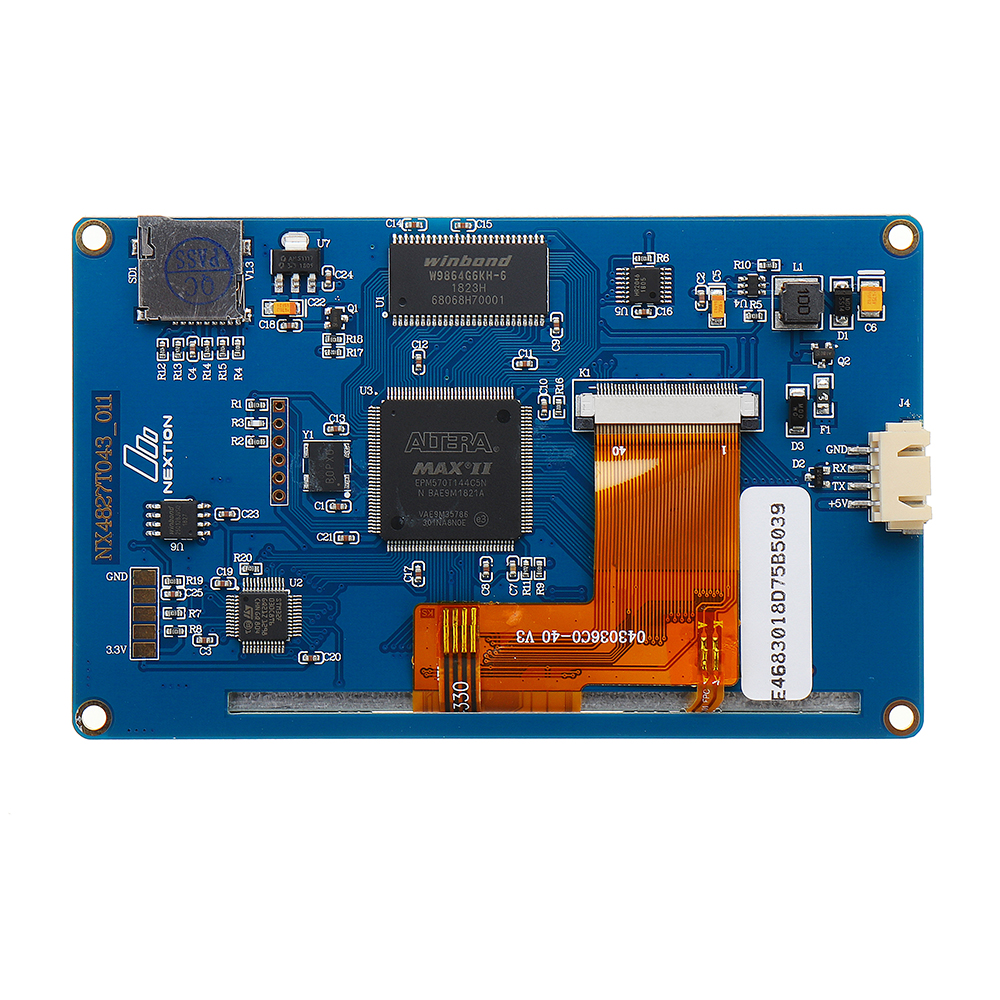

On board micro-SD card for firmware upgrade

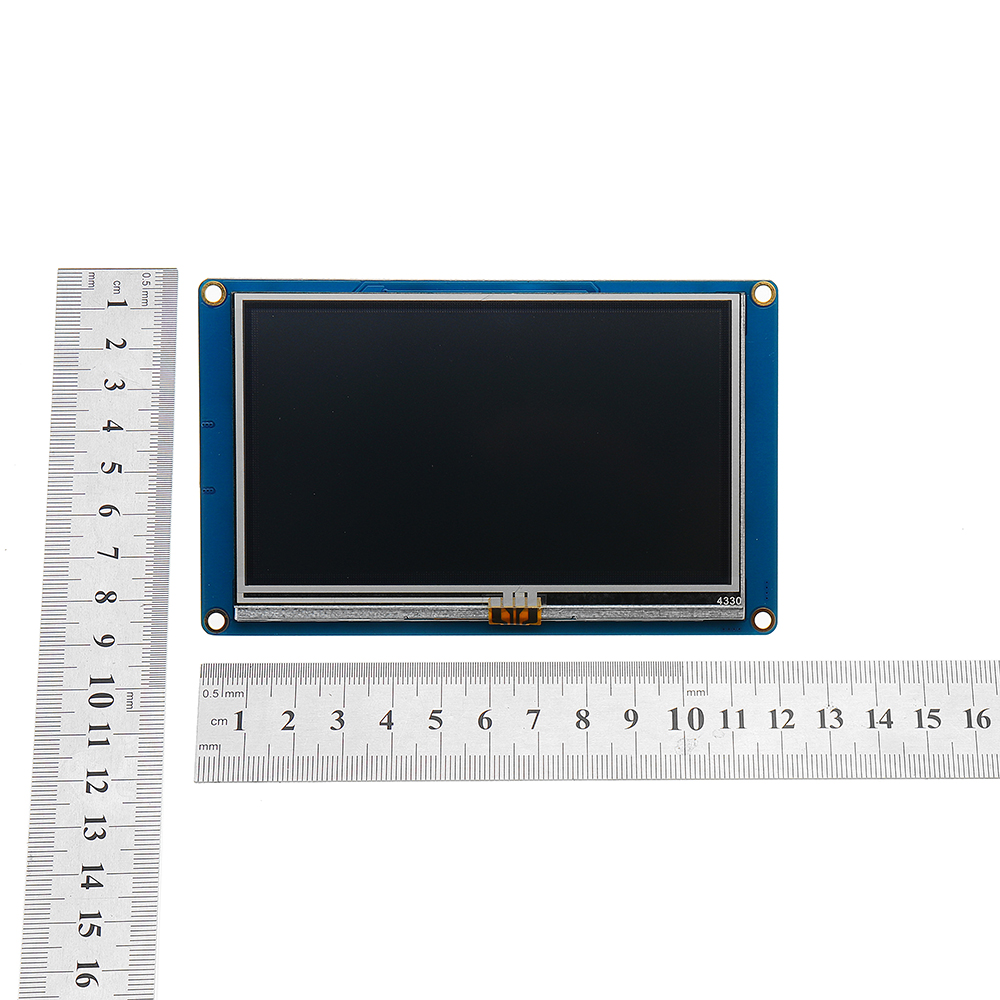

Visual Area:95.04mm(L)×53.86mm(W)
Adjustable Brightness:0~230 nit, the interval of adjustment is 1%
5V250mA power consumption

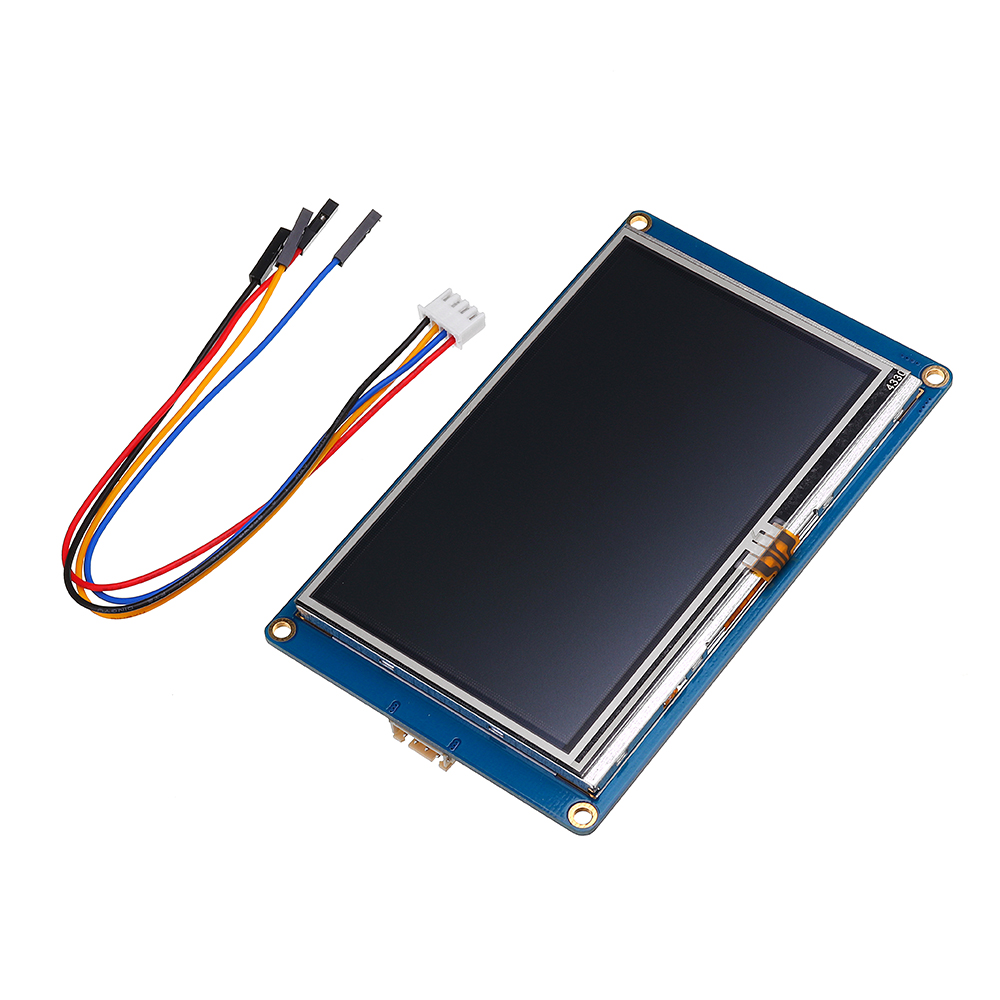

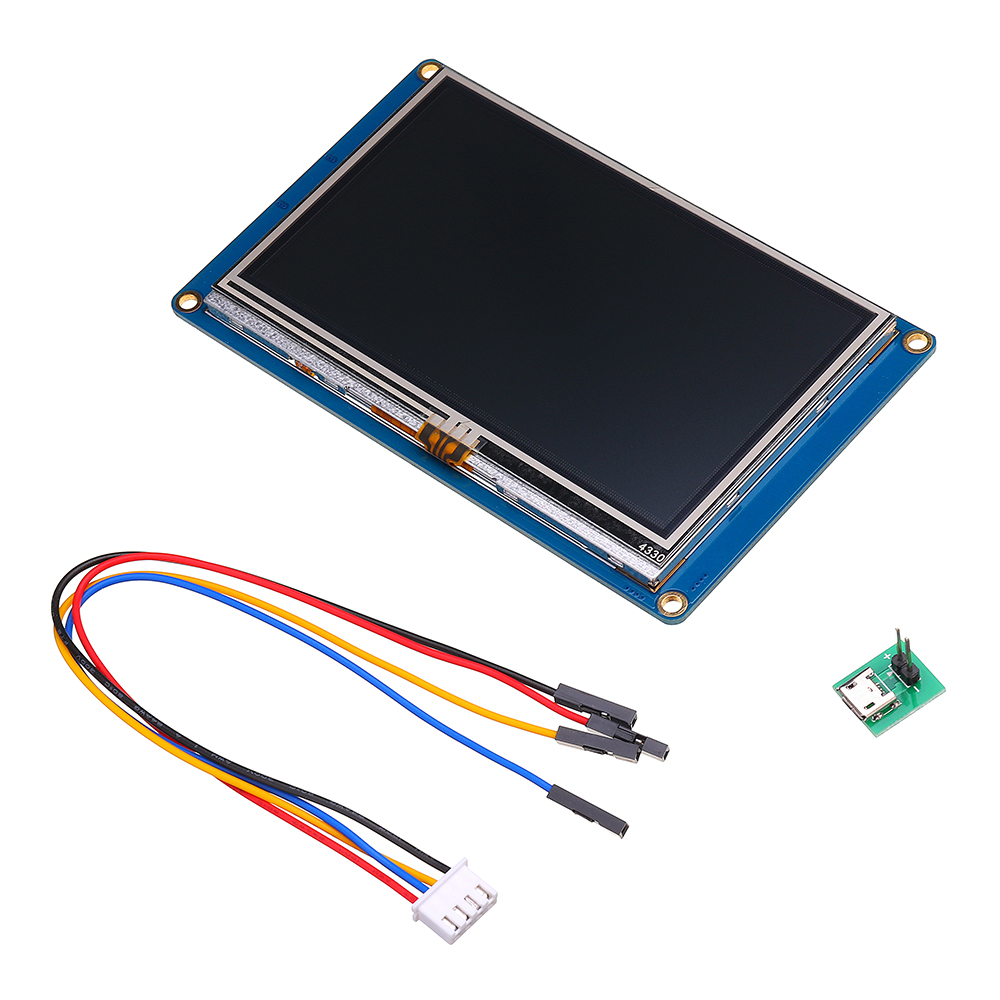

Package included:
1 x 4.3 Inch Nextion Stanard HMI Display

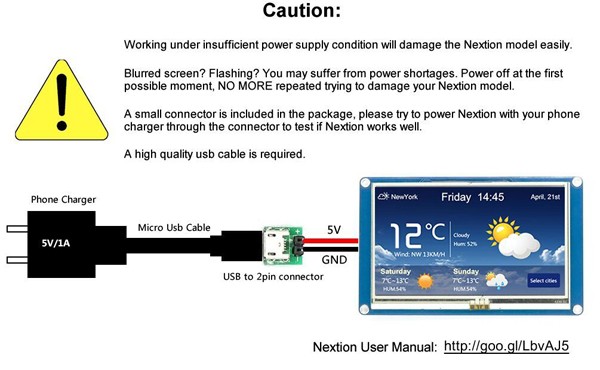

1 x Micro USB to 2P Connector Board

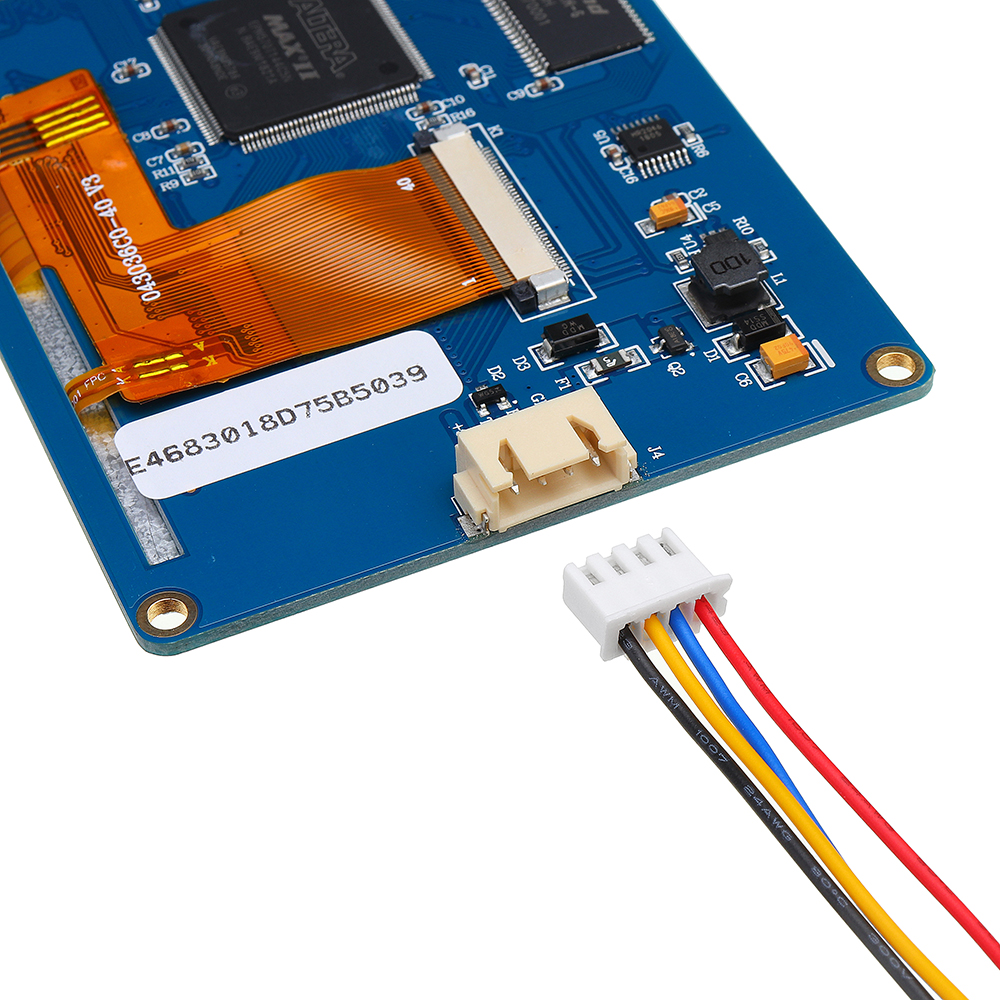

1 x 4-Pin Grove Cable
Nextion is a Seamless Human Machine Interface (HMI) solution that provides a control and visualisation interface between a human and a process, machine, application or appliance. It is the best solution to replace the traditional LCD and LED Nixie tube.
Nextion includes hardware part (a series of TFT boards) and software part (the Nextion editor). The Nextion TFT board uses only one serial port to communicate. It lets you avoid the hassle of wiring. We notice that most engineers spend much time in application development but get unsatisfactory results. In this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich your interface design. And the drag-and-drop function ensures that you spend less time in programming, which will reduce 99% of your development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake.
It's easy to adapt Nextion family HMI to existing projects, you just need to provide it a UART.
NX4827T043 is a powerful 4.3'' HMI, which is member of Nextion family. Features include: a 4.3" TFT 480x272 resistive touch screen display, 16M Flash, 2KByte RAM, 65k colors.
Features:
Compatible for Raspberry Pi A+, B+ and for Raspberry Pi 2.
480 x 272 Resolution
RGB 65K true to life colours
TFT Screen with integrated 4-wire Resistive Touch Panel
Easy 4 pin interface to any TTL Serial Host
16M Flash memory for User Application Code and Data
On board micro-SD card for firmware upgrade
Visual Area:95.04mm(L)×53.86mm(W)
Adjustable Brightness:0~230 nit, the interval of adjustment is 1%
5V250mA power consumption
| Link Wiki | No |
| Display Resolution | 480 * 272 |
| Display Interface | Serial |
| Screen Type | Touch Screen |
| Display Controller | No |
| TFT display interface | N/A |
| Display Size | 4.3” |
| Board Size | 120mm*74mm |
| Expand |
SD Card Socket Touch Screen |
| Weight | 141g |
Package included:
1 x 4.3 Inch Nextion Stanard HMI Display
1 x Micro USB to 2P Connector Board
1 x 4-Pin Grove Cable
