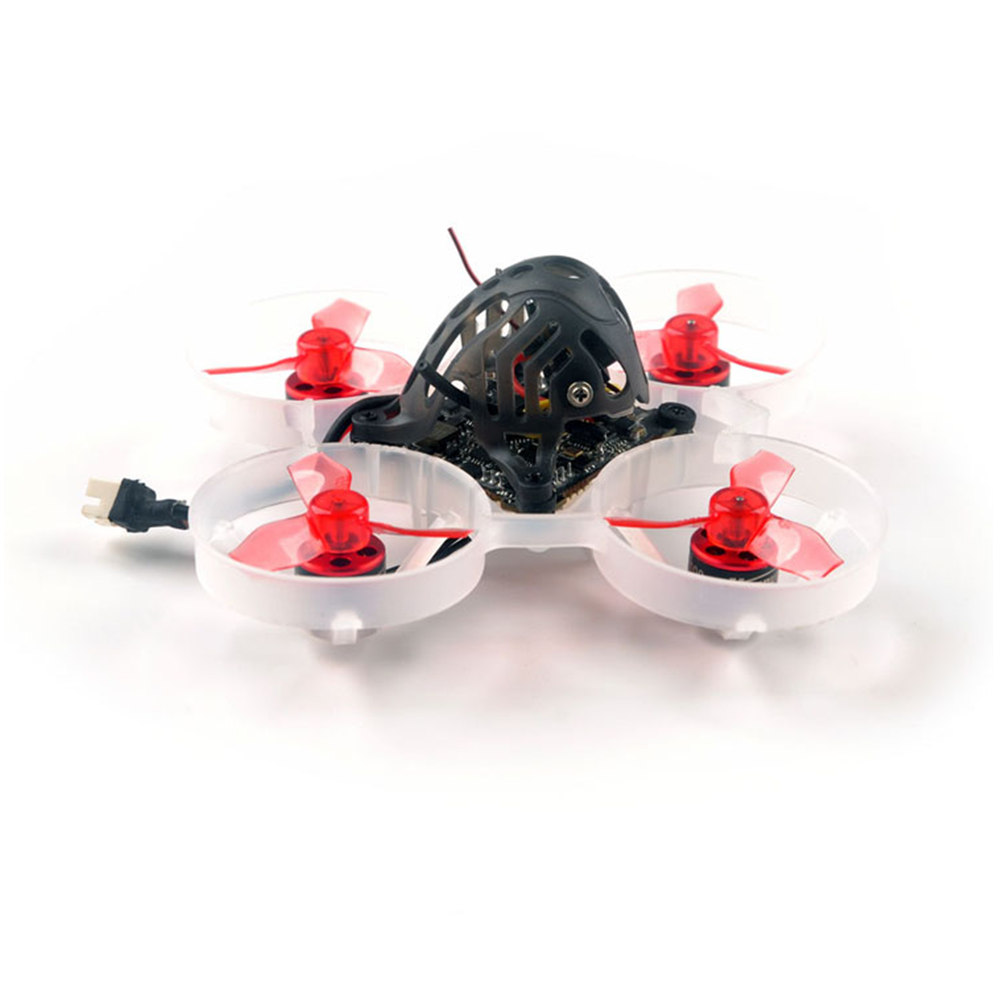

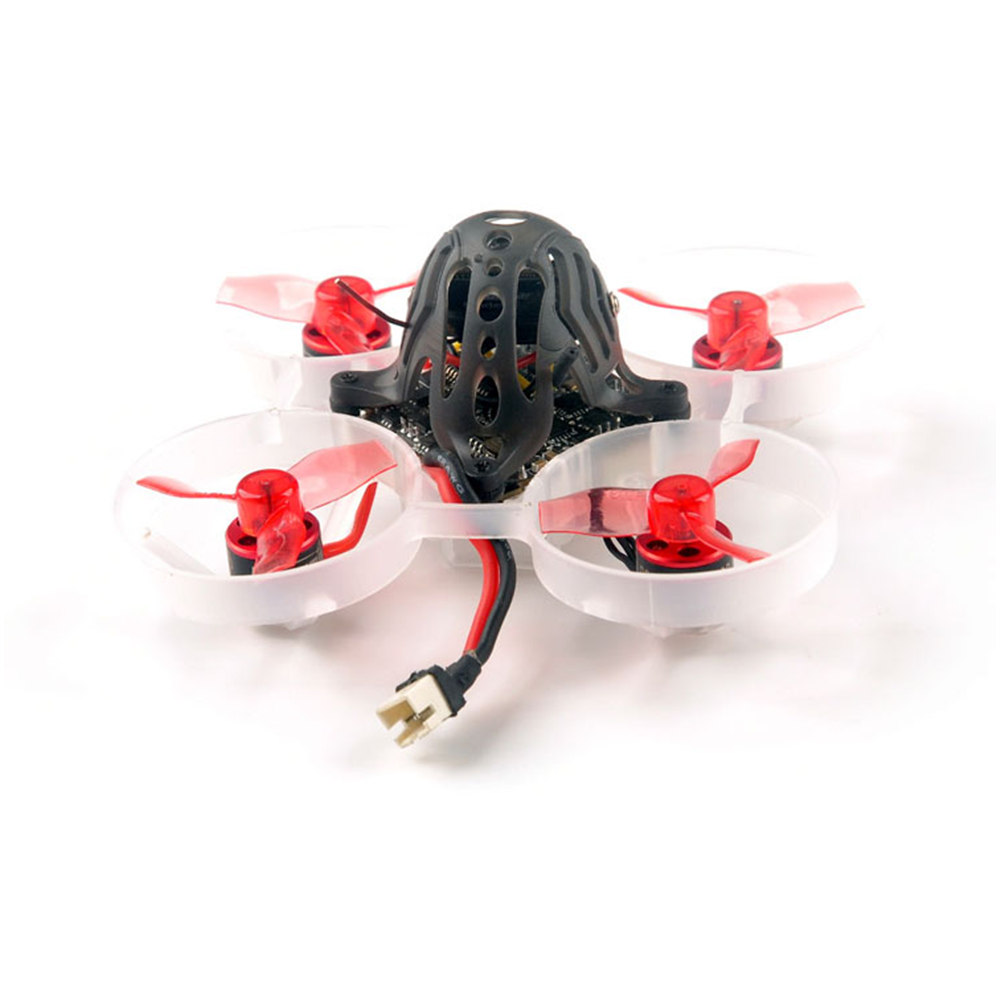

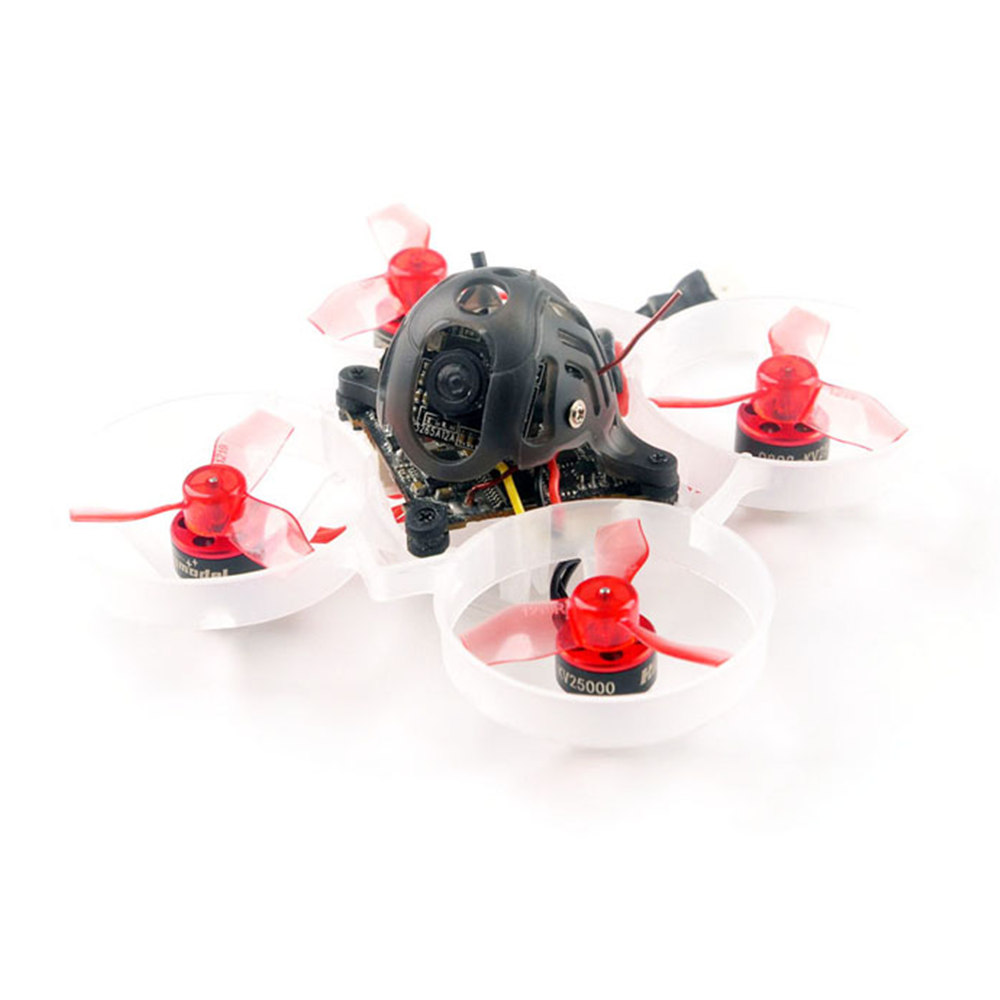

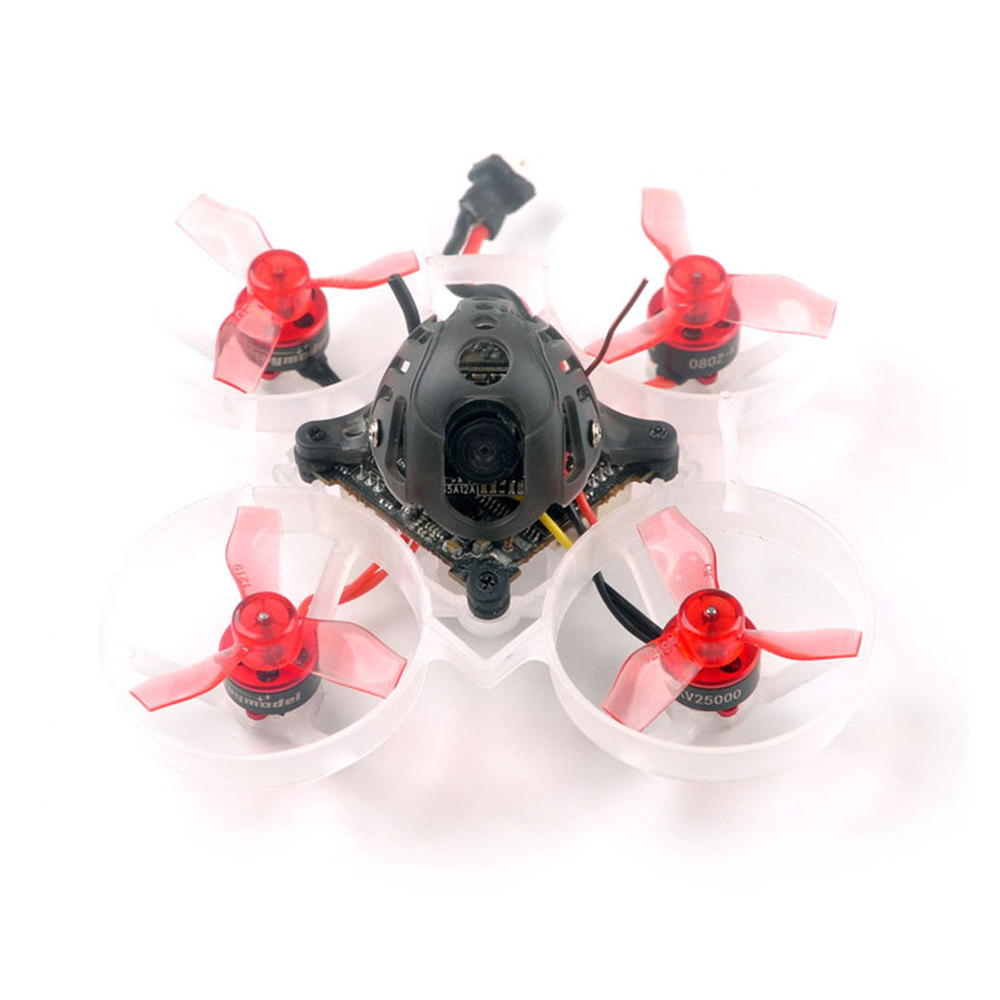

Only 20g 65mm Crazybee F4 Lite 1S Whoop FPV Racing Drone BNF w/ Runcam Nano 3 Camera
- Stock: In Stock
- Model: ST22001214
- SKU: ST22001214
$120.99
Ex Tax: $120.99
Notice: The Camera of Mobula6 FOV is changed to 140 degree due to the earliest lens was stopped to production .
Please view the new spec from Runcam website https://shop.runcam.com/runcam-nano-3/
Notice: The flight controller of DSM2/DSMX version Mobula6 has been updated to be CrazybeeX DXS V1.0 after Dec.9th 2020 , it has built-in DSM2/DSMX spi receiver , so it won’t come with an external Nano_sp09 receiver.
Contact Us to buy replace parts together.
Specification:
Model: Mobula6
Item Name: 65mm Crazybee F4 Lite 1S Brushless Whoop FPV Racing Drone BNF
Optional Version: Frsky Receiver ( Compatible with ACCST D8/D16, Recommend D8 mode)
Flysky Receiver ( Compatible with AFHDS and AFHDS-2A Flysky transmitter)
Drone Wheelbase: 65mm
Size: 80x80x37mm
Weight: 20g
Pacakge Included:
1x Mobula6 1S FPV Racing Drone
4x 1S 300mAh 30C Lipo Battery
1x 1S Lipo/LIHV USB Charger
1x Propeller disassemble Tool
|
Crazybee F4 LiteFlight Controller Built-in ESC & Receiver & VTX |
Frsky SPI RX version) CRAZYBEE F4 Lite Frsky version Firmware target: CrazybeeF4FR
(Flysky SPI RX version) CRAZYBEE F4 Lite Flysky version Firmware target: CrazybeeF4FS
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Board size: 28.5 * 28.5MM
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G VTX
Built-in SPI Frsky/Flysky receiver
Built-in 5V 1A BEC
Built-in voltage detection |
| Onboard Frsky Receiver Version |
SPI BUS receiver Frsky D8 compatible
Compatible Non EU transmitter D8 model - Frsky_x_lbt Support EU LBT Radio Transmitter
Channels: 8ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m |
| Onboard Flysky Receiver Version |
SPI BUS receiver
Protocol: AFHDS and AFHDS-2A Switchable
Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
No ground interference ( Transmitter and receiver 1 m from the ground): 100~200m
Failsafe support |
| Onboard 5A BLheli_S 4in1 ESC |
MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HV
Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Default protocol: DSHOT600 |
| SE0802 19000KV / 25000KV Motor |
Model: SE0802 KV: 19000KV / 25000KV Motor
Configu-ration:9N12P
Stator Diamter:8mm
Stator Length:2mm
Shaft Diameter:Φ1mm
Motor Dimension(Dia.*Len):Φ10.5mm*14.9mm
Weight(g):1.9g
No.of Cells(Lipo):1S only |
| Gemfan 1219 3-Blade Propeller |
Center Thickness:5mm
Prop Disk Diameter:31mm
Center Hole Inner diameter:1.0mm Quantity: 4 CW & 4 CCW
Weight:0.28g |
| Onboard 5.8G 40CH 25mW VTX |
Output power: 25mw Frequency: 40CH Input voltage: 3.3V 5.5V Current consumption: 300mA(type) Frequency: 5.8GHz 5bands 40 channels With Race band Smartaudio ready |
| Runcam Nano 3 FPV Camera | Model: RunCam Nano 3 Image Sensor: 1/3" CMOS Horizontal Resolution: 800TVL Lens : 2.3mm(M6.5) FOV 140° Signal System: NTSC Camera Image: 4:3 S/N Ratio: >50dB Electronic Shutter Speed: Auto Auto Gain Control (AGC): Auto Min. Illumination: [email protected] D-WDR: Auto Power:DC 3-5.5V Current: 110mA@5V [email protected] Net Weight: 1.2g Dimensions: L14mm*W14mm*H9mm |
| Lipo Battery ( Included) |
Continuous Discharge Rate: 30C
Size: 57mmx12mmx7mm
Weight: 8g
Connector: PH2.0 Quantity: 4 PCS |

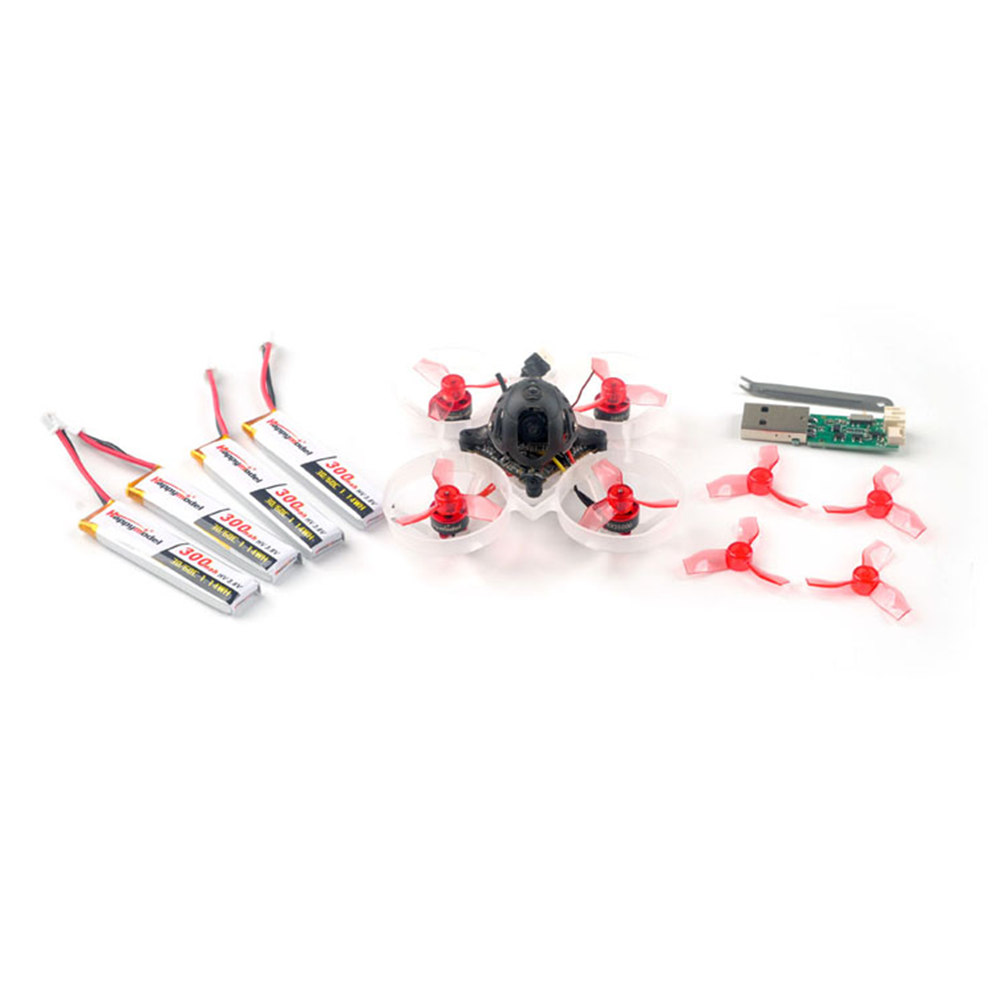

Pacakge Included:
1x Mobula6 1S FPV Racing Drone
4x 1S 300mAh 30C Lipo Battery
1x 1S Lipo/LIHV USB Charger
1x Propeller disassemble Tool
