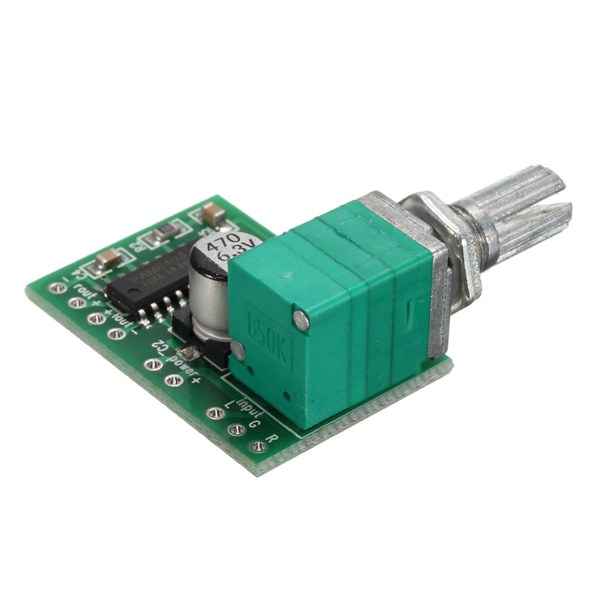

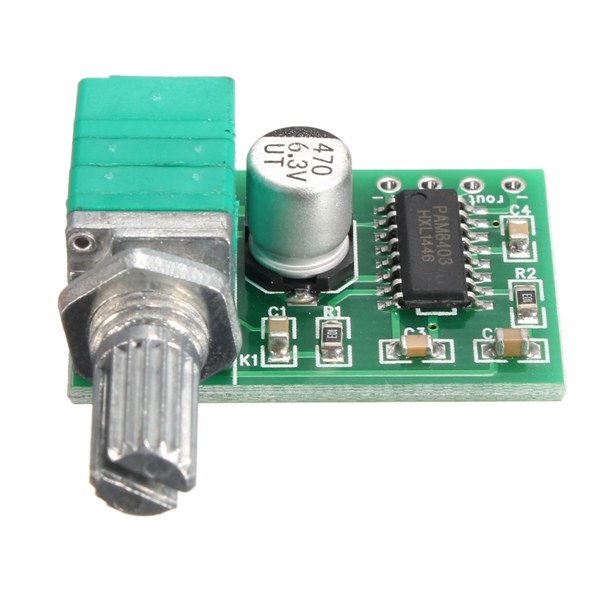

PAM8403 2 Channel USB Power Audio Amplifier Module Board 3Wx2 Volume Control
- Stock: In Stock
- Model: ST230046616
- SKU: ST230046616
$2.99
Ex Tax: $2.99
PAM8403 2 Channel USB Power Audio Amplifier Module Board 3Wx2 Volume Control
Specifications:
Operating voltage: 2.5V-5.5V
Maximum output power: 3W*2(5V 4Ω)

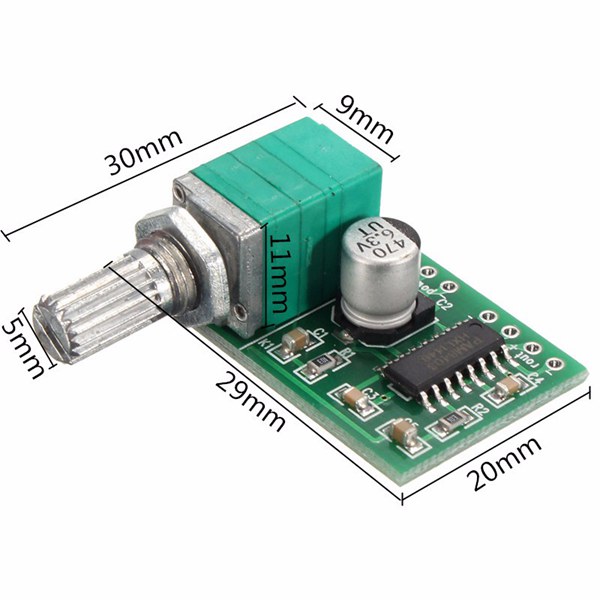

Length: 29mm
Width: 20mm
Overall height after installed is about 16mm.
Note:
Please make sure the power supply is not more than 5.5V and please don't do reverse polarity for "+" and "-", or else, it will burn the board.
Package included:
1 x PAM8403 Audio Amplifier Module
,
,
,
