PIR Human Body Induction Sensor Module Compatible M5StickC Auto Security
- Stock: In Stock
- Model: ST230046549
- SKU: ST230046549
$8.09
Ex Tax: $8.09
Description:

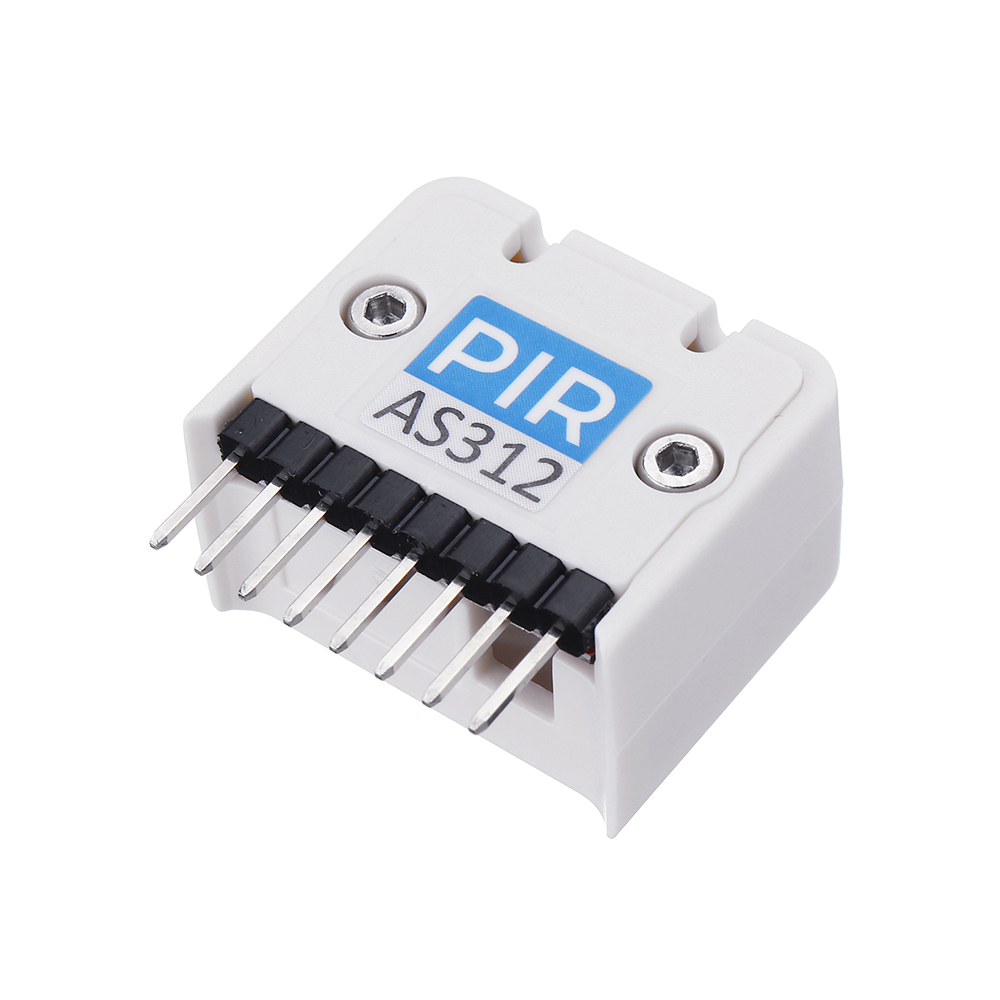

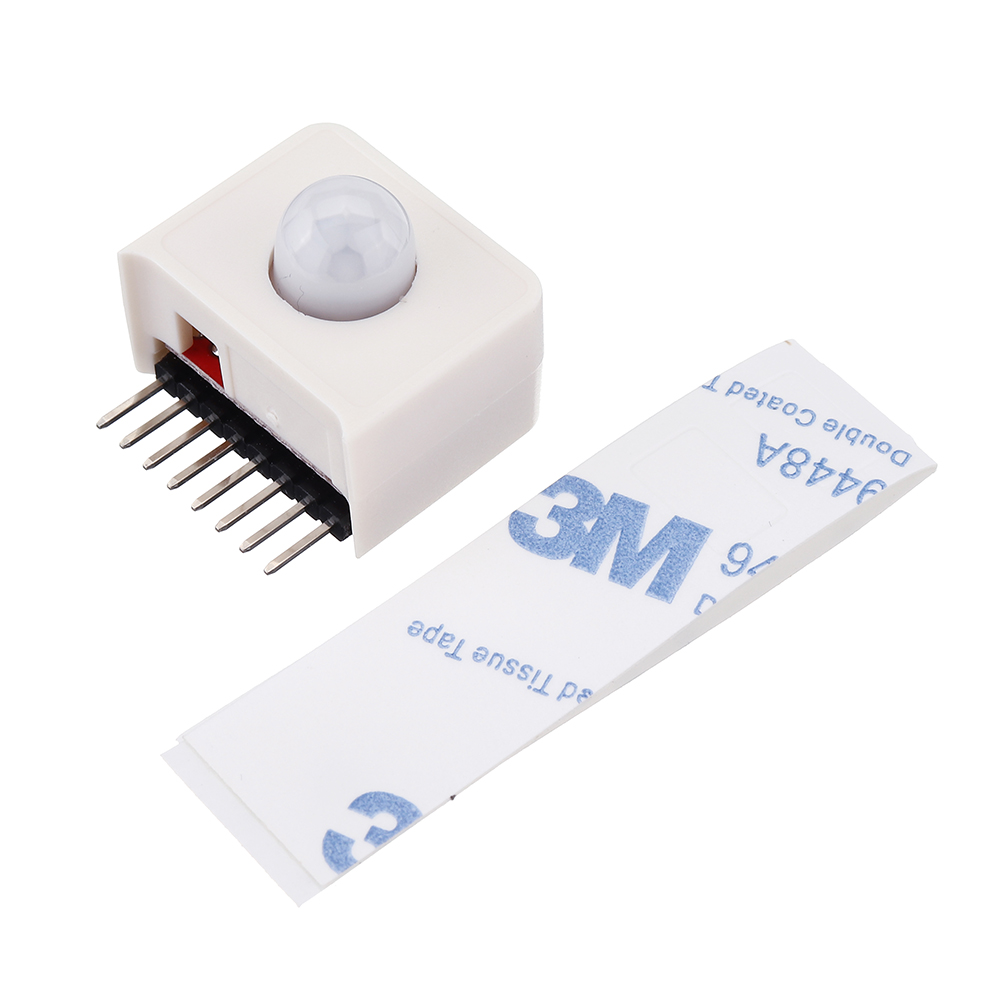

Hat PIR is an M5StickC compatible human body induction sensor, it belongs to "Passive pyroelectric infrared meter", that detect the infrared come from the human body. When the infrared is detected, the sensor will output HIGH and last for two seconds until the next detecting round.
Notice: There exist 2 seconds delay
Product Feature:
- Detecting Range: 150cm
- Delay time: 2s
- Induction Angle: < 100°
- IDDQ : < 60uA
- Op.T: -20 - 80 °C

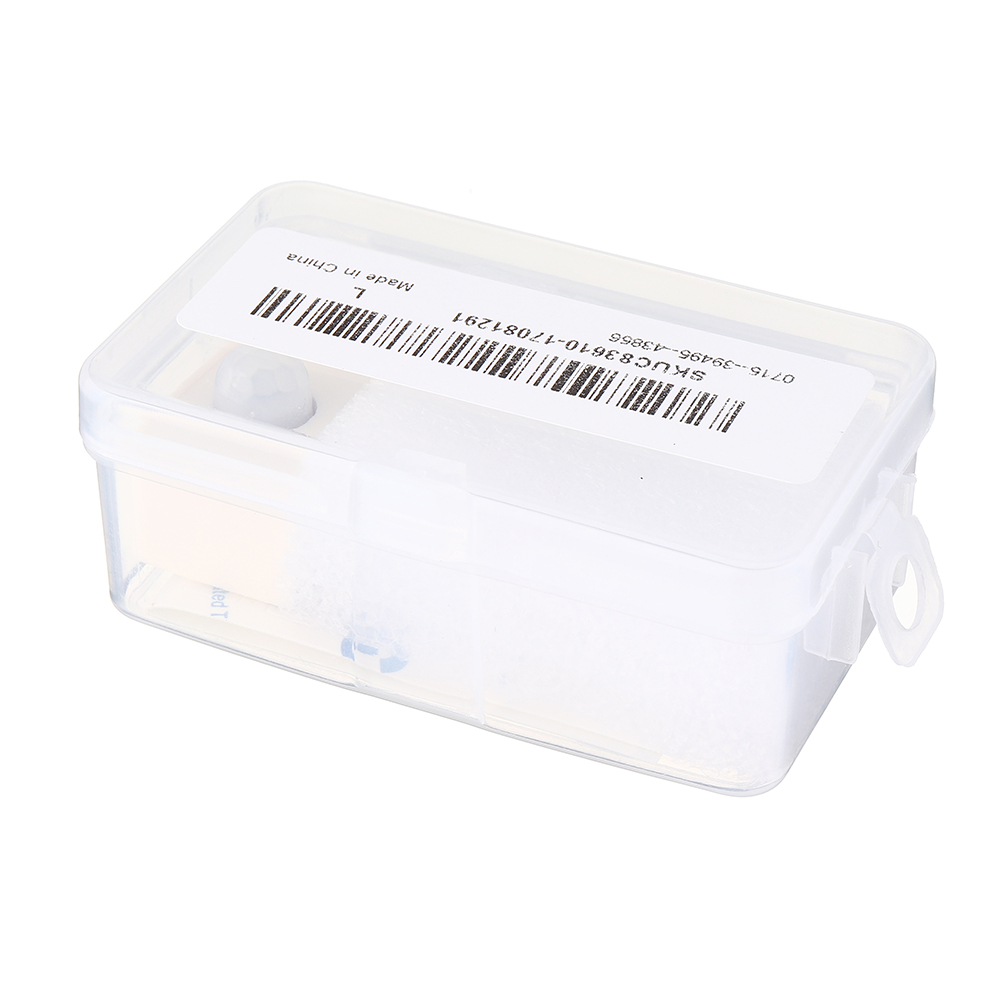

package Includes:
- 1x PIR Hat
Application:
- Hunman body induction lamp
- Security product
- Auto-induction
Schematic:
Links:
Official channle
Official forum
EasyLoader
Contact Us to download EasyLoader
2.After downloading the software, double-click to run the application, connect the M5 device to the computer via the data cable, select the port parameters, and click "Burn" to start burning.
Example:
- for
Pin Map:
| M5StickC | GPIO36 | 5V | GND |
| HAT PIR | OUT | 5V | GND |
