- Stock: In Stock
- Model: ST22001209
- SKU: ST22001209

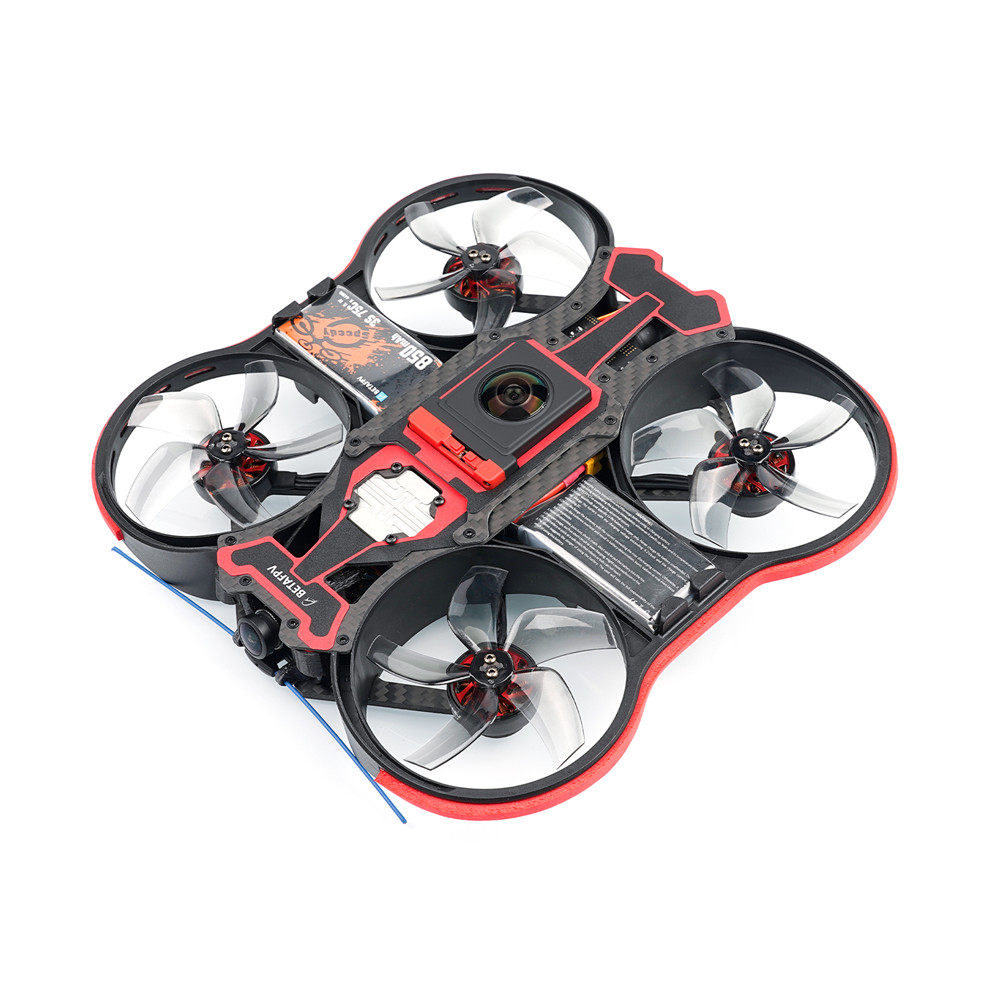

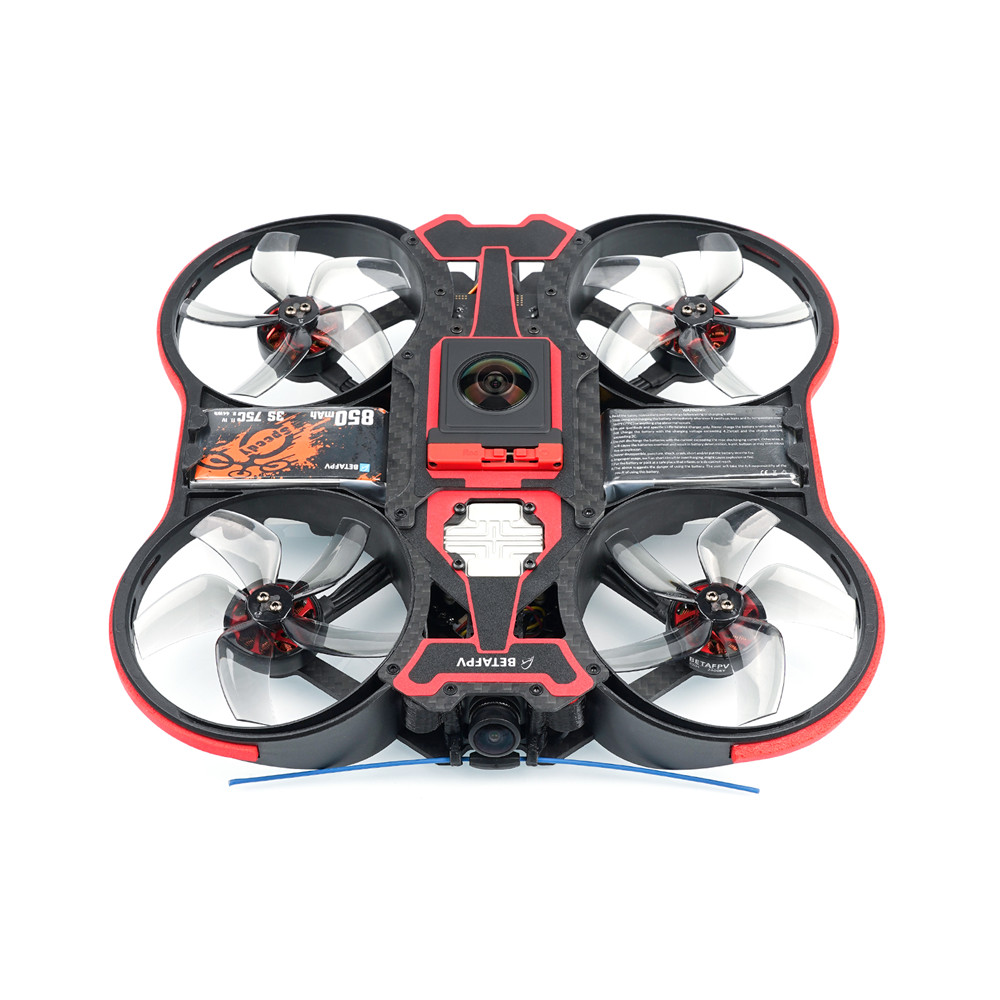

Pavo360, the newest generation of 360 FPV quadcopter, generated by BETAFPV, has superb performance in its recording, flying performance, stability, and design. The drone comes with landing gear, protecting the camera lens when the quadcopter lands on the surface, giving the Pavo360 ability to land anywhere. The ultra-thin and flat frame design made sure the drone is completely invisible when recording a video with the SMO360 panoramic camera.
Bullet Points
-The Pavo360 is the first 360 FPV drone with landing gear generated by BETAFPV. Compared with X-Knight 360 FPV
Quadcopter, it protects the camera lens when the quadcopter takes down from air to surface, the Pavo360 is able to land on most flat surfaces.
-Both analog and HD Digital VTX versions come with Toothpick F722 AIO 35A FC, 2204-2400KV motor & Gemfan D76 5-Blades props, this highly efficient dynamical system lays the foundation for powerful and stable flight.
-Equipped with a newly developed Pavo360 frame, which is made of PA12 material, it has higher abrasion resistance, toughness,
and shows excellent impact resistance in drop & impact tests.
-The ultra-thin and flat frame design with SMO 360 Camera (not included) makes it possible to record and enjoy the 360 videos
without any unseen areas. Pavo360 is perfectly called an invisible drone.
-There are two versions for Pavo360 FPV Quadcopter. Both versions support the SMO360 Camera. Please note that the Pavo360
camera mount is suitable for the SMO360 Camera only and other cameras can not be installed. We highly recommend buying BETAFPV SMO 360 Camera together.
Description:
Wheelbase: 168 mm
Receiver: PNP, TBS receiver.
Flight time: Smooth flight about 5 minutes
Version: Caddx Polar Vista HD Version

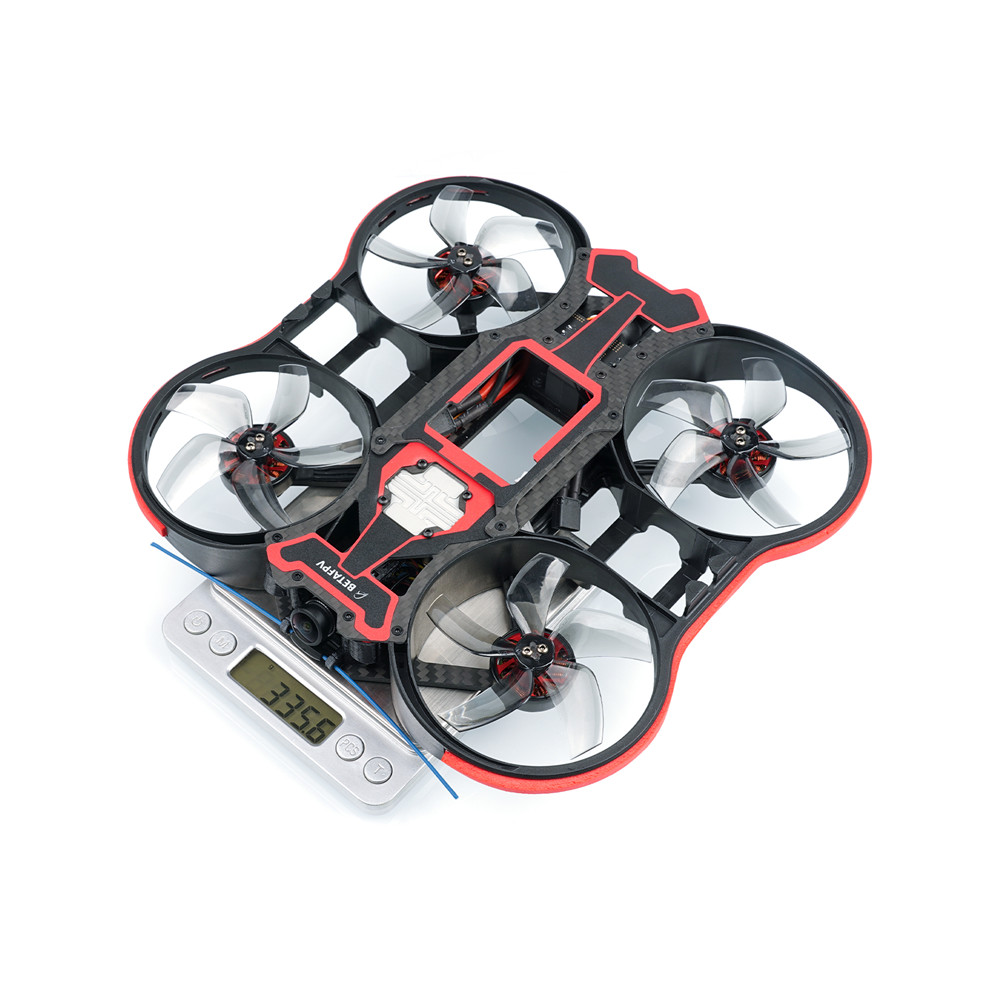

Weight: About 335g without battery

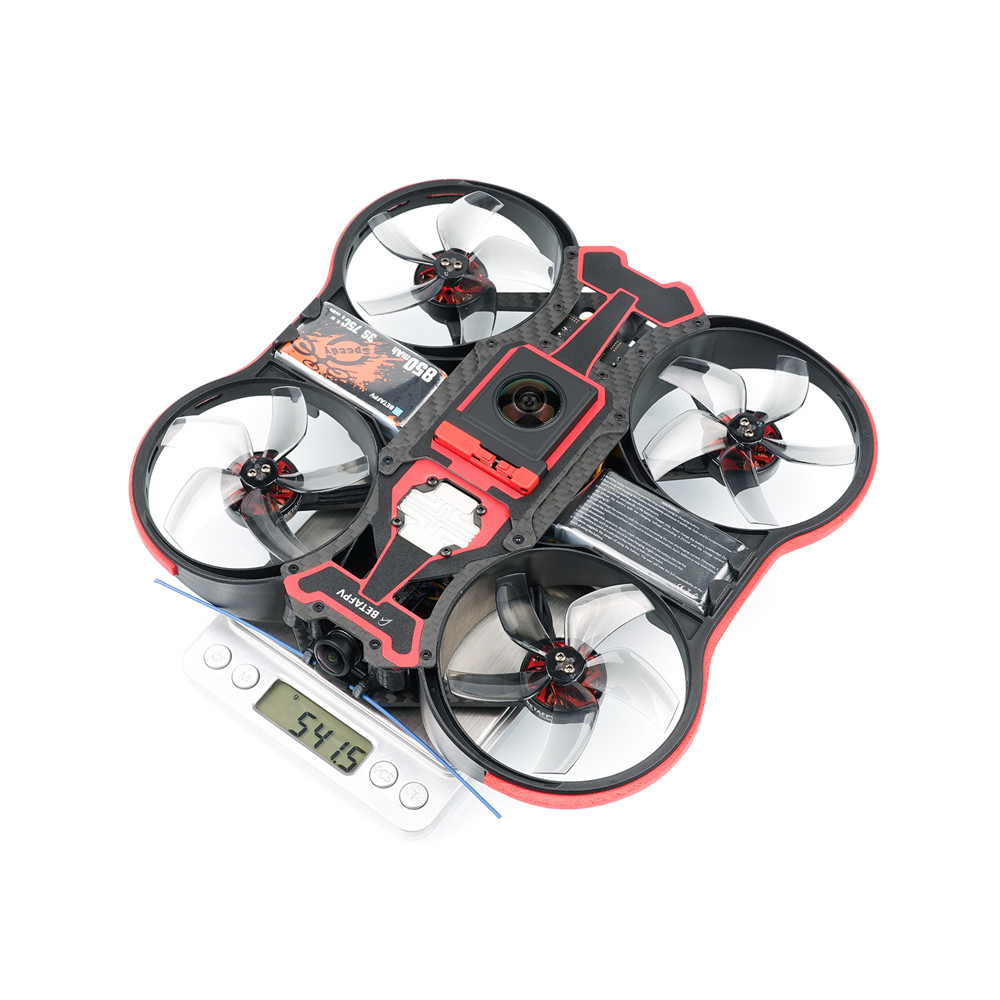

About 541g with 2 battery
| Frame | Pavo360 Frame Kit |
| Motor | Black 2204-2400KV (6S) |
| Power connection | XT30 double-end aircraft model power connector, red and black wire plus subboard |
| Propeller | Transparent grey GF D76-5B |
| Flight Controller | F7 6S AIO 35A Toothpick Flight Controller |
| Battery | 3S 850mAh 75C battery |
| Camera&VTX | Caddx Polar Vista Kit Caddx Polar Vista Camera is an HD digital FPV camera with excellent performance. It is lightweight, only 28g (Camera and VTX). The camera has a large wide camera angle. The video quality reaches 720p / 60fps. Low delay HD image transmission and brilliant night photography are the highlights of it as an FPV camera. Together with Pavo360's unique frame design and strong dynamical system, the camera can give full play to FPV racing and bring you a hearty flight experience. |
| Battery | 2 * 3S 850mAh 75C XT30 Battery |
BETAFPV SMO 360 Camera (Not Included)
A high-degree ultralight action panoramic camera designed for Pavo360 FPV Drones! Developed by BETAFPV using Insta360
technology, SMO 360 camera only weighs 55g and is perfectly fitted for Pavo360 FPV drones. The distance between the 2 lenses is 40mm, giving more room to the drone height. Meanwhile, with the FlowState stabilization function, pilots can shoot panoramic video and get an ultra-smooth and stable video, which makes the SMO 360 camera the best choice for pilots in search of high-quality 360 videos with FPV drones!
The Pavo360 drone set does not come with the SMO 360 Camera. Therefore, to better enjoy the Pavo360 FPV quadcopter, we highly recommend buying BETAFPV SMO 360 Camera together.
Landing Gear
New and incredible design for the Pavo360. BETAFPV efforts to improve the durability, performance, and creativity of drones. With the landing gear, which protects the camera lens when the quadcopter takes down from air to surface, the Pavo360 is able to land on most flat surfaces.
Note: Although the Pavo360 equips with landing gear that is designed for protecting the SMO 360 camera lens, further protection is necessary. Strongly recommend buying lens guard together.
Note: After binding, you can control the extension or retraction of the landing gear on the 8th channel toggle switch (default settings) of your transmitter. This function setting is available to be changed on your transmitter or flight controller.
FAQ
1. Download the CLI for Pavo360 FPV Quadcopter
2. Flight controller setting for landing gear:
-Open Betaflight Configurator and connect the flight controller.
-Enable Expert mode.
-Select Servos on the left list of the Betaflight Configurator.
-Change the channel for landing gear. The default channel is A4 on Servo 0.
Note: Only the Servo 0 is available. Other servos like Servo 1, 2, or 3 are not active. Please do not set the channel on other servos. Otherwise, the landing gear will not work.
Package Included:
1 * Pavo360 FPV Quadcopter Caddx Polar Vista HD Version (Without SMO 360 Camera)
2 * CW Gemfan D76 5-Blades Propellers
2 * CCW Gemfan D76 5-Blades Propellers
1 * Pavo360 Sticker
2 * 3S 850mAh 75C XT30 Battery
