Motherboard Raspberry Pi Pico Microcontroller Development Board DIY Expansion Breadboard Kit

Raspberry Pi Pico is a convenient, flexible, and easy-to-use open source electronics prototyping platform.

Positioned as a high-performance single-chip controller, it is committed to solving the deficiencies in the field of hardware control, which Raspberry Pi is not good at, and is an important part of complementing the functional ecology of Raspberry Pi products.

As a lower computer, it can support Raspberry Pi, PC side (including Windows system, Linux system, Mac system) and other development platforms. It has rich GPIO and peripheral resource support. Its overall development system includes hardware circuit board and officially provided SDK (software development kit).

It supports the development of multiple programming languages ​​such as python, C, and C++, and has excellent cross-platform portability.

Product Name: Raspberry Pi Pico

Product size: 51mm*21mm

Control chip: RP2040 (ARM Cortex M0+ dual-core 133MHz processor 264KSRAM)

Flash: 2MByte

USB port type: Micro-USB

Power supply mode: USB-5V, vSYS-1.8V-5.5V

Supply voltage: 5V

Output voltage: 5V/3.3V

GPIO level: 3.3V

Working current: not more than 300mA

Working temperature: -20℃~80℃

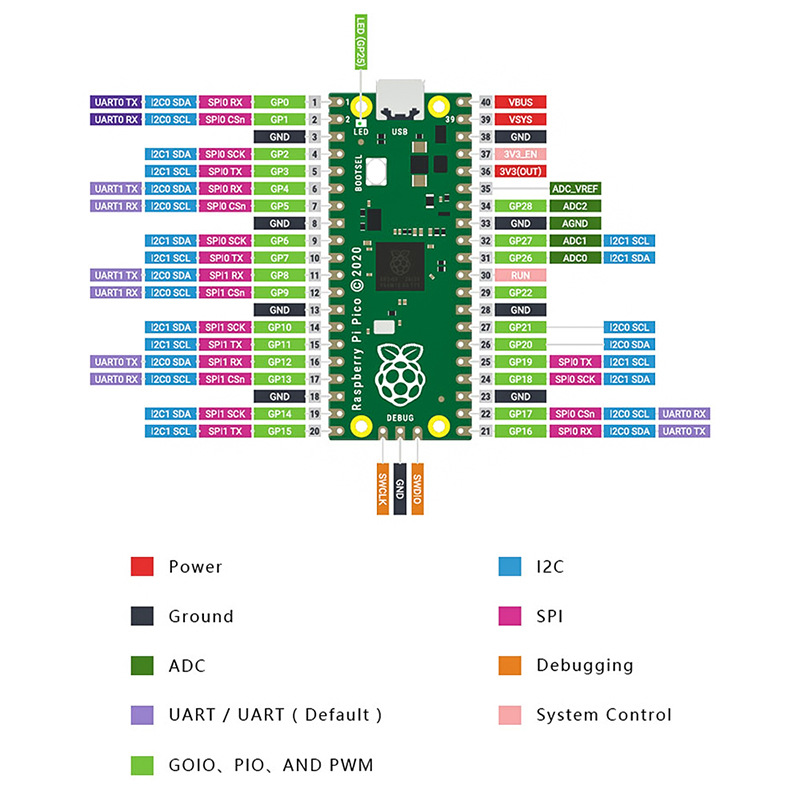

Number of pins: 40 pins

ADC accuracy: 12-bit 500KPS ADC

Development language: MicroPython, C, C++

Burning method: recognized as mass storage drag-and-drop download

Development environment: visual Studio Code, Eclipse

1 x Raspberry Pi Pico

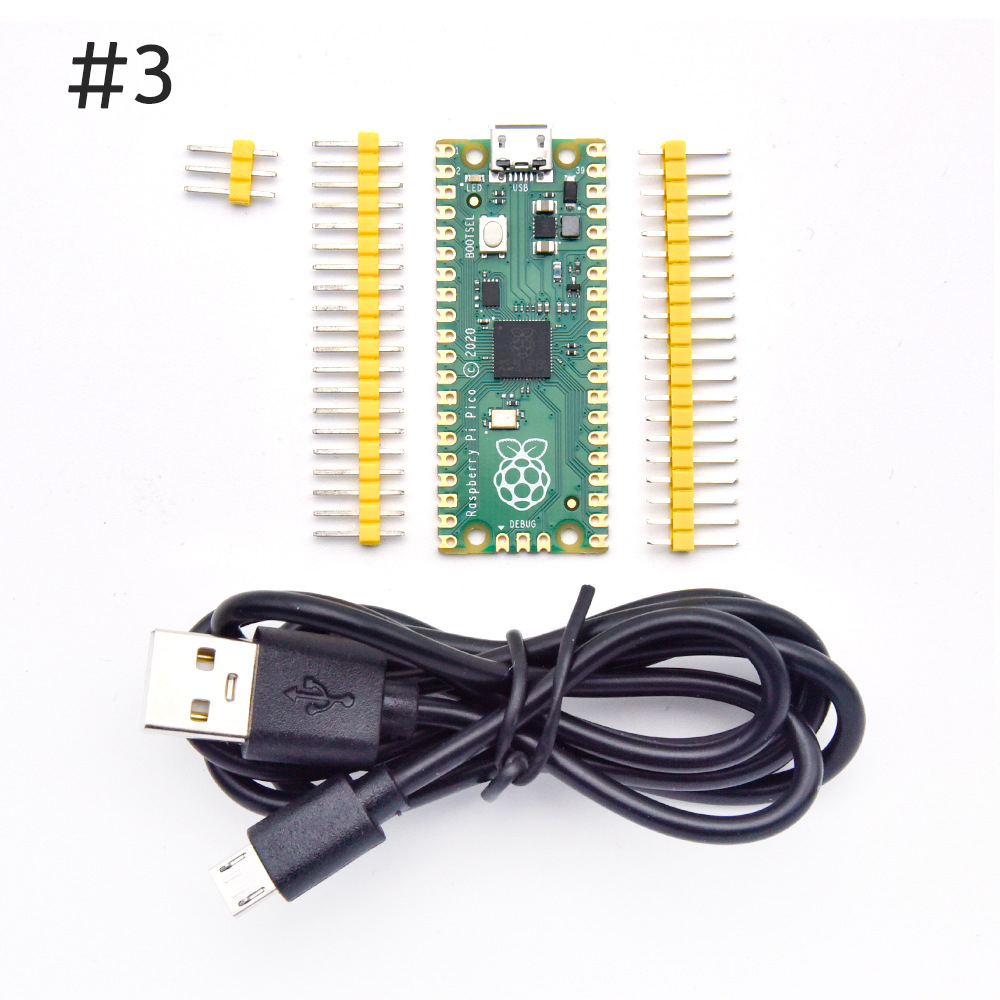

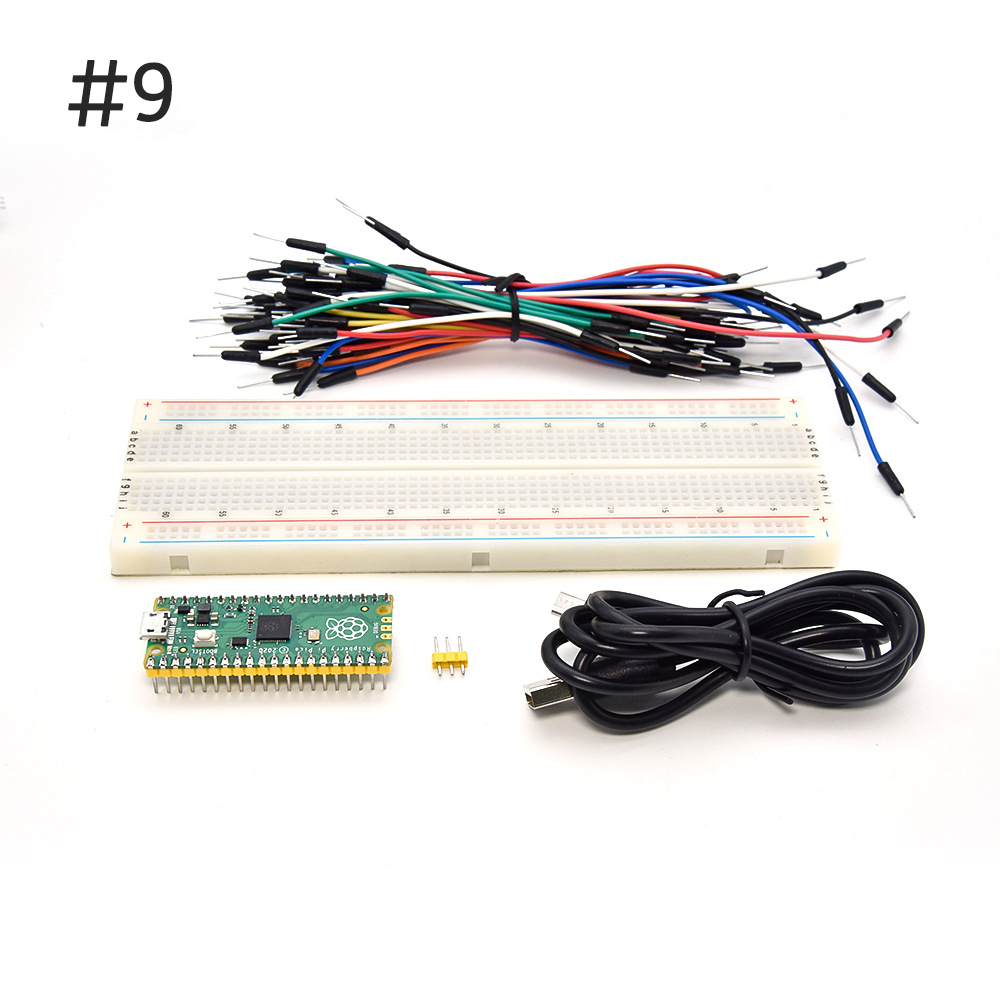

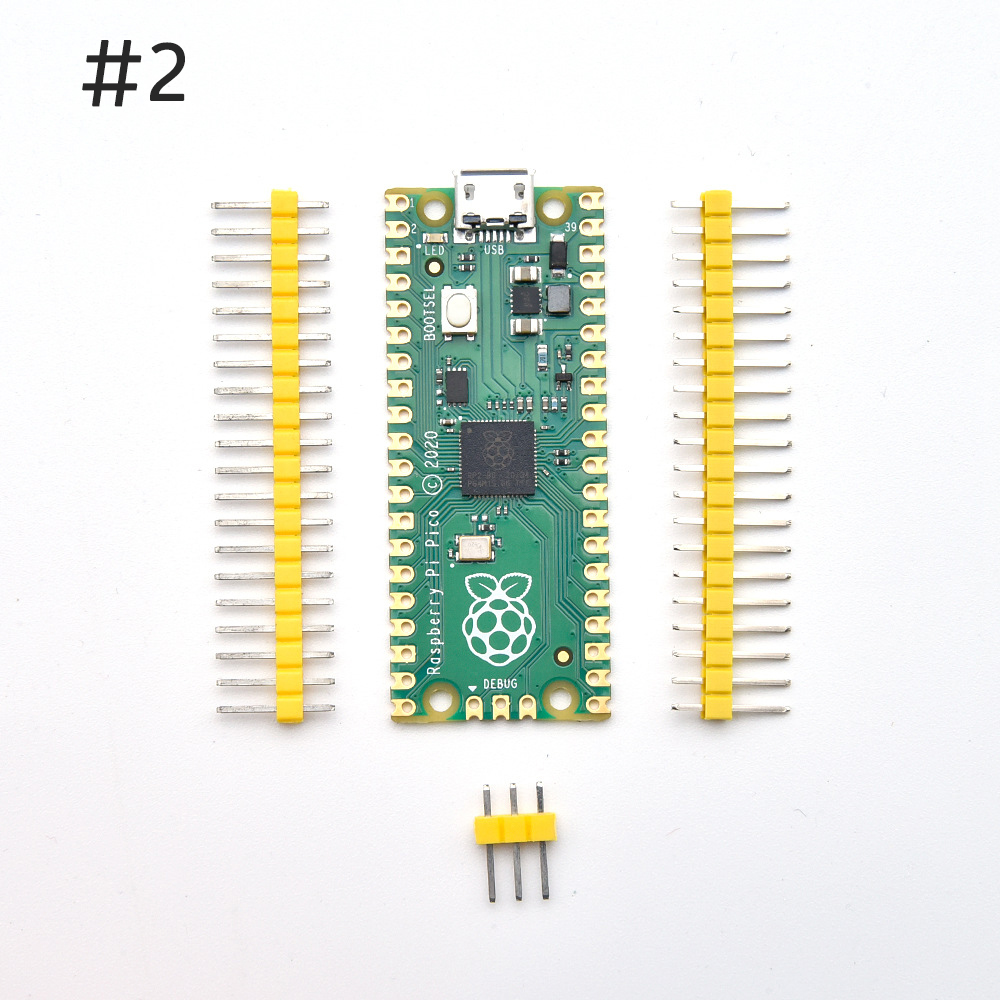

(Optional: #1/#2/#3/#4/#5/#6/#7/#8/#9)
