- Stock: In Stock
- Model: ST220013106
- SKU: ST220013106

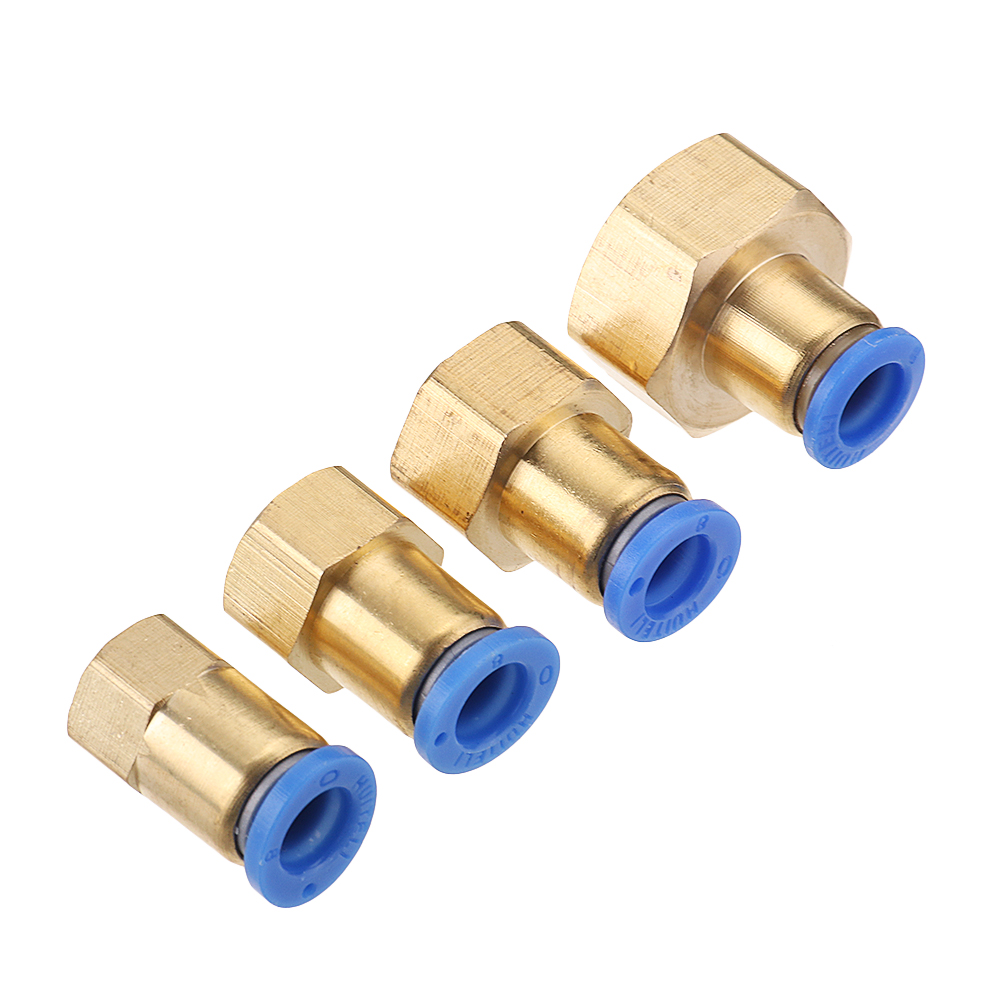

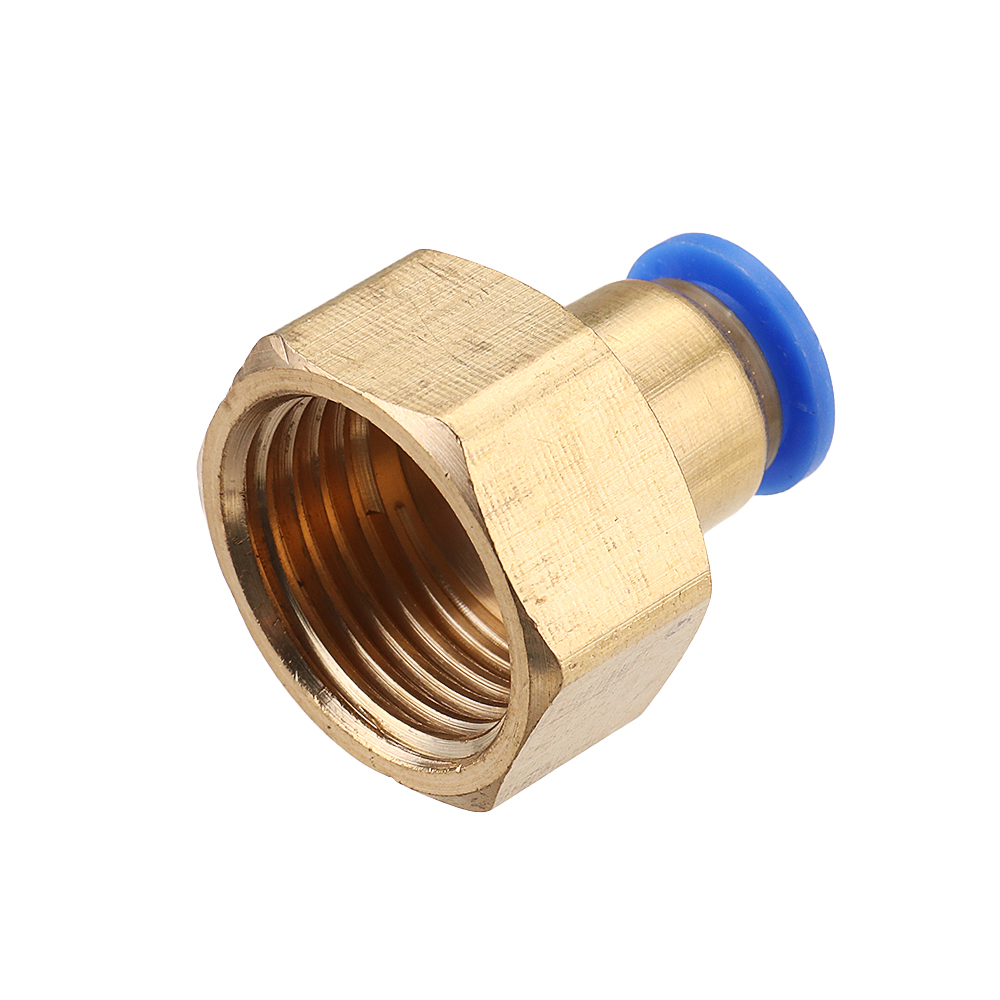

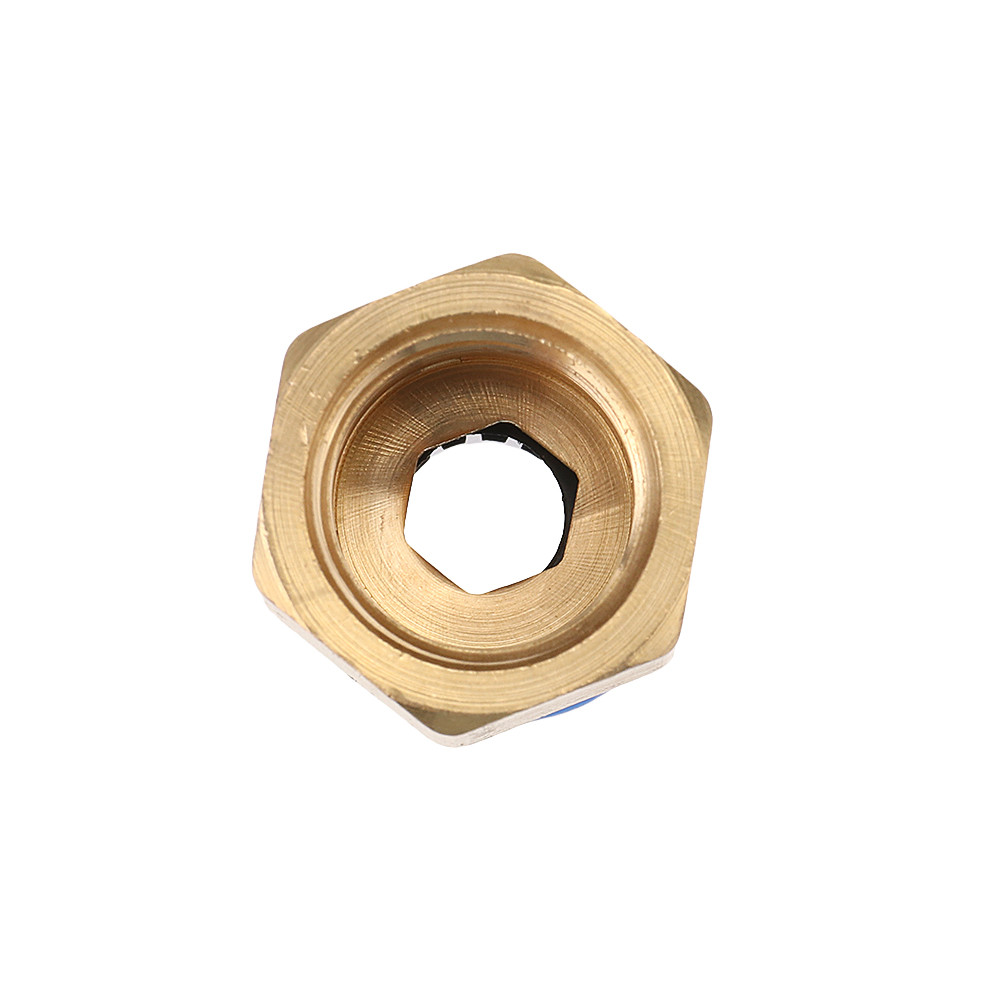

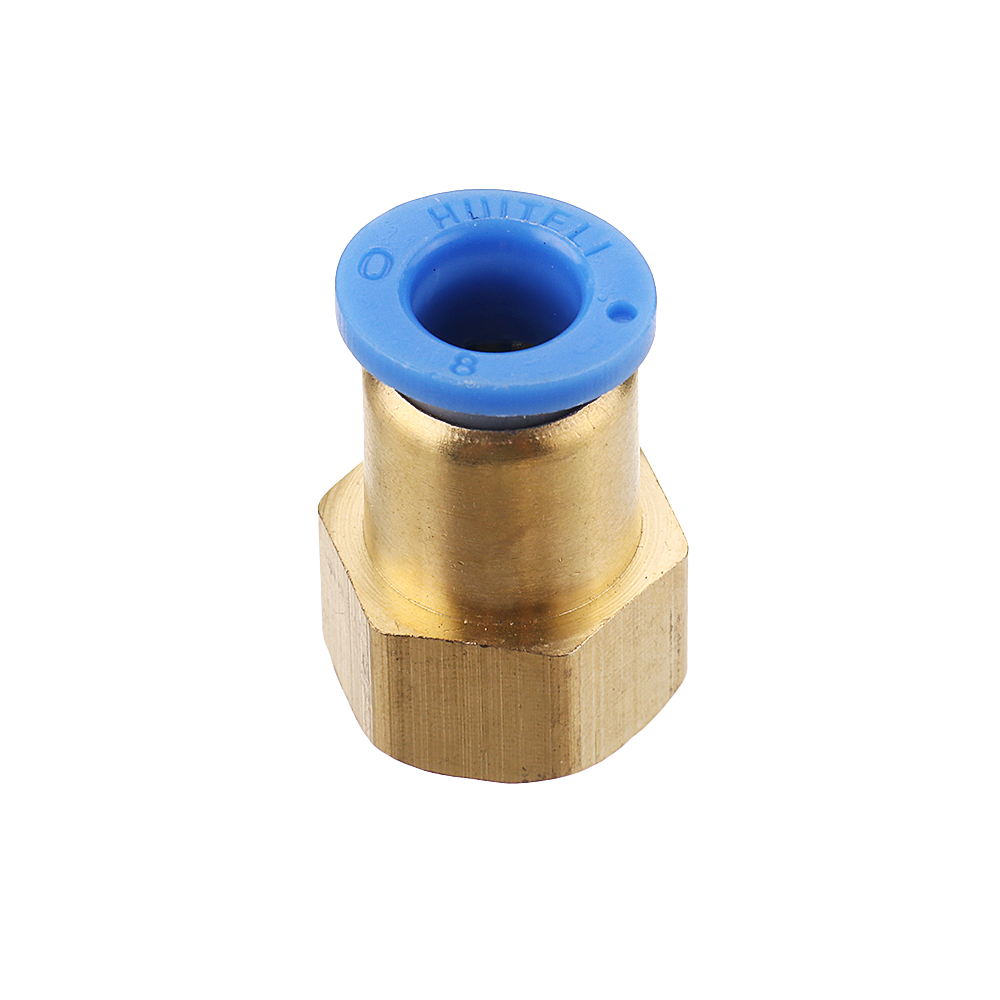

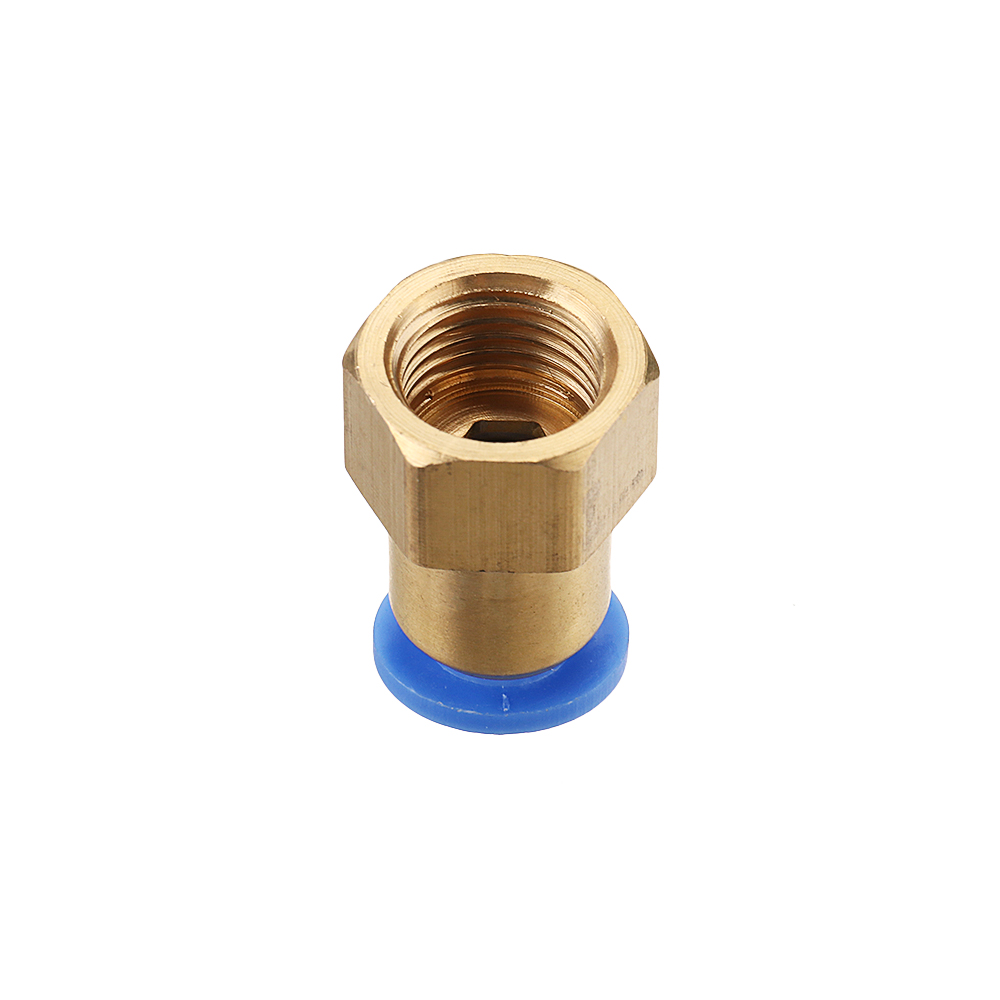

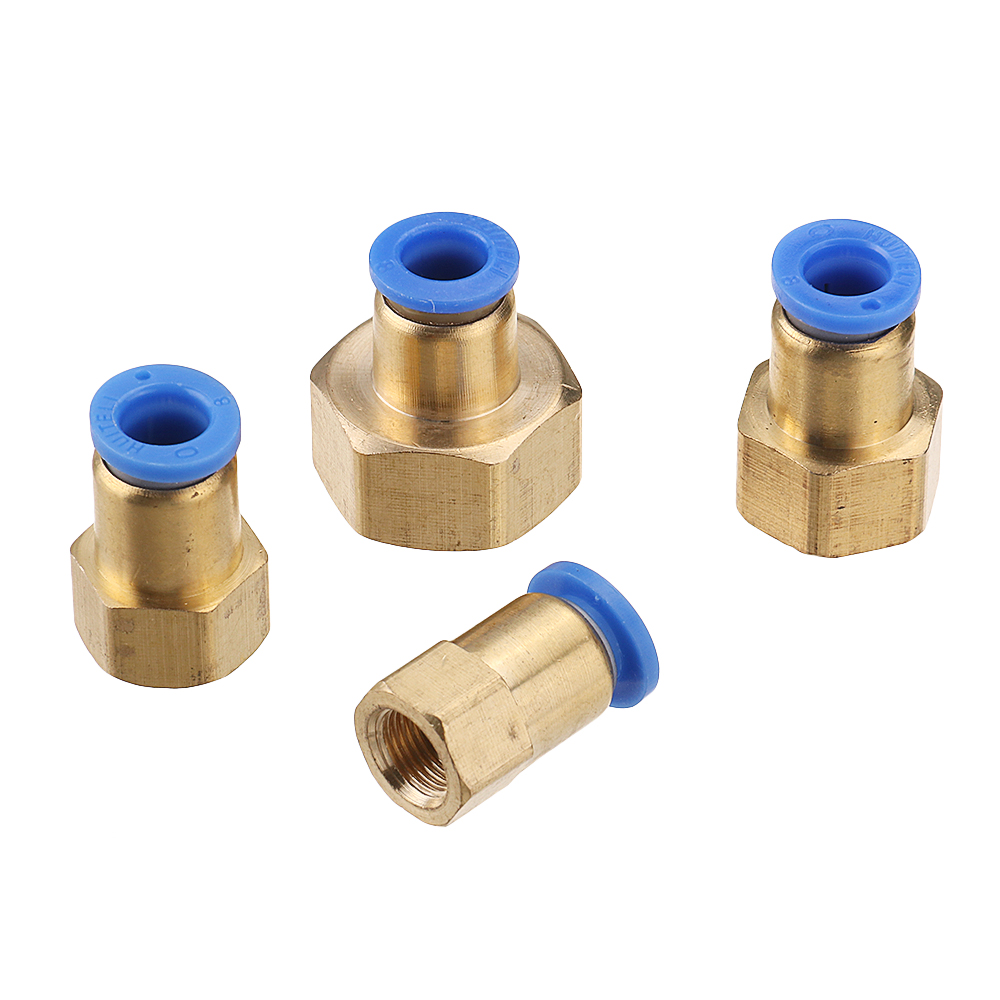

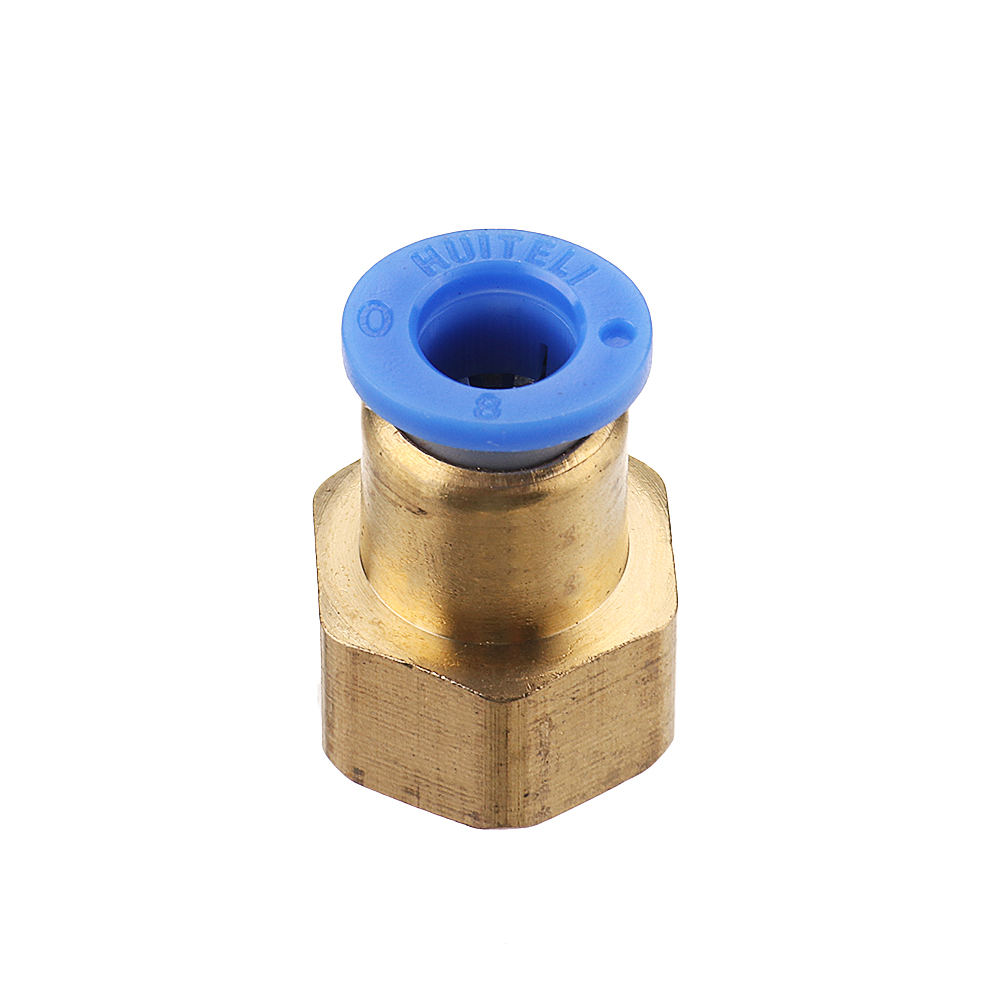

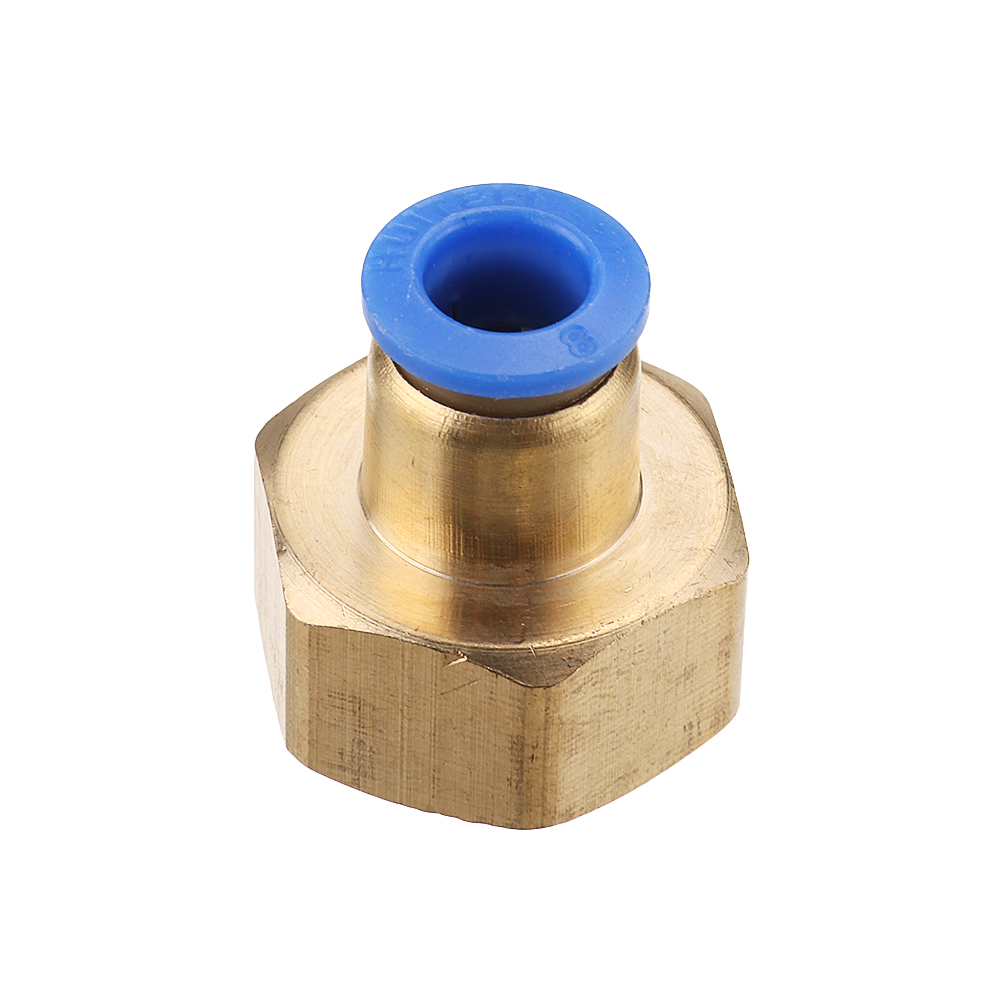

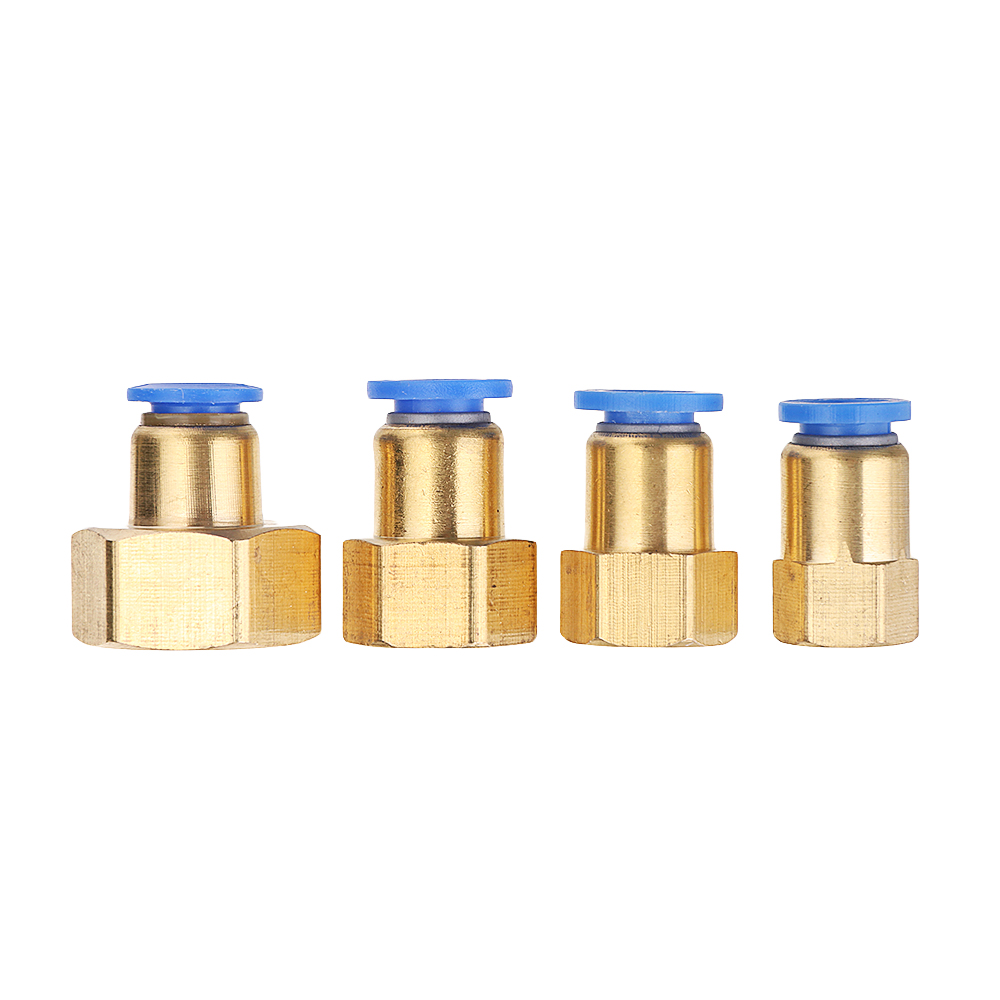

Specification:

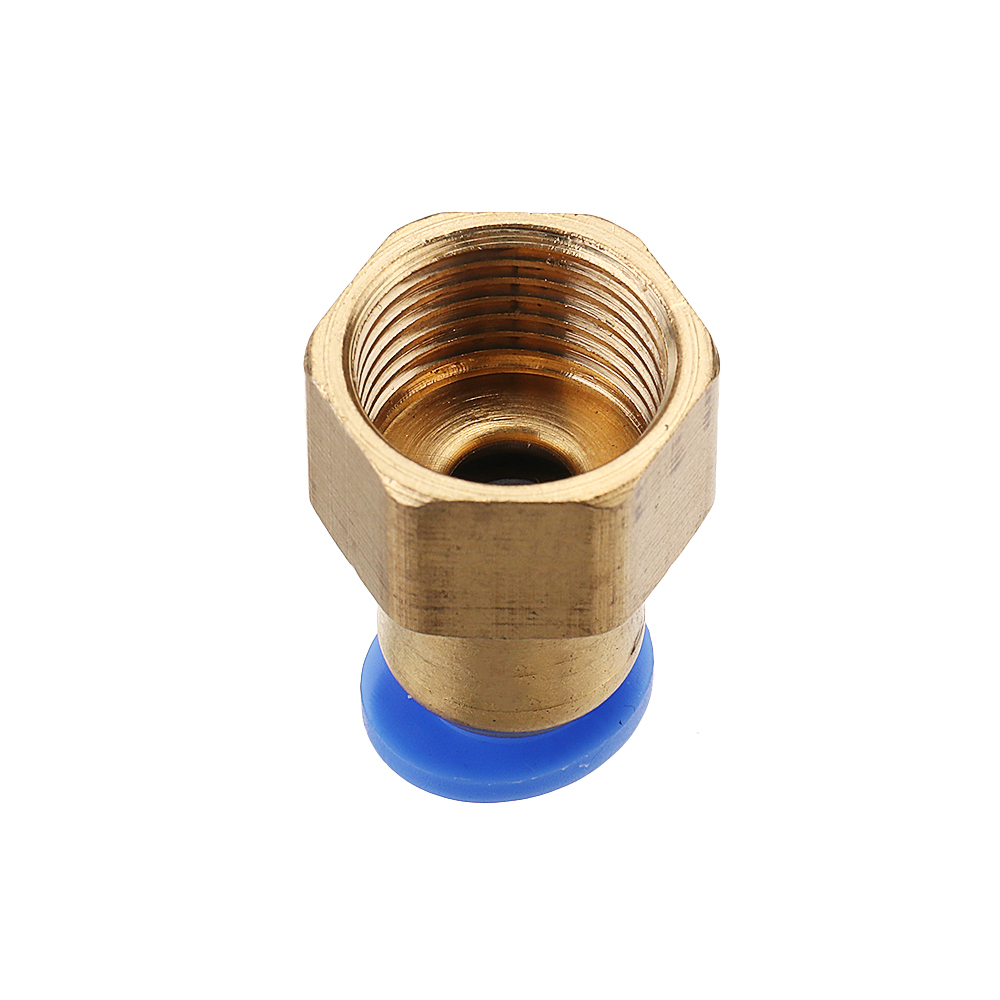

| Metarial | Brass |
| Type | PCF(female thread) |
| Pipe Size | 8-01 8-02 8-03 8-04(mm) |
| Outside diameter of inserted tube | 8mm |
| Thread diameter |
01 (G1/8) : 9.7 mm 02 (G1/4) : 12.7 mm 03 (G3/8) : 16 mm 04 (G1/4) : 20 mm |
| Pressure resistance | 0-1MPa |
| Working pressure | 10KG |
| Ambient temperature | -20-60℃ |
| Use fluid | Air |
| Applicable hose | PU pipe, PE pipe and nylon pipe |
| Scope of application | Automation equipment(Mechanical/medical/textile equipment, food processing) |
- Tripping: when the tripper is pressed, it can release the tube which is locked by the latch spring.
- Fastening spring: suitable for polyurethane pipe, nylon pipe, with great grasping force.
- Sealing ring: high quality sealing ring can be used for low vacuum -0.1 Pa and 1MPa pressure. Special grooves
ensure airtightness at the time of tube insertion, while long low insertion resistance.
- Ring: used to fix plastic sleeve, with a large fixed stand.
- Fastening sleeve: the upper end is tightly connected with the silver ring, and the locking spring is fixed.
Quick joint installation:
1. Before installation, confirm the correct model and size, and confirm the product crack and scar.
2. The length of the connecting pipe should be left as the pressure changes.
3. The pipe of joint box is not allowed to be pinched, stretched and bear negative torque to avoid joint damage, pipe damage, rupture or fall off.
4. For screw threads of pipe and joint type, do not mix the chip dust of pipe threads and sealing material fillets into the pipe. When using the
sealing tape, the thread head is about to empty out 2 tooth spacing without winding the sealing tape.
Quick connection service environment:
1. Quick joint should not be used in electrostatic sensitive situations, which may cause system malfunction and malfunction.
2. Quick joint shall not be used in the event of spark. The spark may cause fire hazard.
3. Do not use in the environment where cutting oil, lubricating oil and cooling liquid contact directly.
2.Simple and convenient disassembly. The oval release ring is more convenient to disassemble.
3.Precoated ptfe sealant for pipe thread has good sealing performance.
4.The plastic pipe can rotate 360" after installation.
Package Included: 1 X Pneumatic connector
