- Stock: In Stock
- Model: ST22001649
- SKU: ST22001649
TBS Version comes Caddx Vista Polar
Other version comes Nebula Nano
Notice:
The Camera and Camera Mount for Gopro are NOT Included.
ONLY Include fixing mount Base.
Specification:
Model: Protek35 HD

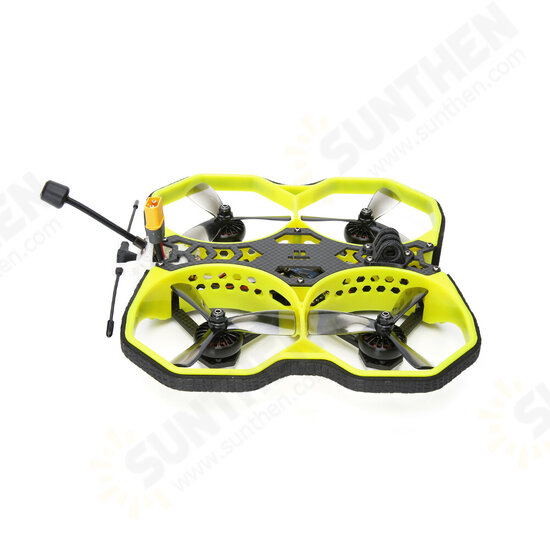

Item Name: 3.5 Inch 151mm F4 6S Whoop FPV Racing Drone
Wheelbase: 151mm
Bottom Plate Thickness: 3.5mm
Upper Plate Thickness: 2mm
Size: 118*91mm
Weight: 348±10g
| Beast AIO F7 45A FC ESC | Model: Beast F7 45A AIO (MPU6000) 25.5x25.5 FC: MCU: BGA-STM32F745 Gyro: MPU6000 Blackbox: 8Mb Onboard Flash BEC output: 5V 2.5A Barometer: BMP280 Connector: Micro-USB OSD: AT7456E FC Firmware：IFLIGHT_F745_AIO Mounting pattern: 25.5*25.5mm φ3mm Dimensions: 32.5*32.5mm Weight: 8.5g ESC: Uarts: 5 Current Sensor: Yes Input: 2-6S LIPO Current scale: 200 Constant: 45A / Burst: 50A BLHeli: BLHeli-S Telemetry: no ESC Firmware: BlheliS G-H-30 Mounting pattern: 25.5*25.5mm/Φ3mm Dimensions: 32.5*32.5mm |
| XING 2205 2300KV Brushless Motor | Model: XING 2205 KV: 2300KV Lipo: 6S |
| Nazgul 3535 Propeller | Model: Nazgul 3535 Item Name: 3535 3.5x3.5 3.5 Inch 3-Blade Propeller Quantity: 2 CW & 2 CCW |
| Optional Receiver | BNF-DJI Version: with Built-in DJI Receiver; Frsky XM+ RX Version: with Built-in DJI RX and with External Frsky XM+ RX Frsky R-XSR RX Version: with Built-in DJI RX and with External Frsky R-XSR RX TBS Cr0ssfire Nano RX Version: Built-in DJI RX and w/ External TBS Cr0ssfire Nano Receiver |
| Recommended Battery (No Included): | Recommend 6S 1300mAh Lipo Battery XT60 Plug Flight Time: 9-10mins Flight Time(with camera for Gopro): 6-7mins |
Features:
*No Props or frame in view!
*High performance True-AIO Board Beast Whoop F7 AIO 45A to save weight and space
*T700 Quality Carbon (40% more tensile strength compared to common 3K carbon)
*Lightweight one-piece frame design (Less flexibility, more Rigid, more Durable)
*Low Resonance frame construction (Less Jello, more Cinematic footage)
*Nebula Nano Digital HD System
*Butter smooth 2205 2300KV 12/M2 Mounting Hole (6S)
*Pre-tuned with smooth freestyle settings
Package Included:
1 x iFlight Protek35 HD 3.5 Inch 151mm Whoop FPV Racing Drone 6S
4 x Propeller
1 x Battery Tie
1 x Screw Set
1 x EVA Cotton Strip
