- Stock: In Stock
- Model: ST22000953
- SKU: ST22000953
Notice:
At present, Protek25 HD comes with Caddx Polar Vista Digital System.
December 14th, 2021.
Notice:

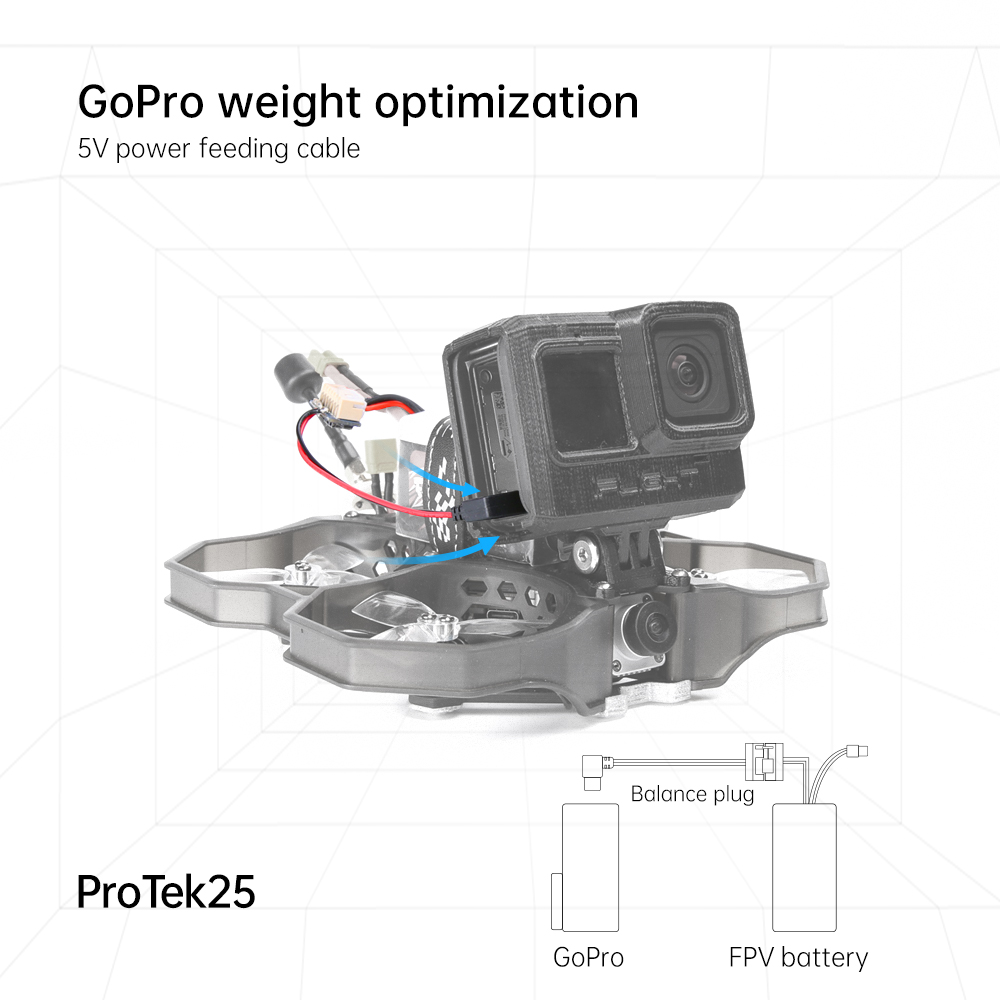

The Camera and Camera Mount for Gopro are NOT Included.
ONLY Include fixing mount Base.
Specification:
Model: Protek25 HD
Item Name: 2.5 Inch 114mm F4 4S Whoop FPV Racing Drone

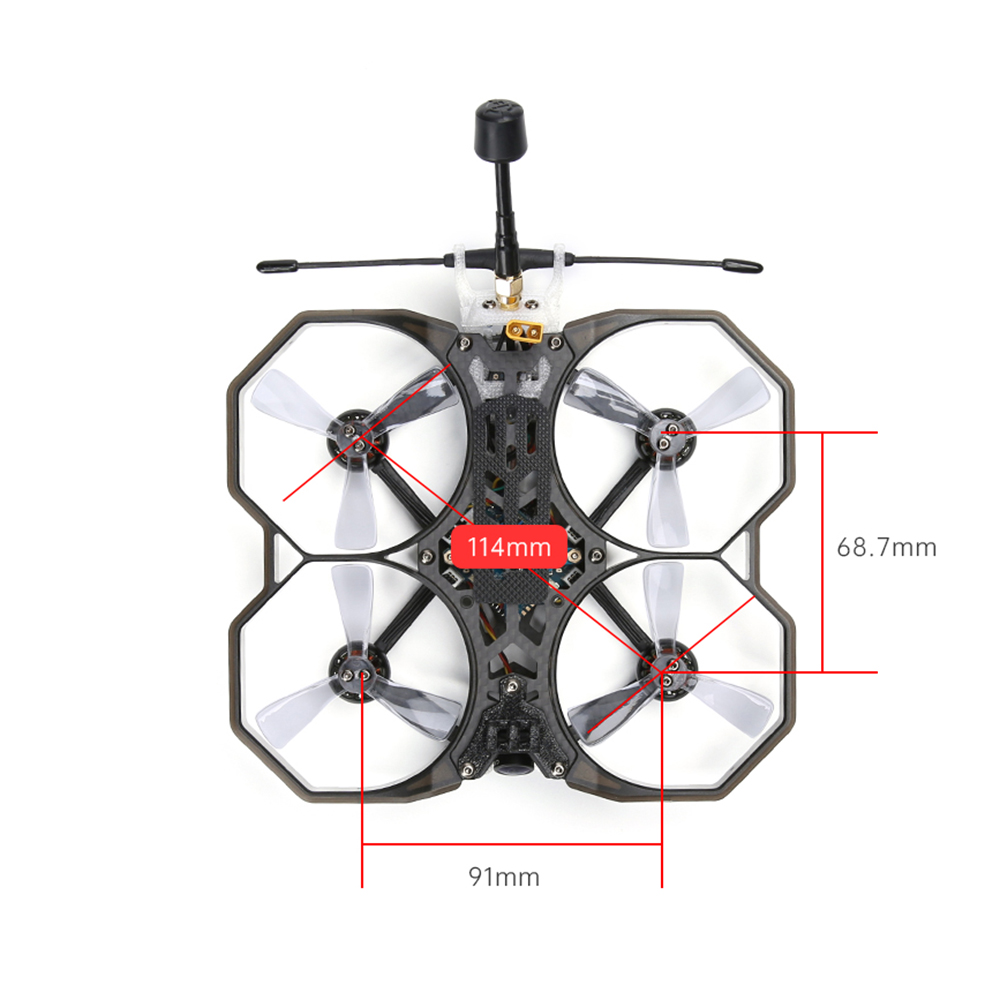

Wheelbase: 114mm
Bottom Plate Thickness: 3mm
Upper Plate Thickness: 2mm
Size: 97*68.7mm
Weight: 194±10g
| Flight Controller | Model: SucceX-D Whoop V3.0 Item Name: F4 Flight Controller AIO 20A 4in1 ESC Firmware Target: IFLIGHT_F411_PRO Connector: Micro-USB Size: 30.5x30.5mm |
| Onboard 20A BL_S 4in1 ESC | Con. Current: 20A Burst Current: 25A BLHeli: BLHeli_S |

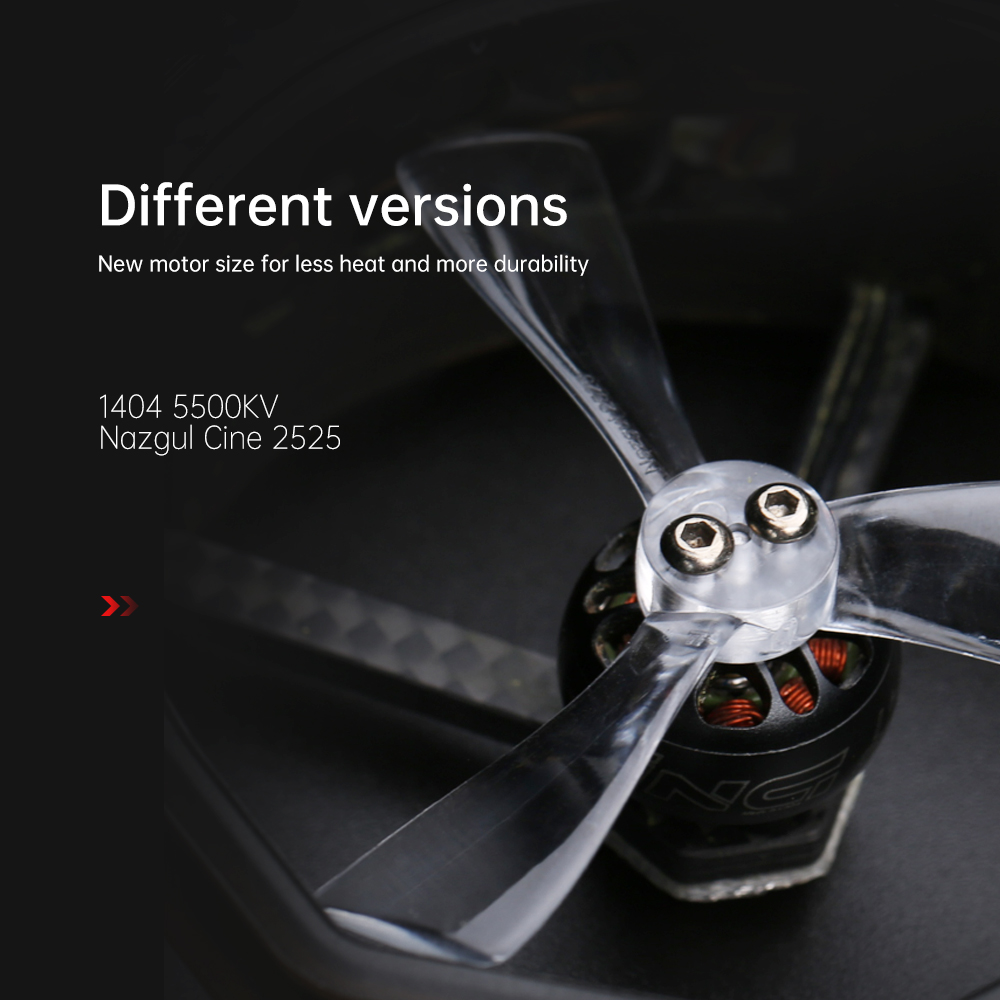

| XING 1404 5500KV Brushless Motor | Model: XING 1404 Item Name: 1404 5500KV 4S Motor Shaft Diameter: 1.5mm Mounting Hole: 9x9, M2 Weight: 9.3g |
| Nazgul Protek 2525 Propeller | Model: Nazgul Protek 2525 Item Name: 2525 2.5x2.5 2.5 Inch 3-Blade Propeller Quantity: 2 CW & 2 CCW |
| Caddx Nubla Nano Digital System | Operating Frequency: 5.725-5.850GHz Transmitter Power(EIRP): FCC/SRRC/MIC: <30dBm, CE: <14dBm Input Power: 7.4-26.4V Model: Nebula Nano Image sensor: 1/3 inch CMOS sensor Resolution: 720p/60fps FPV/Recording FOV: 150° Lens: 2.1mm FPV Latency: 32ms TV system: NTSC&PAL(switchable) Work Temperature : -20℃~+60℃ Weight: 4.5g Demension: 14*14*21mm(can be extended into 19*19mm) |
| Recommended Battery (No Included): | Recommend 4S 850mAh 90C Lipo Battery XT30 Plug Flight Time: 7-9mins |
Features:

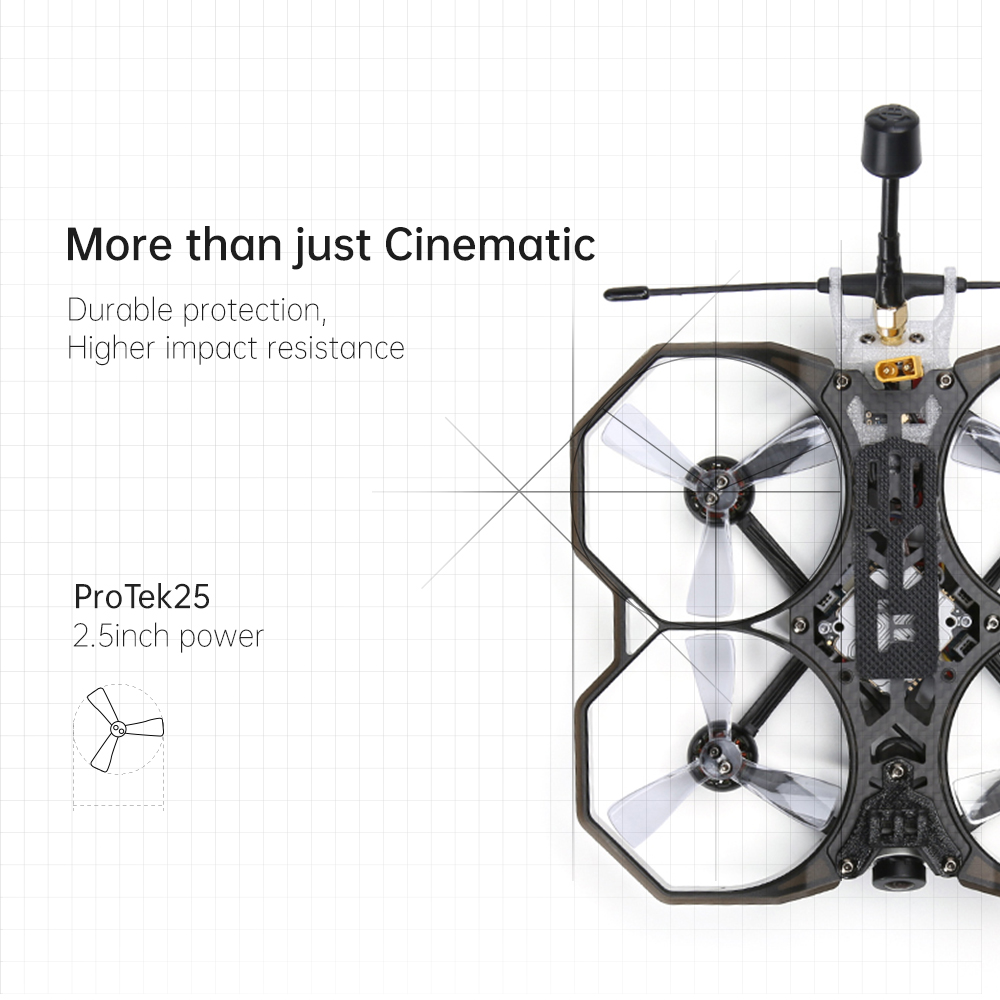

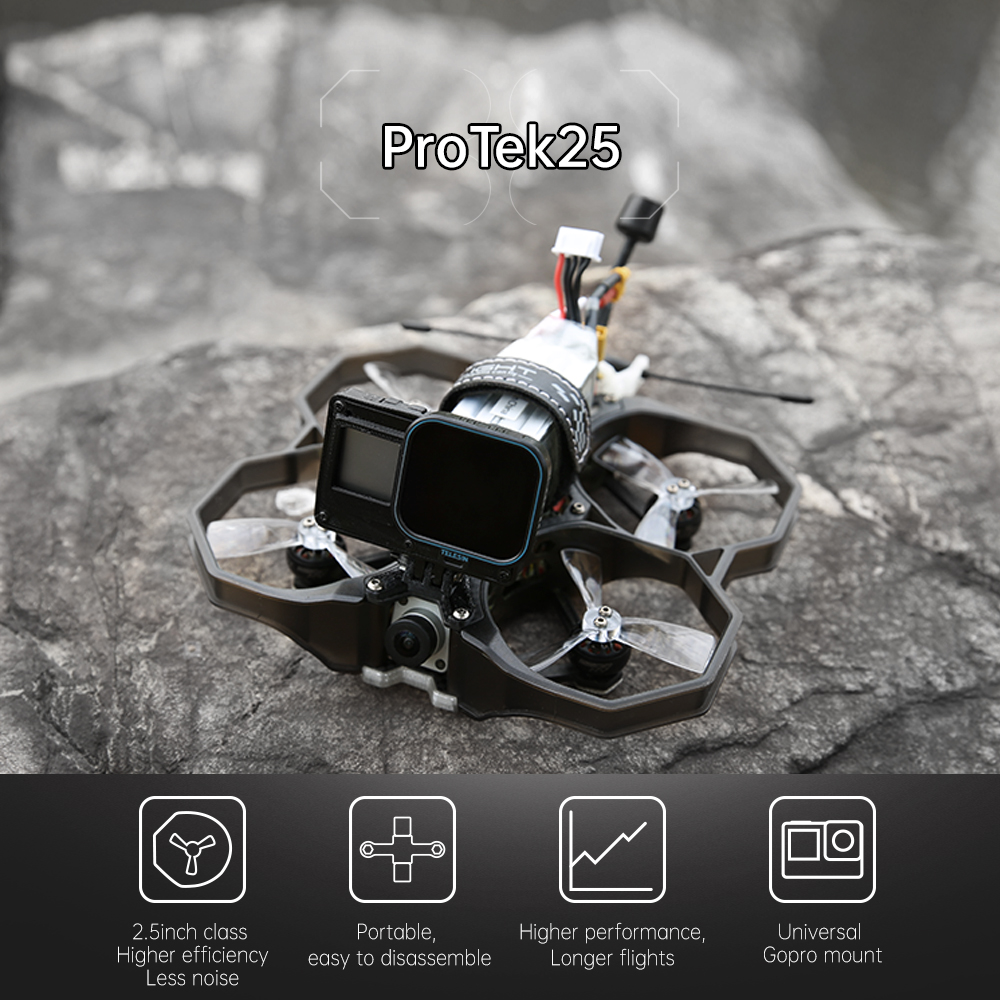

1. The 2.5-inch propeller has higher efficiency and strength; this product is easy to disassemble and easy to carry; reasonable power configuration, longer battery life.

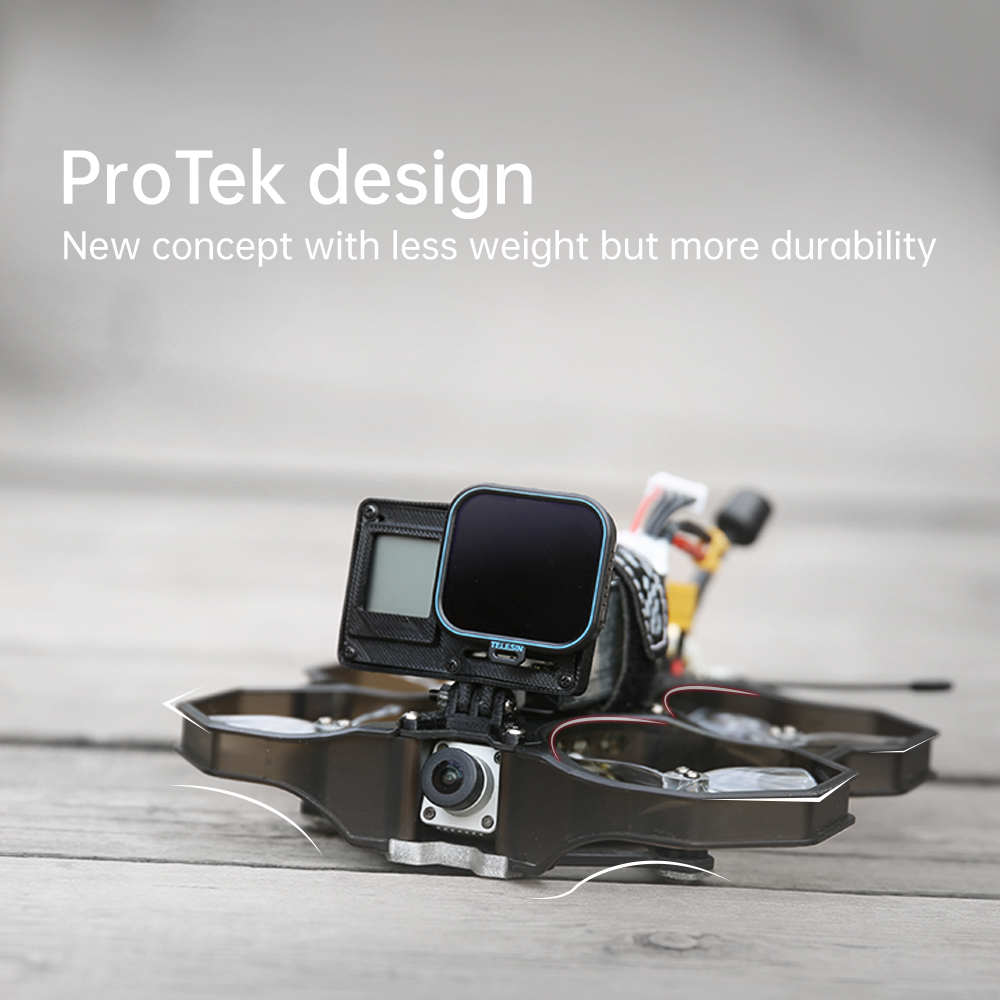

2. Plastic protection ring, new design concept, lighter weight.
3. Excellent structural design brings a more enjoyable control feel to flight.

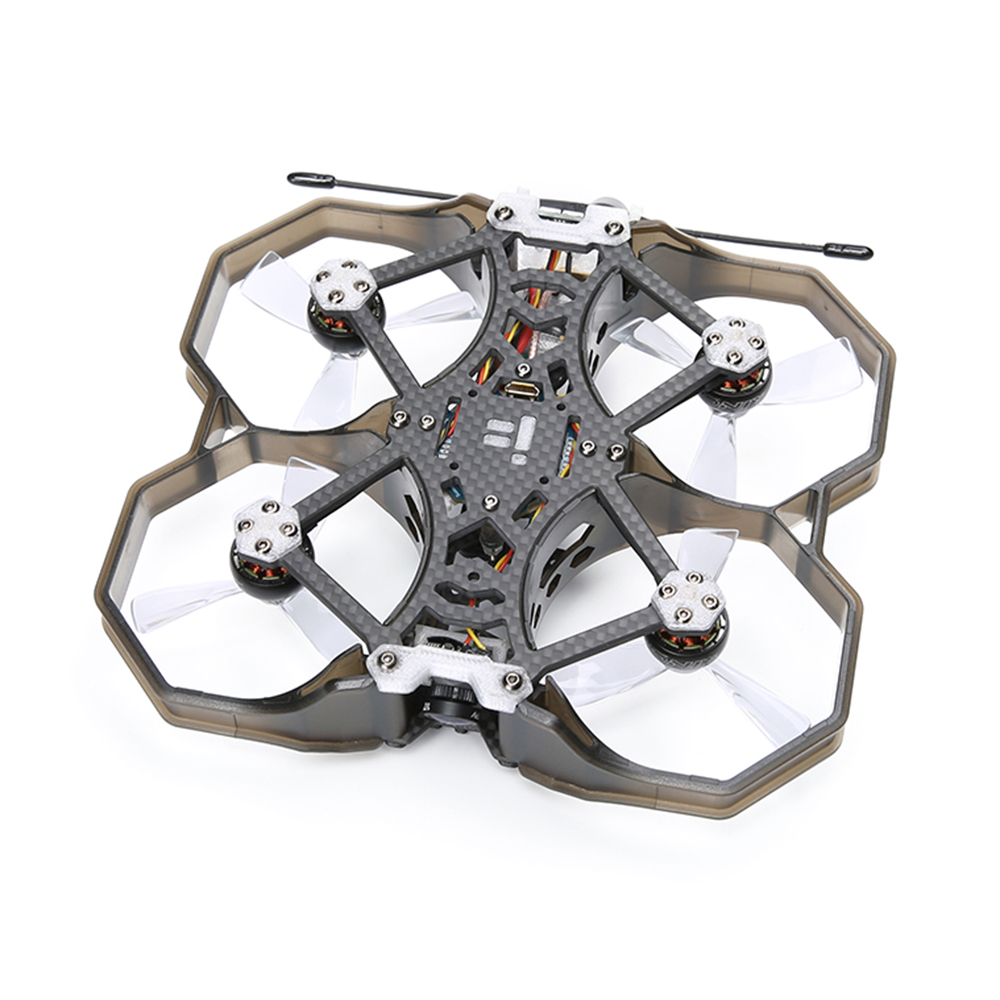

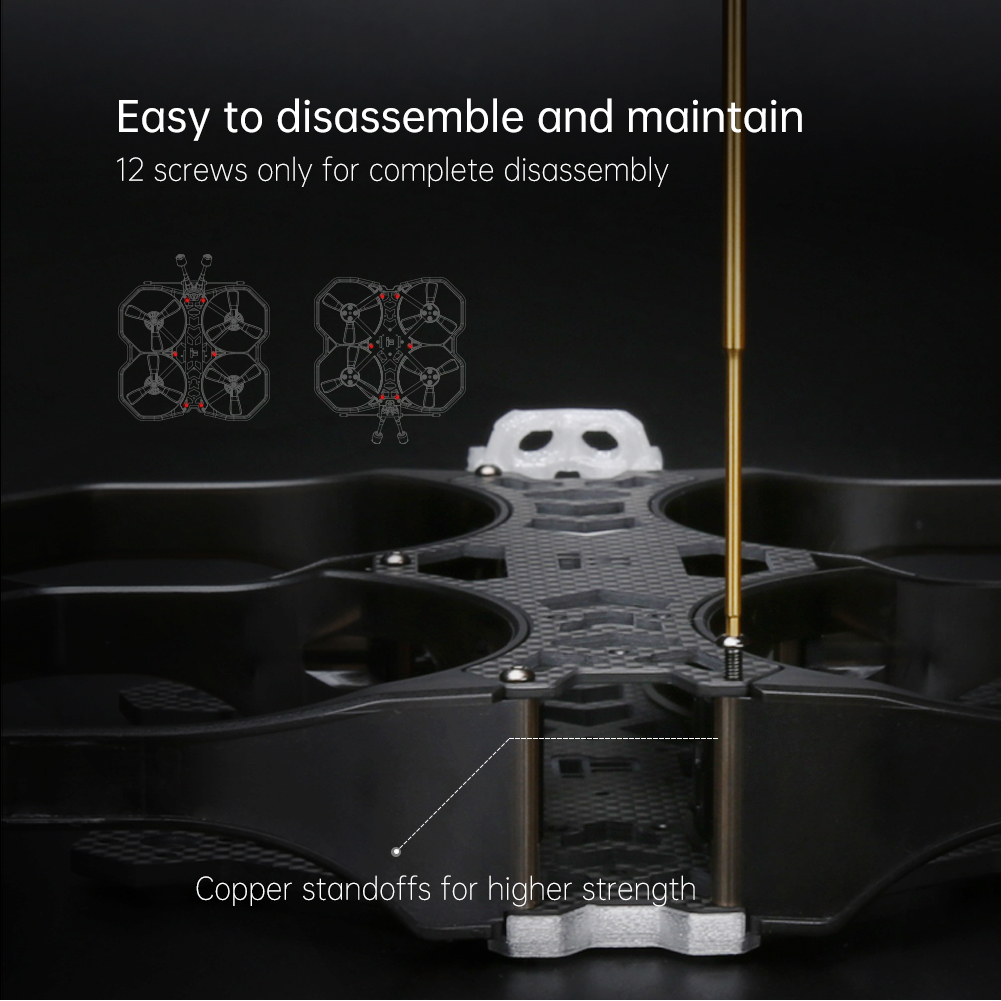

4. The frame is designed with inlaid copper pillars for easy disassembly and maintenance. It only needs to disassemble the top and bottom plates with a total of 12 screws.

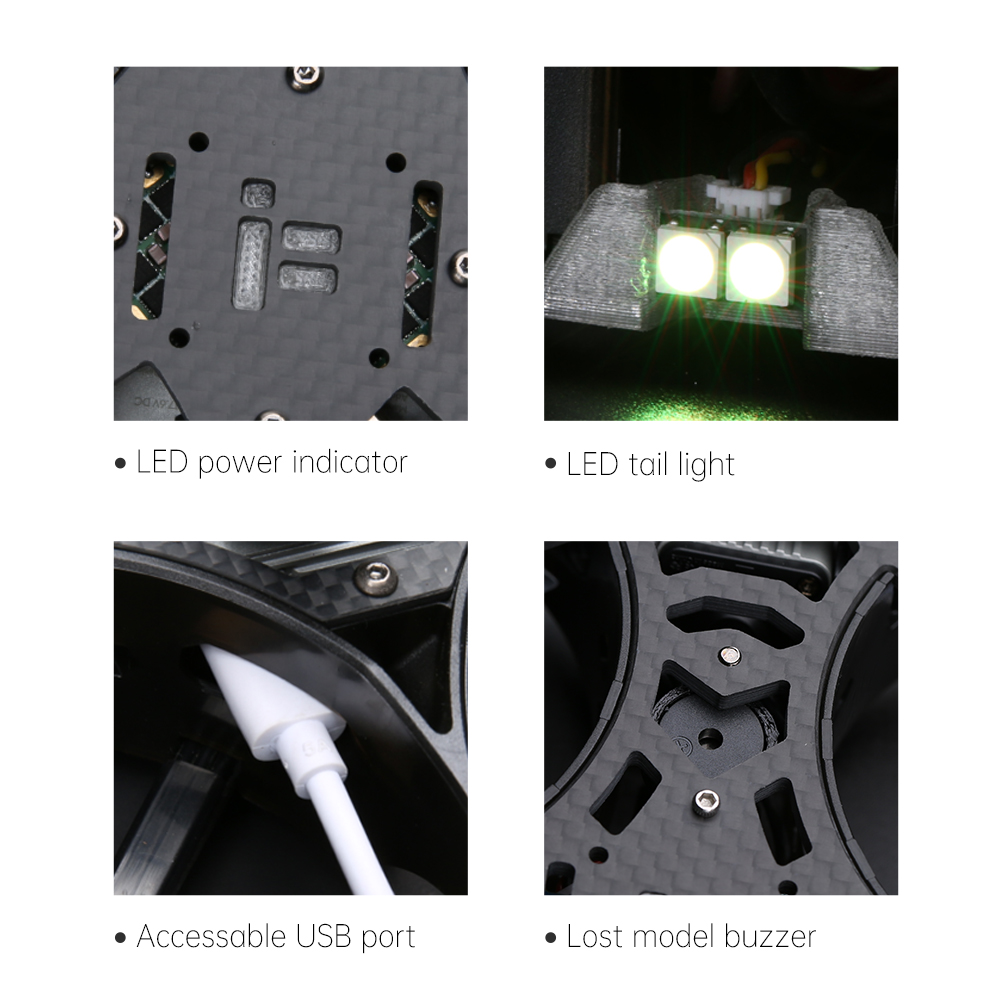

5. With LED on the Drone Tail, the LED Color is changable which can reminds you the Battery consumption condition.
6. It is more flexible than GreenHornet for FPV Racing.
Package Included:

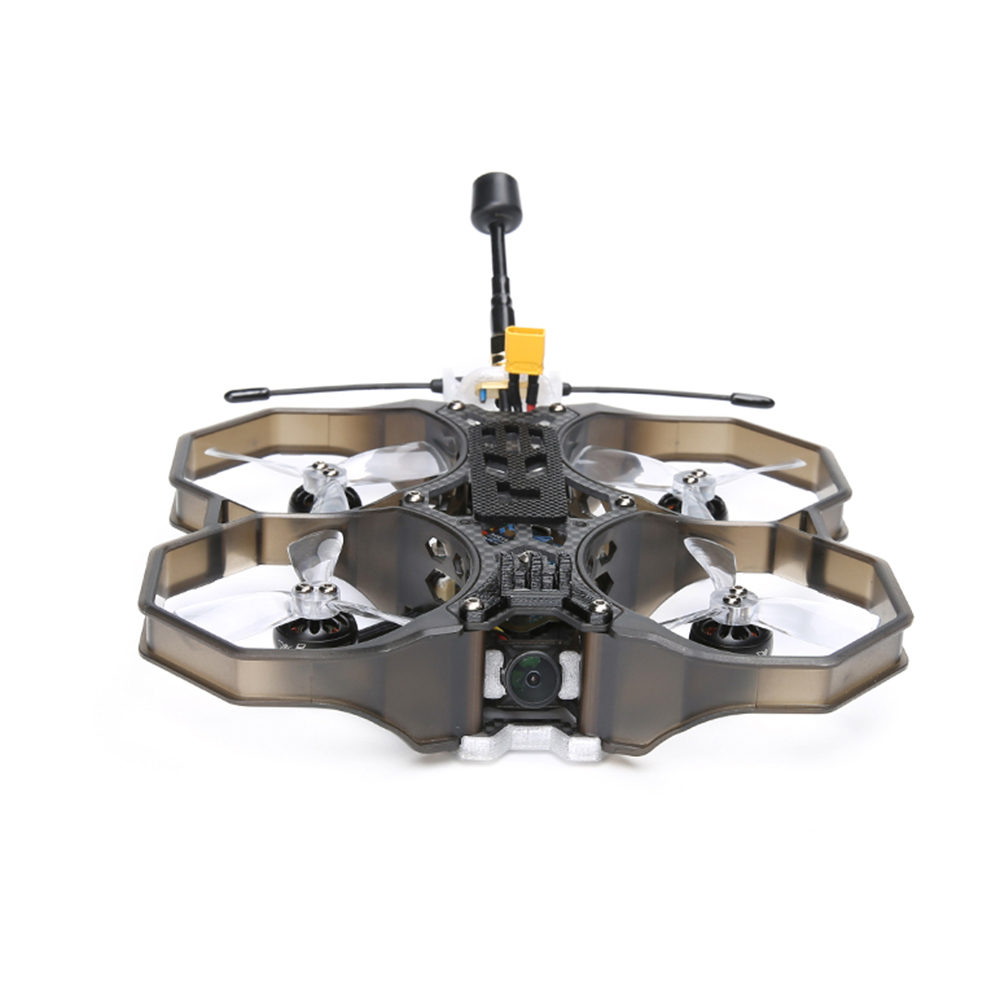

1 x Protek25 HD 2.5 Inch 114mm Whoop FPV Racing Drone
4 x Propeller
1 x Battery Tie
1 x Screw Set
1 x EVA Cotton Strip
