Description:

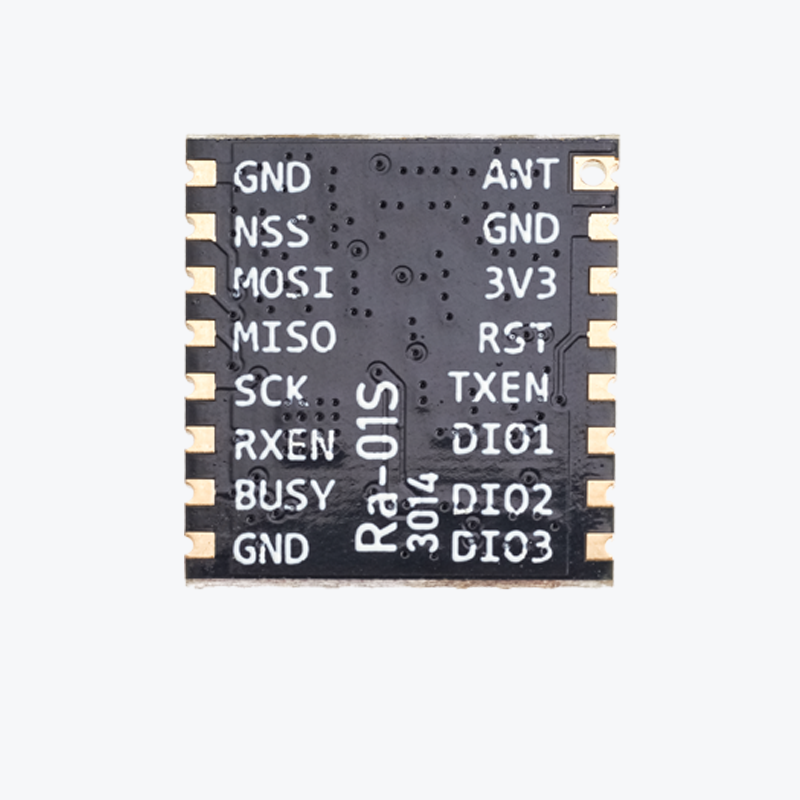

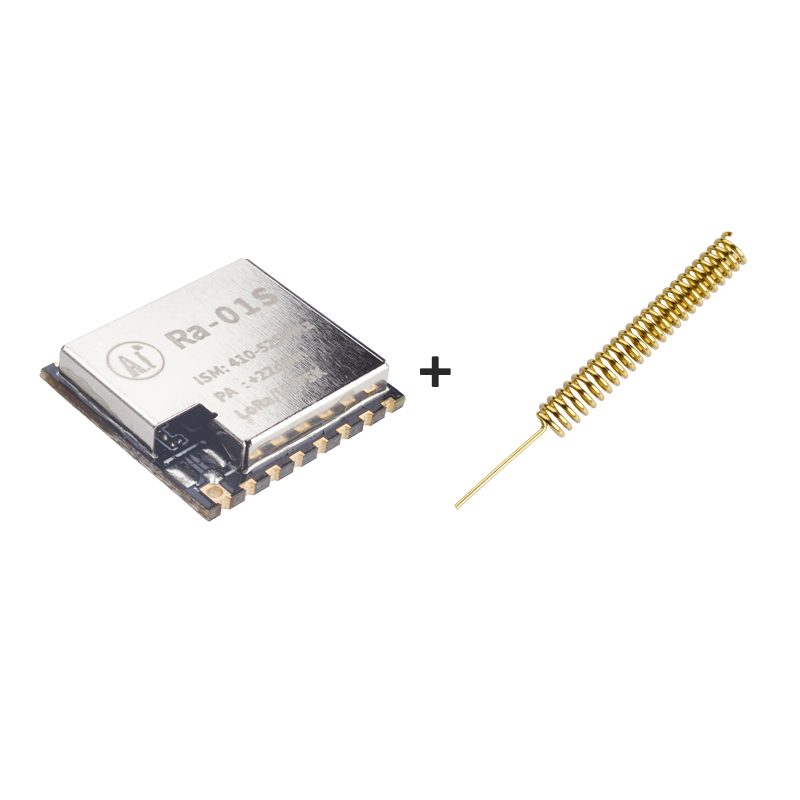

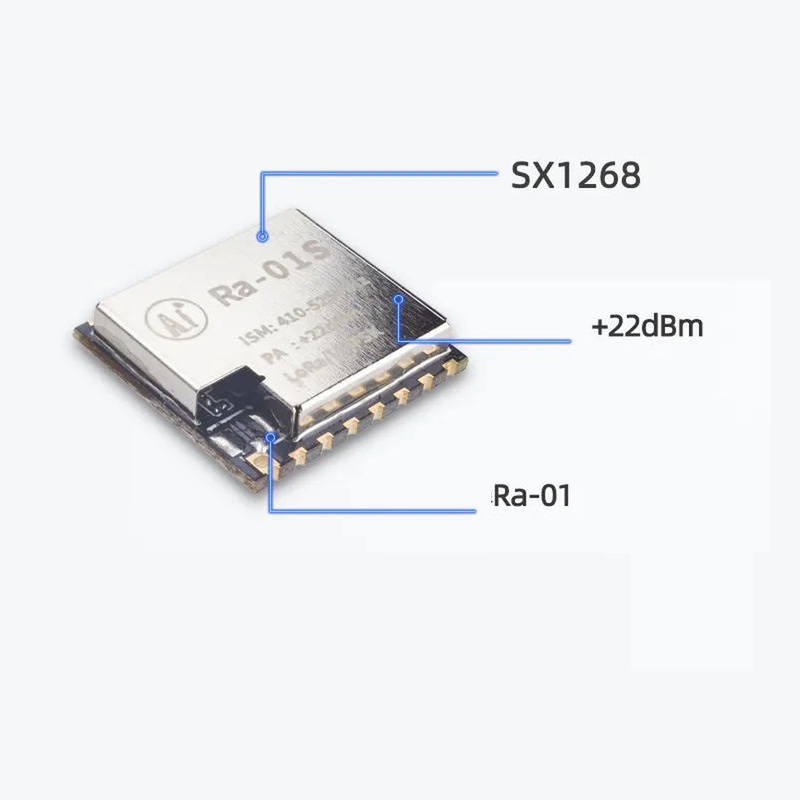

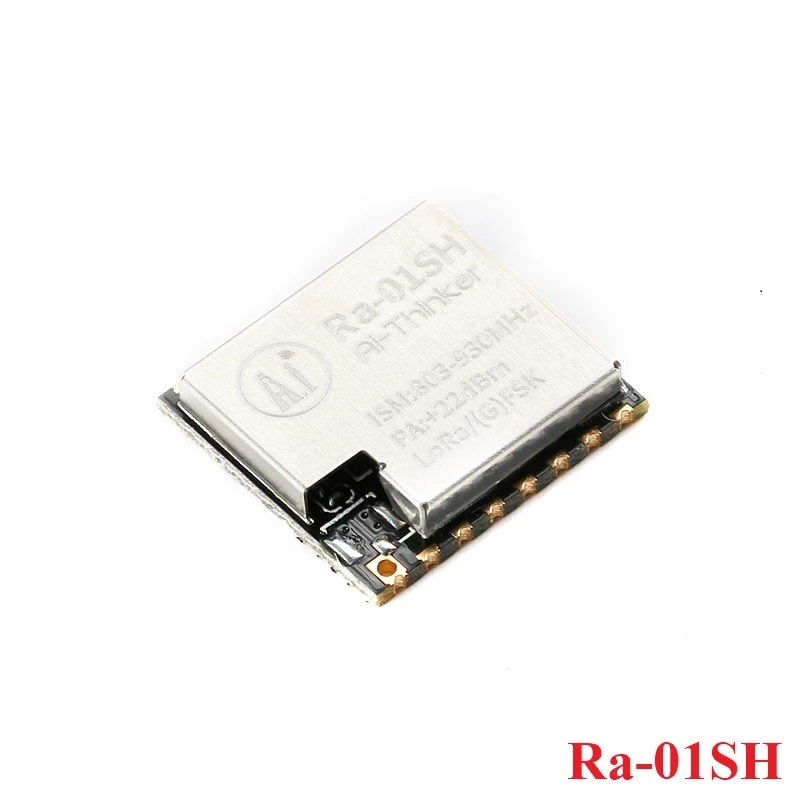

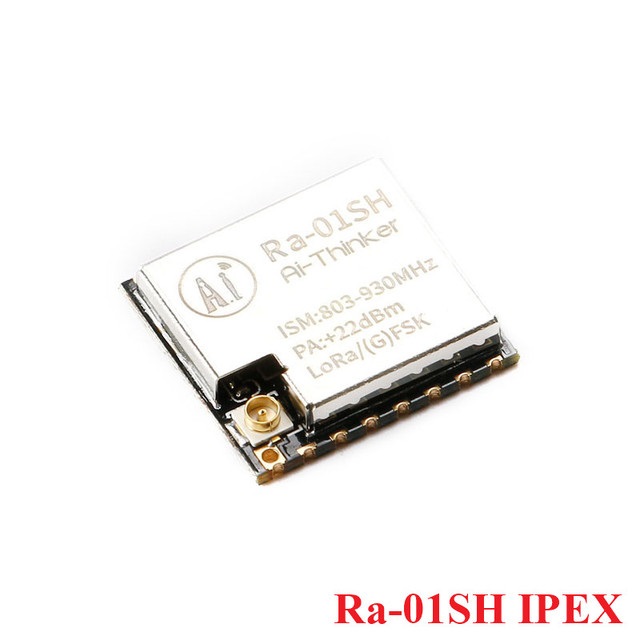

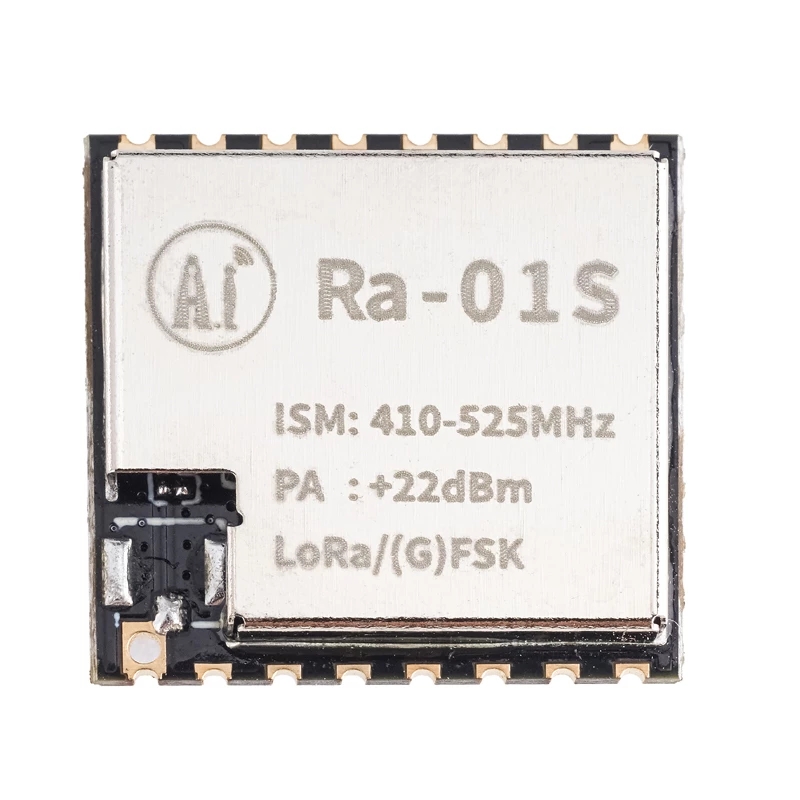

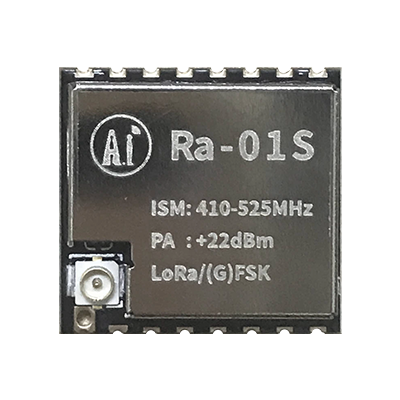

Ai-Thinker® LoRa series modules (Ra-01SH/Ra-01S) are designed and developed by Anxinke Technology. This module is used for ultra-long-distance spread-spectrum communication. Its radio chip SX1262/SX1268 mainly uses LoRa™ remote modem for ultra-long-distance spread-spectrum communication. It has strong anti-interference and can minimize current consumption. With SEMTECH's LoRa™ patented modulation technology, SX1262/SX1268 has a high sensitivity of over -148dBm, a power output of +22dBm, a long transmission distance and high reliability. At the same time, compared to traditional modulation technology, LoRa™ modulation technology also has obvious advantages in anti-blocking and selection, which solves the problem of distance, anti-interference and power consumption that traditional design solution cannot simultaneously take into account. Application areas are used in automatic meter reading, home building automation, security systems, and remote irrigation systems.

Features:

LoRa™ modem

Support FSK, GFSK, MSK, GMSK, LoRa™ and OOK modulation methods

Support frequency band 803MHz~930MHz(Ra-01SH)/410MHz~525MHz(Ra-01S)

Working voltage is 3.3V, maximum output is +22dBm, maximum working current i140mA

Low power consumption characteristics in receiving state, the minimum receiving current is 4.2 mA, standby current is 1.6mA

High sensitivity: as low as -140dBm

Small volume dual row stamp hole patch package

The module adopts SPI interface, half-duplex communication, with CRC, up to256-byte packet engine

Parameter:

Model: Ra-01SH/Ra-01S

Package: SMD16
