1422mm Wingspan 1/12 Scale Balsa Wood Laser Cut RC Airplane Glider KIT

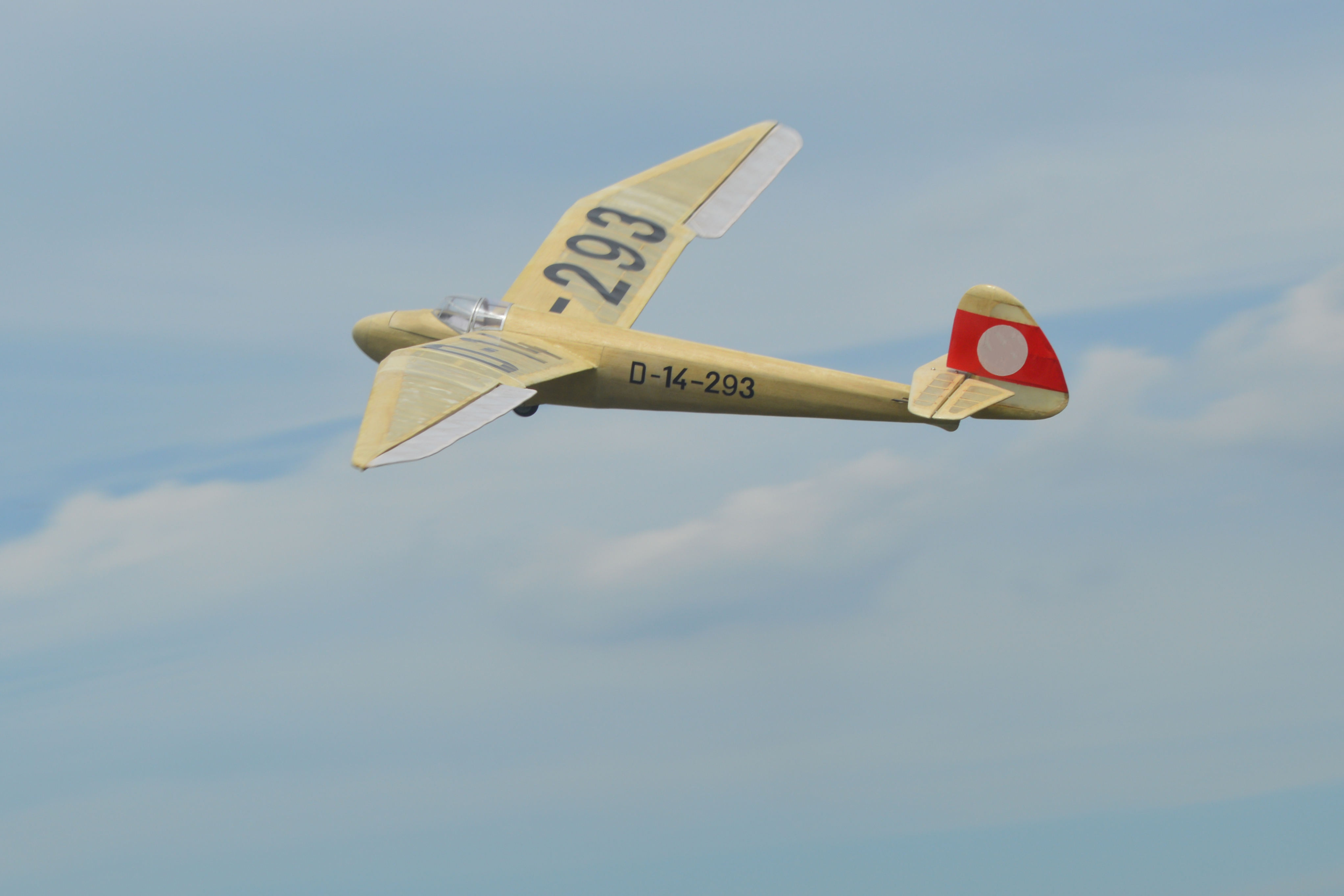

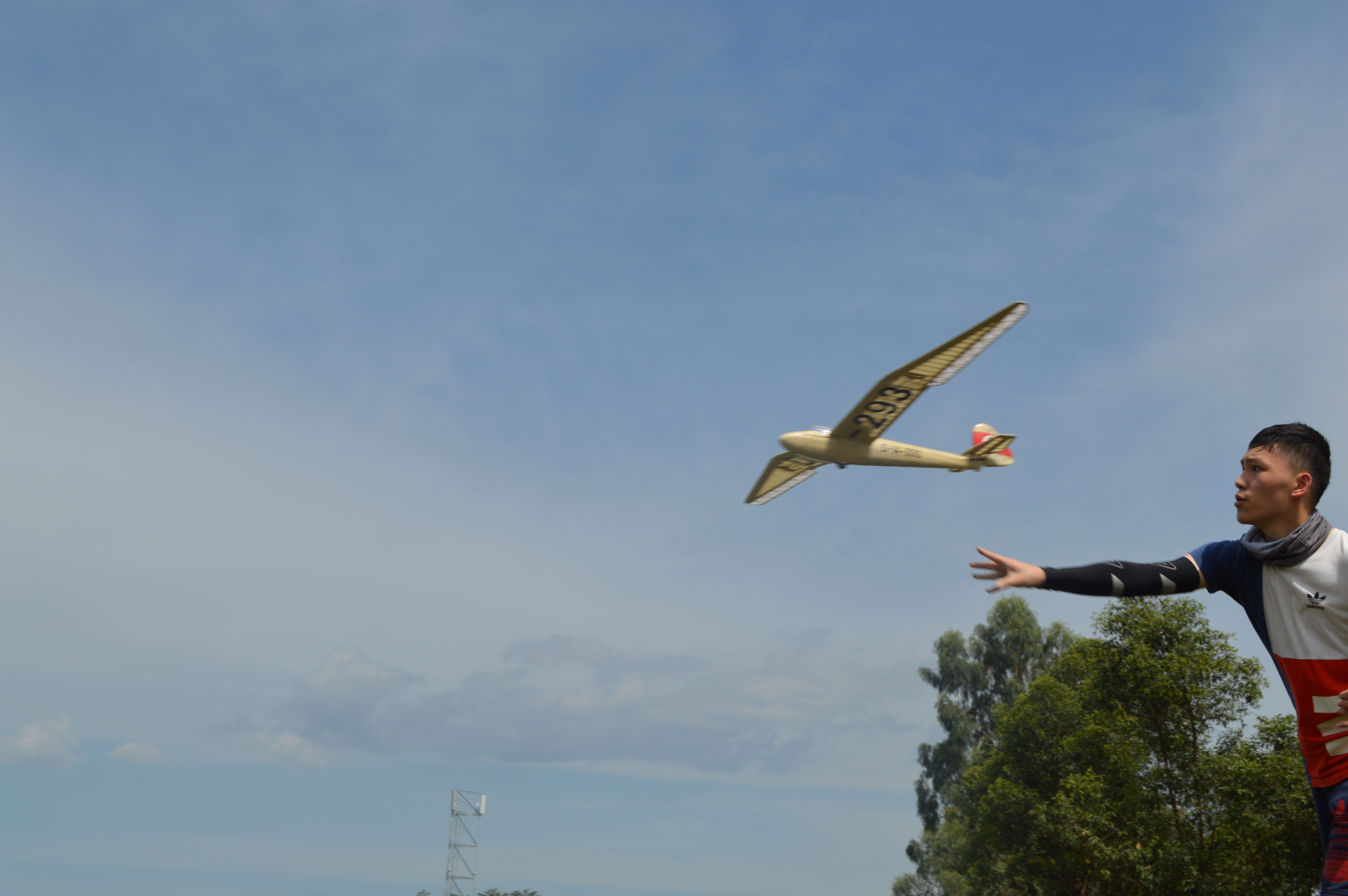

This model builds into a wonderful glider for many hours of flight in the summer dusk. The construction is challenging and great fun and results in a very reliable model airplane with a fun factor guaranteed. We are always available to answer any questions you may have.

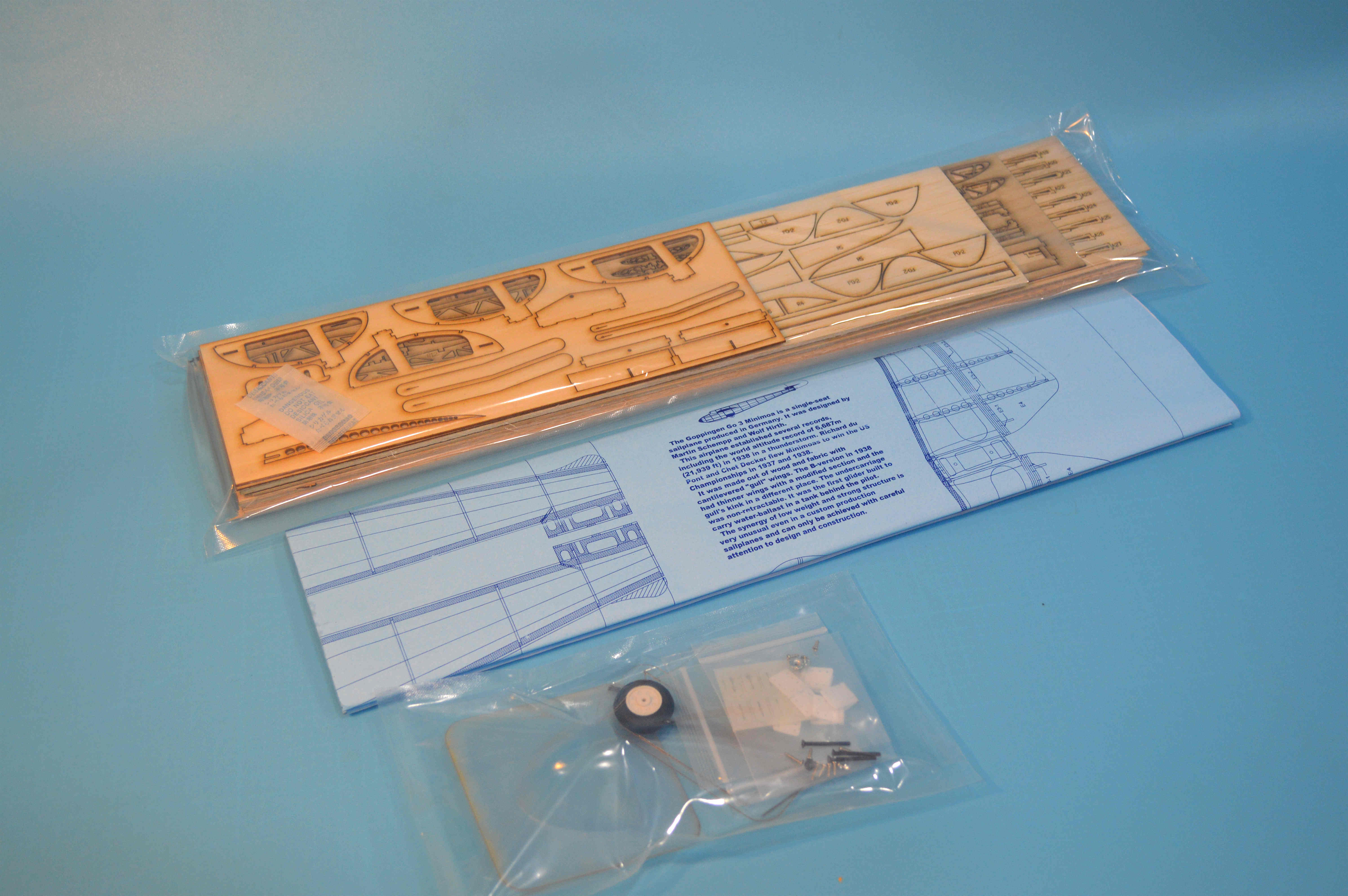

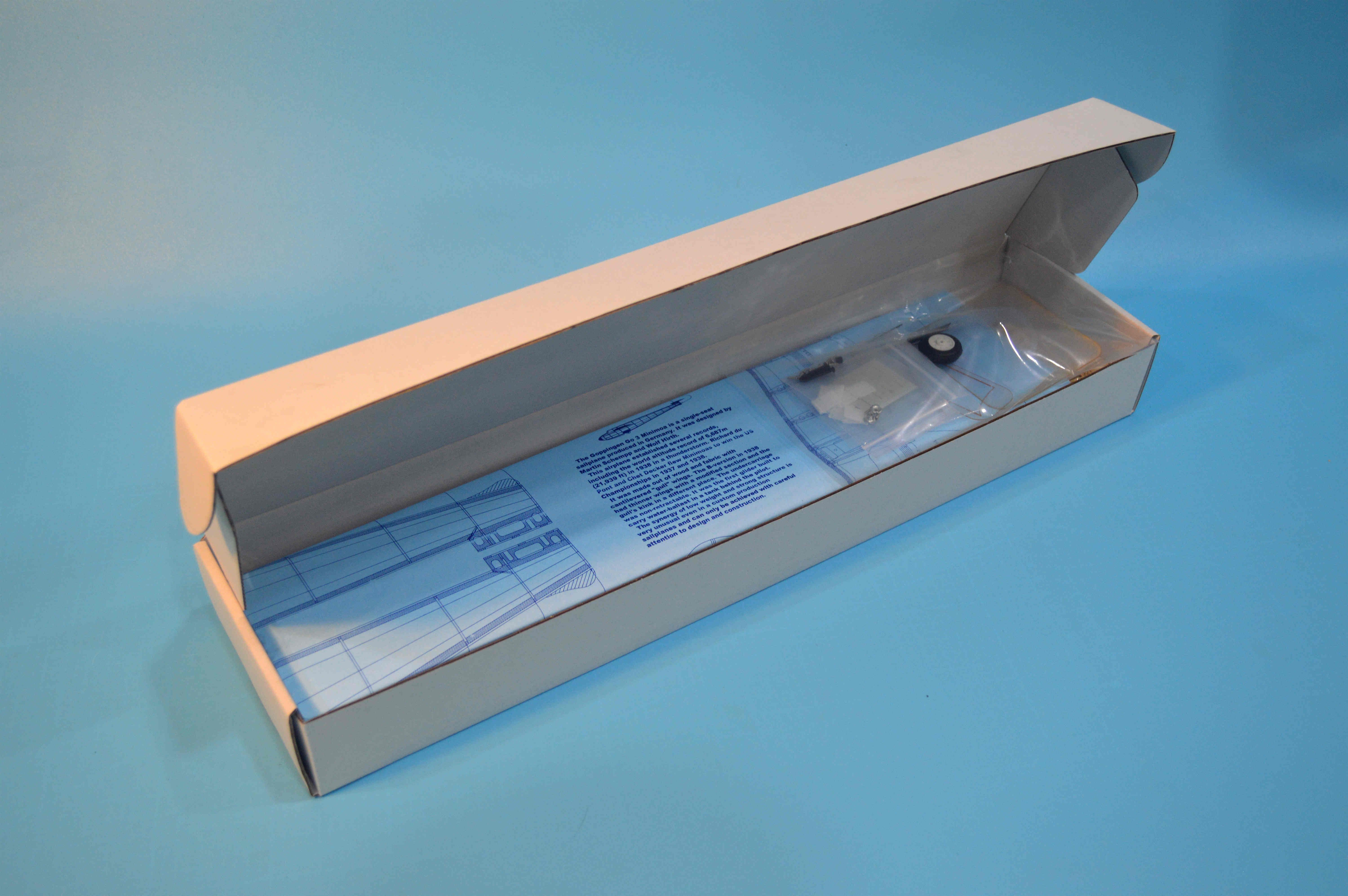

Within the box, this kit is equipped with 18 sheets of laser cut balsa, plywood, a 1:1 full scale drawing, and a full set of hardware parts including a push rod. This kit is also using a brand new numbering system for the model where each part is marked allowing the modeler to easily build it according to the manual which contains 200+ pictures with notes.

Designed for radio control slope soaring, the model can also be converted to free flight for those with appropriate model building skills.

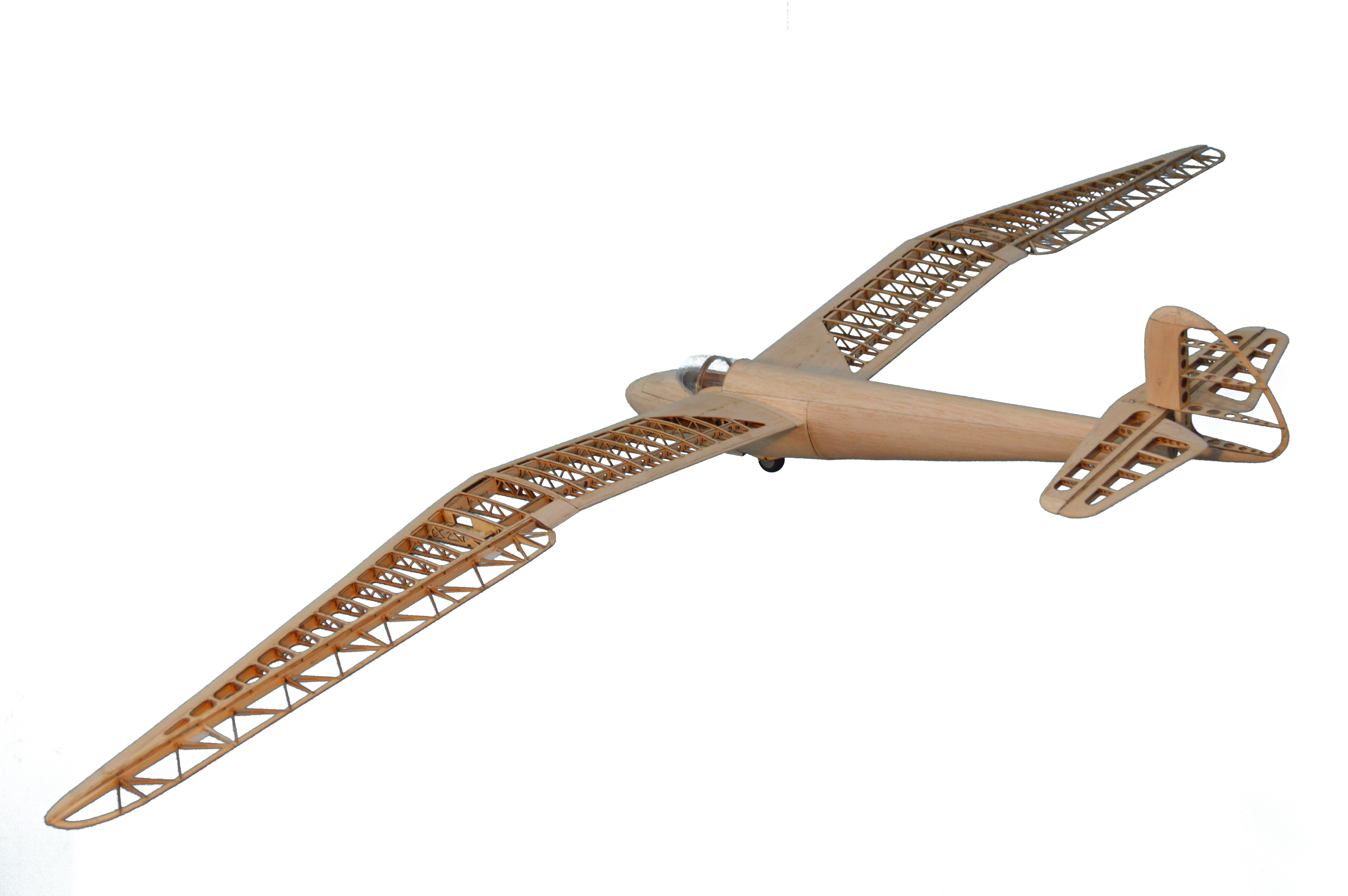

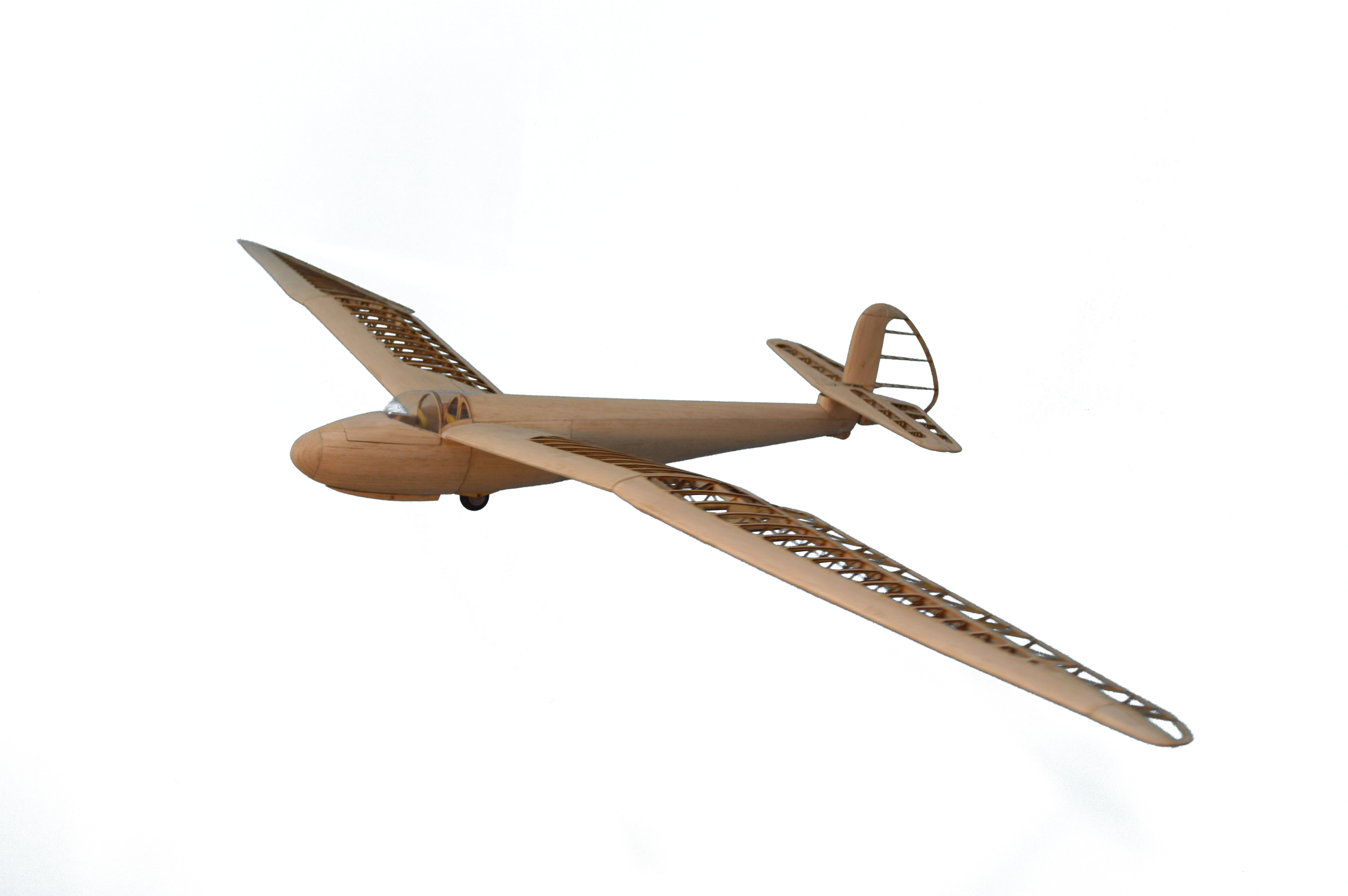

Or, the kit can be built as a beautiful static display model.

Specifications:

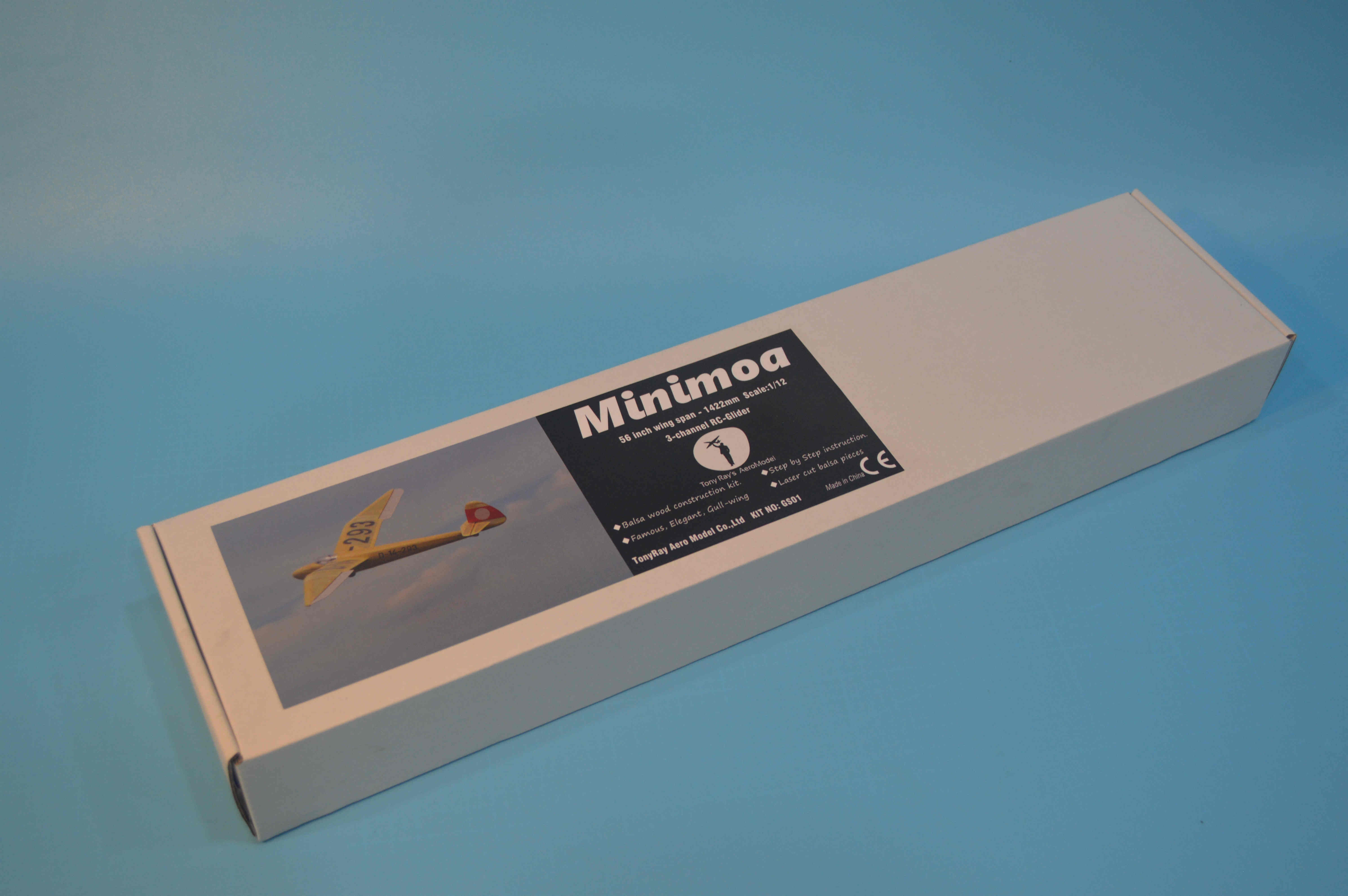

Item Name: Minimoa

Material: Blasa Wood

Wingspan: 1422mm

Fuselage Length: 623mm

Wing Area: 13.7 sq dm

Flying Weight: 300g-320g

Scale: 1/12

Required Parts (Not Included):

Servo: 5g Mini Servo

Radio System: 2.4GHz 4CH

Questions and Answers About the Flight Characteristics:

1. Is the model towable?

Yes, that is possible. To do this, however, you have to build in a mechanism yourself in order to disconnect the high start line.

2. Can I also install a motor?

Yes, that is also possible. The engine thrust must be at least 205-350 grams. It is recommended to add a power module in the upper part of the nose or on the back (note: not included in the kit, customer modification required)

Note: This is KIT Version,all the electronic devices,Decals (like the German military cross in the picture) and glue are not included.

Package Included:

1x 1.5mm Balsa

11x 1mm balsa

1x 2.5mm balsa

2x 1mm Plywood

1x 1.5mm Plywood

2x 1mm Paulownia

1x Blister PVC canopy(Front)

1x Laser cut PVC canopy(Behind)

1x PVC Tube (Outer dlameter: 6mm, Inner dlameter: 4mm)

1x Carbon Tube (Outer diameter: 4mm, Inner diameter: 3mm)

5x Plastic Hinges

8x Mini paper hinges

3x M2*20 Screws

8x M1.6*5 Screws

2x M1.78*8 Screws

1x M2 Screw nut

2x M2 Four Caws Nut

4x Steel push rod (dlameter: .8mm)

1x Steel wire (diameter: 1mm)

4x Steel wire adapter

2x Carbon rod (diameter: 1mm)

2x Heat shrinkable tube

1x 1: 1 Construction Drawings
