- Stock: In Stock
- Model: ST220012420
- Dimensions: 160.00mm x 155.00mm x 70.00mm
- SKU: ST220012420
Specifications | |

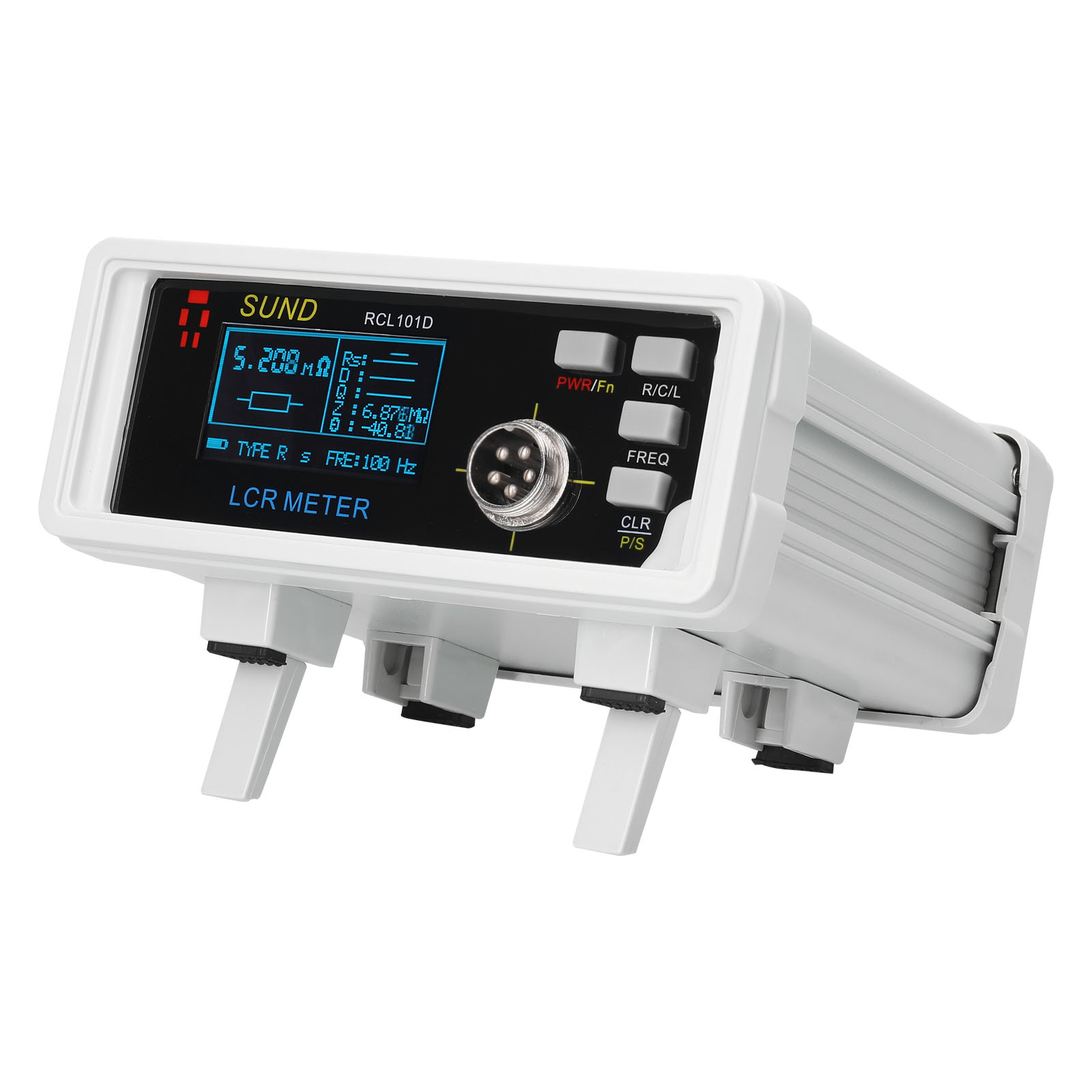

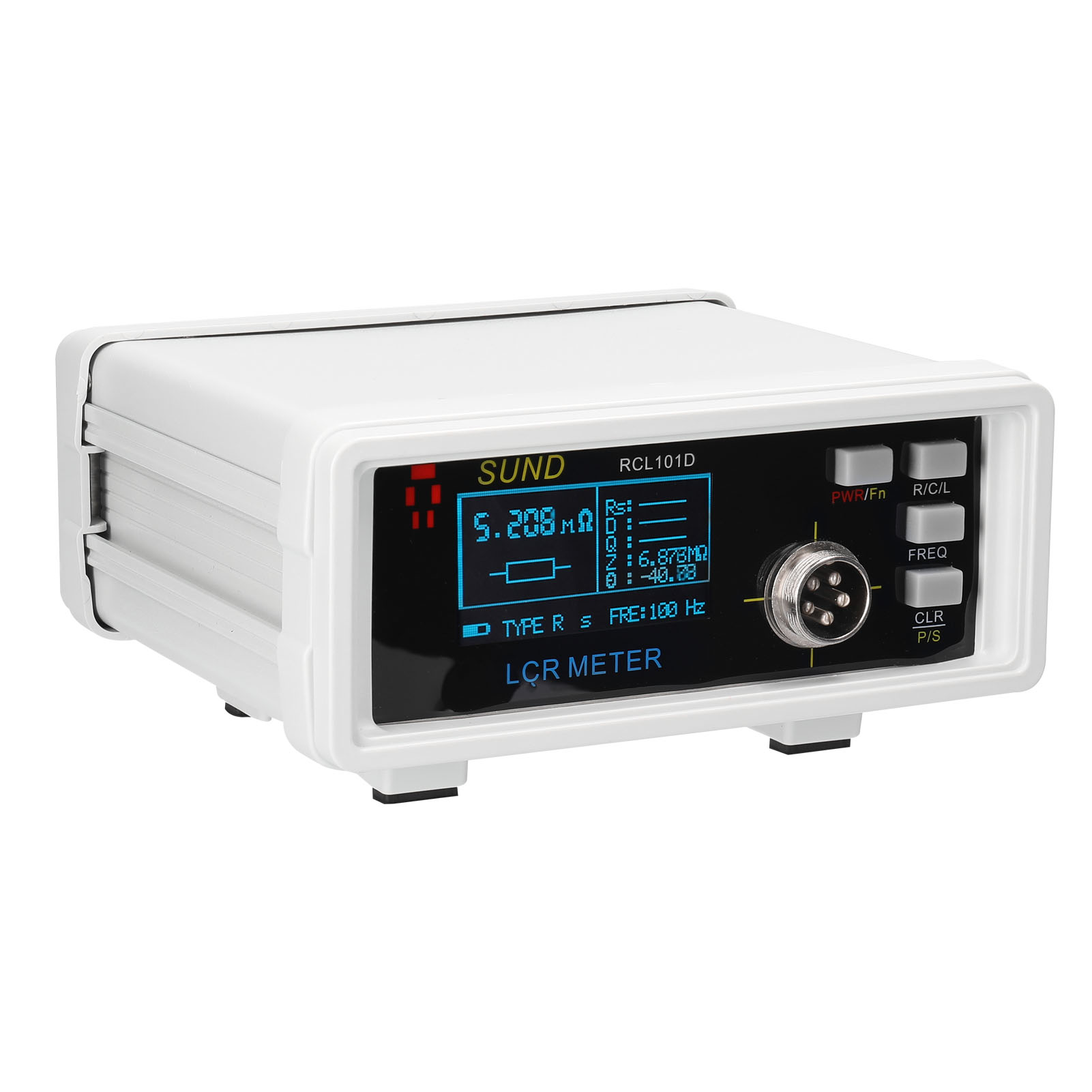

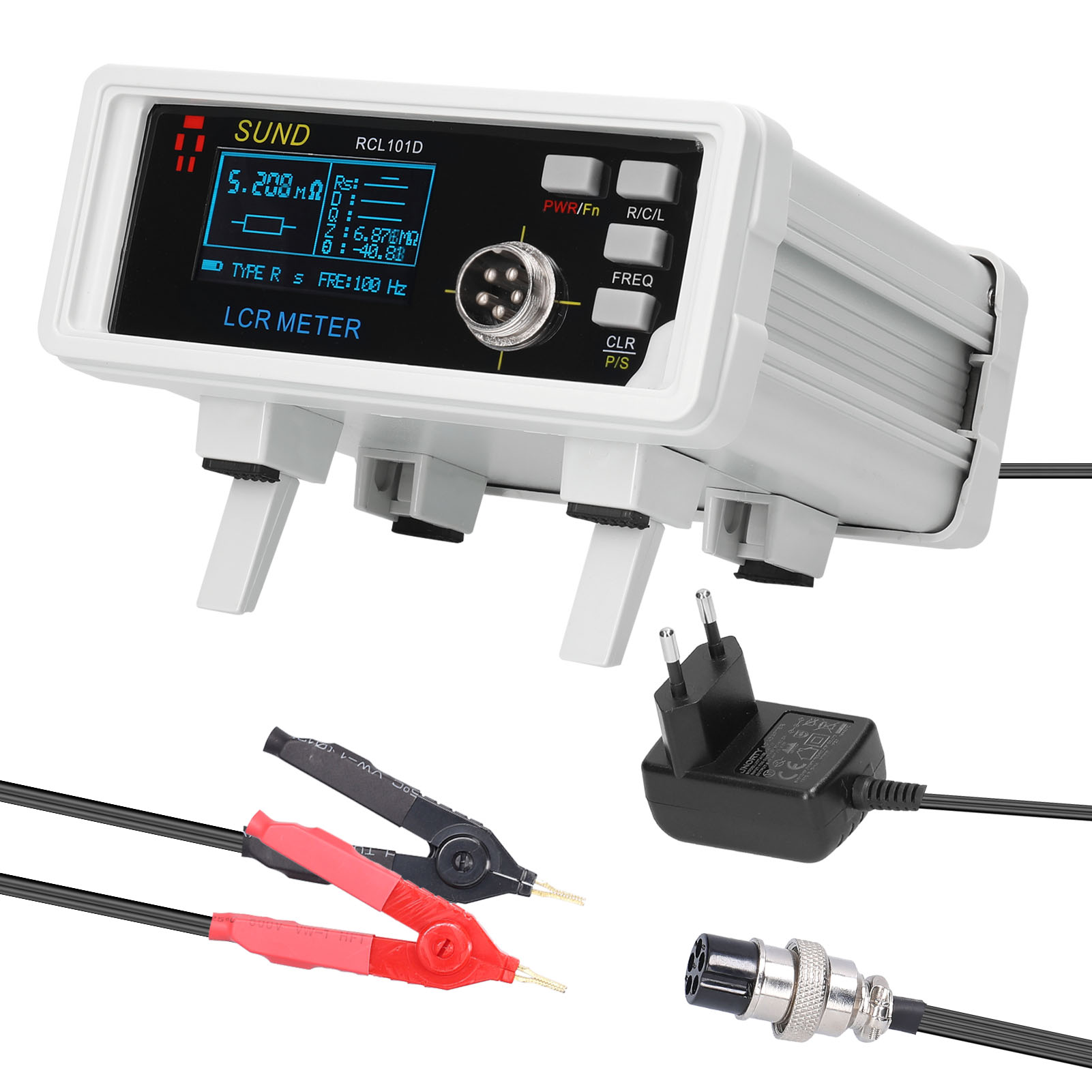

Model | RCL101D |
Measurement function | |
Test parameters | L, C, R, D, Q, ESR, θ |
Basic accuracy | 0.25% |
Equivalent Circuit | Series Parallel |
Range method | automatic |
Test speed | 2 times/S |

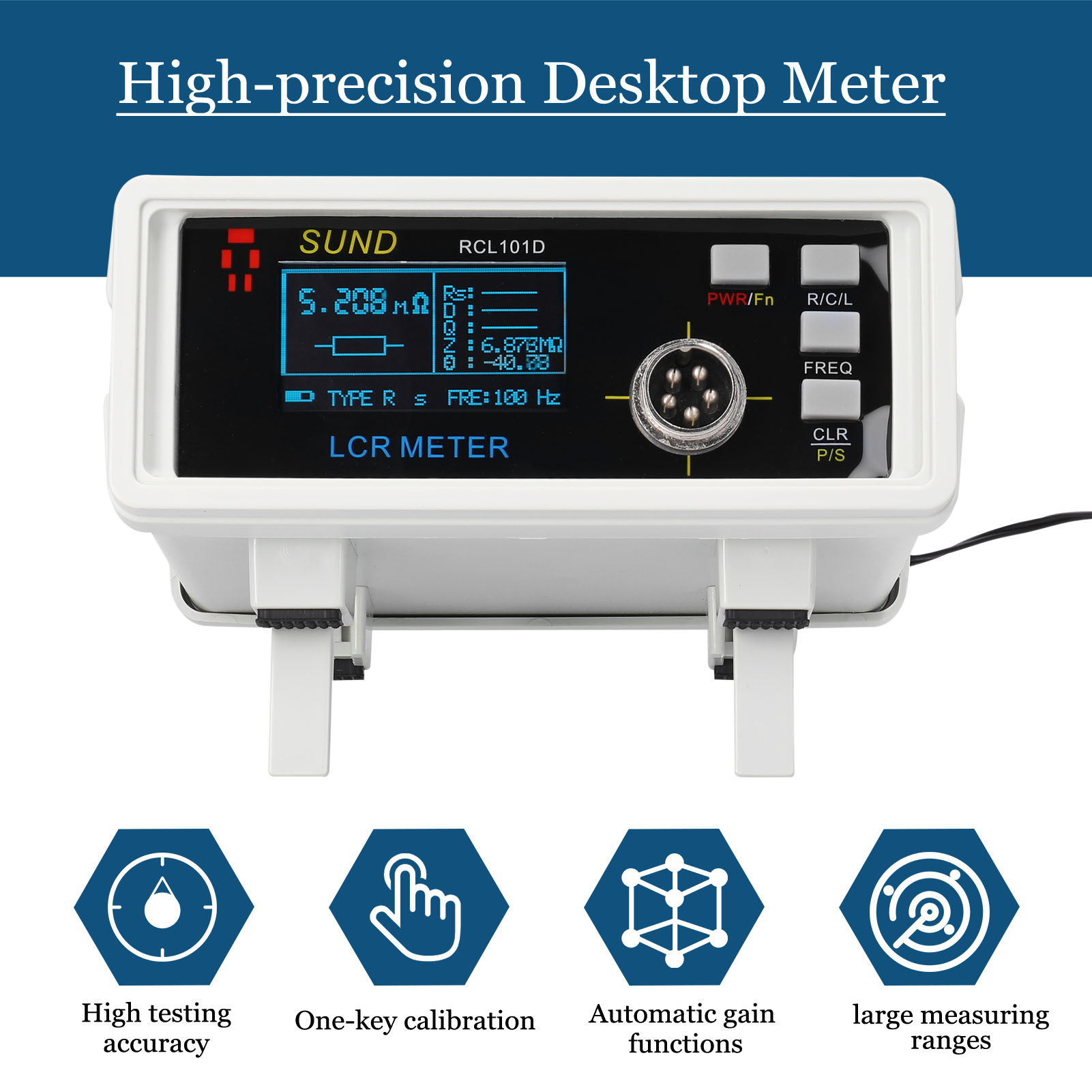

Calibration function | One-key calibration |
Test terminal configuration | Four-terminal Kelvin test line |
Display method | Direct reading |

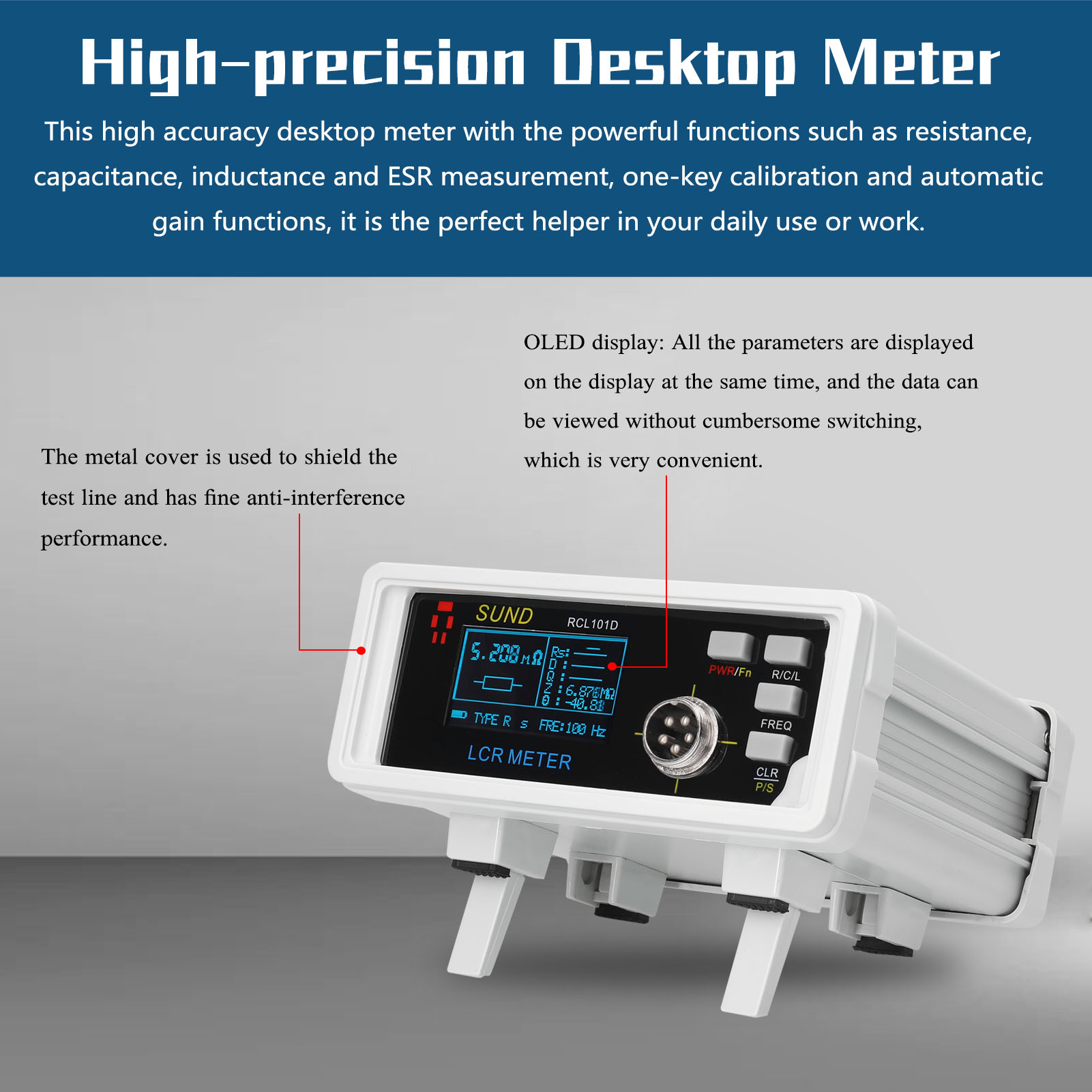

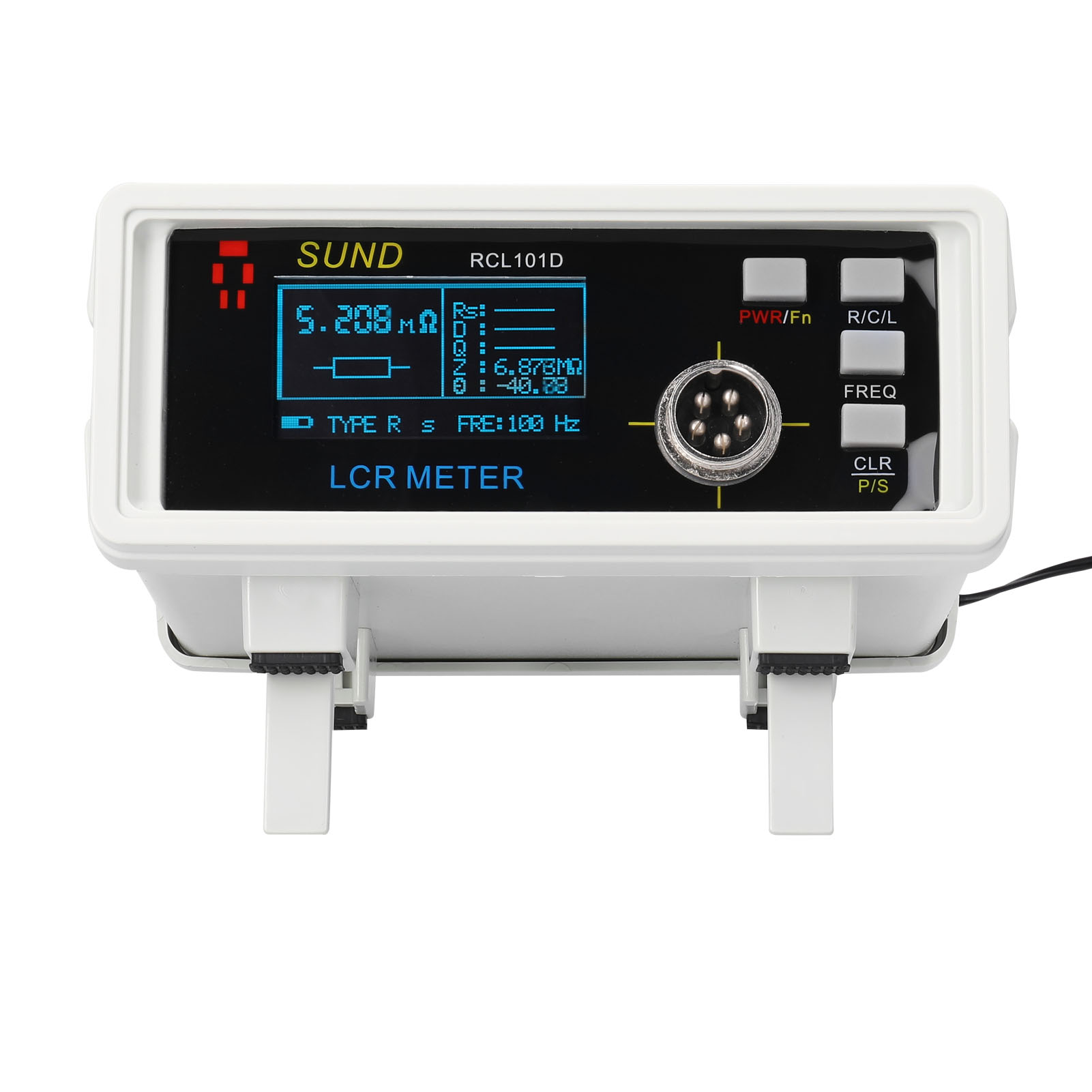

monitor | OLED highlight display |
Back light | Self-luminous |
Power display | support |
Low battery shutdown | support |
Battery life | Work continuously for more than 4 hours |

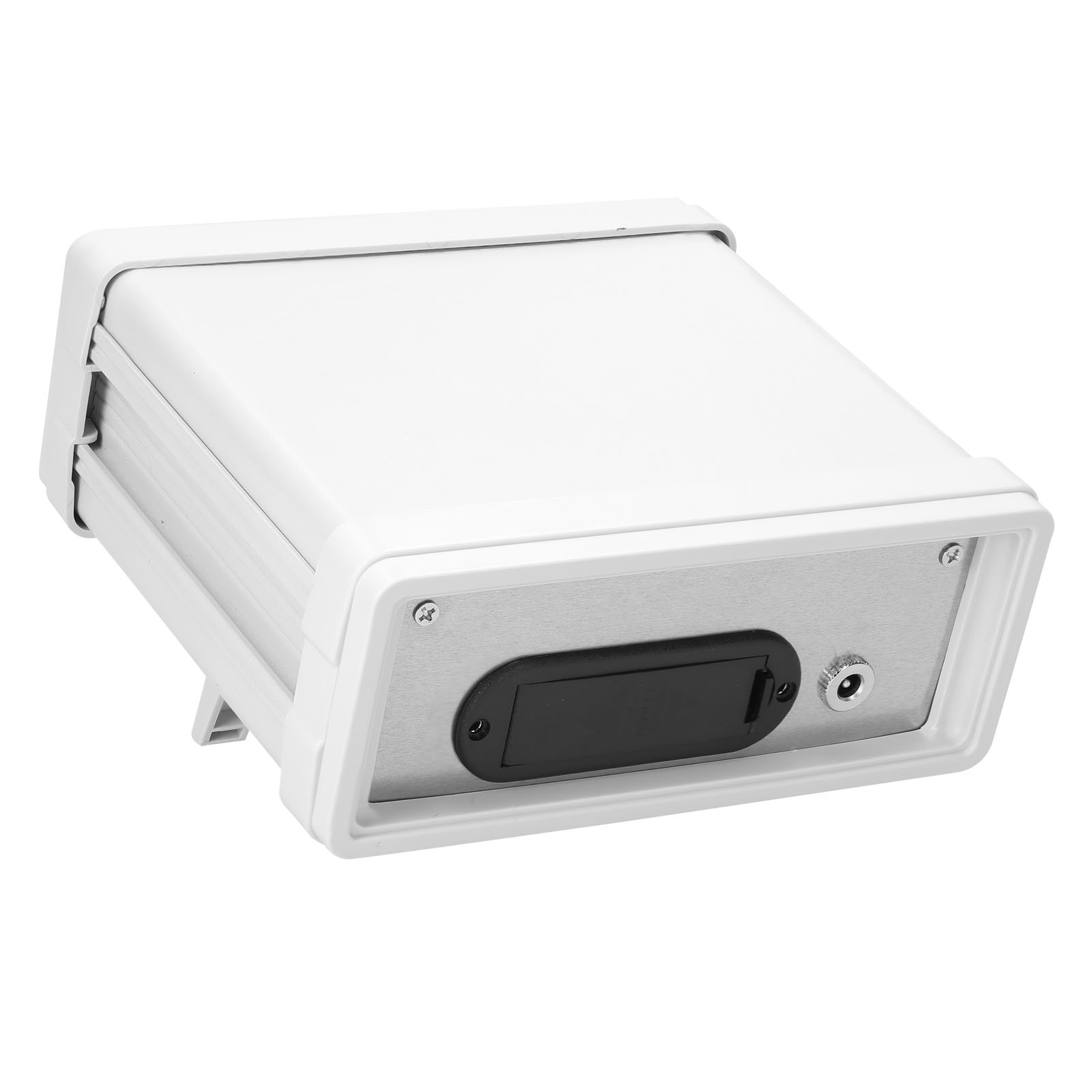

Power supply | 1. Adapter powered 2. Battery powered |
Battery configuration | Built-in lithium battery |
Test signal | |
Test signal frequency | 100Hz, 1kHz, 10kHz |
Output impedance | 200Ω minimum |
Test signal level | Maximum 2.5Vrms |

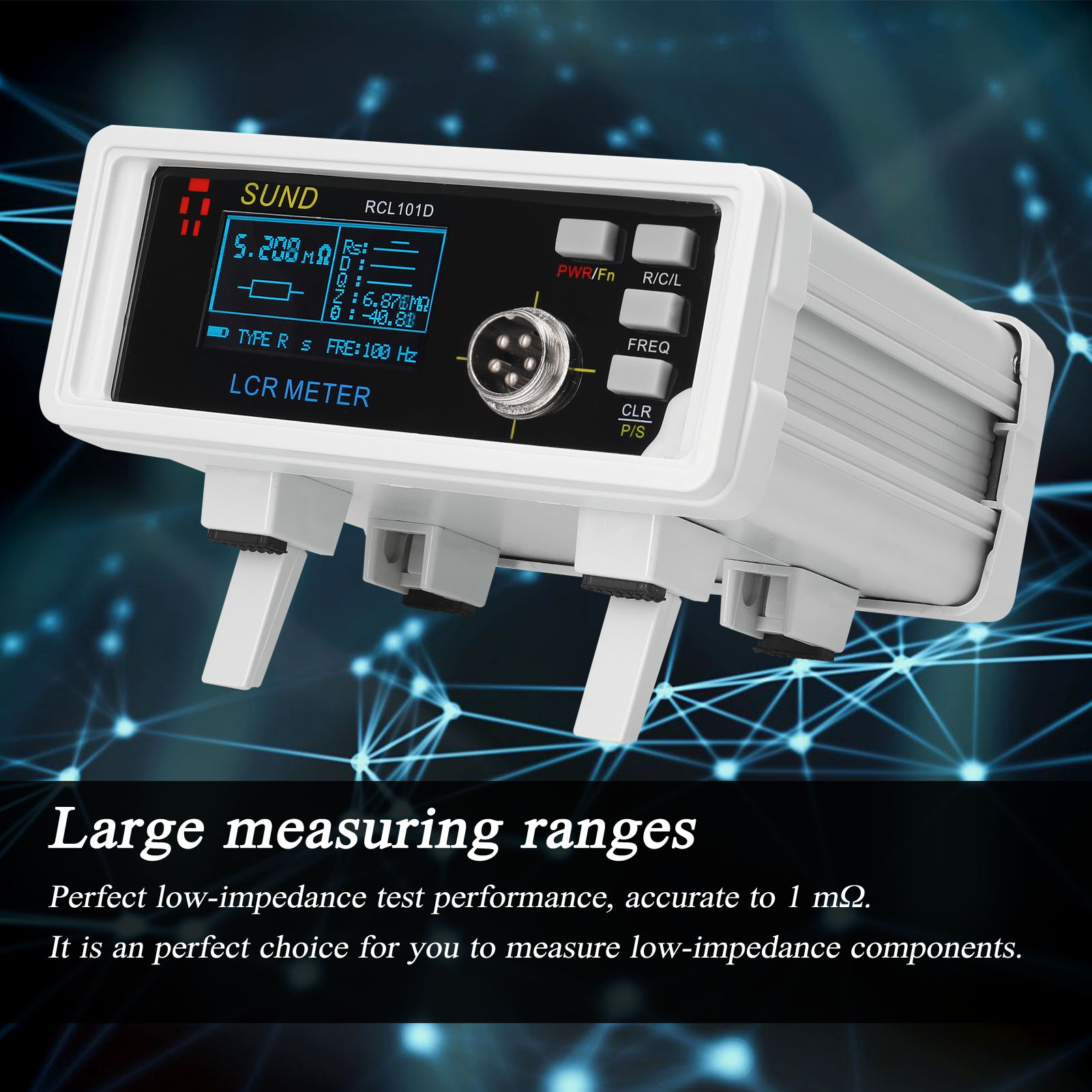

Measurement display range | |
R | 0.001 Ω - 99.99 MΩ |
C | 0.001 pF - 999.9mF |
L | 0.001 μH - 9999 H |
D,Q | 0.001 - 9999 |
General Specifications | ||
Working temperature, humidity | 0°C－40°C, | ≤90%RH |
Power requirements | DC9V/Built-in two large-capacity lithium batteries | |
Power consumption | ≤1.2W | |

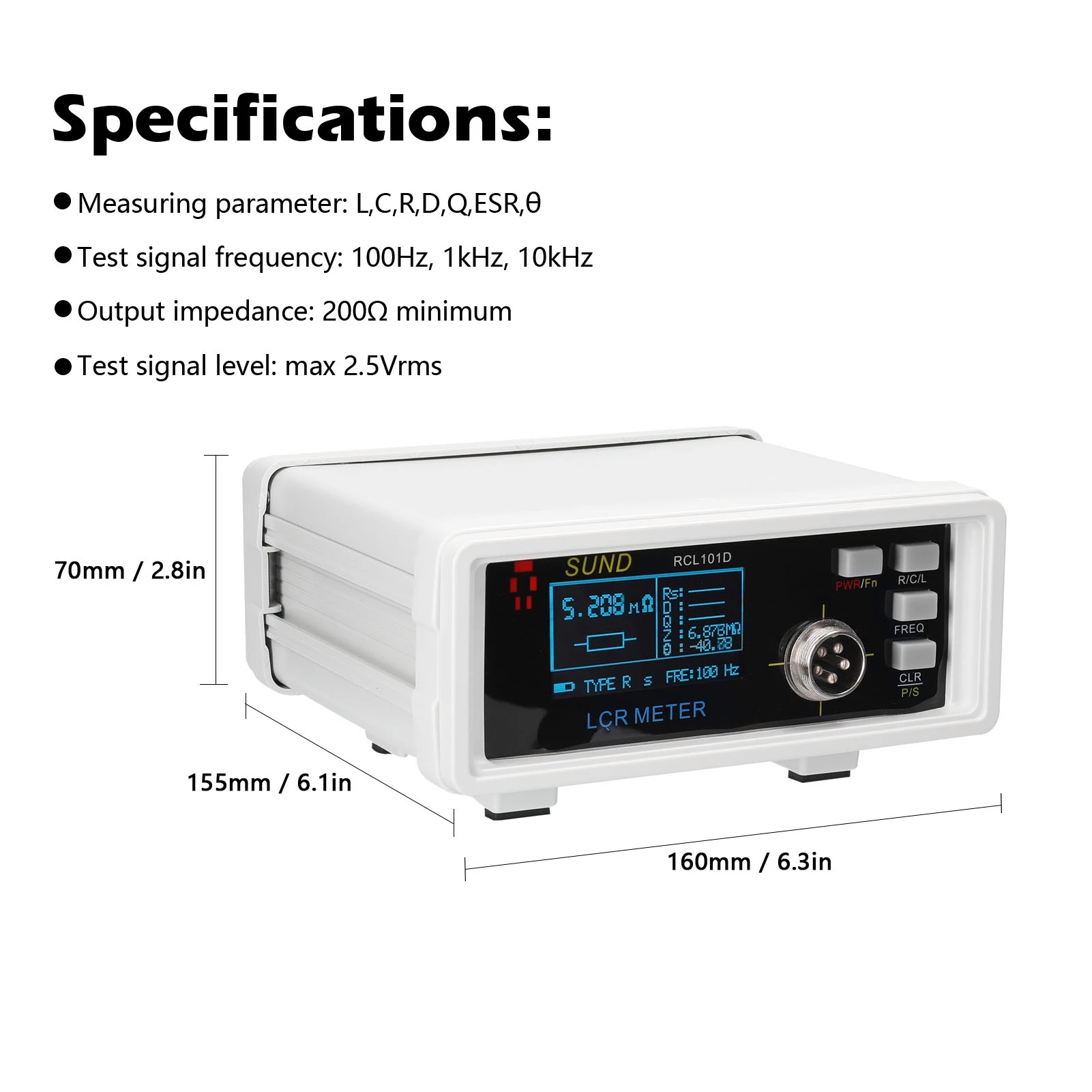

Volume (length × width × height) | 160*155*70 mm | |
Host weight | 810g | |
