RDS3225 25kg 180° Dual Ball Bearing Metal Gear Digital Servo With Holders For RC Robot Arm DIY
- Stock: In Stock
- Model: ST22000796
- SKU: ST22000796
$18.99
Ex Tax: $18.99
Description:

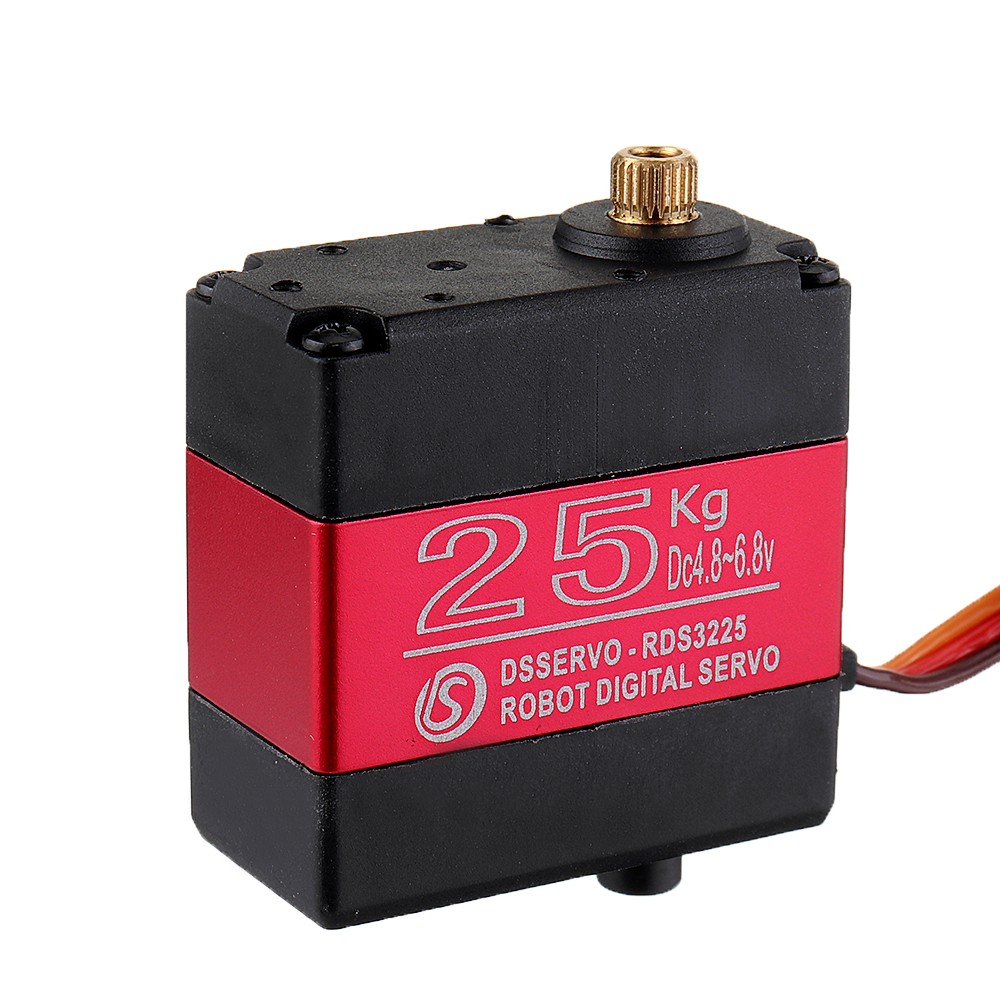

Item: RDS3225 180°Digital Servo
Type: 1/2/3/4/5
Operating Voltage: 4.8-7.2 DC Volts
No-load Current: 1.3A
Stall Current: 2.0A
Torque: 22kg.cm(4.8V), 25kg.cm(6V), 27kg.cm(7.2V)
Speed: 0.16sec/60°(4.8V), 0.15sec/60°(6V), 0.14sec/60°(7.2V)
Pulse: 500-2500us
Dead Band: 2us
Neutrol Position: 1500us
Gear: Metal Gear
Screw: M3*5
Teeth: 25T
Wire: JR 260mm
Power: 10~15w

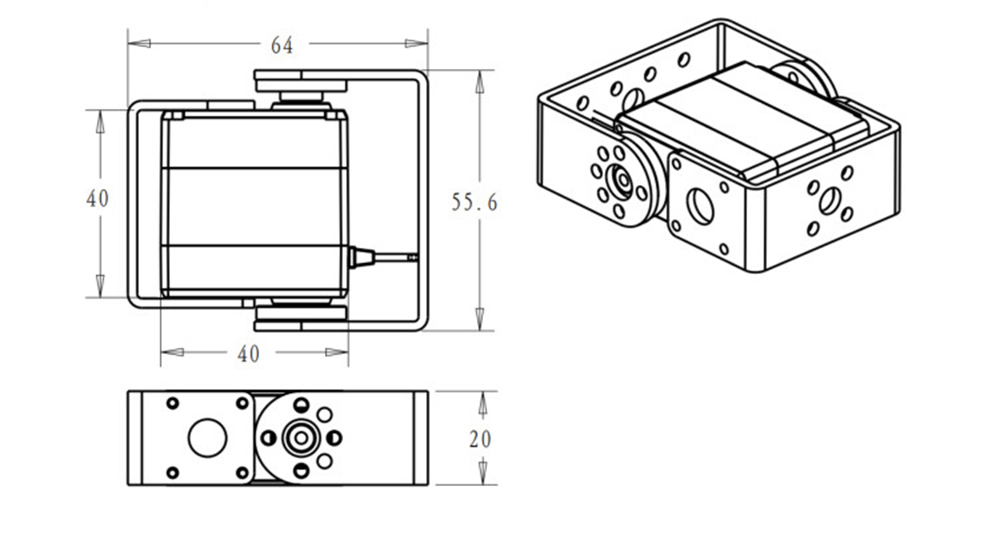

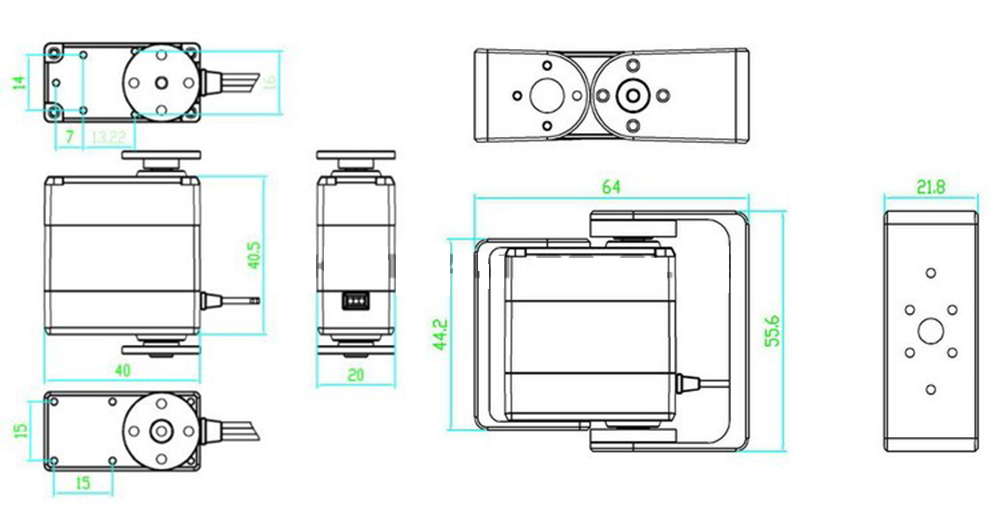

Servo Dimention: 40*20*40 mm
Application: For RC Robot Arm DIY

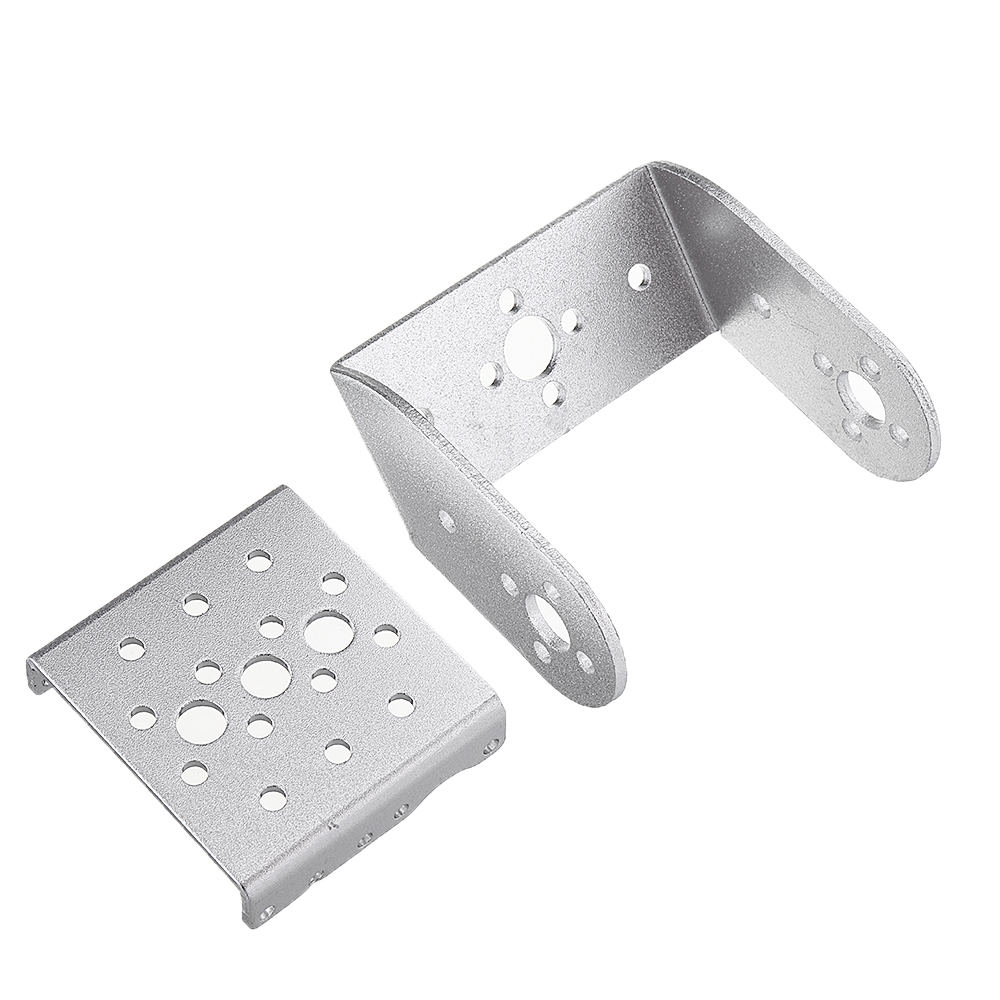

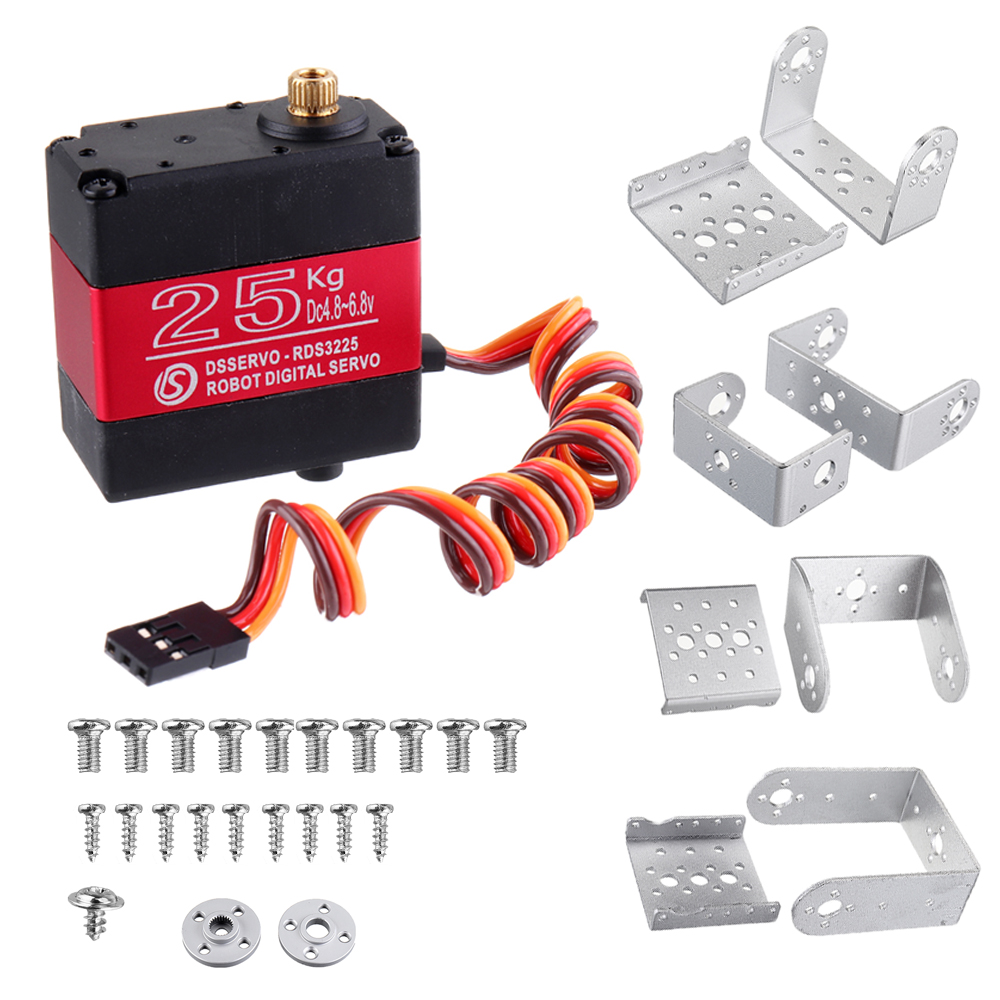

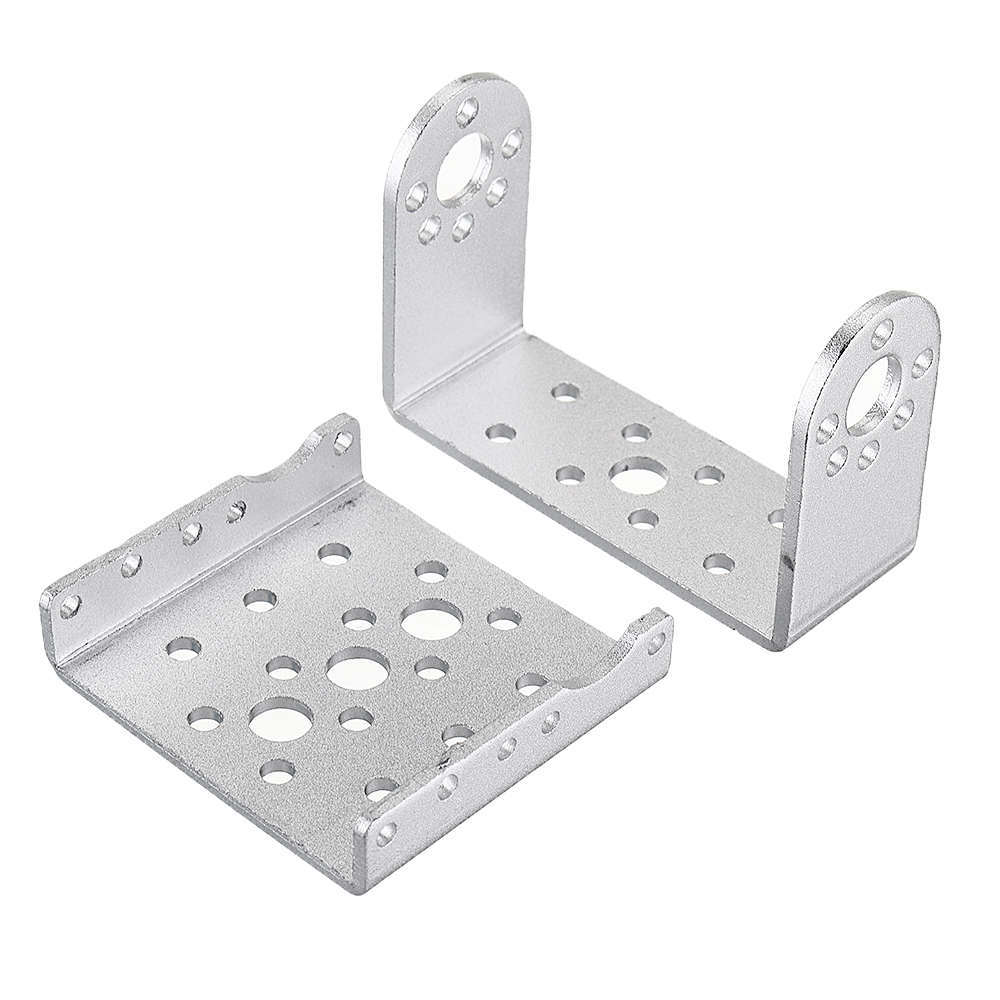

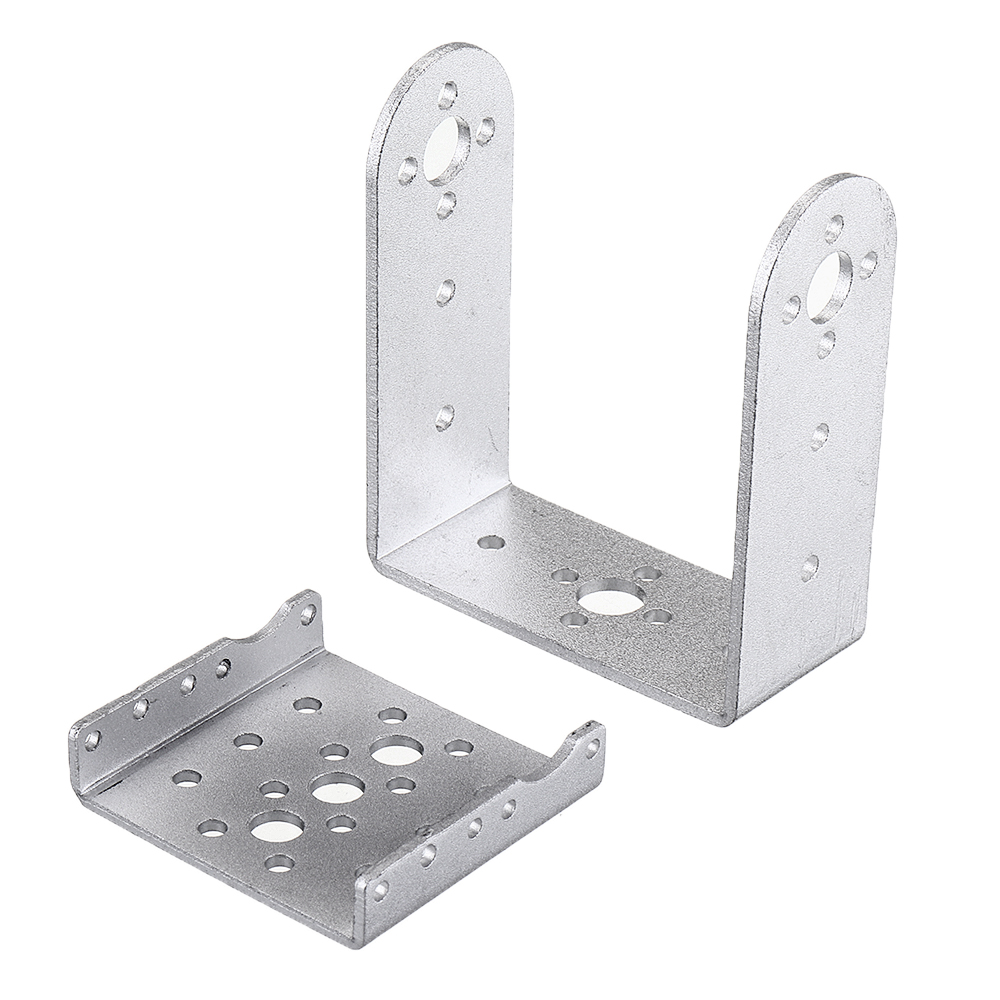

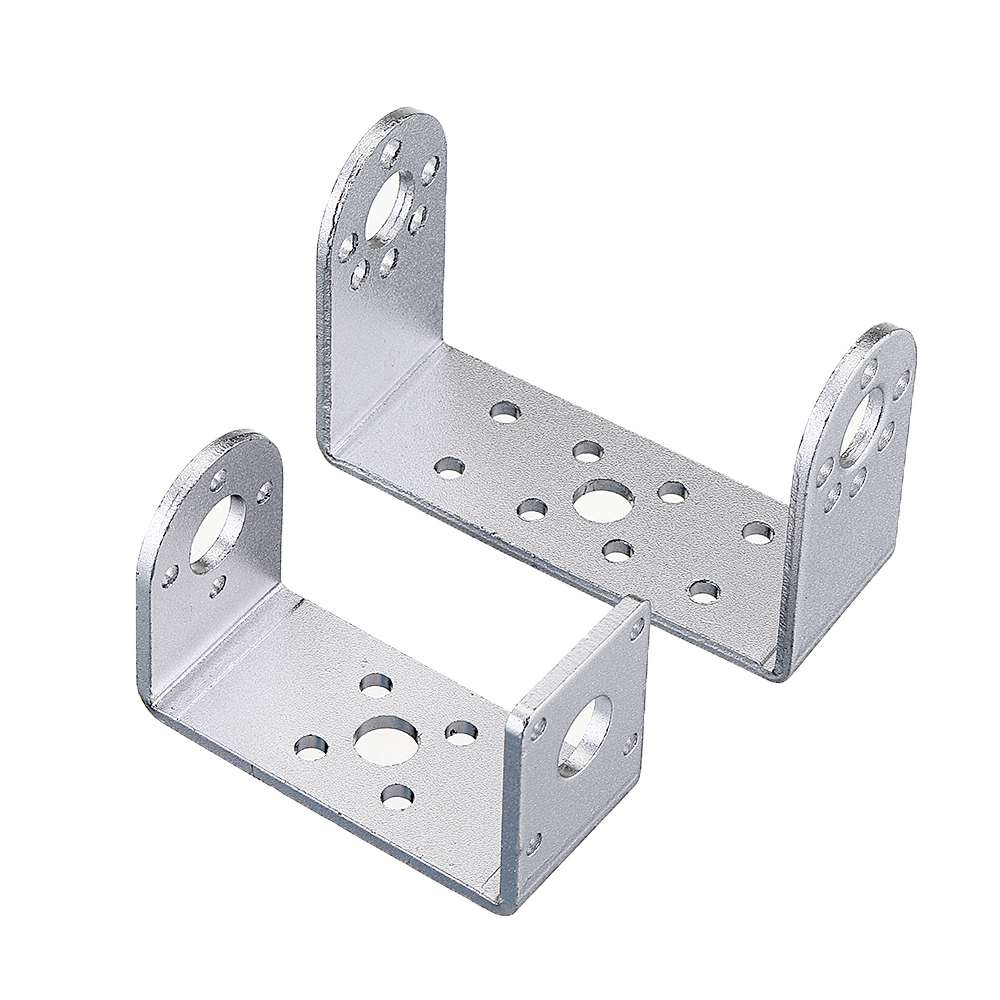

Note: different type with different Holder, servo is the same one.

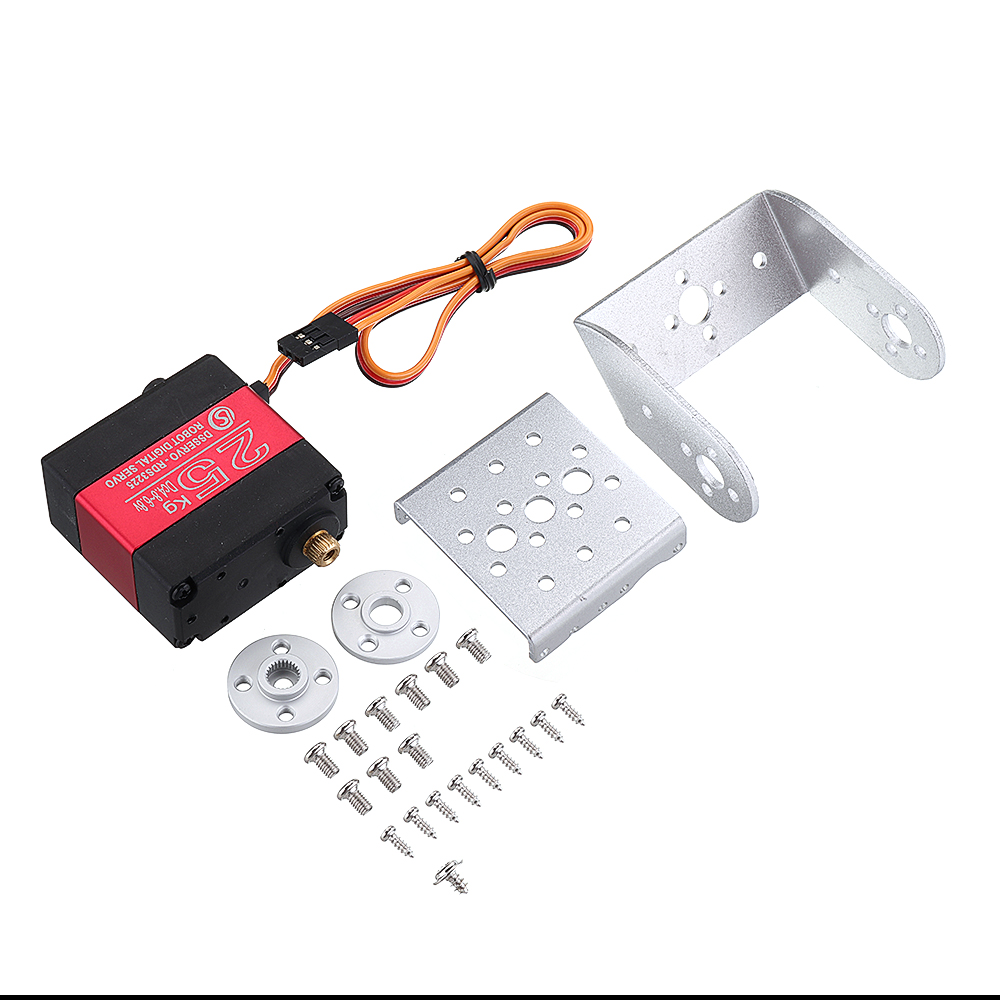

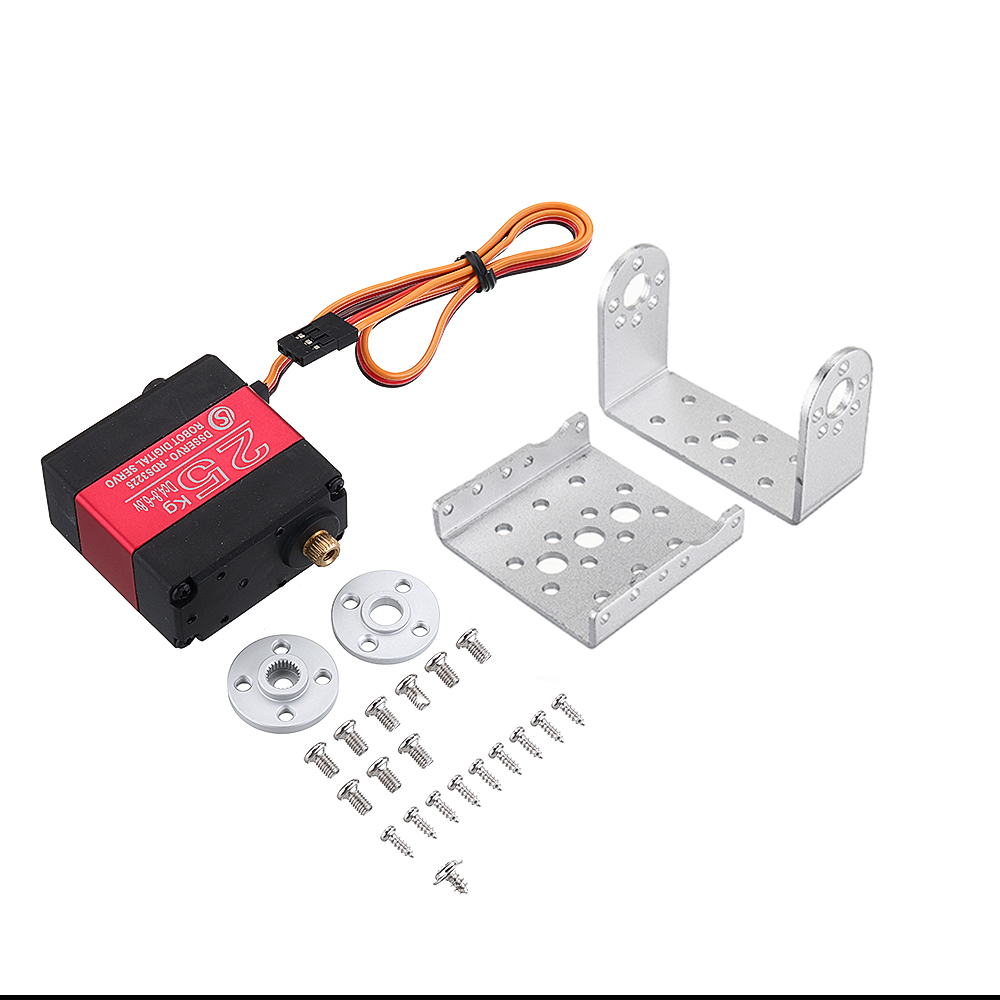

Package Included:

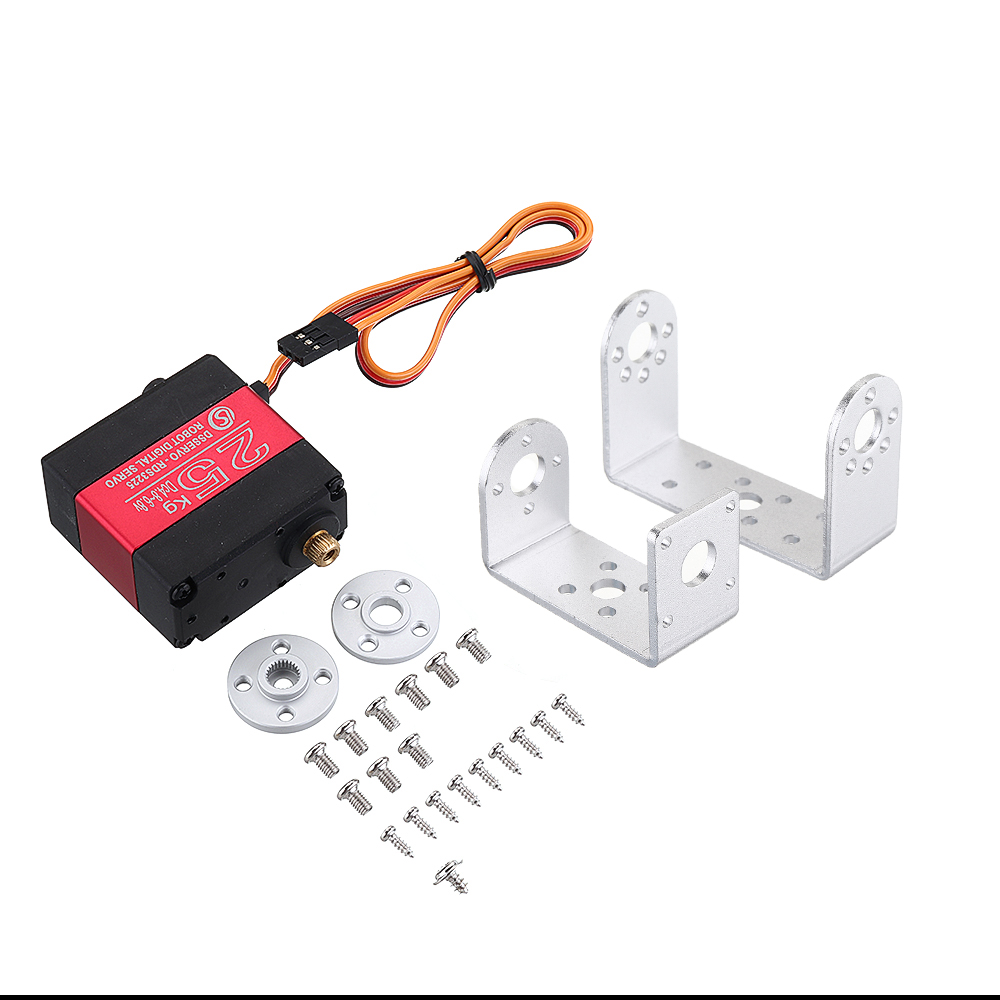

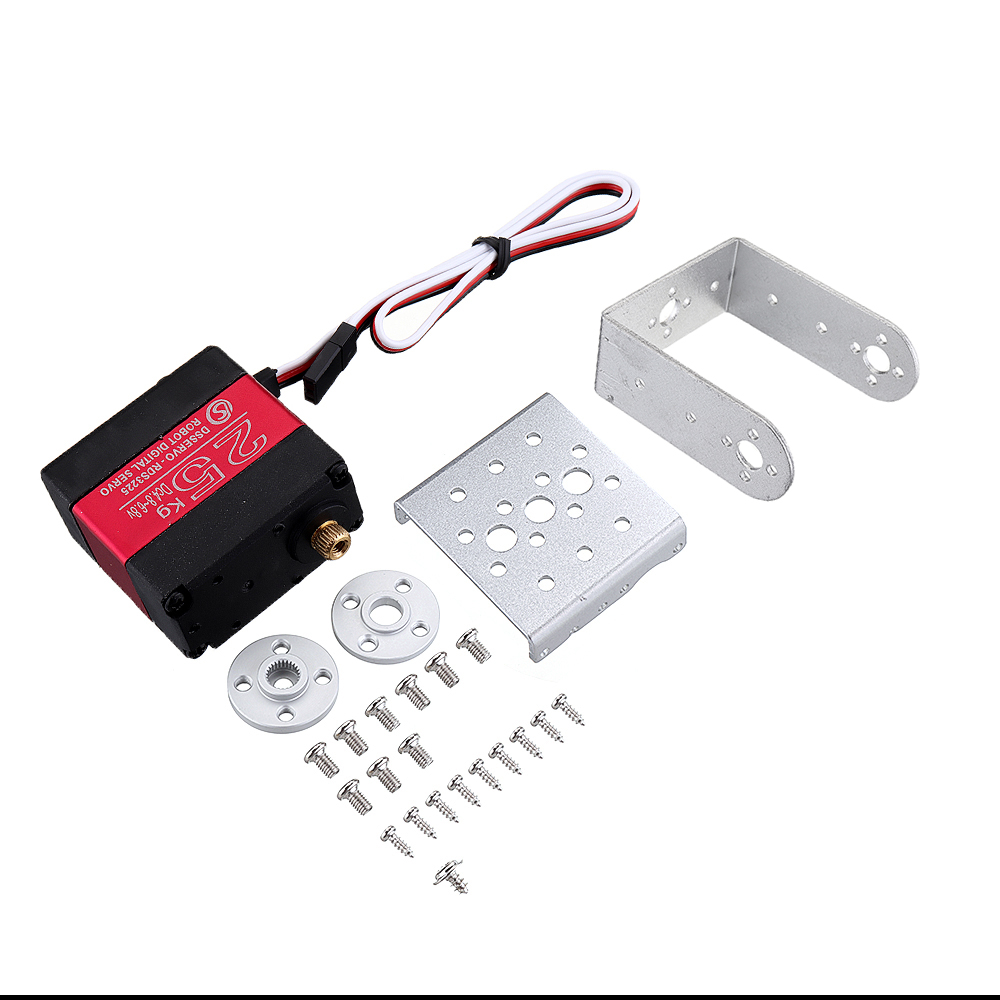

1 x DSSERVO RDS3225 180°Digital Servo(with holder)
