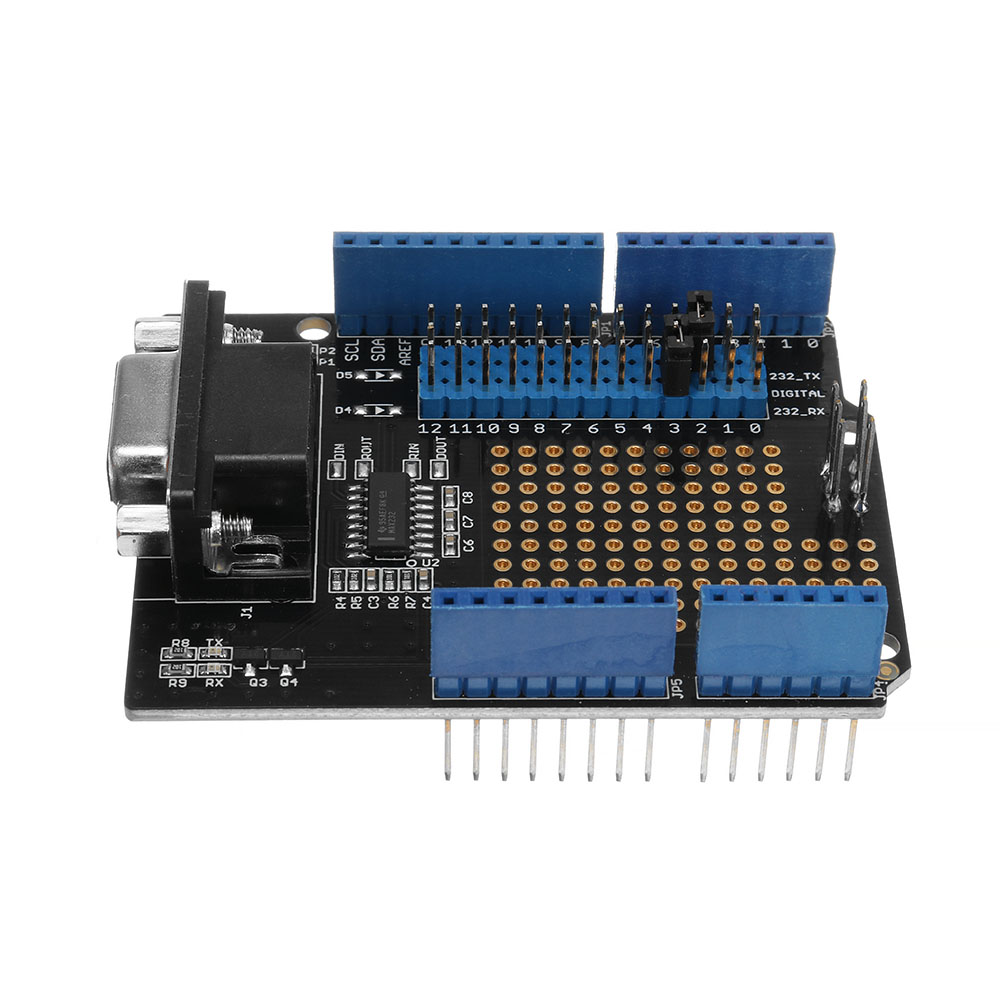

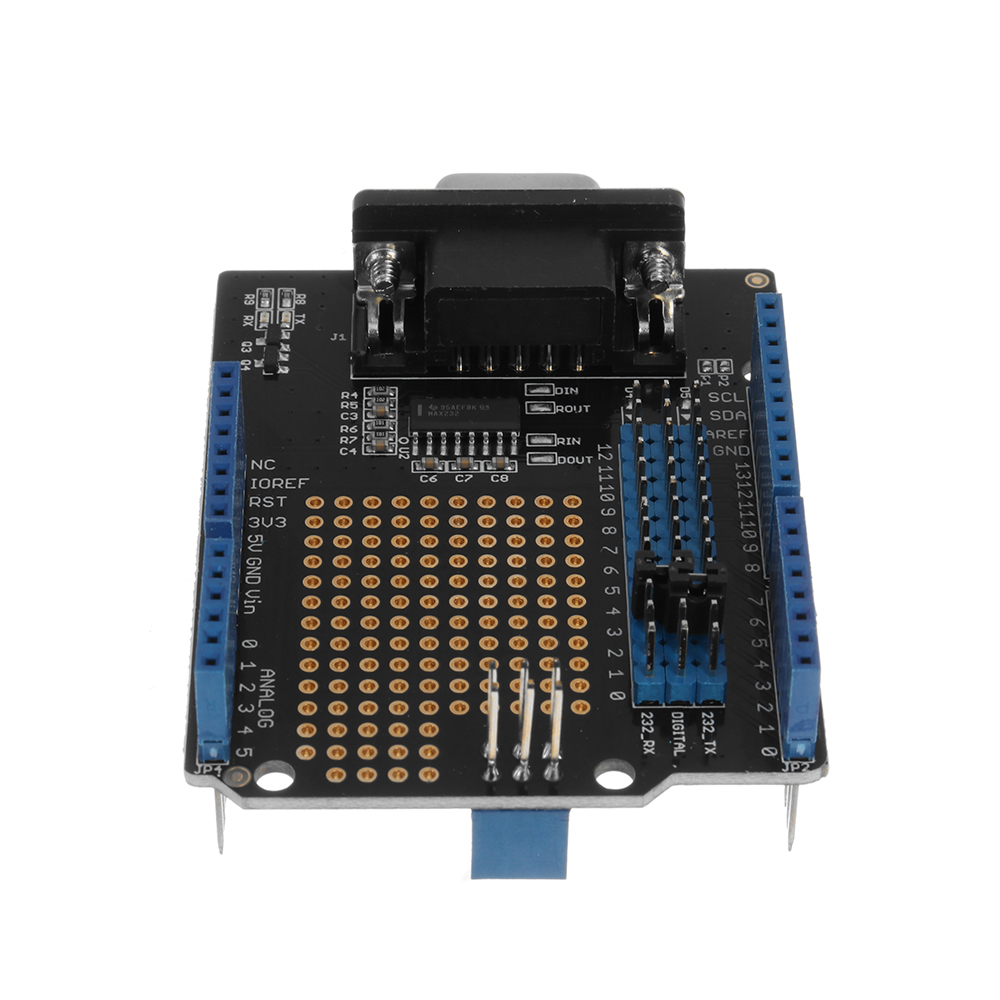

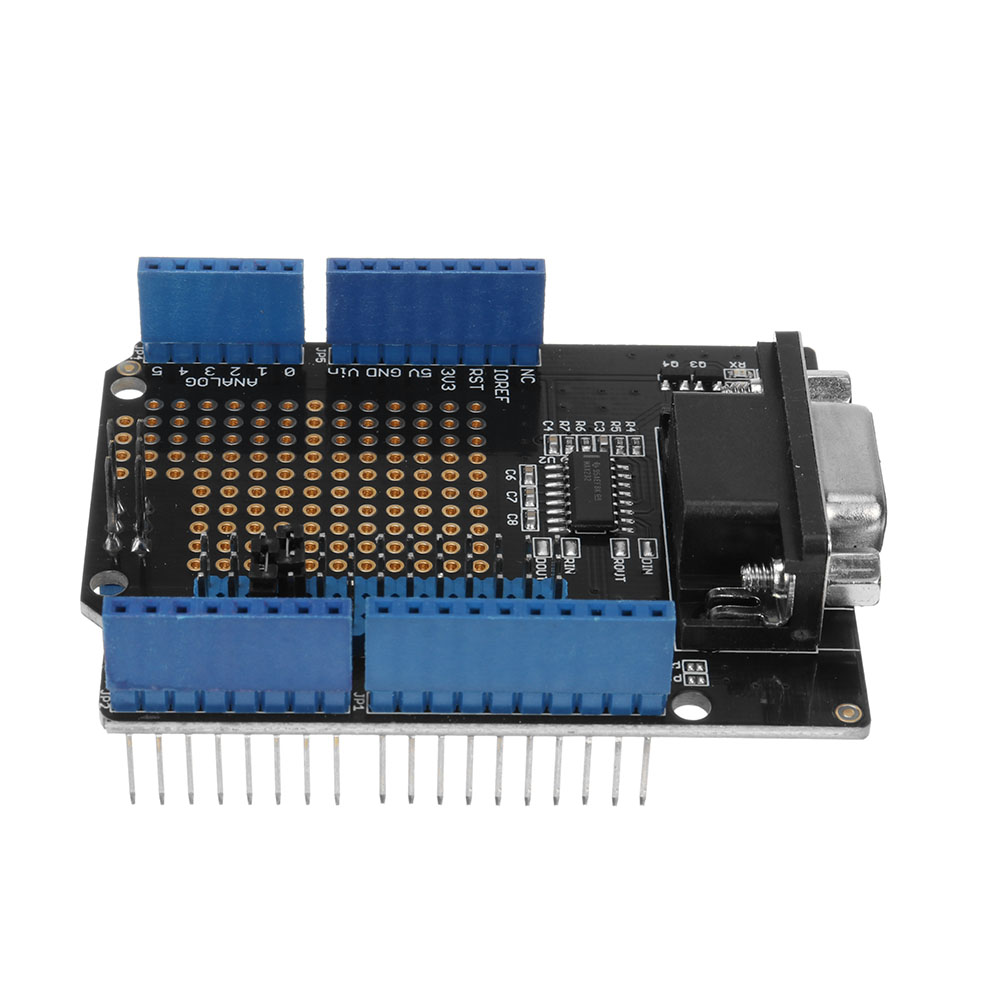

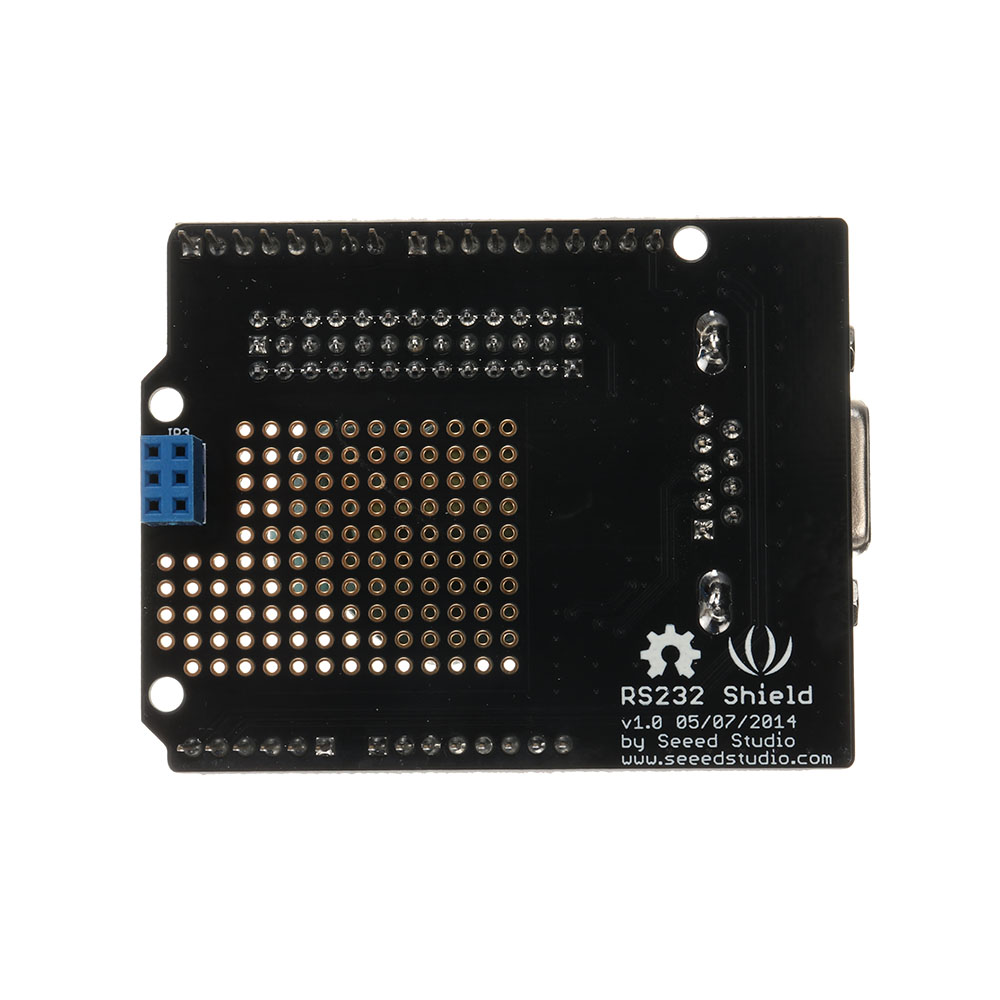

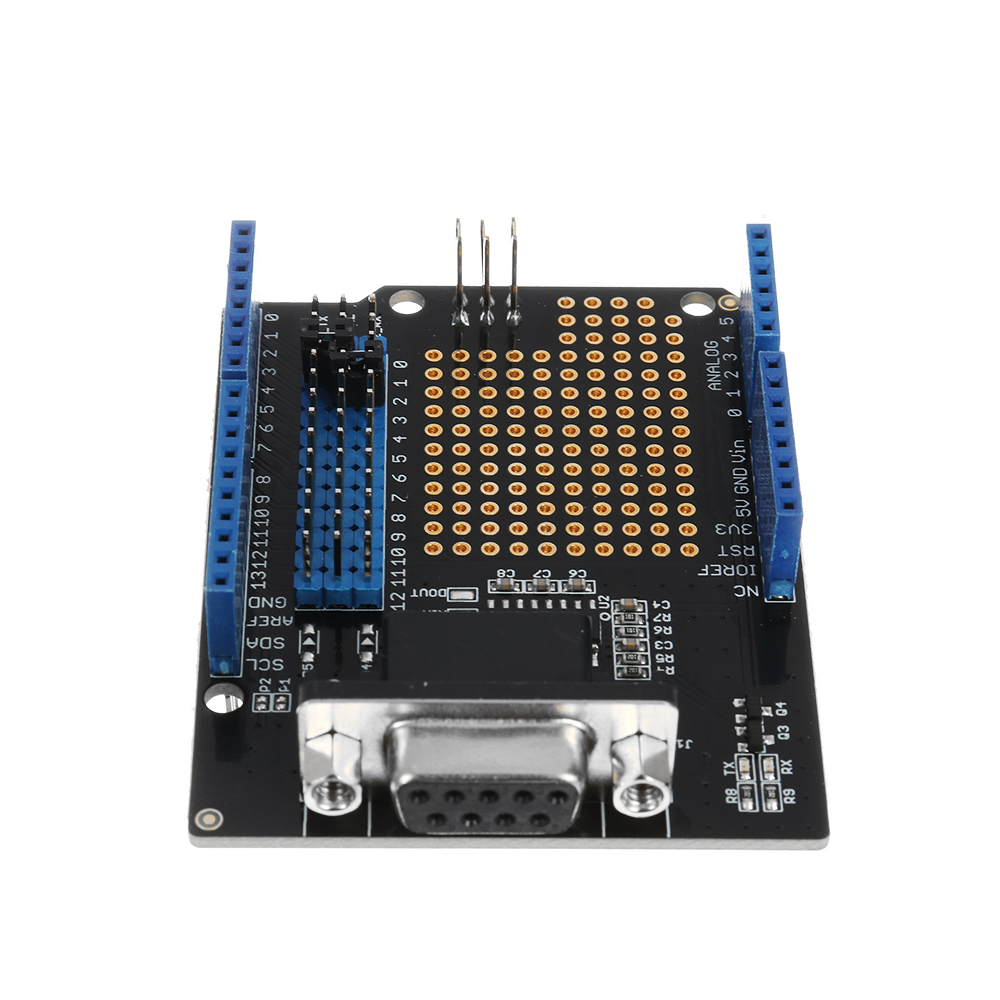

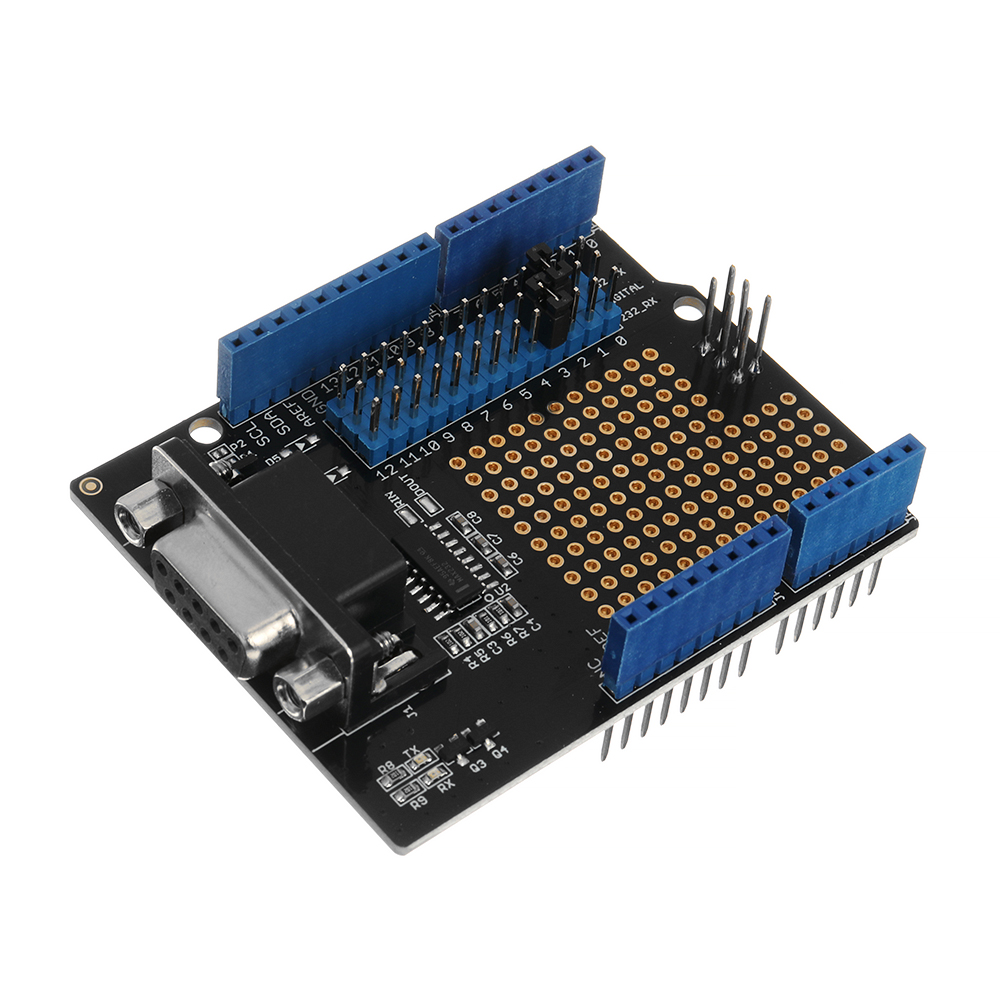

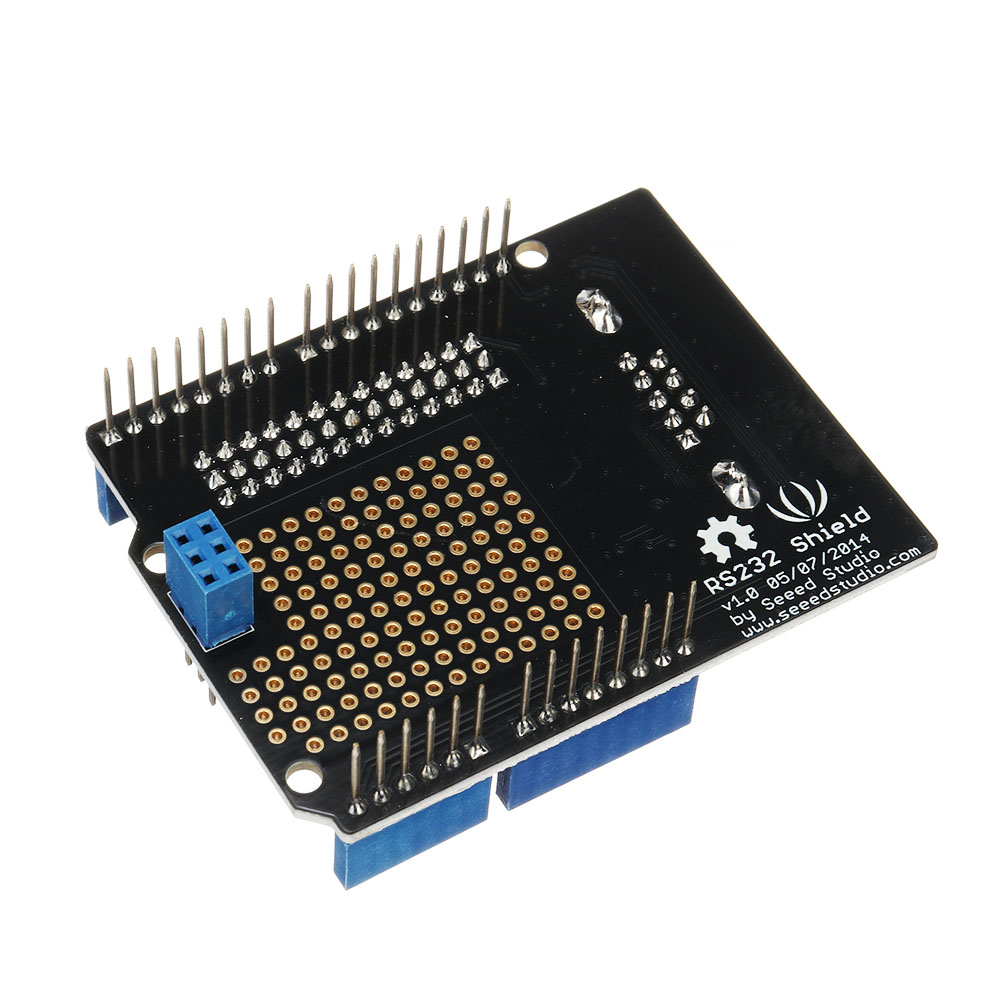

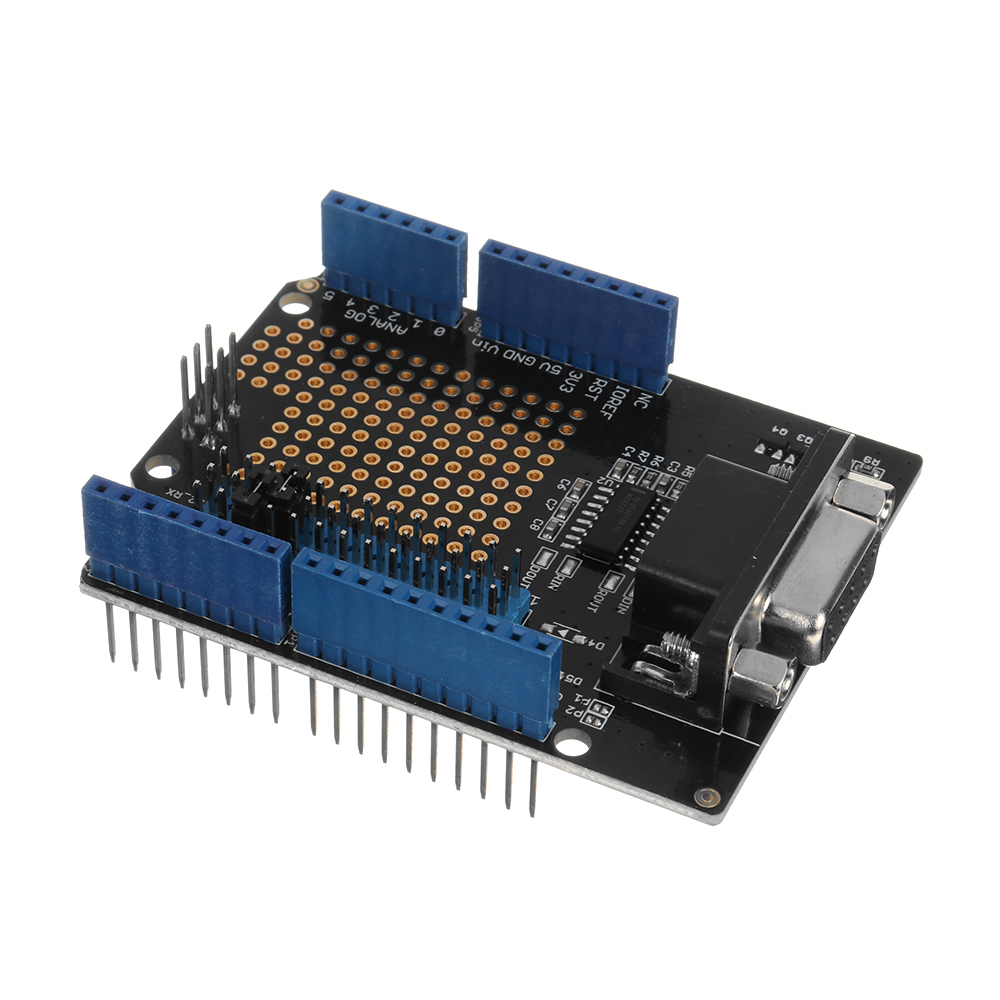

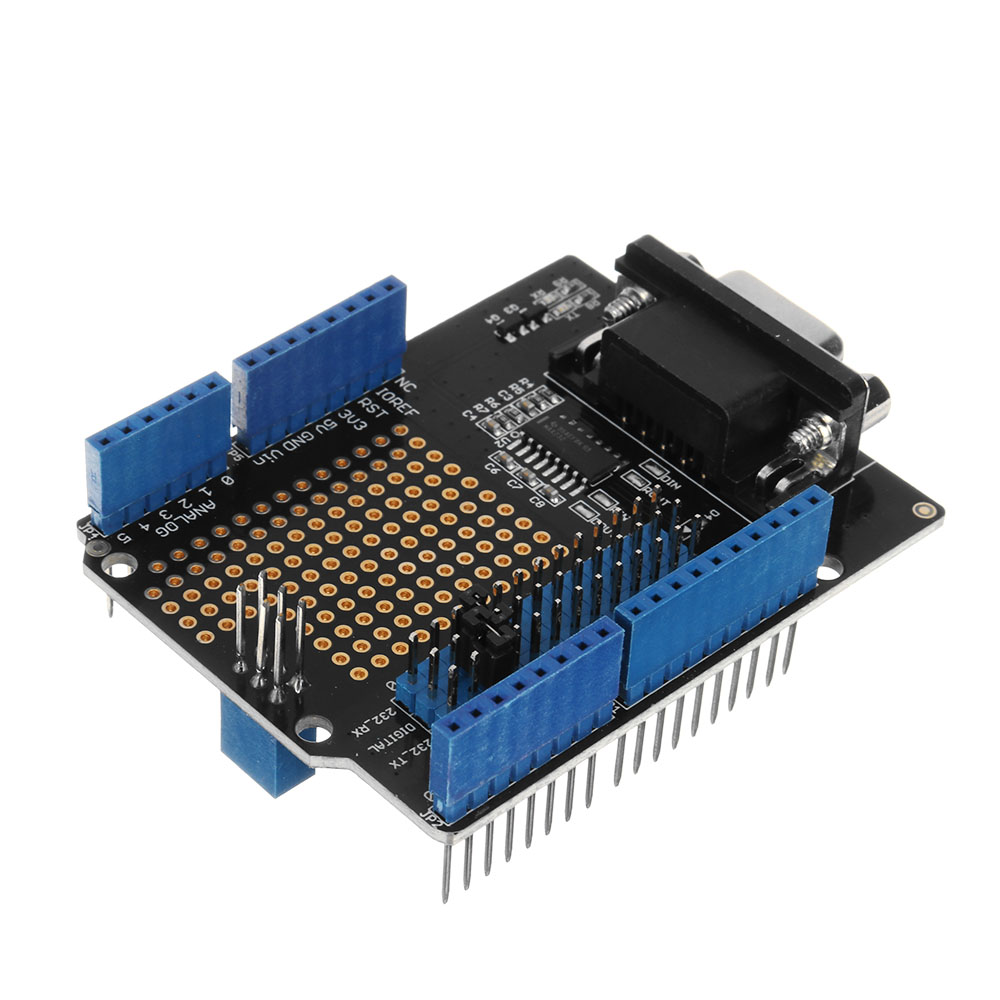

RS232 Shield with DB9 Connector RS232 Standard Communication Port for Industry Equipment

RS232 Shield is a standard communication port for industry equipment.This module is base on MAX232,which is a dual driver/receiver that includes a capacitive voltage generator to supply TIA/EIA-232-F voltage levels from a single 5-V supply. The shield integrates DB9 connectors (female) that provide connection to various devices with RS232 interface. Also the RS232 headers will facilitate your connections and commissioning. It provides the welding areas to make full use of extra space on it, which is highly convenient for prototyping.

Meets or Exceeds TIA/EIA-232-F and ITU

Operates Up To 120 kbit/s

Low Supply Current

LED Indicator

DB9 Connectors(female)

Welding Areas

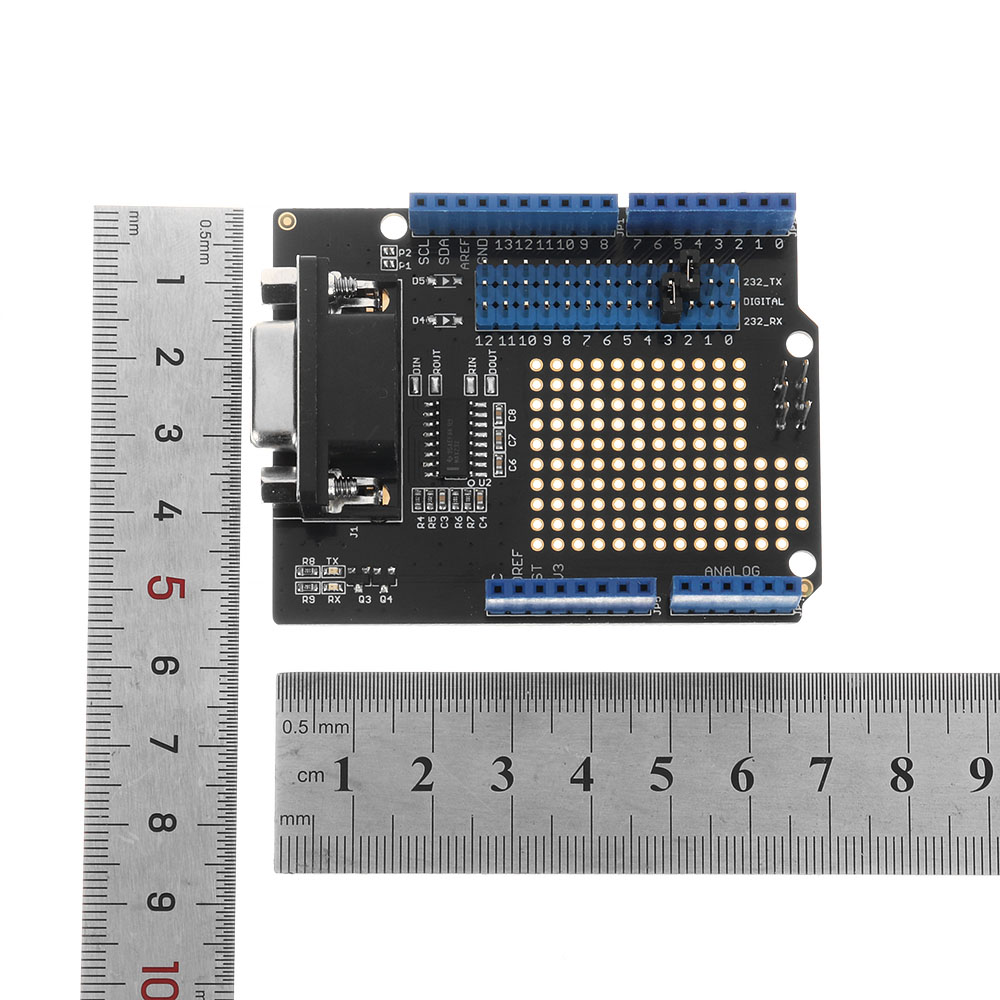

Size: 155mm x75mm x25mm

wiki

1 x RS232 Shield
