Raspberry Pi Pico 37 in 1 Sensor Kit for MicroPython with Main Board Basic MicroPython Programming
- Stock: In Stock
- Model: ST230038807
- SKU: ST230038807
$95.99
Ex Tax: $95.99
Introduction:
Raspberry Pi is a card computer and its official system is Raspberry Pi OS. However, other systems can also be installed on the Raspberry Pi, such as: ubuntu, Windows IoT. Raspberry Pi can be used as a personal server and router. If a camera is added, monitoring and camera recognition can be achieved. If you connect a microphone and a and a speaker, it will turn into a voice interactive assistant

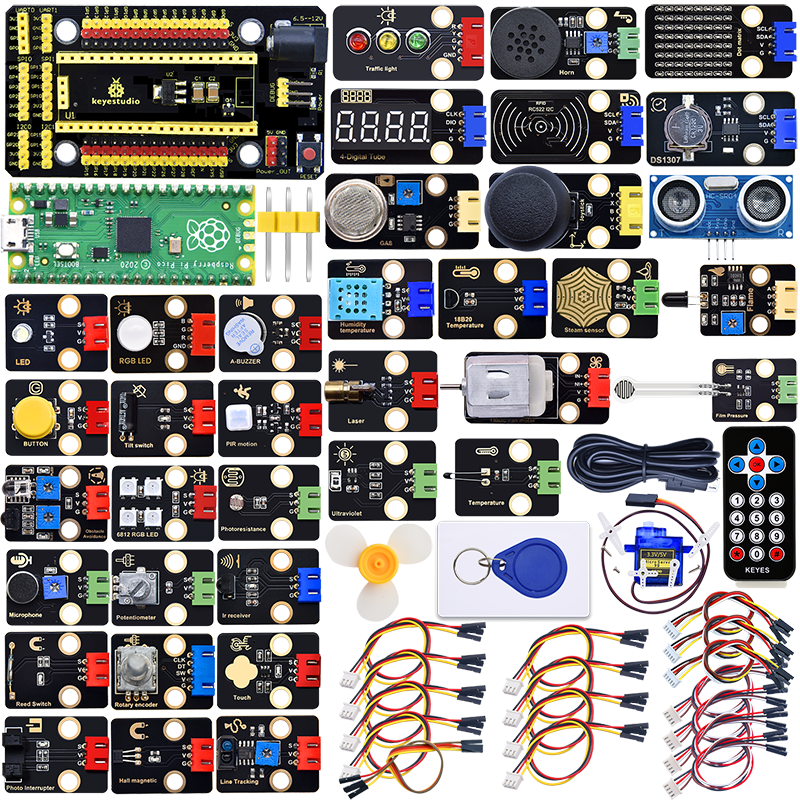

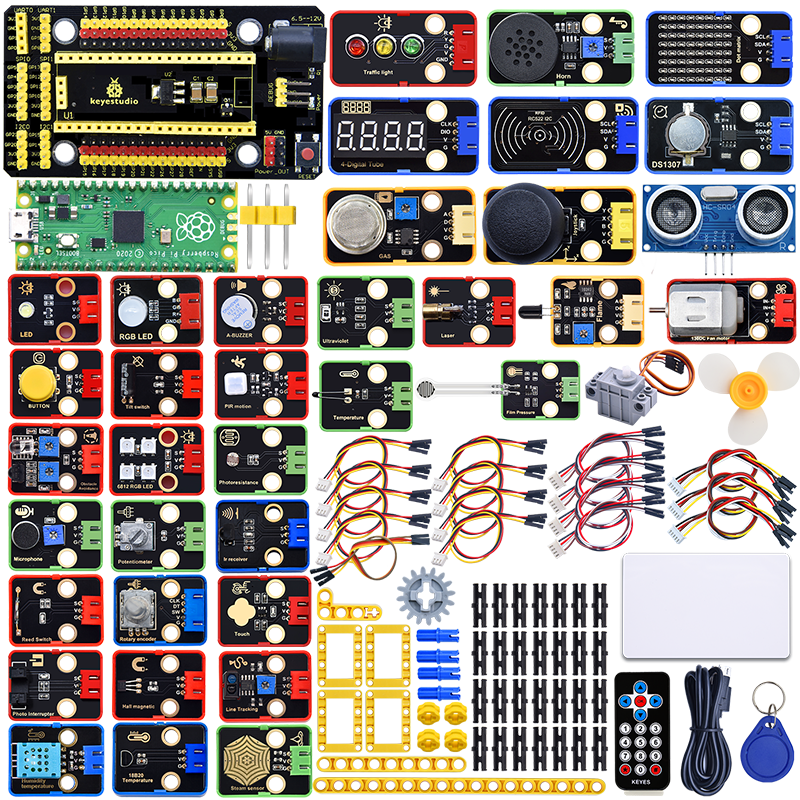

The Keyestudio Raspberry Pi Pico 37 in 1 sensor kit mainly contains 37 commonly used sensors, modules, a Raspberry Pi Pico board, a Raspberry Pi Pico expansion board and Dupont wires.
The 37 sensors and modules are fully compatible with the Raspberry Pi Pico shield. You only need to stack the Raspberry Pi Pico board onto the Raspberry Pi Pico shield, and hook up them with Dupont wires, which is simple and convenient.
To make you master the electronic knowledge, detailed tutorials like schematic diagrams, wiring methods and test code(MicroPython) are included. Tutorials are completed through Thonny.
Through these projects, you will have a better understanding about programming, andlogic, electronics and Linux.
Description:
The Keyes Raspberry Pico IO expansion board is designed for Raspberry Pi Pico, without soldering, all pins are led out.
The interfaces on the expansion board are marked with silkscreens.
3-pin interface is generally G V S and G represents GND, V represents the VCC (3.3V) interface, and S represents the digital port/analog port. The expansion board comes with female header interface with a spacing of 2.54mm, a reset button, a power indicator PWR and 4 standard LEGO positioning holes.
4-The expansion board provides various communication interfaces including 2 x I2C,2 x UART,2 x SPI,3x analog IO and 13 x digital IO and a 6.5-12V power interface.
Specifications:
Output current: ≦500mA
DC input voltage: 6.5 - 12V
Output voltage: DC3.3V5V
Recommended ambient temperature: -10°C ~ 50°C
Product size: 45.339MM *83.617MM
Pin spacing: 2.54mm
Note:
Due to manual inventory, some accessories may be missing, please understand. If it does not affect the use, it is recommended to find accessories instead, so as not to waste your time. If it affects the use, please contact the after-sales customer service.

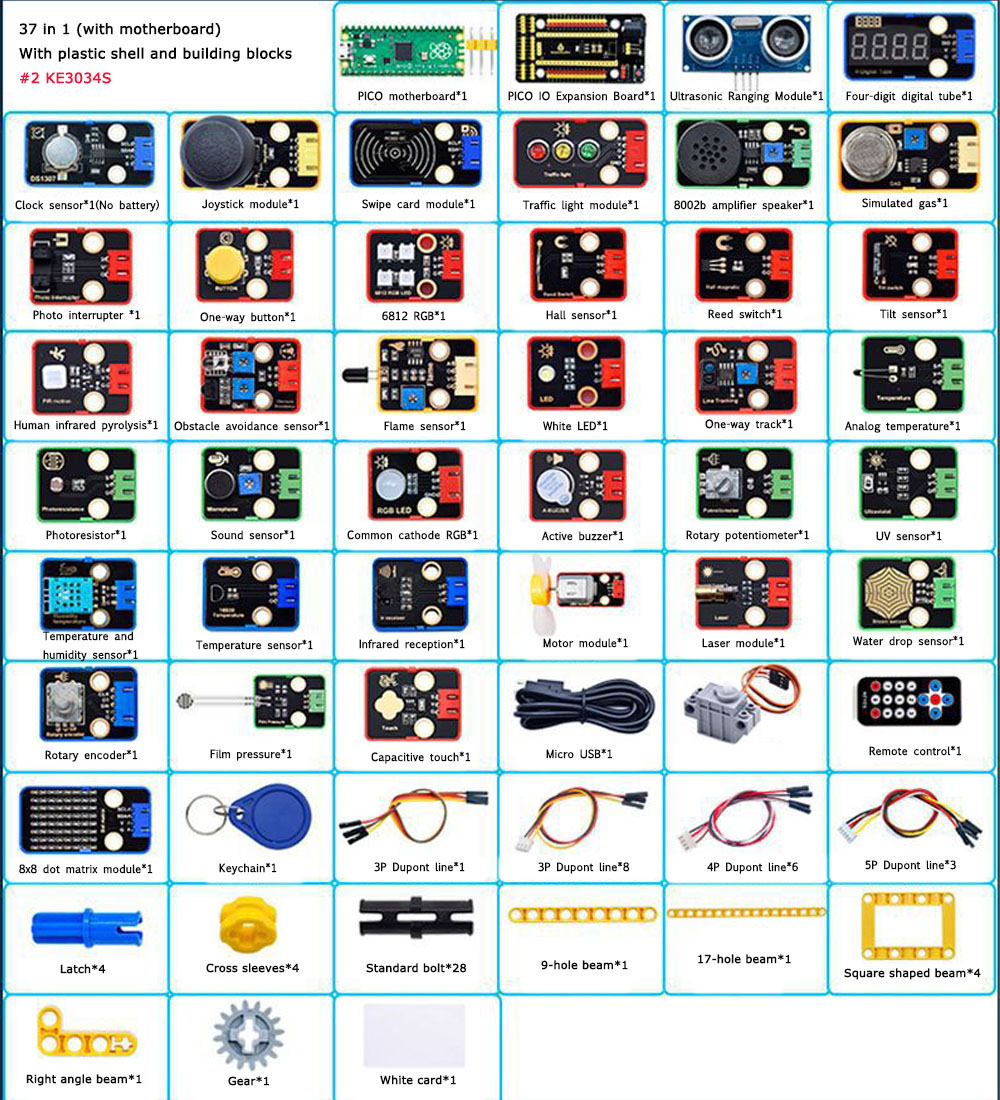

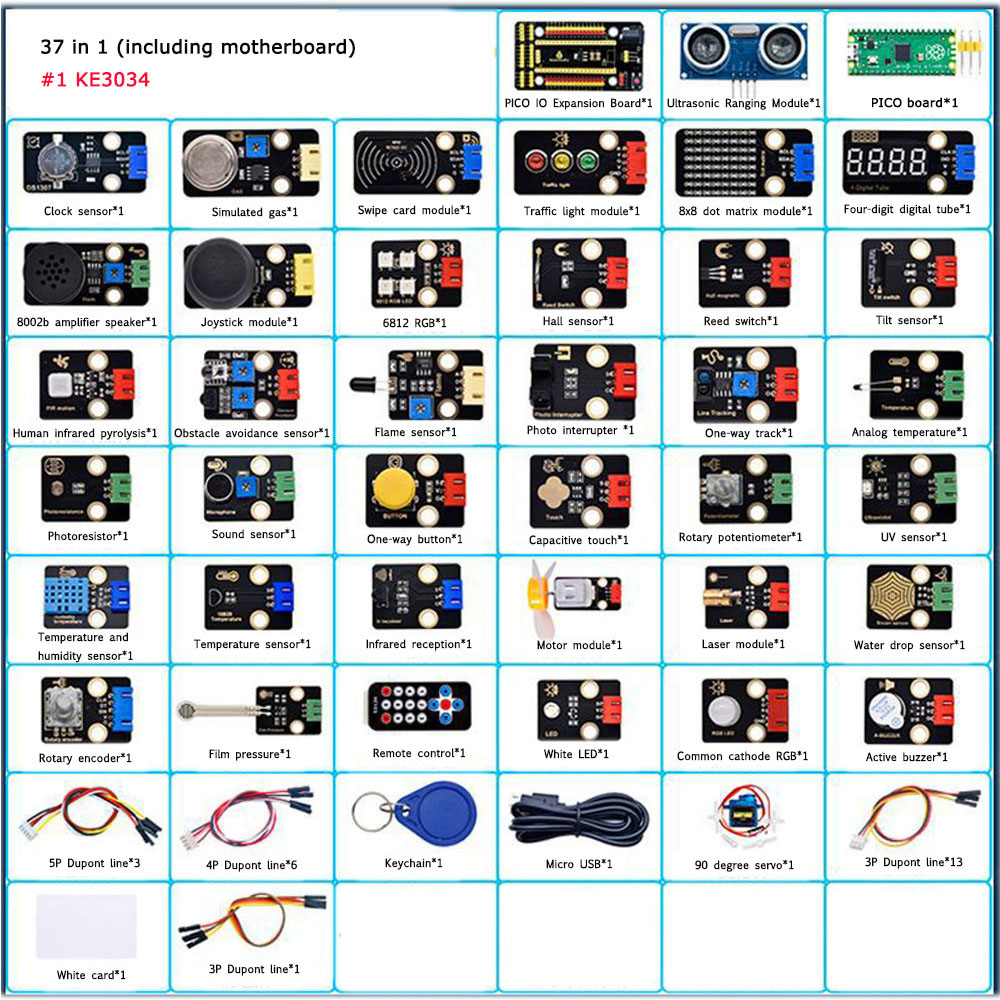

Package includes:
