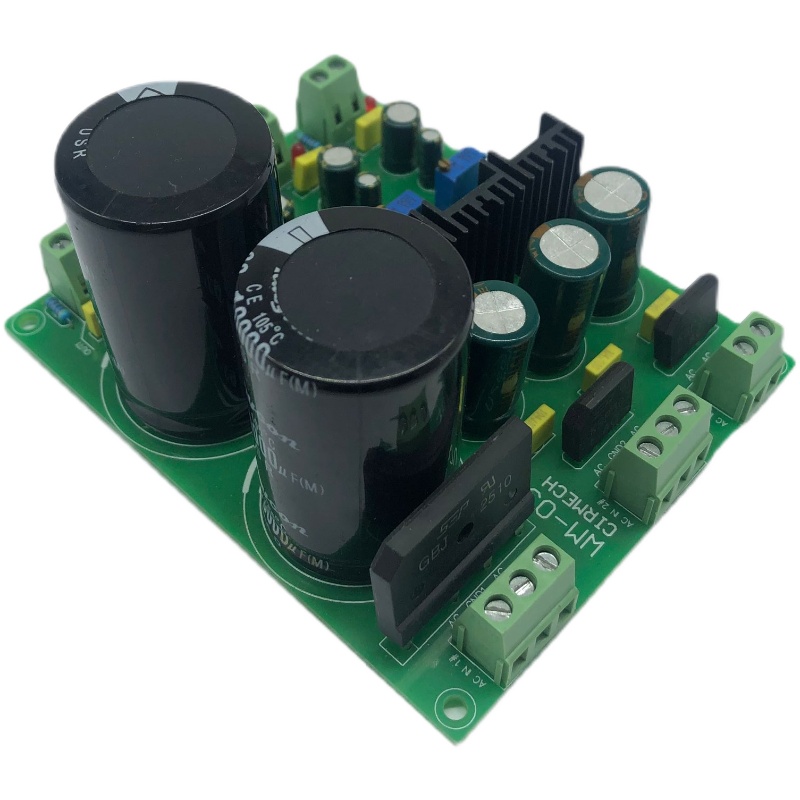

Rectifier Filter Power Supply Board LM317 LM337 Multi-Channel Precision Adjustable Rectification
- Stock: In Stock
- Model: ST230044210
- SKU: ST230044210
$14.48
Ex Tax: $14.48
Specification:
Forward voltage: 1.1V
Reverse voltage: 1000V
Forward current: 25A
Inrush current: 400A
Leakage current: 5uA
Working temperature: -55℃~150℃

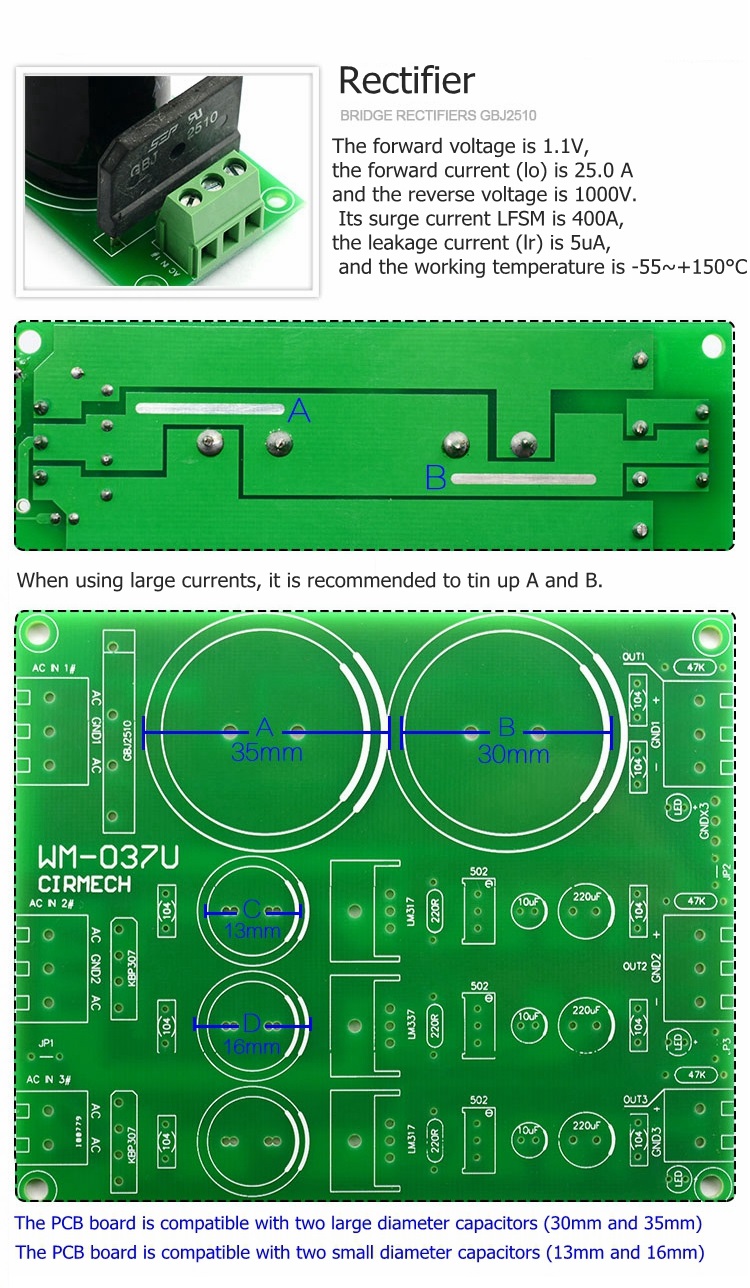

The PCB board is compatible with two large diameter capacitors (30mm and 35mm)
The PCB board is compatible with two small diameter capacitors (13mm and 16mm)
Package included:
1 x filter power supply board
