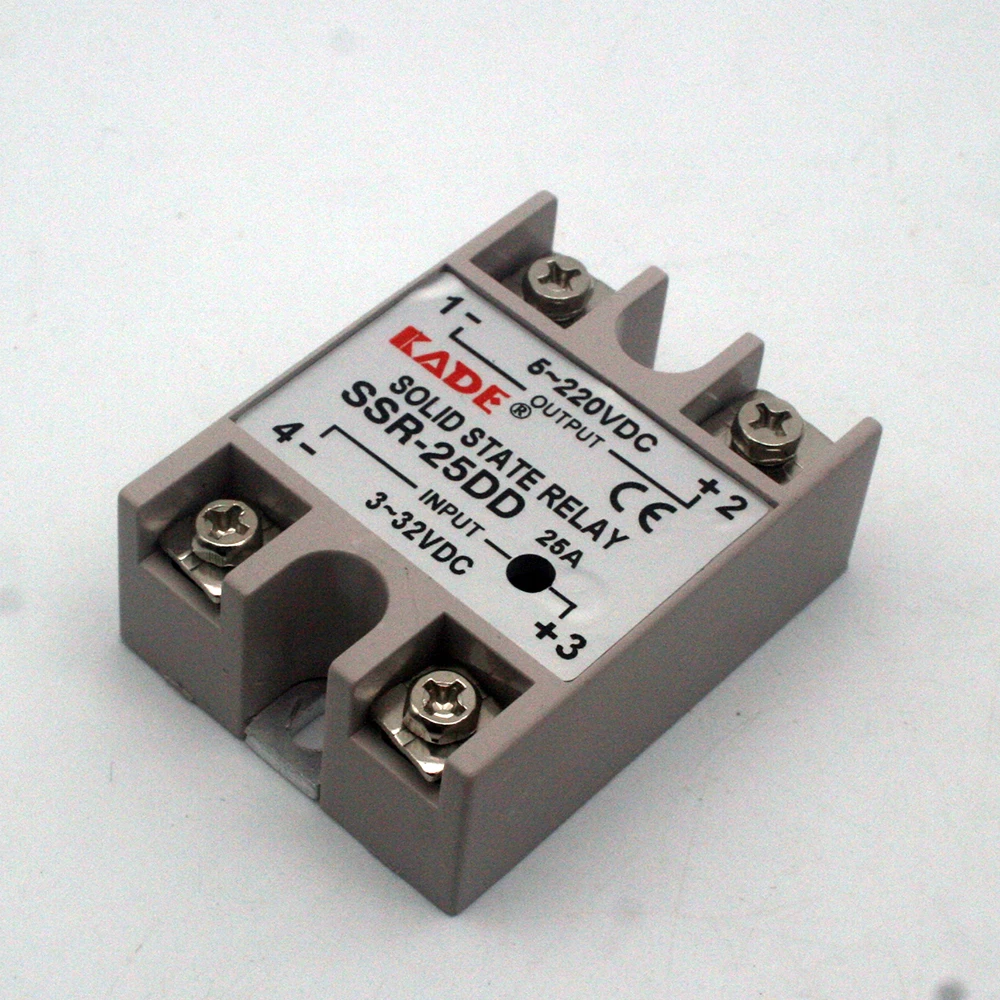

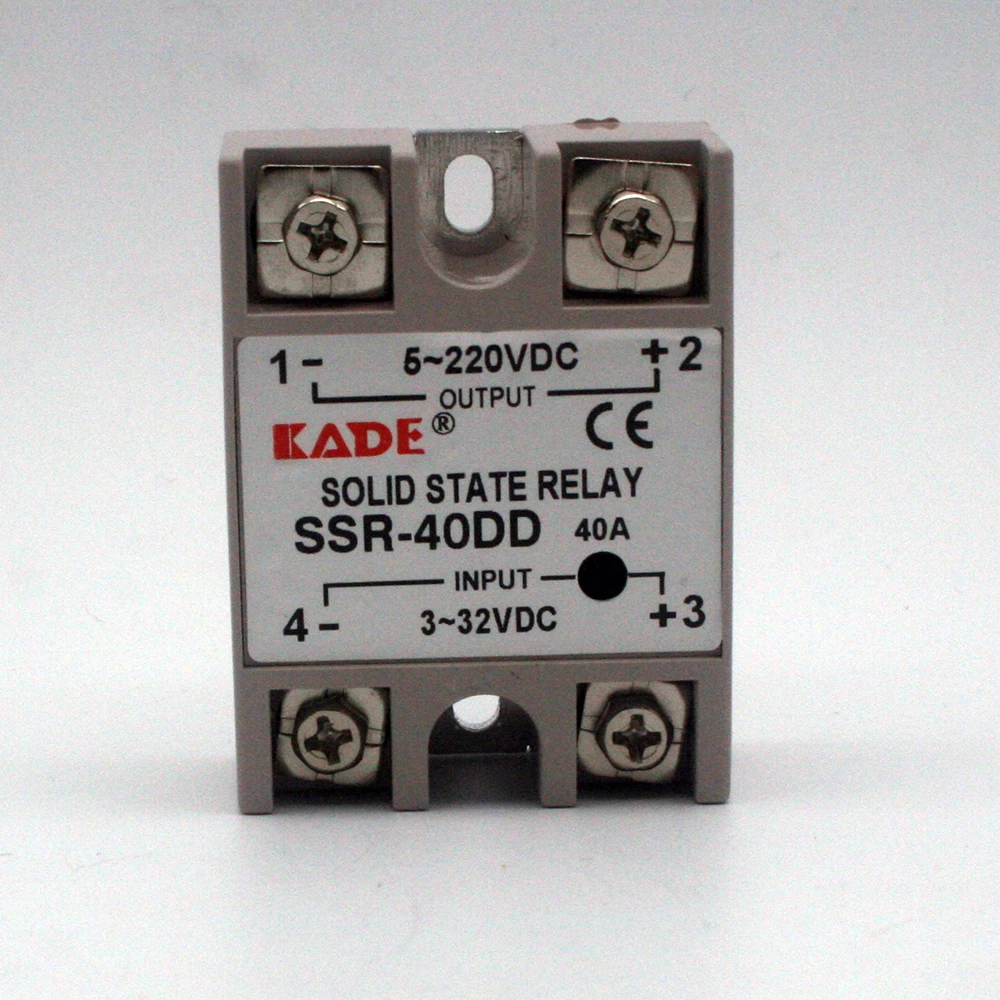

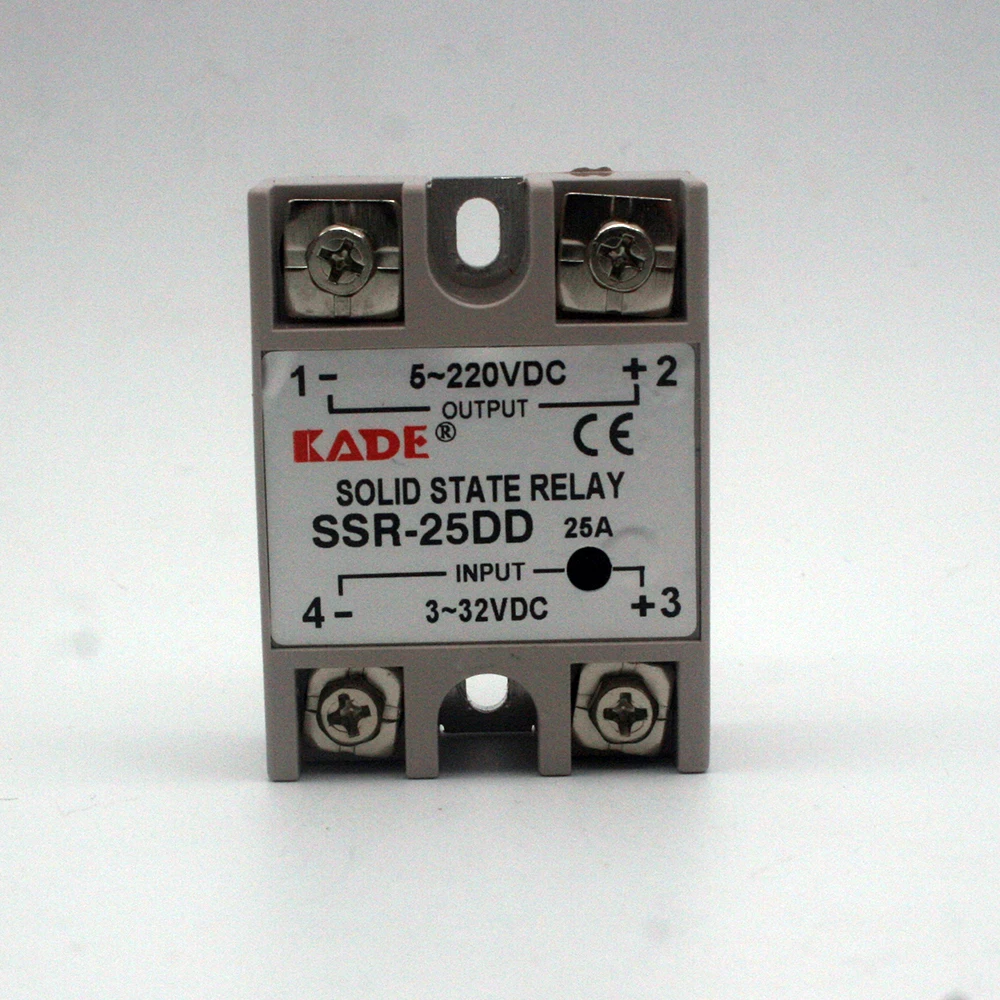

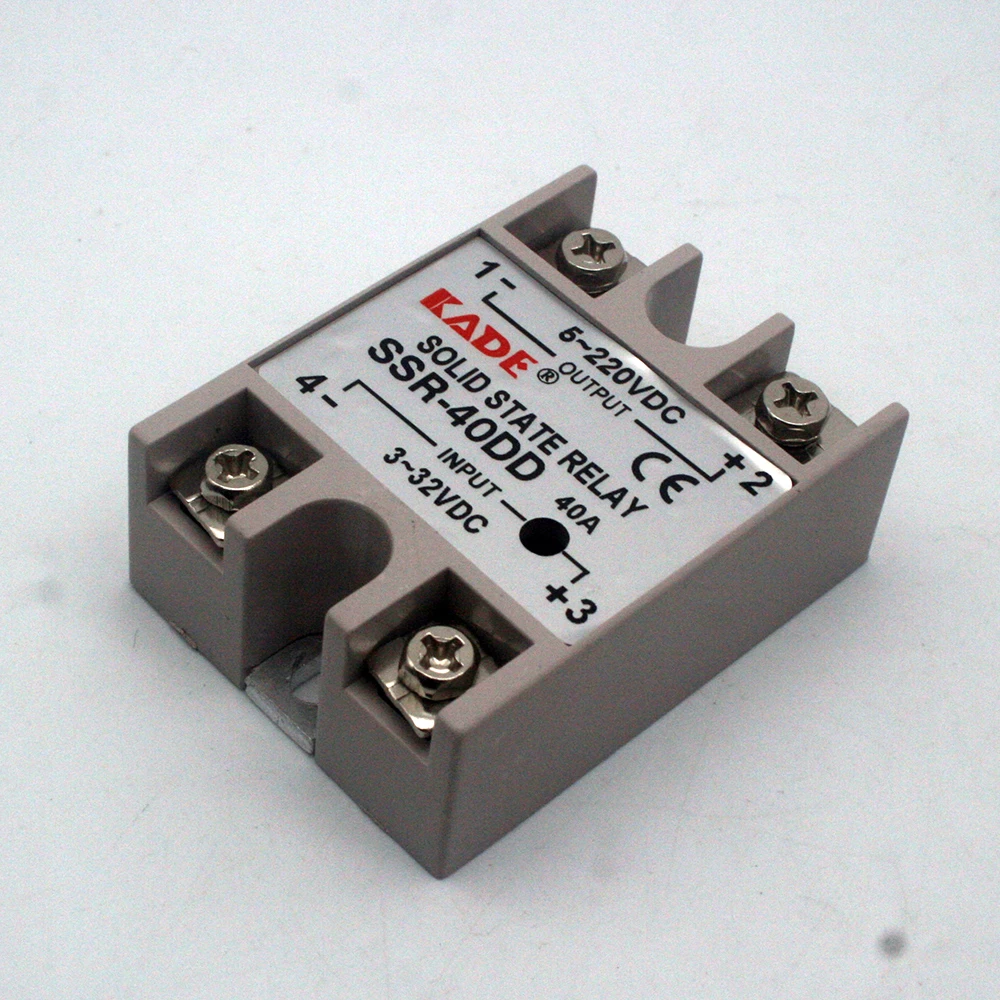

SSR -25DD/ 40DD DC Control DC SSR White Shell Single Phase Solid State Relay

Features:

Choose a correct type

Current of Equipment/Ratio = Current of SSR

PS: The Ratio depend on the kind of your loading equipment.

Resistive load: 70%, Inductive load: 20%, Capacitive load: 10%.

Resistive loads such as iodine tungsten lamp, incandescent lamp, resistance furnace, oven, electric water heater, etc

Inductive loads such as electric fan, fluorescent lamp, high pressure sodium lamp, metal halide lamp, motor, compressor, relay, AC contactor, transformer, etc

Capacitive load, such as capacitor, power compensation cabinet

Long service life and high reliability

Fast switching to reduce electromagnetic interference

High reliability and compact design, providing users with the simplest

Product parameters:

Name: single phase solid state relay

Input voltage: DC 3-32vdc

Output voltage: dc5-220vdc

Control current: 5-20ma

Opening voltage: ≤ 1V

Once: ≤ 10ms

Leakage current: ≤ 2mA

Product size: 60 * 45 * 23mm

Range: more than 10a, heat sink must be added

Package Included:

1 x
