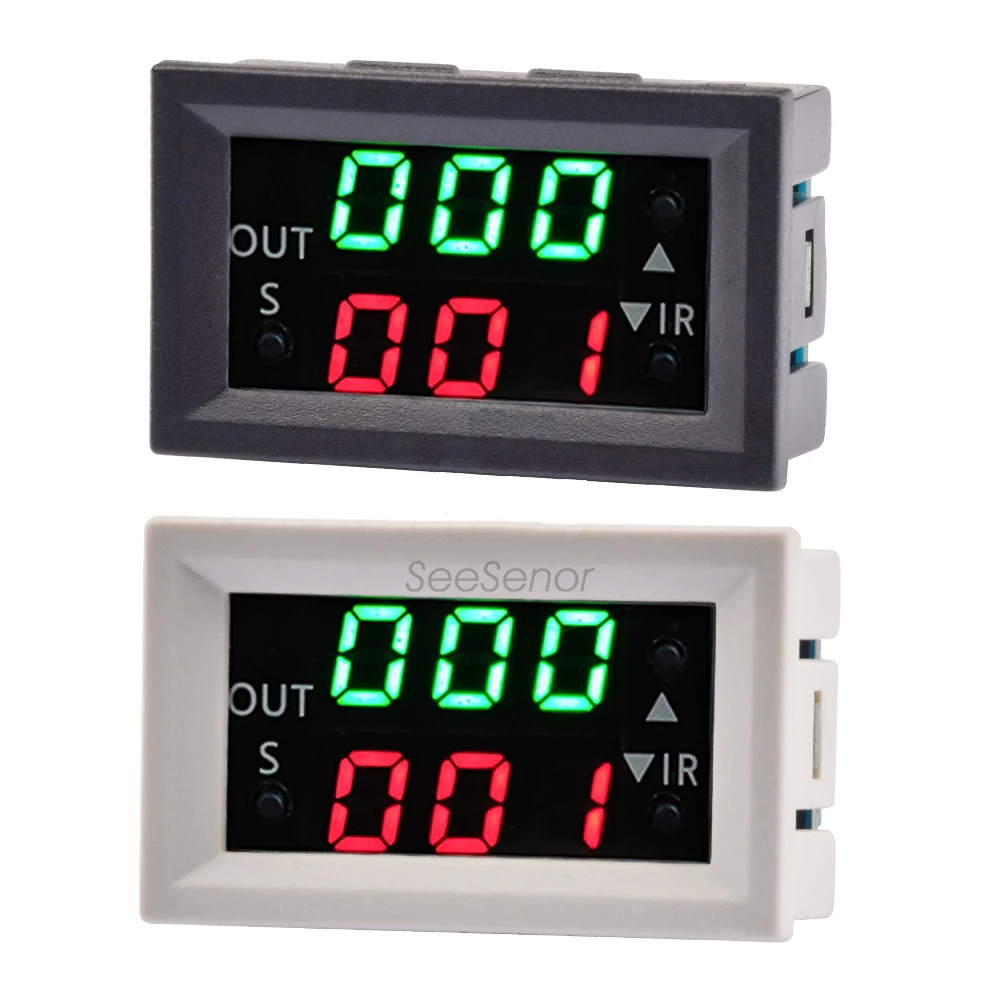

T2401-O T2401-N DC 12V Dual LED Display Time Relay Module Digital Time Delay Relay Cycle Timer Switch Control Module Active/Passive Output

T2401-N

Description:

1: Wide range of applications

2: Exquisite appearance

3: Small size

4: Simple to use

5: Passive output

Parameter:

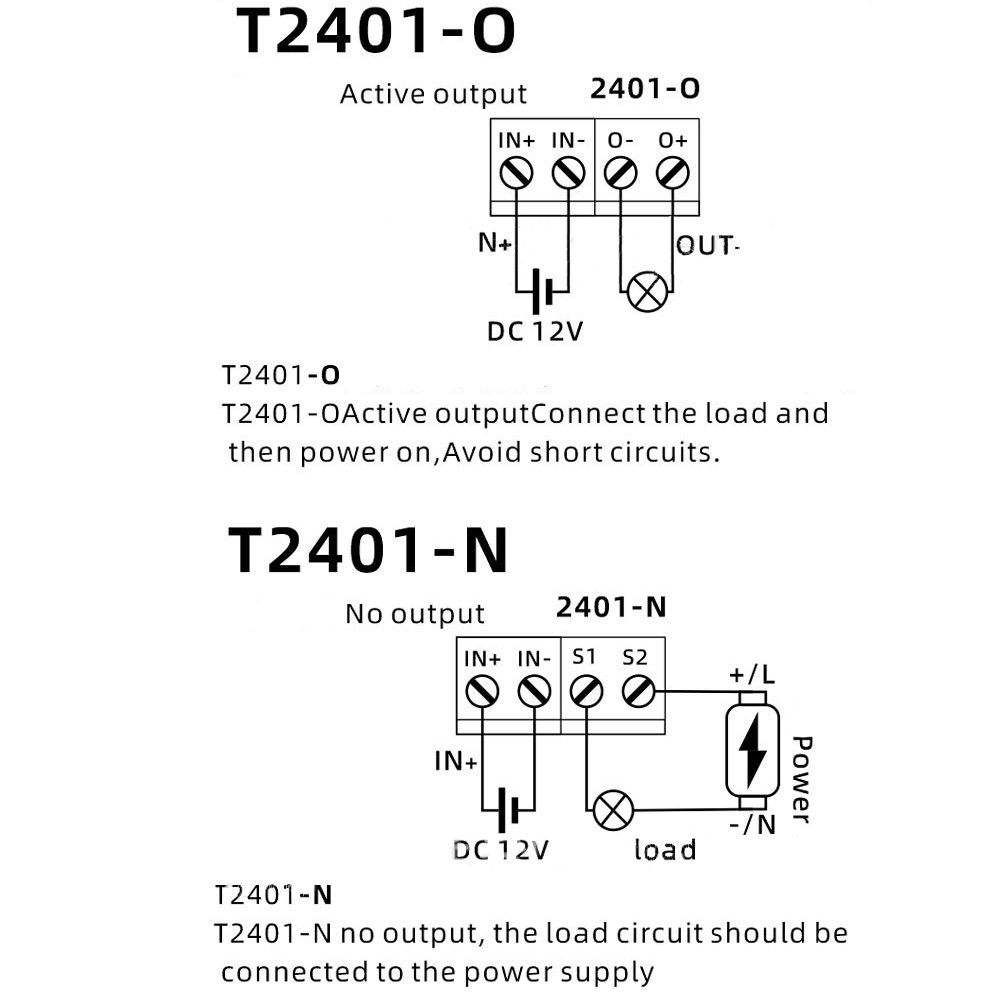

Contacts de-energized No output

Can be connected to loads other than 12V

Dimensions: 47.6x28.6x33.2mm

Embedded installation

Mounting opening: 45x26.1mm

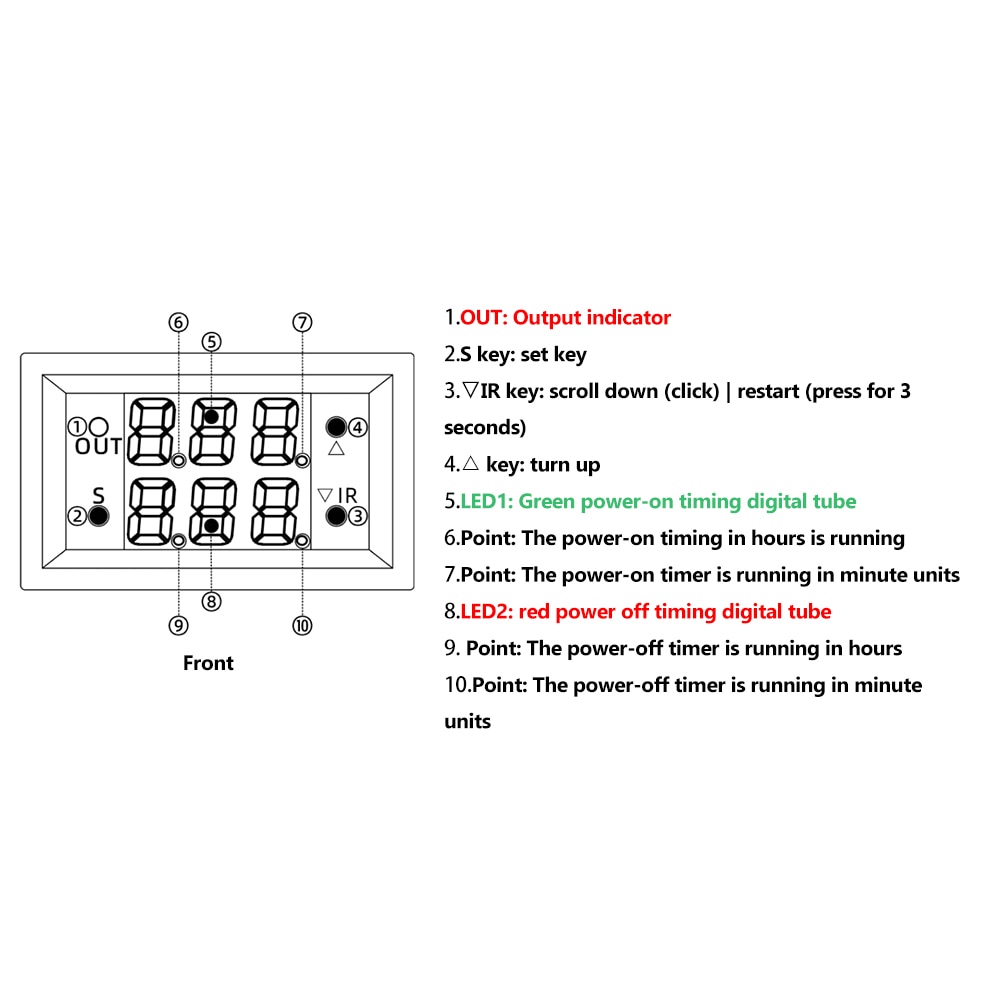

Green on and red off and the timing display starts. The stop timer unit is easy to set independently and easy to use

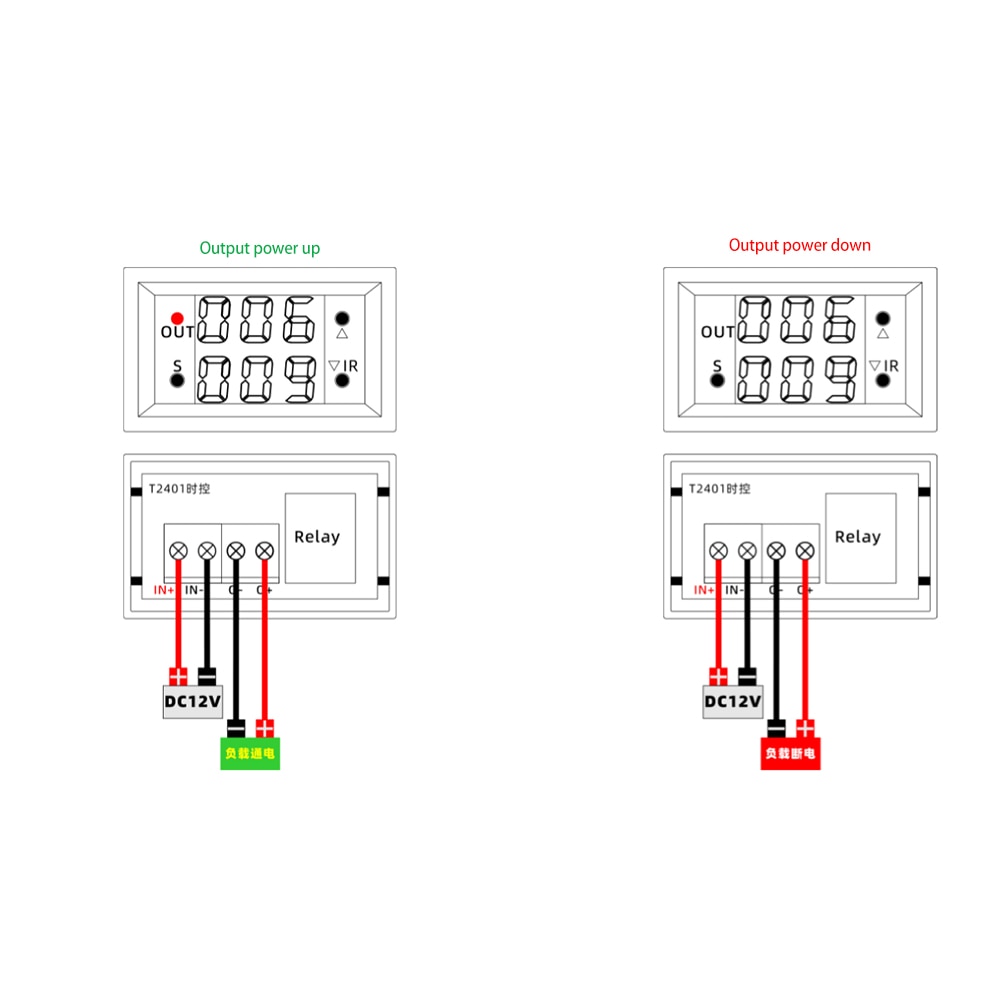

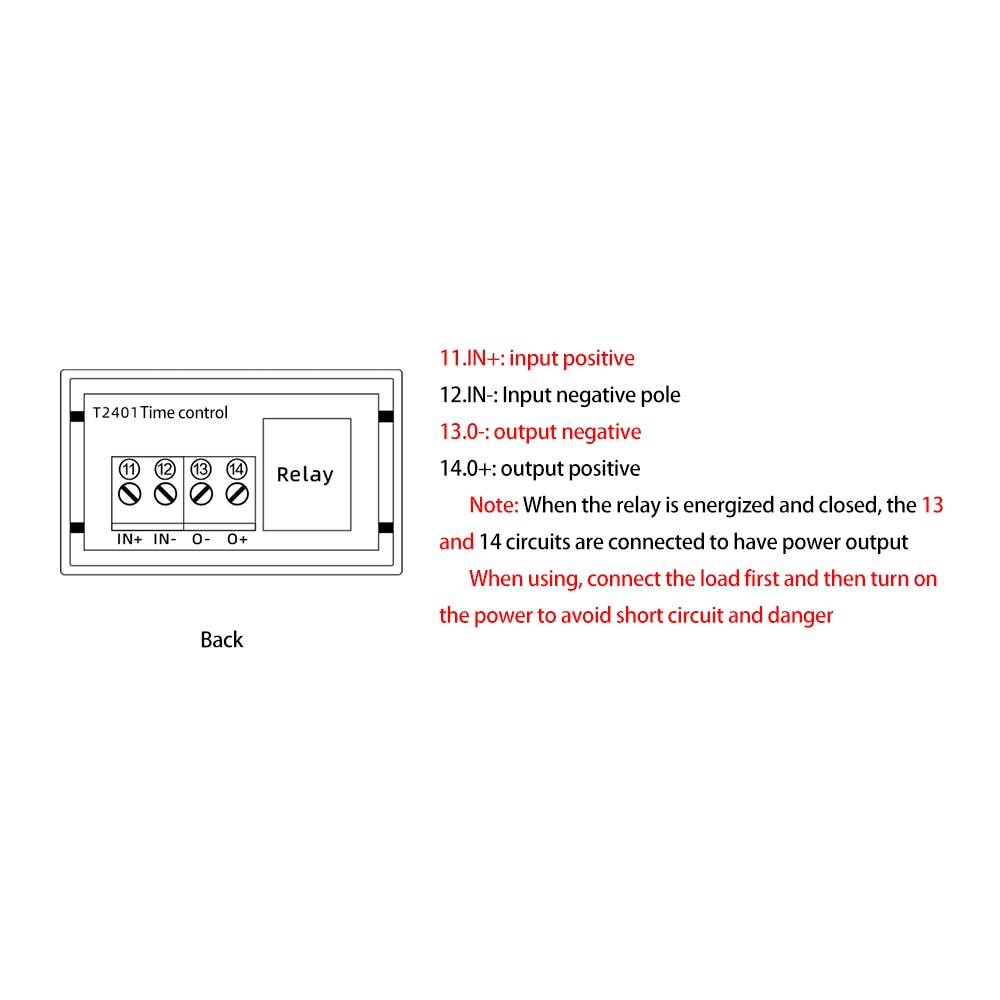

1-way normally open relay control on-off

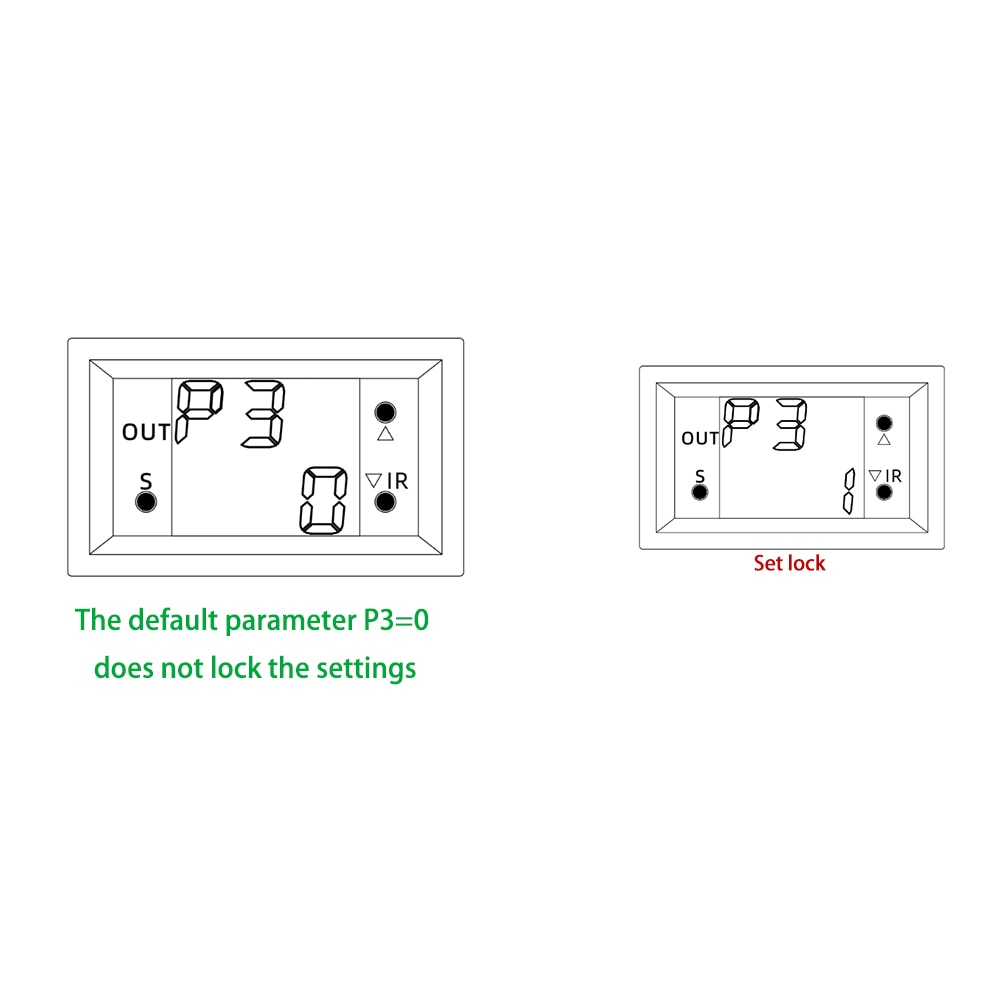

There is a setting lock to prevent accidental touch

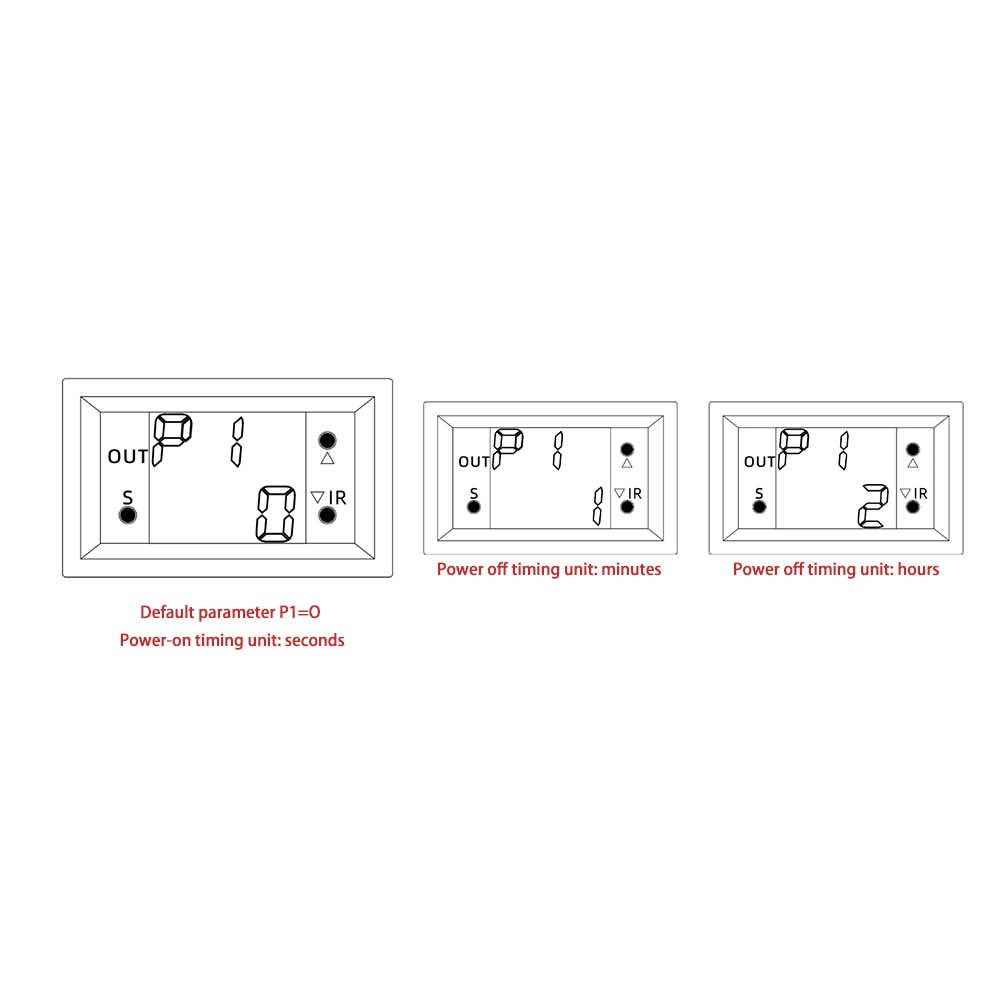

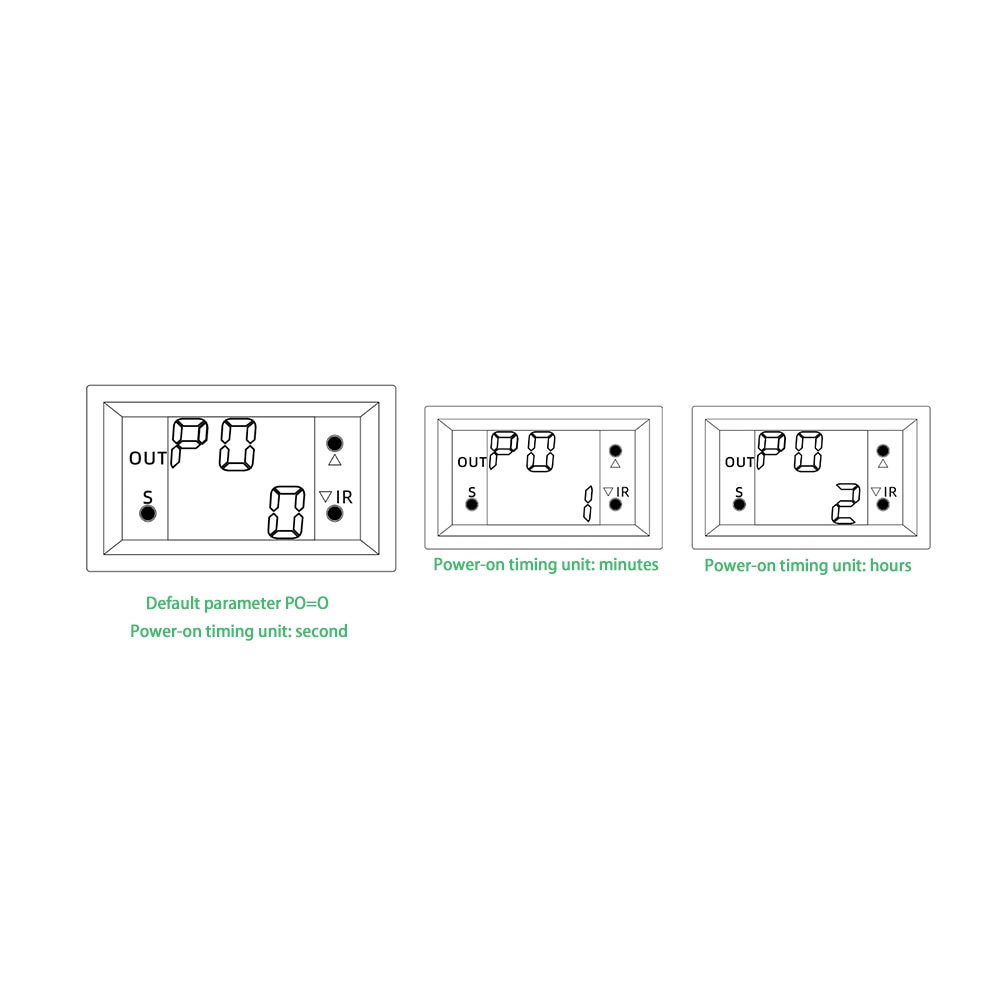

The timing range is adjustable from 0 to 999 (seconds, minutes, hours)

Minimum timing unit: 1 second

Timing error: ±4.5%

Integrated crystal oscillator

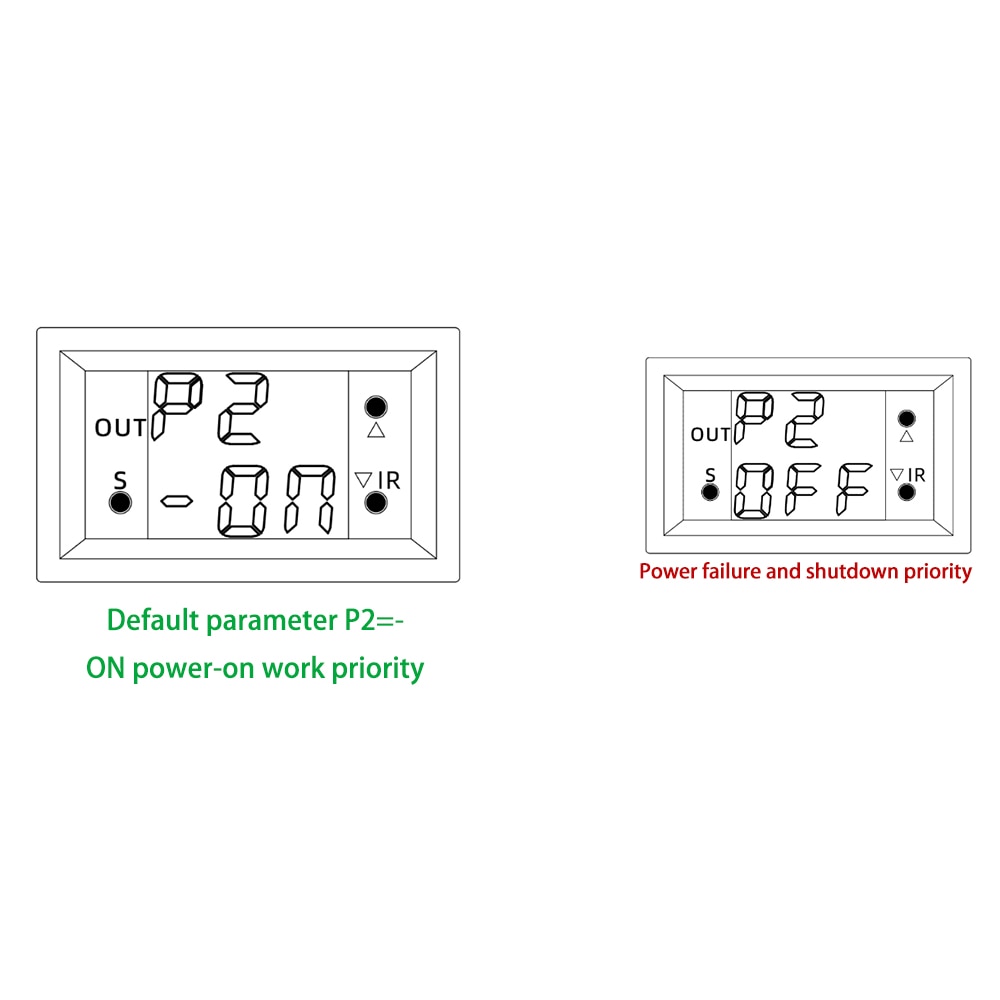

Power-on auto-run power-off save settings

Working voltage: DC12V

Load power DC12V 20A240W AC220V 1500W ( max )

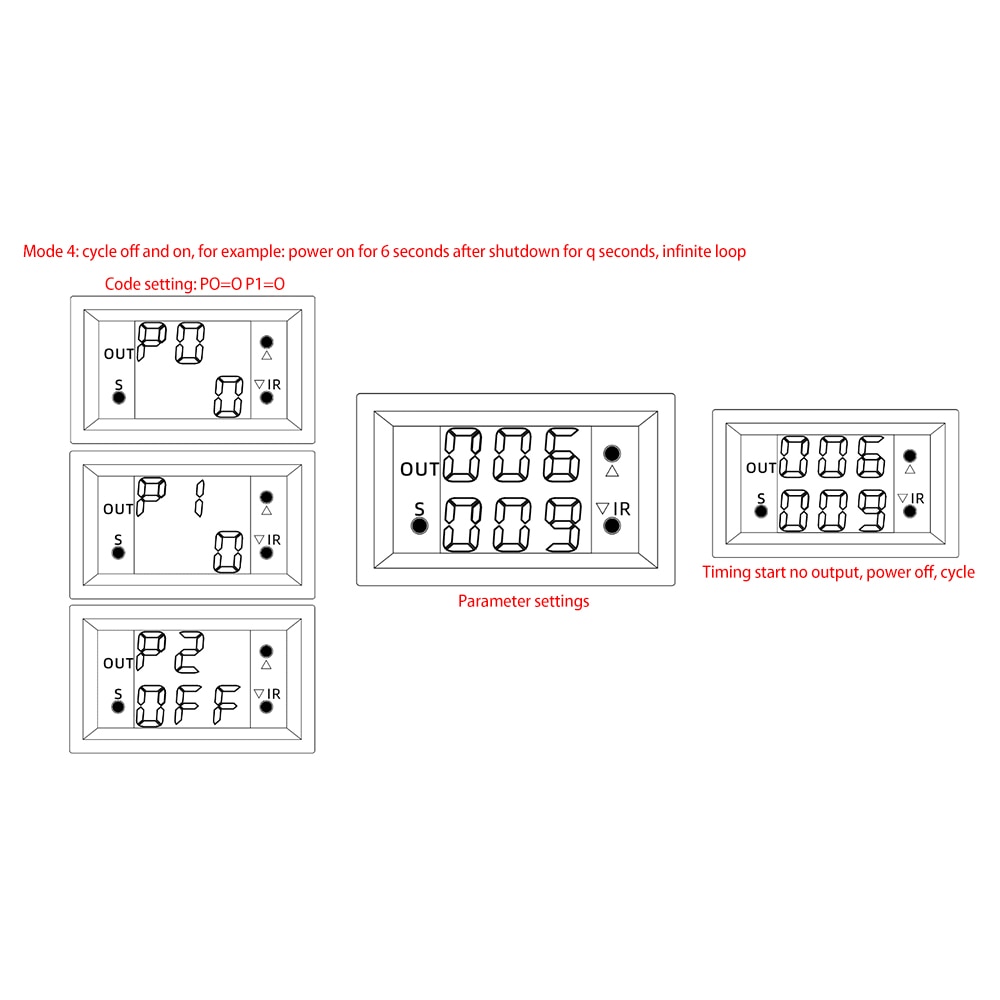

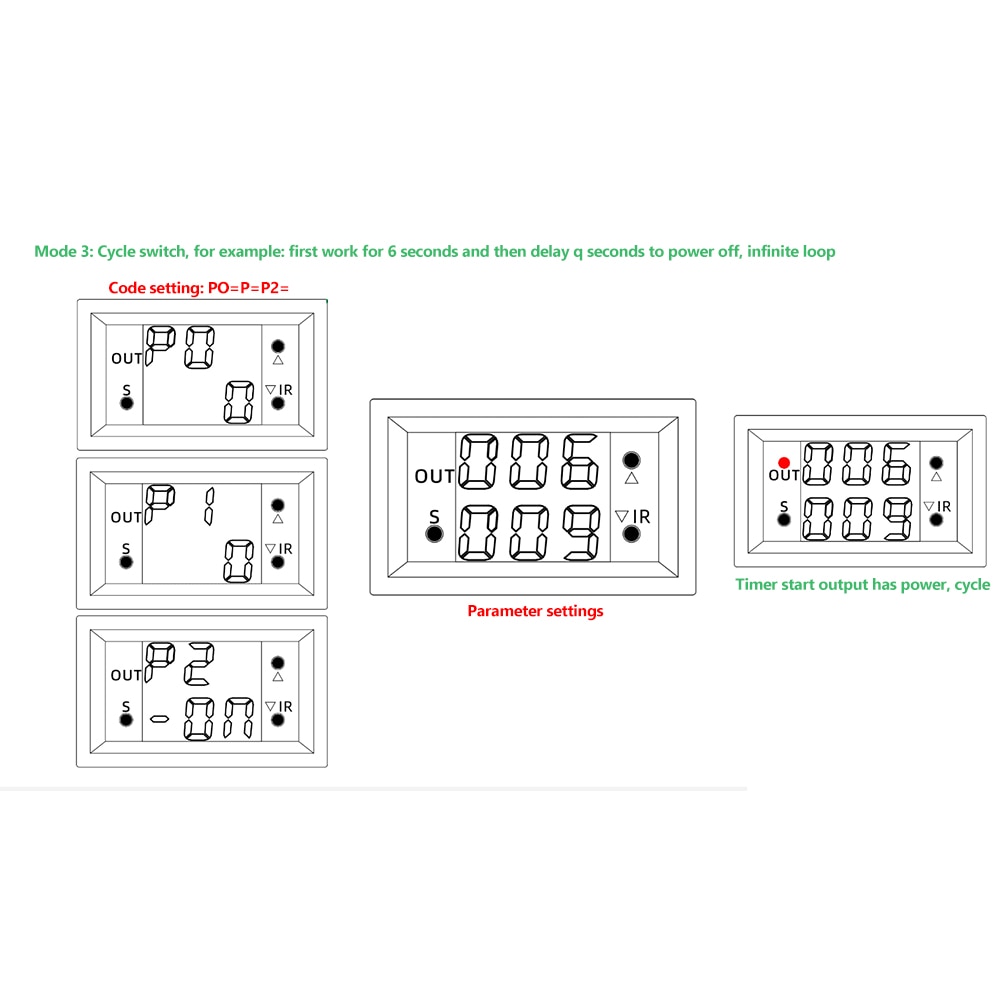

Loop switch supported

Alternate 1 switch is not supported

Package included:

1 x DC12V delay dual display digital time relay module
